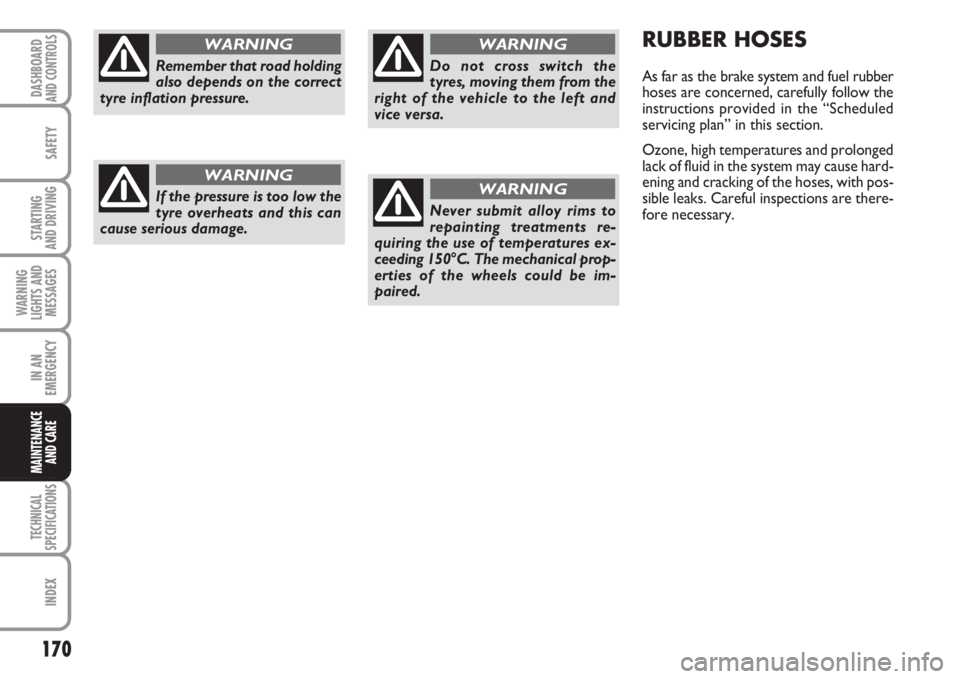

RUBBER HOSES
As far as the brake system and fuel rubber
hoses are concerned, carefully follow the
instructionsprovided in the “Scheduled
servicing plan” in this section.
Ozone, high temperatures and prolonged
lack of fluid in the system may cause hard-
ening and cracking of the hoses, with pos-
sible leaks. Careful inspections are there-
fore necessary.Remember that road holding
also depends on the correct
tyre inflation pressure.
WARNING
If the pressure is too low the
tyre overheats and this can
cause serious damage.
WARNING
Do not cross switch the
tyres, moving them from the
right of the vehicle to the left and
vice versa.
WARNING
Never submit alloy rims to
repainting treatments re-
quiring the use of temperatures ex-
ceeding 150°C. The mechanical prop-
erties of the wheels could be im-
paired.
WARNING

171
SAFETY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE

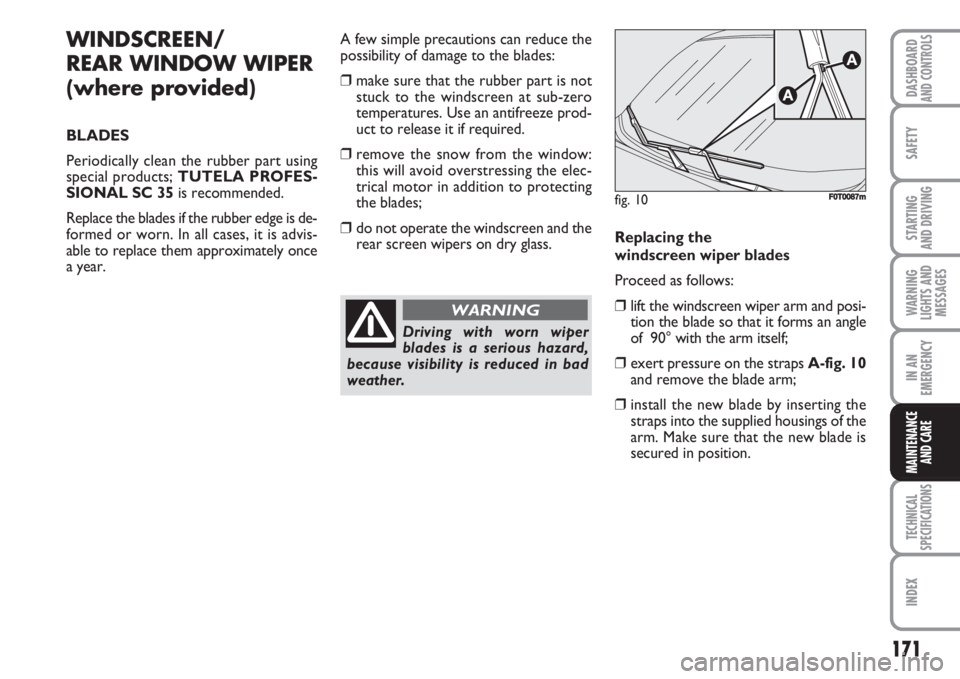

WINDSCREEN/
REAR WINDOW WIPER
(where provided)
BLADES
Periodically clean the rubber part using
special products; TUTELA PROFES-
SIONAL SC 35is recommended.
Replace the blades if the rubber edge is de-
formed or worn. In all cases, it is advis-
able to replace them approximately once
a year.
Driving with worn wiper
blades is a serious hazard,
because visibility is reduced in bad
weather.
WARNING
Replacing the
windscreen wiper blades
Proceed as follows:
❒lift the windscreen wiper arm and posi-
tion the blade so that it forms an angle
of 90° with the arm itself;
❒exert pressure on the straps A-fig. 10
and remove the blade arm;
❒install the new blade by inserting the
straps into the supplied housings of the
arm. Make sure that the new blade is
secured in position.
fig. 10
A
A
F0T0087m
A few simple precautions can reduce the
possibility of damage to the blades:
❒make sure that the rubber part is not
stuck to the windscreen at sub-zero
temperatures. Use an antifreeze prod-
uct to release it if required.
❒remove the snow from the window:
this will avoid overstressing the elec-
trical motor in addition to protecting
the blades;
❒do not operate the windscreen and the
rear screen wipers on dry glass.

172
SAFETY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE

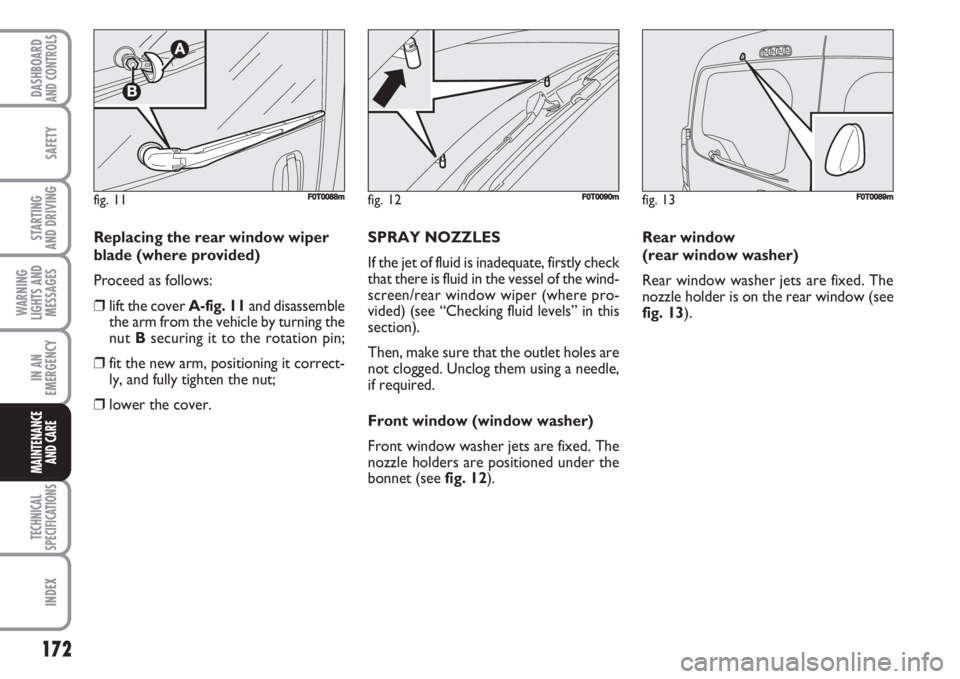

Replacing the rear window wiper
blade (where provided)
Proceed as follows:
❒lift the cover A-fig. 11and disassemble
the arm from the vehicle by turning the
nut Bsecuring it to the rotation pin;
❒fit the new arm, positioning it correct-
ly, and fully tighten the nut;
❒lower the cover.SPRAY NOZZLES
If the jet of fluid is inadequate, firstly check
that there is fluid in the vessel of the wind-
screen/rear window wiper (where pro-
vided) (see “Checking fluid levels” in this
section).
Then, make sure that the outlet holes are
not clogged. Unclog them using a needle,
if required.
Front window (window washer)
Front window washer jets are fixed. The
nozzle holders are positioned under the
bonnet (see fig. 12).Rear window
(rear window washer)
Rear window washer jets are fixed. The
nozzle holder is on the rear window (see
fig. 13).
fig. 11F0T0088mfig. 12F0T0090mfig. 13F0T0089m

173
SAFETY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE

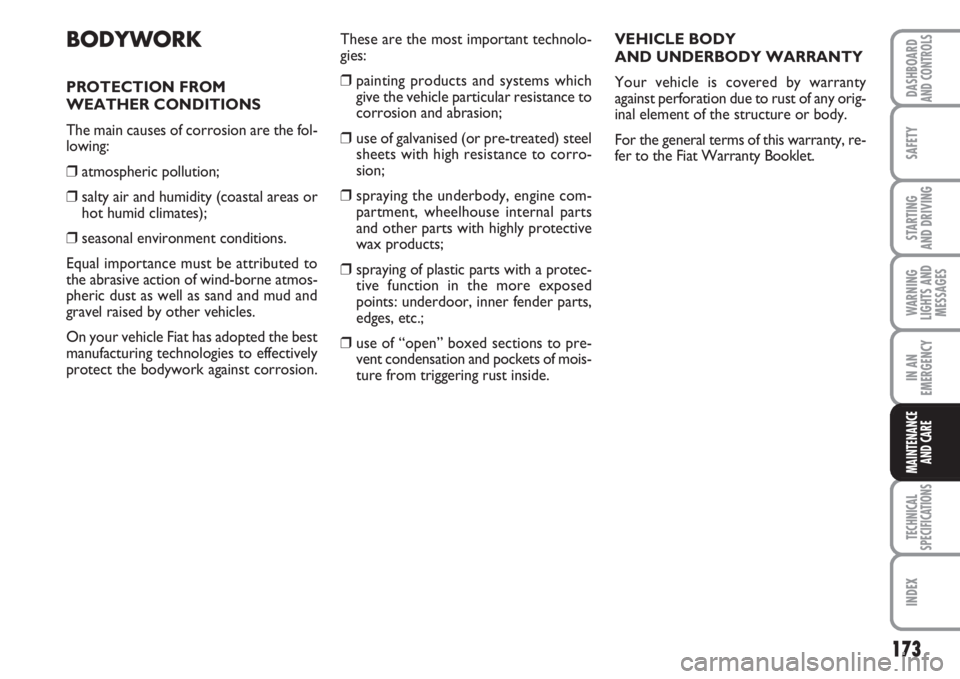

BODYWORK
PROTECTION FROM
WEATHER CONDITIONS
The main causes of corrosion are the fol-
lowing:
❒atmospheric pollution;
❒salty air and humidity (coastal areas or
hot humid climates);
❒seasonal environment conditions.
Equal importance must be attributed to
the abrasive action of wind-borne atmos-
pheric dust as well as sand and mud and
gravel raised by other vehicles.
On your vehicle Fiat has adopted the best
manufacturing technologies to effectively
protect the bodywork against corrosion.These are the most important technolo-
gies:
❒painting products and systems which
give the vehicle particular resistance to
corrosion and abrasion;
❒use of galvanised (or pre-treated) steel
sheets with high resistance to corro-
sion;
❒spraying the underbody, engine com-
partment, wheelhouse internal parts
and other parts with highly protective
wax products;
❒spraying of plastic parts with a protec-
tive function in the more exposed
points: underdoor, inner fender parts,
edges, etc.;
❒use of “open” boxed sections to pre-
vent condensation and pockets of mois-
ture from triggering rust inside.VEHICLE BODY
AND UNDERBODY WARRANTY
Your vehicle is covered by warranty
against perforation due to rust of any orig-
inal element of the structure or body.
For the general terms of this warranty, re-
fer to the Fiat Warranty Booklet.

174
SAFETY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE

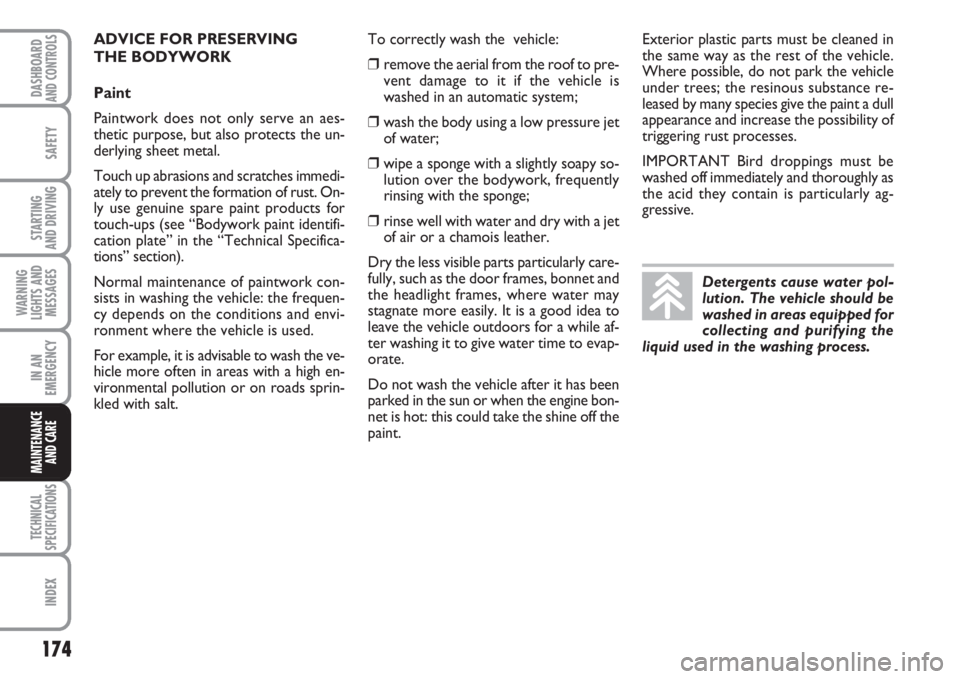

ADVICE FOR PRESERVING
THE BODYWORK
Paint
Paintwork does not only serve an aes-
thetic purpose, but also protects the un-
derlying sheet metal.
Touch up abrasions and scratches immedi-
ately to prevent the formation of rust. On-
ly use genuine spare paint products for
touch-ups (see “Bodywork paint identifi-
cation plate” in the “Technical Specifica-
tions” section).
Normal maintenance of paintwork con-
sists in washing the vehicle: the frequen-
cy depends on the conditions and envi-
ronment where the vehicle is used.
For example, it is advisable to wash the ve-
hicle more often in areas with a high en-
vironmental pollution or on roads sprin-
kled with salt.To correctly wash the vehicle:
❒remove the aerial from the roof to pre-
vent damage to it if the vehicle is
washed in an automatic system;
❒wash the body using a low pressure jet
of water;
❒wipe a sponge with a slightly soapy so-
lution over the bodywork, frequently
rinsing with the sponge;
❒rinse well with water and dry with a jet
of air or a chamois leather.
Dry the less visible parts particularly care-
fully, such as the door frames, bonnet and
the headlight frames, where water may
stagnate more easily. It is a good idea to
leave the vehicle outdoors for a while af-
ter washing it to give water time to evap-
orate.
Do not wash the vehicle after it has been
parked in the sun or when the engine bon-
net is hot: this could take the shine off the
paint.Exterior plastic parts must be cleaned in
the same way as the rest of the vehicle.
Where possible, do not park the vehicle
under trees; the resinous substance re-
leased by many species give the paint a dull
appearance and increase the possibility of
triggering rust processes.
IMPORTANT Bird droppings must be
washed off immediately and thoroughly as
the acid they contain is particularly ag-
gressive.
Detergents cause water pol-
lution. The vehicle should be
washed in areas equipped for
collecting and purifying the
liquid used in the washing process.

175
SAFETY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
Windows
Use specific window cleaner products.
Use also clean cloths to avoid scratching
the glass or damaging the transparency.
IMPORTANT Wipe the rear window in-
side gently with a cloth in the direction
of the filaments to avoid damaging the
heating device.Engine compartment
At the end of each winter, thoroughly
wash the engine compartment taking care
not to direct the water jet against the elec-
tronic control units and the relay/fuse con-
trol unit on the left side of the engine com-
partment (running direction). Have this
operation performed at a specialised
workshop.
IMPORTANT Perform this operation on
a cold engine and with the key at STOP.
After the washing operation, make sure
that the various protections (e.g. rubber
caps and guards) have not been removed
or damaged.
Front headlights
IMPORTANT Never use aromatic sub-
stances (e.g.: petrol) or ketenes (e.g.: ace-
tone) for cleaning front headlight plastic
lens.INTERIORS
Periodically check that water is not
trapped under the mats (due to water
dripping off shoes, umbrellas, etc.) which
could cause oxidisation of the sheet met-
al.
Never use flammable prod-
ucts, such as petrol, ether or
rectified petrol, to clean the vehicle
interior. The electrostatic charges
which are generated by rubbing dur-
ing cleaning operations may cause a
fire.
WARNING
Do not keep aerosol cans in
the vehicle: risk of explosion.
Aerosol cans must not be exposed to
a temperature exceeding 50°C. When
the vehicle is exposed to sunlight, in-
ner temperature can greatly exceed
this value.
WARNING

176
SAFETY
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE

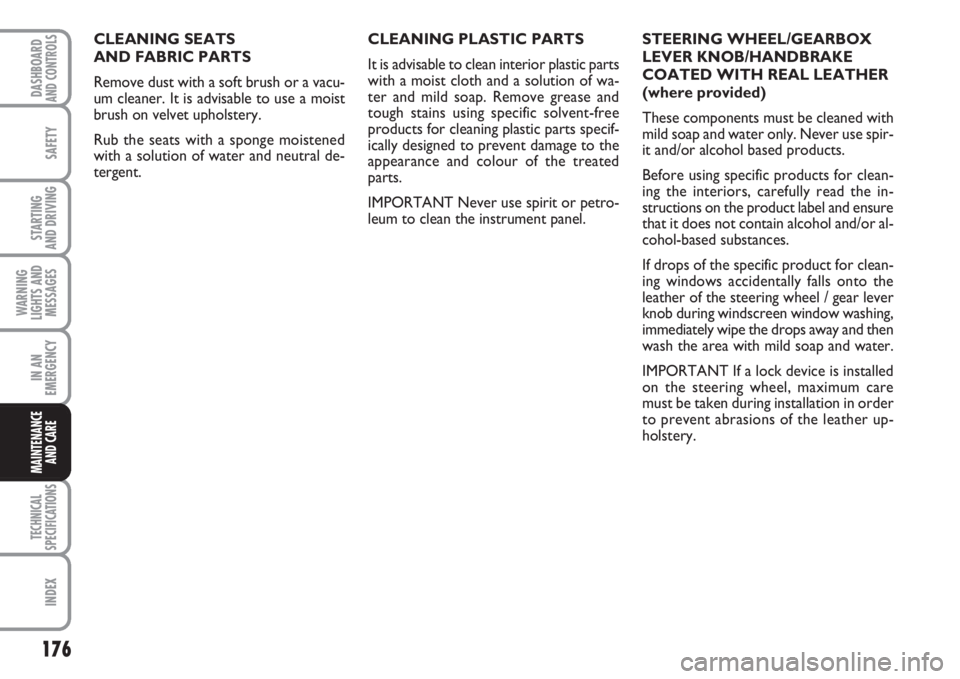

CLEANING SEATS
AND FABRIC PARTS
Remove dust with a soft brush or a vacu-
um cleaner. It is advisable to use a moist
brush on velvet upholstery.
Rub the seats with a sponge moistened
with a solution of water and neutral de-
tergent.CLEANING PLASTIC PARTS
It is advisable to clean interior plastic parts
with a moist cloth and a solution of wa-
ter and mild soap. Remove grease and
tough stains using specific solvent-free
products for cleaning plastic parts specif-
ically designed to prevent damage to the
appearance and colour of the treated
parts.
IMPORTANT Never use spirit or petro-
leum to clean the instrument panel.STEERING WHEEL/GEARBOX
LEVER KNOB/HANDBRAKE
COATED WITH REAL LEATHER
(where provided)
These components must be cleaned with
mild soap and water only. Never use spir-
it and/or alcohol based products.
Before using specific products for clean-
ing the interiors, carefully read the in-
structions on the product label and ensure
that it does not contain alcohol and/or al-
cohol-based substances.
If drops of the specific product for clean-
ing windows accidentally falls onto the
leather of the steering wheel / gear lever
knob during windscreen window washing,
immediately wipe the drops away and then
wash the area with mild soap and water.
IMPORTANT If a lock device is installed
on the steering wheel, maximum care
must be taken during installation in order
to prevent abrasions of the leather up-
holstery.

177
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
IDENTIFICATION DATA ................................................. 178
ENGINE CODES - BODYWORK VERSIONS............... 180
ENGINE .................................................................................. 181
FUEL FEED/IGNITION ....................................................... 182
TRANSMISSION .................................................................. 182
BRAKES................................................................................... 183
SUSPENSIONS ...................................................................... 183
STEERING .............................................................................. 183
WHEELS ................................................................................. 184
DIMENSIONS ....................................................................... 187
PERFORMANCE .................................................................. 189
WEIGHTS............................................................................... 190
CAPACITIES .......................................................................... 191
FLUIDS AND LUBRICANTS ............................................. 192
FUEL CONSUMPTION ...................................................... 194
CO
2EMISSIONS .................................................................. 195
RADIO FREQUENCY REMOTE CONTROL:
MINISTERIAL TYPE-APPROVALS ................................... 196
T T
E E
C C
H H
N N
I I
C C
A A
L L
S S
P P
E E
C C
I I
F F
I I
C C
A A
T T
I I
O O
N N
S S

178
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
MODEL PLATE fig. 2
This plate is applied to the back of the ve-
hicle and shows the following identifica-
tion data:
BType-approval number.
CVehicle type code.
DChassis number.
EMaximum vehicle weight fully loaded.
FMaximum vehicle weight fully loaded
with trailer.GMaximum vehicle weight on front
axle.
HMaximum vehicle weight on rear axle.
IEngine type.
LBody version code.
MSpare part code.
NSmoke opacity index (for diesel en-
gines).
IDENTIFICATION DATA
We recommend taking note of the iden-
tification codes. The identification data
stamped on the plates and their respec-
tive positions are as follows, fig. 1:
AModel plate.
BChassis marking.
CBodywork paint identification plate.
DEngine marking.
fig. 1F0T0175mfig. 2F0T0011m

179
SAFETY
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
BODYWORK PAINT
IDENTIFICATION PLATE fig. 4
This plate is applied inside the bonnet and
shows the following data:
A- Paint manufacturer.
B- Colour name.
C- Fiat colour code.
D- Re-spray and touch up code.ENGINE MARKING
Engine marking is stamped on the cylinder
block and includes the model and the
chassis number.
CHASSIS MARKING
This is stamped on the passenger com-
partment floor near the front right seat.
Access to this marking is gained by slid-
ing the door forward, A-fig. 3.
The chassis marking includes:
❒the vehicle model (ZFA 225000);
❒the chassis progressive number.
fig. 4F0T0012mfig. 3F0T0084m
