FIAT FIORINO 2007 Owner handbook (in English)

50
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

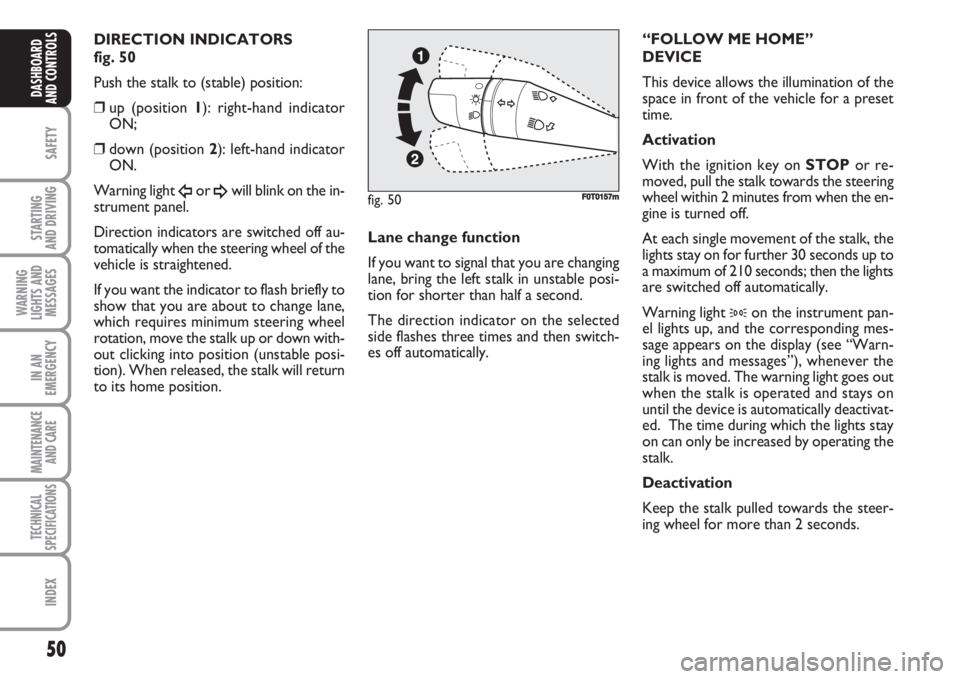

DIRECTION INDICATORS
fig. 50
Push the stalk to (stable) position:
❒up (position 1): right-hand indicator
ON;
❒down (position 2): left-hand indicator
ON.
Warning light
Îor ¥will blink on the in-
strument panel.
Direction indicators are switched off au-
tomatically when the steering wheel of the
vehicle is straightened.
If you want the indicator to flash briefly to
show that you are about to change lane,
which requires minimum steering wheel
rotation, move the stalk up or down with-
out clicking into position (unstable posi-
tion). When released, the stalk will return
to its home position.Lane change function
If you want to signal that you are changing
lane, bring the left stalk in unstable posi-
tion for shorter than half a second.
The direction indicator on the selected
side flashes three times and then switch-
es off automatically.“FOLLOW ME HOME”
DEVICE
This device allows the illumination of the
space in front of the vehicle for a preset
time.
Activation
With the ignition key on STOPor re-
moved, pull the stalk towards the steering
wheel within 2 minutes from when the en-
gine is turned off.
At each single movement of the stalk, the
lights stay on for further 30 seconds up to
a maximum of 210 seconds; then the lights
are switched off automatically.
Warning light
3on the instrument pan-
el lights up, and the corresponding mes-
sage appears on the display (see “Warn-
ing lights and messages”), whenever the
stalk is moved. The warning light goes out
when the stalk is operated and stays on
until the device is automatically deactivat-
ed. The time during which the lights stay
on can only be increased by operating the
stalk.
Deactivation
Keep the stalk pulled towards the steer-
ing wheel for more than 2 seconds.
fig. 50F0T0157m

51
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

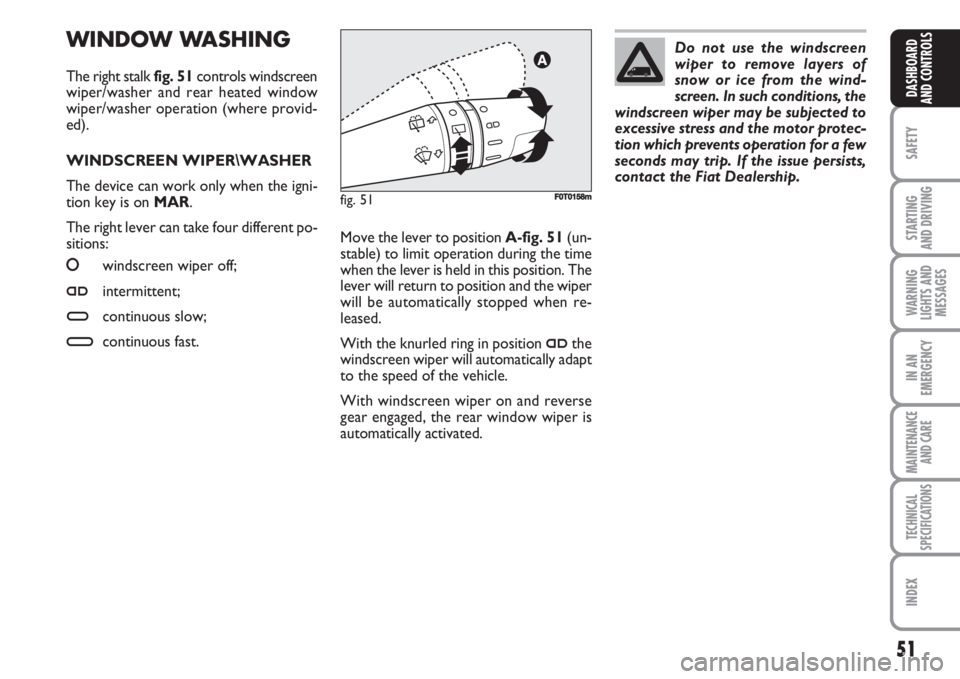

WINDOW WASHING
The right stalk fig. 51controls windscreen
wiper/washer and rear heated window
wiper/washer operation (where provid-
ed).
WINDSCREEN WIPER\WASHER
The device can work only when the igni-
tion key is on MAR.
The right lever can take four different po-
sitions:
O
O
windscreen wiper off;
≤intermittent;
≥continuous slow;
¥continuous fast.
fig. 51F0T0158m
Move the lever to position A-fig. 51(un-
stable) to limit operation during the time
when the lever is held in this position. The
lever will return to position and the wiper
will be automatically stopped when re-
leased.
With the knurled ring in position
≤the
windscreen wiper will automatically adapt
to the speed of the vehicle.
With windscreen wiper on and reverse
gear engaged, the rear window wiper is
automatically activated.Do not use the windscreen
wiper to remove layers of
snow or ice from the wind-
screen. In such conditions, the
windscreen wiper may be subjected to
excessive stress and the motor protec-
tion which prevents operation for a few
seconds may trip. If the issue persists,
contact the Fiat Dealership.

52
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

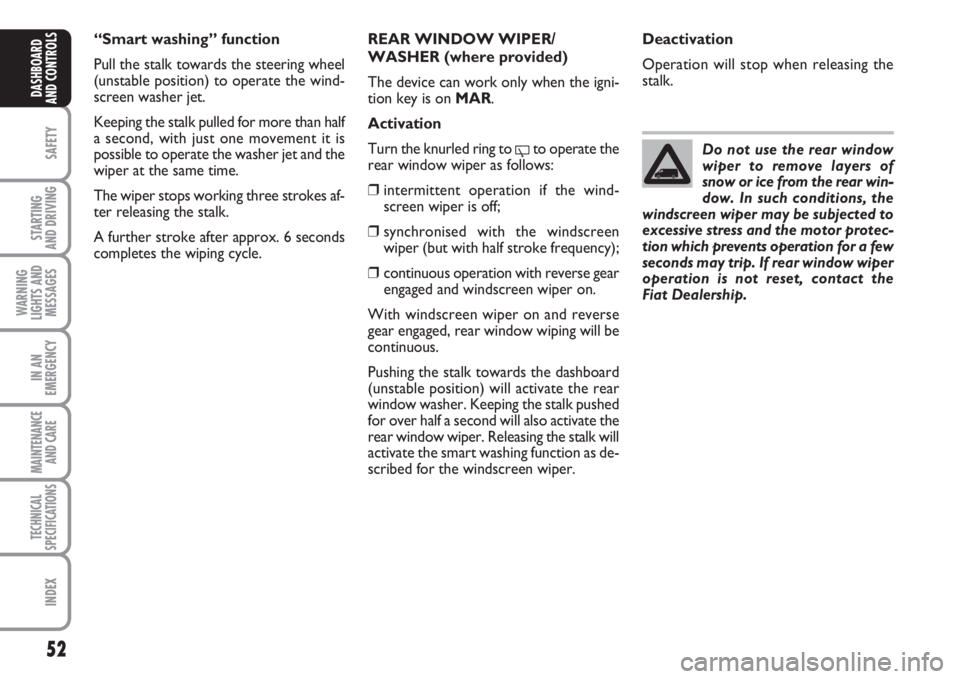

REAR WINDOW WIPER/
WASHER (where provided)
The device can work only when the igni-
tion key is on MAR.
Activation
Turn the knurled ring to
'to operate the
rear window wiper as follows:
❒intermittent operation if the wind-
screen wiper is off;
❒synchronised with the windscreen
wiper (but with half stroke frequency);
❒continuous operation with reverse gear
engaged and windscreen wiper on.
With windscreen wiper on and reverse
gear engaged, rear window wiping will be
continuous.
Pushing the stalk towards the dashboard
(unstable position) will activate the rear
window washer. Keeping the stalk pushed
for over half a second will also activate the
rear window wiper. Releasing the stalk will
activate the smart washing function as de-
scribed for the windscreen wiper.Deactivation
Operation will stop when releasing the
stalk.
Do not use the rear window
wiper to remove layers of
snow or ice from the rear win-
dow. In such conditions, the
windscreen wiper may be subjected to
excessive stress and the motor protec-
tion which prevents operation for a few
seconds may trip. If rear window wiper
operation is not reset, contact the
Fiat Dealership.
“Smart washing” function
Pull the stalk towards the steering wheel
(unstable position) to operate the wind-
screen washer jet.
Keeping the stalk pulled for more than half
a second, with just one movement it is
possible to operate the washer jet and the
wiper at the same time.
The wiper stops working three strokes af-
ter releasing the stalk.
A further stroke after approx. 6 seconds
completes the wiping cycle.

53
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

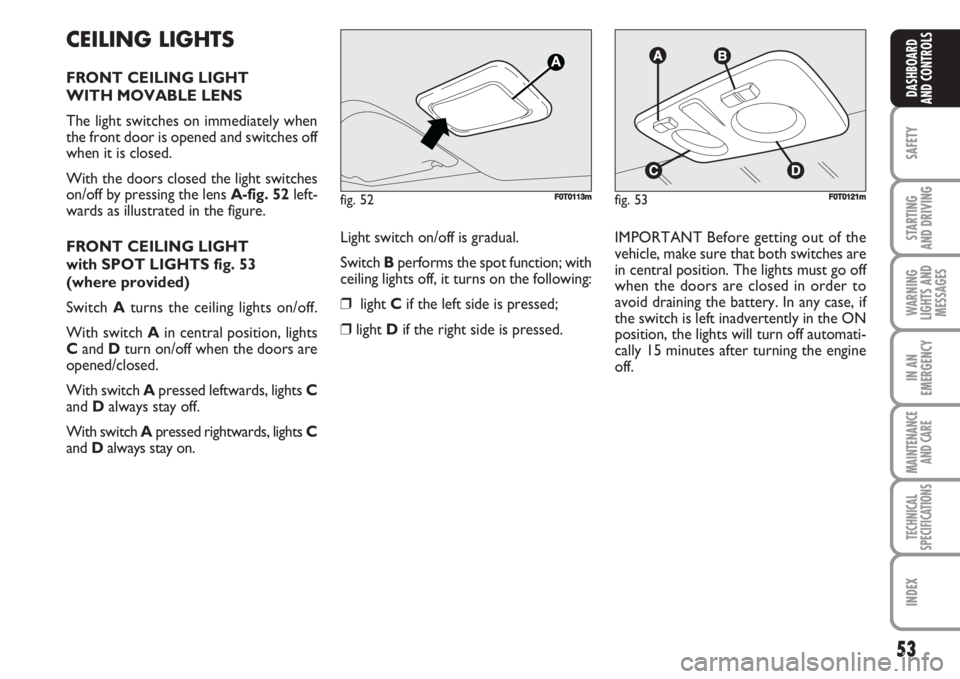

CEILING LIGHTS
FRONT CEILING LIGHT
WITH MOVABLE LENS
The light switches on immediately when
the front door is opened and switches off
when it is closed.
With the doors closed the light switches
on/off by pressing the lens A-fig. 52left-
wards as illustrated in the figure.
FRONT CEILING LIGHT
with SPOT LIGHTS fig. 53
(where provided)
Switch Aturns the ceiling lights on/off.
With switch Ain central position, lights
Cand Dturn on/off when the doors are
opened/closed.
With switch Apressed leftwards, lights C
and Dalways stay off.
With switch Apressed rightwards, lights C
and Dalways stay on.Light switch on/off is gradual.
Switch Bperforms the spot function; with
ceiling lights off, it turns on the following:
❒light Cif the left side is pressed;
❒light Dif the right side is pressed.IMPORTANT Before getting out of the
vehicle, make sure that both switches are
in central position. The lights must go off
when the doors are closed in order to
avoid draining the battery. In any case, if
the switch is left inadvertently in the ON
position, the lights will turn off automati-
cally 15 minutes after turning the engine
off.
fig. 52F0T0113mfig. 53F0T0121m

54
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

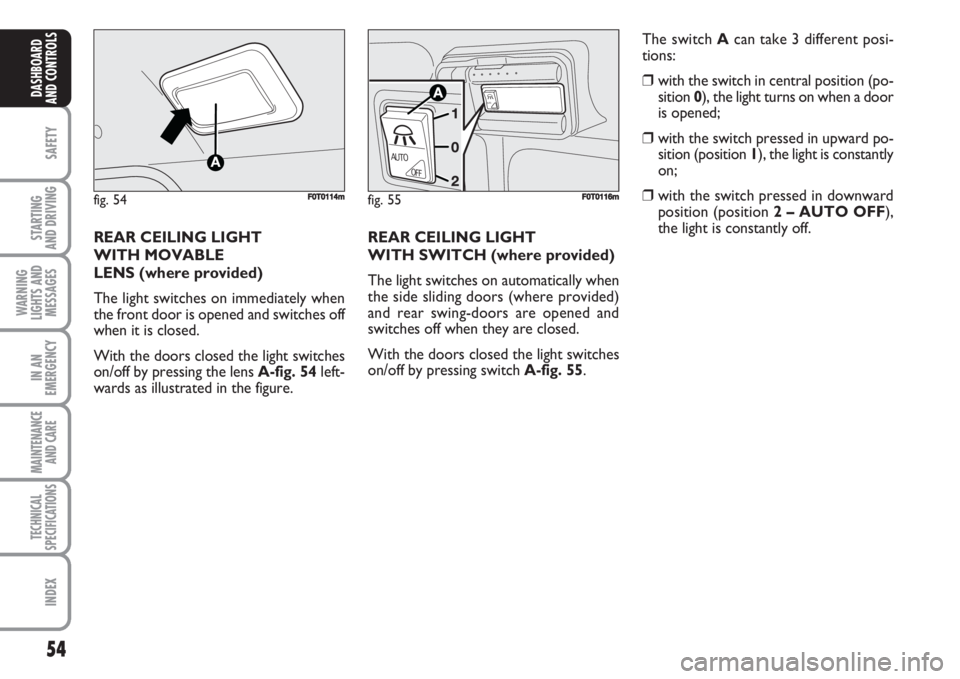

REAR CEILING LIGHT
WITH SWITCH (where provided)
The light switches on automatically when
the side sliding doors (where provided)
and rear swing-doors are opened and
switches off when they are closed.
With the doors closed the light switches
on/off by pressing switch A-fig. 55.The switch Acan take 3 different posi-
tions:
❒with the switch in central position (po-
sition 0), the light turns on when a door
is opened;
❒with the switch pressed in upward po-
sition (position 1), the light is constantly
on;
❒with the switch pressed in downward
position (position 2 – AUTO OFF),
the light is constantly off.
fig. 55
AUTO
AUTOO
F
F
F0T0116m
REAR CEILING LIGHT
WITH MOVABLE
LENS (where provided)
The light switches on immediately when
the front door is opened and switches off
when it is closed.
With the doors closed the light switches
on/off by pressing the lens A-fig. 54left-
wards as illustrated in the figure.
fig. 54F0T0114m

55
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

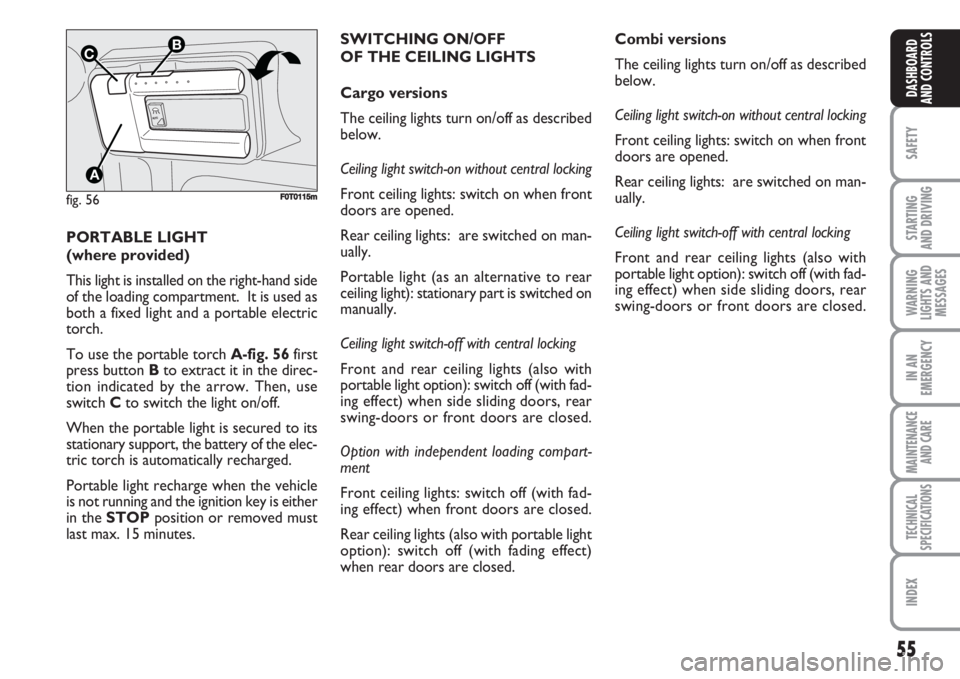

PORTABLE LIGHT
(where provided)
This light is installed on the right-hand side
of the loading compartment. It is used as
both a fixed light and a portable electric
torch.
To use the portable torch A-fig. 56first
press button Bto extract it in the direc-
tion indicated by the arrow. Then, use
switch Cto switch the light on/off.
When the portable light is secured to its
stationary support, the battery of the elec-
tric torch is automatically recharged.
Portable light recharge when the vehicle
is not running and the ignition key is either
in the STOPposition or removed must
last max. 15 minutes.
fig. 56
AUTO
B
A
C
F0T0115m
SWITCHING ON/OFF
OF THE CEILING LIGHTS
Cargo versions
The ceiling lights turn on/off as described
below.
Ceiling light switch-on without central locking
Front ceiling lights: switch on when front
doors are opened.
Rear ceiling lights: are switched on man-
ually.
Portable light (as an alternative to rear
ceiling light): stationary part is switched on
manually.
Ceiling light switch-off with central locking
Front and rear ceiling lights (also with
portable light option): switch off (with fad-
ing effect) when side sliding doors, rear
swing-doors or front doors are closed.
Option with independent loading compart-
ment
Front ceiling lights: switch off (with fad-
ing effect) when front doors are closed.
Rear ceiling lights (also with portable light
option): switch off (with fading effect)
when rear doors are closed.Combi versions
The ceiling lights turn on/off as described
below.
Ceiling light switch-on without central locking
Front ceiling lights: switch on when front
doors are opened.
Rear ceiling lights: are switched on man-
ually.
Ceiling light switch-off with central locking
Front and rear ceiling lights (also with
portable light option): switch off (with fad-
ing effect) when side sliding doors, rear
swing-doors or front doors are closed.

56
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

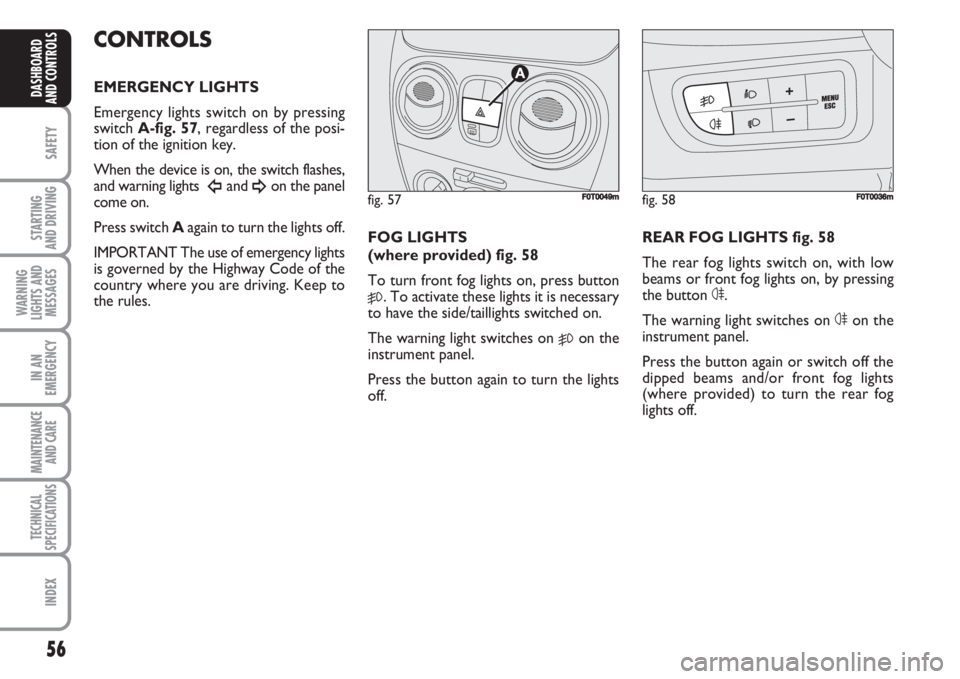

CONTROLS
EMERGENCY LIGHTS
Emergency lights switch on by pressing
switch A-fig. 57, regardless of the posi-
tion of the ignition key.
When the device is on, the switch flashes,
and warning lights
Îand ¥on the panel
come on.
Press switch Aagain to turn the lights off.
IMPORTANT The use of emergency lights
is governed by the Highway Code of the
country where you are driving. Keep to
the rules.FOG LIGHTS
(where provided) fig. 58
To turn front fog lights on, press button
5. To activate these lights it is necessary
to have the side/taillights switched on.
The warning light switches on
5on the
instrument panel.
Press the button again to turn the lights
off.REAR FOG LIGHTS fig. 58
The rear fog lights switch on, with low
beams or front fog lights on, by pressing
the button 4.
The warning light switches on 4on the
instrument panel.
Press the button again or switch off the
dipped beams and/or front fog lights
(where provided) to turn the rear fog
lights off.fig. 57
A
F0T0049mfig. 58F0T0036m

57
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
FUEL CUT-OFF SYSTEM
This system triggers after a collision and
activates the following:
❒switch off of fuel supply with conse-
quent engine switch off;
❒automatic door unlocking;
❒switch on of all lights inside the vehicle.
When the system is triggered, the mes-
sage “Fuel cut-off tripped - see handbook”
is displayed on some versions.
Carefully check the vehicle for fuel leaks,
for instance in the engine compartment
below the vehicle or near the fuel tank
area.
After the collision, position ignition key on
STOPto avoid battery draining.To reset vehicle operation, follow this
procedure:
❒turn the ignition key to MAR;
❒activate the right-hand indicator;
❒deactivate the right-hand indicator;
❒activate the left-hand indicator;
❒deactivate the left-hand indicator;
❒activate the right-hand indicator;
❒deactivate the right-hand indicator;
❒activate the left-hand indicator;
❒deactivate the left-hand indicator;
❒turn the ignition key to STOP.
If, after a crash, you smell fu-
el or notice leaks from the
fuel system, do not reset the system
to avoid fire risk.
WARNING

58
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

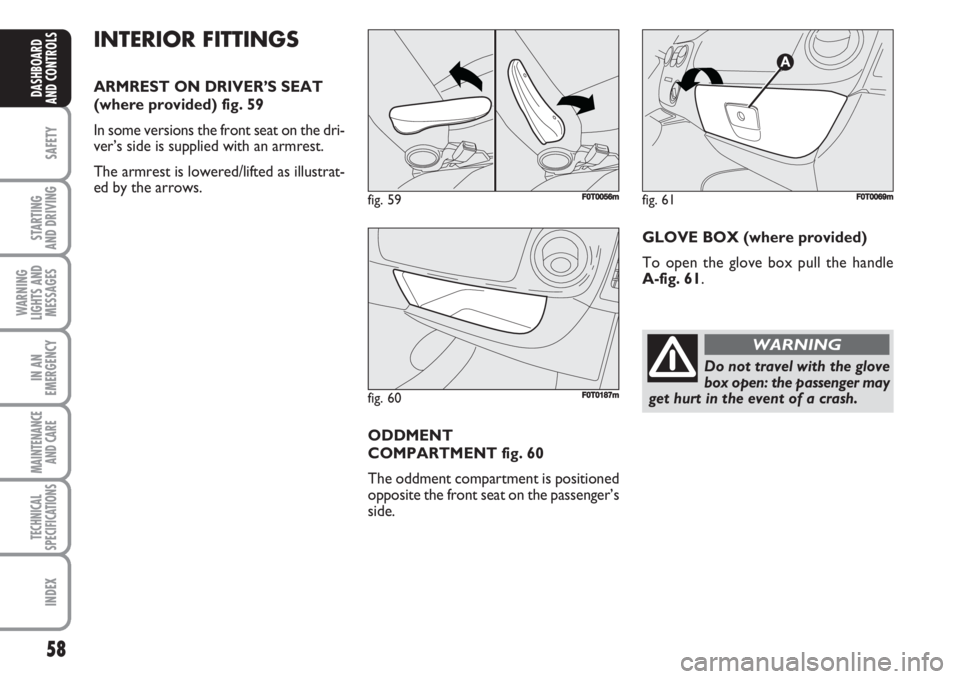

INTERIOR FITTINGS
ARMREST ON DRIVER’S SEAT
(where provided) fig. 59
In some versions the front seat on the dri-
ver’s side is supplied with an armrest.
The armrest is lowered/lifted as illustrat-
ed by the arrows.
ODDMENT
COMPARTMENT fig. 60
The oddment compartment is positioned
opposite the front seat on the passenger’s
side.GLOVE BOX (where provided)
To open the glove box pull the handle
A-fig. 61.
fig. 59F0T0056m
fig. 60F0T0187m
fig. 61F0T0069m
Do not travel with the glove
box open: the passenger may
get hurt in the event of a crash.
WARNING

59
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

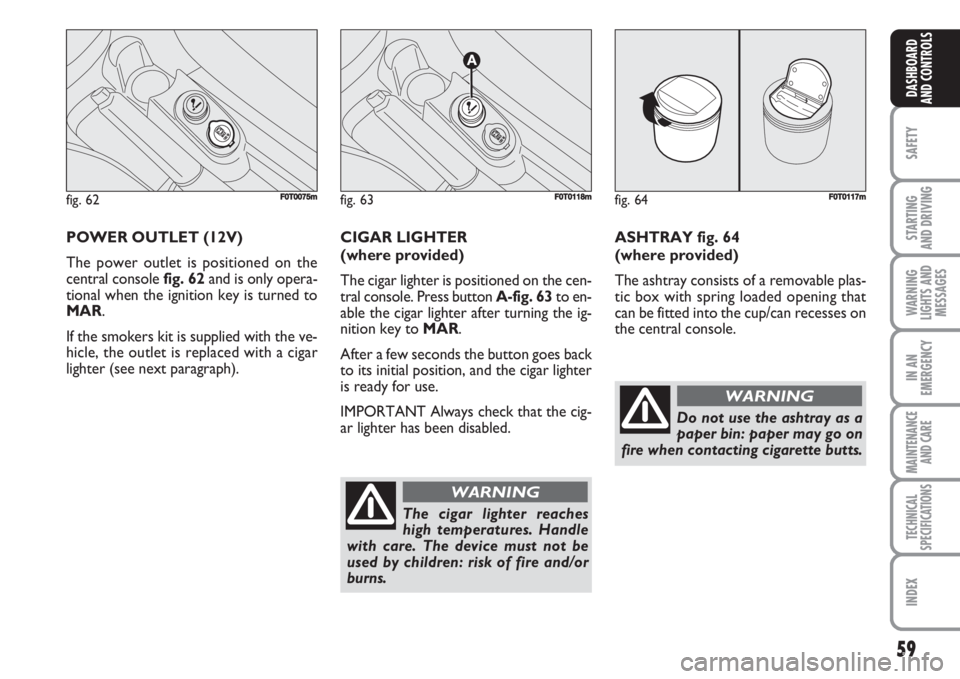

POWER OUTLET (12V)
The power outlet is positioned on the
central console fig. 62and is only opera-
tional when the ignition key is turned to
MAR.
If the smokers kit is supplied with the ve-
hicle, the outlet is replaced with a cigar
lighter (see next paragraph).CIGAR LIGHTER
(where provided)
The cigar lighter is positioned on the cen-
tral console. Press button A-fig. 63to en-
able the cigar lighter after turning the ig-
nition key to MAR.
After a few seconds the button goes back
to its initial position, and the cigar lighter
is ready for use.
IMPORTANT Always check that the cig-
ar lighter has been disabled.
fig. 62F0T0075mfig. 63
A
F0T0118m
The cigar lighter reaches
high temperatures. Handle
with care. The device must not be
used by children: risk of fire and/or
burns.
WARNING
fig. 64F0T0117m
ASHTRAY fig. 64
(where provided)
The ashtray consists of a removable plas-
tic box with spring loaded opening that
can be fitted into the cup/can recesses on
the central console.
Do not use the ashtray as a
paper bin: paper may go on
fire when contacting cigarette butts.
WARNING
