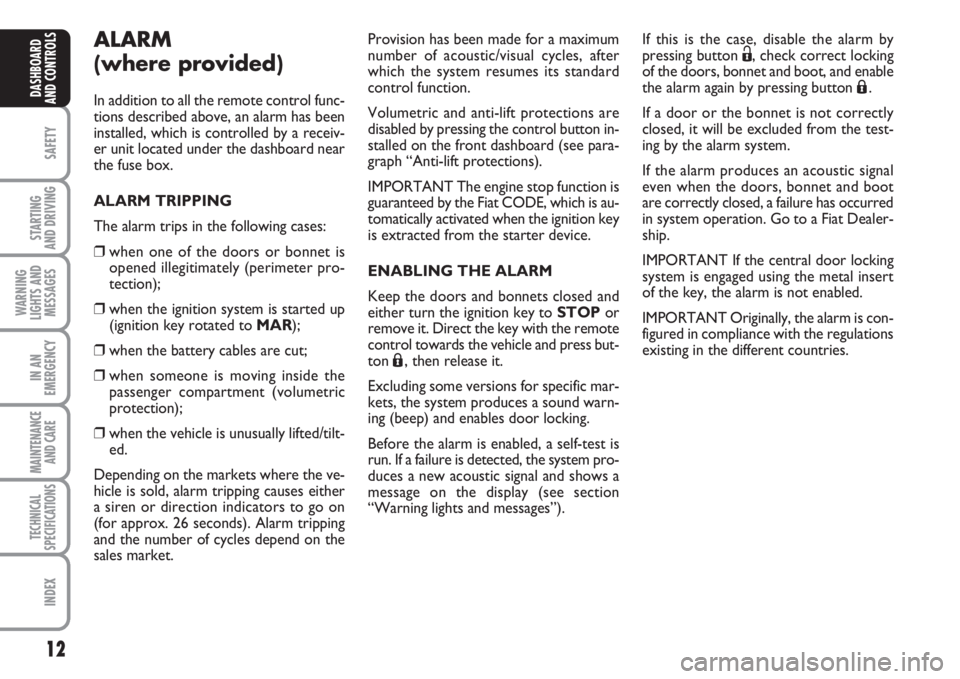

ALARM
(where provided)
In addition to all the remote control func-
tions described above, an alarm has been
installed, which is controlled by a receiv-
er unit located under the dashboard near
the fuse box.
ALARM TRIPPING
The alarm trips in the following cases:
❒when one of the doors or bonnet is
opened illegitimately (perimeter pro-
tection);
❒when the ignition system is started up
(ignition key rotated to MAR);
❒when the battery cables are cut;
❒when someone is moving inside the
passenger compartment (volumetric
protection);
❒when the vehicle is unusually lifted/tilt-
ed.
Depending on the markets where the ve-
hicle is sold, alarm tripping causes either
a siren or direction indicators to go on
(for approx. 26 seconds). Alarm tripping
and the number of cycles depend on the
sales market.Provision has been made for a maximum
number of acoustic/visual cycles, after
which the system resumes its standard
control function.
Volumetric and anti-lift protections are
disabled by pressing the control button in-
stalled on the front dashboard (see para-
graph “Anti-lift protections).
IMPORTANT The engine stop function is
guaranteed by the Fiat CODE, which is au-
tomatically activated when the ignition key
is extracted from the starter device.
ENABLING THE ALARM
Keep the doors and bonnets closed and
either turn the ignition key to STOPor
remove it. Direct the key with the remote
control towards the vehicle and press but-
ton
Á, then release it.
Excluding some versions for specific mar-
kets, the system produces a sound warn-
ing (beep) and enables door locking.
Before the alarm is enabled, a self-test is
run. If a failure is detected, the system pro-
duces a new acoustic signal and shows a
message on the display (see section
“Warning lights and messages”). If this is the case, disable the alarm by
pressing button Ë, check correct locking
of the doors, bonnet and boot, and enable
the alarm again by pressing button
Á.
If a door or the bonnet is not correctly
closed, it will be excluded from the test-
ing by the alarm system.
If the alarm produces an acoustic signal
even when the doors, bonnet and boot
are correctly closed, a failure has occurred
in system operation. Go to a Fiat Dealer-
ship.
IMPORTANT If the central door locking
system is engaged using the metal insert
of the key, the alarm is not enabled.
IMPORTANT Originally, the alarm is con-
figured in compliance with the regulations
existing in the different countries.

16
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

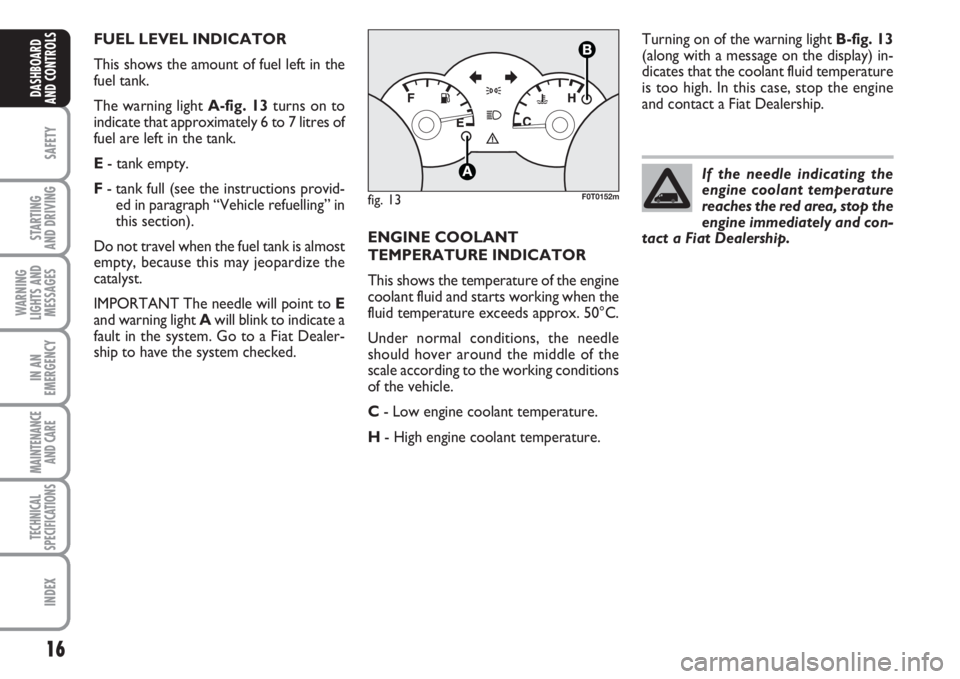

FUEL LEVEL INDICATOR
This shows the amount of fuel left in the
fuel tank.
The warning light A-fig. 13turns on to
indicate that approximately 6 to 7 litres of
fuel are left in the tank.
E- tank empty.
F- tank full (see the instructions provid-
ed in paragraph “Vehicle refuelling” in
this section).
Do not travel when the fuel tank is almost
empty, because this may jeopardize the
catalyst.
IMPORTANT The needle will point to E
and warning light Awill blink to indicate a
fault in the system. Go to a Fiat Dealer-
ship to have the system checked.ENGINE COOLANT
TEMPERATURE INDICATOR
This shows the temperature of the engine
coolant fluid and starts working when the
fluid temperature exceeds approx. 50°C.
Under normal conditions, the needle
should hover around the middle of the
scale according to the working conditions
of the vehicle.
C- Low engine coolant temperature.
H- High engine coolant temperature.Turning on of the warning light B-fig. 13
(along with a message on the display) in-
dicates that the coolant fluid temperature
is too high. In this case, stop the engine
and contact a Fiat Dealership.
fig. 13F0T0152m
If the needle indicating the
engine coolant temperature
reaches the red area, stop the
engine immediately and con-
tact a Fiat Dealership.

57
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

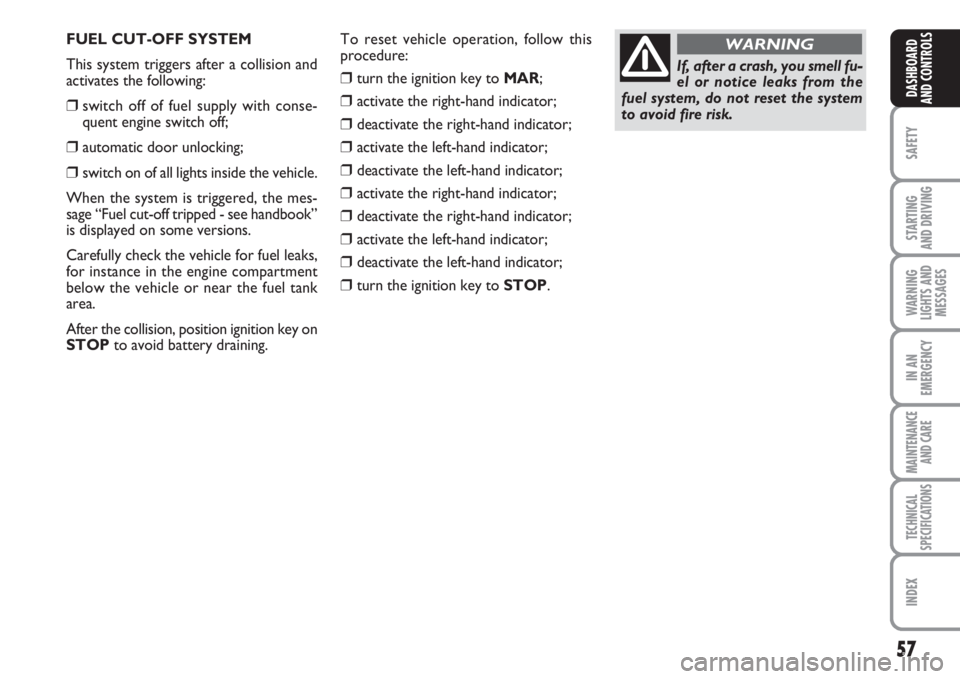

FUEL CUT-OFF SYSTEM
This system triggers after a collision and
activates the following:
❒switch off of fuel supply with conse-
quent engine switch off;
❒automatic door unlocking;
❒switch on of all lights inside the vehicle.
When the system is triggered, the mes-
sage “Fuel cut-off tripped - see handbook”
is displayed on some versions.
Carefully check the vehicle for fuel leaks,
for instance in the engine compartment
below the vehicle or near the fuel tank
area.
After the collision, position ignition key on
STOPto avoid battery draining.To reset vehicle operation, follow this
procedure:
❒turn the ignition key to MAR;
❒activate the right-hand indicator;
❒deactivate the right-hand indicator;
❒activate the left-hand indicator;
❒deactivate the left-hand indicator;
❒activate the right-hand indicator;
❒deactivate the right-hand indicator;
❒activate the left-hand indicator;
❒deactivate the left-hand indicator;
❒turn the ignition key to STOP.
If, after a crash, you smell fu-
el or notice leaks from the
fuel system, do not reset the system
to avoid fire risk.
WARNING

70
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
fig. 89FF0T0045m
fig. 90F0T0067m
Before lifting the bonnet,
check that windscreen wiper
arm is not lifted from the windscreen.
WARNING

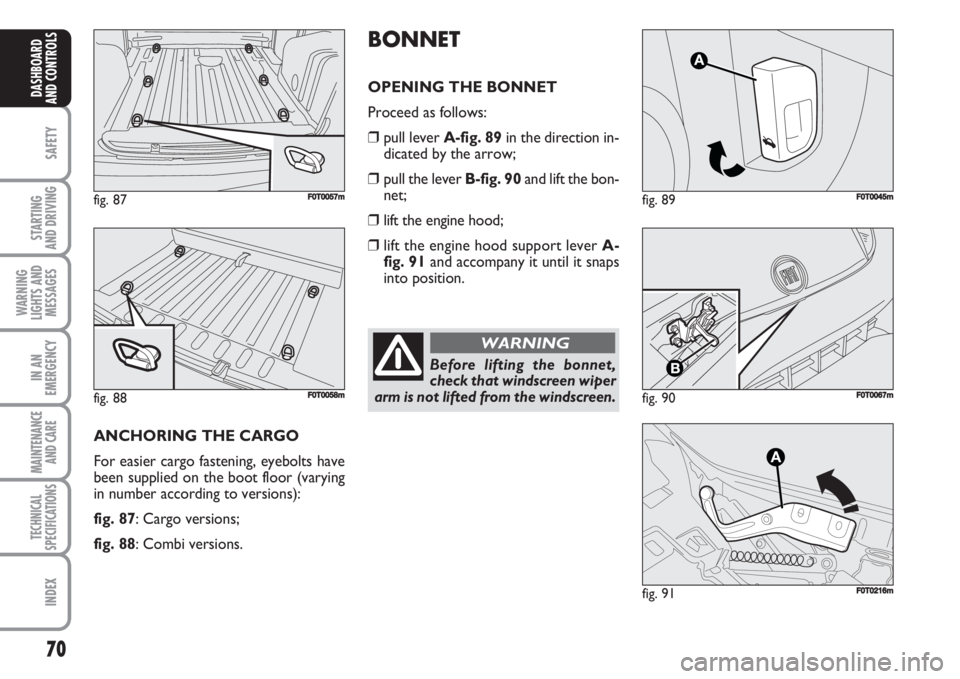

ANCHORING THE CARGO
For easier cargo fastening, eyebolts have
been supplied on the boot floor (varying
in number according to versions):
fig. 87: Cargo versions;
fig. 88: Combi versions.
BONNET
OPENING THE BONNET
Proceed as follows:
❒pull lever A-fig. 89in the direction in-
dicated by the arrow;
❒pull the lever B-fig. 90and lift the bon-
net;
❒lift the engine hood;
❒lift the engine hood support lever A-
fig. 91and accompany it until it snaps
into position.
fig. 87F0T0057m
fig. 88F0T0058m
fig. 91
A
F0T0216m

76
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

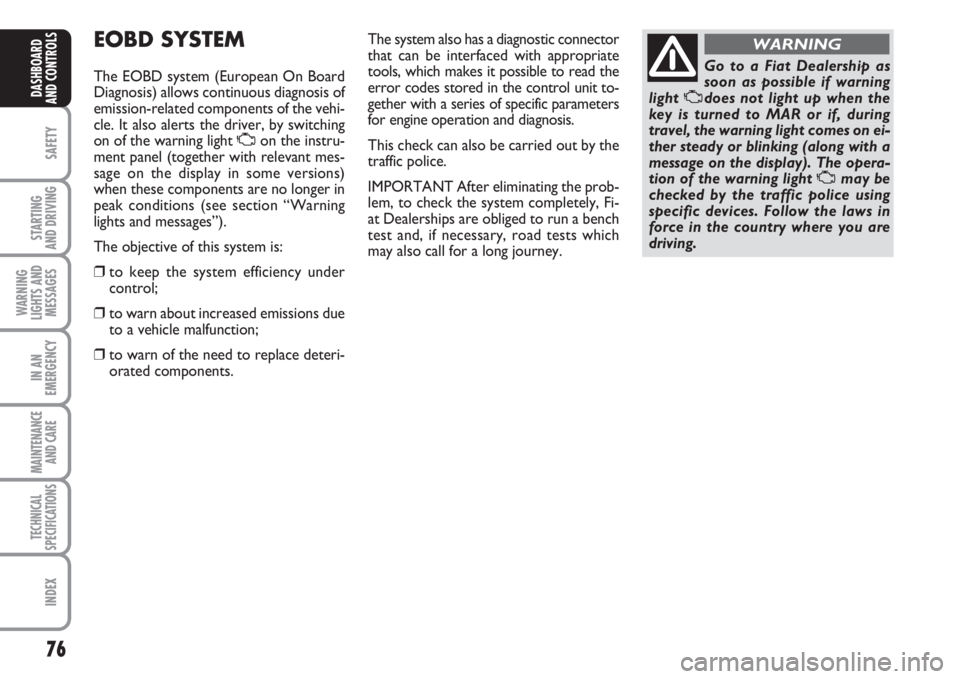

EOBD SYSTEM
The EOBD system (European On Board
Diagnosis) allows continuous diagnosis of
emission-related components of the vehi-
cle. It also alerts the driver, by switching
on of the warning light Uon the instru-
ment panel (together with relevant mes-
sage on the display in some versions)
when these components are no longer in
peak conditions (see section “Warning
lights and messages”).
The objective of this system is:
❒to keep the system efficiency under
control;
❒to warn about increased emissions due
to a vehicle malfunction;
❒to warn of the need to replace deteri-
orated components.The system also has a diagnostic connector
that can be interfaced with appropriate
tools, which makes it possible to read the
error codes stored in the control unit to-
gether with a series of specific parameters
for engine operation and diagnosis.
This check can also be carried out by the
traffic police.
IMPORTANT After eliminating the prob-
lem, to check the system completely, Fi-
at Dealerships are obliged to run a bench
test and, if necessary, road tests which
may also call for a long journey.Go to a Fiat Dealership as
soon as possible if warning
light Udoes not light up when the
key is turned to MAR or if, during
travel, the warning light comes on ei-
ther steady or blinking (along with a
message on the display). The opera-
tion of the warning light Umay be
checked by the traffic police using
specific devices. Follow the laws in
force in the country where you are
driving.
WARNING

100
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
SAFETY

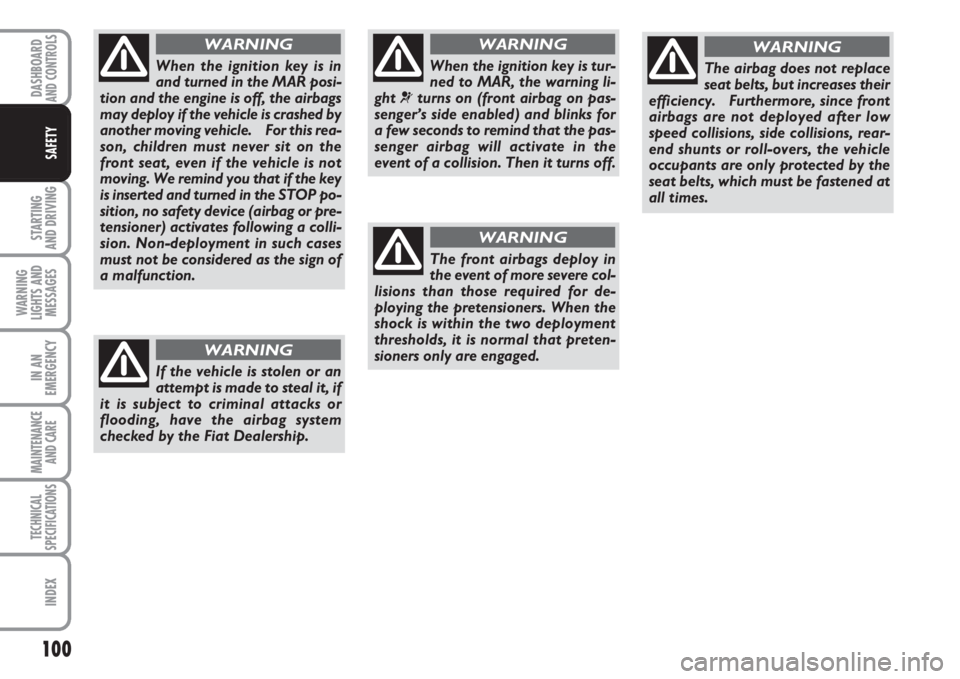

When the ignition key is tur-
ned to MAR, the warning li-
ght
¬turns on (front airbag on pas-
senger’s side enabled) and blinks for
a few seconds to remind that the pas-
senger airbag will activate in the
event of a collision. Then it turns off.
WARNING
The front airbags deploy in
the event of more severe col-
lisions than those required for de-
ploying the pretensioners. When the
shock is within the two deployment
thresholds, it is normal that preten-
sioners only are engaged.
WARNING
The airbag does not replace
seat belts, but increases their
efficiency. Furthermore, since front
airbags are not deployed after low
speed collisions, side collisions, rear-
end shunts or roll-overs, the vehicle
occupants are only protected by the
seat belts, which must be fastened at
all times.
WARNING
When the ignition key is in
and turned in the MAR posi-
tion and the engine is off, the airbags
may deploy if the vehicle is crashed by
another moving vehicle. For this rea-
son, children must never sit on the
front seat, even if the vehicle is not
moving. We remind you that if the key
is inserted and turned in the STOP po-
sition, no safety device (airbag or pre-
tensioner) activates following a colli-
sion. Non-deployment in such cases
must not be considered as the sign of
a malfunction.
WARNING
If the vehicle is stolen or an
attempt is made to steal it, if
it is subject to criminal attacks or
flooding, have the airbag system
checked by the Fiat Dealership.
WARNING

110
SAFETY
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING

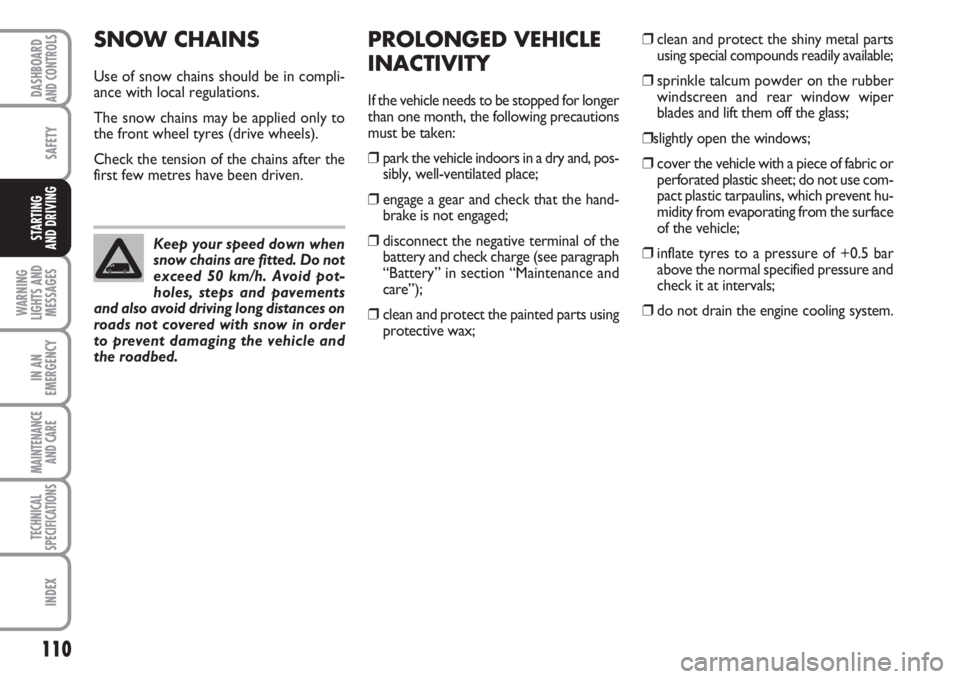

SNOW CHAINS
Use of snow chains should be in compli-
ance with local regulations.
The snow chains may be applied only to
the front wheel tyres (drive wheels).
Check the tension of the chains after the
first few metres have been driven.
PROLONGED VEHICLE
INACTIVITY
If the vehicle needs to be stopped for longer
than one month, the following precautions
must be taken:
❒park the vehicle indoors in a dry and, pos-
sibly, well-ventilated place;
❒engage a gear and check that the hand-
brake is not engaged;
❒disconnect the negative terminal of the
battery and check charge (see paragraph
“Battery” in section “Maintenance and
care”);
❒clean and protect the painted parts using
protective wax;❒clean and protect the shiny metal parts
using special compounds readily available;
❒sprinkle talcum powder on the rubber
windscreen and rear window wiper
blades and lift them off the glass;
❒slightly open the windows;
❒cover the vehicle with a piece of fabric or
perforated plastic sheet; do not use com-
pact plastic tarpaulins, which prevent hu-
midity from evaporating from the surface
of the vehicle;
❒inflate tyres to a pressure of +0.5 bar
above the normal specified pressure and
check it at intervals;
❒do not drain the engine cooling system. Keep your speed down when
snow chains are fitted. Do not
exceed 50 km/h. Avoid pot-
holes, steps and pavements
and also avoid driving long distances on
roads not covered with snow in order
to prevent damaging the vehicle and
the roadbed.

114
SAFETY
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES

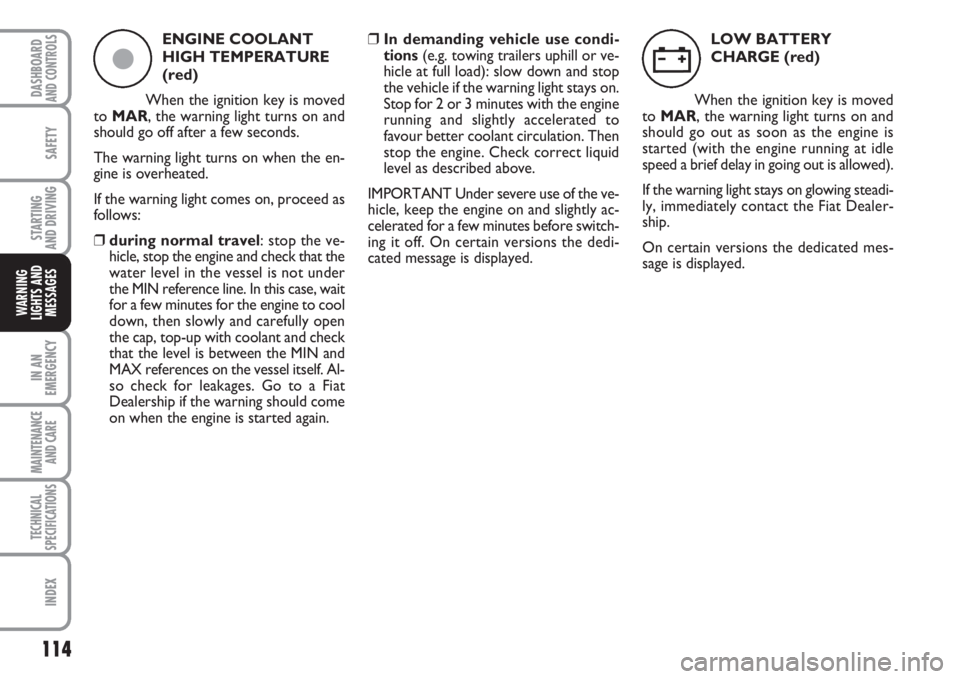

ENGINE COOLANT
HIGH TEMPERATURE
(red)
When the ignition key is moved
to MAR, the warning light turns on and
should go off after a few seconds.
The warning light turns on when the en-
gine is overheated.
If the warning light comes on, proceed as
follows:
❒during normal travel: stop the ve-
hicle, stop the engine and check that the
water level in the vessel is not under
the MIN reference line. In this case, wait
for a few minutes for the engine to cool
down, then slowly and carefully open
the cap, top-up with coolant and check
that the level is between the MIN and
MAX references on the vessel itself. Al-
so check for leakages. Go to a Fiat
Dealership if the warning should come
on when the engine is started again.❒In demanding vehicle use condi-
tions (e.g. towing trailers uphill or ve-
hicle at full load): slow down and stop
the vehicle if the warning light stays on.
Stop for 2 or 3 minutes with the engine
running and slightly accelerated to
favour better coolant circulation. Then
stop the engine. Check correct liquid
level as described above.
IMPORTANT Under severe use of the ve-
hicle, keep the engine on and slightly ac-
celerated for a few minutes before switch-
ing it off. On certain versions the dedi-
cated message is displayed.LOW BATTERY
CHARGE (red)
When the ignition key is moved
to MAR, the warning light turns on and
should go out as soon as the engine is
started (with the engine running at idle
speed a brief delay in going out is allowed).
If the warning light stays on glowing steadi-
ly, immediately contact the Fiat Dealer-
ship.
On certain versions the dedicated mes-
sage is displayed.
çw

116
SAFETY
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES

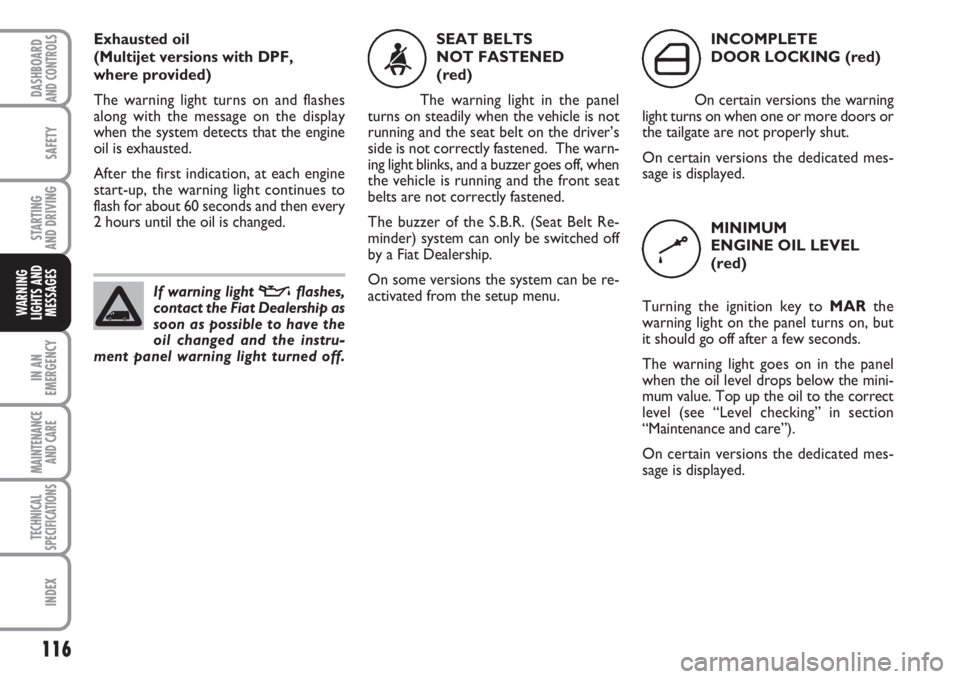

Exhausted oil
(Multijet versions with DPF,
where provided)
The warning light turns on and flashes
along with the message on the display
when the system detects that the engine
oil is exhausted.
After the first indication, at each engine
start-up, the warning light continues to
flash for about 60 seconds and then every
2 hours until the oil is changed.SEAT BELTS
NOT FASTENED
(red)
The warning light in the panel
turns on steadily when the vehicle is not
running and the seat belt on the driver’s
side is not correctly fastened. The warn-
ing light blinks, and a buzzer goes off, when
the vehicle is running and the front seat
belts are not correctly fastened.
The buzzer of the S.B.R. (Seat Belt Re-
minder) system can only be switched off
by a Fiat Dealership.
On some versions the system can be re-
activated from the setup menu.INCOMPLETE
DOOR LOCKING (red)
On certain versions the warning
light turns on when one or more doors or
the tailgate are not properly shut.
On certain versions the dedicated mes-
sage is displayed.
MINIMUM
ENGINE OIL LEVEL
(red)
Turning the ignition key to MARthe
warning light on the panel turns on, but
it should go off after a few seconds.
The warning light goes on in the panel
when the oil level drops below the mini-
mum value. Top up the oil to the correct
level (see “Level checking” in section
“Maintenance and care”).
On certain versions the dedicated mes-
sage is displayed.
<´
k
If warning light vflashes,
contact the Fiat Dealership as
soon as possible to have the
oil changed and the instru-
ment panel warning light turned off.

117
SAFETY
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARDAND CONTROLS
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES

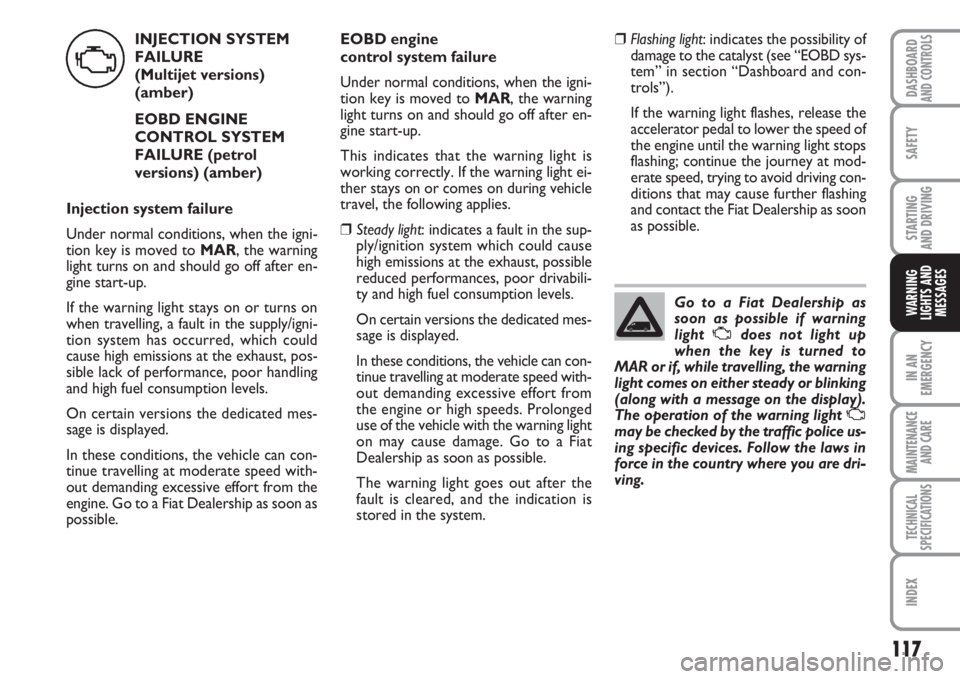

INJECTION SYSTEM
FAILURE
(Multijet versions)
(amber)
EOBD ENGINE
CONTROL SYSTEM
FAILURE (petrol
versions) (amber)
Injection system failure
Under normal conditions, when the igni-
tion key is moved to MAR, the warning
light turns on and should go off after en-
gine start-up.
If the warning light stays on or turns on
when travelling, a fault in the supply/igni-
tion system has occurred, which could
cause high emissions at the exhaust, pos-
sible lack of performance, poor handling
and high fuel consumption levels.
On certain versions the dedicated mes-
sage is displayed.
In these conditions, the vehicle can con-
tinue travelling at moderate speed with-
out demanding excessive effort from the
engine. Go to a Fiat Dealership as soon as
possible.EOBD engine
control system failure
Under normal conditions, when the igni-
tion key is moved to MAR, the warning
light turns on and should go off after en-
gine start-up.
This indicates that the warning light is
working correctly. If the warning light ei-
ther stays on or comes on during vehicle
travel, the following applies.
❒Steady light: indicates a fault in the sup-
ply/ignition system which could cause
high emissions at the exhaust, possible
reduced performances, poor drivabili-
ty and high fuel consumption levels.
On certain versions the dedicated mes-
sage is displayed.
In these conditions, the vehicle can con-
tinue travelling at moderate speed with-
out demanding excessive effort from
the engine or high speeds. Prolonged
use of the vehicle with the warning light
on may cause damage. Go to a Fiat
Dealership as soon as possible.
The warning light goes out after the
fault is cleared, and the indication is
stored in the system.❒Flashing light: indicates the possibility of
damage to the catalyst (see “EOBD sys-
tem” in section “Dashboard and con-
trols”).
If the warning light flashes, release the
accelerator pedal to lower the speed of
the engine until the warning light stops
flashing; continue the journey at mod-
erate speed, trying to avoid driving con-
ditions that may cause further flashing
and contact the Fiat Dealership as soon
as possible.
Go to a Fiat Dealership as
soon as possible if warning
light Udoes not light up
when the key is turned to
MAR or if, while travelling, the warning
light comes on either steady or blinking
(along with a message on the display).
The operation of the warning light U
may be checked by the traffic police us-
ing specific devices. Follow the laws in
force in the country where you are dri-
ving.
U
