technical data FIAT FIORINO 2017 Owner handbook (in English)

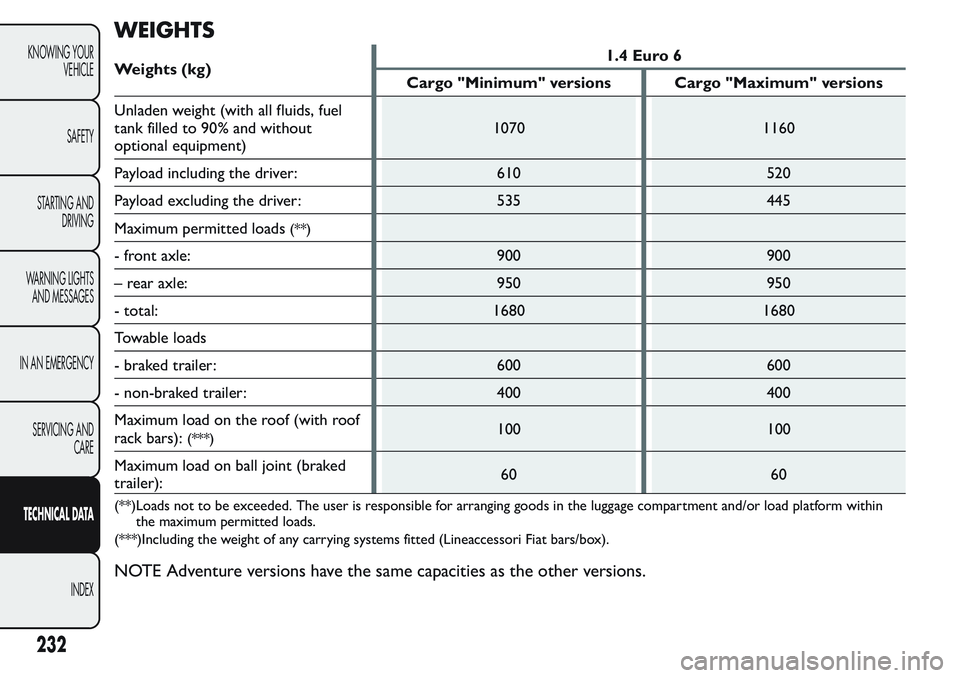

WEIGHTS
Weights (kg)1.4 Euro 6
Cargo "Minimum" versions Cargo "Maximum" versions
Unladen weight (with all fluids, fuel
tank filled to 90% and without
optional equipment)1070 1160
Payload including the driver: 610 520
Payload excluding the driver: 535 445
Maximum permitted loads
(**)
- front axle: 900 900
– rear axle: 950 950
- total: 1680 1680
Towable loads
- braked trailer: 600 600
- non-braked trailer: 400 400
Maximum load on the roof (with roof
rack bars):
(***)100 100
Maximum load on ball joint (braked
trailer):60 60
(**)Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within
the maximum permitted loads.
(***)Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
NOTE Adventure versions have the same capacities as the other versions.
232
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

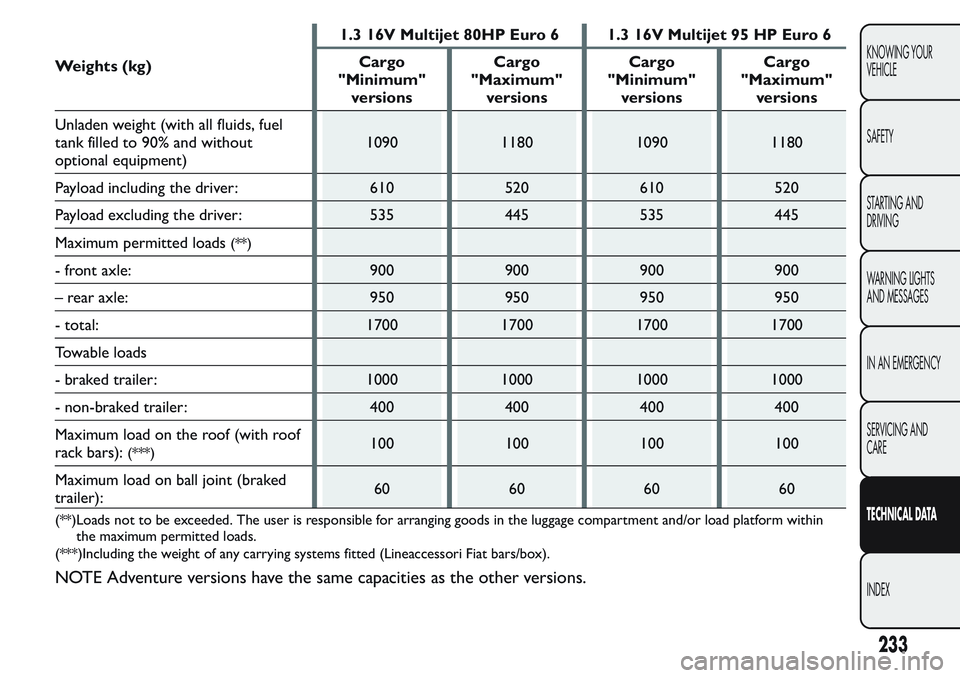

Weights (kg)1.3 16V Multijet 80HP Euro 6 1.3 16V Multijet 95 HP Euro 6
Cargo
"Minimum"
versionsCargo
"Maximum"
versionsCargo
"Minimum"
versionsCargo
"Maximum"
versions
Unladen weight (with all fluids, fuel
tank filled to 90% and without
optional equipment)1090 1180 1090 1180
Payload including the driver: 610 520 610 520
Payload excluding the driver: 535 445 535 445
Maximum permitted loads
(**)
- front axle: 900 900 900 900
– rear axle: 950 950 950 950
- total: 1700 1700 1700 1700
Towable loads
- braked trailer: 1000 1000 1000 1000
- non-braked trailer: 400 400 400 400
Maximum load on the roof (with roof
rack bars):
(***)100 100 100 100
Maximum load on ball joint (braked
trailer):60 60 60 60
(**)Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within
the maximum permitted loads.
(***)Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
NOTE Adventure versions have the same capacities as the other versions.
233
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

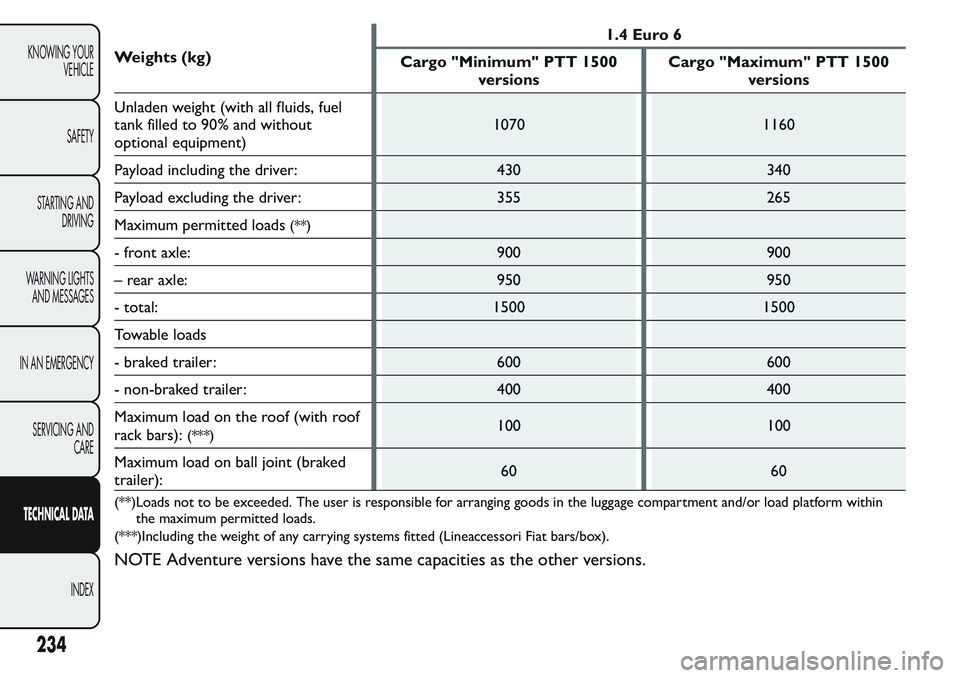

Weights (kg)1.4 Euro 6
Cargo "Minimum" PTT 1500
versionsCargo "Maximum" PTT 1500
versions
Unladen weight (with all fluids, fuel
tank filled to 90% and without
optional equipment)1070 1160
Payload including the driver: 430 340
Payload excluding the driver: 355 265
Maximum permitted loads
(**)
- front axle: 900 900
– rear axle: 950 950
- total: 1500 1500
Towable loads
- braked trailer: 600 600
- non-braked trailer: 400 400
Maximum load on the roof (with roof
rack bars):
(***)100 100
Maximum load on ball joint (braked
trailer):60 60
(**)Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within
the maximum permitted loads.
(***)Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
NOTE Adventure versions have the same capacities as the other versions.
234
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

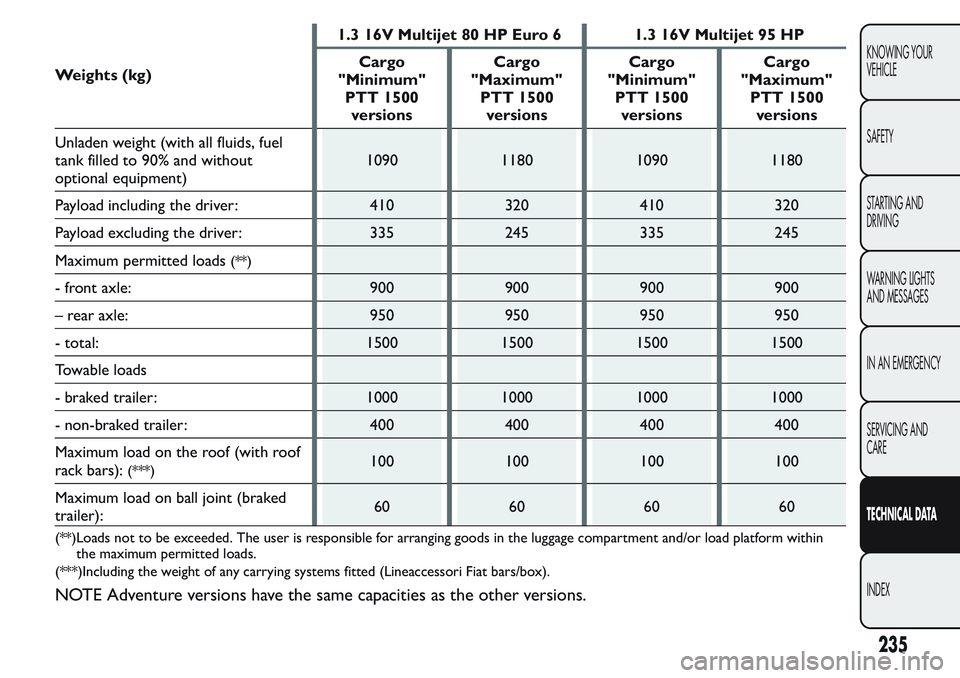

Weights (kg)1.3 16V Multijet 80 HP Euro 6 1.3 16V Multijet 95 HP
Cargo
"Minimum"
PTT 1500
versionsCargo
"Maximum"
PTT 1500
versionsCargo
"Minimum"
PTT 1500
versionsCargo
"Maximum"
PTT 1500
versions
Unladen weight (with all fluids, fuel
tank filled to 90% and without
optional equipment)1090 1180 1090 1180
Payload including the driver: 410 320 410 320
Payload excluding the driver: 335 245 335 245
Maximum permitted loads
(**)
- front axle: 900 900 900 900
– rear axle: 950 950 950 950
- total: 1500 1500 1500 1500
Towable loads
- braked trailer: 1000 1000 1000 1000
- non-braked trailer: 400 400 400 400
Maximum load on the roof (with roof
rack bars):
(***)100 100 100 100
Maximum load on ball joint (braked
trailer):60 60 60 60
(**)Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within
the maximum permitted loads.
(***)Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
NOTE Adventure versions have the same capacities as the other versions.
235
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

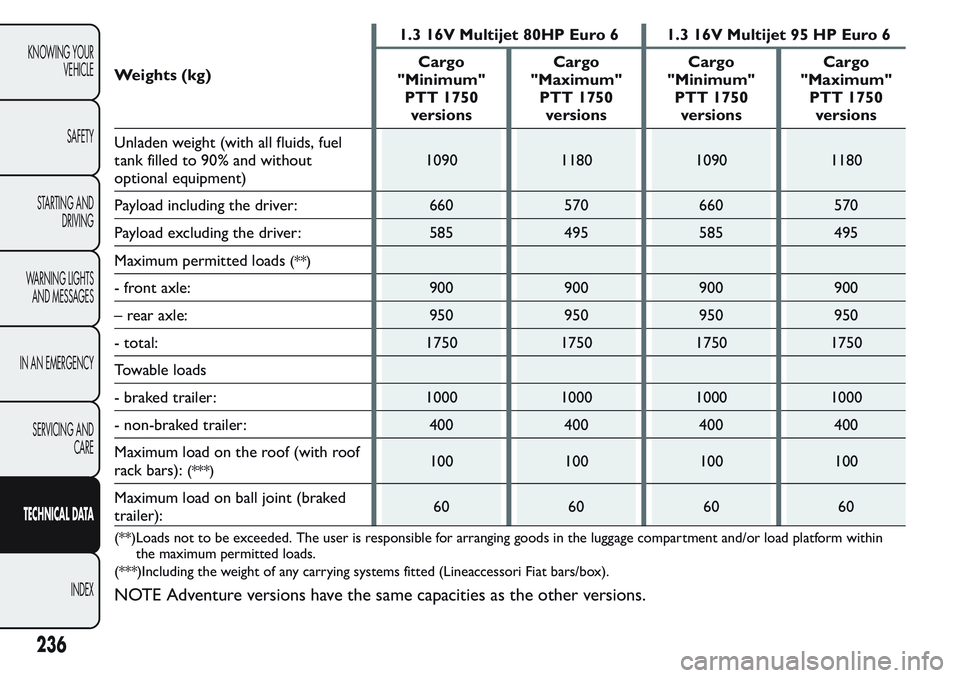

Weights (kg)1.3 16V Multijet 80HP Euro 6 1.3 16V Multijet 95 HP Euro 6
Cargo
"Minimum"
PTT 1750
versionsCargo
"Maximum"
PTT 1750
versionsCargo
"Minimum"
PTT 1750
versionsCargo
"Maximum"
PTT 1750
versions
Unladen weight (with all fluids, fuel
tank filled to 90% and without
optional equipment)1090 1180 1090 1180
Payload including the driver: 660 570 660 570
Payload excluding the driver: 585 495 585 495
Maximum permitted loads
(**)
- front axle: 900 900 900 900
– rear axle: 950 950 950 950
- total: 1750 1750 1750 1750
Towable loads
- braked trailer: 1000 1000 1000 1000
- non-braked trailer: 400 400 400 400
Maximum load on the roof (with roof
rack bars):
(***)100 100 100 100
Maximum load on ball joint (braked
trailer):60 60 60 60
(**)Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within
the maximum permitted loads.
(***)Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
NOTE Adventure versions have the same capacities as the other versions.
236
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

Weights (kg)1.4 Euro 6
Combi N1 "Minimum"
versions (4 seats)Combi N1
"Maximum"
versions (4 seats)Combi M1
versions (5 seats)
Unladen weight (with all fluids, fuel
tank filled to 90% and without
optional equipment)1170 1255 1165
Payload including the driver: 565 480 515
Payload excluding the driver: 490 405 445
Maximum permitted loads
(**)
- front axle: 950 950 950
– rear axle: 980 980 950
- total: 1735 1735 1680
Towable loads
- braked trailer: 600 600 600
- non-braked trailer: 400 400 400
Maximum load on the roof (with roof
rack bars):
(***)100 100 100
Maximum load on ball joint (braked
trailer):60 60 60
(**)Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within
the maximum permitted loads.
(***)Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
NOTE Adventure versions have the same capacities as the other versions.
CATEGORY M1: optional equipment is included in the capacity.
237
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

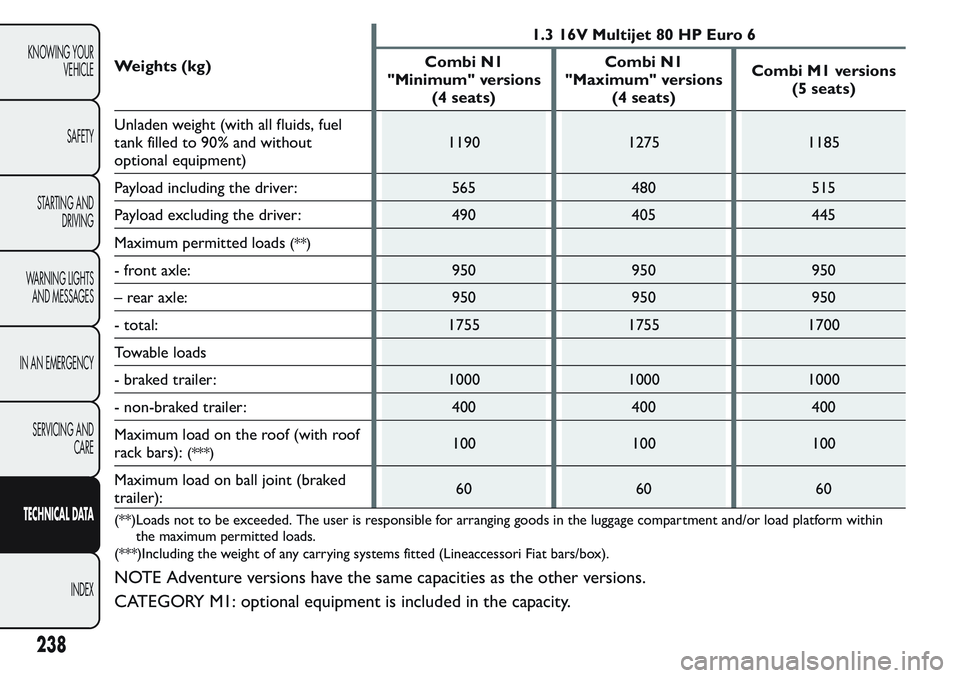

Weights (kg)1.3 16V Multijet 80 HP Euro 6
Combi N1
"Minimum" versions
(4 seats)Combi N1
"Maximum" versions
(4 seats)Combi M1 versions
(5 seats)
Unladen weight (with all fluids, fuel
tank filled to 90% and without
optional equipment)1190 1275 1185
Payload including the driver: 565 480 515
Payload excluding the driver: 490 405 445
Maximum permitted loads
(**)
- front axle: 950 950 950
– rear axle: 950 950 950
- total: 1755 1755 1700
Towable loads
- braked trailer: 1000 1000 1000
- non-braked trailer: 400 400 400
Maximum load on the roof (with roof
rack bars):
(***)100 100 100
Maximum load on ball joint (braked
trailer):60 60 60
(**)Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within
the maximum permitted loads.
(***)Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
NOTE Adventure versions have the same capacities as the other versions.
CATEGORY M1: optional equipment is included in the capacity.
238
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

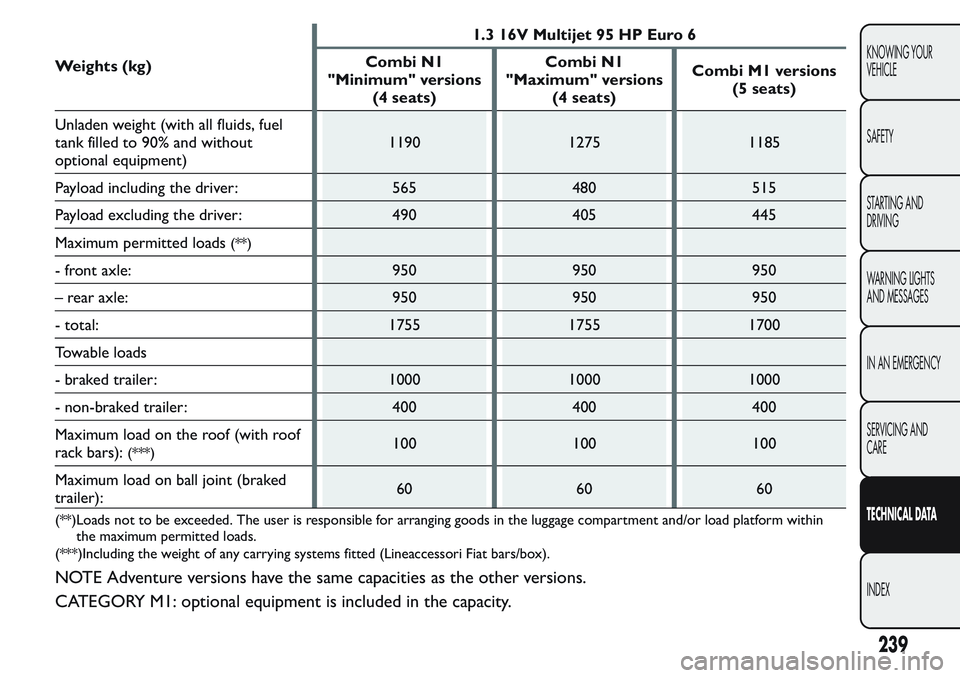

Weights (kg)1.3 16V Multijet 95 HP Euro 6
Combi N1
"Minimum" versions
(4 seats)Combi N1
"Maximum" versions
(4 seats)Combi M1 versions
(5 seats)
Unladen weight (with all fluids, fuel
tank filled to 90% and without
optional equipment)1190 1275 1185
Payload including the driver: 565 480 515
Payload excluding the driver: 490 405 445
Maximum permitted loads
(**)
- front axle: 950 950 950
– rear axle: 950 950 950
- total: 1755 1755 1700
Towable loads
- braked trailer: 1000 1000 1000
- non-braked trailer: 400 400 400
Maximum load on the roof (with roof
rack bars):
(***)100 100 100
Maximum load on ball joint (braked
trailer):60 60 60
(**)Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within
the maximum permitted loads.
(***)Including the weight of any carrying systems fitted (Lineaccessori Fiat bars/box).
NOTE Adventure versions have the same capacities as the other versions.
CATEGORY M1: optional equipment is included in the capacity.
239
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

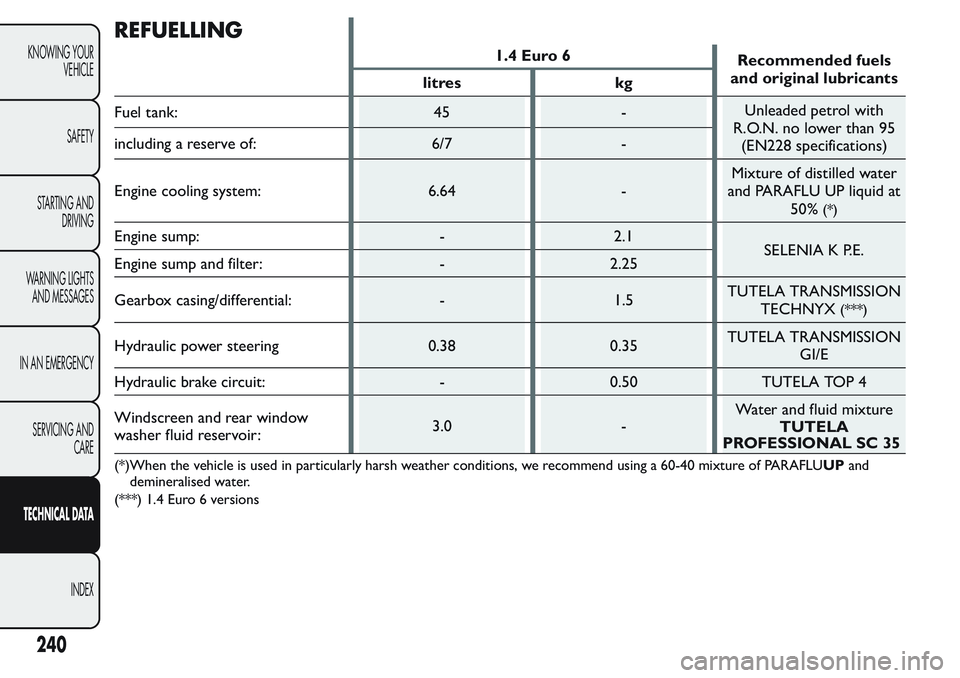

REFUELLING
1.4 Euro 6
Recommended fuels
and original lubricants
litres kg
Fuel tank: 45 -Unleaded petrol with
R.O.N. no lower than 95
(EN228 specifications) including a reserve of: 6/7 -
Engine cooling system: 6.64 -Mixture of distilled water
and PARAFLU UP liquid at
50%
(*)
Engine sump: - 2.1
SELENIA K P.E.
Engine sump and filter: - 2.25
Gearbox casing/differential: - 1.5TUTELA TRANSMISSION
TECHNYX
(***)
Hydraulic power steering 0.38 0.35TUTELA TRANSMISSION
GI/E
Hydraulic brake circuit: - 0.50 TUTELA TOP 4
Windscreen and rear window
washer fluid reservoir:3.0 -Water and fluid mixture
TUTELA
PROFESSIONAL SC 35
(*)When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand
demineralised water.
(***) 1.4 Euro 6 versions
240
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

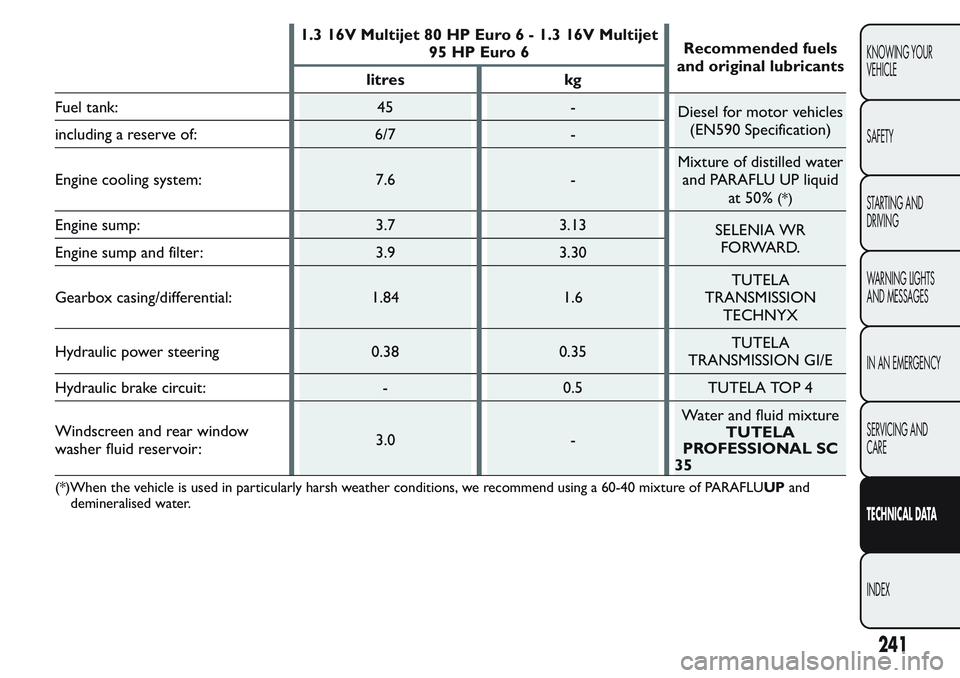

1.3 16V Multijet 80 HP Euro 6 - 1.3 16V Multijet
95 HP Euro 6Recommended fuels
and original lubricants
litres kg
Fuel tank: 45 -
Diesel for motor vehicles
(EN590 Specification)
including a reserve of: 6/7 -
Engine cooling system: 7.6 -Mixture of distilled water
and PARAFLU UP liquid
at 50%
(*)
Engine sump: 3.7 3.13
SELENIA WR
FORWARD.
Engine sump and filter: 3.9 3.30
Gearbox casing/differential: 1.84 1.6TUTELA
TRANSMISSION
TECHNYX
Hydraulic power steering 0.38 0.35TUTELA
TRANSMISSION GI/E
Hydraulic brake circuit: - 0.5 TUTELA TOP 4
Windscreen and rear window
washer fluid reservoir:3.0 -Water and fluid mixture
TUTELA
PROFESSIONAL SC
35
(*)When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand
demineralised water.
