engine FIAT FULLBACK 2017 Owner handbook (in English)

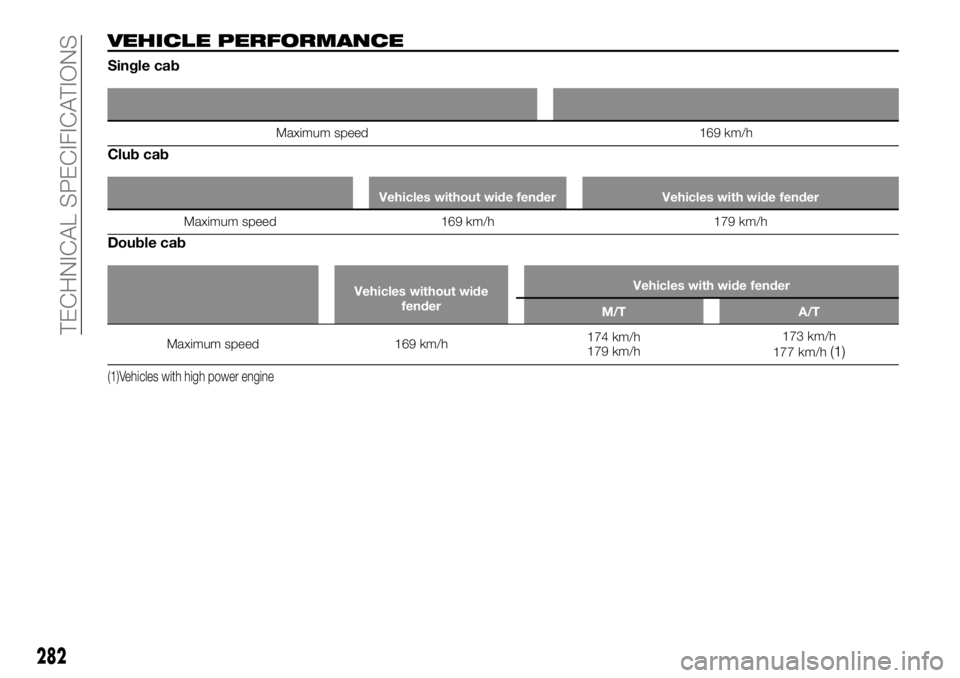

VEHICLE PERFORMANCE
Single cab
Maximum speed 169 km/h
Club cab
Vehicles without wide fender Vehicles with wide fender
Maximum speed 169 km/h 179 km/h
Double cab
Vehicles without wide
fenderVehicles with wide fender
M/T A/T
Maximum speed 169 km/h174 km/h
179 km/h173 km/h
177 km/h(1)
(1)Vehicles with high power engine
282
TECHNICAL SPECIFICATIONS

Diesel engine 2.4 (4N15) 4WD
M/T
LHD RHD
Vehicles without wide
fenderVehicles with wide fender
Kerb weightWithout optional parts1,870 kg
1,840 kg
(*2)1,875 kg
1,855 kg(*2)1,860 kg
1,855 kg(*1)
With full optional parts1,960 kg
1,915 kg(*2)
1,955 kg
1,950 kg(*1)1,950 kg(*2)
1,950 kg
1,960 kg(*1)
Maximum gross vehicle weight2,900 kg
2,850 kg(*2)2,905 kg
2,850 kg(*2)2,905 kg
2,900 kg(*1)
Maximum axle weightFront 1,260 kg
Rear 1,840 kg
Maximum towable weightWith brake 3,100 kg
Without brake 750 kg
Maximum trailer-nose weight 125 kg
Maximum gross combination weight5,950 kg
5,900 kg
(*2)5,950 kg
Maximum permissible weight of the coupling device 34 kg
Seating capacity 5 persons
(*2) Versions for specific markets
(*1) Vehicles with the Start&Stop
NOTE: The trailer weights related specifications are not applicable to use in some markets, the correct maximum weights are
stated in the registration book of the vehicle.
NOTE: Trailer specifications indicate the manufacturer’s recommendation.
NOTE: When loading luggage and/or towing a trailer, make sure not to exceed any of the above maximum weights all the time.
286

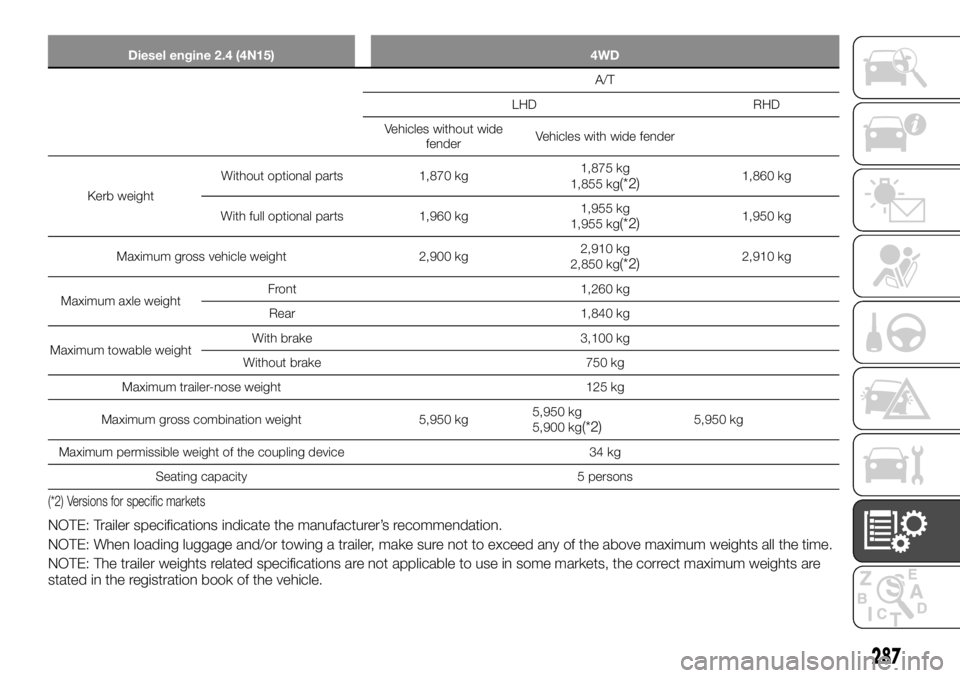

TECHNICAL SPECIFICATIONS

Diesel engine 2.4 (4N15) 4WD
A/T
LHD RHD
Vehicles without wide
fenderVehicles with wide fender
Kerb weightWithout optional parts 1,870 kg1,875 kg
1,855 kg
(*2)1,860 kg
With full optional parts 1,960 kg1,955 kg
1,955 kg
(*2)1,950 kg
Maximum gross vehicle weight 2,900 kg2,910 kg
2,850 kg
(*2)2,910 kg
Maximum axle weightFront 1,260 kg
Rear 1,840 kg
Maximum towable weightWith brake 3,100 kg
Without brake 750 kg
Maximum trailer-nose weight 125 kg
Maximum gross combination weight 5,950 kg5,950 kg
5,900 kg
(*2)5,950 kg
Maximum permissible weight of the coupling device 34 kg
Seating capacity 5 persons
(*2) Versions for specific markets
NOTE: Trailer specifications indicate the manufacturer’s recommendation.
NOTE: When loading luggage and/or towing a trailer, make sure not to exceed any of the above maximum weights all the time.
NOTE: The trailer weights related specifications are not applicable to use in some markets, the correct maximum weights are
stated in the registration book of the vehicle.
287

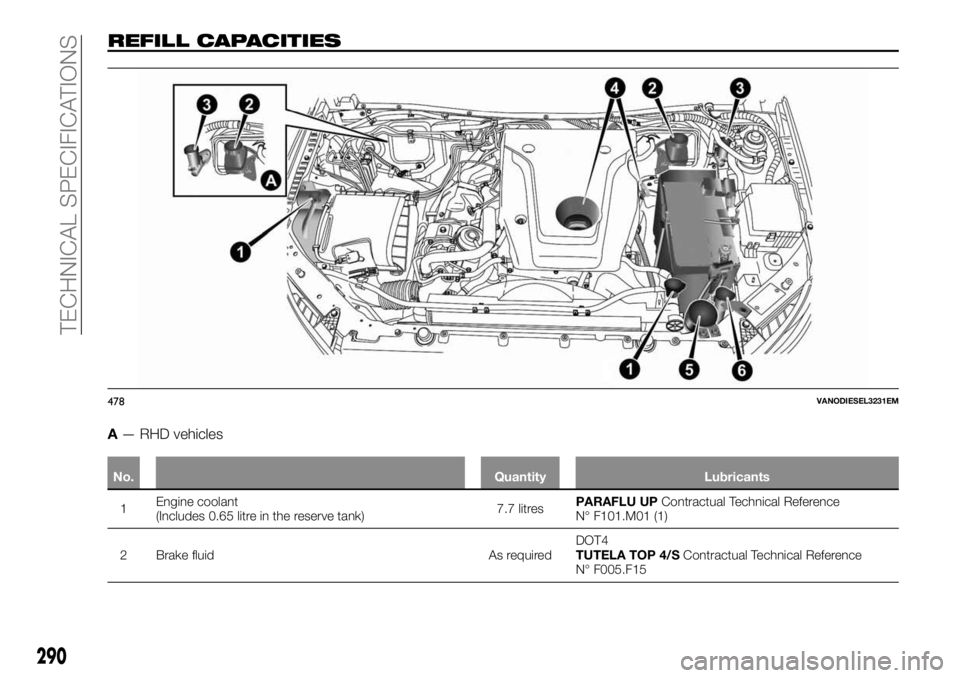

REFILL CAPACITIES
A— RHD vehicles
No. Quantity Lubricants
1Engine coolant
(Includes 0.65 litre in the reserve tank)7.7 litresPARAFLU UPContractual Technical Reference
N° F101.M01 (1)
2 Brake fluid As requiredDOT4
TUTELA TOP 4/SContractual Technical Reference
N° F005.F15
478VANODIESEL3231EM
290
TECHNICAL SPECIFICATIONS

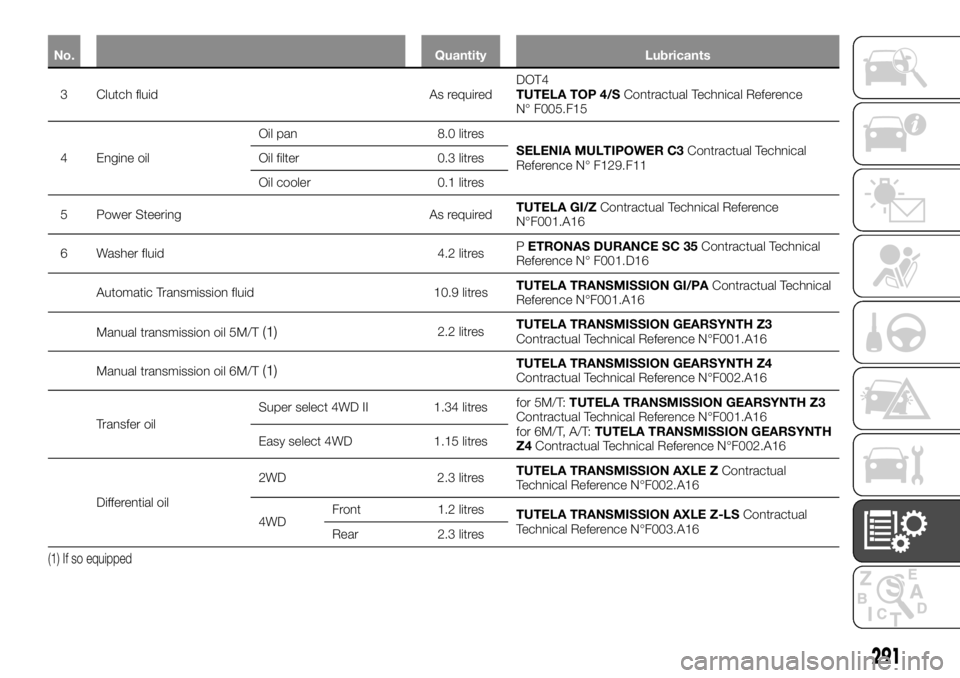

No. Quantity Lubricants
3 Clutch fluid As requiredDOT4
TUTELA TOP 4/SContractual Technical Reference
N° F005.F15
4 Engine oilOil pan 8.0 litres
SELENIA MULTIPOWER C3Contractual Technical
Reference N° F129.F11 Oil filter 0.3 litres
Oil cooler 0.1 litres
5 Power Steering As requiredTUTELA GI/ZContractual Technical Reference
N°F001.A16
6 Washer fluid 4.2 litresPETRONAS DURANCE SC 35Contractual Technical
Reference N° F001.D16
Automatic Transmission fluid 10.9 litresTUTELA TRANSMISSION GI/PAContractual Technical
Reference N°F001.A16
Manual transmission oil 5M/T
(1)2.2 litresTUTELA TRANSMISSION GEARSYNTH Z3
Contractual Technical Reference N°F001.A16
Manual transmission oil 6M/T
(1)TUTELA TRANSMISSION GEARSYNTH Z4
Contractual Technical Reference N°F002.A16
Transfer oilSuper select 4WD II 1.34 litresfor 5M/T:TUTELA TRANSMISSION GEARSYNTH Z3
Contractual Technical Reference N°F001.A16
for 6M/T, A/T:TUTELA TRANSMISSION GEARSYNTH
Z4Contractual Technical Reference N°F002.A16 Easy select 4WD 1.15 litres
Differential oil2WD 2.3 litresTUTELA TRANSMISSION AXLE ZContractual
Technical Reference N°F002.A16
4WDFront 1.2 litres
TUTELA TRANSMISSION AXLE Z-LSContractual
Technical Reference N°F003.A16
Rear 2.3 litres
(1) If so equipped
291

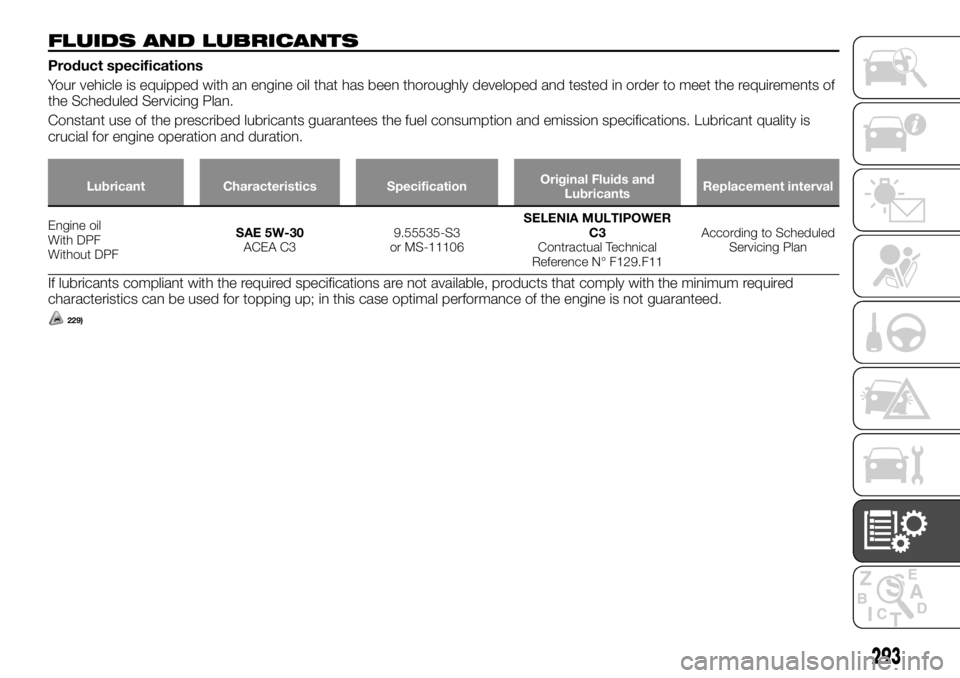

FLUIDS AND LUBRICANTS
Product specifications
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Scheduled Servicing Plan.
Constant use of the prescribed lubricants guarantees the fuel consumption and emission specifications. Lubricant quality is
crucial for engine operation and duration.
Lubricant Characteristics SpecificationOriginal Fluids and
LubricantsReplacement interval
Engine oil
With DPF
Without DPFSAE 5W-30
ACEA C39.55535-S3
or MS-11106SELENIA MULTIPOWER
C3
Contractual Technical
Reference N° F129.F11According to Scheduled
Servicing Plan
If lubricants compliant with the required specifications are not available, products that comply with the minimum required
characteristics can be used for topping up; in this case optimal performance of the engine is not guaranteed.
229)
293

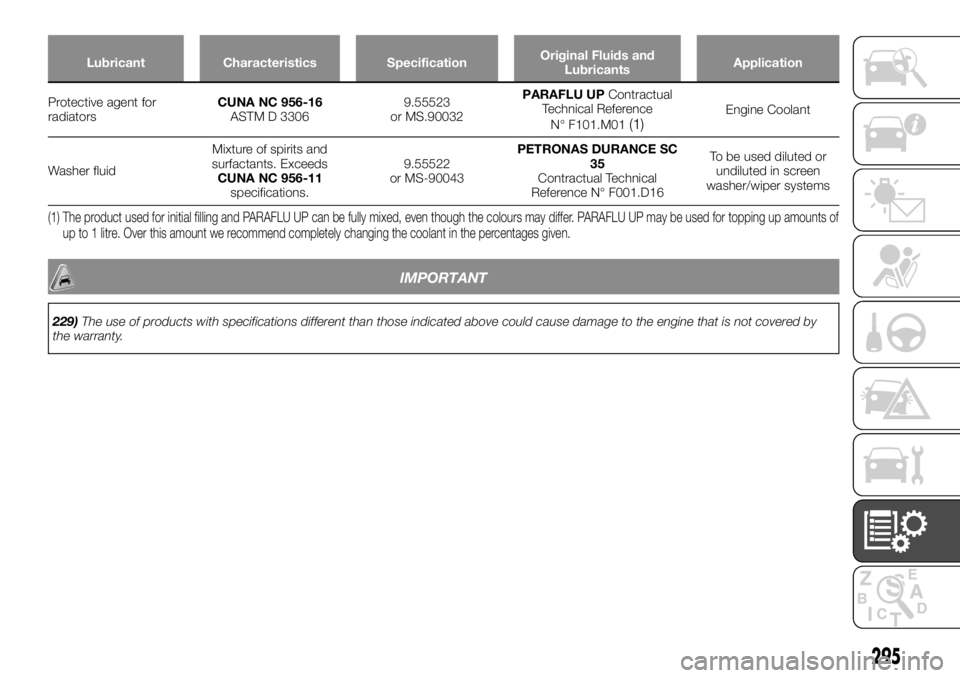

Lubricant Characteristics SpecificationOriginal Fluids and
LubricantsApplication
Protective agent for
radiatorsCUNANC 956-16
ASTM D 33069.55523
or MS.90032PARAFLU UPContractual
Technical Reference
N° F101.M01
(1)Engine Coolant
Washer fluidMixture of spirits and
surfactants. Exceeds
CUNA NC 956-11
specifications.9.55522
or MS-90043PETRONAS DURANCE SC
35
Contractual Technical
Reference N° F001.D16To be used diluted or
undiluted in screen
washer/wiper systems
(1) The product used for initial filling and PARAFLU UP can be fully mixed, even though the colours may differ. PARAFLU UP may be used for topping up amounts of
up to 1 litre. Over this amount we recommend completely changing the coolant in the percentages given.
IMPORTANT
229)The use of products with specifications different than those indicated above could cause damage to the engine that is not covered by
the warranty.
295

FUEL CONSUMPTION / CO2EMISSION
COMBINED USE
Euro 5 engine Transmission CO2 (g/km)Fuel consumption
(L/100km)
2WD Hi-RiderWith Start&Stop 6M/T 166 6.3
Without Start&Stop 5A/T 185 7.0
4WDWith Start&Stop 6M/T 169 6.4
Without Start&Stop6M/T173
188
(*)192(**)
6.6
7.1(*),7.3(**)
5A/T189
197(*),203(**)
7.2
7.5(*),7.7(**)
(*) Vehicles for Russia
(**)Vehicles for Ukraina
296
TECHNICAL SPECIFICATIONS

COMBINED USE
Euro 6 engine Transmission CO2 (g/km)Fuel consumption
(L/100km)
2WD Hi-RiderWith Start&Stop 6M/T177
166(*)6.7
6.3(*)
Without Start&Stop 5A/T192
185(*)7.3
7.0(*)
4WDWith Start&Stop 6M/T180
169
(*)6.9
6.4(*)
Without Start&Stop6M/T186
188
(**)191(***)173(*)
7.1
7.1(**)7.2(***)6.6(*)
5A/T196
197(**)201(***)189(*)
7.5
7.5(**)7.6(***)7.2(*)
(*) Vehicles for Turkey
(**) Vehicles for Russia
(***) Vehicles for Ukraine
NOTE: The results given do not express or imply any guarantee of the fuel consumption of the particular vehicle. The vehicle
itself has not been tested and there are inevitably differences between individual vehicles of the same model. In addition, this
vehicle may incorporate particular modifications.
297

INDEX
4Wheel drive operation........178
Accessory socket............80
Active safety systems..........137
Air conditioning system.........56
Air purifier..................68
Ashtray....................79
Assist grip..................83
Automatic climate control air
conditioner................61
Automatic transmission.........159
Auxiliary driving system.........141
Battery..................258
Bleeding the fuel system........211
Bottle holder................82
Brake fluid.................255
Cargo area.................75
Cargo loads.................75
Catalytic converter.........72,252
Central Door Locks............28
Checking levels..............251
Child restraint...............113
Child restraint system..........116
Child-protection rear doors (Double
cab)....................30
Cigarette lighter..............79
Cleaning the exterior of your vehicle
.263Cleaning the interior of your vehicle .262
Clutch fluid................256
Coat hook..................83
Combination headlamps and
dipper switch..............44
Convenient hook.............83
Cruise control...............183
Cup holder.................82
Dead lock system............29
Demanding vehicle use.........250
Diesel particulate filter..........72
Digital clock.................80
Doors.....................27
Driving, alcohol and drugs.......145
Easy select 4WD............164
Economical driving...........144
Electric window control.........70
Electrical system.............288
Electronic immobilizer..........13
Emergency starting...........209
Emission..................296
Engine compartment...........74
Engine coolant..............253
Engine oil.................252
Engine overheating...........210
Engine specifications..........274
Engine switch...............25
Era Glonass................204
External Lights...............44
Fluids and Lubricants.........293
Fog lamp switch..............48
Force limiter................112
Front seats.................33
Fuel consumption............296
Fuel selection................84
Fuses....................227
Fusible links................227
General maintenance.........261
Graphical index...............9
Handling of 4 wheel drive vehicles.181
Hazard warning flasher switch.....47
Head restraints...............36
Headlamp levelling switch........46
Heater/Manual air conditioning.....58
High Load System.............75
Horn switch.................40
How to change a tyre..........216
If the vehicle breaks down.......208
Ignition switch...............24
Important operation tips for the air
conditioning...............67
Inside rear view mirror..........40
Instruments.................90
Interior features..............78
Interior lamps................50
ISOFIX positions.............116
Key number tag..............13
Keyless Entry System...........14
