stop start FIAT FULLBACK 2017 Owner handbook (in English)

WIPER BLADE
REPLACEMENT
383)
196)
1. Lift the wiper arm off the windscreen.
2. Pull the wiper blade until its stopper
(A) disengages from the hook (B). Then,
pull the wiper blade further to remove it.
NOTE Do not allow the wiper arm to
fall onto the windscreen; it could
damage the glass.
3. Attach the retainers (C) to a new
wiper blade. Refer to the illustration to
ensure that the retainers are correctly
aligned as you attach them.4. Insert the wiper blade into the arm,
starting with the opposite end of the
blade from the stopper. Make sure the
hook (B) is fitted correctly in the
grooves in the blade.
NOTE If retainers are not supplied with
the new wiper blade, use the retainers
from the old blade.
5. Push the wiper blade until the hook
(B) engages securely with the stopper
(A).
IMPORTANT
196)Do not operate the windscreen wiper
with the blades lifted from the windscreen.
WARNING
383)Driving with worn windscreen/rear
window wiper blades is a serious hazard,
because visibility is reduced in bad
weather.
464AG0005274
465AA3001992
466AG0006284
260
SERVICING AND MAINTENANCE

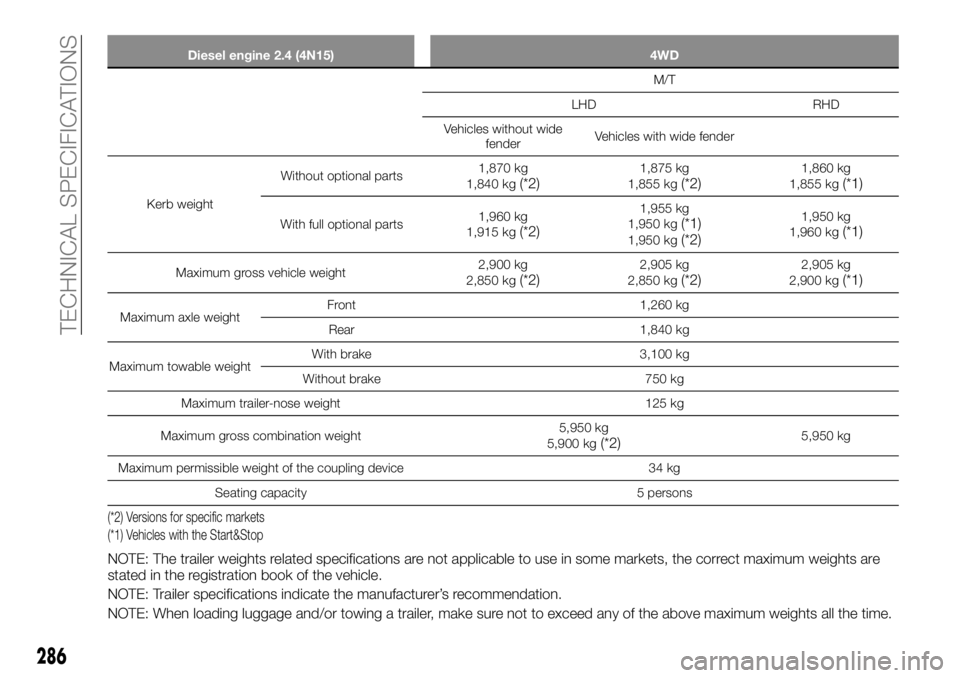

Diesel engine 2.4 (4N15) 4WD
M/T
LHD RHD
Vehicles without wide
fenderVehicles with wide fender
Kerb weightWithout optional parts1,870 kg
1,840 kg
(*2)1,875 kg
1,855 kg(*2)1,860 kg
1,855 kg(*1)
With full optional parts1,960 kg
1,915 kg(*2)
1,955 kg
1,950 kg(*1)1,950 kg(*2)
1,950 kg
1,960 kg(*1)
Maximum gross vehicle weight2,900 kg
2,850 kg(*2)2,905 kg
2,850 kg(*2)2,905 kg
2,900 kg(*1)
Maximum axle weightFront 1,260 kg
Rear 1,840 kg
Maximum towable weightWith brake 3,100 kg
Without brake 750 kg
Maximum trailer-nose weight 125 kg
Maximum gross combination weight5,950 kg
5,900 kg
(*2)5,950 kg
Maximum permissible weight of the coupling device 34 kg
Seating capacity 5 persons
(*2) Versions for specific markets
(*1) Vehicles with the Start&Stop
NOTE: The trailer weights related specifications are not applicable to use in some markets, the correct maximum weights are
stated in the registration book of the vehicle.
NOTE: Trailer specifications indicate the manufacturer’s recommendation.
NOTE: When loading luggage and/or towing a trailer, make sure not to exceed any of the above maximum weights all the time.
286
TECHNICAL SPECIFICATIONS

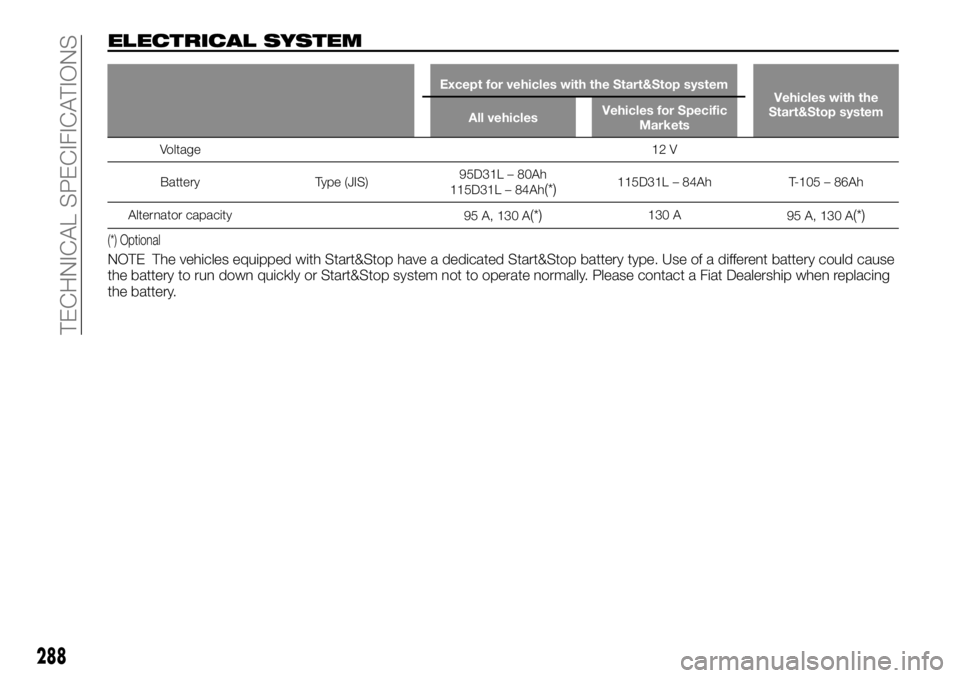

ELECTRICAL SYSTEM
Except for vehicles with the Start&Stop system
Vehicles with the
Start&Stop system
All vehiclesVehicles for Specific
Markets
Voltage12V
Battery Type (JIS)95D31L – 80Ah
115D31L – 84Ah
(*)115D31L – 84Ah T-105 – 86Ah
Alternator capacity
95 A, 130 A
(*)130 A
95 A, 130 A(*)
(*) Optional
NOTE The vehicles equipped with Start&Stop have a dedicated Start&Stop battery type. Use of a different battery could cause
the battery to run down quickly or Start&Stop system not to operate normally. Please contact a Fiat Dealership when replacing
the battery.
288
TECHNICAL SPECIFICATIONS

FUEL CONSUMPTION / CO2EMISSION
COMBINED USE
Euro 5 engine Transmission CO2 (g/km)Fuel consumption
(L/100km)
2WD Hi-RiderWith Start&Stop 6M/T 166 6.3
Without Start&Stop 5A/T 185 7.0
4WDWith Start&Stop 6M/T 169 6.4
Without Start&Stop6M/T173
188
(*)192(**)
6.6
7.1(*),7.3(**)
5A/T189
197(*),203(**)
7.2
7.5(*),7.7(**)
(*) Vehicles for Russia
(**)Vehicles for Ukraina
296
TECHNICAL SPECIFICATIONS

COMBINED USE

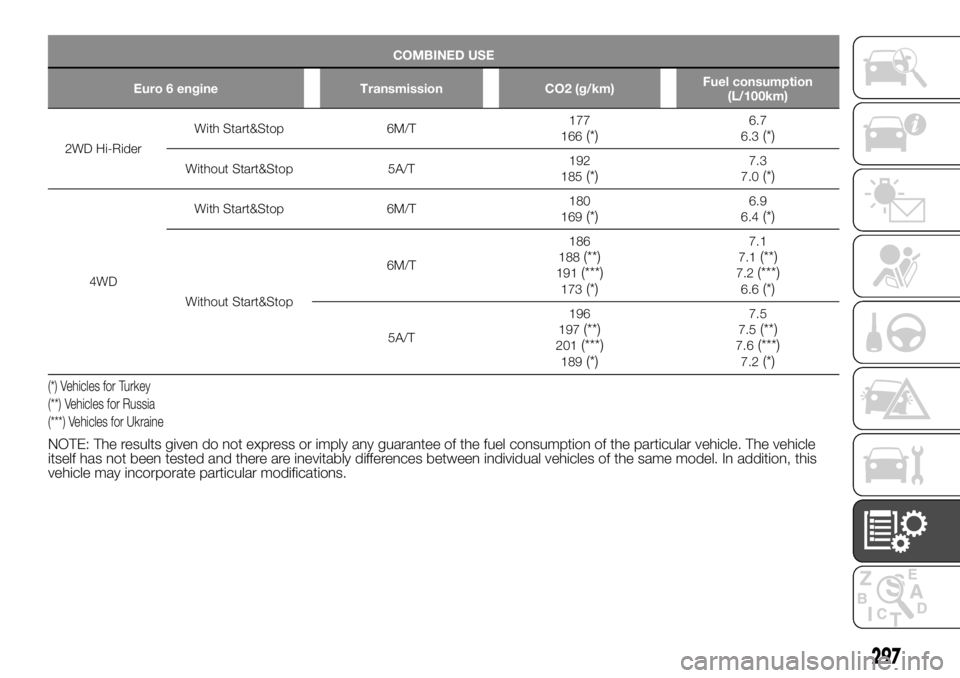

Euro 6 engine Transmission CO2 (g/km)Fuel consumption
(L/100km)
2WD Hi-RiderWith Start&Stop 6M/T177
166(*)6.7
6.3(*)
Without Start&Stop 5A/T192
185(*)7.3
7.0(*)
4WDWith Start&Stop 6M/T180
169
(*)6.9
6.4(*)
Without Start&Stop6M/T186
188
(**)191(***)173(*)
7.1
7.1(**)7.2(***)6.6(*)
5A/T196
197(**)201(***)189(*)
7.5
7.5(**)7.6(***)7.2(*)
(*) Vehicles for Turkey
(**) Vehicles for Russia
(***) Vehicles for Ukraine
NOTE: The results given do not express or imply any guarantee of the fuel consumption of the particular vehicle. The vehicle
itself has not been tested and there are inevitably differences between individual vehicles of the same model. In addition, this
vehicle may incorporate particular modifications.
297
