The stored speed can be increased in two
ways:
❒by turning the device off and then
storing a new speed;
or
❒ moving the stalk downwards (–) until
reaching the new speed which will be
memorised automatically.
Each movement of the lever will corre-
spond to a slight reduction in speed (about
1 km/h), while keeping the lever held
downwards will correspond to a continu-
ous speed reduction.
DISENGAGING THE DEVICE
Turn ring A-fig. 75to OFFor the igni-
tion key to STOP. If the device has been
disengaged, for example by pressing the
brake or clutch pedal.
If the device is faulty, turn
ring A to OFF, check the fuse
and contact a Fiat Dealership.
WARNING

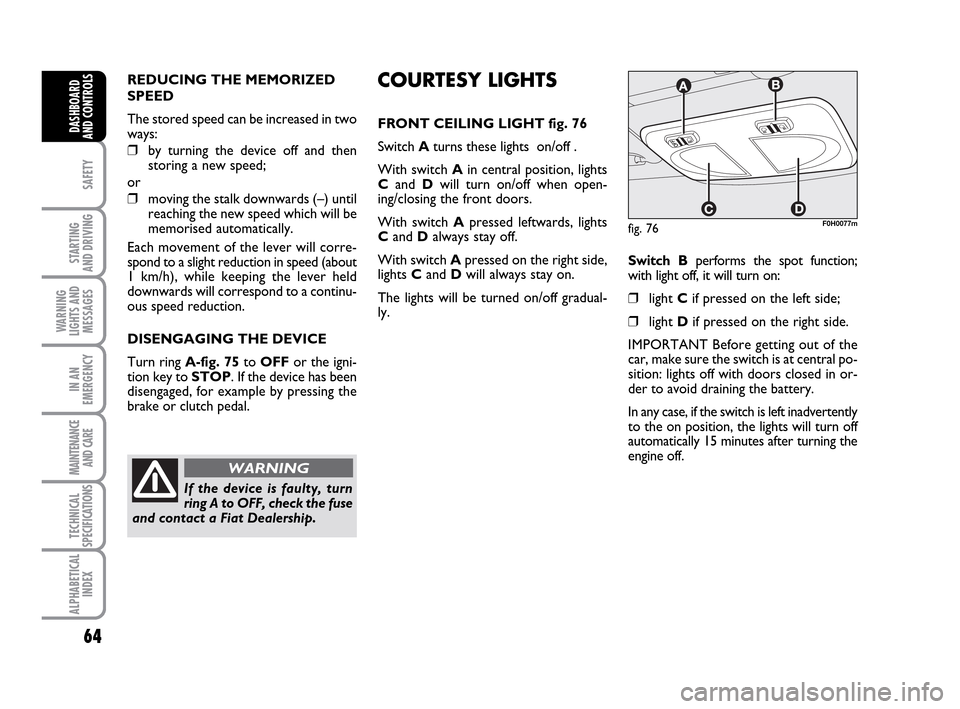

COURTESY LIGHTS
FRONT CEILING LIGHT fig. 76
Switch Aturns these lights on/off .
With switch Ain central position, lights
Cand Dwill turn on/off when open-
ing/closing the front doors.
With switch Apressed leftwards, lights
Cand Dalways stay off.
With switch Apressed on the right side,
lights C andD will always stay on.
The lights will be turned on/off gradual-
ly.Switch Bperforms the spot function;
with light off, it will turn on:
❒ light Cif pressed on the left side;
❒light Dif pressed on the right side.
IMPORTANT Before getting out of the
car, make sure the switch is at central po-
sition: lights off with doors closed in or-
der to avoid draining the battery.
In any case, if the switch is left inadvertently
to the on position, the lights will turn off
automatically 15 minutes after turning the
engine off.
fig. 76F0H0077m
036-092 LUM IDEA GB 2 ed.qxd 14-01-2010 12:15 Pagina 64

65
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND CONTROLS
fig. 77F0H0078mfig. 78F0H0079m
fig. 79F0H0254m

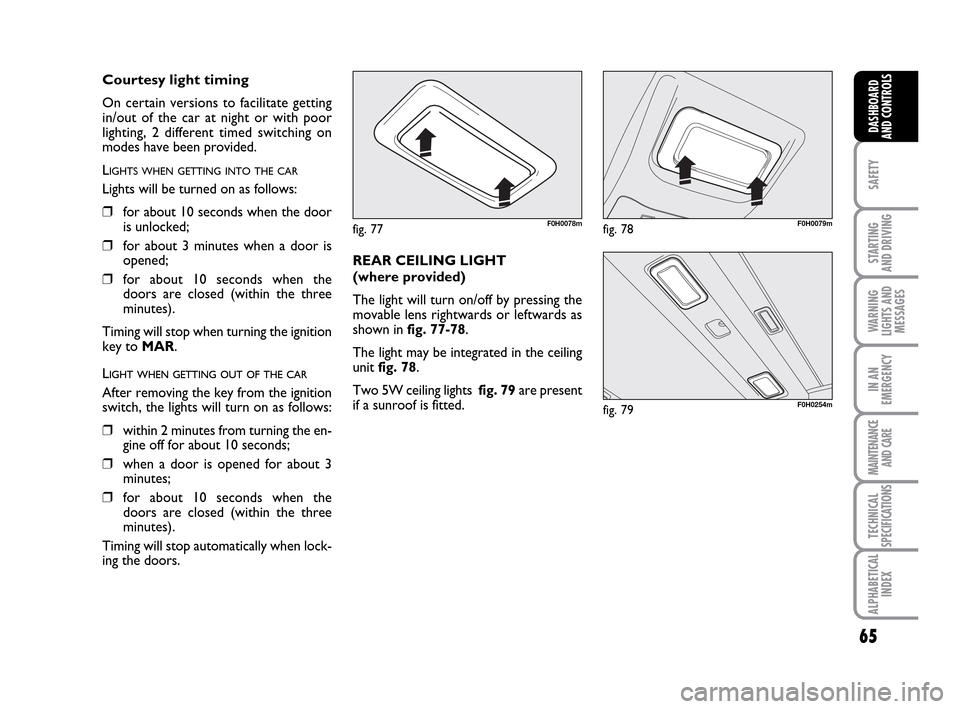

REAR CEILING LIGHT
(where provided)
The light will turn on/off by pressing the
movable lens rightwards or leftwards as
shown in fig. 77-78.
The light may be integrated in the ceiling
unit fig. 78.
Two 5W ceiling lights fig. 79are present
if a sunroof is fitted.
Courtesy light timing
On certain versions to facilitate getting
in/out of the car at night or with poor
lighting, 2 different timed switching on
modes have been provided.
L
IGHTS WHEN GETTING INTO THE CAR
Lights will be turned on as follows:
❒for about 10 seconds when the door
is unlocked;
❒for about 3 minutes when a door is
opened;
❒for about 10 seconds when the
doors are closed (within the three
minutes).
Timing will stop when turning the ignition
key to MAR.
LIGHT WHEN GETTING OUT OF THE CAR
After removing the key from the ignition
switch, the lights will turn on as follows:
❒within 2 minutes from turning the en-
gine off for about 10 seconds;
❒when a door is opened for about 3
minutes;
❒for about 10 seconds when the
doors are closed (within the three
minutes).
Timing will stop automatically when lock-
ing the doors.
036-092 LUM IDEA GB 2 ed.qxd 14-01-2010 12:15 Pagina 65

66
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND CONTROLS

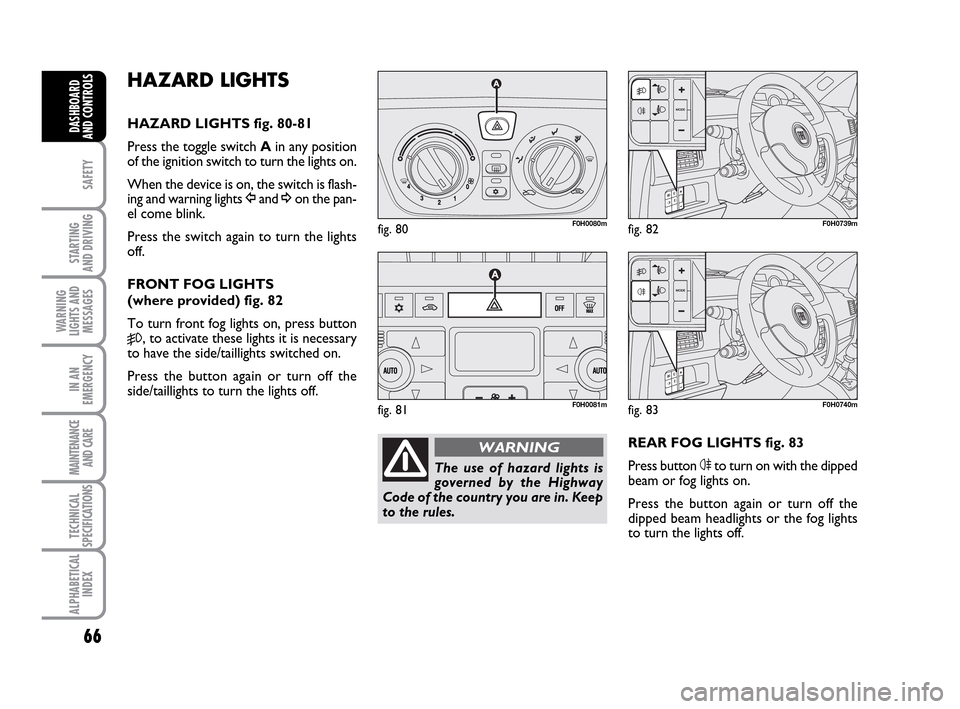

HAZARD LIGHTS
HAZARD LIGHTS fig. 80-81
Press the toggle switch Ain any position
of the ignition switch to turn the lights on.
When the device is on, the switch is flash-
ing and warning lights Îand ¥on the pan-
el come blink.
Press the switch again to turn the lights
off.
FRONT FOG LIGHTS
(where provided) fig. 82
To turn front fog lights on, press button
5, to activate these lights it is necessary
to have the side/taillights switched on.
Press the button again or turn off the
side/taillights to turn the lights off.
REAR FOG LIGHTS fig. 83
Press button 4to turn on with the dipped
beam or fog lights on.
Press the button again or turn off the
dipped beam headlights or the fog lights
to turn the lights off.
fig. 80F0H0080m
fig. 81F0H0081m
fig. 82F0H0739m
The use of hazard lights is
governed by the Highway
Code of the country you are in. Keep
to the rules.
WARNING
fig. 83F0H0740m
036-092 LUM IDEA GB 2 ed.qxd 14-01-2010 12:15 Pagina 66

67
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND CONTROLS

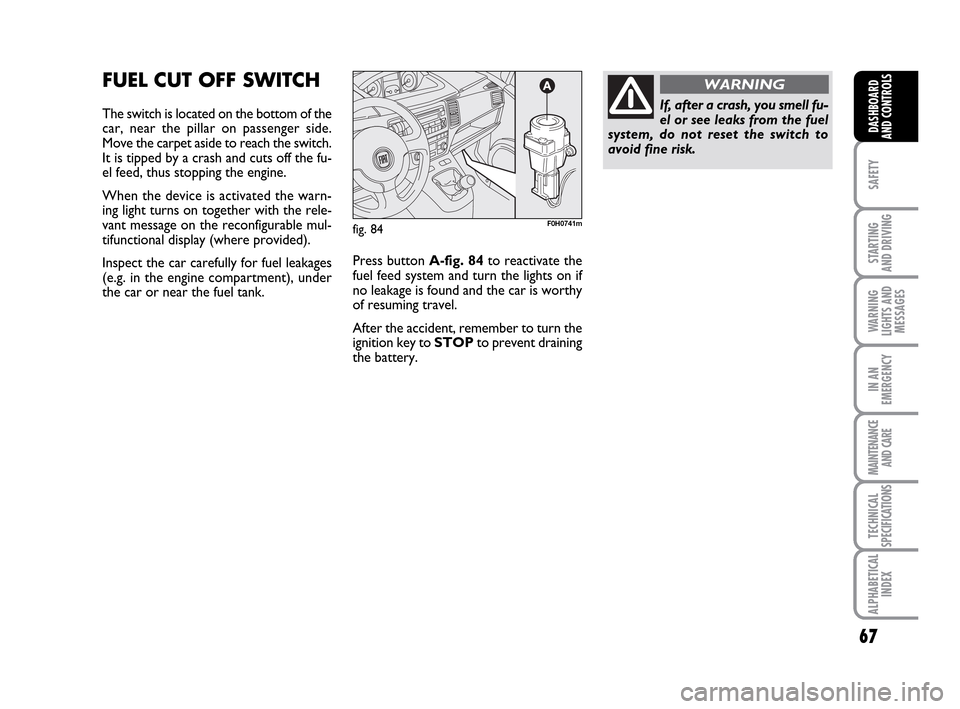

FUEL CUT OFF SWITCH
The switch is located on the bottom of the
car, near the pillar on passenger side.
Move the carpet aside to reach the switch.
It is tipped by a crash and cuts off the fu-
el feed, thus stopping the engine.
When the device is activated the warn-
ing light turns on together with the rele-
vant message on the reconfigurable mul-
tifunctional display (where provided).
Inspect the car carefully for fuel leakages
(e.g. in the engine compartment), under
the car or near the fuel tank. Press button A-fig. 84to reactivate the
fuel feed system and turn the lights on if
no leakage is found and the car is worthy
of resuming travel.
After the accident, remember to turn the
ignition key to STOPto prevent draining
the battery.
fig. 84F0H0741m
If, after a crash, you smell fu-
el or see leaks from the fuel
system, do not reset the switch to
avoid fine risk.
WARNING
036-092 LUM IDEA GB 2 ed.qxd 14-01-2010 12:15 Pagina 67

68
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND CONTROLS

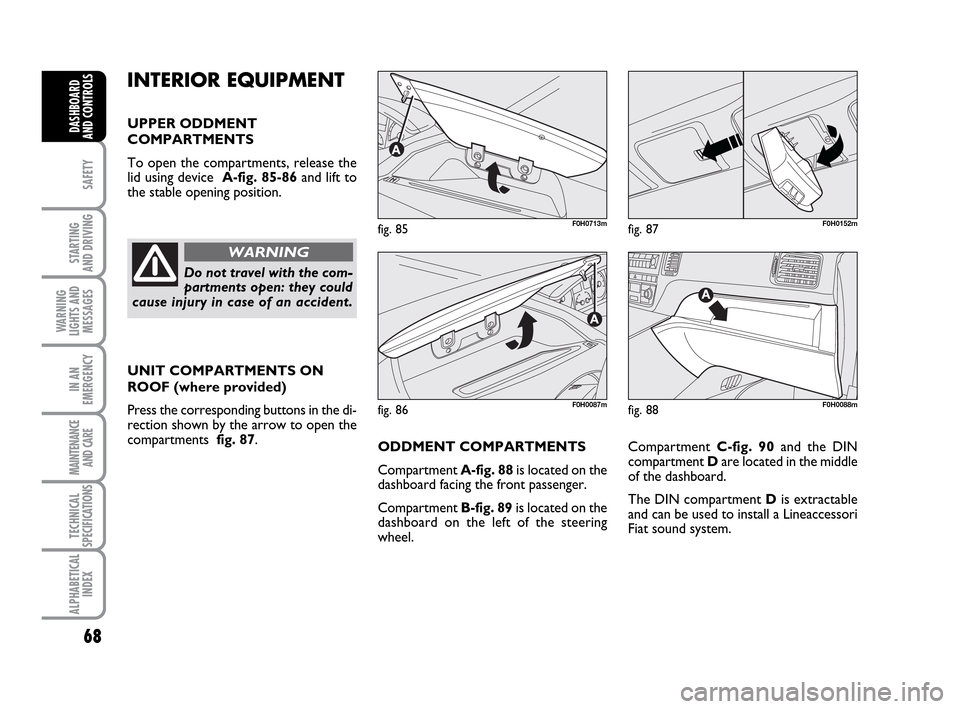

INTERIOR EQUIPMENT
UPPER ODDMENT
COMPARTMENTS
To open the compartments, release the
lid using device A-fig. 85-86 and lift to
the stable opening position.
UNIT COMPARTMENTS ON
ROOF (where provided)
Press the corresponding buttons in the di-
rection shown by the arrow to open the
compartments fig. 87.
fig. 85F0H0713m
fig. 86F0H0087m
fig. 87F0H0152m
Do not travel with the com-
partments open: they could
cause injury in case of an accident.
WARNING
Compartment C-fig. 90and the DIN
compartment Dare located in the middle
of the dashboard.
The DIN compartment Dis extractable
and can be used to install a Lineaccessori
Fiat sound system.
fig. 88F0H0088m
ODDMENT COMPARTMENTS
Compartment A-fig. 88is located on the
dashboard facing the front passenger.
Compartment B-fig. 89is located on the
dashboard on the left of the steering
wheel.
036-092 LUM IDEA GB 2 ed.qxd 14-01-2010 12:15 Pagina 68

69
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND CONTROLS
fig. 90F0H0090m
fig. 89F0H0714m

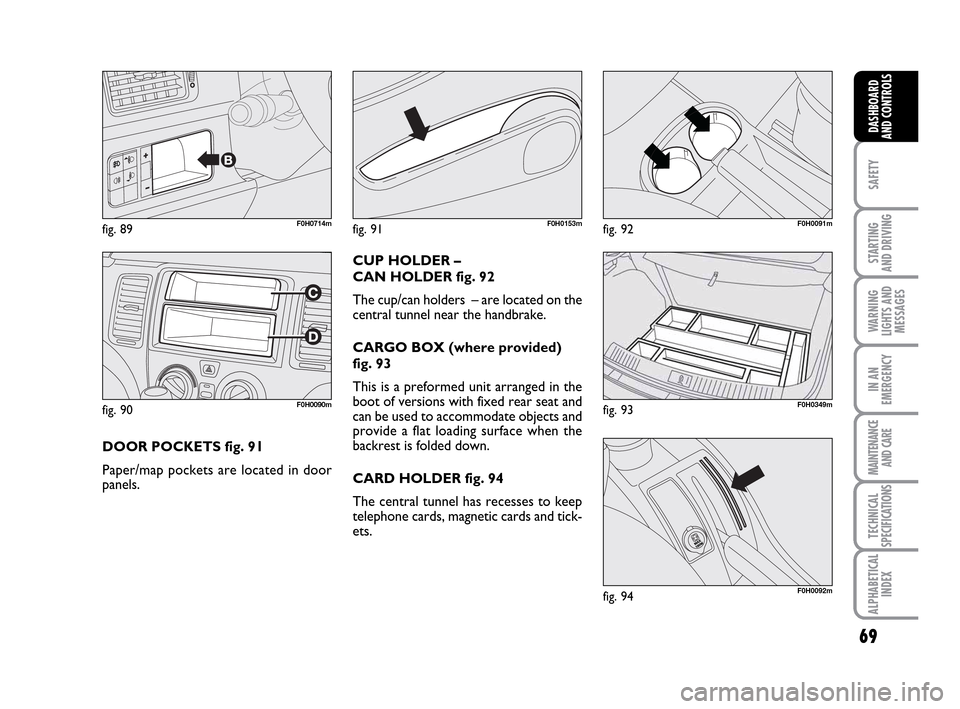

DOOR POCKETS fig. 91
Paper/map pockets are located in door
panels.CUP HOLDER –
CAN HOLDER fig. 92
The cup/can holders – are located on the
central tunnel near the handbrake.
CARGO BOX (where provided)
fig. 93
This is a preformed unit arranged in the
boot of versions with fixed rear seat and
can be used to accommodate objects and
provide a flat loading surface when the
backrest is folded down.
CARD HOLDER fig. 94
The central tunnel has recesses to keep
telephone cards, magnetic cards and tick-
ets.
fig. 91F0H0153mfig. 92F0H0091m
fig. 93F0H0349m
fig. 94F0H0092m
036-092 LUM IDEA GB 2 ed.qxd 14-01-2010 12:15 Pagina 69

70
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND CONTROLS
fig. 95F0H0093m

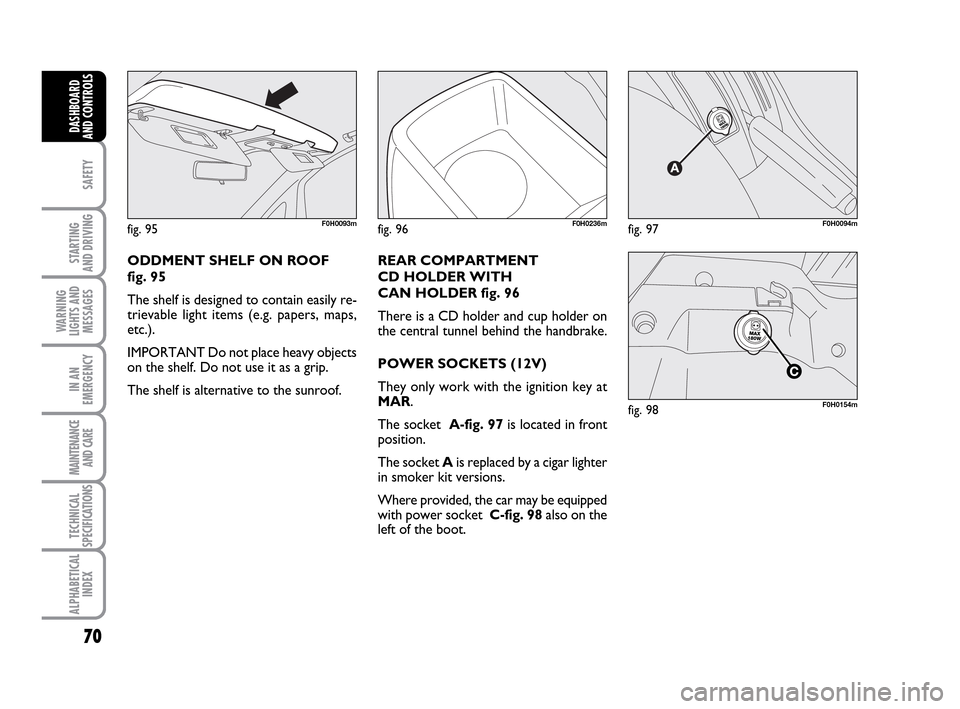

ODDMENT SHELF ON ROOF
fig. 95
The shelf is designed to contain easily re-
trievable light items (e.g. papers, maps,
etc.).
IMPORTANT Do not place heavy objects
on the shelf. Do not use it as a grip.
The shelf is alternative to the sunroof.
fig. 96F0H0236mfig. 97F0H0094m
REAR COMPARTMENT
CD HOLDER WITH
CAN HOLDER fig. 96
There is a CD holder and cup holder on
the central tunnel behind the handbrake.
POWER SOCKETS (12V)
They only work with the ignition key at
MAR.
The socket A-fig. 97is located in front
position.
The socket Ais replaced by a cigar lighter
in smoker kit versions.
Where provided, the car may be equipped
with power socket C-fig. 98also on the
left of the boot.
fig. 98F0H0154m
036-092 LUM IDEA GB 2 ed.qxd 14-01-2010 12:15 Pagina 70

71
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND CONTROLS

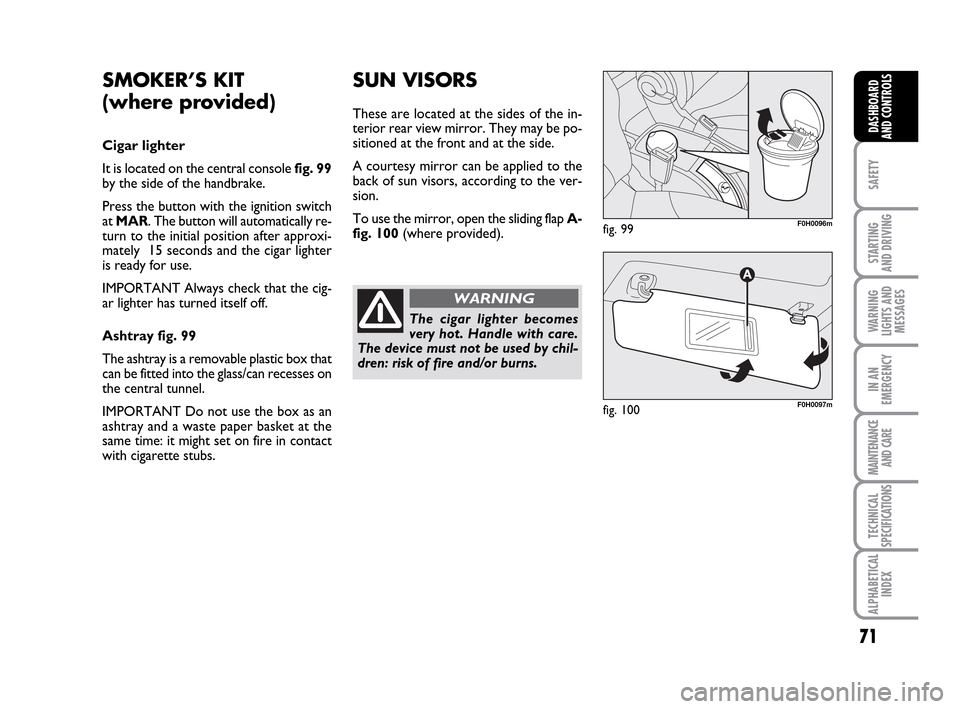

SMOKER’S KIT
(where provided)
Cigar lighter
It is located on the central console fig. 99
by the side of the handbrake.
Press the button with the ignition switch
at MAR. The button will automatically re-
turn to the initial position after approxi-
mately 15 seconds and the cigar lighter
is ready for use.
IMPORTANT Always check that the cig-
ar lighter has turned itself off.
Ashtray fig. 99
The ashtray is a removable plastic box that
can be fitted into the glass/can recesses on
the central tunnel.
IMPORTANT Do not use the box as an
ashtray and a waste paper basket at the
same time: it might set on fire in contact
with cigarette stubs.
SUN VISORS
These are located at the sides of the in-
terior rear view mirror. They may be po-
sitioned at the front and at the side.
A courtesy mirror can be applied to the
back of sun visors, according to the ver-
sion.
To use the mirror, open the sliding flap A-
fig. 100(where provided).
fig. 99F0H0096m
fig. 100F0H0097m
The cigar lighter becomes
very hot. Handle with care.
The device must not be used by chil-
dren: risk of fire and/or burns.
WARNING
036-092 LUM IDEA GB 2 ed.qxd 14-01-2010 12:15 Pagina 71

72
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND CONTROLS

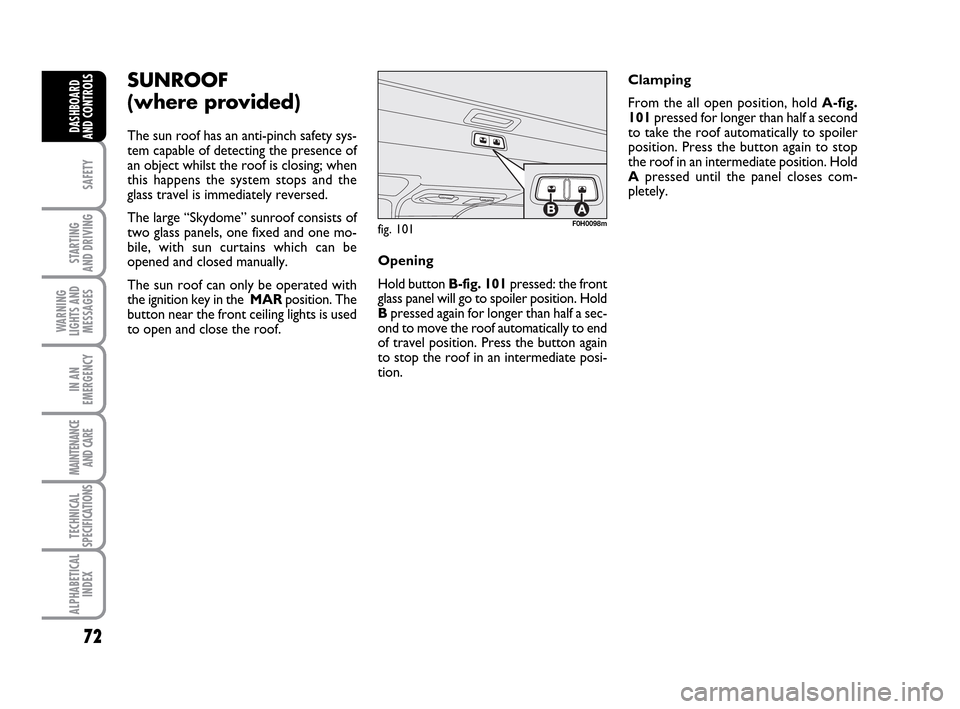

SUNROOF
(where provided)
The sun roof has an anti-pinch safety sys-
tem capable of detecting the presence of
an object whilst the roof is closing; when
this happens the system stops and the
glass travel is immediately reversed.
The large “Skydome” sunroof consists of
two glass panels, one fixed and one mo-
bile, with sun curtains which can be
opened and closed manually.
The sun roof can only be operated with
the ignition key in the MAR position. The
button near the front ceiling lights is used
to open and close the roof. Clamping
From the all open position, hold A-fig.
101pressed for longer than half a second
to take the roof automatically to spoiler
position. Press the button again to stop
the roof in an intermediate position. Hold
Apressed until the panel closes com-
pletely.
fig. 101F0H0098m
Opening
Hold button B-fig. 101pressed: the front
glass panel will go to spoiler position. Hold
Bpressed again for longer than half a sec-
ond to move the roof automatically to end
of travel position. Press the button again
to stop the roof in an intermediate posi-
tion.
036-092 LUM IDEA GB 2 ed.qxd 14-01-2010 12:15 Pagina 72

73
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND CONTROLS
fig. 102F0H0099m

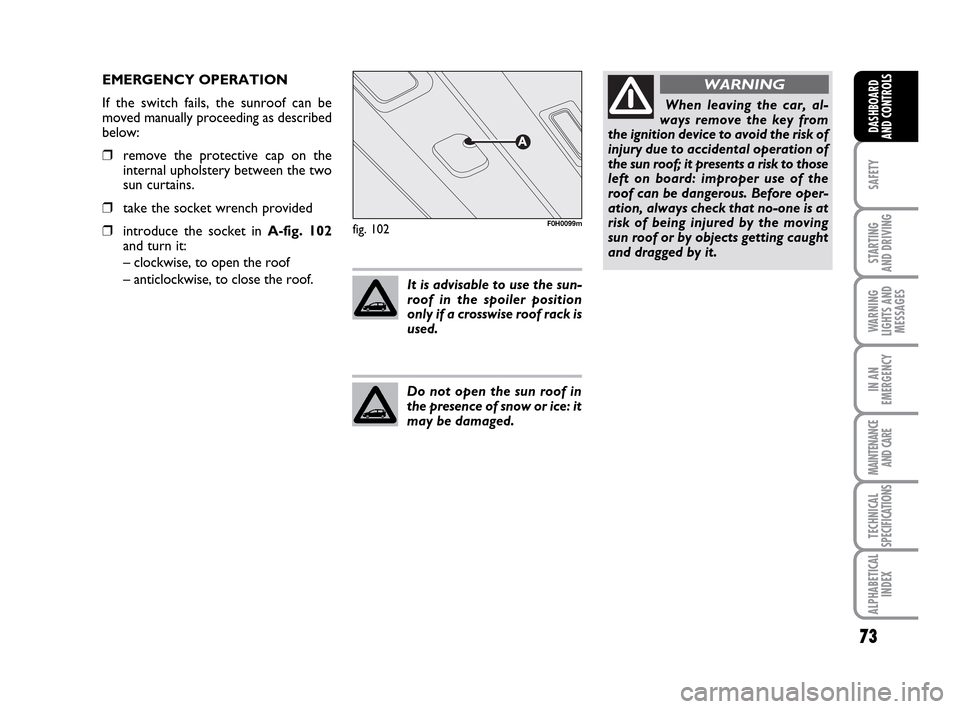

EMERGENCY OPERATION
If the switch fails, the sunroof can be
moved manually proceeding as described
below:
❒remove the protective cap on the
internal upholstery between the two
sun curtains.
❒take the socket wrench provided
❒introduce the socket in A-fig. 102
and turn it:
– clockwise, to open the roof
– anticlockwise, to close the roof.
It is advisable to use the sun-
roof in the spoiler position
only if a crosswise roof rack is
used.
Do not open the sun roof in
the presence of snow or ice: it
may be damaged.
When leaving the car, al-
ways remove the key from
the ignition device to avoid the risk of
injury due to accidental operation of
the sun roof; it presents a risk to those
left on board: improper use of the
roof can be dangerous. Before oper-
ation, always check that no-one is at
risk of being injured by the moving
sun roof or by objects getting caught
and dragged by it.
WARNING
036-092 LUM IDEA GB 2 ed.qxd 14-01-2010 12:15 Pagina 73
