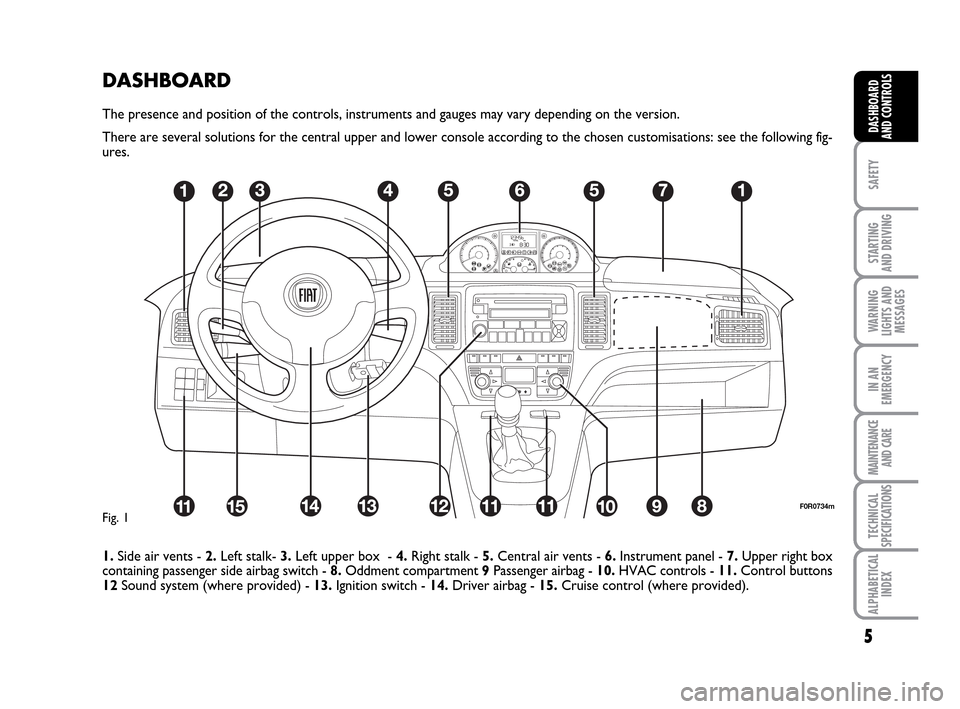

DASHBOARD
The presence and position of the controls, instruments and gauges may vary depending on the version.
There are several solutions for the central upper and lower console according to the chosen customisations: see the following fig-
ures.
1.Side air vents - 2.Left stalk- 3.Left upper box - 4.Right stalk - 5.Central air vents - 6.Instrument panel - 7.Upper right box
containing passenger side airbag switch - 8.Oddment compartment 9Passenger airbag - 10.HVAC controls - 11.Control buttons
12Sound system (where provided) - 13.Ignition switch - 14.Driver airbag - 15.Cruise control (where provided).
5
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND CONTROLS
F0R0734mFig. 1
001-035 LUM IDEA GB 2 ed.qxd 19-01-2010 9:14 Pagina 5

6
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND CONTROLS
fig. 2F0H0231m

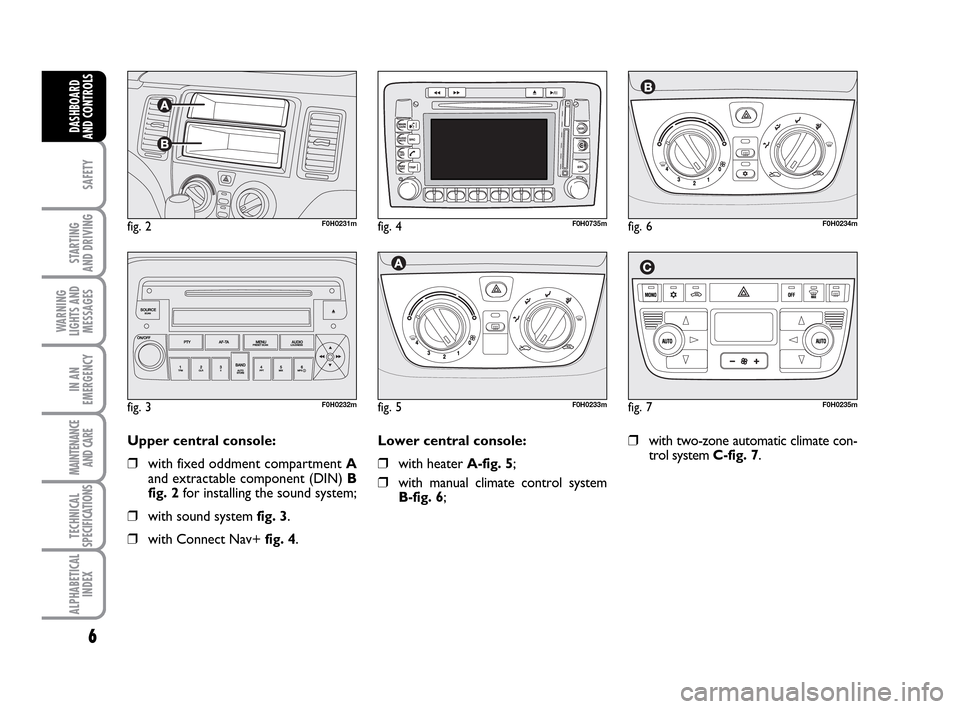

Upper central console:
❒with fixed oddment compartment A
and extractable component (DIN) B
fig. 2for installing the sound system;
❒with sound system fig. 3.
❒with Connect Nav+ fig. 4.
fig. 3F0H0232m
fig. 4F0H0735m
Lower central console:
❒with heaterA-fig. 5;
❒with manual climate control system
B-fig. 6;❒with two-zone automatic climate con-
trol system C-fig. 7.
fig. 5F0H0233m
fig. 6F0H0234m
fig. 7F0H0235m
001-035 LUM IDEA GB 2 ed.qxd 19-01-2010 9:14 Pagina 6

7
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND CONTROLS
F0H0706m
Modal fig. 8
A– Speedometer
B– Fuel level gauge with reserve warning
light
C– Engine coolant temperature gauge and
excessive temperature warning light
D–Rev counter
E– Multifunction display
cmWarning lights for Multijet ver-
sions only

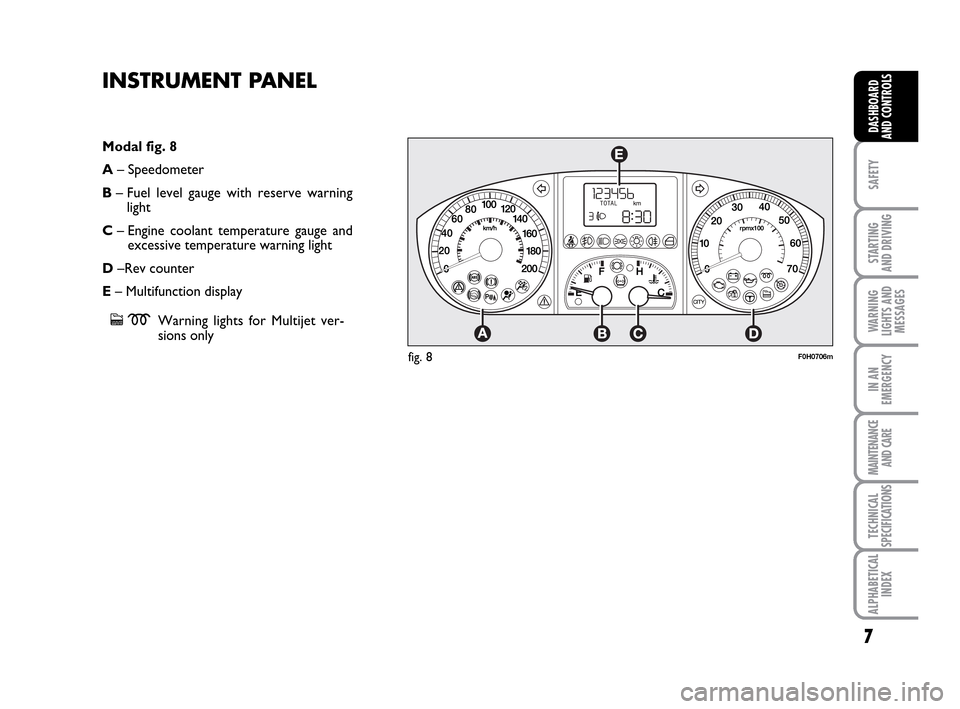

INSTRUMENT PANEL
fig. 8
001-035 LUM IDEA GB 2 ed.qxd 19-01-2010 9:14 Pagina 7

8
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND CONTROLS
F0H0707m

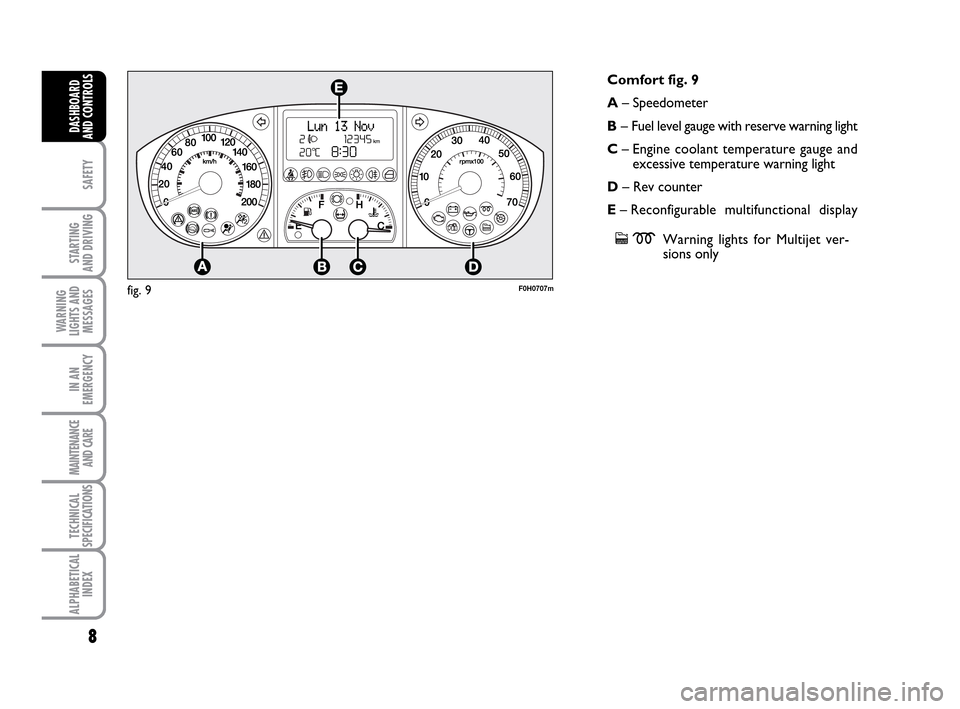

Comfort fig. 9
A– Speedometer
B– Fuel level gauge with reserve warning light
C– Engine coolant temperature gauge and
excessive temperature warning light
D– Rev counter
E– Reconfigurable multifunctional display
cmWarning lights for Multijet ver-
sions only
fig. 9
001-035 LUM IDEA GB 2 ed.qxd 19-01-2010 9:14 Pagina 8

9
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND CONTROLS
F0H0012mfig. 10

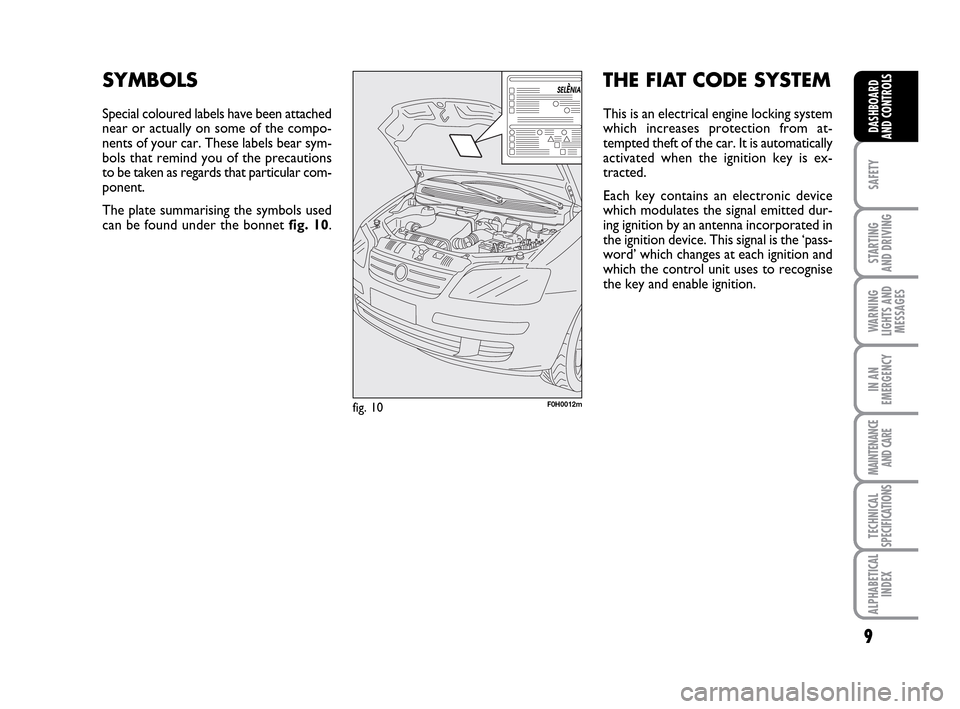

SYMBOLS
Special coloured labels have been attached
near or actually on some of the compo-
nents of your car. These labels bear sym-
bols that remind you of the precautions
to be taken as regards that particular com-
ponent.
The plate summarising the symbols used
can be found under the bonnet fig. 10.
THE FIAT CODE SYSTEM
This is an electrical engine locking system
which increases protection from at-
tempted theft of the car. It is automatically
activated when the ignition key is ex-
tracted.
Each key contains an electronic device
which modulates the signal emitted dur-
ing ignition by an antenna incorporated in
the ignition device. This signal is the ‘pass-
word’ which changes at each ignition and
which the control unit uses to recognise
the key and enable ignition.
001-035 LUM IDEA GB 2 ed.qxd 19-01-2010 9:14 Pagina 9

10
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND CONTROLS

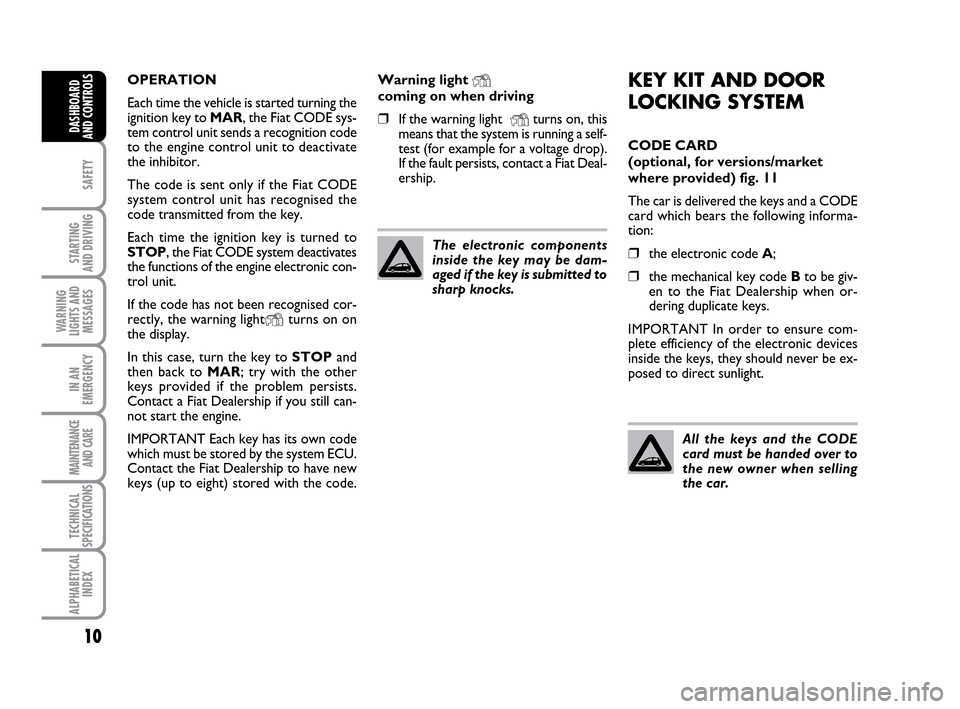

KEY KIT AND DOOR
LOCKING SYSTEM
CODE CARD
(optional, for versions/market
where provided) fig. 11
The car is delivered the keys and a CODE
card which bears the following informa-
tion:
❒the electronic code A;
❒the mechanical key code Bto be giv-
en to the Fiat Dealership when or-
dering duplicate keys.
IMPORTANT In order to ensure com-
plete efficiency of the electronic devices
inside the keys, they should never be ex-
posed to direct sunlight. OPERATION
Each time the vehicle is started turning the
ignition key to MAR, the Fiat CODE sys-
tem control unit sends a recognition code
to the engine control unit to deactivate
the inhibitor.
The code is sent only if the Fiat CODE
system control unit has recognised the
code transmitted from the key.
Each time the ignition key is turned to
STOP, the Fiat CODE system deactivates
the functions of the engine electronic con-
trol unit.
If the code has not been recognised cor-
rectly, the warning light
Yturns on on
the display.
In this case, turn the key to STOPand
then back to MAR; try with the other
keys provided if the problem persists.
Contact a Fiat Dealership if you still can-
not start the engine.
IMPORTANT Each key has its own code
which must be stored by the system ECU.
Contact the Fiat Dealership to have new
keys (up to eight) stored with the code.Warning light
Ycoming on when driving
❒If the warning light Yturns on, this
means that the system is running a self-
test (for example for a voltage drop).
If the fault persists, contact a Fiat Deal-
ership.
The electronic components
inside the key may be dam-
aged if the key is submitted to
sharp knocks.
All the keys and the CODE
card must be handed over to
the new owner when selling
the car.
001-035 LUM IDEA GB 2 ed.qxd 19-01-2010 9:14 Pagina 10

11
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND CONTROLS

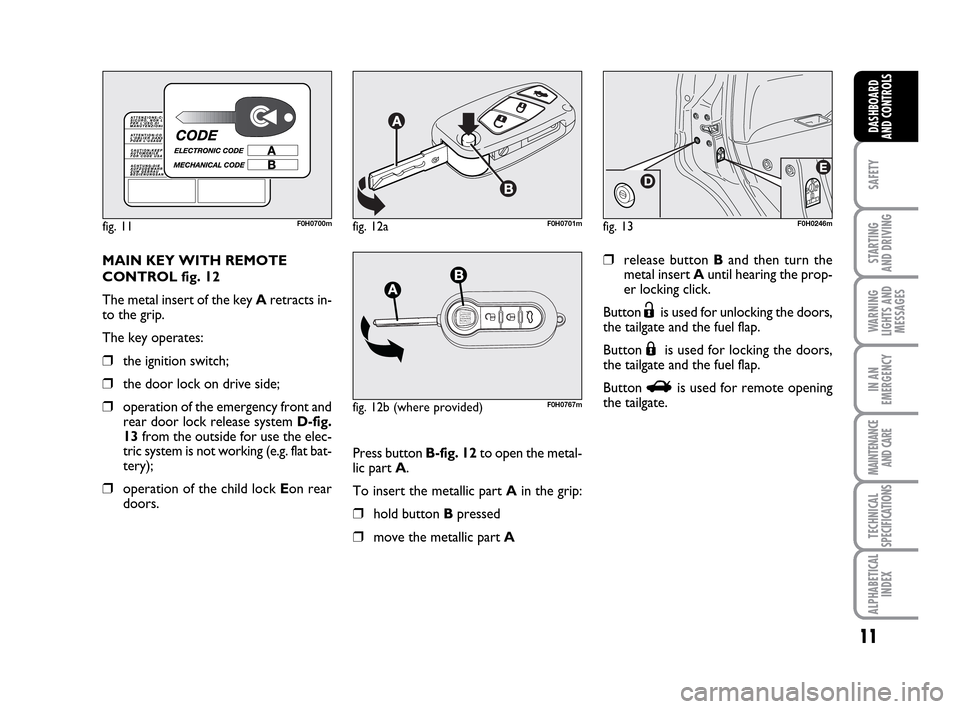

MAIN KEY WITH REMOTE
CONTROL fig. 12
The metal insert of the key Aretracts in-
to the grip.
The key operates:
❒the ignition switch;
❒the door lock on drive side;
❒operation of the emergency front and
rear door lock release system D-fig.
13from the outside for use the elec-
tric system is not working (e.g. flat bat-
tery);
❒operation of the child lock Eon rear
doors.
fig. 11F0H0700m
fig. 12b (where provided)F0H0767m
fig. 13F0H0246m
❒release button Band then turn the
metal insert Auntil hearing the prop-
er locking click.
Button
Ëis used for unlocking the doors,
the tailgate and the fuel flap.
Button
Áis used for locking the doors,
the tailgate and the fuel flap.
Button
Ris used for remote opening
the tailgate.
fig. 12aF0H0701m
Press button B-fig. 12to open the metal-
lic part A.
To insert the metallic part Ain the grip:
❒hold button B pressed
❒move the metallic part A
001-035 LUM IDEA GB 2 ed.qxd 19-01-2010 9:14 Pagina 11

12
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND CONTROLS

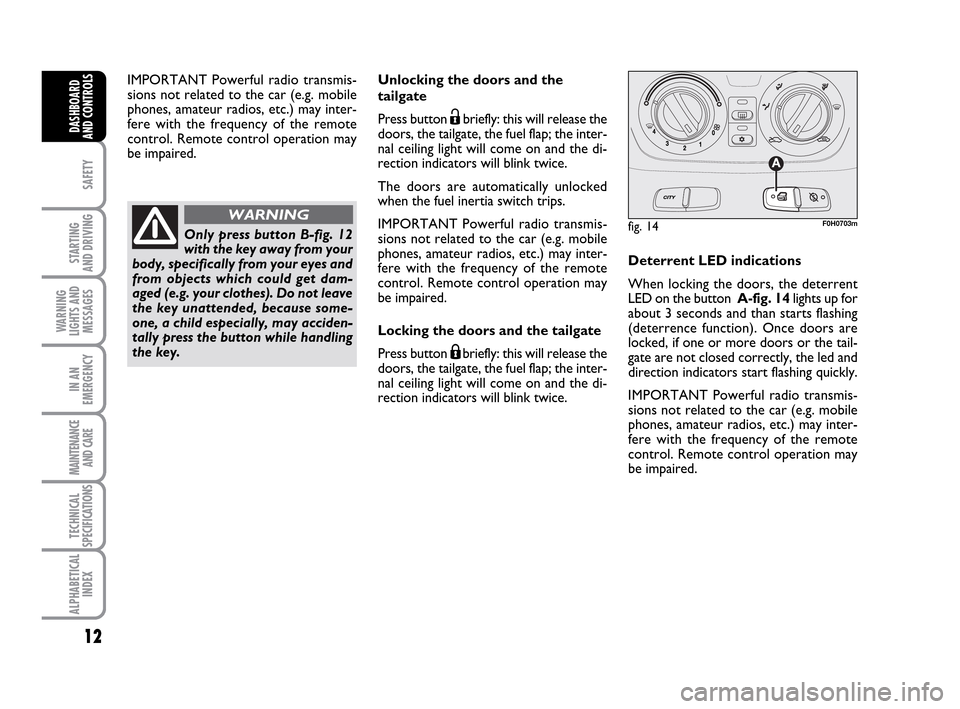

Unlocking the doors and the
tailgate
Press button
Ëbriefly: this will release the
doors, the tailgate, the fuel flap; the inter-
nal ceiling light will come on and the di-
rection indicators will blink twice.
The doors are automatically unlocked
when the fuel inertia switch trips.
IMPORTANT Powerful radio transmis-
sions not related to the car (e.g. mobile
phones, amateur radios, etc.) may inter-
fere with the frequency of the remote
control. Remote control operation may
be impaired.
Locking the doors and the tailgate
Press button
Ábriefly: this will release the
doors, the tailgate, the fuel flap; the inter-
nal ceiling light will come on and the di-
rection indicators will blink twice.Deterrent LED indications
When locking the doors, the deterrent
LED on the button A-fig. 14lights up for
about 3 seconds and than starts flashing
(deterrence function). Once doors are
locked, if one or more doors or the tail-
gate are not closed correctly, the led and
direction indicators start flashing quickly.
IMPORTANT Powerful radio transmis-
sions not related to the car (e.g. mobile
phones, amateur radios, etc.) may inter-
fere with the frequency of the remote
control. Remote control operation may
be impaired.
fig. 14F0H0703m
IMPORTANT Powerful radio transmis-
sions not related to the car (e.g. mobile
phones, amateur radios, etc.) may inter-
fere with the frequency of the remote
control. Remote control operation may
be impaired.
Only press button B-fig. 12
with the key away from your
body, specifically from your eyes and
from objects which could get dam-
aged (e.g. your clothes). Do not leave
the key unattended, because some-
one, a child especially, may acciden-
tally press the button while handling
the key.
WARNING
001-035 LUM IDEA GB 2 ed.qxd 19-01-2010 9:14 Pagina 12

13
SAFETY
STARTING
AND DRIVING
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
MAINTENANCE
AND CARE
TECHNICAL
SPECIFICATIONS
ALPHABETICAL
INDEX
DASHBOARD
AND CONTROLS

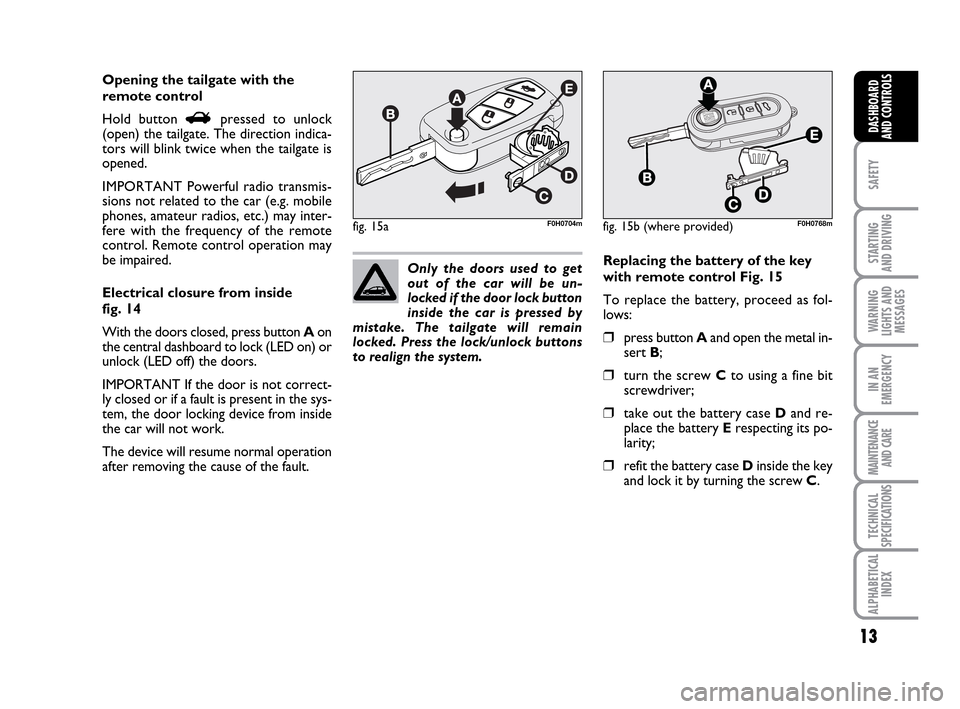

Opening the tailgate with the
remote control
Hold button
Rpressed to unlock
(open) the tailgate. The direction indica-
tors will blink twice when the tailgate is
opened.
IMPORTANT Powerful radio transmis-
sions not related to the car (e.g. mobile
phones, amateur radios, etc.) may inter-
fere with the frequency of the remote
control. Remote control operation may
be impaired.
Electrical closure from inside
fig. 14
With the doors closed, press button Aon
the central dashboard to lock (LED on) or
unlock (LED off) the doors.
IMPORTANT If the door is not correct-
ly closed or if a fault is present in the sys-
tem, the door locking device from inside
the car will not work.
The device will resume normal operation
after removing the cause of the fault.Only the doors used to get
out of the car will be un-
locked if the door lock button
inside the car is pressed by
mistake. The tailgate will remain
locked. Press the lock/unlock buttons
to realign the system.
fig. 15aF0H0704m
Replacing the battery of the key
with remote control Fig. 15
To replace the battery, proceed as fol-
lows:
❒press button Aand open the metal in-
sert B;
❒turn the screw Cto using a fine bit
screwdriver;
❒take out the battery case Dand re-
place the battery Erespecting its po-
larity;
❒refit the battery case Dinside the key
and lock it by turning the screw C.
fig. 15b (where provided)F0H0768m
001-035 LUM IDEA GB 2 ed.qxd 19-01-2010 9:14 Pagina 13
