HEADLIGHTS
BEAM DIRECTION
Correction direction of the headlights is
essentially for the comfort and safety of
the driver and the other road users. The
headlights must be correctly directed
to
ensure the best visibility conditions when
the headlight s are on. Contact Fiat
Dealership to have the headlights properly
adjusted.

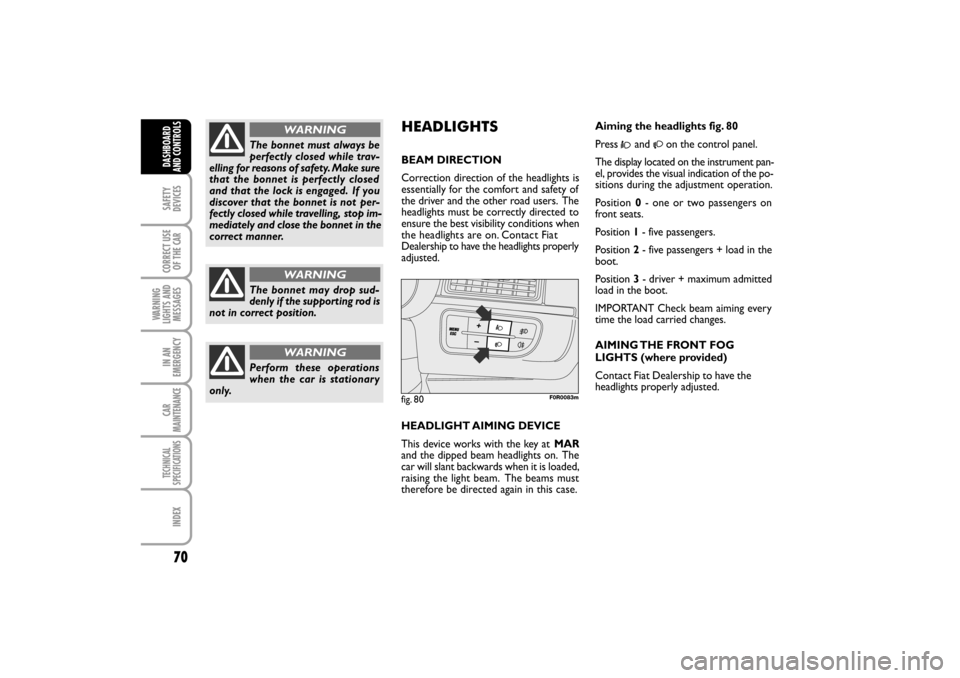

HEADLIGHT AIMING DEVICE
This device works with the key at MAR
and the dipped beam headlights on. The
car will slant backwards when it is loaded,
raising the light beam.
The beams must
therefore be directed again in this case.Aiming the headlights fig. 80
Press and on the control panel.
The display located on the instrument pan-
el,
provides the visual indication of the po-
sitions during the adjustment operation.
Position 0- one or two passengers on
front seats.
Position 1- five passengers.
Position 2- five passengers + load in the
boot.
Position 3- driver + maximum admitted
load in the boot.
IMPORTANT Check beam aiming every
time the load carried changes.
AIMING THE FRONT FOG
LIGHTS (where provided)
Contact Fiat Dealership to have the
headlights properly adjusted.
fig. 80F0R0083m
The bonnet must always be
perfectly closed while trav-
elling for reasons of safety. Make sure
that the bonnet is perfectly closed
and that the lock is engaged.
If you
discover that the bonnet is not per-
fectly closed while travelling, stop im-
mediately and close the bonnet in the
correct manner.
WARNING
The bonnet may drop sud-
denly if the supporting rod is
not in correct position.
WARNING
Perform these operations
when the car is stationary
only.
WARNING
70
DEVICES CORRECT USE
OF THE
CAR
MESSAGES
EMERGENCY
MAINTENANCE
SPECIFICATIONS
INDEX
AND CONTROLS
SAFETY LIGHTS AND
CAR
DASHBOARD
IN AN
TECHNICAL
WARNING
LINEA Owner HAND BOOK RHD.pdf 70LINEA Owner HAND BOOK RHD.pdf 708/21/09 2:16:09 PM8/21/09 2:16:09 PM

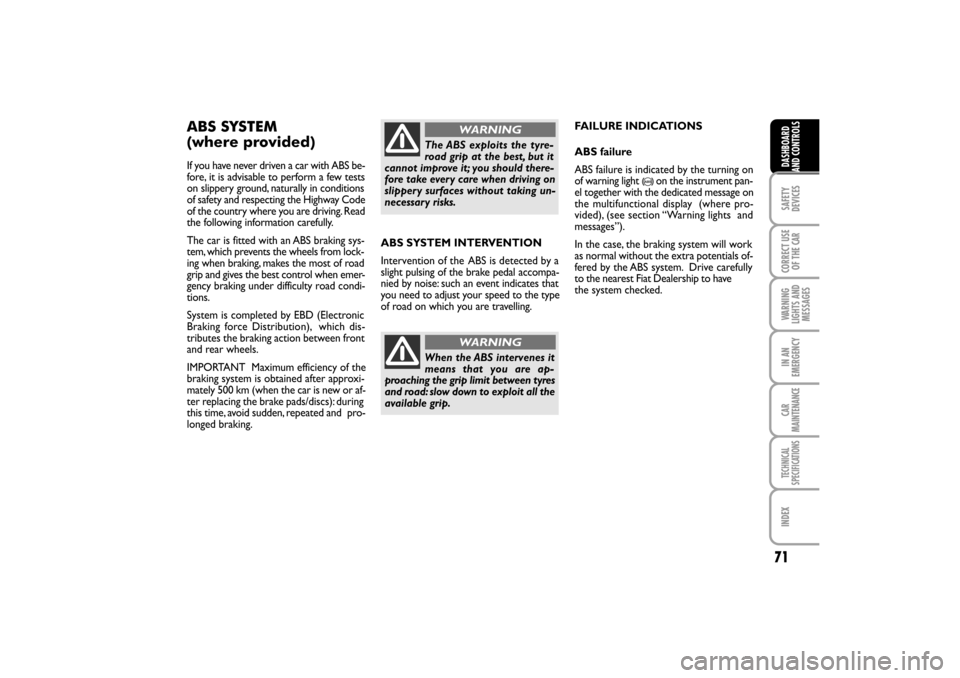

ABS SYSTEM
If you have never driven a car with ABS be-
fore, it is advisable to perform a few tests
on slippery ground, naturally in conditions
of safety and respecting the Highway Code
of the country where you are driving. Read
the following information carefully.
The car is fitted with an ABS braking sys-
tem, which prevents the wheels from lock-
ing when braking, makes the most of road
grip and gives the best control when emer-
gency braking under difficulty road condi-
tions.
System is completed by EBD (Electronic
Braking force Distribution), which dis-
tributes the braking action between front
and rear wheels.
IMPORTANT Maximum efficiency of the
braking system is obtained after approxi-
mately 500 km (when the car is new or af-
ter replacing the brake pads/discs): during
this time, avoid sudden, repeated and pro-
longed braking.
The ABS exploits the tyre-
road grip at the best, but it
cannot improve it; you should there-
fore take every care when driving on
slippery surfaces without taking un-
necessary risks.
WARNING
ABS SYSTEM INTERVENTION
Intervention of the
ABS is detected by a
slight pulsing of the brake pedal accompa-
nied by noise: such an event indicates that
you need to adjust your speed to the type
of road on which you are travelling.
When the ABS intervenes it
means that you are ap-
proaching the grip limit between tyres
and road: slow down to exploit all the
available grip.
WARNING
(where provided)
FAILURE INDICATIONS
ABS failure
ABS failure is indicated by the turning on
of warning light on the instrument pan-
el together with the dedicated message on
the multifunctional display (where pro-
vided), (see section “Warning lights and
messages”).
In the case, the braking system will work
as normal without the extra potentials of-
fered by the ABS system. Drive carefully
to the nearest Fiat Dealership to have
the system checked.
71
SAFETY CORRECT USE
OF THE
CAR
WARNING
IN AN
CAR
TECHNICAL
INDEX
DASHBOARD
DEVICES LIGHTS AND
EMERGENCY
MAINTENANCE
SPECIFICATIONS
AND CONTROLS
MESSAGES
LINEA Owner HAND BOOK RHD.pdf 71LINEA Owner HAND BOOK RHD.pdf 718/21/09 2:16:09 PM8/21/09 2:16:09 PM

SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

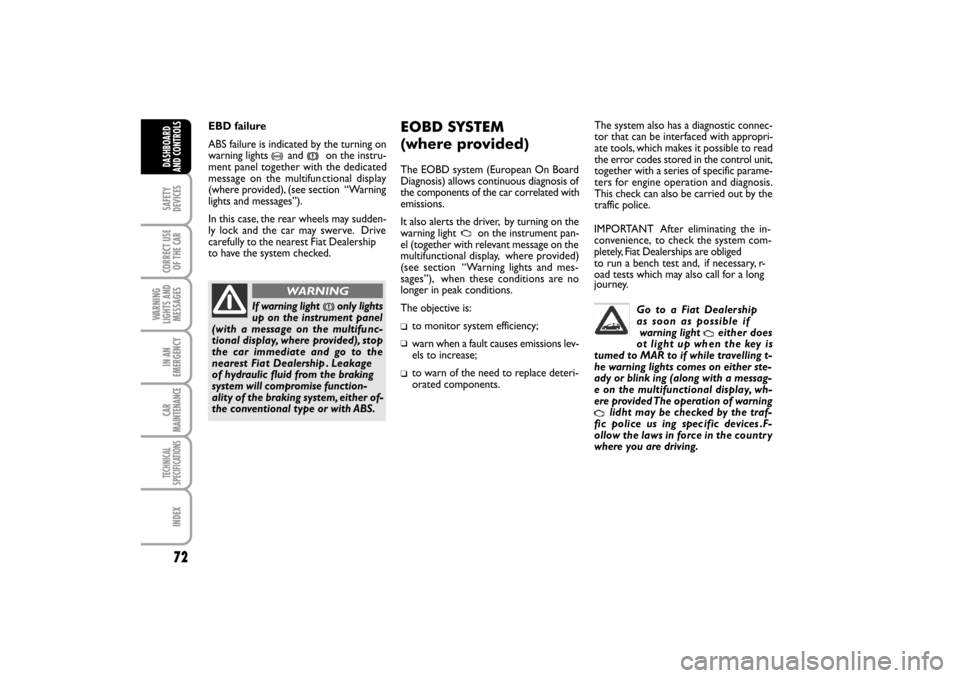

EOBD SYSTEM
(where provided)
The EOBD system (European On Board
Diagnosis) allows continuous diagnosis of
the components of the car correlated with
emissions.
It also alerts the driver,
by turning on the
warning light on the instrument pan-
el (together with relevant message on the
multifunctional display, where provided)
(see section “Warning lights and mes-
sages”), when these conditions are no
longer in peak conditions.
The objective is:
to monitor system efficiency;
warn when a fault causes emissions lev-
els to increase;
to warn of the need to replace deteri-
orated components.The system also has a diagnostic connec-
tor that can be interfaced with appropri-
ate tools, which makes it possible to read
the error codes stored in the control unit,
together with a series of specific parame-
ters for engine operation and diagnosis.
This check can also be carried out by the
traffic police.
IMPORTANT After eliminating the in-
convenience,
to check the system com-
pletely, Fiat Dealerships are obliged
to run a bench test and,
if necessary, r-
oad tests which may also call for a long
journey.
Go to a Fiat Dealer ship
as soon as possible if
warning light eith er does
ot light up when the key is
tumed to MAR to if while travelling t-
he warning lights comes on either ste-ady or blink ing (along with a messag-
e on the multifunctional display, wh-
ere provided The operation of warning
lidht may be checked by the traf-
fic police us ing spec ific devices .F-
ollow the laws in force in the countr y
where you are driving.


72
If warning light only lights
up on the instrument panel
(with a message on the multifu nc-
tional display, where provided), stop
the car immediate and go to the
nearest Fiat Dealership . Leakage
of hydraulic fluid from the braking
system will compromise function-
ality of the braking system, either of-
the conventional type or with ABS.
WARNING
EBD failure
ABS failure is indicated by the turning on
warning lights and on the instru-
ment panel together with the dedicated
message on the multifun ctional display
(where provided), (see section “Warning
lights and messages”).
In this case, the rear wheels may sudden-
ly lock and the car may swerve. Drive
carefully to the nearest Fiat Dealership
to have the system checked.
LINEA Owner HAND BOOK RHD.pdf 72LINEA Owner HAND BOOK RHD.pdf 728/21/09 2:16:10 PM8/21/09 2:16:10 PM

73
SOUND SYSTEM
(where provided)
For the operation of the radio with
CD/MP3 CD (where provided), read the
instructions for use given in the Supple-
ment attached to the Owner Handbook.
SOUND SYSTEM PRESETTING
(where provided)
The system consists of:
sound system power wires
front and rear speaker connecting
wires
aerial power wire
2 tweeters on front doors
4/6 full-range speakers on rear doors
and rear valance panels
radio aerial wire.Sound system installation
The sound system shall be installed in the
proper
spa ce occupied by the cen tral
oddment compartment, here you will find
the preset cables.

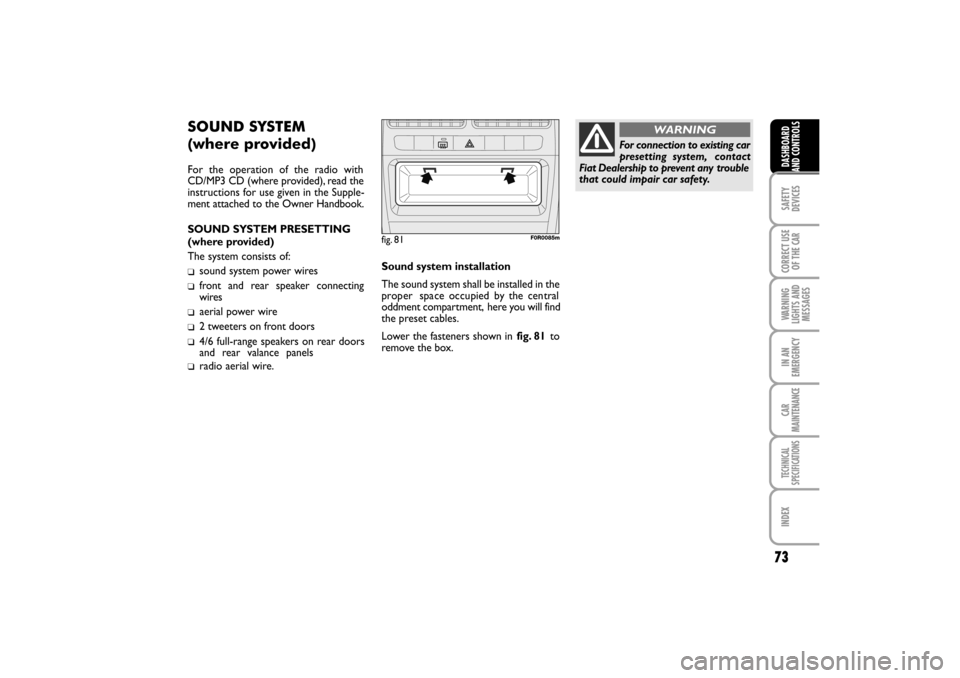

Lower the fasteners shown in fig. 81to
remove the box.
fig. 81F0R0085m
For connection to existing car
presetting system, contact
Fiat Dealership to prevent any trouble
that could impair car safety.
WARNING
SAFETY
DEVICES CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

LINEA Owner HAND BOOK RHD.pdf 73LINEA Owner HAND BOOK RHD.pdf 738/21/09 2:16:10 PM8/21/09 2:16:10 PM

74
TRANSCEIVERS
AND MOBILE PHONES
Radio transceiver equipment (e.g.: e-tacs
mobile phones, HAM radio systems and
the like) shall not be used inside the car
unless a separate aerial is mounted on the
roof.
IMPORTANT The use of similar devices
inside the passenger compartment (with-
out separated aerial) produces radio-fre-
quency electromagnetic fields which,
am-
plified by the resonance effects inside the
passenger compartment,
may cause elec-
trical systems equipping the car to mal-
function. This could compromise safety in
addition to constituting a potential hazard
for the passengers.
In addition, transmission and reception of
these devices may be affected by the
shielding effect of the car body.
As concerns EC-approved mobile phones
(GSM, GPRS, UMTS),
strictly comply with
the instructions for use provided by the
mobile phone’s manufacturer.
ACCESSORIES
PURCHASED BY THE
OWNER
If after buying the car, you decide to install
electrical accessories that require a per-
manent electric supply (alarm, satellite an-
titheft system, etc.) or accessories that in
any case burden the electric supply,
con-
tact Fiat Dealership,
whose qualified
perso nnel, beside s sugge sting the most suitable devices belonging to Linea access-
ories Fiat, will also evaluate the overall elect-
ric absorption,
checking whether the car’s
electric system is able to withstand the
load required, or whether it needs to be
integrated with a more powerful battery.
Be very careful when fitting
non-standard additional
spoilers , light alloy wheels or wheel
cups: they could reduce brake
venti-
lation and consequently brake effi-
ciency in the case of repeated, violent
braking or on long downhill roads.
Make sure that nothing obstructs the
pedal stroke (mats, etc.)
WARNING

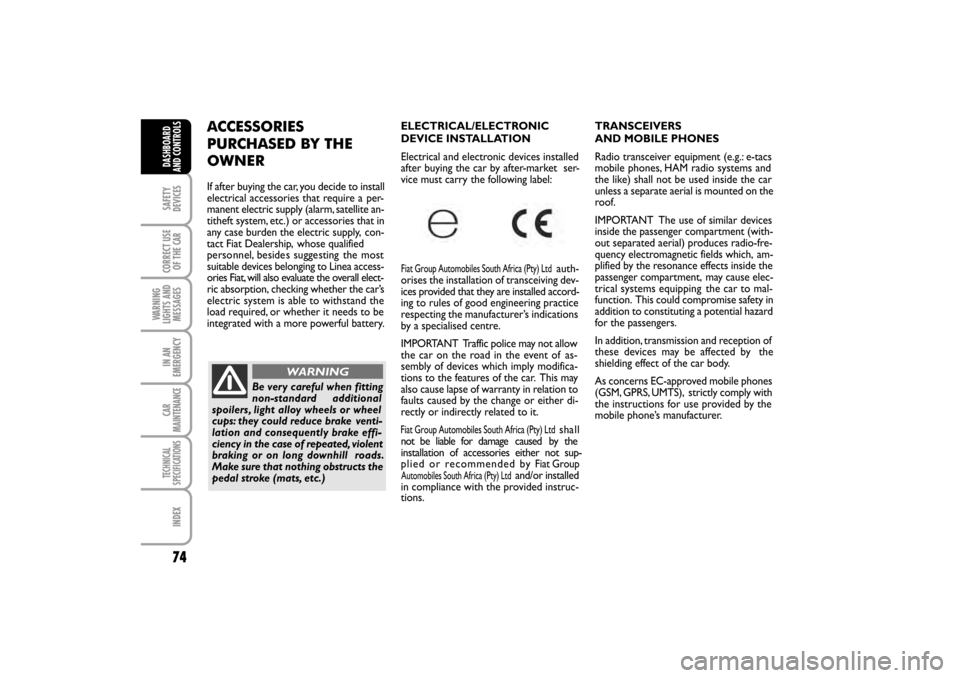

ELECTRICAL/ELECTRONIC
DEVICE INSTALLATION
Electrical and electronic devices installed
after buying the car by after-market ser-
vice must carry the following label:
auth-
orises the installation of transceiving dev-
ices provided that they are installed accord-
ing to rules of good engineering practice
respecting the manufacturer’s indications
by a specialised centre.
IMPORTANT Traffic police may not allow
the car on the road in the event of
as-
sembly of devices which imply modifica-
tions to the features of the car. This may
also cause lapse of warranty in relation to
faults caused by the change or either di-
rectly or indirectly related to it.
shall
not be liable for damage caused by the
installation of accessories either not sup-
plied or recommended by
and/or installed
in compliance with the provided instruc-
tions.
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Fiat Group Automobiles South Africa (Pty) Ltd
Fiat Group Automobiles South Africa (Pty) Ltd
Automobiles South Africa (Pty) Ltd
Fiat Group
LINEA Owner HAND BOOK RHD.pdf 74LINEA Owner HAND BOOK RHD.pdf 748/21/09 2:16:10 PM8/21/09 2:16:10 PM

75
AT THE FILLING
STATION
PETROL ENGINES
Use only unleaded petrol.
The petrol octane rating (RON) must not
be lower then 91.
IMPORTANT An inefficient catalyst leads
to harmful exhaust emissions,
thus con-
tributing to air pollution.
IMPORTANT Never use leaded petrol,
even in small amount or in an emergency,
as this would damage the catalyst beyond
repair.DIESEL ENGINES
For better performance use only normal
diesel (avoid premium diesel / with addi-
tives) conforming with cetane number 51
minimum for diesel version. If the outside
temperature is very low, the diesel thick
ens due to the formation of paraffin clots
and could clog the diesel fuel filter.
In order to avoid these problems, differ-
ent types of diesel are distributed
ac-
cording to the season: summer type, win-
ter type and arctic type (cold, mountain
areas).If you accidentally introduc-
e ot he r type s of fue l in the
tank, do not start the engine
and empty the tank. If the engine has
run also for a very short time, you will
need to have the entire fuel feed sys-
tem emptied in addition to the tank.
SAFETY
DEVICES CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
LINEA Owner HAND BOOK RHD.pdf 75LINEA Owner HAND BOOK RHD.pdf 758/21/09 2:16:10 PM8/21/09 2:16:10 PM

76
FUEL FILLER CAP fig. 82
To carry out fuelling,
operate lever A-fig.
83/84 to release the flap A and unscrew
cap B; the cap is fitted with a special device
C which fastens it to the lid so it cannot
be mislaid.
In some versions, cap Bmay be provided
with a lock and key;
use the ignition key
to access the flap A-fig. 82, turn it anti-
clockwise and loosen the cap itself.
The airtight closing may determine a slight
increase of pressure in the tank. A suction
noise when you release the cap is there-
fore entirely normal.
PROTECTING THE
ENVIRONMENT
The devices for curtailing petrol engine
emissions are the following:
three-way catalytic converter;
lambda sensors;
fuel evaporation system.
In addition, do not let the engine run, even
for a test, with one or more spark plugs
disconnected.
The devices for curtailing diesel fuel en-
gine emissions are the following:
oxidising catalytic converter;
exhaust gas recirculation system
(E.G.R.).
fig. 82F0M0203m
Do not approach naked
flames or lit sigarettes to the
fuel filler : fire risk. Keep your face
away from the fuel filler to prevent
breathing in harmful vapours.
WARNING
fig. 83
fig. 84F0R0210m
F0R0210m
When refuelling, position the cap on the
device inside the lid as shown in fig. 82.The catalytic converter de-
velops high temperature dur-
ing operation. Do not park on grass,
dry leaves, pine needles or other flam-
mable material: fire risk.
WARNING
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS



LINEA Owner HAND BOOK RHD.pdf 76LINEA Owner HAND BOOK RHD.pdf 768/21/09 2:16:10 PM8/21/09 2:16:10 PM

77
SEAT BELTS ........................................................................... 78
S.B.R. SYSTEM ....................................................................... 79
PRETENSIONERS.................................................................. 80
CARRYING CHILDREN SAFELY ...................................... 83
FRONT AIRBAGS ................................................................. 87
SS S
A A
F F
E E
T T
Y Y
D D
E E
V V
I I
C C
E E
S S
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
LINEA Owner HAND BOOK RHD.pdf 77LINEA Owner HAND BOOK RHD.pdf 778/21/09 2:16:11 PM8/21/09 2:16:11 PM

78
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
The rear seat belts must be used as shown
in the diagram in fig. 2.
SEAT BELTS

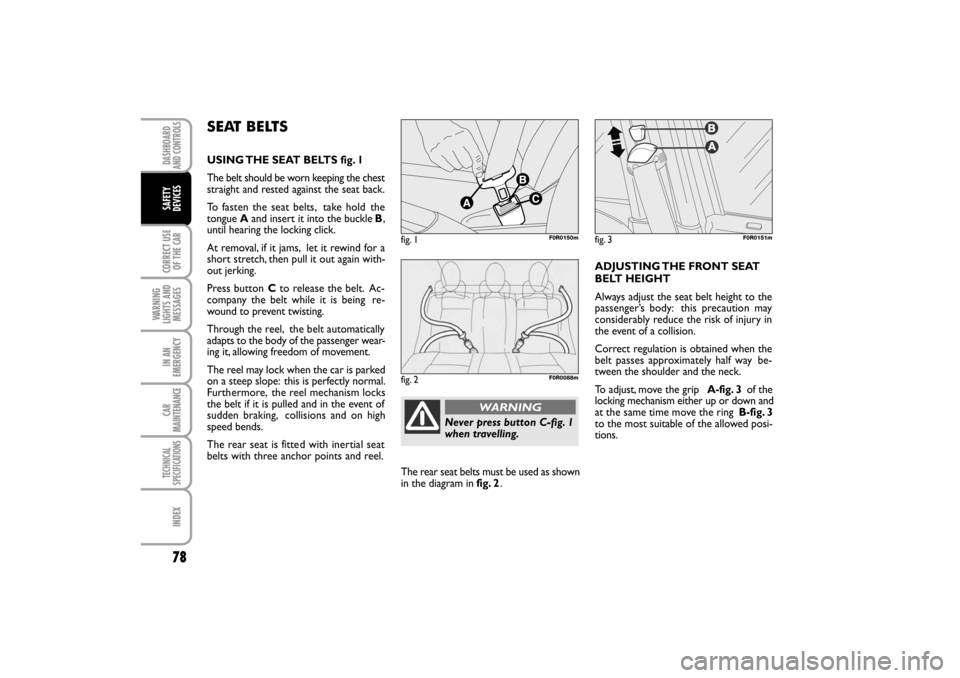

USING THE SEAT BELTS fig. 1
The belt should be worn keeping the chest
straight and rested against the seat back.
To fasten the seat belts, take hold
the
tongue Aand insert it into the buckle B,
until hearing the locking click.
At removal, if it jams, let it rewind for a
short stretch, then pull it out again with-
out jerking.
Press button Cto release the belt. Ac-
company the belt while it is being
re-
wound to prevent twisting.
Through the reel, the belt automatically
adapts to the body of the passenger wear-
ing it, allowing freedom of movement.
The reel may lock when the car is parked
on a steep slope:
this is perfectly normal.
Furthermore, the reel mechanism locks
the belt if it is pulled and in the event of
sudden braking, collisions and on high
speed bends.
The rear seat is fitte d with inertial seat
belts with three anchor points and reel.
fig. 1F0R0150m
fig. 2F0R0088m
Never press button C-fig. 1
when travelling.
WARNING
fig. 3
A
B
F0R0151m
ADJUSTING THE FRONT SEAT
BELT HEIGHT
Always adjust the seat belt height to the
passenger’s body: this precaution may
considerably reduce the risk of injury in
the event of a collision.
Correct regulation is obtained when the
belt passes approximately half way
be-
tween the shoulder and the neck.
To adjust, move the grip A-fig. 3of the
locking mechanism either up or down and
at the same time move the ring B-fig. 3
to the most suitable of the allowed posi-
tions.
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
PRESS
LINEA Owner HAND BOOK RHD.pdf 78LINEA Owner HAND BOOK RHD.pdf 788/21/09 2:16:11 PM8/21/09 2:16:11 PM

79
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
IMPORTANT Make sure the backrest is
correctly fastened when returning it to the
position of normal use after folding it. S.B.R. SYSTEM
The car is fitted with the S.B.R. system
(Seat Belt Reminder), consisting of a
buzzer which,
together with the turning
on of warning light on the instrument
panel, warns the driver to fasten the seat
belt.
The buzzer can be deactivated (until the
next engine stop) as follows:
fasten the driver’s seat belt;
turn the ignition key to MAR;
wait for over 20 seconds and then re-
lease one of the seat belts.
For permanent deactivation, contact Fiat
Dealership.
With digital display, the S.B.R. system can
only be reset at Fiat Dealership.
Remember that in the event
of a violent collision, back
seat passengers not wearing seat belts
also represent a serious danger for
the front seat passengers.
WARNING
Make sure the backrest is
properly secured at both
sides to prevent it moves forward in
the event of sharp braking causing in-
juries to passengers.
WARNING


LINEA Owner HAND BOOK RHD.pdf 79LINEA Owner HAND BOOK RHD.pdf 798/21/09 2:16:11 PM8/21/09 2:16:11 PM
