PRETENSIONERS
To increase the efficiency of the seat belts,
the car is fitted with pretensioners. These
devices, in the event of a violent crash,
rewind the seat belts a few centimetres.
In this way they ensure that the seat belt
adheres perfectly to the wearer before the
restraining action begins.
The seat belt locks to indicate that the de-
vice has intervened; the seat belt cannot
be drawn back up even when guiding it
manually.
IMPORTANT To obtain the highest de-
gree of protection from the action of the
pretensioner, wear the seat belt keeping
it firmly close to the chest and pelvis.
A slight amount of smoke may be detect-
ed during operation of the pretensioners.
This smoke is not harmful and does not
indicate a fire.
The pretensioner does not require any
maintenance or greasing.
Anything that modifies its original condi-
tions invalidates its efficiency.
If due to unusual natural events (floods,
seas storm, etc.) the device has been af-
fected by water and mud, it must neces-
sarily be replaced.LOAD LIMITERS
To increase passenger’s safety, the front
seat belt reels contain a load limiter which
allows controlled sag in such a way as to
dose the force acting on the chest and
shoulders during the belt restraining ac-
tion in case of front crash.

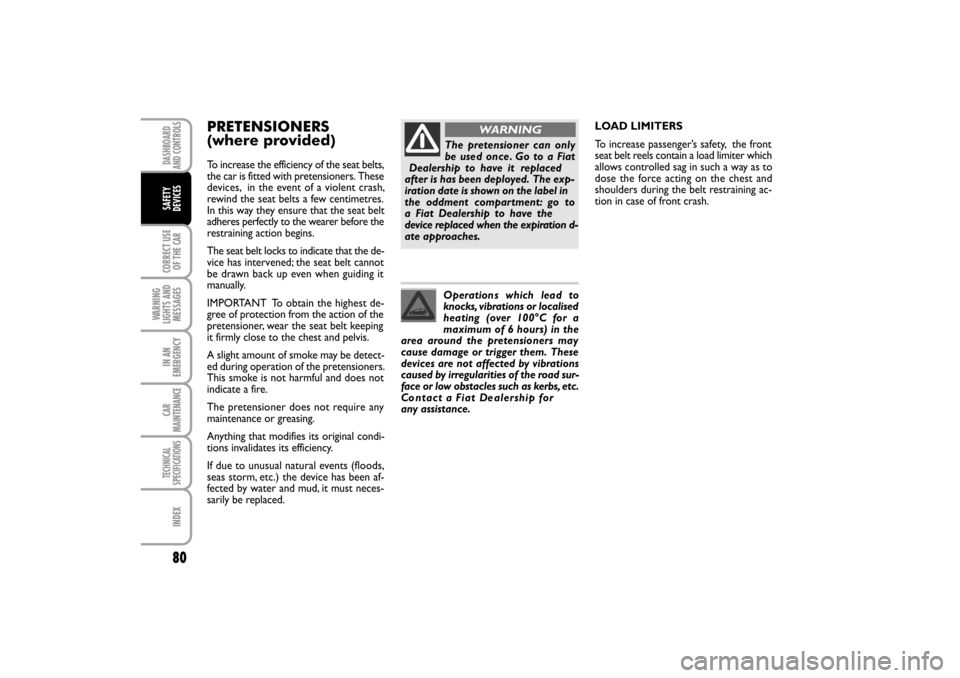

The pretensioner can only
be use d once . Go to a Fiat
Dealership to have it replaced
after is has been deployed. The exp-
iration date is shown on the label in
the oddment compartment: go to
a Fiat Dealership to have the
device replaced when the expiration d-
ate approaches.
WARNING
Operation s which lea d to
knocks, vibrations or localised
heating (over 100°C for a
maximum of 6 hours) in the
area around the pretensioners may
cause damage or trigger them. These
devices are not affected by vibrations
caused by irregularities of the road sur-
face or low obstacles such as kerbs, etc.
Contact a Fiat Dealership for
any assistance.
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
(where provided)
LINEA Owner HAND BOOK RHD.pdf 80LINEA Owner HAND BOOK RHD.pdf 808/21/09 2:16:11 PM8/21/09 2:16:11 PM

81
GENERAL INSTRUCTIONS FOR
USING THE SEAT BELTS
The driver is responsible for
respecting
and ensuring that all the other occupants
of the car also respect the local laws
in
force in relation to the use of seat belts.
Always fasten the seat belts before start-
ing off.Seat belts must also be used by pregnant
women:
risk will be significantly reduced
for both the expectant mother and the
child in the event of an accident.Of
course they must position the lower
part of the belt very low down so that it

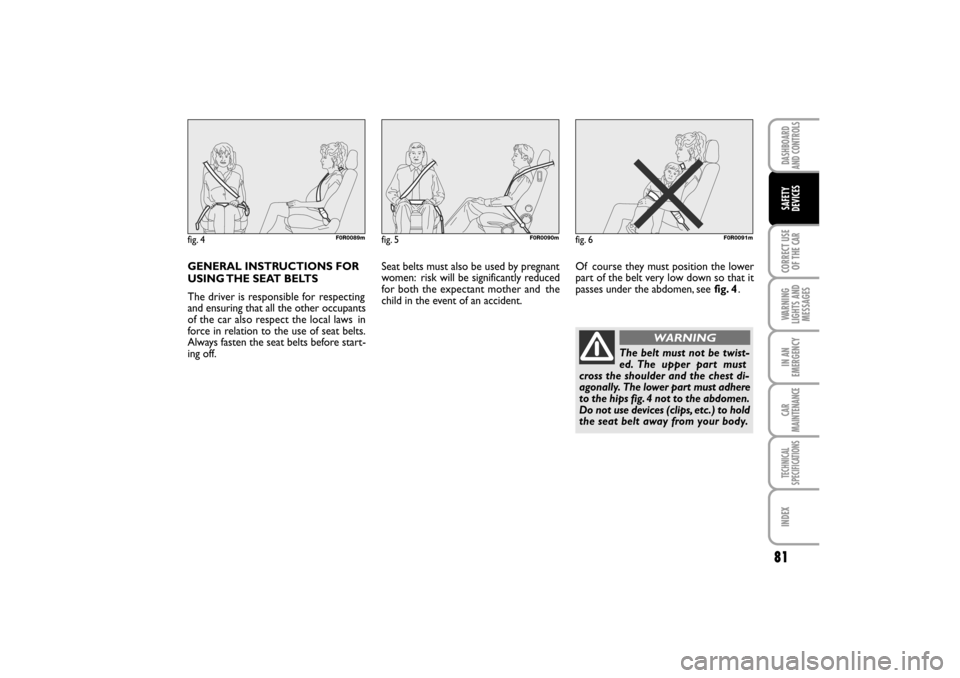

passes under the abdomen, see fig. 4.
fig. 4F0R0089mfig. 5F0R0090mfig. 6F0R0091m
The belt must not be twist-
ed. The upper part must
cross the shoulder and the chest di-
agonally.
The lower part must adhere
to the hips fig. 4 not to the abdomen.
Do not use devices (clips, etc.) to hold
the seat belt away from your body.
WARNING
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
LINEA Owner HAND BOOK RHD.pdf 81LINEA Owner HAND BOOK RHD.pdf 818/21/09 2:16:11 PM8/21/09 2:16:11 PM

82

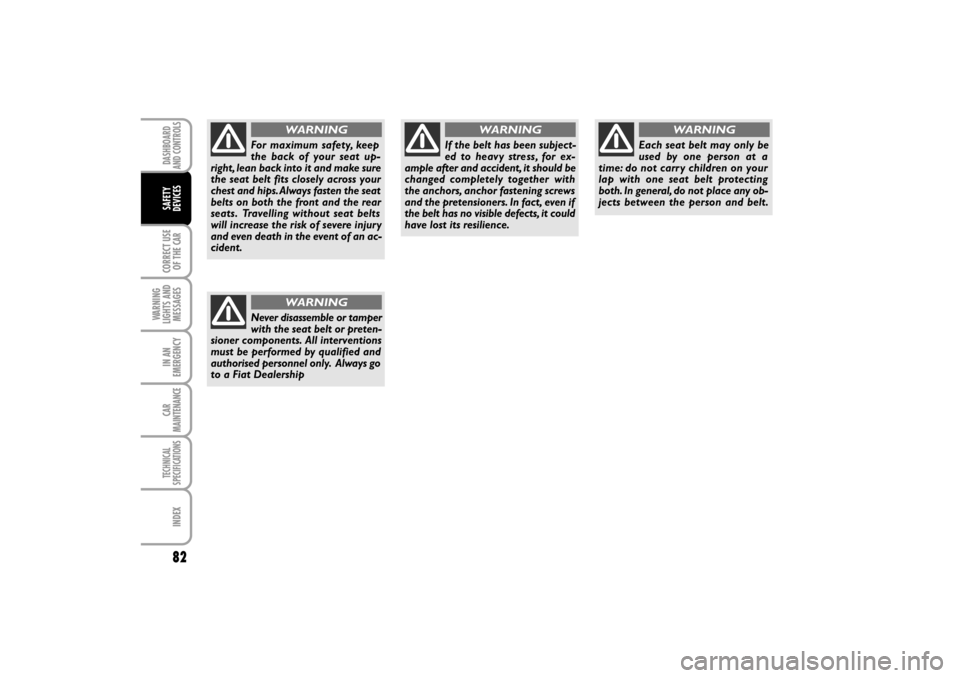

For maximum safety, keep
the back of your seat up-
right, lean back into it and make sure
the seat belt fits closely across your
chest and hips. Always fasten the seat
belts on both the front and the rear
seats. Travelling without seat belts
will increase the risk of severe injury
and even death in the event of an ac-
cident.
WARNING
Never disassemble or tamper
with the seat belt or preten-
sioner components.
All interventions
must be performed by qualified and
authorised personnel only. Always go
to a Fiat Dealership
WARNING
If the belt has been subject-
ed to heavy stre ss , for ex-
ample after and accident, it should be
changed completely together
with
the anchors, anchor fastening screws
and the pretensioners. In fact,
even if
the belt has no visible defects, it could
have lost its resilience.
WARNING
Each seat belt may only be
used by one person at a
time: do not carr y children on your
lap with one seat belt protecting
both. In general, do not place any ob-
jects between the person and belt.
WARNING
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
LINEA Owner HAND BOOK RHD.pdf 82LINEA Owner HAND BOOK RHD.pdf 828/21/09 2:16:11 PM8/21/09 2:16:11 PM

83
HOW TO KEEP THE SEAT
BELTS ALWAYS IN EFFICIENT
CONDITIONS
Observe the following:
always use the belt with the tap taut and
never twisted; make sure that it is free
to run without impediments;
replace the belt after an accident of a
certain severity even if it does not ap-
pear damaged. Always replace the belt
if the pretensioners where deployed.
to clean the belt, wash by hand with wa-
ter and mild soap, rinse and leave to dry
in the shade.
Do not use strong deter-
gents, bleach, paints or any other sub-
stance which could damage the belt fi-
bres;
keep the reels dry: correct operation
may only be ensured if the reels are dry;
replace the seat belt when showing sig-
nificant wear or cut signs.For optimal protection in the event of a
crash, all passengers must be seated and
wearing adequate restraint systems.
This is even more important for children.
This prescription is compulsory in all EC
countrie s according to EC Directive
2003/20/EC.
A child’s head is larger and heavier in pro-
portion to its body and the child’s muscu-
lar and bone structures are not fully de-
veloped. For this reason,
they require re-
straint systems which are different from
those used by adults to protect them in the
event of an accident.
The research results
in relation to the best protection for chil-
dren is illustrated in European Regulation
EEC-R44 which divides the restraint sys-
tems into five groups in addition to mak-
ing their use compulsory:Group 0 0-10 kg in weight
Group 0+ 0-13 kg in weight
Group 1 9-18 kg in weight
Group 2 15-25 kg in weight
Group 3 22-36 kg in weight
As it may be noted, the groups overlap
partly and in fact,
in commerce it is pos-
sible to find devices that cover more than
one weight group.
All restraint devices must bear the certi-
fication data,
together with the control
brand, on a solidly fixed label which must
absolutely never be removed.
CARRYING CHILDREN SAFELY
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES





LINEA Owner HAND BOOK RHD.pdf 83LINEA Owner HAND BOOK RHD.pdf 838/21/09 2:16:11 PM8/21/09 2:16:11 PM

84

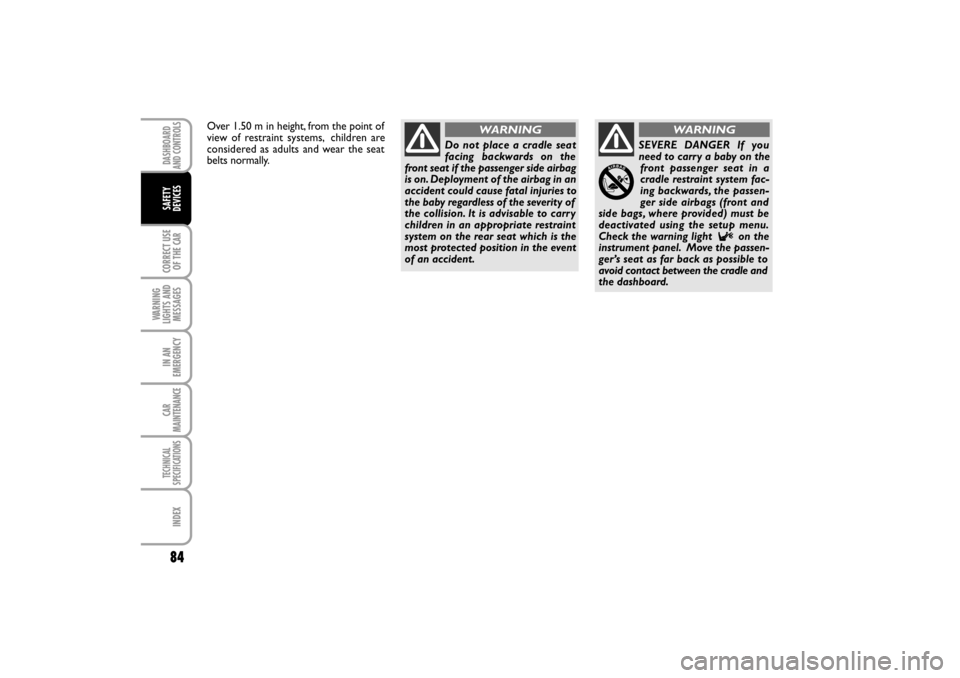

Do not plac e a cradle sea t
facing backwards on the
front seat if the passenger side airbag
is on. Deployment of the airbag in an
accident could cause fatal injuries to
the baby regardless of the severity of
the collision. It is advisable to carr y
children in an appropriate restraint
system on the rear seat which is the
most protected position in the event
of an accident.
WARNING
SEVERE DANGER If you
need to carry a baby on the
front passenger seat in a
cradle restraint system fac-
ing backwards, the passen-
ger side airbags (front and
side bags , where provided) must be
deactivated using the setup menu.
Check the warning light on the
instrument panel. Move the passen-
ger’s seat as far back as possible to
avoid contact between the cradle and
the dashboard.
WARNINGOver 1.50 m in height, from the point of
view of restraint systems, children are
considered as adults and wear the seat
belts normally.
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
LINEA Owner HAND BOOK RHD.pdf 84LINEA Owner HAND BOOK RHD.pdf 848/21/09 2:16:12 PM8/21/09 2:16:12 PM

85
GROUP 0 and 0+
Babies up to 13 kg must be carried facing
backwards on a cradle seat, which, sup-
porting the head,
does not induce stress
on the neck in the event of sharp decel-
eration.
The cradle is restrained by the car
seat

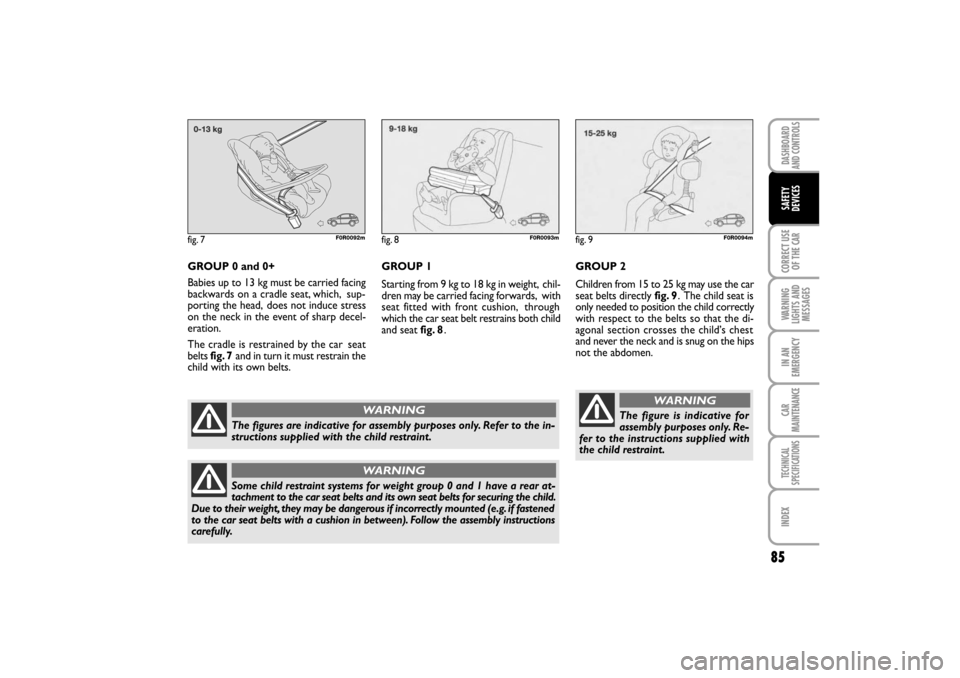

belts fig. 7and in turn it must restrain the
child with its own belts.
fig. 7F0R0092m
The figures are indicative for assembly purposes only. Refer to the in-
structions supplied with the child restraint.
WARNING
Some child restraint systems for weight group 0 and 1 have a rear at-
tachment to the car seat belts and its own seat belts for securing the child.
Due to their weight, they may be dangerous if incorrectly mounted (e.g. if fastened
to the car seat belts with a cushion in between). Follow the assembly instructions
carefully.
WARNING
fig. 8F0R0093mfig. 9F0R0094m
GROUP 2
Children from 15 to 25 kg may use the car
seat belts directly fig. 9. The child seat is
only needed to position the child correctly
with respect to the belts so that the di-
agonal section crosses the child’s chest
and never the neck and is snug on the hips
not the abdomen. GROUP 1
Starting from 9 kg to 18 kg in weight,
chil-
dren may be carried facing forwards, with
seat fitted with front cushion, through
which the car seat belt restrains both child
and seat fig. 8.
The figure is indicative for
assembly purposes only. Re-
fer to the instructions supplied with
the child restraint.
WARNING
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
LINEA Owner HAND BOOK RHD.pdf 85LINEA Owner HAND BOOK RHD.pdf 858/21/09 2:16:12 PM8/21/09 2:16:12 PM

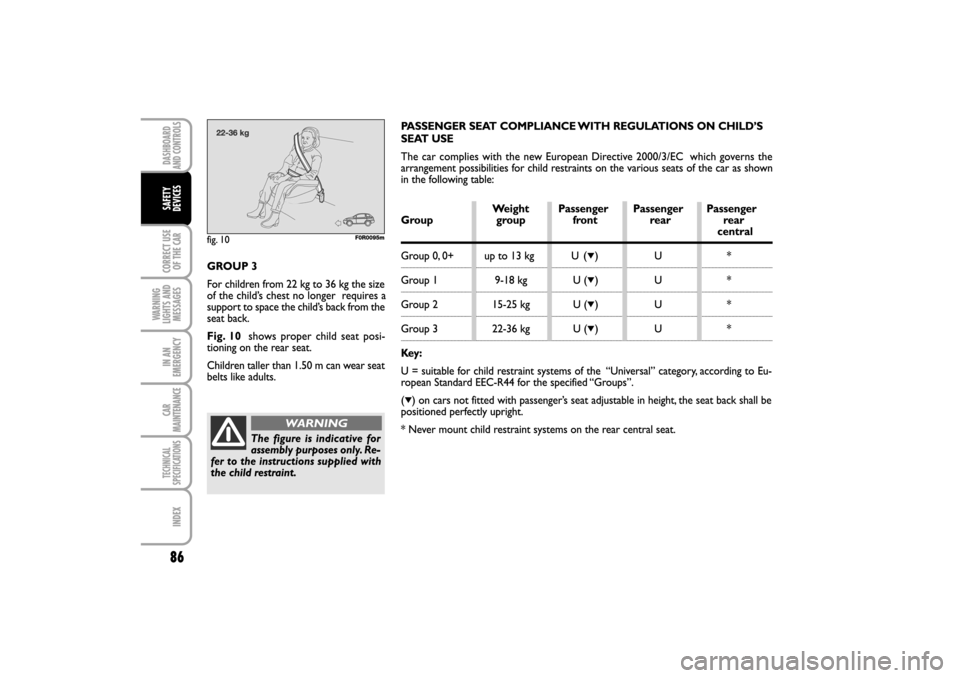

86
LINEA Owner HAND BOOK RHD.pdf 86LINEA Owner HAND BOOK RHD.pdf 868/21/09 2:16:12 PM8/21/09 2:16:12 PM

87
Below is a summary of the rules of
safety to be followed for carrying
children:
1) The recommended positio n for in-
stalling child’s seat is on the rear seat, as
it is the most protected in the case of a
crash.
2) If the passenger’s air bag is deactivat-
ed always check the amber warning light
on the cluster to make sure that it has ac-
tually been deactivated.
3) Carefully follow the instructions sup-
plied with the child restraint system which
are mandatory by law. Keep the instruc-
tions in the car along with the other pa-
pers and this handbook. Do not use child
seats without instructions.4) Always check the seat belt is well fas-
tened by pulling the webbing.
5) Only one child is to be strapped to
each retaining system.
6) Always check the seat belts do not fit
around the child’s throat.
7) While travelling
, do not let the child
sit incorrectly or release the belts.
8) Never carry children on your lap, even
newborns. No-one, however strong, can
hold a child in the case of an accident.
9) In case of an accident,
replace the
child’s seat with a new one.
Do not place a cradle seat

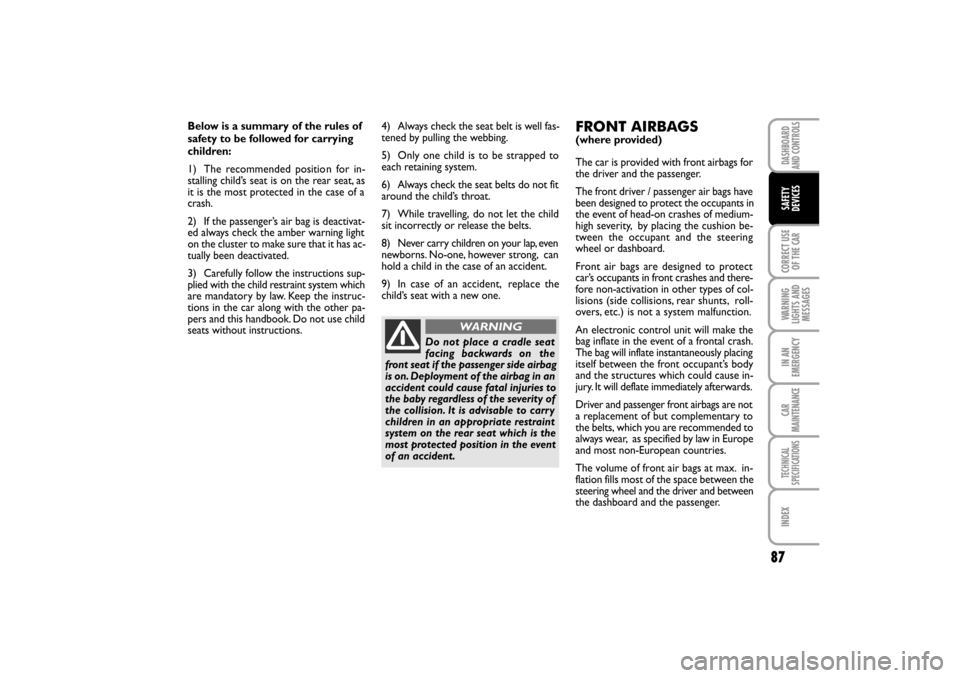

facing backwards on the
front seat if the passenger side airbag
is on. Deployment of the airbag in an
accident could cause fatal injuries to
the baby regardless of the severity of
the collision. It is advisable to carry
children in an appropriate restraint
system on the rear seat which is the
most protected position in the event
of an accident.
WARNING
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
FRONT AIRBAGS
The car is provided with front airbags for
the driver and the passenger.
The front driver / passenger air bags have
been designed to protect the occupants in
the event of head-on crashes of medium-
high severity, by placing the cushion be-
tween the occupant and the steering
wheel or dashboard.
Front air bags are designed to protect
car’s occupants in front crashes and there-
fore non-activation in other types of col-
lisions (side collisions, rear shunts, roll-
overs, etc.) is not a system malfunction.
An electronic control unit will make the
bag inflate in the event of a frontal crash.
The bag will inflate instantaneously placing
itself between the front occupant’s body
and the structures which could cause in-
jury. It will deflate immediately afterwards.
Driver and passenger front airbags are not
a replacement of but complementary to
the belts,
which you are recommended to
always wear, as specified by law in Europe
and most non-European countries.
The volume of front air bags at max. in-
flation fills most of the space between the
steering wheel and the driver and between
the dashboard and the passenger. (where provided)
LINEA Owner HAND BOOK RHD.pdf 87LINEA Owner HAND BOOK RHD.pdf 878/21/09 2:16:12 PM8/21/09 2:16:12 PM

88
fig. 11F0R0099m
The airbags are not deployed in the event
of collisions of low severity (for which the
withholding action of the seat belts is suf-
ficient). For this reason, the seat belt must
be worn at all times. In the case of side
collisions, the seat belts hold occupants in
the correct position and prevent being
thrown out of the car by a very violent
collision. DRIVER’S FRONT AIR BAG fig. 11
It consists of an instant-inflating cushion
contained in a special recess in the cen-
tre of the steering wheel.

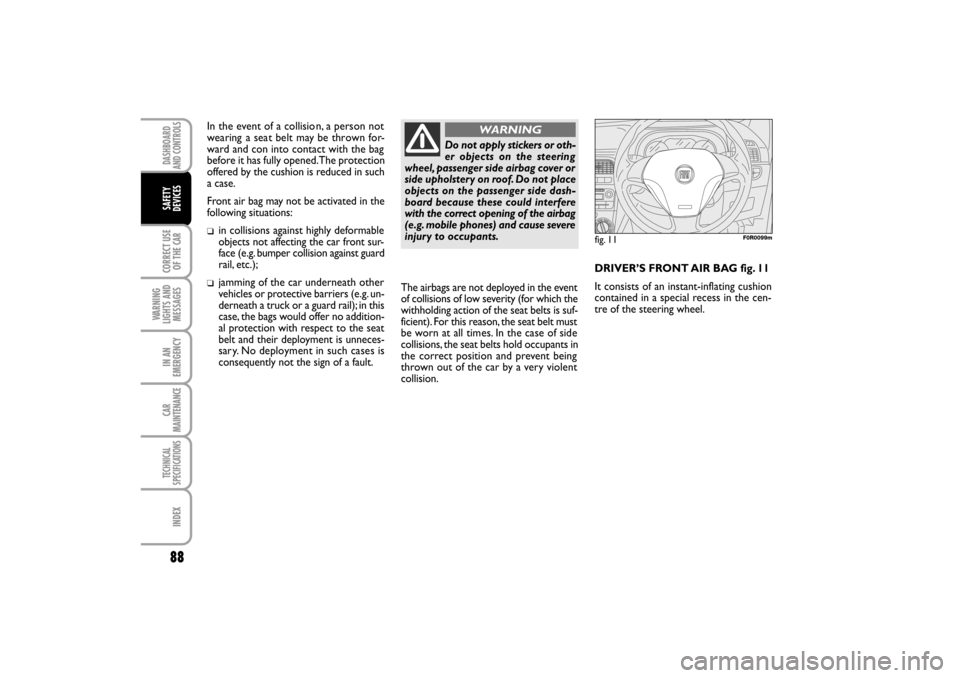

Do not apply stickers or oth-
er objects on the steering
wheel, passenger side airbag cover or
side upholstery on roof. Do not place
objects on the passenger side dash-
board because these could interfere
with the correct opening of the airbag
(e.g. mobile phones) and cause severe
injury to occupants.
WARNINGIn the event of a collisio n, a person not
wearing a sea t belt may be thrown for-
ward and con into contact with the bag
before it has fully opened. The protection
offered by the cushion is reduced in such
a case.
Front air bag may not be activated in the
following situations:
in collisions against highly deformable
objects not affecting the car front sur-
face (e.g. bumper collision against guard
rail, etc.);
jamming of the car underneath other
vehicles or protective barriers (e.g. un-
derneath a truck or a guard rail); in this
case, the bags would offer no addition-
al protection with respect to the seat
belt and their deployment is unneces-
sar y. No deployment in such cases is
consequently not the sign of a fault.
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX


LINEA Owner HAND BOOK RHD.pdf 88LINEA Owner HAND BOOK RHD.pdf 888/21/09 2:16:12 PM8/21/09 2:16:12 PM

89
MANUAL DEACTIVATION OF
PASSENGER’S FRONT AIR BAG
Should it be absolutely necessary to car-
ry a child on the front seat, the passenger’s
front air bag can be deactivated.
The instrument panel warning light
will stay on glowing steadily until reacti-
vating the passenger’s front air bag.

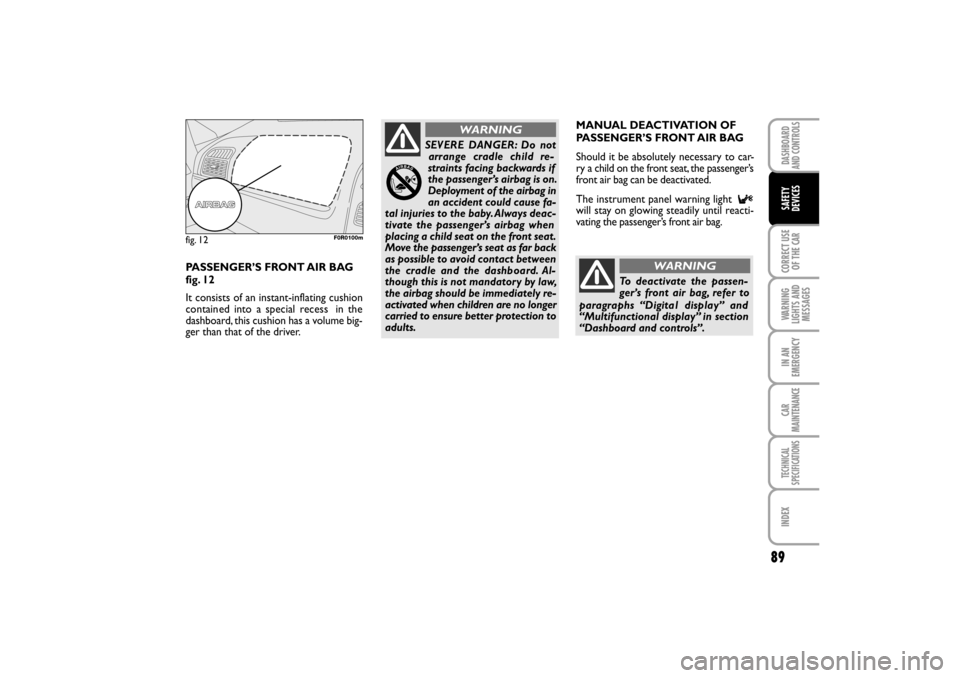

SEV ERE DANGER: Do not
arrange cradle child re-
straints facing backwards if
the passenger’s airbag is on.
Deployment of the airbag in
an accident could cause fa-
tal injuries to the baby. Always deac-
tivate the passenger’s airbag when
placing a child seat on the front seat.
Move the passenger’s seat as far back
as possible to avoid contact between
the cradle and the dashb oard. Al-
though this is not mandatory by law,
the airbag should be immediately re-
activated when children are no longer
carried to ensure better protection to
adults.
WARNING
To deactivate the passen-
ger’s front air bag, refer to
paragraphs “Digita l display” and
“Multifunctional display” in section
“Dashboard and controls”.
WARNINGCORRECT USE
OF THE
CAR
WARNING
LIGHTS AND
MESSAGES IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
PASSENGER’S FRONT AIR BAG
fig. 12
It consists of an instant-inflating cushion
contain ed into a special recess in the
dashboard, this cushion has a volume big-
ger than that of the driver.
fig. 12F0R0100m
LINEA Owner HAND BOOK RHD.pdf 89LINEA Owner HAND BOOK RHD.pdf 898/21/09 2:16:13 PM8/21/09 2:16:13 PM
