FIAT MULTIPLA 2006 1.G Owners Manual

100
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
LOAD RECOMMENDATIONS
Fiat Multipla Van has been designed and approved on
the basis of several set maximum weights:
❒kerb weight
❒payload
❒total weight
❒max. weight on front axle
❒max. weight on rear axle
❒towable weight.
WARNINGChance knocks or sudden braking can cause sudden shifts of the load which could
jeopardise the safety of the driver and the passengers: before you start off make
sure the load is firmly secured by using the hooks built into the floor for that
purpose. Use metal cables, ropes or straps strong enough to support the weight of
the load to be fixed.Each of these limits must be borne in mind and must
never be exceeded under any circumstances.

101
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
In addition to these general precautions, some simple
measures could enhance driving safety, comfort and
the length of the vehicle’s life:
❒distribute the load evenly over the load floor: if you
need to concentrate it all in one point choose the
part between the axles;
❒remember that the lower the load is, the lower the
vehicle centre of gravity will be, contributing to a
safe drive; you should therefore always position the
heavier goods at the bottom;❒finally, remember that the way in which the vehicle
moves is influenced by the weight being carried. In
particular, stopping distance lengthens specially at
high speed.

102
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SOUND SYSTEM
STANDARD EQUIPMENT
The system, for all versions, consists of sound system power cables, front
and rear speaker cables, aerial cable, housing for sound system and front
and rear speakers, plate to adjust the sound system compartment
standard size.
The sound system is installed in the housing occupied by the oddment
tray that can be easily removed by pressing the two retaining tabs (A).
Power cables, speaker and aerial connection cables can be found in this
compartment.
SPEAKERS
To install tweeters on front uprights, use housings (A) at the ends of the
instrument panel; to fit them, remove the covers (B) and mount the
speakers.
We advise you to have this done at a Fiat Dealership.
F0E0109m
F0E0110m
Visit a Fiat Dealership if you want to install the sound system after buying the car. They can advise
you on how to safety the battery life. Excessive idle intake can damage the battery and may
invalidate the warranty.

103
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS

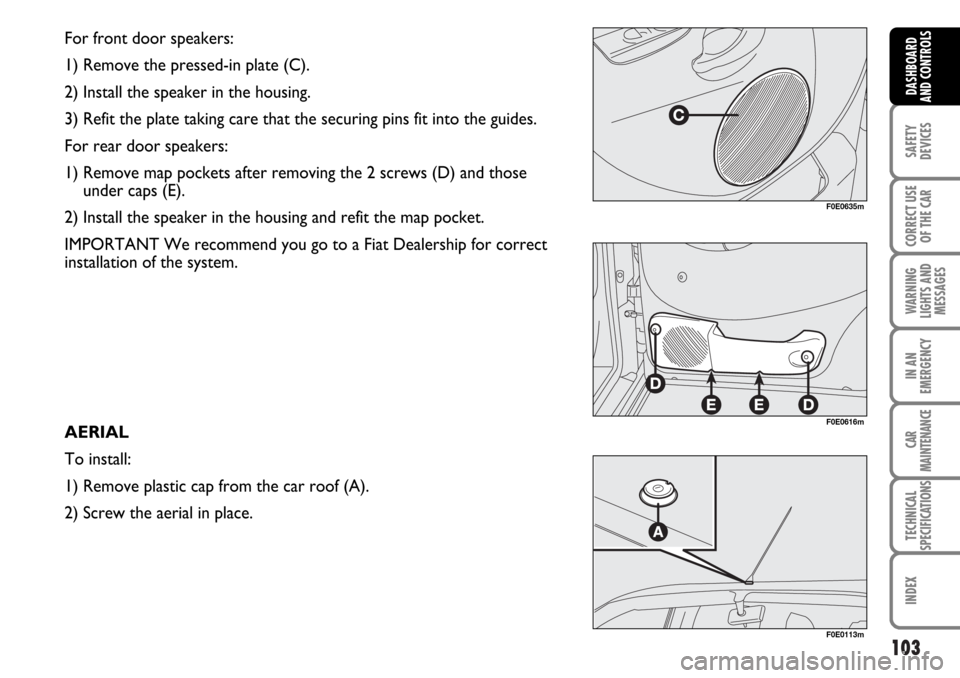

For front door speakers:
1) Remove the pressed-in plate (C).
2) Install the speaker in the housing.
3) Refit the plate taking care that the securing pins fit into the guides.
For rear door speakers:
1) Remove map pockets after removing the 2 screws (D) and those
under caps (E).
2) Install the speaker in the housing and refit the map pocket.
IMPORTANT We recommend you go to a Fiat Dealership for correct
installation of the system.
AERIAL
To install:
1) Remove plastic cap from the car roof (A).
2) Screw the aerial in place.
F0E0635m
F0E0616m
F0E0113m

104
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
HANDS-FREE KIT SETUP
If the car has been ordered with the sound system provision, it will be
fitted with:
Setting for 6 speakers:
❒2 front speakers (tweeter);
❒2 rear speakers (full-range) ;
❒2 woofers on front doors;
❒Antenna sound system (A) set on front roof side;
❒Wiring with ten-pin connector (B) for powering and connecting the
radio, set under the dashboard on the right side.
NOTE To use the cellular telephone, the sound system bought as an
after-market shall be able to receive also telephone signals.
F0E0114m
F0E0617m

105
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Wiring diagram:
1 Telephone MUTE
5 Telephone AF IN+
6 Telephone AF IN–
7 positive (+) key
8 positive (+) lights
9 positive (+30)
10 electronic ground.
The microphone should be installed near the front ceiling light so that it
does not interfere with driving visibility.
The recommended position to install the cellular phone support is shown
in the figure; remove the highlighted support taking out the screws in the
lower part.
F0E0116m
The hands-free telephone shall be purchased by the Customer since it must be compatible with the
Customer’s cellular phone.
To install the cellular phone and make the relevant connection in the car it is essential to have the
system installed at a Fiat Dealership. This will ensure the best results and prevent problems which
could affect the car safety.

106
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
INSTALLATION OF ELECTRIC/
ELECTRONIC DEVICES
Electric/electronic devices installed after buying the car
or in aftermarket shall bear the and marking:
Fiat Auto S.p.A. authorizes the installation of
transceivers provided that installation is carried out at
a specialized shop, workmanlike performed and in
compliance with manufacturer's specifications.
IMPORTANT Installation of devices resulting in
modifications of car characteristics may cause driving
license seizing by traffic agents and also the lapse of
the warranty as concerns defects due to the
abovementioned modification or traceable back to it
directly or indirectly.
Fiat Auto S.p.A. declines all responsibility for damages
caused by the installation of non-genuine accessories
or not recommended by Fiat Auto S.p.A. and installed
not in compliance with the specified requirements.RADIO TRANSMITTERS AND CELLULAR
TELEPHONES
Radio transceiver equipment (e.g.: e-tacs mobile phones,
HAM radio systems and the like) shall not be used inside
the car unless a separate aerial is mounted on the roof.
IMPORTANT The use of similar devices inside the
passenger compartment (without separated aerial)
produces radio-frequency electromagnetic fields
which, amplified by the resonance effects inside the
passenger compartment, may cause electrical systems
equipping the car to malfunction. This could
compromise safety in addition to constituting a
potential hazard for the passengers.
In addition, transmission and reception of these devices
may be affected by the shielding effect of the car body.
As concerns EC-approved mobile phones (GSM,
GPRS, UMTS), strictly comply with the instructions for
use provided by the mobile phone’s manufacturer.
ACCESSORIES PURCHASED
BY THE OWNER
If after buying the car, you decide to install electrical
accessories that require a permanent electric supply
(alarm, satellite antitheft system, etc.) or accessories
that in any case burden the electric supply, contact Fiat
Dealership, whose qualified personnel, besides
suggesting the most suitable devices belonging to
Lineaccessori Fiat, will also evaluate the overall electric
absorption, checking whether the car’s electric system
is able to withstand the load required, or whether it
needs to be integrated with a more powerful battery.
Apply to Fiat Dealership only to have the cellular phone installed and to connect it to car
presetting.

107
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
AT THE FILLING STATION
PETROL ENGINES
Use only unleaded petrol.
To prevent errors, the diameter of the fuel tank filler
is too small to introduce a lead petrol pump filler.
Use petrol with a rated octane number (R.O.N.) not
lower than 95.
IMPORTANT An inefficient catalyst leads to harmful
exhaust emissions, thus contributing to air pollution.
IMPORTANT Never use leaded petrol, even in small
amount or in an emergency, as this would damage the
catalyst beyond repair.
The car must only be filled with diesel fuel for motor vehicles, in compliance with European
Specification EN590. The use of other products or mixtures may irreparably damage the engine
with invalidation of the warranty due to the damage caused. In the event of accidentally filling with
another type of fuel, do not start the engine and empty the tank. If the engine has been run even
for only a very short time, in addition to the tank, it is also necessary to drain out the whole fuel
circuit.DIESEL ENGINES
If the outside temperature is very low, the diesel
thickens due to the formation of paraffin and could
clog the fuel filter.
In order to avoid these problems, different types of
diesel are distributed according to the season: summer
type, winter type and arctic type (cold mountain
areas).
If refuelling with diesel type not suitable for cold
temperatures, add TUTELA DIESEL ART additive in
the proportions stated on the can, pouring first the
antifreeze in the tank and then the diesel fuel.
If driving or parking the vehicle for a long period in
cold areas/mountains, refuel with the diesel fuel
available at local filling stations.
In this situation you are also recommended to have in
the tank an amount of fuel 50% higher than usable
capacity.

108
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
FUEL FILLER CAP
the cap (B) is fitted with an antiloss device (C) which fastens it to the lid
(A) so it cannot be mislaid.
To open: hold the cap (B) still, turn the key anticlockwise, turn the cap by
about half a turn and remove it.
While refuelling, the cap can be placed directly on the flap (A) as shown
in the figure.
IMPORTANT The hermetic closure may cause a slight pressure build-up
in the tank, a slight hiss when opening the cap is quite normal.
To close: fit the cap (with the key) and turn it clockwise until you hear
one or more clicks; hold the cap still, turn the key clockwise then
remove it.
IMPORTANT If it becomes necessary to replace the cap, use only an
original spare, otherwise the vapour recovery system efficiency could
become reduced.
REFUELLING
To guarantee full tank filling, carry out two refuelling operations after the
first click of the fuel delivery gun. Avoid further topping up operations
that could cause damages to the fuel system.
F0E0667m
Do not put naked flames or lighted cigarettes near the fuel filler hole as there is a
danger of fire. Do not bend too close to the hole either so as not to breathe in
harmful vapours.WARNING
F0E0668m

109
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
PROTECTING
THE ENVIRONMENT
Protecting the environment has been the guiding
principle in the design of the Fiat Multipla right from
start. The result is the use of materials and creation of
devices that can reduce or considerably curtail harmful
influences on the environment.The devices for curtailing petrol engine emissions are
the following:
❒three-way catalytic converter;
❒Lambda sensor;
❒fuel evaporation system.
The devices for curtailing diesel fuel engine emissions
are the following:
❒oxidising catalytic converter;
❒exhaust gas recirculation system (E.G.R.).
As a consequence Fiat Multipla is ready to travel with
several advantage points over the most severe
international anti-pollution regulations.
During normal service the catalytic converter reaches high temperatures.
Therefore, do not park the car over inflammable material (grass, dry leaves, pine
needles, etc.): fire danger.WARNING
