FIAT MULTIPLA 2006 1.G Manual PDF

70
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SUN VISORS
They are located at the sides of the driving mirror. They can be pivoted
frontwise and sideways.
On the back of the driver’s sun visor there is a document pocket,
whereas on the passenger side there is a vanity mirror.
CURRENT SOCKETS
These are located as follows:
❒socket (A) on the dashboard beside the ashtray;
❒socket (B) in the boot, on the left side (optional).
Current sockets are powered when the ignition key is at MAR.
To use the current sockets remove the protection cover.
IMPORTANT With the engine off and ignition key at MAR, prolonged
use (or more than 1 hour) of accessories with high current intake could
deploy the battery, even preventing the engine from starting.
Correct functioning is only ensured if the accessories are connected with
a homologated plug, as installed on all Lineaccessori Fiat components.
F0E0237m
Do not use the socket for accessories with power over 180W (maximum intake 15A).
F0E0072m

71
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
FOOD BOX (where prvided)
The food box fitted on Fiat Multipla has a capacity of 8 litres which means
that it can contain up to three one and a half litre bottles, equal to max.
4.5 kg distributed between the two boxes.
The box, that can be fitted either in front or rear the central seat, is
insulated and can be used to cool or warm up the food box according to
your needs. When using for cooling, a temperature difference of
approximately 20°C can be achieved between the temperature inside the
box and that of the passenger compartment after approximately one
hour of operation. The lowest possible temperature that can be reached
in any case is not lower than 8-10°C.
To prevent draining the battery charge, the system is connected to the
electrical system via the ignition key. As a result, the box will only work
when the engine is running.
You should remove perishables from the box if you leave the car parked
for longer than two hours.
Switch to position 1 = to warm; position 2 = to cool.
If another food box is fitted, you can connect it to the 12 V outlet in the
boot using the coil cable provided for the purpose. You are
recommended to connect it only if strictly necessary in order to limit
electric absorption.
F0E0073m

72
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
ELECTRICALLY CONTROLLED DOUBLE
SUNROOF
This device can only work when the ignition key is on MAR.
Switches (A) and (B) control the opening, closing, raising and lowering of
both roofs.
When you release the switch, the roof locks in the position it is in at that
moment.
If the battery has been disconnected and reconnected, ot the rear
sunroof disconnected (engine connector and/or control unit connector)
the rear sunroof closure safety system must be reset.
ROOF CLOSURE SAFETY SYSTEM RESET
1) Turn the ignition key to MAR.
2) Press button (B) “open” to fully open the rear sunroof and keep the
button pressed for at least 3 seconds.
3) Press button (B) “close” and keep it pressed for at least 3 seconds
after the rear sunroof has closed.
This operation reactivates the “
ROOF CLOSURE SAFETY SYSTEM”.
F0E0074m
F0E0605m

73
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
Front controls
Front roof: press
Nsymbol on switch (A) to open and symbol Oto
close.
Rear roof: press
Nsymbol on switch (B) to open and symbol Oto
close.

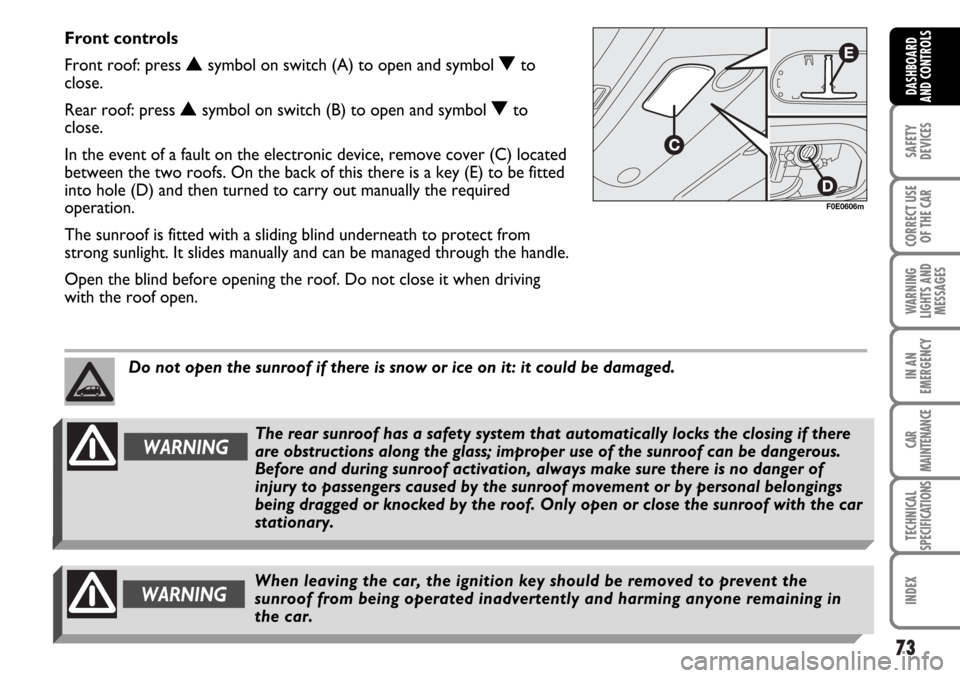

In the event of a fault on the electronic device, remove cover (C) located
between the two roofs. On the back of this there is a key (E) to be fitted
into hole (D) and then turned to carry out manually the required
operation.
The sunroof is fitted with a sliding blind underneath to protect from
strong sunlight. It slides manually and can be managed through the handle.
Open the blind before opening the roof. Do not close it when driving
with the roof open.
F0E0606m
WARNINGThe rear sunroof has a safety system that automatically locks the closing if there
are obstructions along the glass; improper use of the sunroof can be dangerous.
Before and during sunroof activation, always make sure there is no danger of
injury to passengers caused by the sunroof movement or by personal belongings
being dragged or knocked by the roof. Only open or close the sunroof with the car
stationary. Do not open the sunroof if there is snow or ice on it: it could be damaged.
When leaving the car, the ignition key should be removed to prevent the
sunroof from being operated inadvertently and harming anyone remaining in
the car.WARNING

74
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
DOORS
Fiat Multipla is fitted with centralised side door closing system.
Unlocking from outside
Turn the key to position (I) and raise the handle.
Locking from outside
Turn the key to position (2).
Locking/unlocking the front doors from inside
Unlocking: pull lever (A).
Locking: close the door and press knob (B).
Locking/unlocking the rear doors from inside
Unlocking: make sure that the child safety device (F) has been released.
Raise the knob (C) and pull lever (D).
F0E0077m
F0E0078m
F0E0607m

75
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
IMPORTANT If one of the doors is not perfectly closed, or there is a
system fault, the central locking device will not work and after 8 or 9
attempts in rapid succession the device will cut out for about 30 seconds.
During these 30 seconds the doors can be locked or unlocked manually,
without involving the electric system. After 30 seconds the central
system is ready to receive commands again. If the reason for the
malfunction has been removed, the device will start to work properly
again. If not it will cut out once more.
IMPORTANT If one or both rear doors are open and the remote
control (or the key in the door lock) is operated, the central door
locking system will lock all the doors lowering the door sill buttons.
When closing the open doors they will lock.
CHILD SAFETY DEVICE
This prevents the rear doors from being opened from the inside.
Insert the tip of the ignition key into (F) and turn it:
Position 1 - device off.
Position 2 - device on.
F0E0608m
WARNINGWhen children are present in the car this device should always be used.

76
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
WARNINGImproper use of power windows can be dangerous. Before and during its operation
ensure that any passengers are not at risk from the moving window either by
personal objects getting caught on the mechanism or by being injured by it directly.
When leaving the car, the ignition key should be removed to prevent the power
window from being operated inadvertently and harming anyone remaining in the
car.
F0E0081m
ELECTRIC WINDOWS
FRONT SEATS
The electric windows are controlled by two buttons in the inside of the
handle on the driver’s door:
A - to open/close left window;
B - to open/close right window.
If button (A) on driver’s side is pressed for over one second, the
automatic opening/closing function is activated: the window will stop
moving when it reaches the end of its stroke (or when the button is
pressed again).
On the passenger side there is a switch in the door handle to control the
relevant window.

77
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
REAR SEATS
Both internal handles are fitted with the switches (D) for controlling the
relevant windows.
To prevent the buttons on the rear doors being used to open/close the
rear windows, press the lock button (E) (led on), on the instrument
panel.
On versions with optional ESP, the rear window lock button is located
on the panel under the heater controls (F).
F0E0610m
F0E0611m
F0E0609m

78
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
BOOT
OPENING/CLOSING THE TAILGATE
The tailgate is fitted with an electric lock. To open: unlock front doors
with the key and press lever (A) set under the handle. With doors
locked, the tailgate cannot be opened. Tailgate opening is made easier by
the gas-filled struts on each side.
To close the tailgate, use the handle on the inner trim.
F0E0658m
F0E0659m
Do not travel with the tailgate open: exhaust fumes could enter the passenger’s
compartment. Be careful not to knock objects on the roof rack when opening the
boot tailgate.WARNING

79
SAFETY
DEVICES
CORRECT USE
OF THE CAR
WARNING
LIGHTS AND
MESSAGES
IN AN
EMERGENCY
CAR
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
WARNINGWhen using the boot, make sure the loads you are carrying do not exceed the
permitted weight (see section “Technical specifications”). Also make sure the items
in the boot are arranged properly to prevent them being thrown forwards and
injuring passengers should you brake sharply.
F0E0397m
F0E0396m
EMERGENCY OPENING
If the electric tailgate lock is faulty, it is however possible to open it
manually using lever (B) set on the left side of the lock (seen from the
passenger’s compartment).
To use this lever, open the rear side door, tilt the seat and push lever (B)
to the right (towards the center of the car).
