FIAT QUBO 2010 1.G Owners Manual

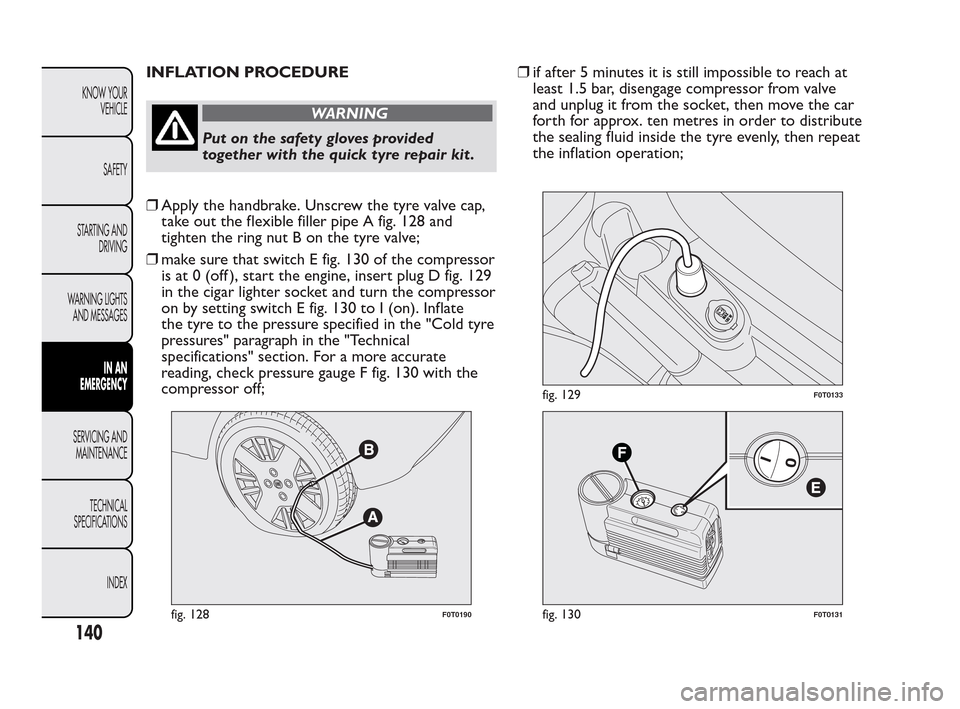

INFLATION PROCEDURE
WARNING
Put on the safety gloves provided
to
gether with the quick tyre repair kit .
❒Apply the handbrake. Unscrew the tyre valve cap,
take out the flexible filler pipe A fig. 128 and
tighten the ring nut B on the tyre valve;
❒make sure that switch E fig. 130 of the compressor
is at 0 (off ), start the engine, insert plug D fig. 129
in the cigar lighter socket and turn the compressor
on by setting switch E fig. 130 to I (on). Inflate
the tyre to the pressure specified in the "Cold tyre
pressures" paragraph in the "Technical
specifications" section. For a more accurate
reading, check pressure gauge F fig. 130 with the
compressor off;❒if after 5 minutes it is still impossible to reach at
least 1.5 bar, disengage compressor from valve
and unplug it from the socket, then move the car
forth for approx. ten metres in order to distribute
the sealing fluid inside the tyre evenly, then repeat
the inflation operation;
fig. 128F0T0190
fig. 129F0T0133
fig. 130F0T0131
140
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

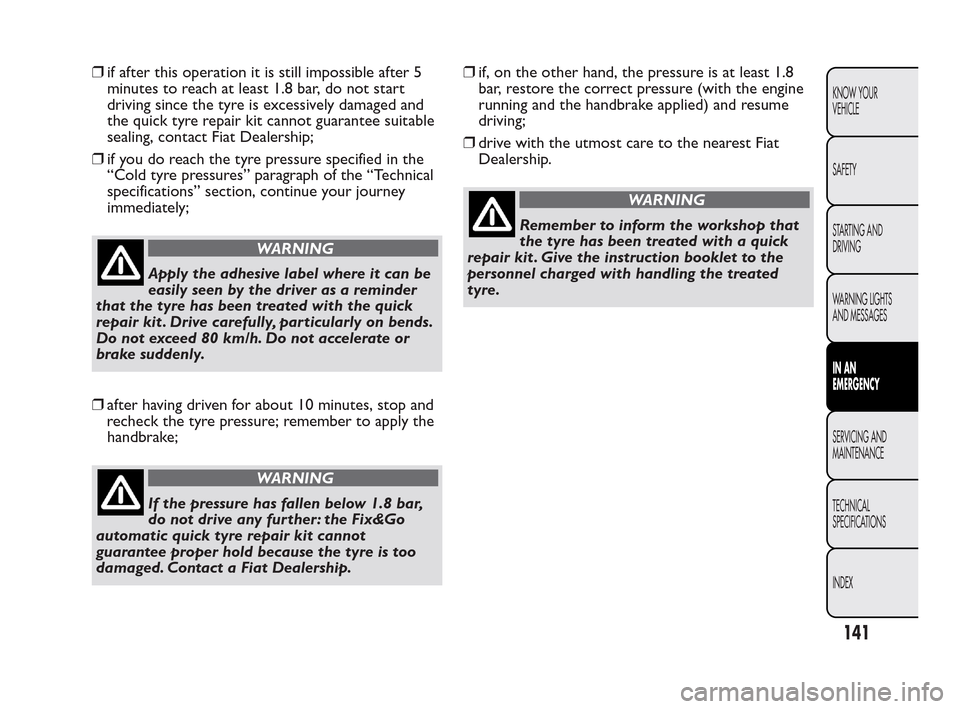

❒if after this operation it is still impossible after 5
minutes to reach at least 1.8 bar, do not start
driving since the tyre is excessively damaged and
the quick tyre repair kit cannot guarantee suitable
sealing, contact Fiat Dealership;
❒if you do reach the tyre pressure specified in the
“Cold tyre pressures” paragraph of the “Technical
specifications” section, continue your journey
immediately;
WARNING
Apply the adhesive label where it can be
easily
seen by the driver as a reminder
that the tyre has been treated with the quick
repair kit . Drive carefully, particularly on bends.
Do not exceed 80 km/h. Do not accelerate or
brake suddenly.
❒after having driven for about 10 minutes, stop and
recheck the tyre pressure; remember to apply the
handbrake;
WARNING
If the pressure has fallen below 1.8 bar,
do
not drive any further: the Fix&Go
automatic quick tyre repair kit cannot
guarantee proper hold because the tyre is too
damaged. Contact a Fiat Dealership.❒if, on the other hand, the pressure is at least 1.8
bar, restore the correct pressure (with the engine
running and the handbrake applied) and resume
driving;
❒drive with the utmost care to the nearest Fiat
Dealership.
WARNING
Remember to inform the workshop that
t
he tyre has been treated with a quick
repair kit . Give the instruction booklet to the
personnel charged with handling the treated
tyre.
141
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

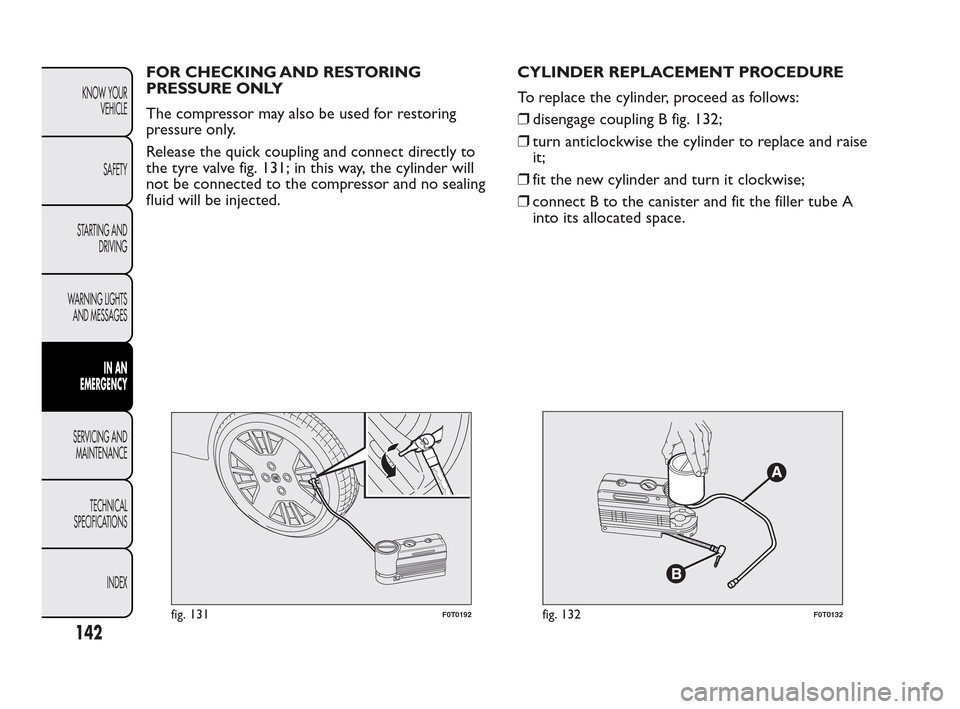

FOR CHECKING AND RESTORING
PRESSURE ONLY
The compressor may also be used for restoring
pressure only.
Release the quick coupling and connect directly to
the tyre valve fig. 131; in this way, the cylinder will
not be connected to the compressor and no sealing
fluid will be injected.CYLINDER REPLACEMENT PROCEDURE
To replace the cylinder, proceed as follows:
❒disengage coupling B fig. 132;
❒turn anticlockwise the cylinder to replace and raise
it;
❒fit the new cylinder and turn it clockwise;
❒connect B to the canister and fit the filler tube A
into its allocated space.
fig. 131F0T0192fig. 132F0T0132
142
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

CHANGING A BULB
GENERAL INSTRUCTIONS
❒Before changing a bulb check the contacts for
oxidation;
❒burnt bulbs must be replaced by others of the
same type and power;
❒always check the height of the headlight beam after
changing a bulb, for reasons of safety;
❒when a light is not working, check that the
corresponding fuse is intact before changing the
bulb. For the location of fuses, refer to the
“Changing a fuse” paragraph in this section;
WARNING
Modifications or repairs to the electrical
sys
tem that are not carried out
properly or do not take the system's technical
specifications into account can cause
malfunctions leading to the risk of fire.
WARNING
Halogen bulbs contain pressurised gas
w
hich may cause small fragments of
glass to be projected outwards if the bulb is
broken.
Halogen bulbs must be handled holding
the metallic part only.Touching the
transparent part of the bulb with your
fingers may reduce the intensity of the emitted
light and even reduce the lifespan of the bulb.
If you do touch it accidentally, rub the bulb with
an alcohol-soaked cloth and leave to dry.
If possible, we recommend have bulbs
replaced by a Fiat Dealership. Proper
operation and orientation of the external
lights are essential for the safety of the running
vehicle, and to avoid incurring legal sanctions.
IMPORTANT The internal surface of the light may
appear slightly misty: this does not indicate a fault,
and is actually caused by low temperature and the
degree of humidity in the air. Misting will rapidly
disappear when the headlights are switched on. The
presence of drops inside the headlights indicates
infiltration of water. Go to a Fiat Dealership.
143
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

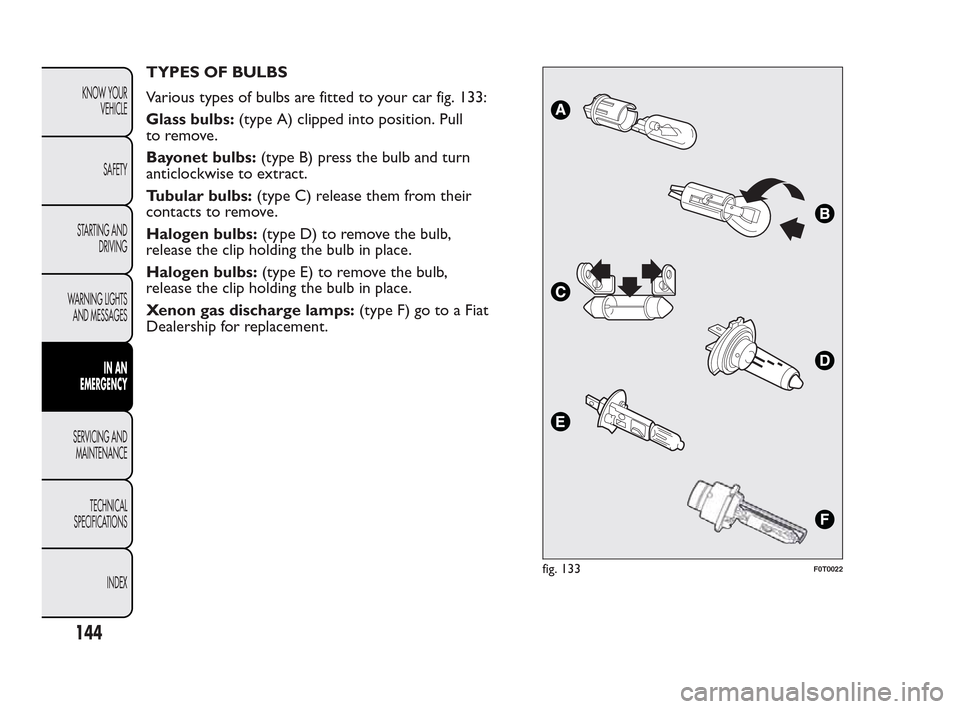

TYPES OF BULBS
Various types of bulbs are fitted to your car fig. 133:
Glass bulbs:(type A) clipped into position. Pull
to remove.
Bayonet bulbs:(type B) press the bulb and turn
anticlockwise to extract.
Tubular bulbs:(type C) release them from their
contacts to remove.
Halogen bulbs:(type D) to remove the bulb,
release the clip holding the bulb in place.
Halogen bulbs:(type E) to remove the bulb,
release the clip holding the bulb in place.
Xenon gas discharge lamps:(type F) go to a Fiat
Dealership for replacement.
fig. 133F0T0022
144
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

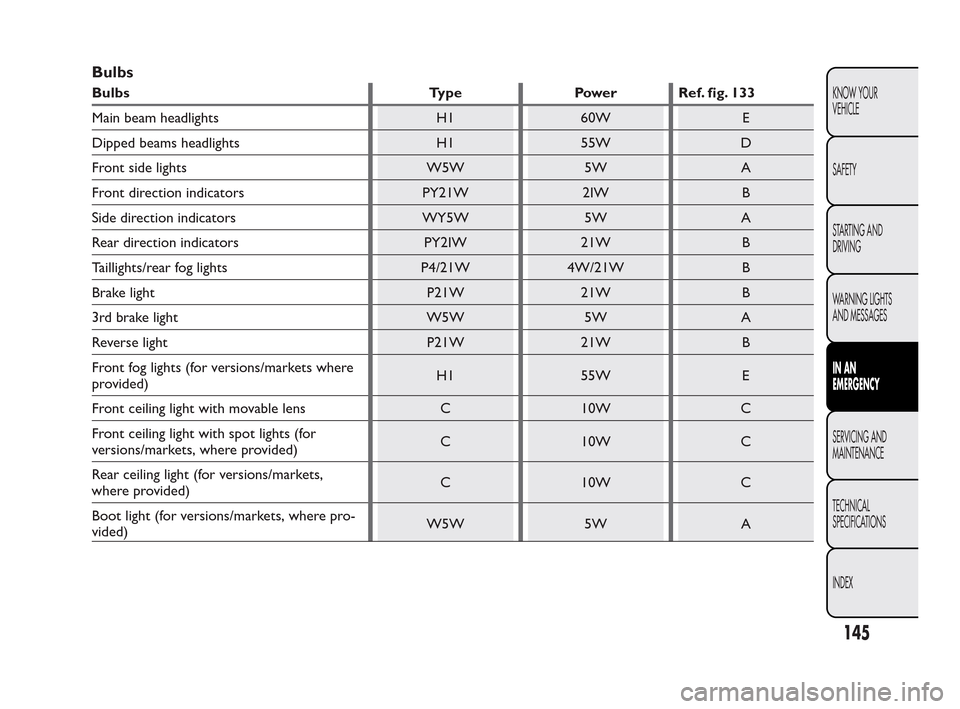

Bulbs
Bulbs Type Power Ref. fig. 133
Main beam headlights H1 60W E
Dipped beams headlights H1 55W D
Front side lights W5W 5W A
Front direction indicators PY21W 2IW B
Side direction indicators WY5W 5W A
Rear direction indicators PY2IW 21W B
Taillights/rear fog lights P4/21W 4W/21W B
Brake light P21W 21W B
3rd brake light W5W 5W A
Reverse light P21W 21W B
Front fog lights (for versions/markets where
provided)H1 55W E
Front ceiling light with movable lens C 10W C
Front ceiling light with spot lights (for
versions/markets, where provided)C 10W C
Rear ceiling light (for versions/markets,
where provided)C 10W C
Boot light (for versions/markets, where pro-
vided)W5W 5W A
145
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

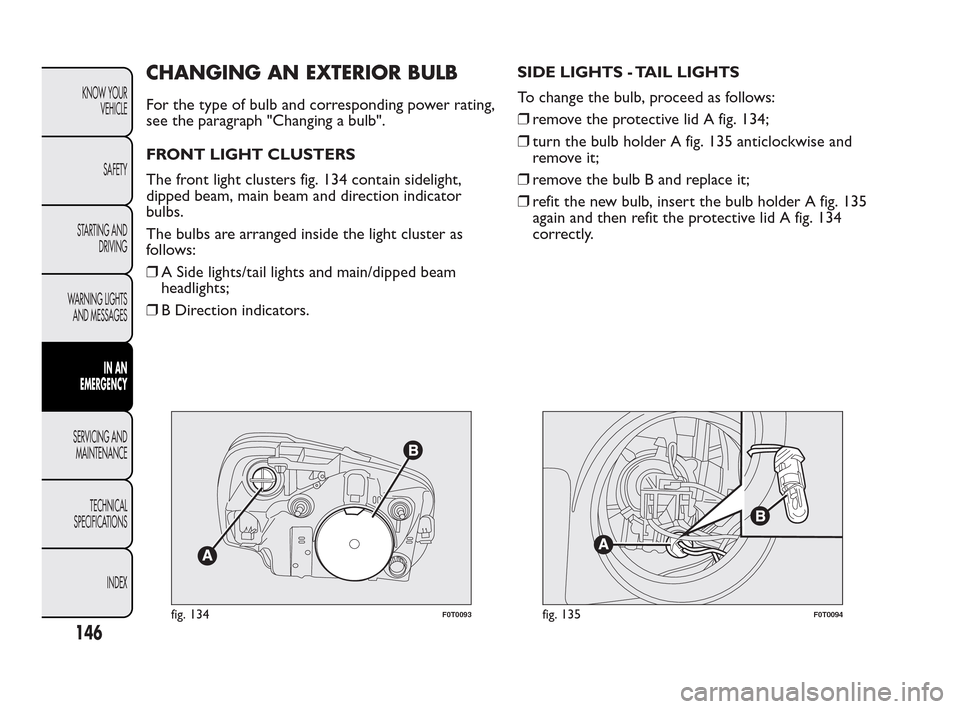

CHANGING AN EXTERIOR BULB
For the type of bulb and corresponding power rating,
see the paragraph "Changing a bulb".
FRONT LIGHT CLUSTERS
The front light clusters fig. 134 contain sidelight,
dipped beam, main beam and direction indicator
bulbs.
The bulbs are arranged inside the light cluster as
follows:
❒A Side lights/tail lights and main/dipped beam
headlights;
❒B Direction indicators.SIDE LIGHTS - TAIL LIGHTS
To change the bulb, proceed as follows:
❒remove the protective lid A fig. 134;
❒turn the bulb holder A fig. 135 anticlockwise and
remove it;
❒remove the bulb B and replace it;
❒refit the new bulb, insert the bulb holder A fig. 135
again and then refit the protective lid A fig. 134
correctly.
fig. 134F0T0093fig. 135F0T0094
146
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

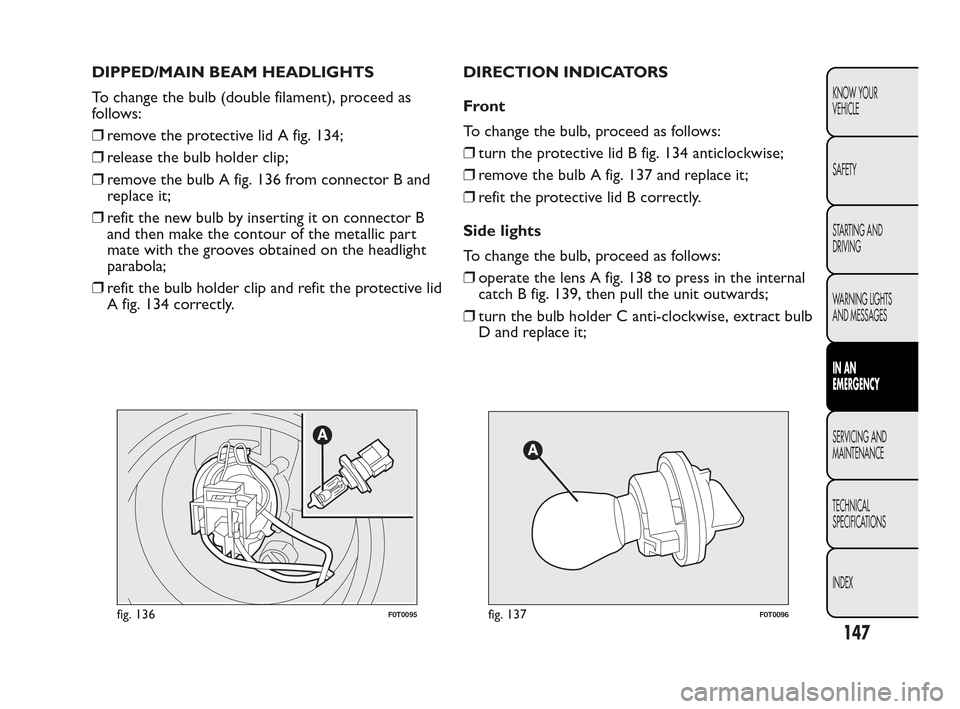

DIPPED/MAIN BEAM HEADLIGHTS
To change the bulb (double filament), proceed as
follows:
❒remove the protective lid A fig. 134;
❒release the bulb holder clip;
❒remove the bulb A fig. 136 from connector B and
replace it;
❒refit the new bulb by inserting it on connector B
and then make the contour of the metallic part
mate with the grooves obtained on the headlight
parabola;
❒refit the bulb holder clip and refit the protective lid
A fig. 134 correctly.DIRECTION INDICATORS
Front
To change the bulb, proceed as follows:
❒turn the protective lid B fig. 134 anticlockwise;
❒remove the bulb A fig. 137 and replace it;
❒refit the protective lid B correctly.
Side lights
To change the bulb, proceed as follows:
❒operate the lens A fig. 138 to press in the internal
catch B fig. 139, then pull the unit outwards;
❒turn the bulb holder C anti-clockwise, extract bulb
D and replace it;
fig. 136F0T0095fig. 137F0T0096
147
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

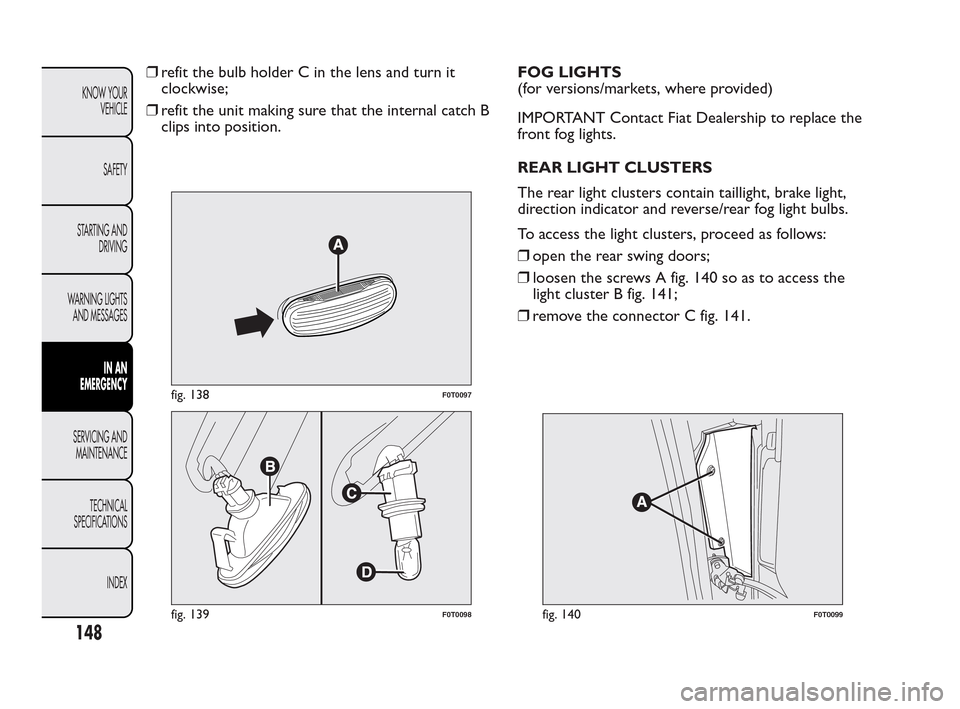

❒refit the bulb holder C in the lens and turn it
clockwise;
❒refit the unit making sure that the internal catch B
clips into position.FOG LIGHTS
(for versions/markets, where provided)
IMPORTANT Contact Fiat Dealership to replace the
front fog lights.
REAR LIGHT CLUSTERS
The rear light clusters contain taillight, brake light,
direction indicator and reverse/rear fog light bulbs.
To access the light clusters, proceed as follows:
❒open the rear swing doors;
❒loosen the screws A fig. 140 so as to access the
light cluster B fig. 141;
❒remove the connector C fig. 141.
fig. 138F0T0097
fig. 139F0T0098fig. 140F0T0099
148
KNOW YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN
EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICA
TIONS
INDEX

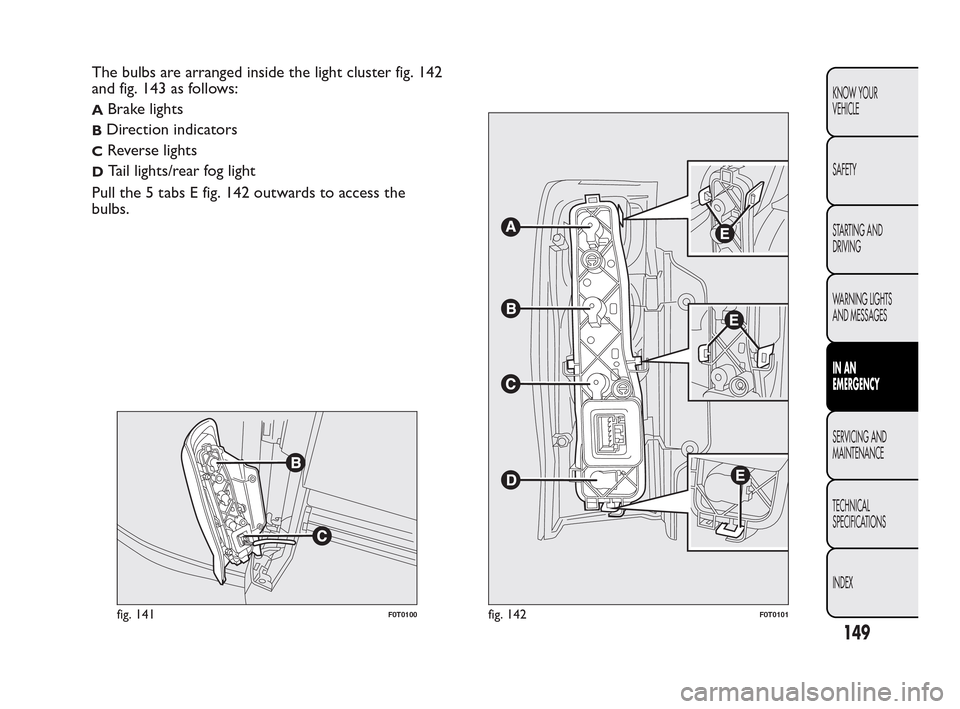

The bulbs are arranged inside the light cluster fig. 142
and fig. 143 as follows:
ABrake lights
BDirection indicators
CReverse lights
DTail lights/rear fog light
Pull the 5 tabs E fig. 142 outwards to access the
bulbs.
