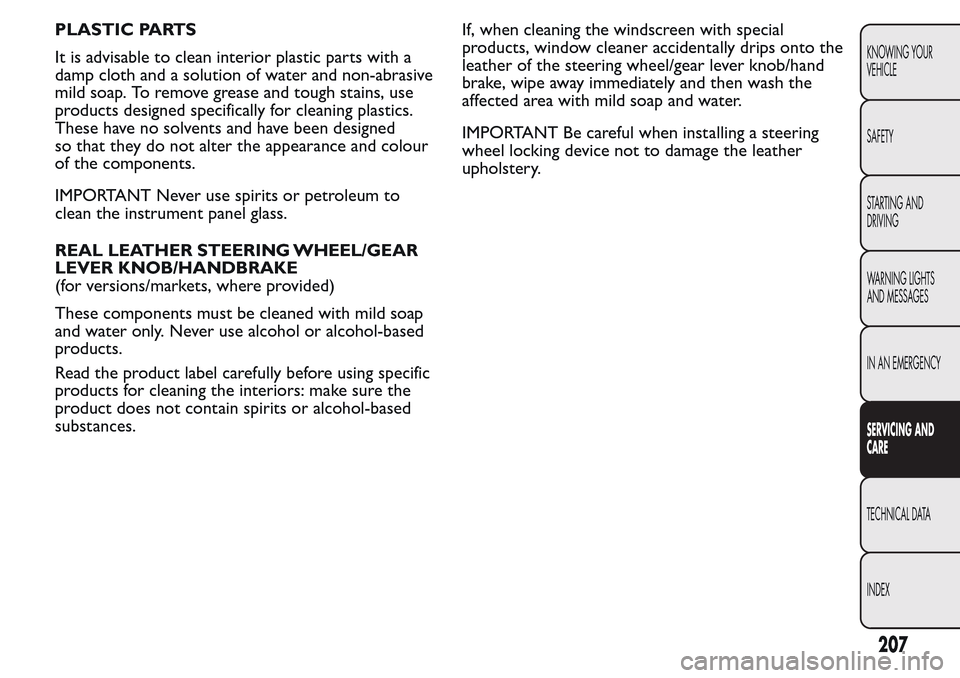

PLASTIC PARTS
It is advisable to clean interior plastic parts with a
damp cloth and a solution of water and non-abrasive
mild soap. To remove grease and tough stains, use
products designed specifically for cleaning plastics.
These have no solvents and have been designed
so that they do not alter the appearance and colour
of the components.
IMPORTANT Never use spirits or petroleum to
clean the instrument panel glass.
REAL LEATHER STEERING WHEEL/GEAR
LEVER KNOB/HANDBRAKE
(for versions/markets, where provided)
These components must be cleaned with mild soap
and water only. Never use alcohol or alcohol-based
products.
Read the product label carefully before using specific
products for cleaning the interiors: make sure the
product does not contain spirits or alcohol-based
substances.If, when cleaning the windscreen with special
products, window cleaner accidentally drips onto the
leather of the steering wheel/gear lever knob/hand
brake, wipe away immediately and then wash the
affected area with mild soap and water.
IMPORTANT Be careful when installing a steering
wheel locking device not to damage the leather
upholstery.
207
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

TECHNICAL DATA

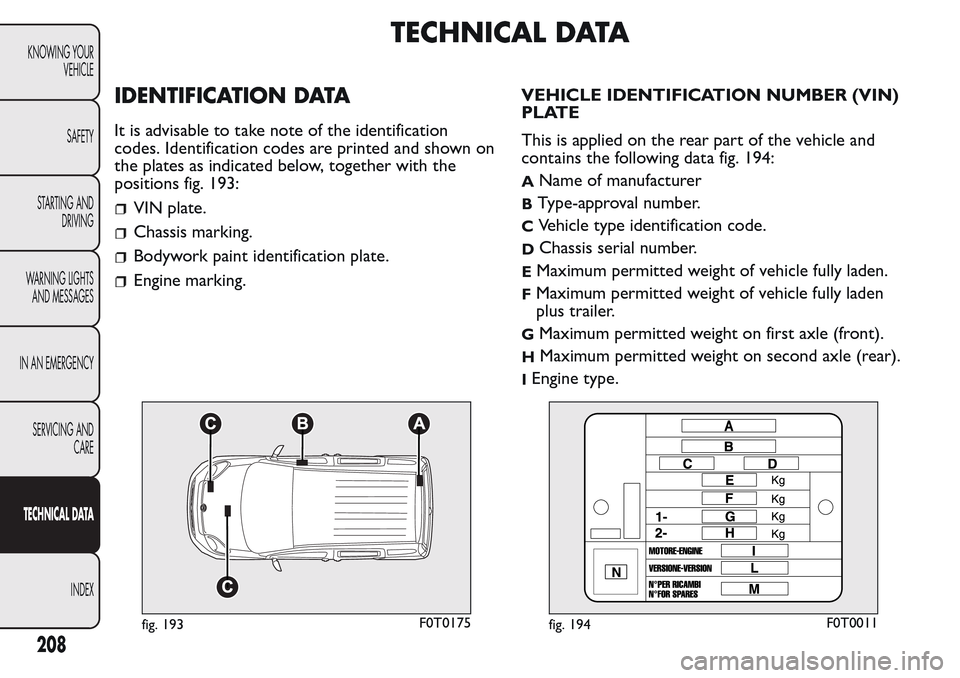

IDENTIFICATION DATA
It is advisable to take note of the identification
codes. Identification codes are printed and shown on
the plates as indicated below, together with the
positions fig. 193:
VIN plate.
Chassis marking.
Bodywork paint identification plate.
Engine marking.VEHICLE IDENTIFICATION NUMBER (VIN)
PLATE
This is applied on the rear part of the vehicle and
contains the following data fig. 194:
AName of manufacturer
BType-approval number.
CVehicle type identification code.
DChassis serial number.
EMaximum permitted weight of vehicle fully laden.
FMaximum permitted weight of vehicle fully laden
plus trailer.
GMaximum permitted weight on first axle (front).
HMaximum permitted weight on second axle (rear).
IEngine type.
fig. 193F0T0175fig. 194F0T0011
208
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

LBodywork version code.
MSpare part number.
NCorrect value of smoke coefficient (for diesel
engines)

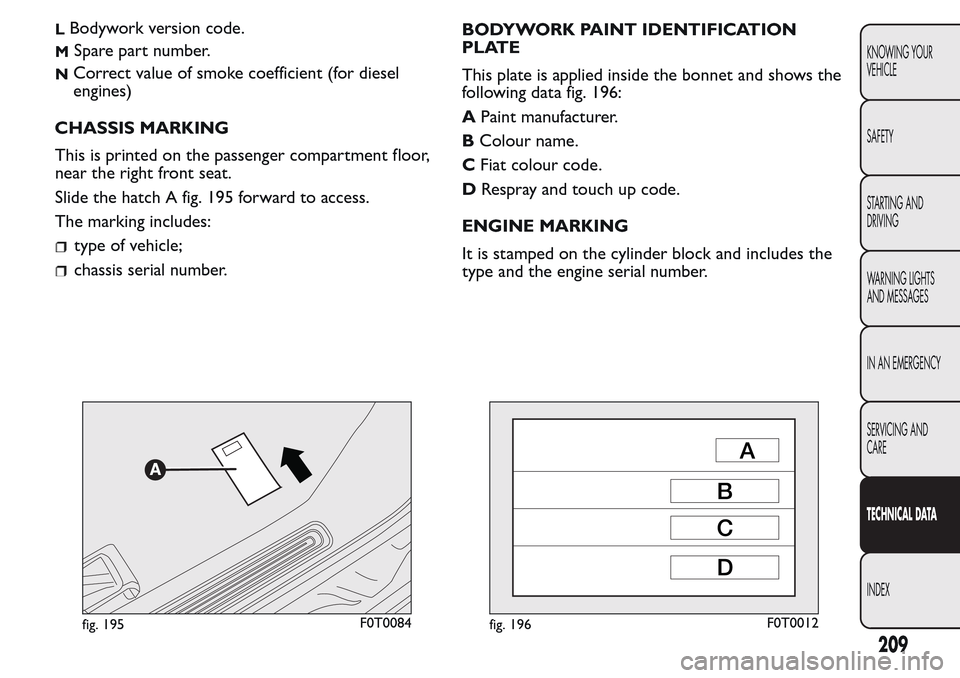

CHASSIS MARKING
This is printed on the passenger compartment floor,
near the right front seat.
Slide the hatch A fig. 195 forward to access.
The marking includes:
type of vehicle;
chassis serial number.BODYWORK PAINT IDENTIFICATION
PLATE
This plate is applied inside the bonnet and shows the
following data fig. 196:
APaint manufacturer.
BColour name.
CFiat colour code.
DRespray and touch up code.
ENGINE MARKING
It is stamped on the cylinder block and includes the
type and the engine serial number.
fig. 195F0T0084fig. 196F0T0012
209
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

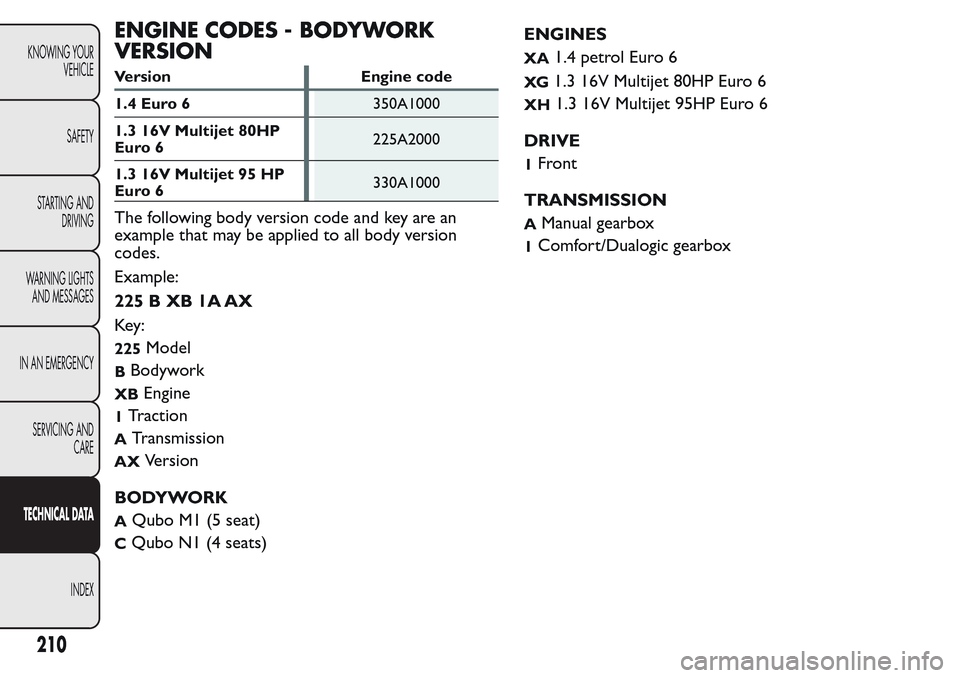

ENGINE CODES - BODYWORK
VERSION
Version Engine code
1.4 Euro 6350A1000
1.3 16V Multijet 80HP
Euro 6225A2000
1.3 16V Multijet 95 HP
Euro 6330A1000
The following body version code and key are an
example that may be applied to all body version
codes.
Example:
225BXB1AAX
Key :
225Model
BBodywork
XBEngine
1Traction
ATransmission
AXVersion
BODYWORK
AQubo M1 (5 seat)
CQubo N1 (4 seats)ENGINES
XA1.4 petrol Euro 6
XG1.3 16V Multijet 80HP Euro 6
XH1.3 16V Multijet 95HP Euro 6
DRIVE
1Front
TRANSMISSION
AManual gearbox
1Comfort/Dualogic gearbox
210
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

ENGINE
Introduction 1.4 Euro 61.3 16V Multijet
80HP Euro 61.3 16V Multijet
95HP Euro 6
Engine code 350A1000 225A2000 330A1000
Cycle Otto Diesel Diesel
Number and position of cylinders 4 in line 4 in line 4 in line
Piston bore and stroke (mm) 72 × 84 69.6 × 82 69.6 × 82
Total displacement (cm3) 1368 1248 1248
Compression ratio 11.1 16.8 16.8
Maximum power (EC) (kW) 57 59 70
Maximum power (EEC) (HP) 77 80 95
Corresponding engine speed (rpm) 6000 3750 3750
Maximum torque (EC) (Nm) 115 200 200
Maximum torque (EC) (kgm) 11.7 20.4 20.4
Corresponding engine speed (rpm) 3000 1500 1500
Spark plugs NGK ZKR7A-10 HIDRIA 5011–721–431 HIDRIA 5011–721–431
FuelUnleaded petrol 95
R.O.N. (Specification
EN590)Diesel for motor
vehicles (EN590
Specification)Diesel for motor
vehicles (EN590
Specification)
211
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX

POWER SUPPLY
Versions Power supply
1.4 Euro 6 Multipoint sequential timed electronic injection, returnless system
1.3 16V Multijet Euro 6Electronically controlled Common Rail MultiJet direct injection with turbocharger and
intercooler
WARNING
Modifications or repairs to the supply system that are not carried out correctly or do not
take the system technical specifications into account can cause malfunctions leading to the
risk of fire.
212
KNOWING YOUR
VEHICLE
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
CARE
TECHNICAL DATA
INDEX
