NOTE If you need maximum defrosting,
adjust the temperature selector to the
HOT end and adjust the side outlets so
the air blows on the side window, in ad-
dition to the above Defrosting steps.

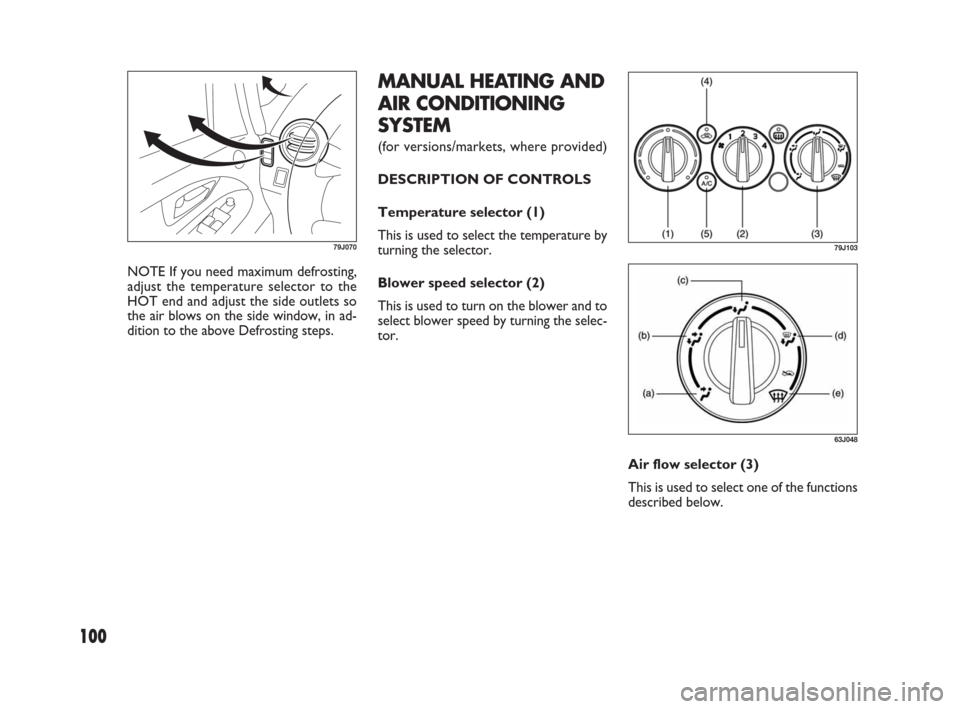

MANUAL HEATING AND
AIR CONDITIONING
SYSTEM
(for versions/markets, where provided)
DESCRIPTION OF CONTROLS
Temperature selector (1)
This is used to select the temperature by
turning the selector.
Blower speed selector (2)
This is used to turn on the blower and to
select blower speed by turning the selec-
tor.
Air flow selector (3)
This is used to select one of the functions
described below.
79J103
63J048
071-128 SEDICI LUM FL GB 1E 19-06-2009 12:05 Pagina 100

101

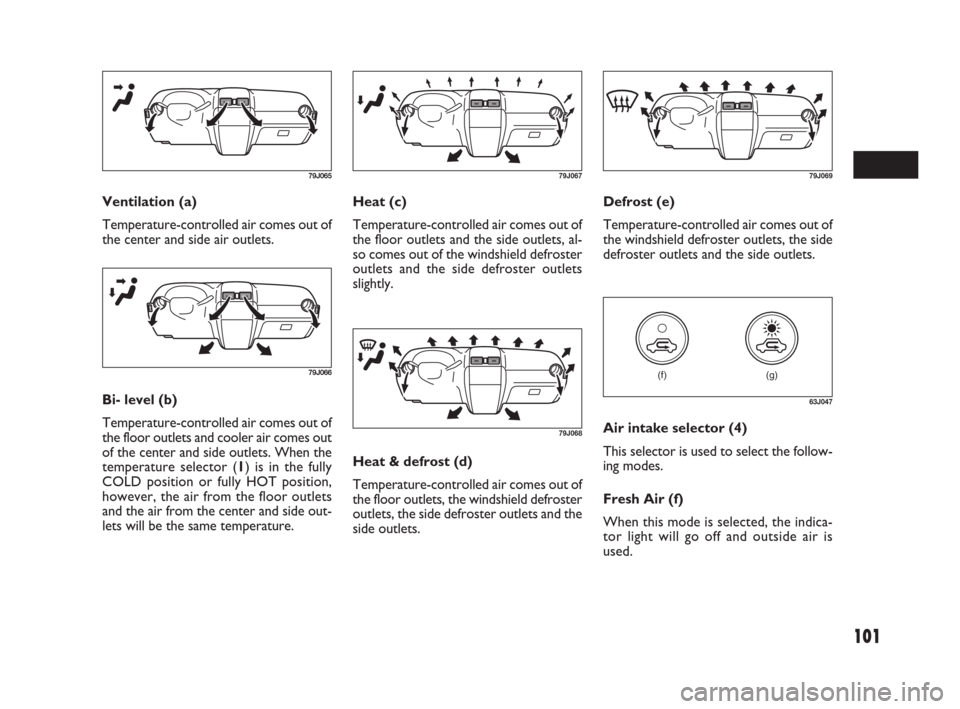

Heat (c)
Temperature-controlled air comes out of
the floor outlets and the side outlets, al-
so comes out of the windshield defroster
outlets and the side defroster outlets
slightly.Defrost (e)
Temperature-controlled air comes out of
the windshield defroster outlets, the side
defroster outlets and the side outlets. Ventilation (a)
Temperature-controlled air comes out of
the center and side air outlets.
79J065
79J066
Bi- level (b)
Temperature-controlled air comes out of
the floor outlets and cooler air comes out
of the center and side outlets. When the
temperature selector (1) is in the fully
COLD position or fully HOT position,
however, the air from the floor outlets
and the air from the center and side out-
lets will be the same temperature.
79J067
79J068
Heat & defrost (d)
Temperature-controlled air comes out of
the floor outlets, the windshield defroster
outlets, the side defroster outlets and the
side outlets.
79J069
(g) (f)
63J047
Air intake selector (4)
This selector is used to select the follow-
ing modes.
Fresh Air (f)
When this mode is selected, the indica-
tor light will go off and outside air is
used.
071-128 SEDICI LUM FL GB 1E 19-06-2009 12:05 Pagina 101

102
Air conditioning switch (5)
To turn on the air conditioning system,
push in the “A/C” switch and set the blow-
er speed selector to a position other than
“OFF”. With this “A/ C” switch operation,
a indicator light will come on when the air
conditioning system is on. To turn off the
air conditioning system, push the “A/C”
switch again.
During operation of the air conditioner,
you may notice slight changes in engine
speed. These changes are normal, the sys-
tem is designed so that the compressor
turns on or off to maintain the desired
temperature.
Less operation of the compressor results
in better fuel economy.
SYSTEM OPERATING
INSTRUCTIONS
Natural ventilation
Select “VENTILATION” and “FRESH
AIR”, the temperature selector to the de-
sired temperature position, and the blow-
er speed selector to “OFF”. Fresh air will
flow through the vehicle during driving.Forced ventilation
The control settings are the same as for
natural ventilation except you set the
blower speed selector to a position oth-
er than “OFF”.
Normal heating (using outside air)
Select “HEAT” and “FRESH AIR”, the
temperature selector to the desired tem-
perature position and the blower speed
selector to the desired blower speed po-
sition. Setting the blower speed selector
to a higher blower speed position in-
creases heating efficiency.
Quick heating
(using recirculated air)
The control settings are the same as for
normal heating except you select “RE-
CIRCULATED AIR”. If you use this heat-
ing method for an extended period of
time, the air in the vehicle can become
contaminated and the windows can be-
come misty. Therefore, use this method
only for quick heating and change to the
normal heating method as soon as possi-
ble. Recirculated Air (g)
When this mode is selected, the indicator
light will come on, outside air is shut out
and inside air is recirculated. This mode is
suitable when driving through dusty or
polluted air such as in a tunnel, or when
attempting to quickly cool down the in-
terior.
“FRESH AIR” and “RECIRCULATED AIR”
are switched alternately each time the air
intake selector is pushed.
NOTE If you select “RECIRCULATED
AIR” for an extended period of time, the
air in the vehicle can become contami-
nated. Therefore, you should occasional-
ly select “FRESH AIR”.
071-128 SEDICI LUM FL GB 1E 19-06-2009 12:05 Pagina 102

103

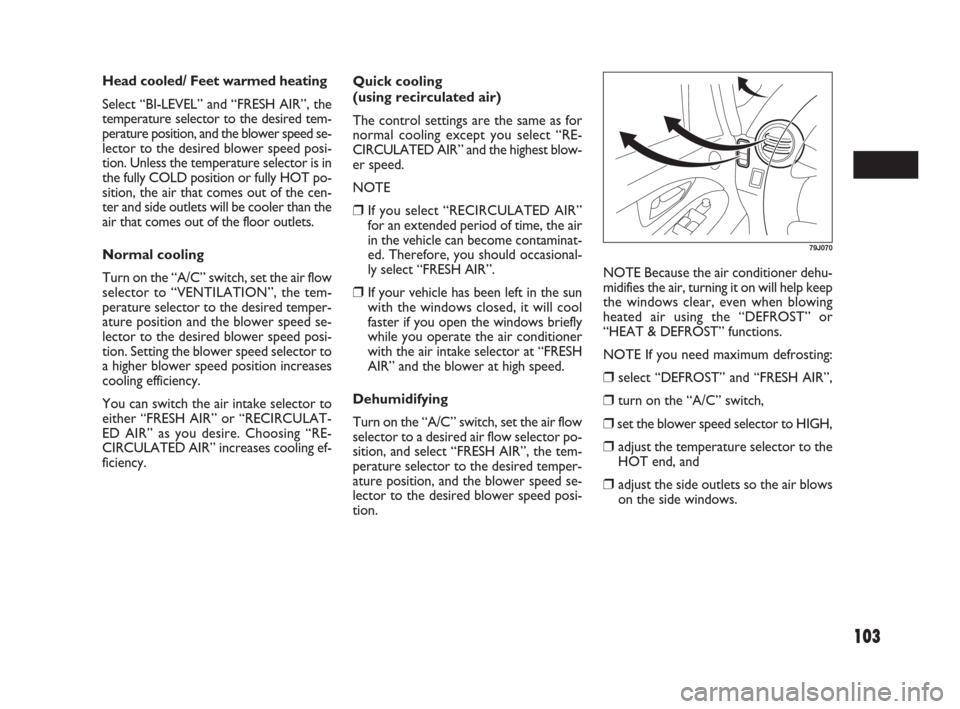

Quick cooling
(using recirculated air)
The control settings are the same as for
normal cooling except you select “RE-
CIRCULATED AIR” and the highest blow-
er speed.
NOTE
❒If you select “RECIRCULATED AIR”
for an extended period of time, the air
in the vehicle can become contaminat-
ed. Therefore, you should occasional-
ly select “FRESH AIR”.
❒If your vehicle has been left in the sun
with the windows closed, it will cool
faster if you open the windows briefly
while you operate the air conditioner
with the air intake selector at “FRESH
AIR” and the blower at high speed.
Dehumidifying
Turn on the “A/C” switch, set the air flow
selector to a desired air flow selector po-
sition, and select “FRESH AIR”, the tem-
perature selector to the desired temper-
ature position, and the blower speed se-
lector to the desired blower speed posi-
tion.NOTE Because the air conditioner dehu-
midifies the air, turning it on will help keep
the windows clear, even when blowing
heated air using the “DEFROST” or
“HEAT & DEFROST” functions.
NOTE If you need maximum defrosting:
❒select “DEFROST” and “FRESH AIR”,
❒turn on the “A/C” switch,
❒set the blower speed selector to HIGH,
❒adjust the temperature selector to the
HOT end, and
❒adjust the side outlets so the air blows
on the side windows. Head cooled/ Feet warmed heating
Select “BI-LEVEL” and “FRESH AIR”, the
temperature selector to the desired tem-
perature position, and the blower speed se-
lector to the desired blower speed posi-
tion. Unless the temperature selector is in
the fully COLD position or fully HOT po-
sition, the air that comes out of the cen-
ter and side outlets will be cooler than the
air that comes out of the floor outlets.
Normal cooling
Turn on the “A/C” switch, set the air flow
selector to “VENTILATION”, the tem-
perature selector to the desired temper-
ature position and the blower speed se-
lector to the desired blower speed posi-
tion. Setting the blower speed selector to
a higher blower speed position increases
cooling efficiency.
You can switch the air intake selector to
either “FRESH AIR” or “RECIRCULAT-
ED AIR” as you desire. Choosing “RE-
CIRCULATED AIR” increases cooling ef-
ficiency.
79J070
071-128 SEDICI LUM FL GB 1E 19-06-2009 12:05 Pagina 103

104
NOTE Your vehicle uses the air condi-
tioning refrigerant HFC-134a, commonly
called “R-134a”. R-134a replaced R-12
around 1993 for automotive applications.
Other refrigerants are available, including
recycled R-12, but only R-134a should be
used in your vehicle.
IMPORTANT Using the wrong refriger-
ant may damage your air conditioning sys-
tem. Use R-134a only. Do not mix or re-
place the R-134a with other refrigerants.AUTOMATIC HEATING
AND AIR
CONDITIONING
SYSTEM
(Climate Control)
(for versions/markets, where provided)
DESCRIPTION OF CONTROLS
1.Temperature selector
2.Blower speed selector
3.Air intake selector
4.Air flow selector
5.Defrost switch
6.“OFF” switch
7.Air conditioning switch
8.“AUTO” switch
9.LCD display MAINTENANCE

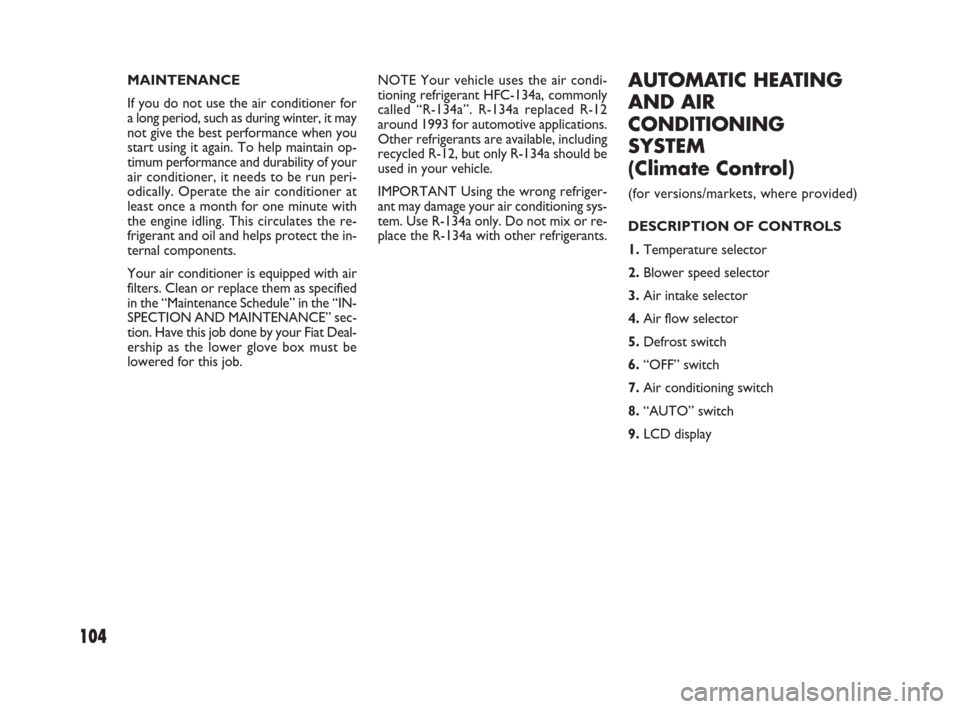

If you do not use the air conditioner for
a long period, such as during winter, it may
not give the best performance when you
start using it again. To help maintain op-
timum performance and durability of your
air conditioner, it needs to be run peri-
odically. Operate the air conditioner at
least once a month for one minute with
the engine idling. This circulates the re-
frigerant and oil and helps protect the in-
ternal components.
Your air conditioner is equipped with air
filters. Clean or replace them as specified
in the “Maintenance Schedule” in the “IN-
SPECTION AND MAINTENANCE” sec-
tion. Have this job done by your Fiat Deal-
ership as the lower glove box must be
lowered for this job.
071-128 SEDICI LUM FL GB 1E 19-06-2009 12:05 Pagina 104

105

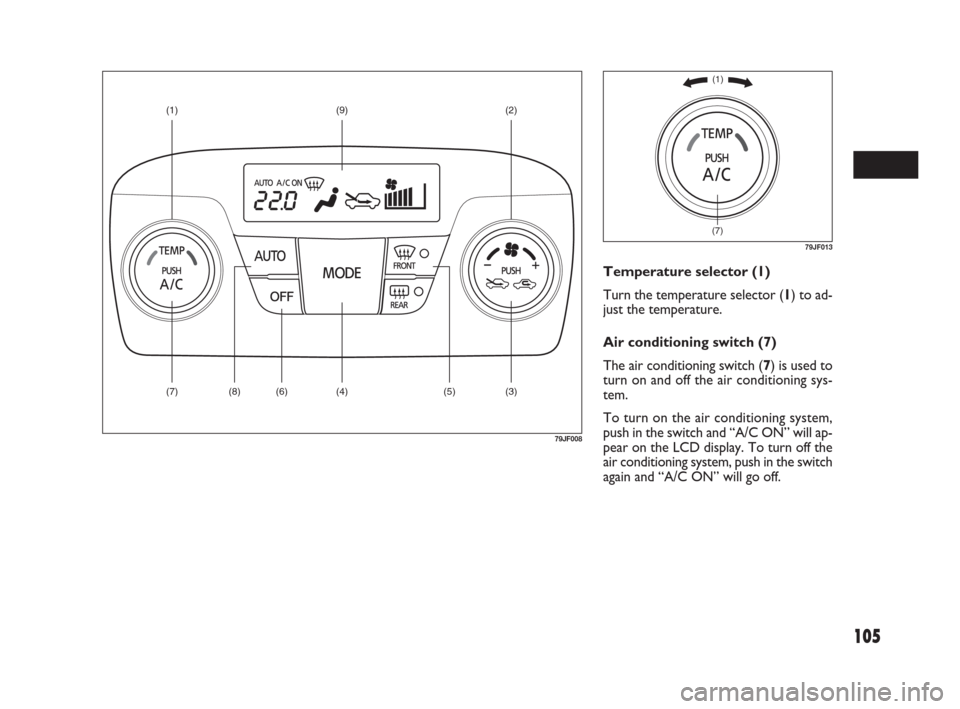

Temperature selector (1)
Turn the temperature selector (1) to ad-
just the temperature.
Air conditioning switch (7)
The air conditioning switch (7) is used to
turn on and off the air conditioning sys-
tem.
To turn on the air conditioning system,
push in the switch and “A/C ON” will ap-
pear on the LCD display. To turn off the
air conditioning system, push in the switch
again and “A/C ON” will go off.
(1)
(7)
79JF013
(1)(9)(2)
(7)(3)(5)(4) (6) (8)
79JF008
071-128 SEDICI LUM FL GB 1E 19-06-2009 12:05 Pagina 105

106
(2)
80JM047
(3)
(a)
(b)
79JF009

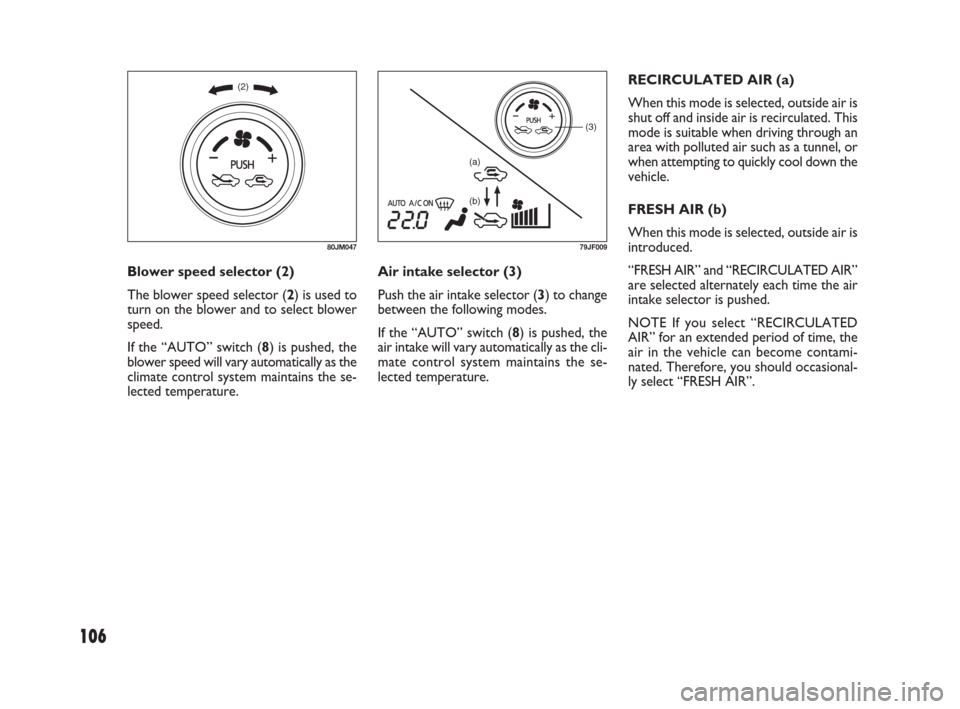

Blower speed selector (2)
The blower speed selector (2) is used to
turn on the blower and to select blower
speed.
If the “AUTO” switch (8) is pushed, the
blower speed will vary automatically as the
climate control system maintains the se-
lected temperature.Air intake selector (3)
Push the air intake selector (3) to change
between the following modes.
If the “AUTO” switch (8) is pushed, the
air intake will vary automatically as the cli-
mate control system maintains the se-
lected temperature.RECIRCULATED AIR (a)
When this mode is selected, outside air is
shut off and inside air is recirculated. This
mode is suitable when driving through an
area with polluted air such as a tunnel, or
when attempting to quickly cool down the
vehicle.
FRESH AIR (b)
When this mode is selected, outside air is
introduced.
“FRESH AIR” and “RECIRCULATED AIR”
are selected alternately each time the air
intake selector is pushed.
NOTE If you select “RECIRCULATED
AIR” for an extended period of time, the
air in the vehicle can become contami-
nated. Therefore, you should occasional-
ly select “FRESH AIR”.
071-128 SEDICI LUM FL GB 1E 19-06-2009 12:05 Pagina 106

107
(4) (c)
(d)
(e)
(f)
80JM049
79J06579J067

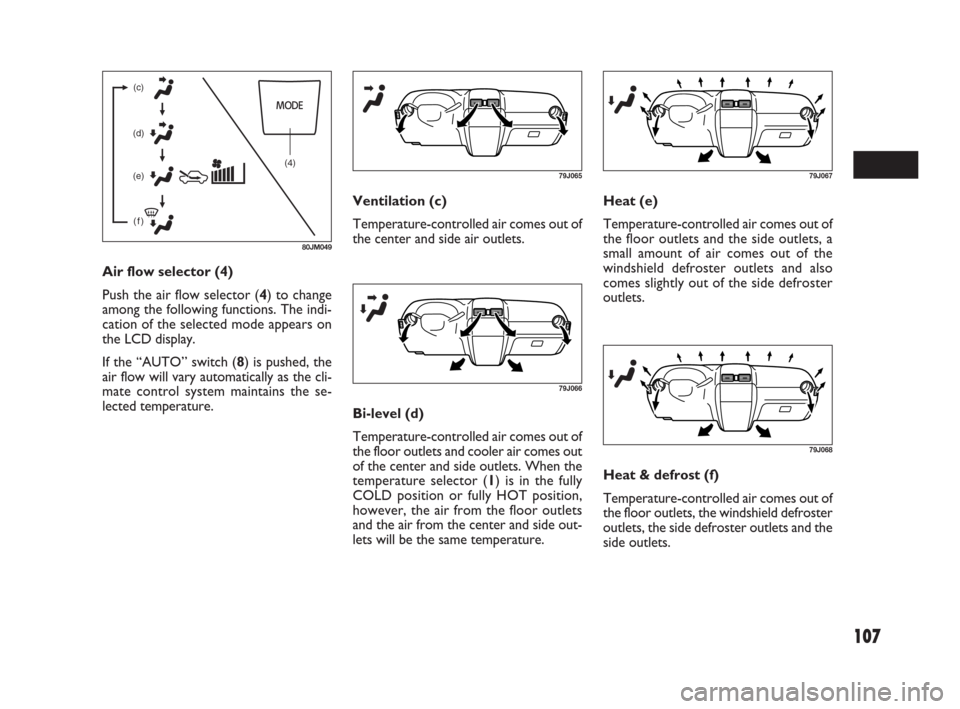

Air flow selector (4)
Push the air flow selector (4) to change
among the following functions. The indi-
cation of the selected mode appears on
the LCD display.
If the “AUTO” switch (8) is pushed, the
air flow will vary automatically as the cli-
mate control system maintains the se-
lected temperature.Ventilation (c)
Temperature-controlled air comes out of
the center and side air outlets.Heat (e)
Temperature-controlled air comes out of
the floor outlets and the side outlets, a
small amount of air comes out of the
windshield defroster outlets and also
comes slightly out of the side defroster
outlets.
79J066
79J068
Bi-level (d)
Temperature-controlled air comes out of
the floor outlets and cooler air comes out
of the center and side outlets. When the
temperature selector (1) is in the fully
COLD position or fully HOT position,
however, the air from the floor outlets
and the air from the center and side out-
lets will be the same temperature.Heat & defrost (f)
Temperature-controlled air comes out of
the floor outlets, the windshield defroster
outlets, the side defroster outlets and the
side outlets.
071-128 SEDICI LUM FL GB 1E 19-06-2009 12:05 Pagina 107

108

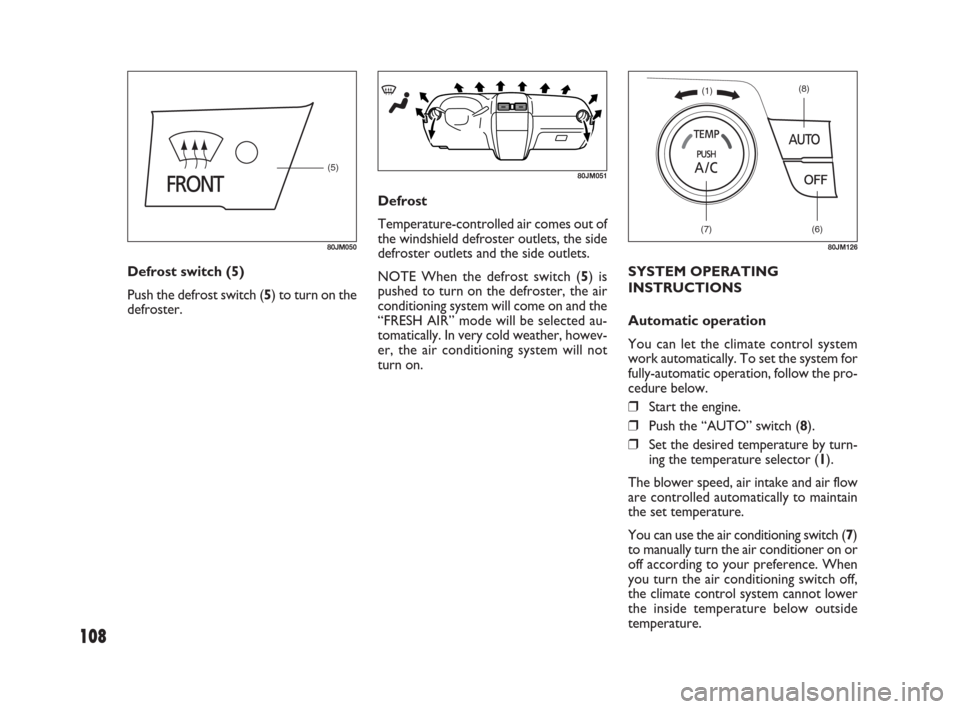

(5)
80JM050
(7)(6)
(8)(1)
80JM126
80JM051
Defrost switch (5)
Push the defrost switch (5) to turn on the
defroster.Defrost
Temperature-controlled air comes out of
the windshield defroster outlets, the side
defroster outlets and the side outlets.
NOTE When the defrost switch (5) is
pushed to turn on the defroster, the air
conditioning system will come on and the
“FRESH AIR” mode will be selected au-
tomatically. In very cold weather, howev-
er, the air conditioning system will not
turn on.SYSTEM OPERATING
INSTRUCTIONS
Automatic operation
You can let the climate control system
work automatically. To set the system for
fully-automatic operation, follow the pro-
cedure below.
❒Start the engine.
❒Push the “AUTO” switch (8).
❒Set the desired temperature by turn-
ing the temperature selector (1).
The blower speed, air intake and air flow
are controlled automatically to maintain
the set temperature.
You can use the air conditioning switch (7)
to manually turn the air conditioner on or
off according to your preference. When
you turn the air conditioning switch off,
the climate control system cannot lower
the inside temperature below outside
temperature.
071-128 SEDICI LUM FL GB 1E 19-06-2009 12:05 Pagina 108

109

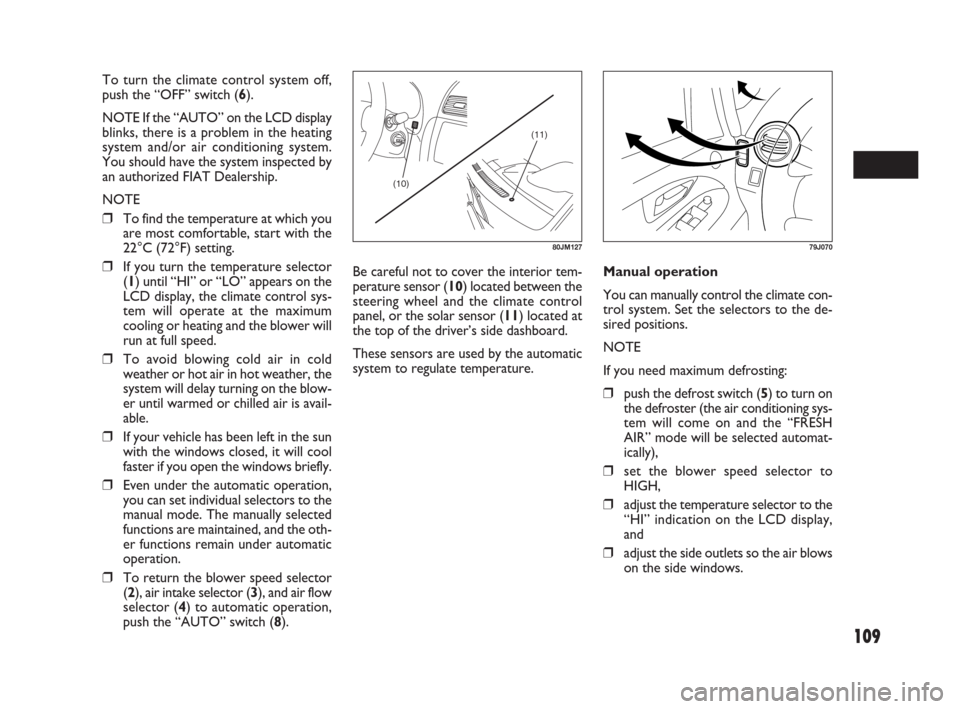

(11)
(10)
80JM12779J070
To turn the climate control system off,
push the “OFF” switch (6).
NOTE If the “AUTO” on the LCD display
blinks, there is a problem in the heating
system and/or air conditioning system.
You should have the system inspected by
an authorized FIAT Dealership.
NOTE
❒To find the temperature at which you
are most comfortable, start with the
22°C (72°F) setting.
❒If you turn the temperature selector
(1) until “HI” or “LO” appears on the
LCD display, the climate control sys-
tem will operate at the maximum
cooling or heating and the blower will
run at full speed.
❒To avoid blowing cold air in cold
weather or hot air in hot weather, the
system will delay turning on the blow-
er until warmed or chilled air is avail-
able.
❒If your vehicle has been left in the sun
with the windows closed, it will cool
faster if you open the windows briefly.
❒Even under the automatic operation,
you can set individual selectors to the
manual mode. The manually selected
functions are maintained, and the oth-
er functions remain under automatic
operation.
❒To return the blower speed selector
(2), air intake selector (3), and air flow
selector (4) to automatic operation,
push the “AUTO” switch (8).Be careful not to cover the interior tem-
perature sensor (10) located between the
steering wheel and the climate control
panel, or the solar sensor (11) located at
the top of the driver’s side dashboard.
These sensors are used by the automatic
system to regulate temperature.Manual operation
You can manually control the climate con-
trol system. Set the selectors to the de-
sired positions.
NOTE
If you need maximum defrosting:
❒push the defrost switch (5) to turn on
the defroster (the air conditioning sys-
tem will come on and the “FRESH
AIR” mode will be selected automat-
ically),
❒set the blower speed selector to
HIGH,
❒adjust the temperature selector to the
“HI” indication on the LCD display,
and
❒adjust the side outlets so the air blows
on the side windows.
071-128 SEDICI LUM FL GB 1E 19-06-2009 12:05 Pagina 109
