technical specifications FIAT STILO 2006 1.G Owners Manual

214
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
IMPORTANT - Engine oil
(petrol and Multijet versions
without DPF)
Should prevailing use of the car be under
one of the following specially heavy con-
ditions:
❒ trailer or caravan towing;
❒dusty roads;
❒short distances (less than 7-8 km) re-
peated and with external temperatures
below zero;
❒frequently idling engines or long dis-
tance low speed driving (e.g. taxis or
door-to-door deliveries) or in case of
a long term inactivity;
replace engine oil more frequently than
required on “Service schedule”.IMPORTANT - Engine oil
(Multijet versions with DPF)
Engine oil and oil filter shall be changed
when the relevant warning light, togeth-
er with the message on the display, turn
on (see section “Warning lights and mes-
sages”) or in any case every 2 years.
Should prevailing use of the car be in the
city, engine oil will waste faster.
Oil topping up, even signifi-
cant ones, do not replace the
engine oil change procedure
required when warning light
vturns on. Engine oil shall be
changed at a Fiat Dealership that will
also turn off the warning light on the
instrument panel.
IMPORTANT - Air cleaner
If the car is used on dusty roads change
the air cleaner more frequently than the
indications in the “Service schedule”.
If in doubt as to how often the engine oil
and air cleaner should be changed ac-
cording to how you use the car, contact
a Fiat Dealership.

215
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
IMPORTANT - Battery
The charge in the battery should be
checked at the start of winter to limit the
risk of electrolyte freezing.
This check should be carried out more
frequently if the car is used mainly for
short trips, or if it is fitted with accessories
that permanently absorb electricity even
with the ignition key removed, especially
in the case of after market accessories. If
the car is used in hot climates or particu-
larly harsh conditions it is wise to check
the level of the battery fluid (electrolyte)
more frequently than specified in the “Ser-
vice schedule”. IMPORTANT - Pollen filter
If the car is used frequently in dusty or
heavily polluted environments it is advis-
able to replace the filtering element more
frequently; in particular it should be re-
placed if a reduction of the amount of air
admitted to the passenger compartment
is noted.
IMPORTANT - Diesel filter
The possibility of topping up with diesel
fuel not complying with EN590 European
Norm might make it necessary to replace
the filter more frequently than indicated
in the “Service Schedule”.Car maintenance should be
entrusted to Fiat Dealership.
For routine and minor main-
tenance operations you wish
to carry out yourself, always make sure
you have the proper equipment, gen-
uine Fiat spare parts and the necessary
fluids; do not however carry out these
operations if you have no experience.

216
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
CHECKING FLUID
LEVELS
IMPORTANT When topping up take care
not to confuse the various types of fluids:
they are all incompatible with one anoth-
er and could seriously damage the car.
IMPORTANT Never smoke while work-
ing in the engine compartment; gas and in-
flammable vapours may be present, with
the risk of fire.
1 Engine oil - 2 Battery - 3 Brake fluid -
4 Windscreen/rear window/headlight
washer fluid - 5 Engine coolant
F0C0500mfig. 1 - 1.416V version
F0C0518mfig. 2 - 1.616V version

217
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE

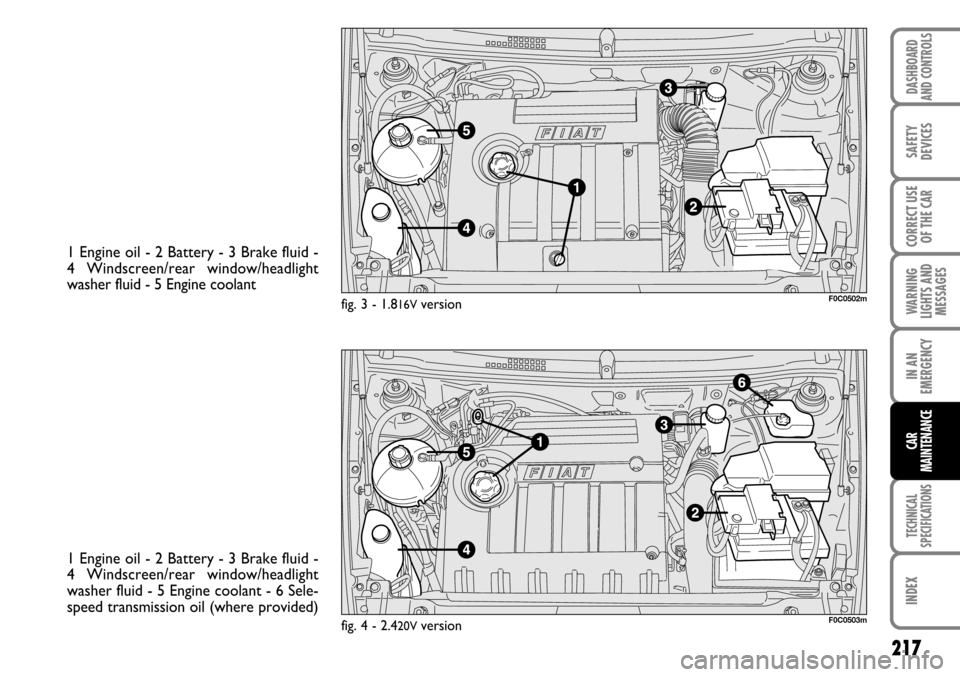

1 Engine oil - 2 Battery - 3 Brake fluid -
4 Windscreen/rear window/headlight
washer fluid - 5 Engine coolant - 6 Sele-
speed transmission oil (where provided)
fig. 3 - 1.816V version
fig. 4 - 2.4
20V version
1 Engine oil - 2 Battery - 3 Brake fluid -
4 Windscreen/rear window/headlight
washer fluid - 5 Engine coolant
F0C0502m
F0C0503m

218
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE

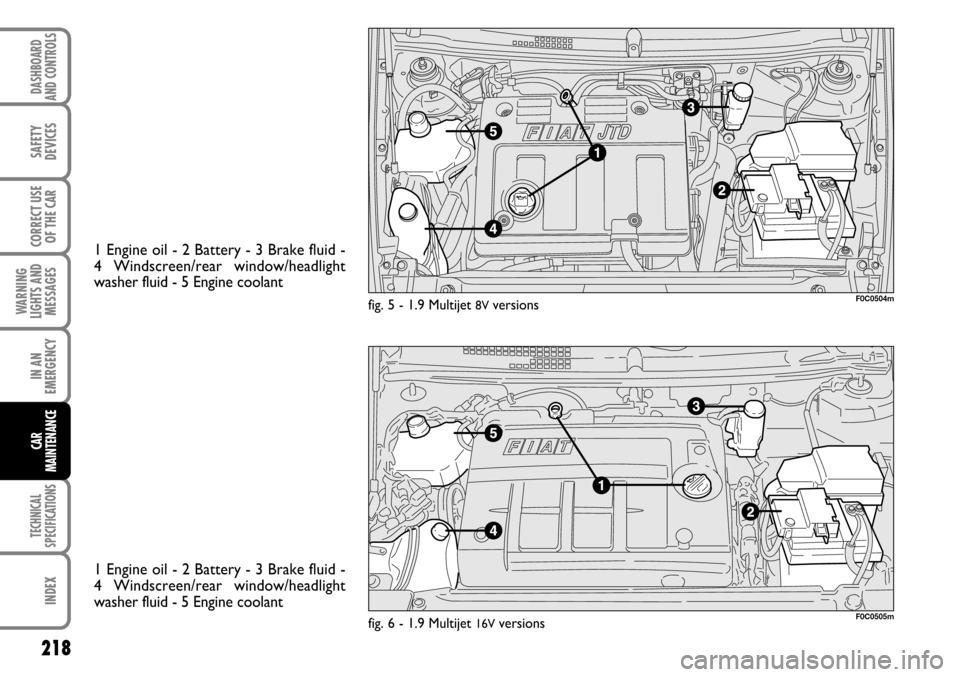

1 Engine oil - 2 Battery - 3 Brake fluid -
4 Windscreen/rear window/headlight
washer fluid - 5 Engine coolant
1 Engine oil - 2 Battery - 3 Brake fluid -
4 Windscreen/rear window/headlight
washer fluid - 5 Engine coolant
fig. 6 - 1.9 Multijet 16V versions
F0C0504mfig. 5 - 1.9 Multijet 8V versions
F0C0505m

219
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
ENGINE OIL fig. 7-8-9-10-11-12
Checking engine oil
Check the oil level a few minutes (about
5) after the engine has stopped, with the
car parked on level ground.
Remove the dipstick Aand clean it, put
it back in completely, remove it and check
that the level is within the MINand MAX
marks on the dipstick. The interval be-
tween the MINand MAXmarks corre-
sponds to about one litre of oil.
fig. 7 - 1.416V version F0C0103m
Topping up engine oil
If the oil level is near or even below the
MINmark, add oil through the filler neck
B, until reaching the MAXmark.
Oil level shall never exceed the MAX
mark.IMPORTANT If a routine check reveals
that the oil level is above the MAXmark,
contact Fiat Dealership to have the cor-
rect level restored.
IMPORTANT After adding or changing
the oil, let the engine turn over for a few
seconds and wait a few minutes after turn-
ing it off before you check the level.
fig. 8 - 1.816V version F0C0519mfig. 9 - 1.9 Multijet 8V version F0C0122m

220
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE

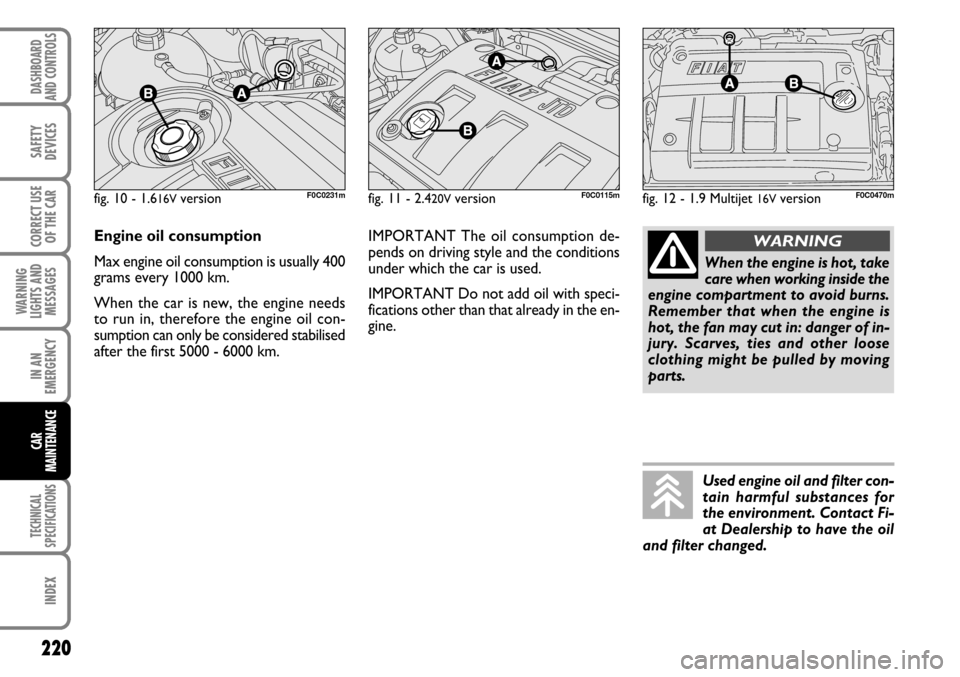

fig. 10 - 1.616V version F0C0231mfig. 11 - 2.420V version F0C0115mfig. 12 - 1.9 Multijet 16V version F0C0470m
Engine oil consumption
Max engine oil consumption is usually 400
grams every 1000 km.
When the car is new, the engine needs
to run in, therefore the engine oil con-
sumption can only be considered stabilised
after the first 5000 - 6000 km.IMPORTANT The oil consumption de-
pends on driving style and the conditions
under which the car is used.
IMPORTANT Do not add oil with speci-
fications other than that already in the en-
gine.
When the engine is hot, take
care when working inside the
engine compartment to avoid burns.
Remember that when the engine is
hot, the fan may cut in: danger of in-
jury. Scarves, ties and other loose
clothing might be pulled by moving
parts.
WARNING
Used engine oil and filter con-
tain harmful substances for
the environment. Contact Fi-
at Dealership to have the oil
and filter changed.

221
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
❒if the oil is below the MAXmark, top
up to reach the correct level;
❒after refitting the cap, insert the
breather tube firmly on the cap spout
and turn the ignition key to STOP.
IMPORTANT Do not add oil into the cir-
cuit tank having different specifications
from that already existing.
fig. 13F0C0121m
Used gearbox oil contains
dangerous substances for the
environment. For changing
the oil we advise contacting
Fiat Dealership, which is equipped for
disposing of used oil respecting the na-
ture and the law.
HYDRAULIC SYSTEM OIL FOR
ACTUATING SELESPEED
GEARBOX (where provided)
fig. 13
The oil should be checked with the car on
a level surface and with the engine stopped
and cold.
To check the level, proceed as follows:
❒turn the ignition key to MAR;
❒disconnect the breather tube and re-
move the cap Achecking that the lev-
el corresponds with the MAXmark on
the reservoir;

222
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
ENGINE COOLANT FLUID
fig. 14-15-16
The coolant level shall be checked with
cold engine and shall not be lower than
the MINmark on the reservoir.
If the level is low, pour slowly a mixture
of 50% distilled water and 50% PARAFLU
UPof the FL Seleniathroughthe filler
neck A.
A 50-50 mixture of PARAFLU UPand
distilled water gives freeze protection to
–35°C.
fig. 14 - 1.416V version F0C0520mfig. 15 - 1.416V - 1.816V - 2.420V version
F0C0108mfig. 16 - 1.9 Multijet version F0C0469m
The cooling system uses
PARAFLU UPantifreeze. Do
not add fluid having different
specifications from that al-
ready existing. PARAFLU UPcannot
be mixed with other types of fluids.
Should other fluids be added, do not
start the engine and contact Fiat Deal-
ership as soon as possible.Do not remove the reservoir
cap when the engine is hot:
you risk scalding yourself. The cool-
ing system is pressurised. If necessary,
replace the cap only with another
genuine one, otherwise system effi-
ciency could be compromised.
WARNING

223
WARNING
LIGHTS AND
MESSAGES
TECHNICAL
SPECIFICATIONS
INDEX
DASHBOARD
AND CONTROLS
SAFETY
DEVICES
CORRECT USE
OF THE CAR
IN AN
EMERGENCY
CAR
MAINTENANCE
WINDSCREEN/REAR
WINDOW/HEADLIGHT
WASHER FLUID fig. 17-18
To top up, open the cap Aand then pour
a mixture of water and TUTELA PRO-
FESSIONAL SC 35, in the following
concentrations:
❒30% TUTELA PROFESSIONAL
SC 35and 70% water in summer;
❒50% TUTELA PROFESSIONAL
SC 35and 50% water in winter.
fig. 17F0C0106mfig. 18 - 1.9 Multijet version F0C0468m
Do not travel with the wind-
screen washer reservoir emp-
ty. The windscreen washer is funda-
mental for improving visibility.
WARNING
Certain commercial addi-
tives for windscreen washers
are inflammable. The engine com-
partment contains hot components
which may set it on fire.
WARNINGIn case of temperatures below –20°C, use
undiluted TUTELA PROFESSIONAL
SC 35 fluid.
Check level through the reservoir.
For versions fitted with headlight wash-
er, remove the filter and the relevant dip-
stick. Use the dipstick to check the fluid
level inside the reservoir.
