FORD AEROSTAR 1997 1.G Owners Manual

109
*
[SS02100(ALL)02/96]
See the following sections in this chapter for
directions on how to properly use these safety
belts. Also seeSafety Restraints for Childrenin this
chapter for special instructions about using
safety belts for children.
*
[SS02200(ALL)02/96]
RWARNING
Always drive and ride with your seatback
upright and the lap belt snug and low
across the hips.
*
[SS02501(ALL)05/96]
RWARNING
Each seating position in your vehicle has a
specific safety belt assembly which is
made up of one buckle and one tongue
that are designed to be used as a pair. 1)
Use the shoulder belt on the outside
shoulder only. Never wear the shoulder
belt under the arm. 2) Never swing it
around your neck over the inside
shoulder. 3) Never use a single belt for
more than one person.
*
[SS02550(ALL)02/96]
RWARNING
Children should always ride with the
seatback in the fully upright position.
*
[SS02601(ALL)01/96]
RWARNING
Never drive or ride with a twisted or
jammed safety belt. If you cannot untwist
or unjam the safety belt, see the nearest
qualified technician immediately.
File:06cpssa.ex
Update:Thu Jun 13 08:56:07 1996

110
*
[SS02700(ALL)02/96]
RWARNING
Never let a passenger hold a child on his
or her lap while the vehicle is moving.
The passenger cannot protect the child
from injury in a collision.
*
[SS02900(ALL)02/96]
RWARNING
Lock the doors of your vehicle before
driving to lessen the risk of the door
coming open in a collision.
%
*
[SS03000(ALL)02/96]
Combination Lap and Shoulder
Belts
*
[SS03200(ALL)02/96]
While your vehicle is in motion, the combination
lap and shoulder belt adjusts to your movement.
However, if you brake hard, turn hard, or if
your vehicle receives an impact of 5 mph
(8 km/h) or more, the lap/shoulder belt locks
and helps reduce your forward movement.
*
[SS03400(ALL)01/96]
After you get into your vehicle, close the door
and lock it. Then adjust the seat to the position
that suits you best.
*
[SS03500(ALL)02/96]
Pull the combination lap/shoulder belt from the
retractor so that the shoulder portion of the belt
crosses your shoulder and chest. Be sure the belt
is not twisted. If it is, remove the twist. Insert
the belt tongue into the proper buckle until you
hear a snap and feel it latch. Make sure the
tongue is securely fastened to the buckle by
pulling on tongue.
File:06cpssa.ex
Update:Thu Jun 13 08:56:07 1996

111
*
[SS03600(ALL)01/96]

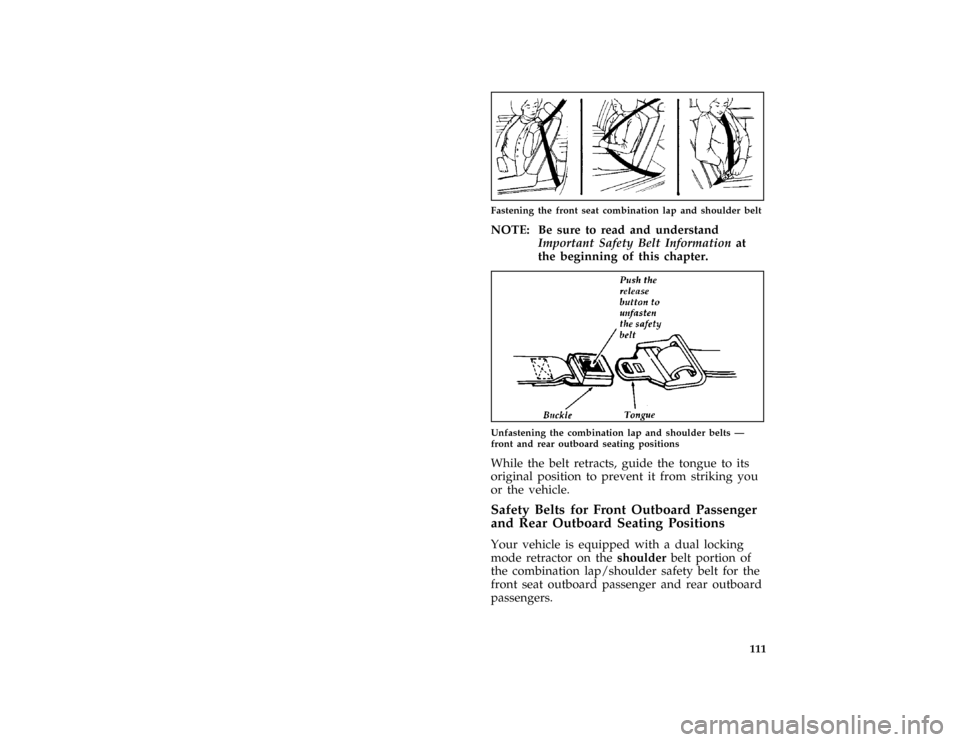

quarter page art:0010018-B
Fastening the front seat combination lap and shoulder belt
[SS03650(ALL)04/96]
NOTE: Be sure to read and understand
Important Safety Belt Informationat
the beginning of this chapter.
[SS03800(ALL)01/96]
one third page art:0095046-A
Unfastening the combination lap and shoulder belts Ð
front and rear outboard seating positions
*
[SS03900(ALL)02/96]
While the belt retracts, guide the tongue to its
original position to prevent it from striking you
or the vehicle.
*
[SS04000(ALL)01/96]
Safety Belts for Front Outboard Passenger
and Rear Outboard Seating Positions
*
[SS04210(ALL)01/96]
Your vehicle is equipped with a dual locking
mode retractor on theshoulderbelt portion of
the combination lap/shoulder safety belt for the
front seat outboard passenger and rear outboard
passengers.
File:06cpssa.ex
Update:Thu Jun 13 08:56:07 1996

112
*
[SS04220(ALL)02/96]
Dual locking mode retractors operate in two
ways:
*
[SS04230(ALL)02/96]
Vehicle sensitive (emergency) locking mode
*
[SS04240(ALL)02/96]
In this operating mode, the shoulder belt
retractor will allow the occupant freedom of
movement, locking tight only on hard braking,
hard cornering or impacts of approximately
5 mph (8 km/h) or more. The retractor can also
be made to lock by pulling the belt out quickly.
%*
[SS04250(ALL)02/96]
Automatic locking mode
*
[SS04260(ALL)01/96]
In this operating mode, the shoulder belt
retractor will be automatically locked and will
remain locked when the combination
lap/shoulder safety belt is buckled, and does not
allow the occupant freedom of movement. This
mode provides the following:
*
[SS04270(ALL)01/96]
q
A tight lap/shoulder belt on the occupant.
*
[SS04280(ALL)01/96]
q
Child safety seat installation.
*
[SS04300(ALL)01/96]
This modemust be usedwhen installing a child
safety seat on the front passenger seat and rear
outboard seats where dual locking retractors are
provided.
*
[SS04310(ALL)01/96]
To switch the retractor from the emergency
locking mode to the automatic locking mode,
perform the following steps:
*
[SS04320(ALL)02/96]
1. Buckle the lap/shoulder combination belt.
*
[SS04330(ALL)01/96]
2. Grasp the shoulder portion of the belt and
pull downward until all of the belt is
extracted and, when allowed to retract, a
clicking sound is heard. At this time, the belt
retractor is in the automatic locking mode
(child restraint mode).
File:06cpssa.ex
Update:Thu Jun 13 08:56:07 1996

113
*
[SS04340(ALL)02/96]
3. A clicking sound will continue to be heard
as the belt is allowed to retract. This
indicates that the retractor is in the
automatic locking mode.
*
[SS04350(ALL)02/96]
NOTE: When the combination lap/shoulder
belt is unbuckled and allowed to
retract completely, the retractor will
switch to the vehicle sensitive
(emergency) locking mode. See the
detailed instructions underSafety Seats
for Childrenin this chapter.
[SS04375(ALL)01/96]
Two Passenger Bench or Bedseat
(If Equipped)
[SS04400(ALL)04/96]
In addition to anchorages in the floor and roof
structures, some rear safety belts have a
detachable anchor mounted to the outboard side
of the rear seats. This should remain attached,
except when removing the rear seats.
[SS04800(ALL)01/96]
Disengaging rear seat safety belts for seat
removal
[SS04850(ALL)01/96]
In order to remove the rear seat, the safety belt
must be disengaged from the seat. To disengage
the safety belt from the seat, insert a key or
small screwdriver into the slot provided on the
detachable anchor. Then lift upward.
File:06cpssa.ex
Update:Thu Jun 13 08:56:07 1996

114 [SS05000(ALL)01/96]

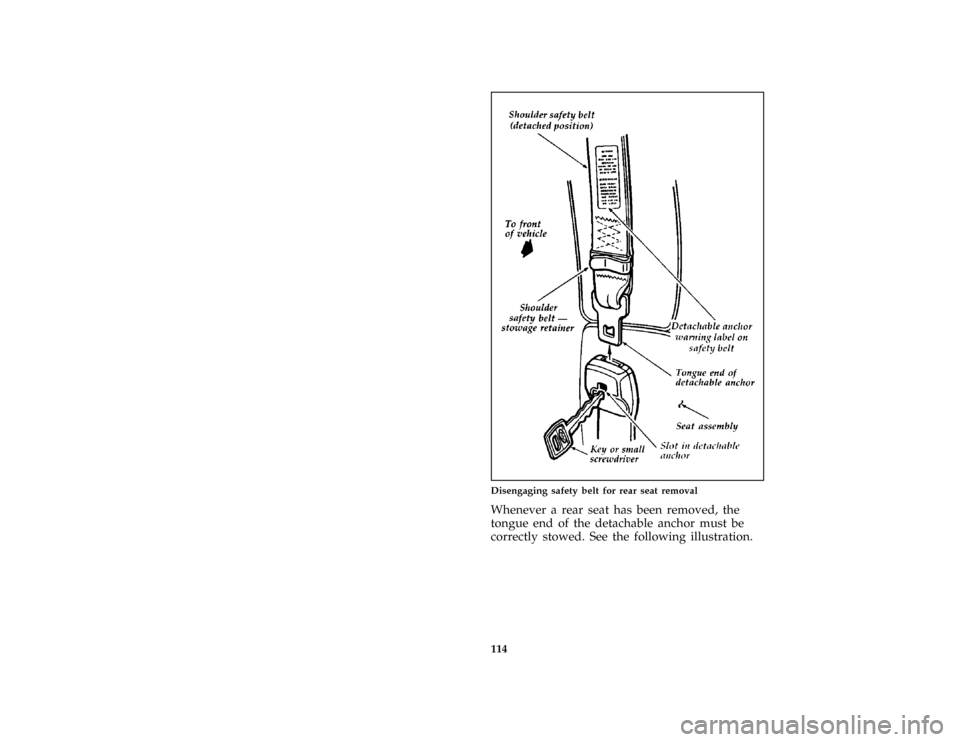

three fourths page art:0095047-ADisengaging safety belt for rear seat removal
[SS05200(ALL)01/96]
Whenever a rear seat has been removed, the
tongue end of the detachable anchor must be
correctly stowed. See the following illustration.
File:06cpssa.ex
Update:Thu Jun 13 08:56:07 1996

115 [SS05300(ALL)01/96]

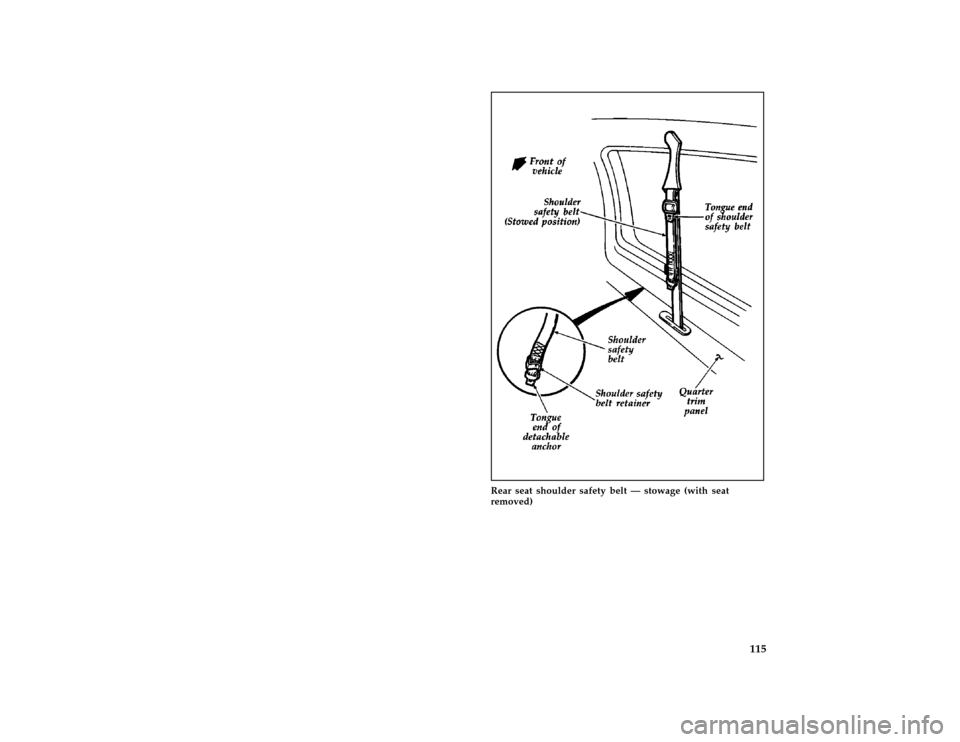

three fourths page art:0020786-A
Rear seat shoulder safety belt Ð stowage (with seat
removed)
File:06cpssa.ex
Update:Thu Jun 13 08:56:07 1996

116
*
[SS05600(ALL)01/96]
RWARNING
When reinstalling a rear seat in your
vehicle it must be placed in its original
position. Improper installation of the seat
will prevent correct use of the safety belts
and could increase the risk of injury.
Refer to the warning label on the seat
belt.
[SS05700(ALL)04/96]
After installing the rear seat, make sure the
safety belt is not twisted before you insert it into
the detachable anchor. A twisted safety belt may
cause the retractor to not work properly. Then
insert the detachable anchor tongue into the
detachable anchor until you hear a ªclickº and
feel the latch engage.
%
*
[SS06800(ALL)12/95]
Lap Belts
[SS07000(ALL)01/96]
On the center seat of the rear three-passenger
seats you will find a lap-belt without a retractor.
You must adjust the lap belt to fit snugly and as
low as possible around your hips. Do not wear
the lap belt around your waist.
[SS07400(ALL)05/96]
one third page art:0020638-C
Fastening and unfastening the center rear occupant safety
lap belts
File:06cpssa.ex
Update:Thu Jun 13 08:56:07 1996

117
*
[SS07500(ALL)01/96]
Pull the belt across your hips andinsert the
tongue into the correct buckleon your seat
until you hear a snap and feel it lock. Make sure
the buckle is securely fastened.
%*
[SS07700(ALL)01/96]
If you need to lengthen the belt, unfasten it and
tip the belt tongue at a right angle to the belt.
Pull the belt tongue over your lap until it
reaches the buckle.
*
[SS07800(ALL)01/96]
If you need to shorten the belt, pull on the loose
end of the webbing until the belt fits snugly.
[SS08600(ALL)05/96]
To unfasten the belt, push the release button on
the buckle. This allows the tongue to unlatch
from the buckle.
*
[SS08800(ALL)05/96]
RWARNING
The lap belts should fit snugly and as low
as possible around the hips, not around
the waist.
%*
[SS09600(ALL)02/96]
Safety Belt Extension Assembly
*
[SS09700(ALL)01/96]
For some people, the safety belt may be too
short even when it is fully extended. You can
add about eight inches (20 cm) to the belt length
with a safety belt extension assembly (part
number 611C22). Safety belt extensions are
available at no cost from your dealer.
*
[SS09750(ALL)01/96]
Use only extensions manufactured by the same
supplier as the safety belt. Manufacturer
identification is located at the end of the
webbing on the label. Also, use the safety belt
extension only if the safety belt is too short for
you when fully extended. Do not use extension
to change the fit of the shoulder belt across the
torso.
File:06cpssa.ex
Update:Thu Jun 13 08:56:07 1996

118
%*
[SS09775(ALL)03/96]
Safety Belt Maintenance
*
[SS09795(ALL)02/96]
Check the safety belt systems periodically to
make sure that they work properly and are not
damaged.
*
[SS09800(ALL)02/96]
RWARNING
Failure to follow these instructions will
affect the performance of the safety belts
and increase the risk of personal injury.
%*
[SS09805(ALL)05/96]
All safety belt assemblies, including retractors,
buckles, front seat belt buckle support assemblies
(slide bar) (if equipped), shoulder belt height
adjusters (if equipped), child safety seat tether
bracket assemblies (if equipped), and attaching
hardware, should be inspected after any
collision. Ford recommends that all safety belt
assemblies used in vehicles involved in a
collision be replaced. However, if the collision
was minor and a qualified technician finds that
the belts do not show damage and continue to
operate properly, they do not need to be
replaced. Safety belt assemblies not in use
during a collision should also be inspected and
replaced if either damage or improper operation
is noted.
%*
[SS09875(ALL)01/96]
How to Untwist or Unjam a Safety Belt
Retractor
*
[SS09900(ALL)01/96]
If you should jam the lap belt retractor by
allowing the belt to retract when it is twisted,
you can free the webbing with this procedure:
*
[SS09925(ALL)01/96]
1. Pull on the belt with both hands to tighten it
on the retractor spool.
*
[SS09950(ALL)01/96]
2. Feed the belt back into the retractor until it
is completely retracted. Repeat previous step
if necessary.
