FORD ASPIRE 1997 1.G Owners Manual

139 %
*
[ER12275(ALL)02/96]
WARNING
Applying too much pressure on the ends
when lifting a battery could cause acid to
spill. Lift the battery with a carrier or
with your hands on the opposite corners.
%*
[ER12280(ALL)02/96]
WARNING
Batteries contain sulfuric acid which burns
skin, eyes, and clothing.
*
[ER12285(ALL)02/96]
If the acid touches someone's skin, eyes, or
clothing, immediately flush the area with water
for at least 15 minutes. If someone swallows the
acid, have him or her drink lots of milk or water
first, then Milk of Magnesia, a beaten egg, or
vegetable oil. Call a doctor immediately.
*
[ER12290(ALL)01/96]
WARNING
Do not push-start your vehicle. You could
damage the catalytic converter. For further
information, seeJumper Cablesin the
Index.
*
[ER12295(ALL)02/96]
To avoid damaging your vehicle or your battery,
and to avoid injury to yourself, follow these
directions for preparing your vehicle to
jump-start and connecting the jumper cables in
the order they are given. If in doubt, call for
road service.
%*
[ER12300(ALL)02/96]
Preparing Your Vehicle
*
[ER12305(ALL)02/96]
1. Your vehicle has a 12-volt starting system, so
you need to use a 12-volt jumper system.
You will damage your starting motor,
ignition system, and other electrical parts if
you connect them to a 24-volt power supply
(either two 12-volt batteries in series or a
24-volt generator set).
File:10icerf.ex
Update:Tue Mar 4 08:55:59 1997

140
*
[ER12310(ALL)02/96]
2. Do not disconnect the battery of the disabled
vehicle. You could damage the vehicle's
electrical system.
*
[ER12315(ALL)02/96]
3. Park the booster vehicle close to the hood of
the disabled vehicle.Make sure the vehicles
do not touch each other.Set the parking
brake on both vehicles and stay clear of the
engine cooling fan and other moving parts.
*
[ER12320(ALL)02/96]
4. Check all battery terminals and remove any
excessive corrosion before you attach the
jumper cables.
*
[ER12325(ALL)03/96]
5. Turn on the heater fan in both vehicles.
Press the DEFROST button. Turn off all
other switches and gauges.
%*
[ER12330(ALL)02/96]
Connecting the jumper cables
*
[ER12335(ALL)02/96]
1. Connect one end of the first jumper cable to
the positive (+) terminal of the discharged
battery. (You can connect either jumper cable
to the positive (+) terminal, as long as you
use the same cable for both positive
terminals.) Most jumper cables have a red
cable and a black cable. The red cable is
generally used for the positive terminals and
the black for the negative ones.
*
[ER12340(ALL)02/96]
2. Connect the other end of the first cable to
the positive (+) terminal of the booster
battery.
*
[ER12345(ALL)02/96]
3. Connect one end of the second cable to the
negative (S) terminal of the booster battery
Ð NOT to the discharged battery.
File:10icerf.ex
Update:Tue Mar 4 08:55:59 1997

141
*
[ER12350(ALL)01/96]
4. Connect the other end of that cable to a
good metallic surface on the engine or frame
of the disabled vehicle. The following
illustration shows where you can find a
metallic surface.
*
[ER12355(ALL)02/96]
WARNING
Do not connect the end of the second
cable to the negative (S) terminal of the
battery to be jumped. A spark may cause
an explosion of the gases that surround
the battery.
[ER12360(ALL)04/96]
half page art:0032286-A
The sequence for connecting the jumper cables
File:10icerf.ex
Update:Tue Mar 4 08:55:59 1997

142
*
[ER12365(ALL)02/96]
Jump-Starting
*
[ER12370(ALL)02/96]
1. Make sure that the jumper cables are not in
the way of moving engine parts, then start
the booster vehicle. Run the engine at a
moderate speed.
*
[ER12375(ALL)02/96]
2. Let the discharged battery charge for a few
minutes and then start the disabled vehicle.
It may take a couple of tries before the
vehicle starts. If the vehicle does not start
after several attempts, there may be a
different problem.
*
[ER12380(ALL)02/96]
3. When both vehicles are running, let them
idle for a few minutes to charge the
discharged battery.
%*
[ER12385(ALL)02/96]
Removing jumper cables
*
[ER12390(ALL)02/96]
1.Always remove the jumper cables in the
reverse order.Remove the negative (S) end
of the jumper cable from the metallic surface
on the engine or frame of the disabled
vehicle.
*
[ER12395(ALL)03/96]
2. Remove the negative (S) cable from the
booster battery.
*
[ER12400(ALL)02/96]
3. Remove the positive (+) cable from the
booster battery.
*
[ER12405(ALL)02/96]
4. Remove the other end of the positive (+)
cable from the discharged battery.
*
[ER12410(ALL)02/96]
After the vehicle is started, let it idle for a while
to let the engine ªrelearnº its idle conditions.
Drive it around for a while with all electrical
accessories turned off to let the battery recharge.
Driveability may be deteriorated slightly until all
drive modes are ªrelearned.ºYou may need to
use a battery charger to fully recharge the
battery.
*
[ER12415(ALL)03/96]
If you need to replace your battery, seeBattery
in theMaintenance and Carechapter.
File:10icerf.ex
Update:Tue Mar 4 08:55:59 1997

143
%*
[ER12450(ALL)02/96]
Towing Your Vehicle
[ER12500(ALL)01/96]
If you need to have your vehicle towed, contact
a professional towing service or, if you are a
member, your roadside assistance center.
Suggested towing options include wheel lift
towing or flat bed towing.
[ER12550(ALL)01/96]

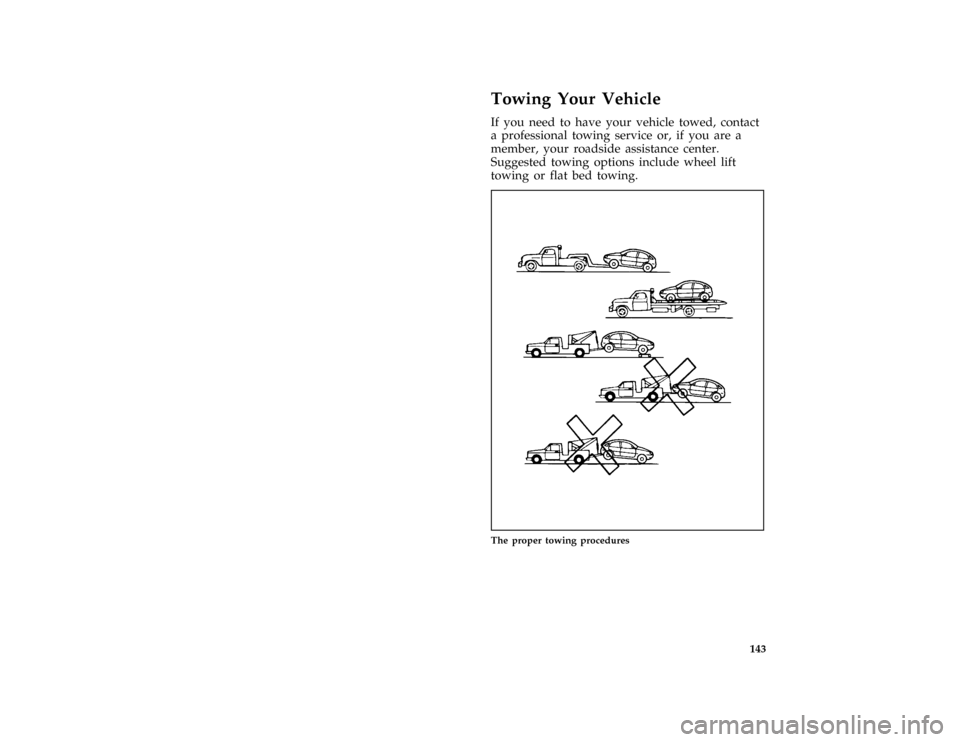

two third page art:0032214-A
The proper towing procedures
File:10icerf.ex
Update:Tue Mar 4 08:55:59 1997

144 [ER12600(ALL)01/96]When calling for a tow truck, tell the operator
what kind of vehicle you have. A towing
manual is available from Ford Motor Company
for all authorized tow truck oerators. Have your
tow truck driver refer to this manual for the
proper hook-up and towing procedures for your
vehicle.
*
[ER13000(ALL)01/96]
Towing With the Back Wheels Off the
Ground
[ER13150(ALL)01/96]
If it is necessary to tow your vehicle from the
rear (with the rear wheels off the ground), a
dolly must be placed under the front tires to
prevent transaxle damage.
*
[ER13200(ALL)01/96]
Do not use your vehicle's steering column lock
to secure the wheels in a straight-ahead position.
Always use a steering wheel clamping device
designed for towing service.
*
[ER13250(ALL)01/96]
Refer toTowing behind another vehicle
Ðrecreational vehiclein the Index for information
on towing behind an RV.
File:10icerf.ex
Update:Tue Mar 4 08:55:59 1997

145
Maintenance and Care
%*
[MC00300(ALL)01/96]
Service Made Easy
*
[MC00400(ALL)01/96]
Ford has two goals for servicing your vehicle.
*
[MC00500(ALL)01/96]
1. When we can, we design parts that do not
need to be serviced.
*
[MC00600(ALL)01/96]
2. We want to make servicing your vehicle as
easy as possible. To help you:
*
[MC00700(ALL)01/96]
q
We highlight do-it-yourself items in yellow in
the engine compartment so that you can find
them easily.
*
[MC00800(ALL)03/96]
q
When possible, we design parts that can be
replaced without tools.
*
[MC00900(ALL)02/96]
q
We give you a Maintenance Schedule that
makes tracking routine service for your
vehicle easy. The maintenance schedule is
located in theMaintenance Schedulebooklet.
*
[MC00925(ALL)01/96]
This chapter tells you about the basic parts that
you need to check and service regularly.
*
[MC00930(ALL)01/96]
If your vehicle needs professional servicing, your
dealership can provide the parts and service
required. Check yourWarranty Information Booklet
to find out which parts and services are covered.
Also see theCustomer Assistancechapter of this
Owner Guide.
*
[MC01000(ALL)02/96]
Ford Motor Company recommends that the
Owner Maintenance Checks listed in the
Maintenance Schedulebooklet be performed for
the proper operation of your vehicle. In addition
to the conditions listed in theOwner Maintenance
Checklist, be alert for any unusual noise,
File:11icmcf.ex
Update:Tue Mar 4 08:57:16 1997

146vibration, or other indication that your vehicle
may need service. If you do notice something
unusual, see that your vehicle is serviced
promptly.
*
[MC01100(ALL)01/96]
Use only recommended fuels, lubricants, fluids,
and service parts that meet Ford Motor
Company specifications. Motorcraft parts are
designed and built to provide the best
performance in your vehicle. Using these parts
for replacement is your assurance that Ford-built
quality stays in your vehicle.
%*
[MC01200(ALL)05/96]
NOTE: Always dispose of used automotive
fluids in a responsible manner. Follow
your community's standards for
disposing of these types of fluids. Call
your local recycling center to find out
about recycling automotive fluids.
%
*
[MC01600(ALL)01/96]
Precautions When Servicing Your
Vehicle
*
[MC01700(ALL)01/96]
Be especially careful when inspecting or
servicing your vehicle. Here are some general
precautions for your safety:
%*
[MC01800(ALL)01/96]
q
Do not work on a hot engine. The engine
cooling fan may come on unexpectedly.
Always turn the engine off and let it cool.
*
[MC01850(ALL)05/96]
WARNING
The cooling fan is automatic and may
come on at any time. Always disconnect
the negative terminal of the battery before
working near the fan.
*
[MC01900(ALL)01/96]
q
If you must work with the engine running,
avoid wearing loose clothing or jewelry that
could get caught in moving parts. Take
appropriate precautions with long hair.
File:11icmcf.ex
Update:Tue Mar 4 08:57:16 1997

147
*
[MC02000(ALL)01/96]
q
Do not work on a vehicle in an enclosed
space with the engine running, unless you are
sure you have enough ventilation.
*
[MC02100(ALL)01/96]
q
Never get under a vehicle while it is
supported only by a jack. If you must work
under a vehicle, use safety stands.
*
[MC02200(ALL)01/96]
q
Keep all lit cigarettes and other smoking
materials away from the battery and all
fuel-related parts.
*
[MC02700(ALL)01/96]
Working with the engine off:
[MC02750(ALL)01/96]
1. Set the parking brake fully and make sure
the gearshift is securely latched in P (Park)
(automatic transaxle) or 1 (First) gear
(manual transaxle).
*
[MC02800(ALL)01/96]
2. Remove the key from the ignition after you
turn the engine off.
*
[MC02850(ALL)01/96]
3. Block the wheels. This will prevent your
vehicle from moving unexpectedly.
*
[MC02900(ALL)01/96]
Working with the engine on:
*
[MC03000(ALL)01/96]
1. Set the parking brake fully and make sure
the gearshift is securely latched in P (Park)
(automatic transaxle) or Neutral (manual
transaxle).
*
[MC03050(ALL)01/96]
2. Block the wheels. This will prevent your
vehicle from moving unexpectedly.
*
[MC03200(ALL)01/96]
WARNING
Do not start your engine with the air
cleaner removed and do not remove it
while the engine is running.
File:11icmcf.ex
Update:Tue Mar 4 08:57:16 1997

148 %
*
[MC04000(ALL)02/96]

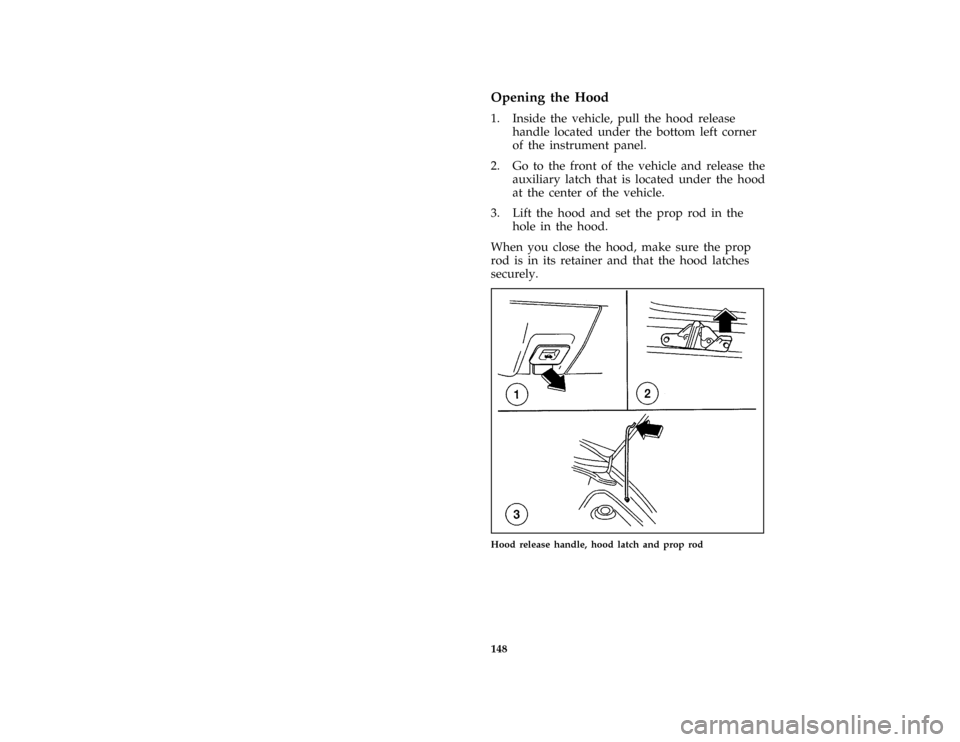

Opening the Hood
%*
[MC04100(ALL)02/96]
1. Inside the vehicle, pull the hood release
handle located under the bottom left corner
of the instrument panel.
%*
[MC04200(ALL)02/96]
2. Go to the front of the vehicle and release the
auxiliary latch that is located under the hood
at the center of the vehicle.
[MC04300(ALL)02/96]
3. Lift the hood and set the prop rod in the
hole in the hood.
*
[MC04400(ALL)02/96]
When you close the hood, make sure the prop
rod is in its retainer and that the hood latches
securely.
[MC04500(ALL)04/96]
half page art:0032215-C
Hood release handle, hood latch and prop rod
File:11icmcf.ex
Update:Tue Mar 4 08:57:16 1997
