FORD ASPIRE 1997 1.G Owners Manual

129 [ER03145(ALL)01/96]
4. Look through the transparent side of the
fuse to see if the metal wire inside is
separated. If it is, replace the fuse with one
of the same amperage only. You can use the
amp rating number on the fuse as well as
the color to identify the correct replacement.
*
[ER03150(ALL)01/96]
WARNING
Always replace a fuse with one that has
the specified amperage rating. Using a
fuse with a higher amperage rating can
cause severe wire damage and could start
a fire.
[ER03155(ALL)01/96]
5. Reinstall the fuse puller on the inside of the
fuse panel cover.
[ER03160(ALL)01/96]
6. Install the fuse panel cover.
*
[ER03165(ALL)04/96]
Even after you replace a fuse, it may continue to
blow if you do not find what caused the
overload. If the fuse continues to blow, have
your electrical system checked.
*
[ER03170(ALL)01/96]

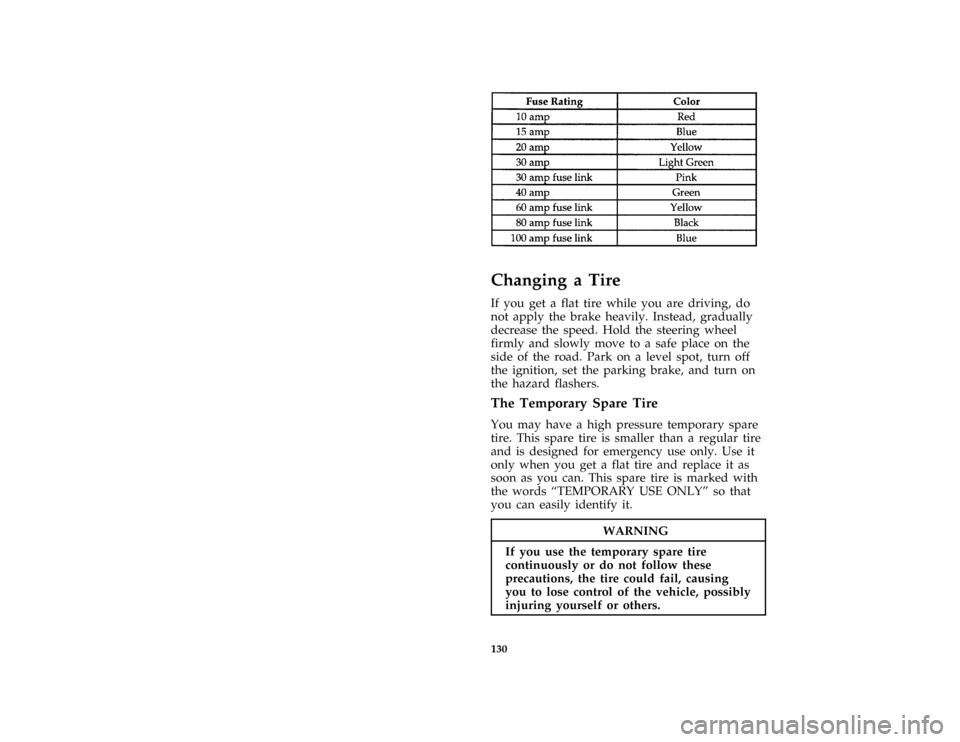

The following chart indicates the colors and
amperage ratings of standard fuses.
[ER03172(ALL)04/96]
NOTE: Some of your vehicle's components
may be protected by a fuse link. Ford
recommends that fuse links be replaced
by a qualified technician.
File:10icerf.ex
Update:Tue Mar 4 08:55:59 1997

130 [ER03175(ALL)04/96]
twelve pica chart:0032119-B
%*
[ER03800(ALL)02/96]
Changing a Tire
*
[ER03900(ALL)02/96]
If you get a flat tire while you are driving, do
not apply the brake heavily. Instead, gradually
decrease the speed. Hold the steering wheel
firmly and slowly move to a safe place on the
side of the road. Park on a level spot, turn off
the ignition, set the parking brake, and turn on
the hazard flashers.
%*
[ER04000(ALL)02/96]
The Temporary Spare Tire
*
[ER04100(ALL)02/96]
You may have a high pressure temporary spare
tire. This spare tire is smaller than a regular tire
and is designed for emergency use only. Use it
only when you get a flat tire and replace it as
soon as you can. This spare tire is marked with
the words ªTEMPORARY USE ONLYº so that
you can easily identify it.
*
[ER04200(ALL)02/96]
WARNING
If you use the temporary spare tire
continuously or do not follow these
precautions, the tire could fail, causing
you to lose control of the vehicle, possibly
injuring yourself or others.
File:10icerf.ex
Update:Tue Mar 4 08:55:59 1997

131
*
[ER04300(ALL)02/96]
When you drive with the temporary spare tire,
DO NOT:
*
[ER04400(ALL)02/96]
q
exceed 50 mph (80 km/h) under any
circumstances.
*
[ER04500(ALL)02/96]
q
load your vehicle so that it is heavier than
the maximum vehicle load rating listed on
the tire decal.
*
[ER04700(ALL)02/96]
q
use tire chains on this tire.
*
[ER04800(ALL)02/96]
q
try to repair the temporary spare tire or
remove it from its wheel.
*
[ER04900(ALL)02/96]
q
use the wheel for any other type of vehicle.
*
[ER05000(ALL)02/96]
q
drive through an automatic car wash with
this tire. Because the temporary spare tire is
smaller than a conventional tire, it reduces
the ground clearance. Your vehicle may get
caught in the rails and it could be damaged.
File:10icerf.ex
Update:Tue Mar 4 08:55:59 1997

132 %
*
[ER05100(ALL)02/96]
Spare Tire Location
[ER05600(ALL)01/96]
The spare tire and tools are stored in the rear
luggage compartment, under the carpet and
floorboard.
[ER05700(ALL)01/96]

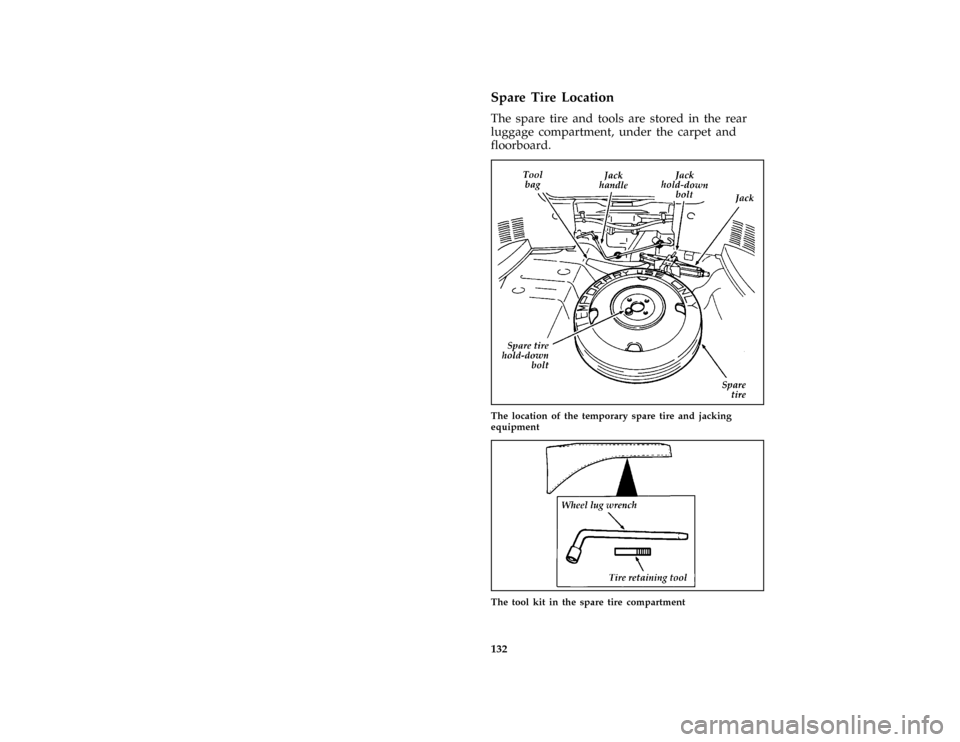

half page art:0032236-B
The location of the temporary spare tire and jacking
equipment
[ER07500(ALL)01/96]
one third page art:0030145-C
The tool kit in the spare tire compartment
File:10icerf.ex
Update:Tue Mar 4 08:55:59 1997

133 %
*
[ER07600(ALL)03/96]
Preparing to Change the Tire
*
[ER07700(ALL)01/96]
1. Make sure that your vehicle will not move
or roll. If you have an automatic transaxle,
put the gearshift in P (Park). If you have a
manual transaxle, put the gearshift in 1
(First). Set the parking brake and block the
wheel that is diagonally opposite the tire
that you are changing.
[ER08000(ALL)01/96]

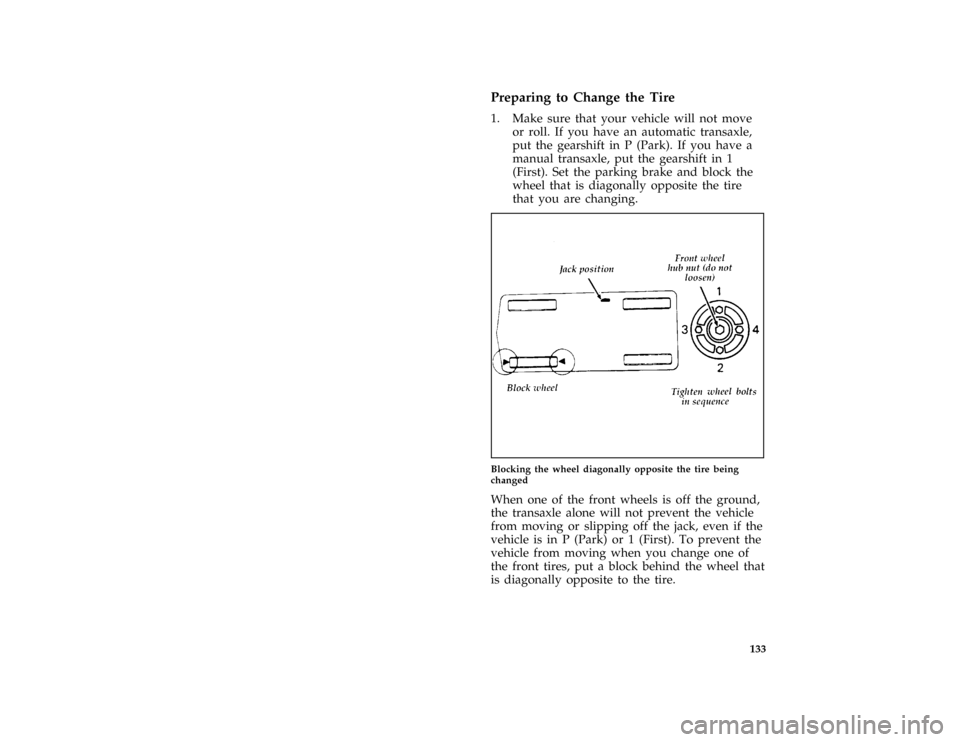

half page art:0030148-A
Blocking the wheel diagonally opposite the tire being
changed
*
[ER08090(ALL)01/96]
When one of the front wheels is off the ground,
the transaxle alone will not prevent the vehicle
from moving or slipping off the jack, even if the
vehicle is in P (Park) or 1 (First). To prevent the
vehicle from moving when you change one of
the front tires, put a block behind the wheel that
is diagonally opposite to the tire.
File:10icerf.ex
Update:Tue Mar 4 08:55:59 1997

134
*
[ER08100(ALL)03/96]
WARNING
If the vehicle slips off the jack, you or
someone else could be seriously injured.
*
[ER08250(ALL)01/96]
2. Get out the spare tire and jack.
[ER08275(ALL)04/96]
Remove the wheel lug wrench from the tool
kit. To remove the spare tire, turn the
hold-down bolt counterclockwise with the
wheel lug wrench. To remove the jack, turn
the jack hold-down bolt counterclockwise.
Remove the tire retaining tool from the tool
kit.
[ER08350(ALL)01/96]
3. Remove the wheelcover with the tapered
end of a wheel nut wrench. Insert the handle
of the wrench and twist it against the inner
wheelcover flange. Remove any chrome nuts
or plastic caps covering the wheel lug bolts.
[ER08400(ALL)01/96]
4. Remove the top lug bolt and insert the tire
retaining tool in its place. This will hold the
tire in place when the other lug bolts are
removed.
File:10icerf.ex
Update:Tue Mar 4 08:55:59 1997

135 [ER08500(ALL)01/96]

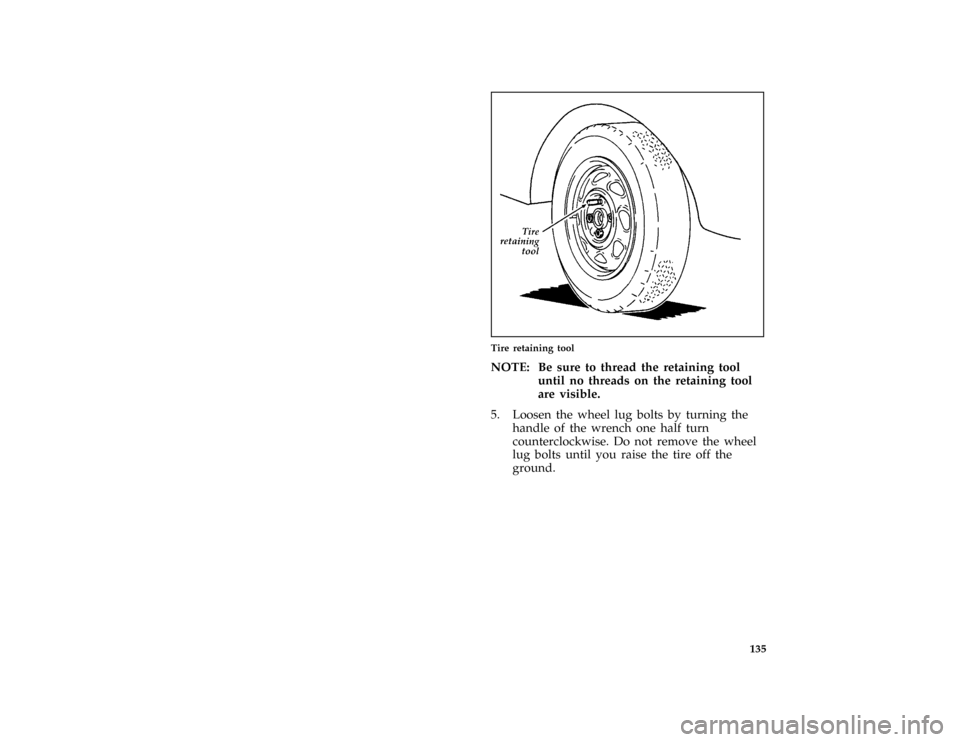

half page art:0032243-A
Tire retaining tool
[ER08550(ALL)01/96]
NOTE: Be sure to thread the retaining tool
until no threads on the retaining tool
are visible.
[ER08600(ALL)01/96]
5. Loosen the wheel lug bolts by turning the
handle of the wrench one half turn
counterclockwise. Do not remove the wheel
lug bolts until you raise the tire off the
ground.
File:10icerf.ex
Update:Tue Mar 4 08:55:59 1997

136 %
*
[ER08650(ALL)01/96]
Removing and Replacing the Tire
[ER08700(ALL)04/96]
1. Find the jacking location near the door of
the tire that you are changing. Position the
jack and turn the handle of the jack
clockwise until the wheel is completely off
the ground.
*
[ER08800(ALL)01/96]
WARNING
To lessen the risk of personal injury, do
not put any part of your body under the
vehicle while changing a tire. Do not start
the engine when your vehicle is on the
jack. The jack is only meant for changing
the tire.
[ER09200(ALL)01/96]

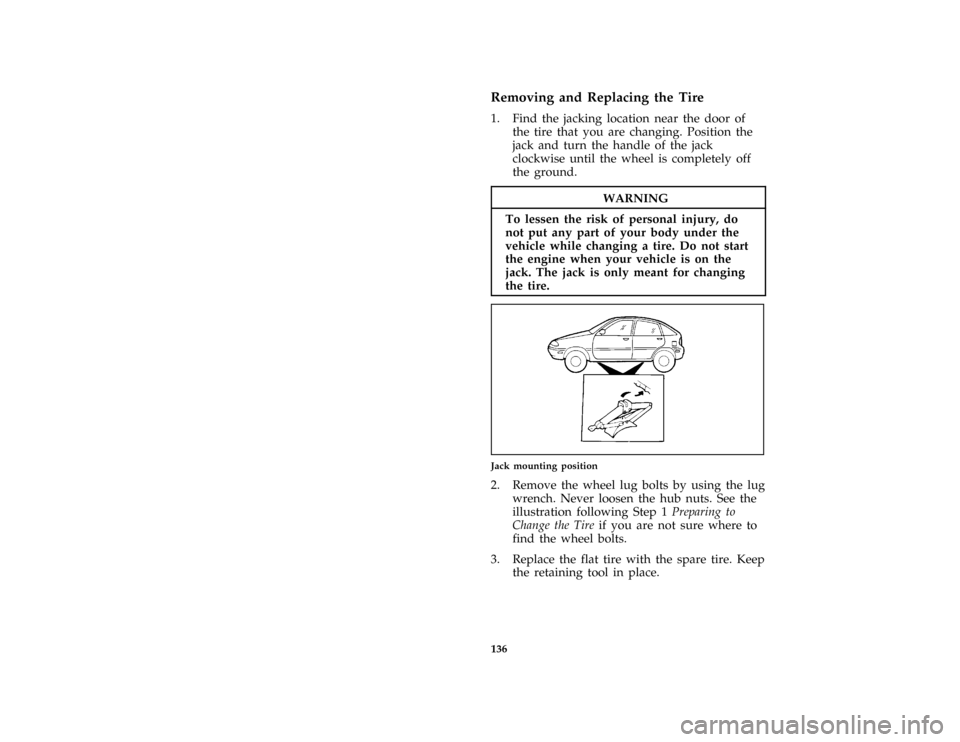

one third page art:0032213-A
Jack mounting position
[ER09600(ALL)04/96]
2. Remove the wheel lug bolts by using the lug
wrench. Never loosen the hub nuts. See the
illustration following Step 1Preparing to
Change the Tireif you are not sure where to
find the wheel bolts.
[ER09700(ALL)01/96]
3. Replace the flat tire with the spare tire. Keep
the retaining tool in place.
File:10icerf.ex
Update:Tue Mar 4 08:55:59 1997

137 [ER09750(ALL)01/96]

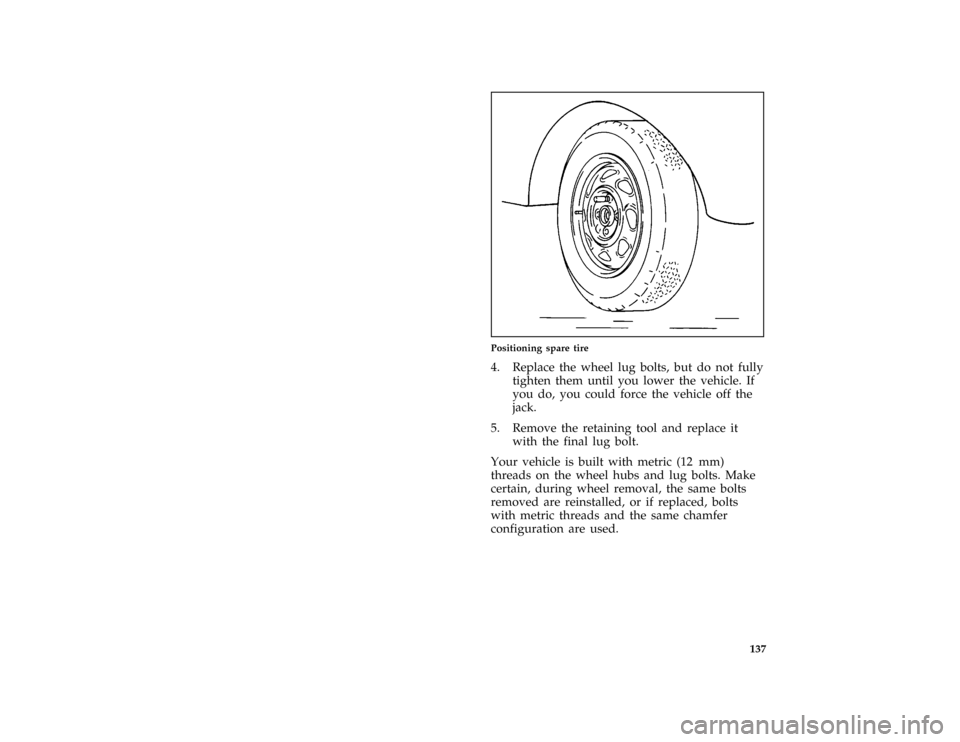

half page art:0032248-B
Positioning spare tire
[ER09900(ALL)04/96]
4. Replace the wheel lug bolts, but do not fully
tighten them until you lower the vehicle. If
you do, you could force the vehicle off the
jack.
[ER10000(ALL)01/96]
5. Remove the retaining tool and replace it
with the final lug bolt.
[ER10090(ALL)01/96]
Your vehicle is built with metric (12 mm)
threads on the wheel hubs and lug bolts. Make
certain, during wheel removal, the same bolts
removed are reinstalled, or if replaced, bolts
with metric threads and the same chamfer
configuration are used.
File:10icerf.ex
Update:Tue Mar 4 08:55:59 1997

138 [ER10100(ALL)01/96]
WARNING
Installation of an English thread lug bolt
into a metric hub will not properly secure
the wheel to the hub. Damaged lug bolts
may result in wheel separation and
possible injury.
*
[ER10200(ALL)03/96]
6. Lower the vehicle by turning the jack handle
counterclockwise.
[ER10500(ALL)01/96]
7. Remove the jack and fully tighten the wheel
lug bolts in the order shown in the
illustration under Step 1.
[ER10700(ALL)01/96]
8. Put the tire, jack, retaining tool and wrench
away.
[ER10750(ALL)01/96]
9. Secure the conventional tire where the spare
was stored with the bolt provided.
*
[ER10850(ALL)03/96]
10. Unblock the wheels.
%
*
[ER12255(ALL)02/96]
Jump-Starting Your Vehicle
[ER12260(ALL)01/96]
Your vehicle's battery may become discharged
(ªdieº) if you leave the lights or any electrical
equipment on after you turn the engine off. If
this happens, you may be able to jump-start
from a booster battery to start your vehicle.
*
[ER12265(ALL)02/96]
WARNING
The gases around the battery can explode
if exposed to flames, sparks, or lit
cigarettes. An explosion could result in
injury or vehicle damage.
*
[ER12270(ALL)02/96]
WARNING
To protect yourself when charging a
battery, always shield your face and eyes.
Make sure that you can breathe fresh air.
