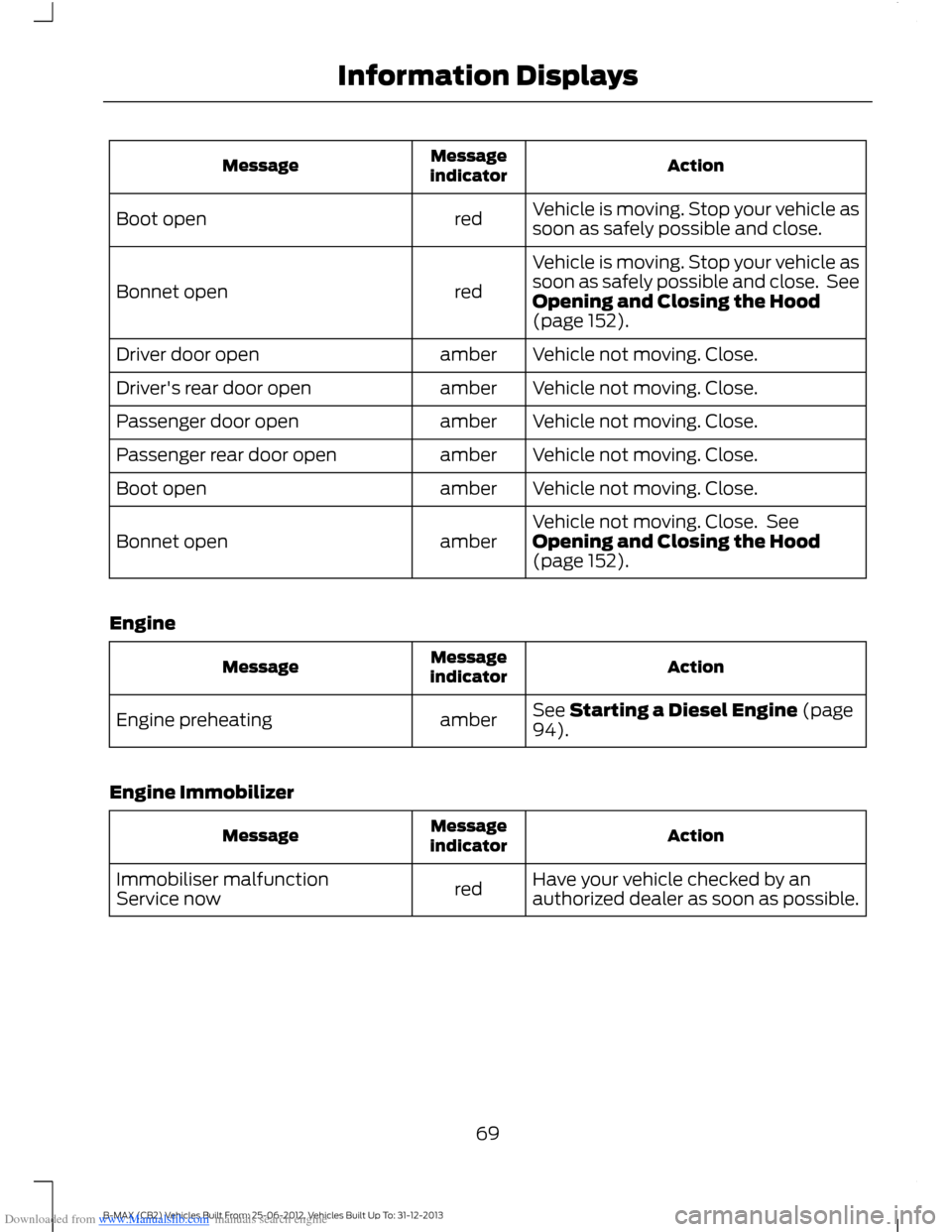

Downloaded from www.Manualslib.com manuals search engine ActionMessageindicatorMessage
Vehicle is moving. Stop your vehicle assoon as safely possible and close.redBoot open
Vehicle is moving. Stop your vehicle assoon as safely possible and close. SeeOpening and Closing the Hood(page 152).
redBonnet open
Vehicle not moving. Close.amberDriver door open
Vehicle not moving. Close.amberDriver's rear door open
Vehicle not moving. Close.amberPassenger door open
Vehicle not moving. Close.amberPassenger rear door open
Vehicle not moving. Close.amberBoot open
Vehicle not moving. Close. SeeOpening and Closing the Hood(page 152).amberBonnet open
Engine
ActionMessageindicatorMessage
See Starting a Diesel Engine (page94).amberEngine preheating
Engine Immobilizer
ActionMessageindicatorMessage
Have your vehicle checked by anauthorized dealer as soon as possible.redImmobiliser malfunctionService now
69B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Information Displays

Downloaded from www.Manualslib.com manuals search engine Keyless System
ActionMessageindicatorMessage
See Keyless Entry (page 36).amberKey not detected
See Keyless Entry (page 36).amberKey outside car
See Remote Control (page 26).amberKeyBattery lowReplace battery
See Keyless Starting (page 90).amberTurn ignition offUse POWER button
See Keyless Starting (page 90).-To start press brake
See Keyless Starting (page 90).-To start press clutch
See Keyless Entry (page 36).-Close boot or use spare key
See Steering Wheel Lock (page 92).-Steering lock engagedTurn steering wheel
Lighting
ActionMessageindicatorMessage
See Changing a Bulb (page 162).-Left indicator malfunctionChange bulb
See Changing a Bulb (page 162).-Right indicator malfunctionChange bulb
Maintenance
ActionMessageindicatorMessage
See Brake and Clutch Fluid Check(page 159).redBrake fluidLevel lowService now
Have your vehicle checked by anauthorized dealer as soon as possible.redBrake system malfunctionStop safely
See Engine Oil Check (page 157).redEngine oil pressure low
70B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Information Displays

Downloaded from www.Manualslib.com manuals search engine ActionMessageindicatorMessage
Stop safely
Have your vehicle checked by anauthorized dealer as soon as possible.amberEngine malfunctionService now
Have your vehicle checked by anauthorized dealer as soon as possible.amberAuto wiper/lights malfunctionNext service
Have your vehicle checked by anauthorized dealer as soon as possible.-Engine oil change dueNext service
MyKey
ActionMessage indic-atorMessage
Displays when a MyKey is in use and theMyKey speed limit is on and your vehiclespeed is approaching 80 mph (130 km/h).AmberMyKeyvehicle attop speed
Displays when MyKey is active.-MyKeyactiveDrive safely
Displays when starting your vehicle andMyKey is in use and the MyKey speed limitis on.-MyKeySpeed limitedto XX mph
Displays when starting your vehicle andMyKey is in use and the MyKey speed limitis on.-MyKeySpeed limitedto XX km/h
Displays when MyKey is active.-MyKeyCheck speedDrive safely
Displays when a MyKey is in use and theMyKey speed limit is reached.-MyKeyVehicle neartop speed
71B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Information Displays

Downloaded from www.Manualslib.com manuals search engine ActionMessage indic-atorMessage

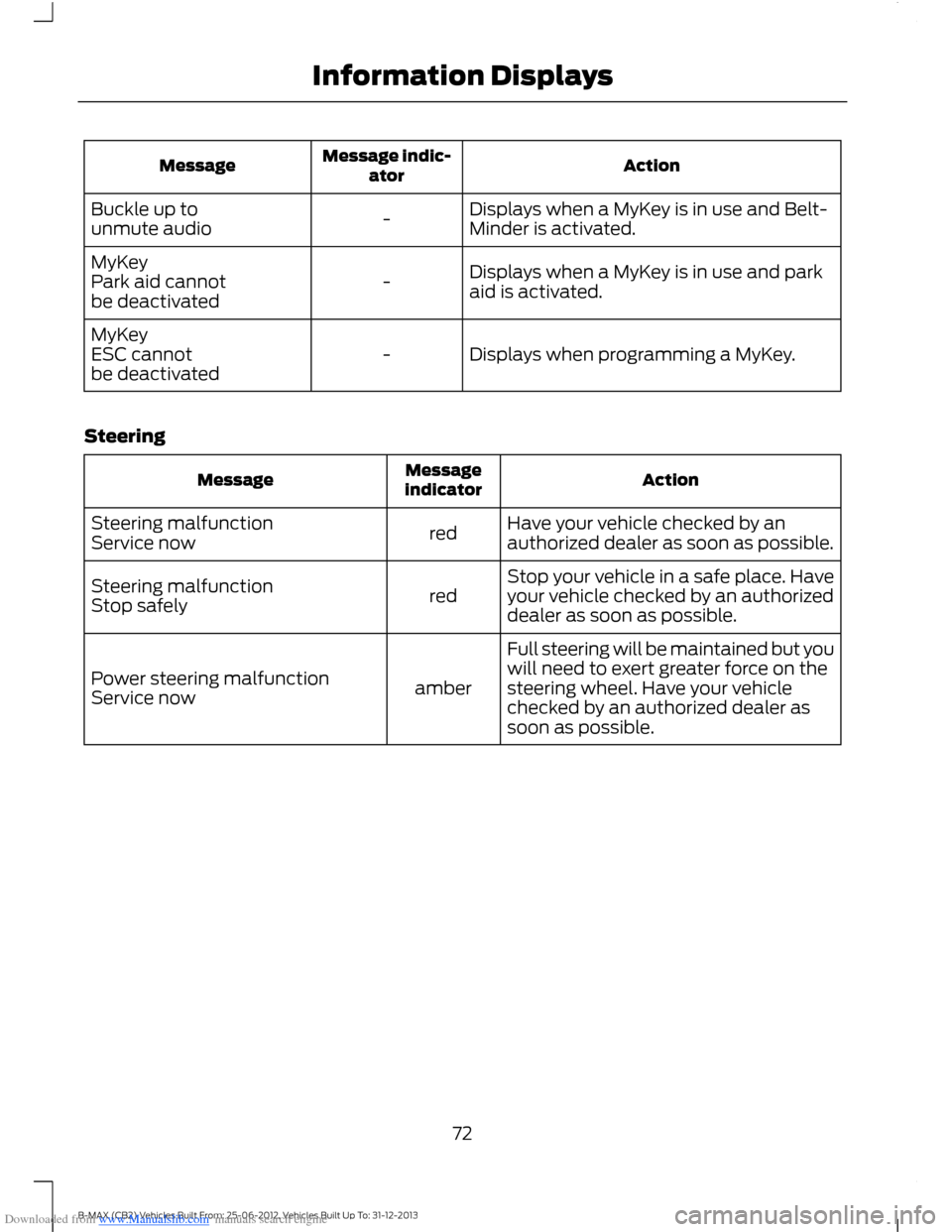

Displays when a MyKey is in use and Belt-Minder is activated.-Buckle up tounmute audio
Displays when a MyKey is in use and parkaid is activated.-MyKeyPark aid cannotbe deactivated
Displays when programming a MyKey.-MyKeyESC cannotbe deactivated
Steering
ActionMessageindicatorMessage
Have your vehicle checked by anauthorized dealer as soon as possible.redSteering malfunctionService now
Stop your vehicle in a safe place. Haveyour vehicle checked by an authorizeddealer as soon as possible.redSteering malfunctionStop safely
Full steering will be maintained but youwill need to exert greater force on thesteering wheel. Have your vehiclechecked by an authorized dealer assoon as possible.
amberPower steering malfunctionService now
72B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Information Displays

Downloaded from www.Manualslib.com manuals search engine Transmission
ActionMessageindicatorMessage
Have your vehicle checked by anauthorized dealer as soon as possible.redTransmission malfunctionService now
The transmission is overheating andneeds to cool. Stop your vehicle assoon as it is safe to do so. Move thetransmission selector lever to positionN or P and apply the parking brake.Switch off the ignition until the trans-mission has cooled and the messagedisappears from the display.
redTransmission overtemp.Stop safely
See Automatic Transmission (page104). See Starting and Stopping theEngine (page 90).-Vehicle not in ParkSelect P
See Automatic Transmission (page104). See Starting and Stopping theEngine (page 90).-To start select N or P
See Starting and Stopping theEngine (page 90).-To start press brake
See Automatic Transmission (page104). See Starting and Stopping theEngine (page 90).-To start select N
See Automatic Transmission (page104). See Starting and Stopping theEngine (page 90).-Door open apply brake
Stability Control
ActionMessageindicatorMessage
Have your vehicle checked by anauthorized dealer as soon as possible.amberABS malfunctionService now
Have your vehicle checked by anauthorized dealer as soon as possible.-ESP malfunctionNext service
See Using Stability Control (page111).-ESP off
73B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Information Displays

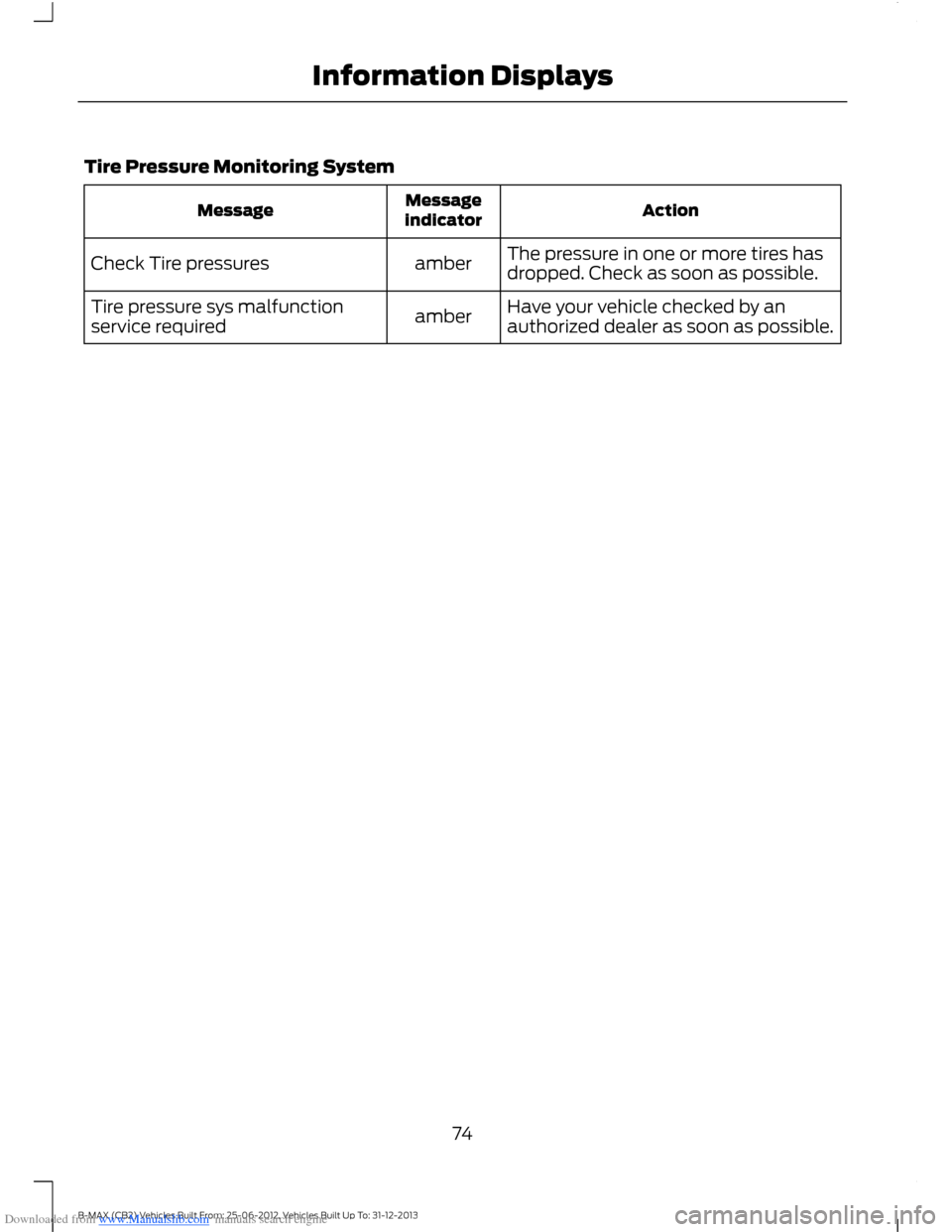

Downloaded from www.Manualslib.com manuals search engine Tire Pressure Monitoring System
ActionMessageindicatorMessage
The pressure in one or more tires hasdropped. Check as soon as possible.amberCheck Tire pressures
Have your vehicle checked by anauthorized dealer as soon as possible.amberTire pressure sys malfunctionservice required
74B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Information Displays

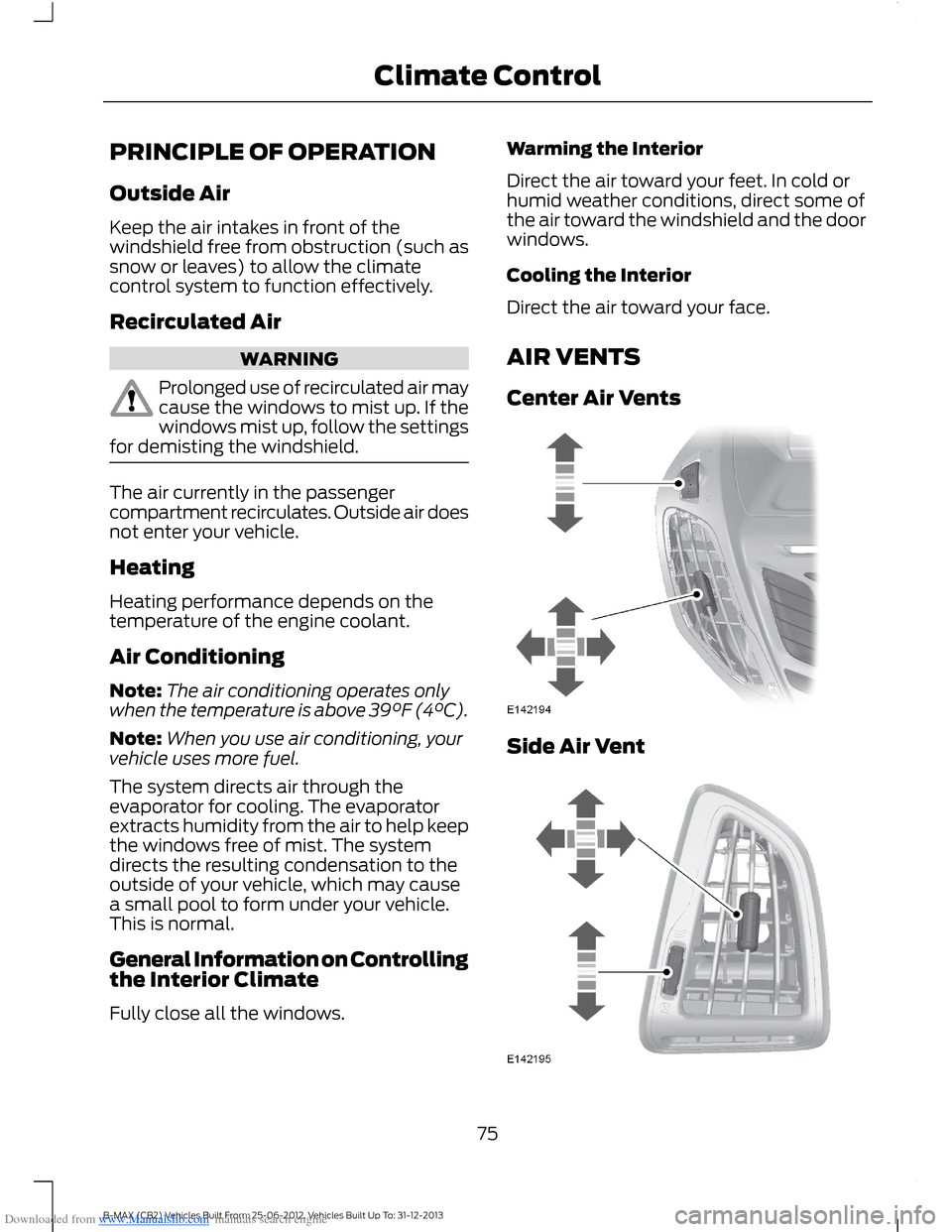

Downloaded from www.Manualslib.com manuals search engine PRINCIPLE OF OPERATION
Outside Air
Keep the air intakes in front of thewindshield free from obstruction (such assnow or leaves) to allow the climatecontrol system to function effectively.
Recirculated Air
WARNING
Prolonged use of recirculated air maycause the windows to mist up. If thewindows mist up, follow the settingsfor demisting the windshield.
The air currently in the passengercompartment recirculates. Outside air doesnot enter your vehicle.
Heating
Heating performance depends on thetemperature of the engine coolant.
Air Conditioning
Note:The air conditioning operates onlywhen the temperature is above 39°F (4°C).
Note:When you use air conditioning, yourvehicle uses more fuel.
The system directs air through theevaporator for cooling. The evaporatorextracts humidity from the air to help keepthe windows free of mist. The systemdirects the resulting condensation to theoutside of your vehicle, which may causea small pool to form under your vehicle.This is normal.
General Information on Controllingthe Interior Climate
Fully close all the windows.
Warming the Interior
Direct the air toward your feet. In cold orhumid weather conditions, direct some ofthe air toward the windshield and the doorwindows.
Cooling the Interior
Direct the air toward your face.
AIR VENTS
Center Air Vents
Side Air Vent
75B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Climate Control

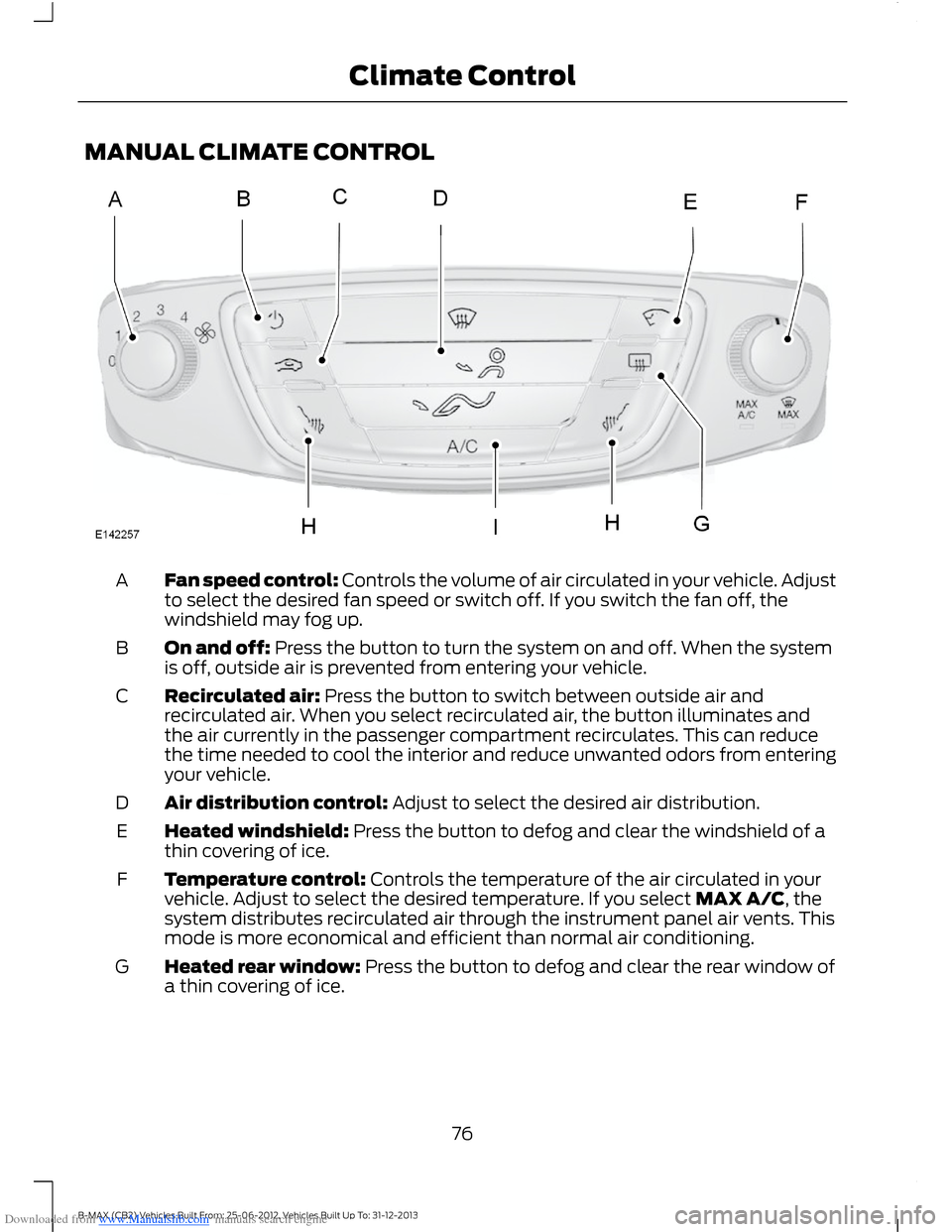

Downloaded from www.Manualslib.com manuals search engine MANUAL CLIMATE CONTROL
Fan speed control: Controls the volume of air circulated in your vehicle. Adjustto select the desired fan speed or switch off. If you switch the fan off, thewindshield may fog up.
A
On and off: Press the button to turn the system on and off. When the systemis off, outside air is prevented from entering your vehicle.B
Recirculated air: Press the button to switch between outside air andrecirculated air. When you select recirculated air, the button illuminates andthe air currently in the passenger compartment recirculates. This can reducethe time needed to cool the interior and reduce unwanted odors from enteringyour vehicle.
C
Air distribution control: Adjust to select the desired air distribution.D
Heated windshield: Press the button to defog and clear the windshield of athin covering of ice.E
Temperature control: Controls the temperature of the air circulated in yourvehicle. Adjust to select the desired temperature. If you select MAX A/C, thesystem distributes recirculated air through the instrument panel air vents. Thismode is more economical and efficient than normal air conditioning.
F
Heated rear window: Press the button to defog and clear the rear window ofa thin covering of ice.G
76B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Climate Control

Downloaded from www.Manualslib.com manuals search engine Heated front seats: Press the button to turn the heated seats on. See HeatedSeats (page 87).H
Air conditioning: Press the button to switch the air conditioning on or off. Airconditioning cools your vehicle using outside air. To improve air conditioningwhen starting your vehicle, drive with the windows slightly open for two to threeminutes.
I

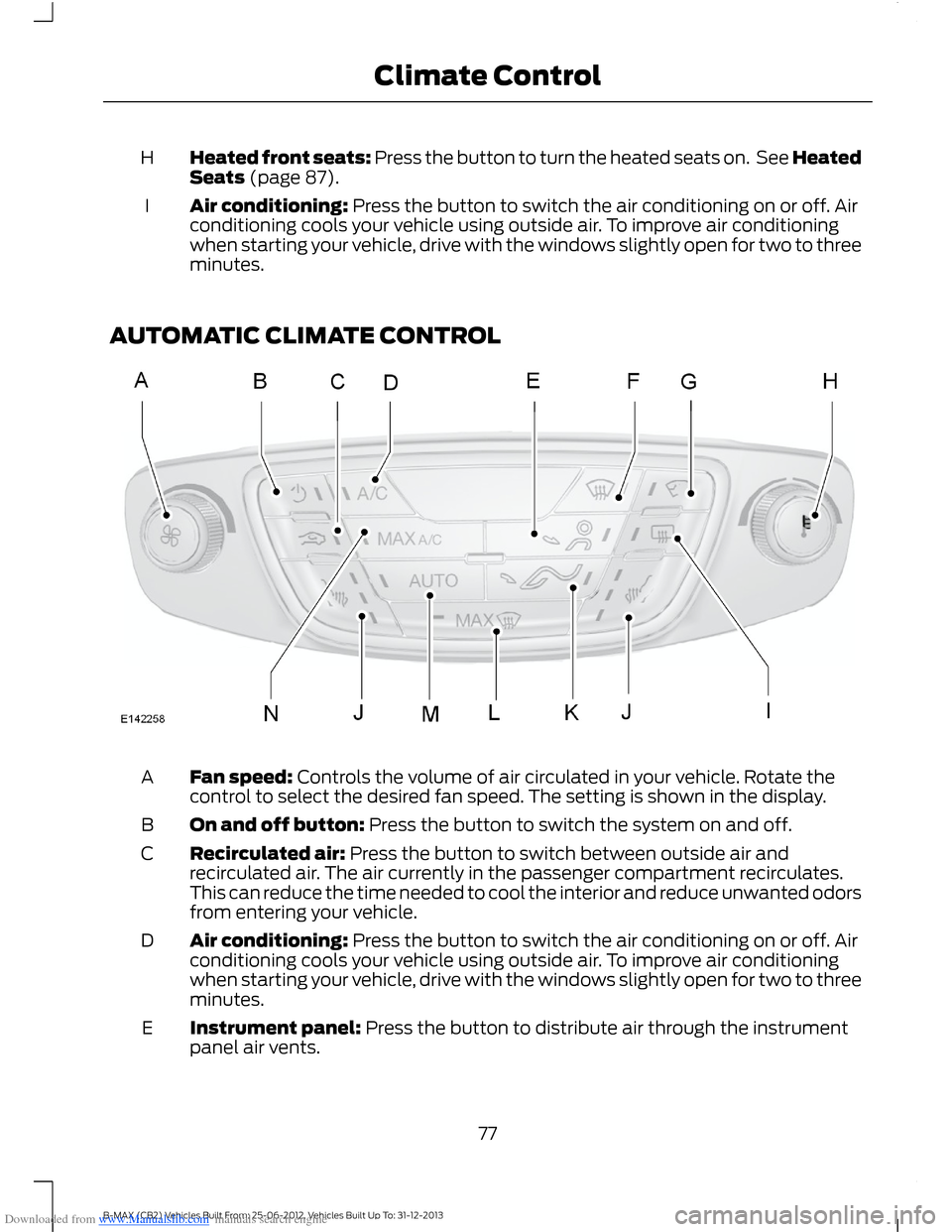

AUTOMATIC CLIMATE CONTROL
Fan speed: Controls the volume of air circulated in your vehicle. Rotate thecontrol to select the desired fan speed. The setting is shown in the display.A
On and off button: Press the button to switch the system on and off.B
Recirculated air: Press the button to switch between outside air andrecirculated air. The air currently in the passenger compartment recirculates.This can reduce the time needed to cool the interior and reduce unwanted odorsfrom entering your vehicle.
C
Air conditioning: Press the button to switch the air conditioning on or off. Airconditioning cools your vehicle using outside air. To improve air conditioningwhen starting your vehicle, drive with the windows slightly open for two to threeminutes.
D
Instrument panel: Press the button to distribute air through the instrumentpanel air vents.E
77B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Climate Control

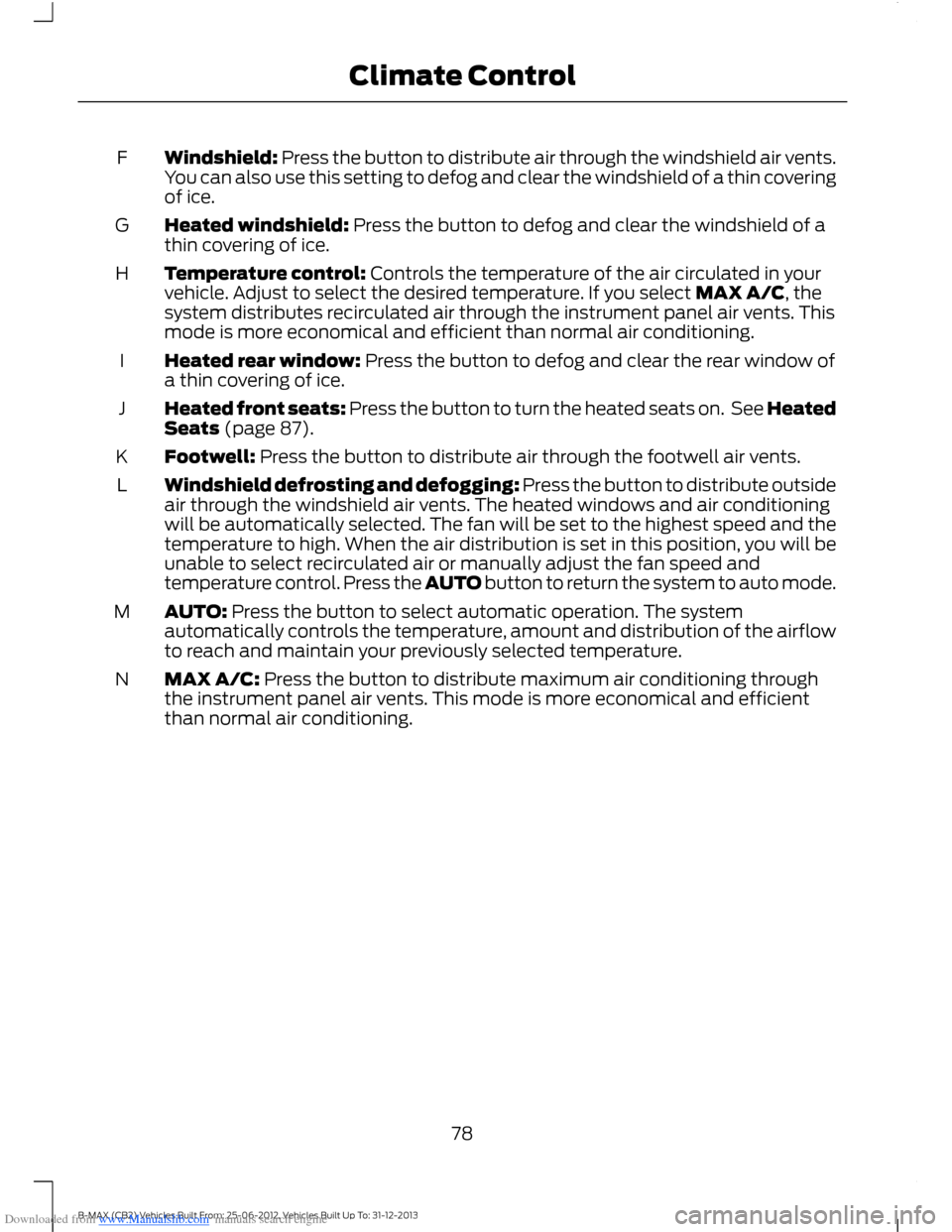

Downloaded from www.Manualslib.com manuals search engine Windshield: Press the button to distribute air through the windshield air vents.You can also use this setting to defog and clear the windshield of a thin coveringof ice.
F
Heated windshield: Press the button to defog and clear the windshield of athin covering of ice.G
Temperature control: Controls the temperature of the air circulated in yourvehicle. Adjust to select the desired temperature. If you select MAX A/C, thesystem distributes recirculated air through the instrument panel air vents. Thismode is more economical and efficient than normal air conditioning.
H
Heated rear window: Press the button to defog and clear the rear window ofa thin covering of ice.I
Heated front seats: Press the button to turn the heated seats on. See HeatedSeats (page 87).J
Footwell: Press the button to distribute air through the footwell air vents.K
Windshield defrosting and defogging: Press the button to distribute outsideair through the windshield air vents. The heated windows and air conditioningwill be automatically selected. The fan will be set to the highest speed and thetemperature to high. When the air distribution is set in this position, you will beunable to select recirculated air or manually adjust the fan speed andtemperature control. Press the AUTO button to return the system to auto mode.
L
AUTO: Press the button to select automatic operation. The systemautomatically controls the temperature, amount and distribution of the airflowto reach and maintain your previously selected temperature.
M
MAX A/C: Press the button to distribute maximum air conditioning throughthe instrument panel air vents. This mode is more economical and efficientthan normal air conditioning.
N
78B-MAX (CB2) Vehicles Built From: 25-06-2012, Vehicles Built Up To: 31-12-2013Climate Control
