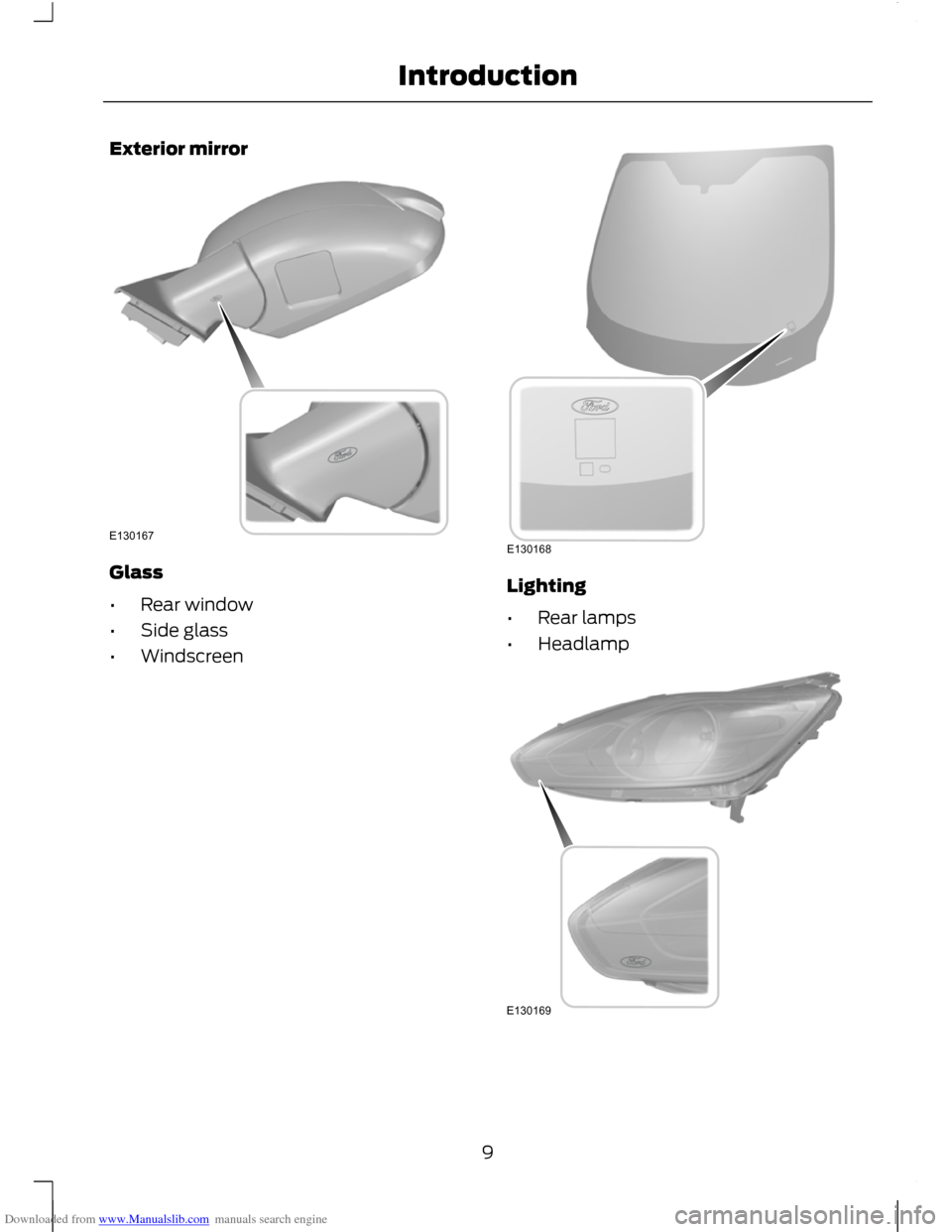

Downloaded from www.Manualslib.com manuals search engine Exterior mirror
Glass
•
Rear window
• Side glass
• Windscreen Lighting
•
Rear lamps
• Headlamp 9
IntroductionE130167 E130168 E130169

Downloaded from www.Manualslib.com manuals search engine Instrument panel overview
Left-hand drive
10At a GlanceE130098HIGFEDCBAXWVUTSQPORLMNJK

Downloaded from www.Manualslib.com manuals search engine Right-hand drive

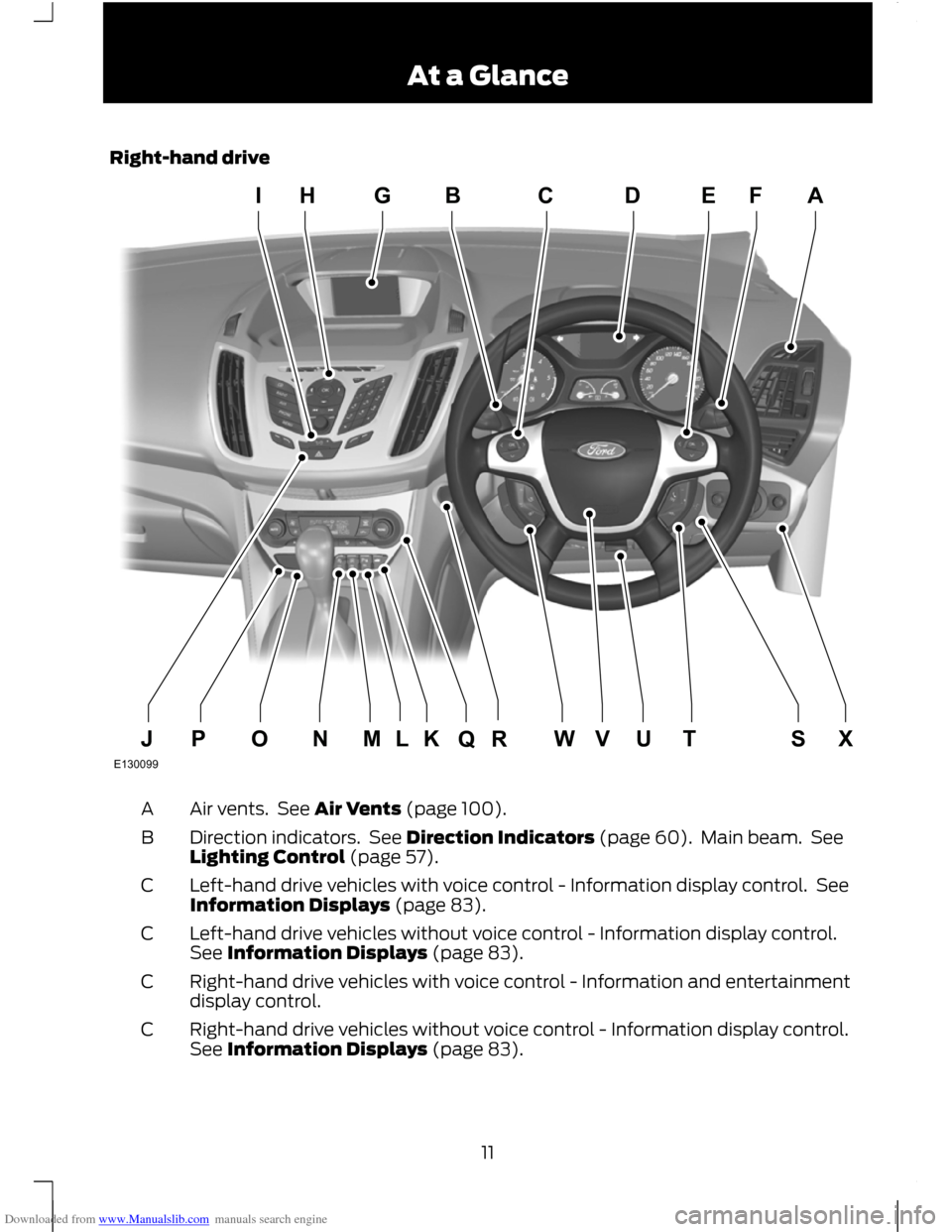

Air vents. See Air Vents (page 100).
A
Direction indicators. See Direction Indicators (page 60). Main beam. See
Lighting Control (page 57).
B
Left-hand drive vehicles with voice control - Information display control. See
Information Displays (page 83).
C
Left-hand drive vehicles without voice control - Information display control.
See Information Displays (page 83).
C
Right-hand drive vehicles with voice control - Information and entertainment
display control.
C
Right-hand drive vehicles without voice control - Information display control.
See Information Displays (page 83).
C
11 At a GlanceE130099HIGBDCFEAXSUTVWKLRQOMNPJ

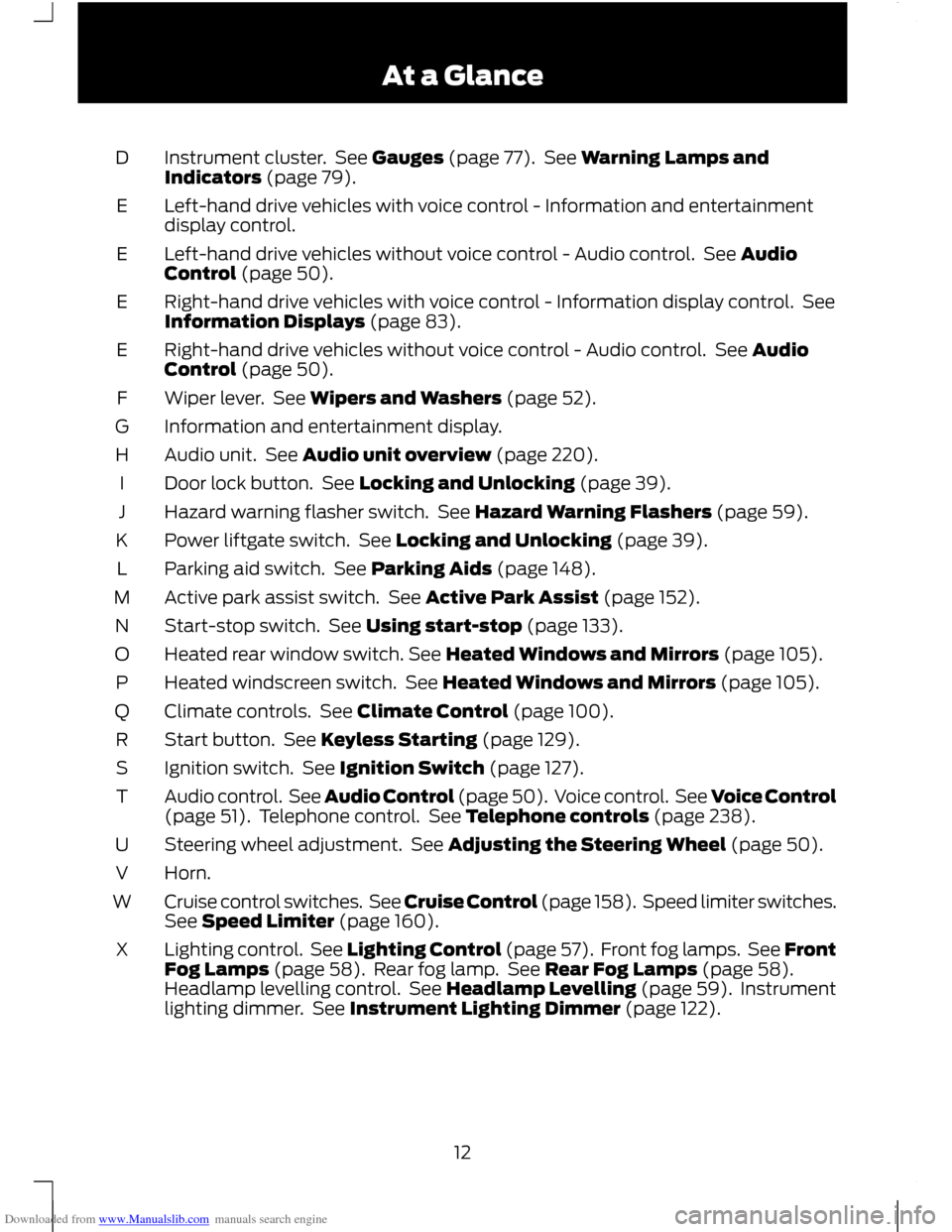

Downloaded from www.Manualslib.com manuals search engine Instrument cluster. See Gauges (page 77). See Warning Lamps and
Indicators (page 79).
D
Left-hand drive vehicles with voice control - Information and entertainment
display control.
E
Left-hand drive vehicles without voice control - Audio control. See Audio
Control (page 50).
E
Right-hand drive vehicles with voice control - Information display control. See
Information Displays (page 83).
E
Right-hand drive vehicles without voice control - Audio control. See Audio
Control (page 50).
E
Wiper lever. See Wipers and Washers (page 52).
F
Information and entertainment display.
G
Audio unit. See Audio unit overview (page 220).
H
Door lock button. See Locking and Unlocking (page 39).
I
Hazard warning flasher switch. See Hazard Warning Flashers (page 59).
J
Power liftgate switch. See Locking and Unlocking (page 39).
K
Parking aid switch. See Parking Aids (page 148).
L
Active park assist switch. See Active Park Assist (page 152).
M
Start-stop switch. See Using start-stop (page 133).
N
Heated rear window switch. See Heated Windows and Mirrors (page 105).
O
Heated windscreen switch. See Heated Windows and Mirrors (page 105).
P
Climate controls. See Climate Control (page 100).
Q
Start button. See Keyless Starting (page 129).
R
Ignition switch. See Ignition Switch (page 127).
S
Audio control. See Audio Control (page 50). Voice control. See Voice Control
(page 51). Telephone control. See Telephone controls (page 238).
T
Steering wheel adjustment. See Adjusting the Steering Wheel (page 50).
U
Horn.
V
Cruise control switches. See Cruise Control (page 158). Speed limiter switches.
See Speed Limiter (page 160).
W
Lighting control. See Lighting Control (page 57). Front fog lamps. See Front
Fog Lamps (page 58). Rear fog lamp. See Rear Fog Lamps (page 58).
Headlamp levelling control. See Headlamp Levelling (page 59). Instrument
lighting dimmer. See Instrument Lighting Dimmer (page 122).
X
12At a Glance

Downloaded from www.Manualslib.com manuals search engine Power liftgate

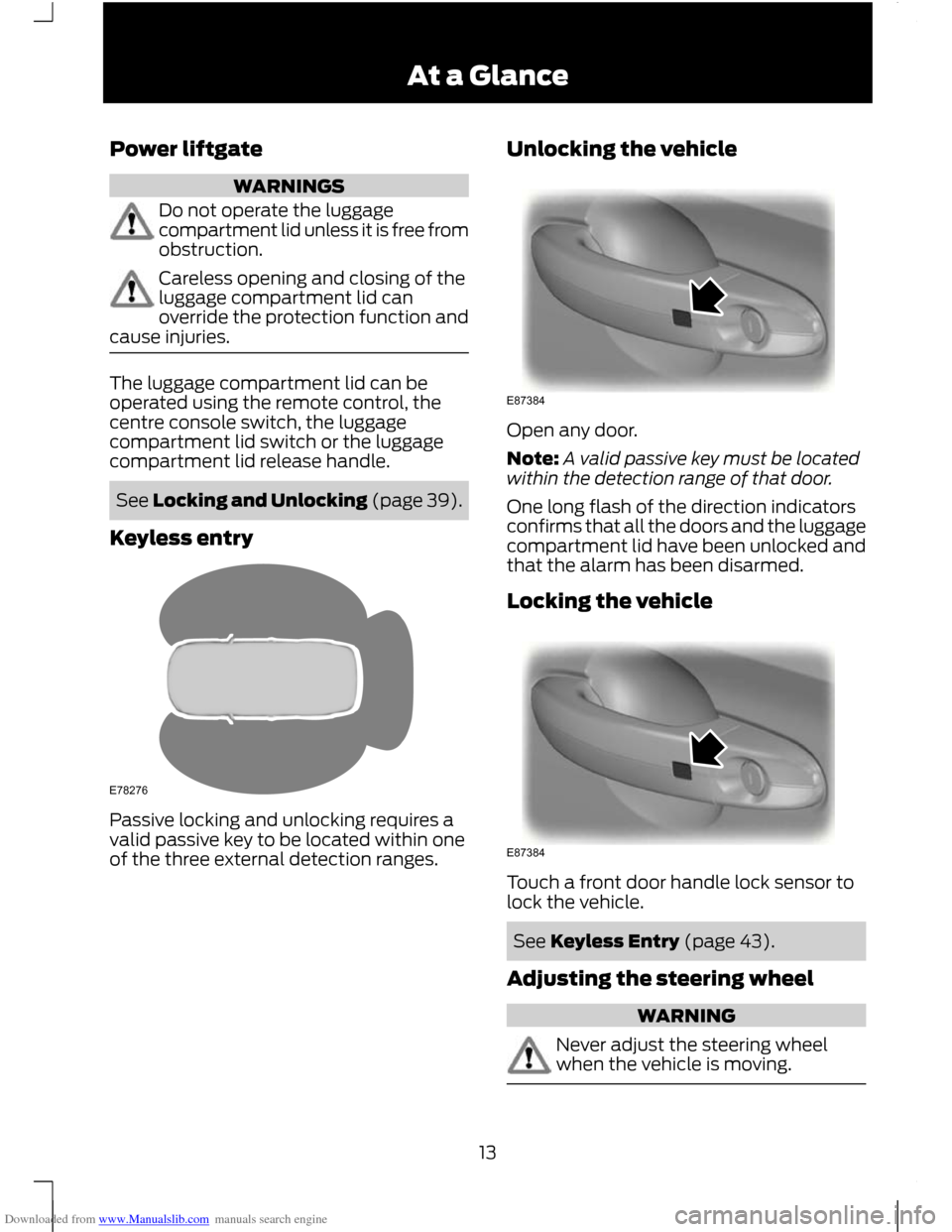

WARNINGS
Do not operate the luggage
compartment lid unless it is free from
obstruction.
Careless opening and closing of the
luggage compartment lid can
override the protection function and
cause injuries. The luggage compartment lid can be
operated using the remote control, the
centre console switch, the luggage
compartment lid switch or the luggage
compartment lid release handle.
See Locking and Unlocking (page 39).
Keyless entry Passive locking and unlocking requires a
valid passive key to be located within one
of the three external detection ranges. Unlocking the vehicle Open any door.
Note:
A valid passive key must be located
within the detection range of that door.
One long flash of the direction indicators
confirms that all the doors and the luggage
compartment lid have been unlocked and
that the alarm has been disarmed.
Locking the vehicle Touch a front door handle lock sensor to
lock the vehicle.
See Keyless Entry (page 43).
Adjusting the steering wheel WARNING
Never adjust the steering wheel
when the vehicle is moving.
13At a GlanceE78276 E87384 E87384

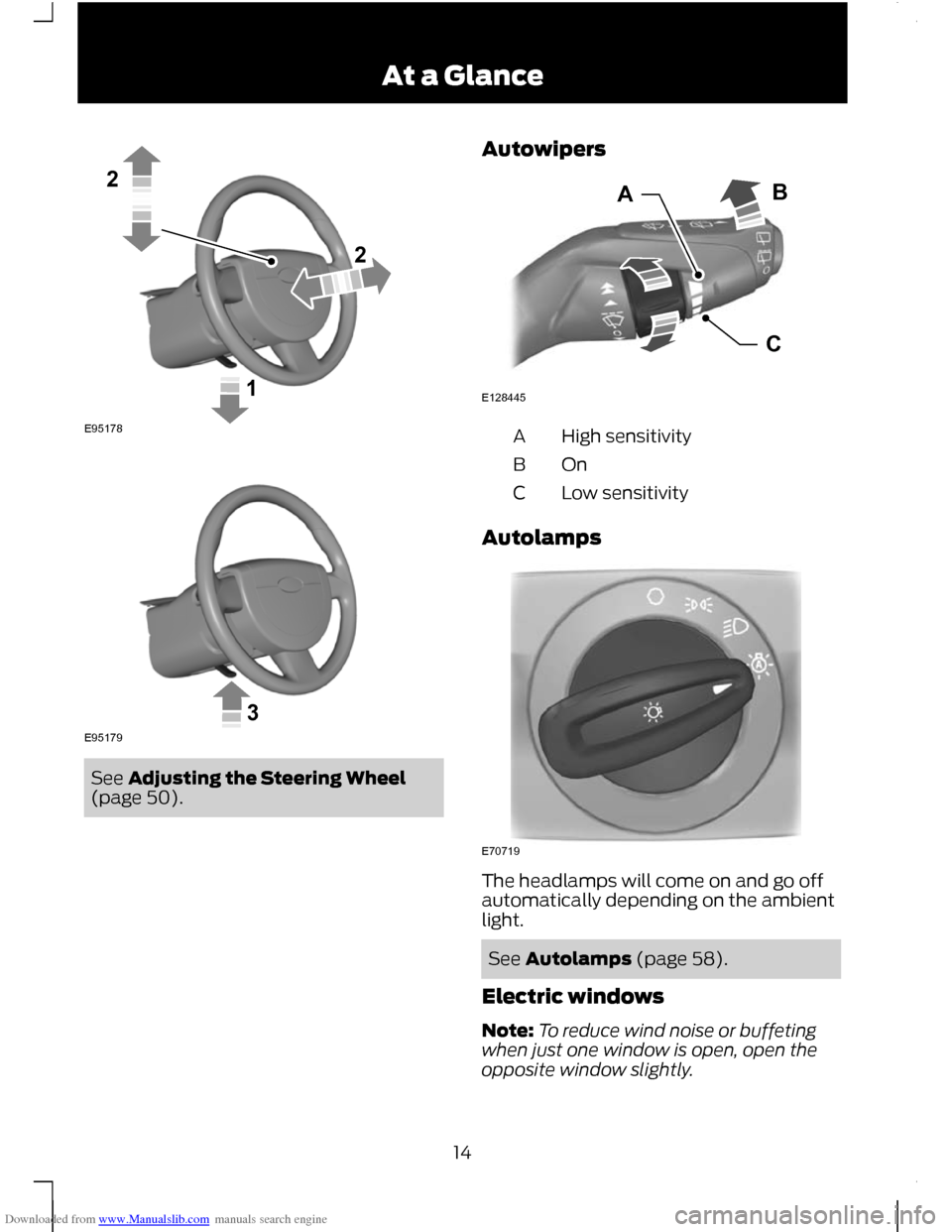

Downloaded from www.Manualslib.com manuals search engine See Adjusting the Steering Wheel
(page 50). Autowipers High sensitivity
A
OnB
Low sensitivity
C
Autolamps The headlamps will come on and go off
automatically depending on the ambient
light.
See Autolamps (page 58).
Electric windows
Note: To reduce wind noise or buffeting
when just one window is open, open the
opposite window slightly.
14 At a Glance122E95178 3E95179 CABE128445 E70719

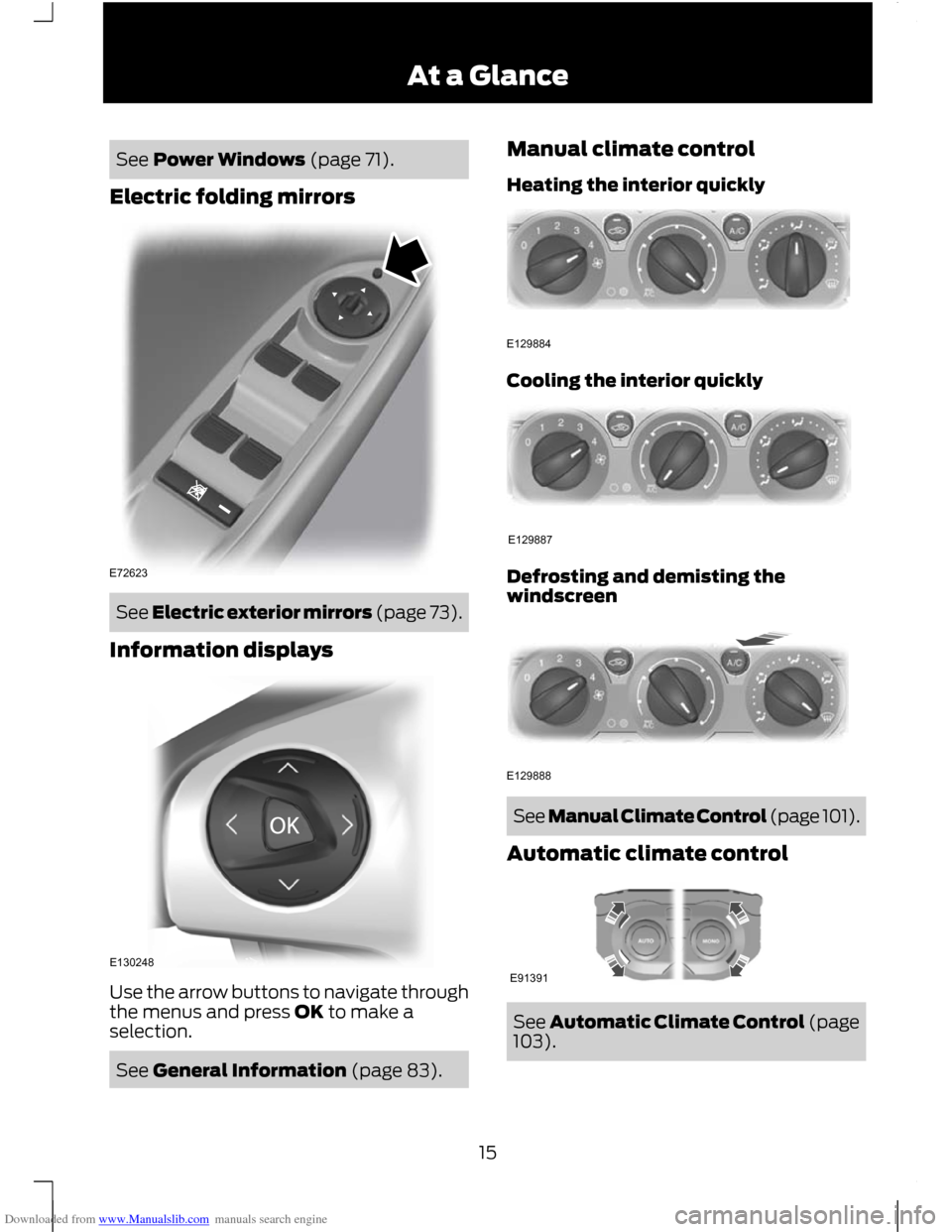

Downloaded from www.Manualslib.com manuals search engine See Power Windows (page 71).
Electric folding mirrors See Electric exterior mirrors (page 73).
Information displays Use the arrow buttons to navigate through
the menus and press OK to make a
selection.
See General Information (page 83). Manual climate control
Heating the interior quickly
Cooling the interior quickly
Defrosting and demisting the
windscreen
See Manual Climate Control (page 101).
Automatic climate control See Automatic Climate Control (page
103).
15 At a GlanceE72623 E130248 E129884 E129887 E129888 E91391

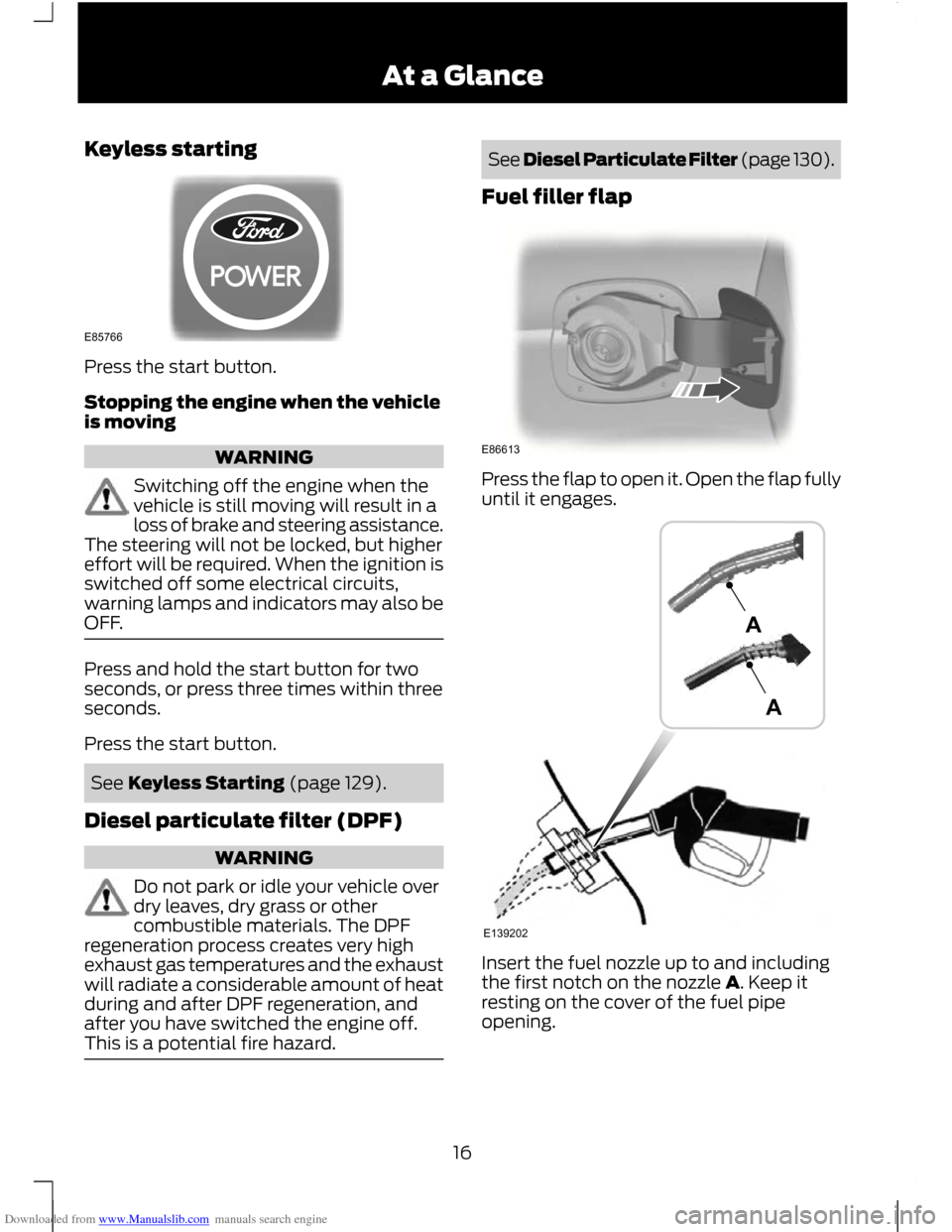

Downloaded from www.Manualslib.com manuals search engine Keyless starting
Press the start button.
Stopping the engine when the vehicle
is moving
WARNING
Switching off the engine when the
vehicle is still moving will result in a
loss of brake and steering assistance.
The steering will not be locked, but higher
effort will be required. When the ignition is
switched off some electrical circuits,
warning lamps and indicators may also be
OFF. Press and hold the start button for two
seconds, or press three times within three
seconds.
Press the start button.
See Keyless Starting (page 129).
Diesel particulate filter (DPF) WARNING
Do not park or idle your vehicle over
dry leaves, dry grass or other
combustible materials. The DPF
regeneration process creates very high
exhaust gas temperatures and the exhaust
will radiate a considerable amount of heat
during and after DPF regeneration, and
after you have switched the engine off.
This is a potential fire hazard. See Diesel Particulate Filter (page 130).
Fuel filler flap Press the flap to open it. Open the flap fully
until it engages.
Insert the fuel nozzle up to and including
the first notch on the nozzle A. Keep it
resting on the cover of the fuel pipe
opening.
16 At a GlanceE85766 E86613 E139202AA

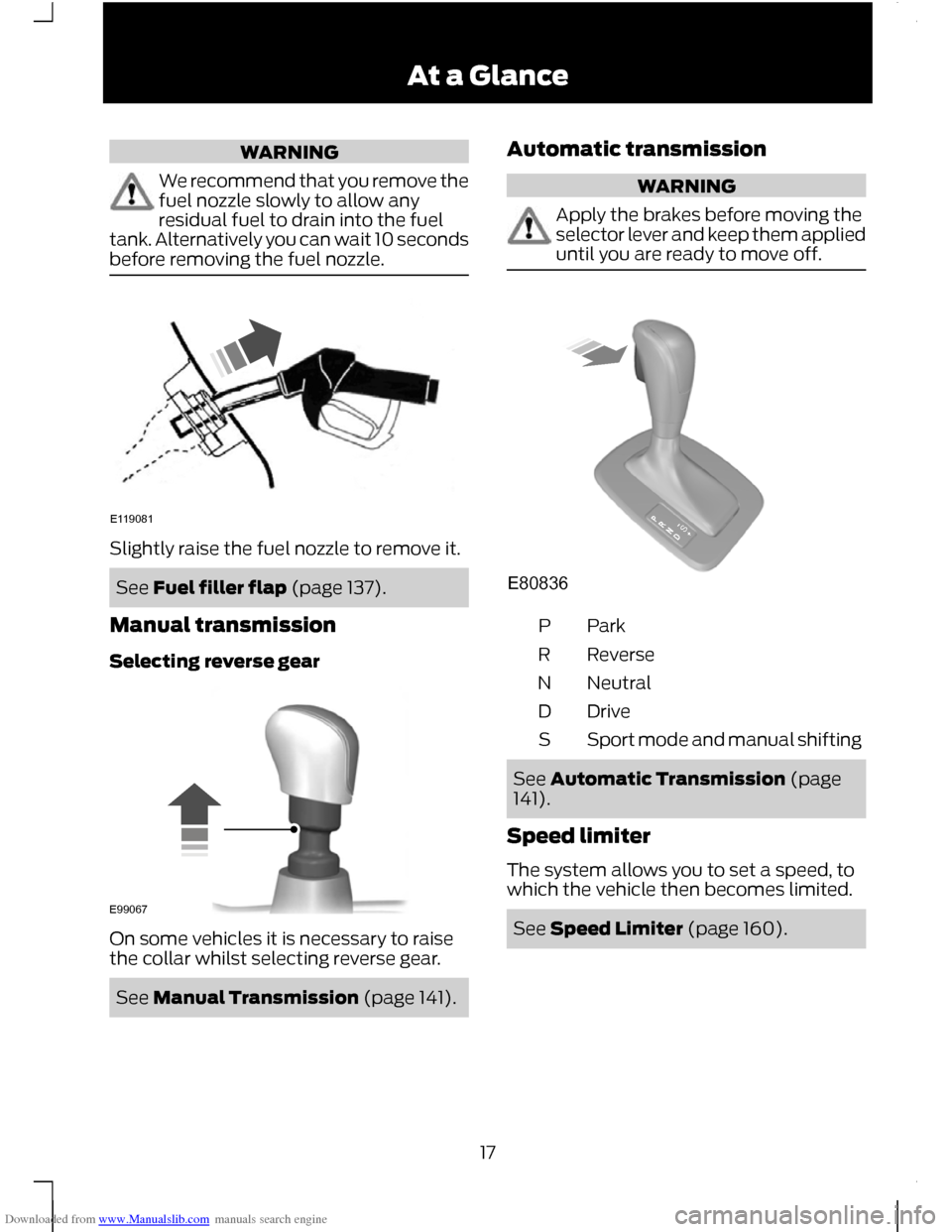

Downloaded from www.Manualslib.com manuals search engine WARNING
We recommend that you remove the
fuel nozzle slowly to allow any
residual fuel to drain into the fuel
tank. Alternatively you can wait 10 seconds
before removing the fuel nozzle. Slightly raise the fuel nozzle to remove it.
See Fuel filler flap (page 137).
Manual transmission
Selecting reverse gear On some vehicles it is necessary to raise
the collar whilst selecting reverse gear.
See Manual Transmission (page 141). Automatic transmission WARNING
Apply the brakes before moving the
selector lever and keep them applied
until you are ready to move off.
ParkP
Reverse
R
Neutral
N
Drive
D
Sport mode and manual shifting
S See Automatic Transmission (page
141).
Speed limiter
The system allows you to set a speed, to
which the vehicle then becomes limited. See Speed Limiter (page 160).
17 At a GlanceE119081 E99067 E80836S

Downloaded from www.Manualslib.com manuals search engine Towing the vehicle on four wheels
CAUTION
For certain engine and transmission
combinations, it is recommended not
to tow the vehicle with the drive
wheels on the ground. See Towing the Vehicle on Four
Wheels (page 183).
