CAUTION
Check your vehicle is locked before
leaving it unattended.
Note:
Do not leave your keys in the vehicle.

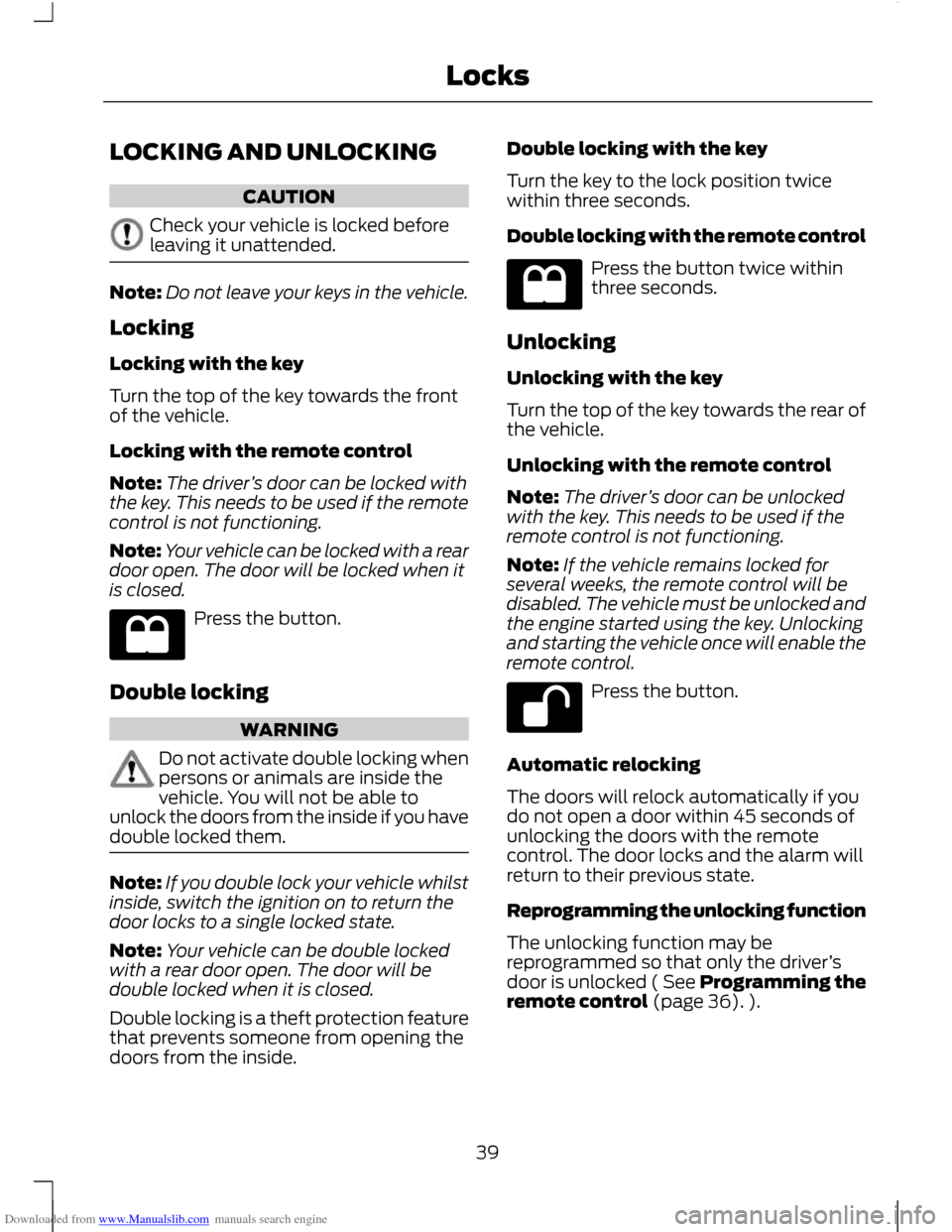

Locking
Locking with the key
Turn the top of the key towards the front
of the vehicle.
Locking with the remote control
Note: The driver ’s door can be locked with
the key. This needs to be used if the remote
control is not functioning.
Note: Your vehicle can be locked with a rear
door open. The door will be locked when it
is closed. Press the button.
Double locking WARNING
Do not activate double locking when
persons or animals are inside the
vehicle. You will not be able to
unlock the doors from the inside if you have
double locked them. Note:
If you double lock your vehicle whilst
inside, switch the ignition on to return the
door locks to a single locked state.
Note: Your vehicle can be double locked
with a rear door open. The door will be
double locked when it is closed.
Double locking is a theft protection feature
that prevents someone from opening the
doors from the inside. Double locking with the key
Turn the key to the lock position twice
within three seconds.
Double locking with the remote control
Press the button twice within
three seconds.
Unlocking
Unlocking with the key
Turn the top of the key towards the rear of
the vehicle.
Unlocking with the remote control
Note: The driver ’s door can be unlocked
with the key. This needs to be used if the
remote control is not functioning.
Note: If the vehicle remains locked for
several weeks, the remote control will be
disabled. The vehicle must be unlocked and
the engine started using the key. Unlocking
and starting the vehicle once will enable the
remote control. Press the button.
Automatic relocking
The doors will relock automatically if you
do not open a door within 45 seconds of
unlocking the doors with the remote
control. The door locks and the alarm will
return to their previous state.
Reprogramming the unlocking function
The unlocking function may be
reprogrammed so that only the driver ’s
door is unlocked ( See Programming the
remote control (page 36). ).
39
Locks

Downloaded from www.Manualslib.com manuals search engine Locking and unlocking
confirmation
Note:
If your vehicle has double locking, the
direction indicators will only flash twice
once you have activated double locking.
When you lock the doors, the direction
indicators will flash once.
When you double lock the doors, the
direction indicators will flash three times.
When you unlock the doors, the direction
indicators will flash once.
Locking and unlocking the doors
from inside Press the button. For item
location: See At a Glance (page
10).
Sliding door
Note: The sliding door is inhibited from
opening fully when the fuel filler flap is open.
Opening the sliding door
Pull the exterior handle or press the interior
button, and open the door. If opened fully
it will lock in place.
Closing the sliding door
Pull the exterior handle or press the interior
button, and close the door.
Luggage compartment lid
Power liftgate WARNINGS
Do not operate the luggage
compartment lid unless it is free from
obstruction.
Careless opening and closing of the
luggage compartment lid can
override the protection function and
cause injuries. WARNINGS
Do not place objects on the luggage
compartment lid.
Make sure the luggage compartment
lid is fully closed after operation.
CAUTIONS
Operate the luggage compartment
lid only when your vehicle is
stationary.
Make sure there is enough headroom
to open the luggage compartment lid.
On vehicles with automatic
transmission, make sure the selector
lever is in P.
In extreme weather conditions,
automatic opening and closing will
not work if the luggage compartment
lid is frozen to the seal. Note:
The luggage compartment lid will
stop automatically while opening, and
reverse some distance if there is an obstacle
in the way.
Note: The luggage compartment lid will
stop automatically while closing, and fully
open if there is an obstacle in the way.
Note: You can manually move the luggage
compartment lid.
The luggage compartment lid can be
operated using the remote control, the
centre console switch, the luggage
compartment lid switch or the luggage
compartment lid release handle.
40
LocksE102566

Downloaded from www.Manualslib.com manuals search engine Luggage compartment lid switch
Remote control and centre console
switch
Note:
Pressing any button again during
operation will stop the luggage
compartment lid. A further press will reverse
the direction.
Note: To operate the centre console switch,
the ignition must be on.
To open a fully closed luggage
compartment lid, you can either:
• Press the button on the remote control
twice within three seconds.
• Press the centre console switch or
luggage compartment lid release
handle.
To fully open a partially opened luggage
compartment lid, you can either:
• Press the button on the remote control
twice within three seconds.
• Press and hold the button on the
remote control for at least three
seconds.
• Press the centre console switch, the
luggage compartment lid switch or the
luggage compartment lid release
handle. To stop the luggage compartment lid, you
can either:
•
Press the button on the remote control.
A further remote control operation will
be delayed for approximately three
seconds.
• Press the centre console switch, the
luggage compartment lid switch or the
luggage compartment lid release
handle.
Programming the luggage compartment
lid stop position
1. Open the luggage compartment lid.
2. Stop the luggage compartment lid at the required height.
3. Press and hold the luggage compartment lid switch for at least
three seconds. A chime will be heard.
Reprogramming the luggage compartment
lid to a new stop position
1. Open the luggage compartment lid.
2. Move the luggage compartment lid to the new required position.
3. Press and hold the luggage compartment lid switch for at least
three seconds. A chime will be heard.
Closing the luggage compartment lid WARNINGS
The anti-trap function will be
deactivated when the luggage
compartment lid comes into contact
with the vehicle body. The luggage compartment lid will
not detect obstacles when it comes
into contact with the vehicle body.
Note:
Do not leave a passive key in the
vehicle when closing the luggage
compartment. A message will be shown in
the display. See Information Messages
(page 90).
41
LocksE129838

Downloaded from www.Manualslib.com manuals search engine Note:

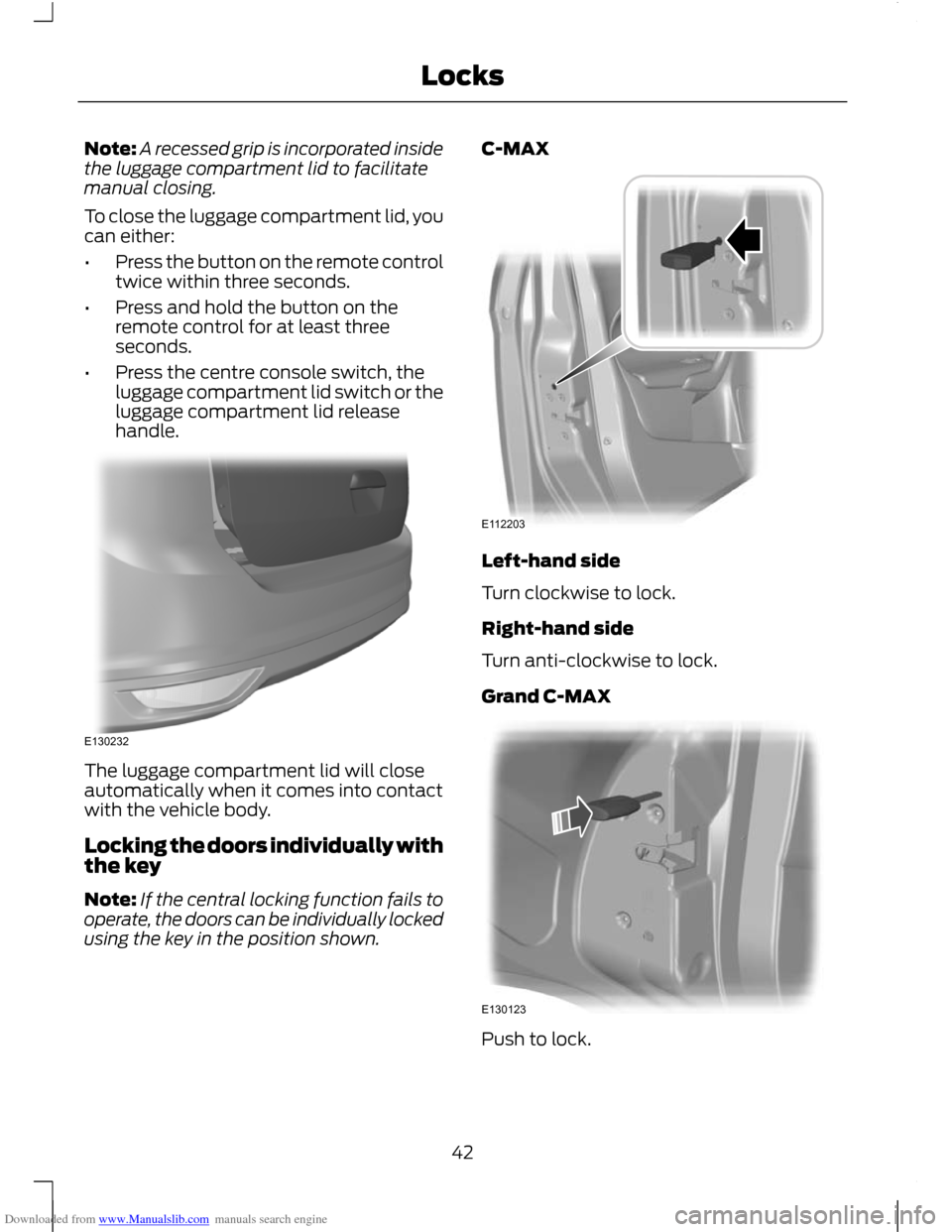

A recessed grip is incorporated inside
the luggage compartment lid to facilitate
manual closing.
To close the luggage compartment lid, you
can either:
• Press the button on the remote control
twice within three seconds.
• Press and hold the button on the
remote control for at least three
seconds.
• Press the centre console switch, the
luggage compartment lid switch or the
luggage compartment lid release
handle. The luggage compartment lid will close
automatically when it comes into contact
with the vehicle body.
Locking the doors individually with
the key
Note:
If the central locking function fails to
operate, the doors can be individually locked
using the key in the position shown. C-MAX
Left-hand side
Turn clockwise to lock.
Right-hand side
Turn anti-clockwise to lock.
Grand C-MAX
Push to lock.
42
LocksE130232 E112203 E130123

Downloaded from www.Manualslib.com manuals search engine Unlocking
Note:
If the child safety locks have also
been activated, pulling the internal lever will
only deactivate the emergency locking and
not the child safety lock. The doors can only
be opened using the external door handle.
Note: If the doors have been unlocked using
this method, the doors must be locked
individually until the central locking function
has been repaired.
Unlock the driver's door using the key. The
other doors can be unlocked individually
by pulling the interior door handles on
those doors.
KEYLESS ENTRY
General information WARNING
The keyless entry system may not
function if the key is close to metal
objects or electronic devices such as
mobile phones. The passive entry system will not function
if:
•
The vehicle battery is flat.
• The passive key frequencies are
jammed.
• The passive key battery is flat.
Note: If the passive entry system does not
function, you will need to use the key blade
to lock and unlock your vehicle.
The keyless system allows the driver to
operate the vehicle without the use of a
key or remote control. Passive locking and unlocking requires a
valid passive key to be located within one
of the three external detection ranges.
These are located approximately one and
a half metres from the driver and front
passenger door handles and the luggage
compartment lid.
Passive key
The vehicle can be locked and unlocked
with the passive key. The passive key can
also be used as a remote control. See
Locking and Unlocking (page 39).
Locking the vehicle
WARNING
The vehicle does not lock itself
automatically. If the locking function
is not activated, the vehicle will
remain unlocked. Note:
The ignition will automatically switch
off when you lock your vehicle from the
outside. This is to prevent the vehicle battery
from discharging.
Note: Do not grab the door handle.
43
LocksE78276

Downloaded from www.Manualslib.com manuals search engine Touch a front door handle lock sensor to
lock the vehicle.
To activate central locking and arm the
alarm:
•
Touch a front door handle lock sensor
once.
To activate double locking and arm the
alarm:
• Touch a front door handle lock sensor
twice within three seconds.
Note: There must be clearance between
each touch of the door handle.
Note: Once activated, the vehicle will
remain locked for approximately three
seconds. When the delay period is over, the
doors can be opened again, provided the
passive key is within the respective
detection range.
Two short flashes of the direction
indicators confirms that all the doors and
the luggage compartment lid have been
locked and that the alarm has been armed.
Luggage compartment lid
Note: The luggage compartment lid cannot
be closed and, will pop back up if the
passive key is located inside the vehicle with
the doors locked. Note:
If a second valid passive key is
located within the rear exterior detection
range, the luggage compartment lid can be
closed.
Unlocking the vehicle
Note: If the vehicle remains locked for
longer than three days, the keyless system
will enter an energy-saving mode. This is to
reduce the discharge of the vehicle battery.
When the vehicle is unlocked while in this
mode, the reaction time of the system may
be a little longer than normal. Unlocking the
vehicle once will deactivate the
energy-saving mode.
Note: If the vehicle remains locked for
several weeks, the keyless system will be
disabled. The vehicle must be unlocked
using the key blade. Unlocking the vehicle
once will enable the keyless system.
Note: Do not touch the front door handle
lock sensor when opening a door. Open any door.
Note:
A valid passive key must be located
within the detection range of that door.
One long flash of the direction indicators
confirms that all the doors and the luggage
compartment lid have been unlocked and
that the alarm has been disarmed.
44
LocksE87384 E78278

Downloaded from www.Manualslib.com manuals search engine Unlocking only the driver's door
If the unlocking function is reprogrammed
so that only the driver
’s door and the
luggage compartment lid are unlocked (
See Programming the remote control
(page 36). ), note the following:
If the driver ’s door is the first door which is
opened, the other doors will remain locked.
All the other doors can be unlocked from
inside the vehicle by pressing the unlock
button on the instrument panel. For item
location: See At a Glance (page 10).
Doors can be unlocked individually by
pulling the interior door handles on those
doors.
Disabled keys
Any keys left inside the vehicle interior
when it is locked will be disabled.
A disabled key cannot be used to turn the
ignition on or start the engine.
In order to use these passive keys again,
they have to be enabled.
To enable all your passive keys, unlock the
vehicle using a passive key or the remote
control unlocking function.
All passive keys will then be enabled if the
ignition is turned on or the vehicle is started
using a valid key. Locking and unlocking the doors
with the key blade 1. Carefully remove the cover.
2.
Remove the key blade and insert it into
the lock.
Note: Only the driver's door handle is fitted
with a lock cylinder.
GLOBAL OPENING AND
CLOSING
You can also operate the electric windows
with the ignition off via the global opening
and global closing function.
Note: Global closing will only operate if you
have set the memory correctly for each
window. See Power Windows (page 71).
45
Locks121E87964

Downloaded from www.Manualslib.com manuals search engine Global opening

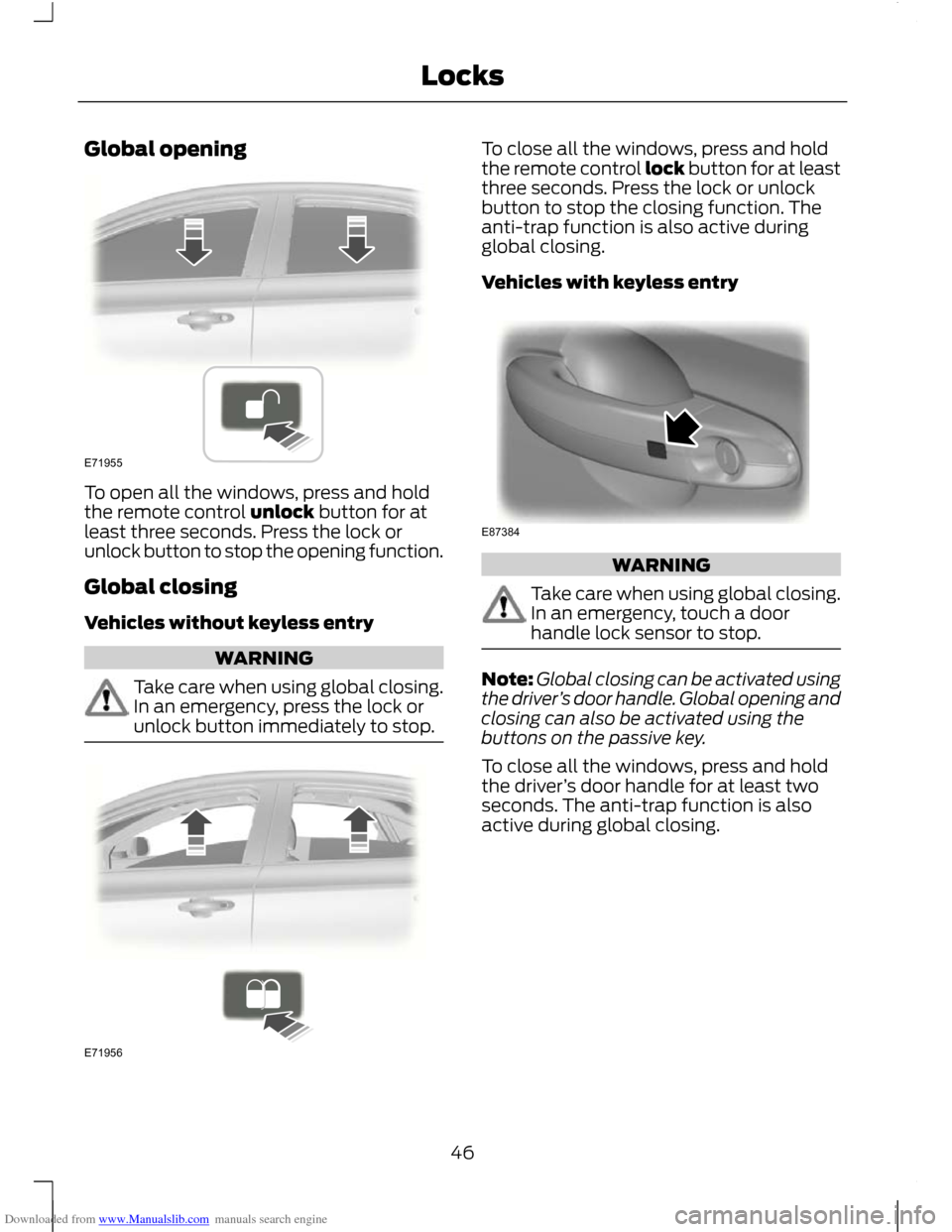

To open all the windows, press and hold
the remote control unlock button for at
least three seconds. Press the lock or
unlock button to stop the opening function.
Global closing
Vehicles without keyless entry
WARNING
Take care when using global closing.
In an emergency, press the lock or
unlock button immediately to stop. To close all the windows, press and hold
the remote control lock button for at least
three seconds. Press the lock or unlock
button to stop the closing function. The
anti-trap function is also active during
global closing.
Vehicles with keyless entry
WARNING
Take care when using global closing.
In an emergency, touch a door
handle lock sensor to stop.
Note:
Global closing can be activated using
the driver ’s door handle. Global opening and
closing can also be activated using the
buttons on the passive key.
To close all the windows, press and hold
the driver ’s door handle for at least two
seconds. The anti-trap function is also
active during global closing.
46
LocksE71955 E71956 E87384

Downloaded from www.Manualslib.com manuals search engine PRINCIPLE OF OPERATION

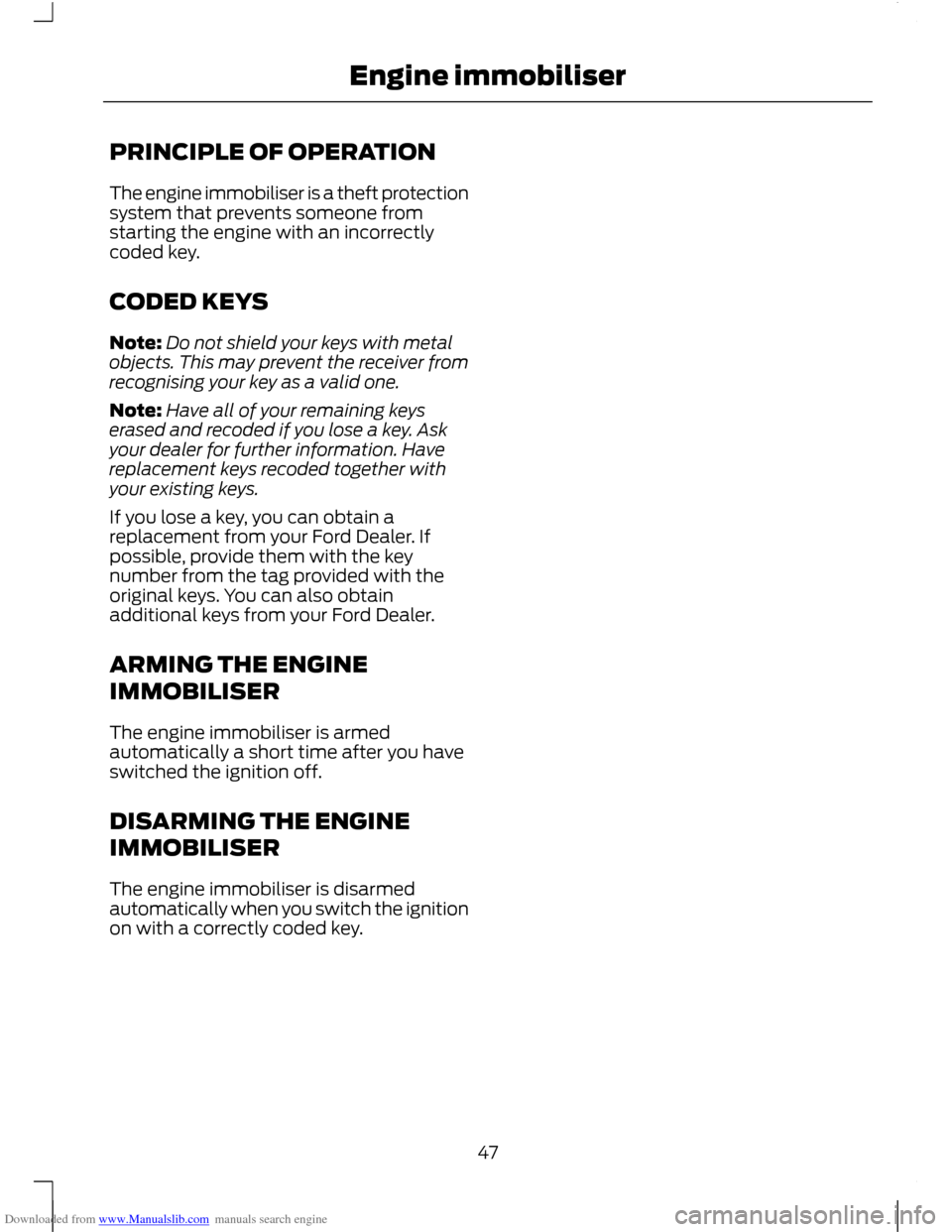

The engine immobiliser is a theft protection
system that prevents someone from
starting the engine with an incorrectly
coded key.
CODED KEYS
Note:
Do not shield your keys with metal
objects. This may prevent the receiver from
recognising your key as a valid one.
Note: Have all of your remaining keys
erased and recoded if you lose a key. Ask
your dealer for further information. Have
replacement keys recoded together with
your existing keys.
If you lose a key, you can obtain a
replacement from your Ford Dealer. If
possible, provide them with the key
number from the tag provided with the
original keys. You can also obtain
additional keys from your Ford Dealer.
ARMING THE ENGINE
IMMOBILISER
The engine immobiliser is armed
automatically a short time after you have
switched the ignition off.
DISARMING THE ENGINE
IMMOBILISER
The engine immobiliser is disarmed
automatically when you switch the ignition
on with a correctly coded key.
47
Engine immobiliser

Downloaded from www.Manualslib.com manuals search engine PRINCIPLE OF OPERATION
Alarm system

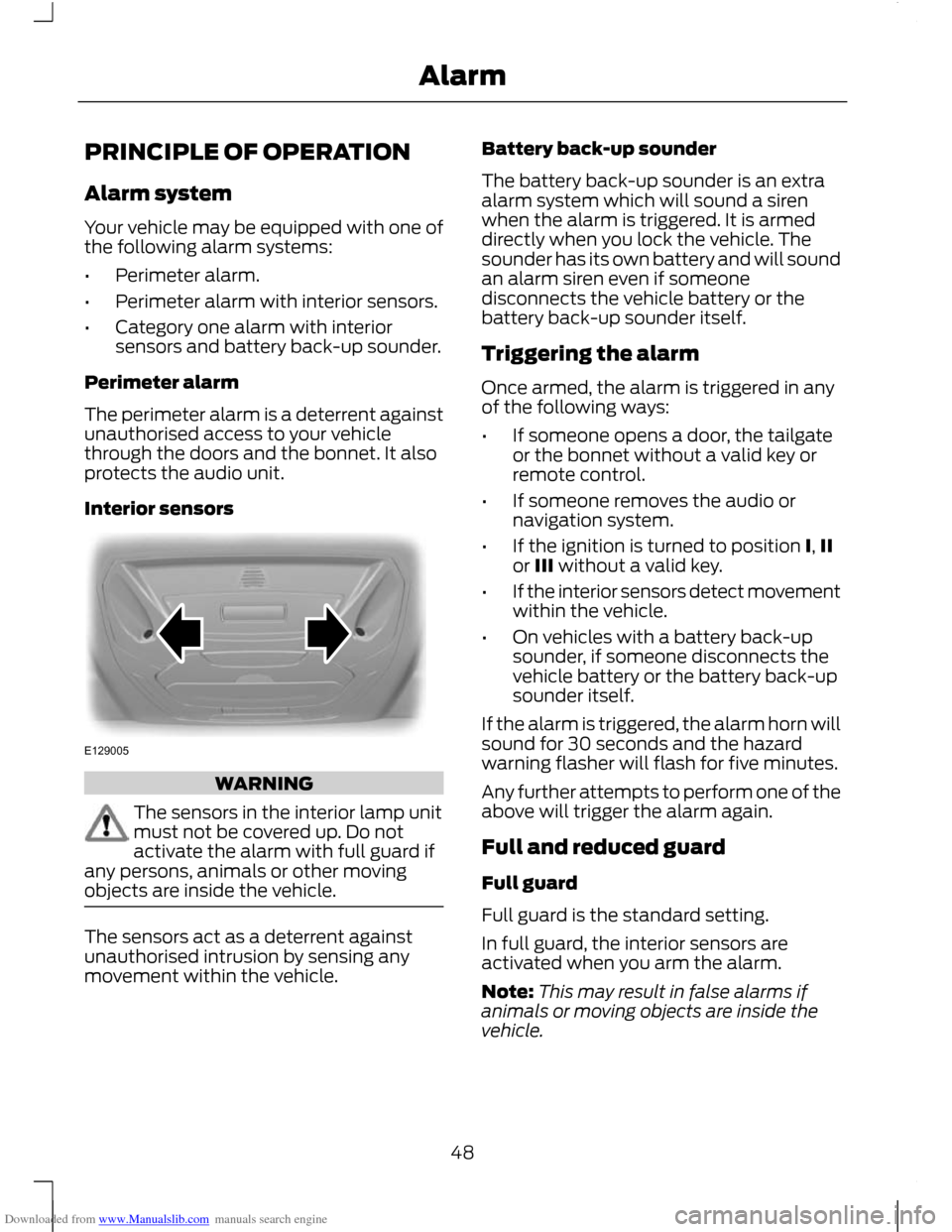

Your vehicle may be equipped with one of
the following alarm systems:
•
Perimeter alarm.
• Perimeter alarm with interior sensors.
• Category one alarm with interior
sensors and battery back-up sounder.
Perimeter alarm
The perimeter alarm is a deterrent against
unauthorised access to your vehicle
through the doors and the bonnet. It also
protects the audio unit.
Interior sensors WARNING
The sensors in the interior lamp unit
must not be covered up. Do not
activate the alarm with full guard if
any persons, animals or other moving
objects are inside the vehicle. The sensors act as a deterrent against
unauthorised intrusion by sensing any
movement within the vehicle. Battery back-up sounder
The battery back-up sounder is an extra
alarm system which will sound a siren
when the alarm is triggered. It is armed
directly when you lock the vehicle. The
sounder has its own battery and will sound
an alarm siren even if someone
disconnects the vehicle battery or the
battery back-up sounder itself.
Triggering the alarm
Once armed, the alarm is triggered in any
of the following ways:
•
If someone opens a door, the tailgate
or the bonnet without a valid key or
remote control.
• If someone removes the audio or
navigation system.
• If the ignition is turned to position I, II
or III without a valid key.
• If the interior sensors detect movement
within the vehicle.
• On vehicles with a battery back-up
sounder, if someone disconnects the
vehicle battery or the battery back-up
sounder itself.
If the alarm is triggered, the alarm horn will
sound for 30 seconds and the hazard
warning flasher will flash for five minutes.
Any further attempts to perform one of the
above will trigger the alarm again.
Full and reduced guard
Full guard
Full guard is the standard setting.
In full guard, the interior sensors are
activated when you arm the alarm.
Note: This may result in false alarms if
animals or moving objects are inside the
vehicle.
48
AlarmE129005
