non-methanol antifreeze agents should be used
only if they provide cold weather protection
without damaging the vehicle's paint finish,
wiper blades, and windshield washer system.
%
*
[MC11700( ALL)01/96]
Engine Coolant
%*
[MC11800( ALL)01/96]
Checking the Engine Coolant
*
[MC11900( ALL)05/96]
NOTE: Be sure to read and understand
Precautions When Servicing Your
Vehicleat the beginning of this chapter.
*
[MC12100( BCGV)05/96]
RWARNING
The cooling fan is automatic and may
come on at any time. Always disconnect
the negative terminal of the battery before
working near the fan.
%*
[MC12200( ALL)12/95]
Your vehicle's coolant protects your engine from
overheating in the summer and from freezing in
the winter. Check the level of the coolant at least
once a month. Simply look at the engine coolant
reservoir located in the engine compartment. To
locate the reservoir, see the diagram of your
vehicle's engine underEngine Type, in this
chapter.
*
[MC12300( ALL)02/96]
The coolant additives also protect the entire
cooling system from internal passageway
corrosion and these additives lubricate the water
pump. The coolant should be serviced as noted
in theMaintenance Schedulebooklet.
File:11rcmcv.ex
Update:Thu Jun 20 11:05:52 1996

222 [MC12500( BCGV)03/96]
half page art:0010761-DThe engine coolant reservoir
%*
[MC12700( ALL)01/96]
Checking Hoses
[MC12800( ALL)04/96]
Inspect all engine and heater system hoses and
hose connections for deterioration, leaks, and
loose hose clamps as specified in theMaintenance
Schedulebooklet. Repair or replace with
Motorcraft hoses or equivalent as necessary.
*
[MC12900( ALL)05/96]
Adding Engine Coolant
*
[MC13000( ALL)05/96]
RWARNING
Do not put engine coolant in the container
for the windshield washer fluid.
*
[MC13105( GV)05/96]
If sprayed on the windshield, engine coolant
could make it difficult to see through the
windshield.
*
[MC13110( GV)05/96]
When the engine is cool, add a 50/50 mixture of
engine coolant and water to the engine coolant
recovery reservoir Ð DO NOT ADD DIRECTLY
File:11rcmcv.ex
Update:Thu Jun 20 11:05:52 1996

223
TO THE RADIATOR. Add straight water only in
an emergency, but you should replace it with a
50/50 mixture of coolant and distilled water as
soon as possible.
*
[MC13115( GV)05/96]
Check the coolant level in the coolant recovery
reservoir the next few times you drive the
vehicle. If necessary, add enough of a 50/50
mixture of coolant and water to bring the liquid
level to the fill line on the reservoir.
*
[MC13305( GV)05/96]
RWARNING
Never remove the coolant recovery cap
while the engine is running or hot.
*
[MC13405( GV)05/96]
If you must remove the coolant recovery cap,
follow these steps to avoid personal injury:
*
[MC13605( GV)05/96]
1. Before you remove the cap, turn the engine
off and let it cool.
*
[MC13705( GV)05/96]
2. When the engine is cool, wrap a thick cloth
around the cap. Slowly turn cap
counterclockwise to the first stop.
*
[MC13805( GV)05/96]
3. Step back while the pressure releases.
*
[MC13905( GV)05/96]
4. When you are sure that all the pressure has
been released, use the cloth to press the cap
down, turn it counterclockwise, and remove
it.
*
[MC14505( ALL)05/96]
Use Ford Premium Cooling System Fluid
E2FZ-19549-AA (in Canada, Motorcraft CXC-8-B)
or an equivalent premium engine coolant that
meets Ford specification ESE-M97B44-A. Ford
Premium Engine Coolant is an optimized
formula that will protect all metals and rubber
elastomers used in Ford cooling systems for 4
years or 50,000 miles (80,000 km).
File:11rcmcv.ex
Update:Thu Jun 20 11:05:52 1996

224
*
[MC14510( ALL)05/96]
Do not use alcohol or methanol antifreeze or any
engine coolants mixed with alcohol or methanol
antifreeze. Do not use supplemental coolant
additives in your vehicle. These additives may
harm your engine cooling system. The use of an
improper coolant may void the warranty of your
vehicle's engine cooling system.
*
[MC14605( ALL)05/96]
Recycled engine coolant
*
[MC14705( ALL)05/96]
Ford Motor Company recommends that Ford
and Lincoln-Mercury dealers use recycled engine
coolant produced by Ford-approved processes.
Not all coolant recycling processes produce
coolant which meets Ford specification
ESE-M97B44-A, and use of such coolant may
harm engine and cooling system components.
*
[MC14805( ALL)05/96]
Always dispose of used automotive fluids in a
responsible manner. Follow your community's
regulations and standards for recycling and
disposing of automotive fluids.
*
[MC14905( ALL)05/96]
Coolant refill capacity
*
[MC14910( ALL)05/96]
To find out how much fluid your vehicle's
cooling system can hold, refer toRefill capacities
in theCapacities and specificationschapter.
*
[MC14915( ALL)05/96]
Have your dealer check the engine cooling
system for leaks if you have to add more than a
quart (liter) of engine coolant per month.
*
[MC15005( ALL)05/96]
Severe winter climate
*
[MC15010( ALL)05/96]
If you drive in extremely cold climates (less than
-34ÊF [-36ÊC]), it may benecessary to increase
the coolant concentration above 50%. Refer to
the chart on the coolant container to ensure the
coolant concentration in your vehicle is such that
the coolant will not freeze at the temperature
level in which you drive during winter months.
Never increase the engine coolant concentration
File:11rcmcv.ex
Update:Thu Jun 20 11:05:52 1996

225
above 60%. Leave a 50/50 mixture of engine
coolant and water in your vehicle year-round in
non-extreme climates.
%*
[MC15200( ALL)05/96]
Engine Coolant Drain and Flush
[MC15300( ALL)04/96]
Proper procedures for a complete coolant drain
and flush of the cooling system can be found in
theCar Service Manual. Following these
recommended procedures will ensure that the
specified coolant level and a 50/50 or
appropriate mixture of coolant and water is
maintained.
*
[MC15400( ALL)12/95]
Engine Coolant Refill Procedure
*
[MC15500( ALL)12/95]
When the entire cooling system is drained and
refilled, the following procedure should be used
to ensure a complete fill:
*
[MC15600( ALL)12/95]
NOTE: It is imperative the following
procedure be adhered to. Failure to do
so could result in damage to your
engine.
*
[MC17400( ALL)12/95]
q
With the engine OFF and cool, remove the
pressure cap, located on the coolant reservoir.
Remove the heater hose and clamp, located
on the rear of the intake manifold.
*
[MC17500( ALL)12/95]
q
Add a 50/50 mixture of specified coolant and
water to the coolant reservoir. Refer toRefill
Capacitieslater in this chapter for the correct
amount. Add coolant to the reservoir until
the coolant continuously flows out of the tube
in the rear of engine. Reattach hose and
secure clamp.
[MC17600( ALL)12/95]
q
Continue to fill the reservoir until the coolant
is at the FULL COLD level.
*
[MC17700( ALL)12/95]
q
Reinstall the pressure cap to the fully
installed position.
File:11rcmcv.ex
Update:Thu Jun 20 11:05:52 1996

226
*
[MC17800( ALL)12/95]
q
Start and idle the engine until the radiator
upper hose is warm (this indicates the
thermostat is open and coolant is flowing
through the entire system).
*
[MC17900( ALL)12/95]
q
Immediately shut off the engine and let cool.
Cautiously remove the pressure relief cap and
add a 50/50 mixture of specified coolant and
water until the coolant is at the COLD FILL
level in the coolant reservoir.
*
[MC18000( ALL)12/95]
q
Reinstall the pressure cap securely.
*
[MC18100( ALL)12/95]
q
Check for leaks at the draincock.
*
[MC18200( ALL)12/95]
q
Recheck the engine coolant level, using the
recommended procedure, after one or two
occasions of vehicle use.
%
*
[MC18300( ALL)01/96]
Power Steering Fluid
*
[MC18400( ALL)01/96]
Check the level of the power steering fluid at
least twice a year (i.e., every Spring and Fall).
%*
[MC18500( ALL)01/96]
Checking and Adding Power Steering
Fluid
*
[MC18700( ALL)04/96]
1. Start the engine and let it run until the
power steering fluid reaches normal
operating temperature. The power steering
fluid will be at the right temperature when
the engine coolant temperature gauge in the
instrument cluster is near the center of the
NORMAL operating temperature range.
*
[MC18800( ALL)01/96]
2. While the engine idles, turn the steering
wheel back and forth several times. Make
sure that the cap assembly is installed at this
time.
*
[MC18900( ALL)01/96]
3. Turn the engine off.
File:11rcmcv.ex
Update:Thu Jun 20 11:05:52 1996

227 [MC19100( GV)04/96]
4. Check the fluid level in the power steering
fluid reservoir. The fluid level should be
between the MIN and MAX lines on the side
of the reservoir.
[MC19300( GV)04/96]
5. If the power steering fluid is below the MIN
mark, add fluid in small amounts until the
level is between the MIN and MAX lines on
the side of the reservoir.
[MC19500( GV)12/95]
6. When you are finished, put the cap assembly
back on the reservoir.
[MC19700( GV)12/95]

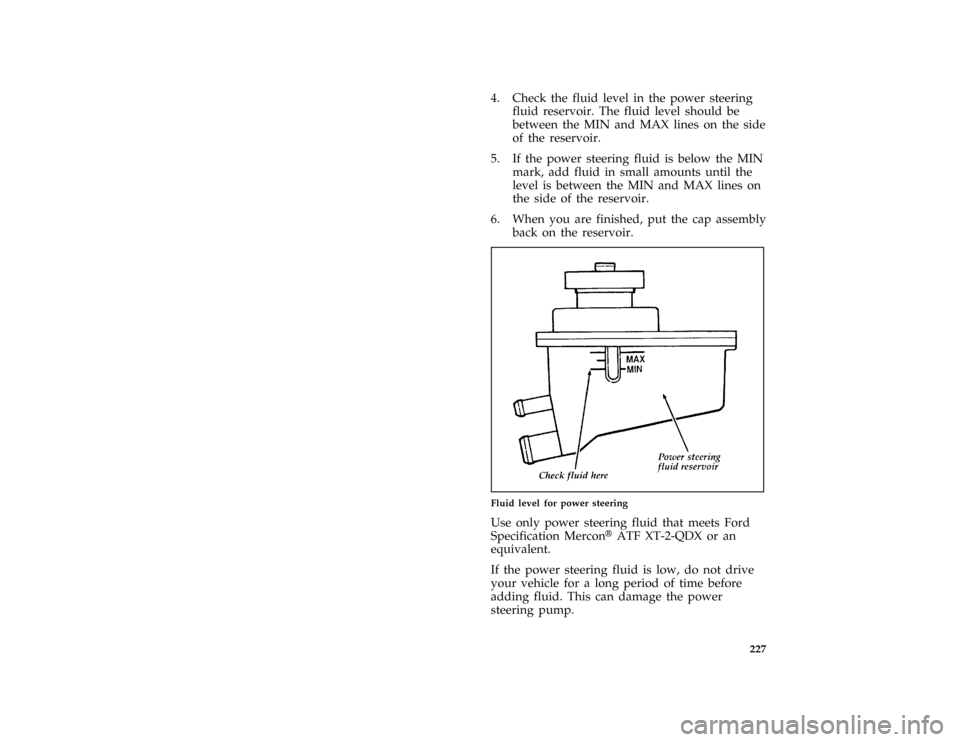

half page art:0010657-C
Fluid level for power steering
[MC19900( ALL)05/96]
Use only power steering fluid that meets Ford
Specification MerconHATF XT-2-QDX or an
equivalent.
*
[MC20000( ALL)01/96]
If the power steering fluid is low, do not drive
your vehicle for a long period of time before
adding fluid. This can damage the power
steering pump.
File:11rcmcv.ex
Update:Thu Jun 20 11:05:52 1996

228 [MC20200( GV)12/95]If you must check the power steering fluid when
it is cold, make sure that the fluid reaches the
MIN mark on the reservoir.
%
*
[MC21300( ALL)01/96]
Automatic Transmission Fluid
*
[MC21400( ALL)03/96]
Under normal circumstances, you do not need to
check the fluid level of the transmission, since
your vehicle does not use up transmission fluid.
Refer to theMaintenance Schedulebooklet for
replacement intervals. However, if the
transmission is not working properly Ð for
instance, the transmission may slip or shift
slowly, or you may notice some sign of fluid
leakage Ð the fluid level should be checked.
%*
[MC21500( ALL)01/96]
Checking the Automatic Transmission
Fluid
*
[MC21600( ALL)01/96]
It is preferable to check the transmission fluid
level at normal operating temperature
150ÊF-170ÊF (66ÊC-77ÊC),after approximately 20
miles (30 km) of driving. However, if necessary,
you can check the fluid level without having to
drive 20 miles (30 km) to obtain a normal
operating temperature if outside temperatures
are above50ÊF (10ÊC).
[MC21700( ALL)12/95]
With the vehicle on a level surface, start the
engine and, while fully applying the brake
pedal, move the transmission shift selector
through all of the gear ranges allowing sufficient
time for each position to engage.Securely latch
the transmission shift selector in the P (Park)
position, fully set the parking brake and leave
the engine running.
[MC21800( GV)12/95]
NOTE: Your vehicle should not be driven if
the fluid level is below the bottom
hole on the dipstick.
File:11rcmcv.ex
Update:Thu Jun 20 11:05:52 1996

229
*

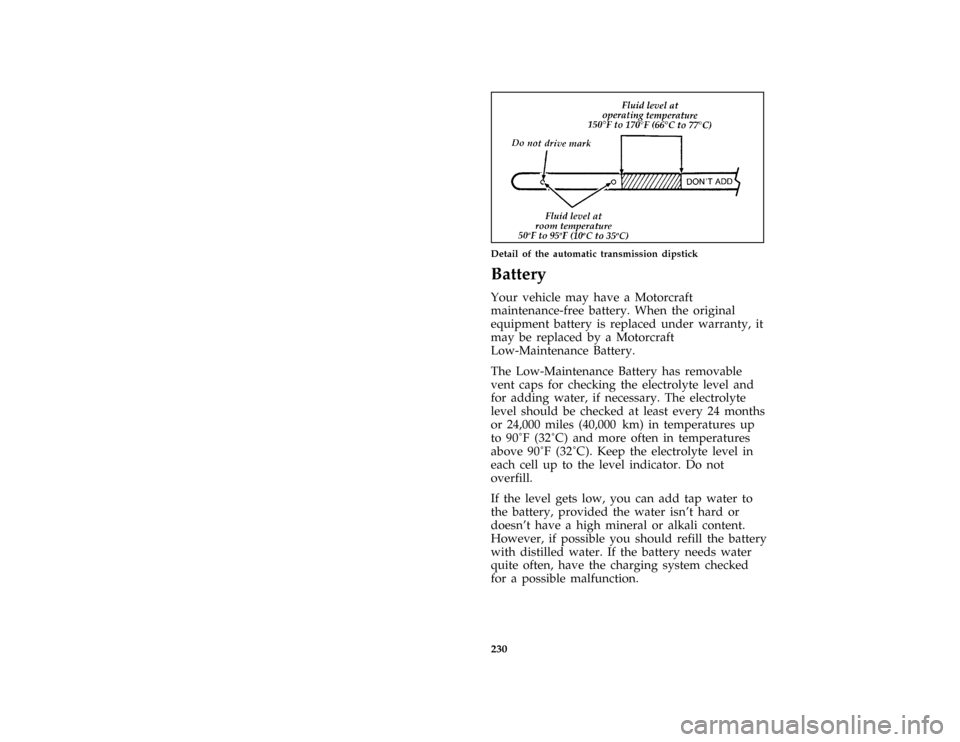

[MC22000( ALL)01/96]
Wipe off the dipstick cap, pull the dipstick out
and wipe the indicator end clean. Put the
dipstick back into the filler tube and make sure
it is fully seated. Pull the dipstick out and read
the fluid level.
*
[MC22200( GV)12/95]
When checking fluid at normal operating
temperatures150ÊF-170ÊF (66ÊC-77ÊC), thefluid
level should be within the crosshatched area on
the dipstick. When the vehicle has not been
driven, and outside temperatures are above68ÊF
(20ÊC), the fluid levels should be between the
holes on the dipstick.
*
[MC22300( ALL)01/96]
NOTE: If the vehicle has been operated for an
extended period at high speeds or in
city traffic during hot weather, or
pulling a trailer, the vehicle should be
turned off for about 30 minutes to
allow the fluid to cool before checking.
%*
[MC22400( ALL)01/96]
Adding Automatic Transmission Fluid
[MC22500( ALL)12/95]
Before adding any fluid, be sure that the correct
type will be used. Use only MERCONHfluid.
*
[MC22600( ALL)12/95]
Add fluid in 1/2 pint (.25L) increments through
the filler tube to bring the level to the correct
area on the dipstick. DO NOT OVERFILL. If the
level is above the top hole on the dipstick,
excess fluid should be removed by a qualified
technician.
%*
[MC22700( ALL)05/96]
NOTE: Always dispose of used automotive
fluids in a responsible manner. Follow
your community's standards for
disposing of these types of fluids. Call
your local recycling center to find out
about recycling automotive fluids.
File:11rcmcv.ex
Update:Thu Jun 20 11:05:52 1996

230 [MC22900( GV)12/95]
one third page art:0010384-EDetail of the automatic transmission dipstick
%*
[MC23200( ALL)01/96]
Battery
*
[MC23300( ALL)01/96]
Your vehicle may have a Motorcraft
maintenance-free battery. When the original
equipment battery is replaced under warranty, it
may be replaced by a Motorcraft
Low-Maintenance Battery.
*
[MC23400( ALL)01/96]
The Low-Maintenance Battery has removable
vent caps for checking the electrolyte level and
for adding water, if necessary. The electrolyte
level should be checked at least every 24 months
or 24,000 miles (40,000 km) in temperatures up
to 90ÊF (32ÊC) andmore often in temperatures
above90ÊF (32ÊC).Keep the electrolyte level in
each cell up to the level indicator. Do not
overfill.
*
[MC23500( ALL)01/96]
If the level gets low, you can add tap water to
the battery, provided the water isn't hard or
doesn't have a high mineral or alkali content.
However, if possible you should refill the battery
with distilled water. If the battery needs water
quite often, have the charging system checked
for a possible malfunction.
File:11rcmcv.ex
Update:Thu Jun 20 11:05:52 1996
