FORD CROWN VICTORIA 1997 1.G Owners Manual

191
*
[ER08600( ALL)01/96]
4. Turn the ignition key to the ON position for
a few seconds, then turn it to the OFF
position.
*
[ER08700( ALL)03/96]
5. Check under the vehicle again for leaking
fuel.If you see or smell fuel, do not start
your vehicle again.If you do not see or
smell fuel, you can try to start your vehicle
again.
*
[ER08800( ALL)01/96]
6. Check all vehicle warning lights before
driving the vehicle.
%
*
[ER09300( ALL)02/96]
Changing a Tire
*
[ER09400( ALL)02/96]
If you get a flat tire while you are driving, do
not apply the brake heavily. Instead, gradually
decrease the speed. Hold the steering wheel
firmly and slowly move to a safe place on the
side of the road. Park on a level spot, turn off
the ignition, set the parking brake, and turn on
the hazard flashers.
%*
[ER09500( ALL)02/96]
The Temporary Spare Tire
%*
[ER09600( GV)02/96]
You may have a high pressure temporary spare
tire. This spare tire is smaller than a regular tire
and is designed for emergency use only. Use it
only when you get a flat tire and replace it as
soon as you can. This spare tire is marked with
the words ªTEMPORARY USE ONLYº so that
you can easily identify it.
*
[ER09800( ALL)02/96]
NOTE: Extended use of other than
conventional spare tires on a
Traction-Lok rear axle could result in a
permanent reduction in effectiveness.
This loss of effectiveness does not
affect normal driving and should not
be noticeable to the driver.
File:10rcerv.ex
Update:Wed Jun 19 10:32:02 1996

192
*
[ER09900( ALL)02/96]
RWARNING
If you use the temporary spare tire
continuously or do not follow these
precautions, the tire could fail, causing
you to lose control of the vehicle, possibly
injuring yourself or others.
*
[ER10000( ALL)02/96]
When you drive with the temporary spare tire,
DO NOT:
*
[ER10100( ALL)02/96]
q
exceed 50 mph (80 km/h) under any
circumstances.
*
[ER10200( ALL)02/96]
q
load your vehicle so that it is heavier than
the maximum vehicle load rating listed on
the tire decal.
*
[ER10300( ALL)02/96]
q
tow a trailer.
*
[ER10400( ALL)02/96]
q
use tire chains on this tire.
*
[ER10500( ALL)02/96]
q
try to repair the temporary spare tire or
remove it from its wheel.
*
[ER10600( ALL)02/96]
q
use the wheel for any other type of vehicle.
% [ER10800( GV)02/96]
Using the Conventional Spare Tire
(If equipped)
[ER10900( GV)05/96]
If you have the conventional spare tire, you can
use it as a spare tire only. This spare tire is
identical to the other tires that come with your
vehicle, although the wheel may not match.
File:10rcerv.ex
Update:Wed Jun 19 10:32:02 1996

193 %
*
[ER11000( ALL)02/96]
Spare Tire Location
[ER11100( ALL)02/96]
The spare is stored in the trunk.
[ER11400( GV)03/96]
two third page art:0010341-H

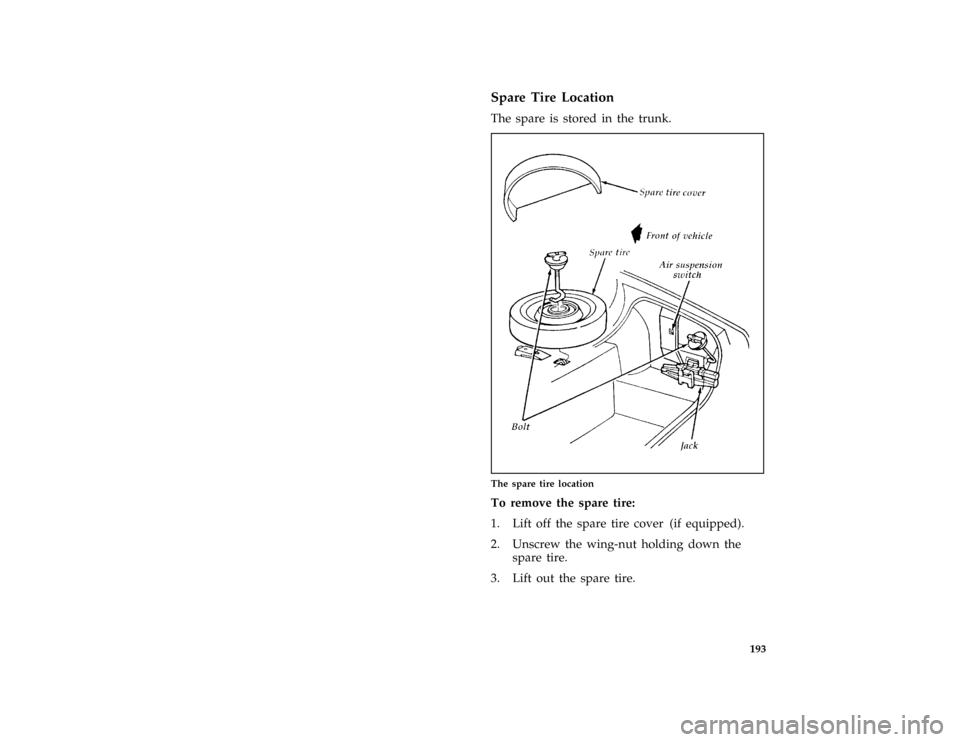

The spare tire location
%*
[ER11500( ALL)03/96]
To remove the spare tire:
[ER12400( GV)03/96]
1. Lift off the spare tire cover (if equipped).
*
[ER12500( GV)03/96]
2. Unscrew the wing-nut holding down the
spare tire.
[ER12600( GV)03/96]
3. Lift out the spare tire.
File:10rcerv.ex
Update:Wed Jun 19 10:32:02 1996

194 %
*
[ER12700( ALL)03/96]
Preparing to Change the Tire
*
[ER12900( BCGV)03/96]
1. Make sure that your vehicle will not move
or roll. Put the gearshift in P (Park). Set the
parking brake and block the wheel that is
diagonally opposite the tire that you are
changing.
*
[ER13100( BCGV)03/96]
When one of the back wheels is off the ground,
the transmission alone will not prevent the
vehicle from moving or slipping off the jack,
even if the vehicle is in P (Park). To prevent the
vehicle from moving when you change a tire, be
sure the parking brake is set, then block the
wheel (both directions) that is diagonally
opposite (other side and end of the vehicle) to
the tire being changed.
*
[ER13200( ALL)03/96]
RWARNING
If the vehicle slips off the jack, you or
someone else could be seriously injured.
[ER13300( GV)12/95]
Turn off the air suspension switch (if equipped)
prior to jacking.
*
[ER13400( GV)01/96]
RWARNING
On vehicles equipped with Air
Suspension, turn OFF the Air Suspension
switch prior to jacking, hoisting or towing
your vehicle.
[ER13500( GV)12/95]
quarter page art:0010573-A

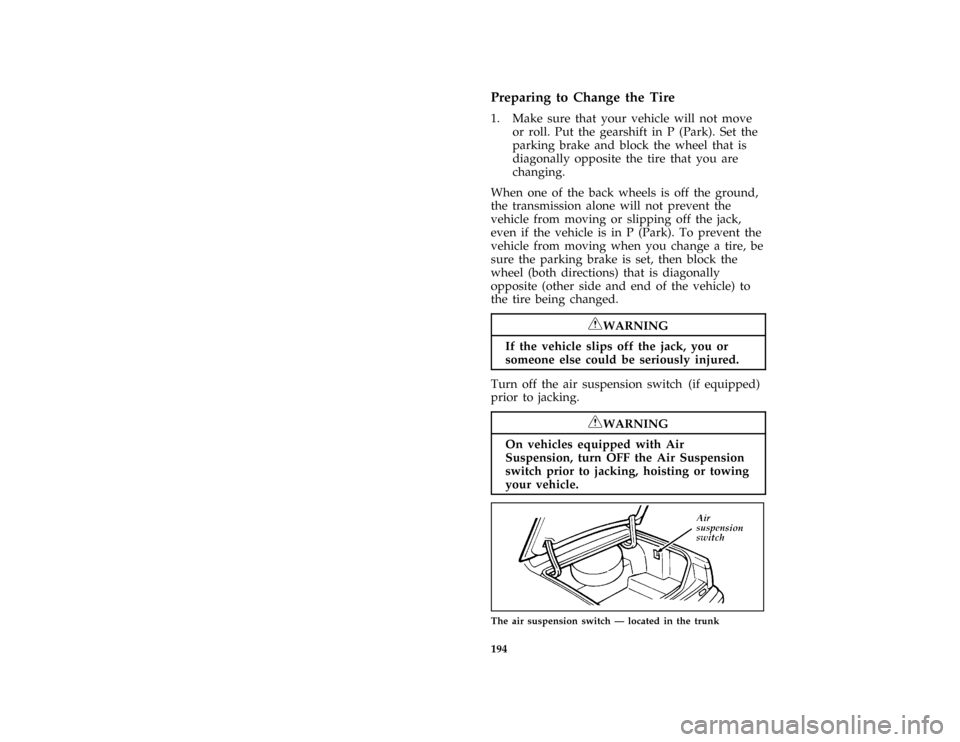

The air suspension switch Ð located in the trunk
File:10rcerv.ex
Update:Wed Jun 19 10:32:02 1996

195
*
[ER13600( ALL)05/96]
RWARNING
To avoid injury, never run the engine
with one wheel off the ground, such as
when changing a tire.
*
[ER13700( ALL)01/96]
2. Get out the spare tire and jack.
*
[ER13800( GV)01/96]
RWARNING
On vehicles equipped with Air
Suspension, turn OFF the Air Suspension
switch prior to jacking, hoisting or towing
your vehicle.
[ER14100( GV)12/95]
3. Remove any optional wheel covers or wheel
ornaments with the tapered end of a wheel
nut wrench. Insert the handle of the wrench
and twist it against the inner wheel cover
flange. For more about removing wheel
covers, see the information later in this
section.
[ER14300( GV)12/95]
4. Loosen each wheel lug nut one-half turn
counterclockwise, but do not remove them
until the tire is raised off the ground. You
should pull up on the handle rather than
push to develop maximum force to loosen
wheel lug nuts.
%*
[ER14400( ALL)01/96]
Removing and Replacing the Tire
[ER14700( GV)12/95]
1. Find the jacking location notches (a
depression on plastic moulding) near the tire
that you are changing. Align the two tabs on
jack with rectangular notch on sheet metal.
Slowly push jack straight until the tabs are
against the side of the frame. MAKE SURE
THE JACK IS PROPERLY POSITIONED
UNDER THE FRAME. Turn the handle of
the jack clockwise until the wheel is
completely off the ground.
File:10rcerv.ex
Update:Wed Jun 19 10:32:02 1996

196
*
[ER14800( ALL)01/96]
RWARNING
To lessen the risk of personal injury, do
not put any part of your body under the
vehicle while changing a tire. Do not start
the engine when your vehicle is on the
jack. The jack is only meant for changing
the tire.
[ER15000( ALL)12/95]
half page art:0010759-A

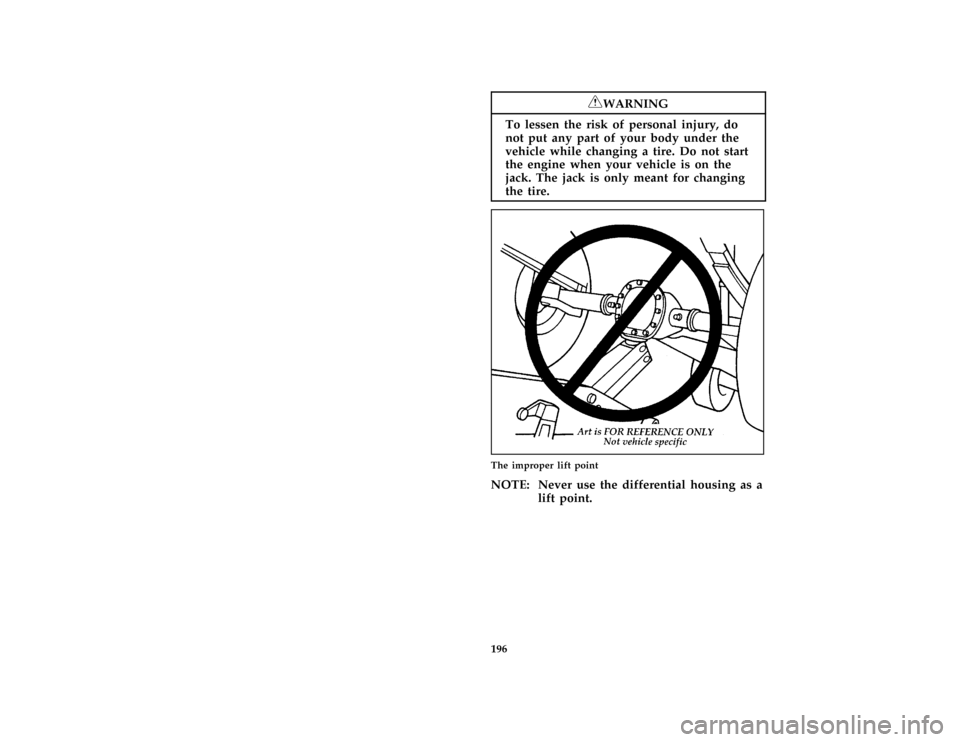

The improper lift point
*
[ER15100( ALL)05/96]
NOTE: Never use the differential housing as a
lift point.
File:10rcerv.ex
Update:Wed Jun 19 10:32:02 1996

197 % [ER15300( GV)12/95]
quarter page art:0010687-A

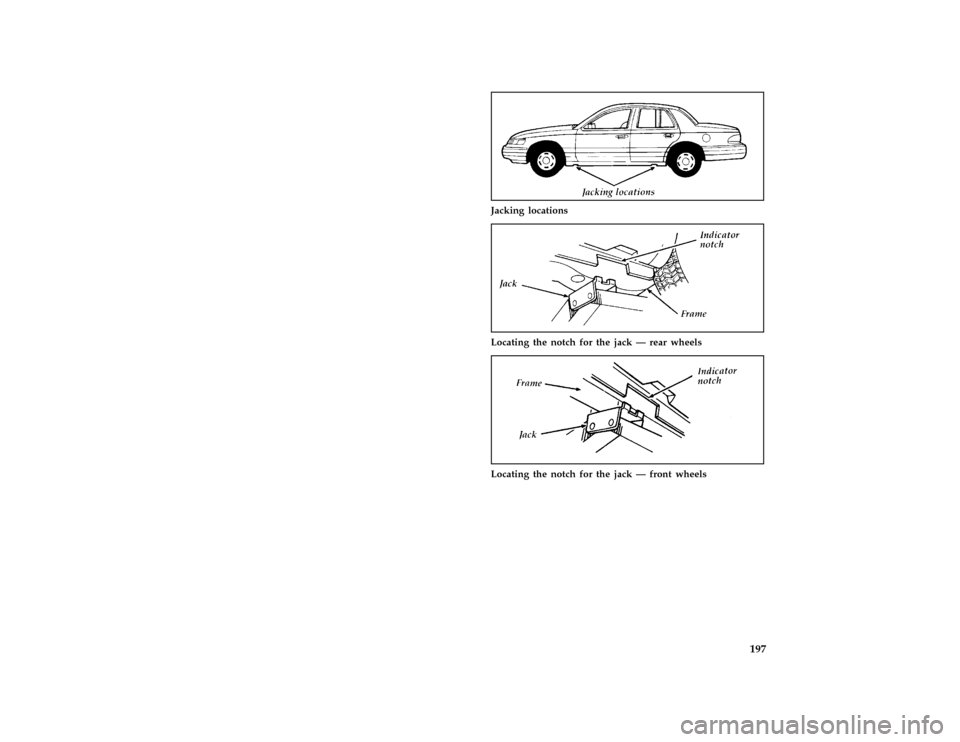

Jacking locations
[ER15400( GV)12/95]
quarter page art:0010688-A
Locating the notch for the jack Ð rear wheels
[ER15500( GV)12/95]
quarter page art:0010689-A
Locating the notch for the jack Ð front wheels
File:10rcerv.ex
Update:Wed Jun 19 10:32:02 1996

198
*
[ER15600( ALL)12/95]
2. Turn the jack handle clockwise until the
wheel clears the ground. Remove the wheel
lug nuts.
*
[ER15750( GV)03/96]
3. If you are replacing the front tire (with
aluminum wheels) with the temporary spare
tire, you need to remove the black dust
shield. Gently pull the shield over the rubber
o-rings and slide it off the wheel studs.
Because the rubber o-rings are soft, they
should pass through the holes in the shield.
If the rings do not pass through the holes,
remove them from the wheel studs. Save the
black dust shield for future use, and ensure
the rubber o-rings are removed from wheel
studs.
*
[ER15775( GV)03/96]
4. Replace the flat tire with the spare tire,
making sure that the air valve stem is facing
outward.
*
[ER15850( GV)03/96]
5. Reinstall the lug nuts, tightening until the
wheel is snug against the hub. The beveled
edges on the lug nuts face inward. Do not
fully tighten the lug nuts until you lower the
vehicle. If you do, you could force the
vehicle off the jack.
*
[ER15950( GV)03/96]
6. Lower the vehicle by turning the jack handle
counterclockwise.
File:10rcerv.ex
Update:Wed Jun 19 10:32:02 1996

199
*
[ER16050( GV)03/96]
7. Remove the jack and fully tighten the lug
nuts in the order shown in the following
illustration. As soon as possible, have your
dealer or a qualified service technician check
the lug nuts for proper torque specifications.
% [ER16100( ALL)12/95]
quarter page art:0010350-A

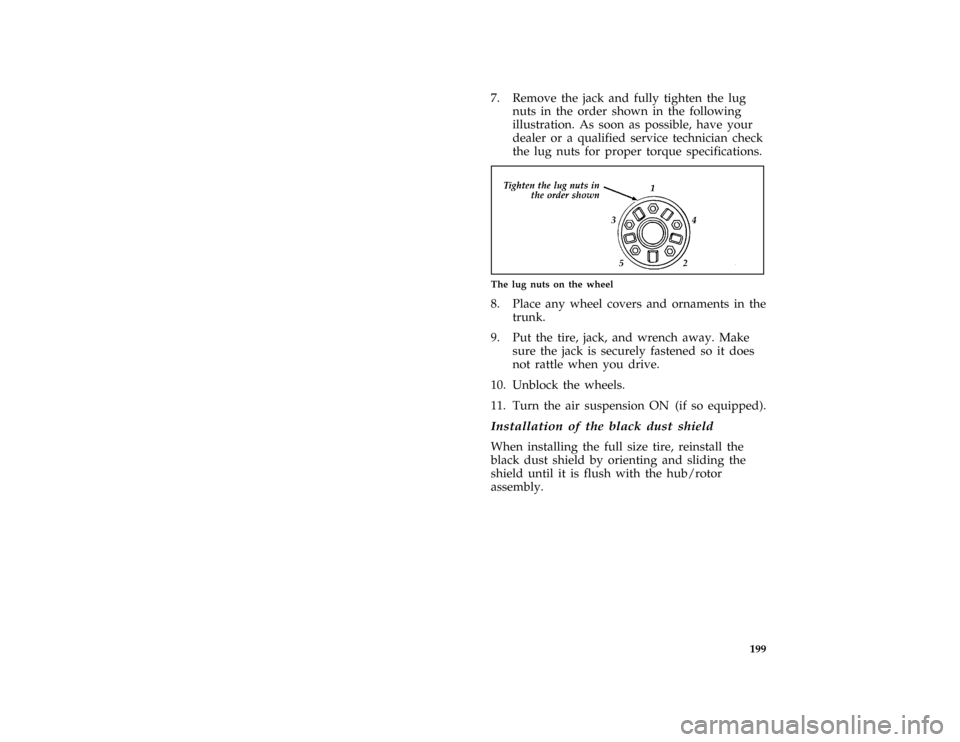

The lug nuts on the wheel
[ER16250( GV)03/96]
8. Place any wheel covers and ornaments in the
trunk.
*
[ER16350( GV)03/96]
9. Put the tire, jack, and wrench away. Make
sure the jack is securely fastened so it does
not rattle when you drive.
*
[ER16450( GV)03/96]
10. Unblock the wheels.
[ER16500( GV)03/96]
11. Turn the air suspension ON (if so equipped).
[ER16560( GV)03/96]
Installation of the black dust shield
[ER16570( GV)03/96]
When installing the full size tire, reinstall the
black dust shield by orienting and sliding the
shield until it is flush with the hub/rotor
assembly.
File:10rcerv.ex
Update:Wed Jun 19 10:32:02 1996

200 %
*
[ER17700( GV)12/95]
Aluminum wheel
[ER17800( GV)12/95]
half page art:0011501-A

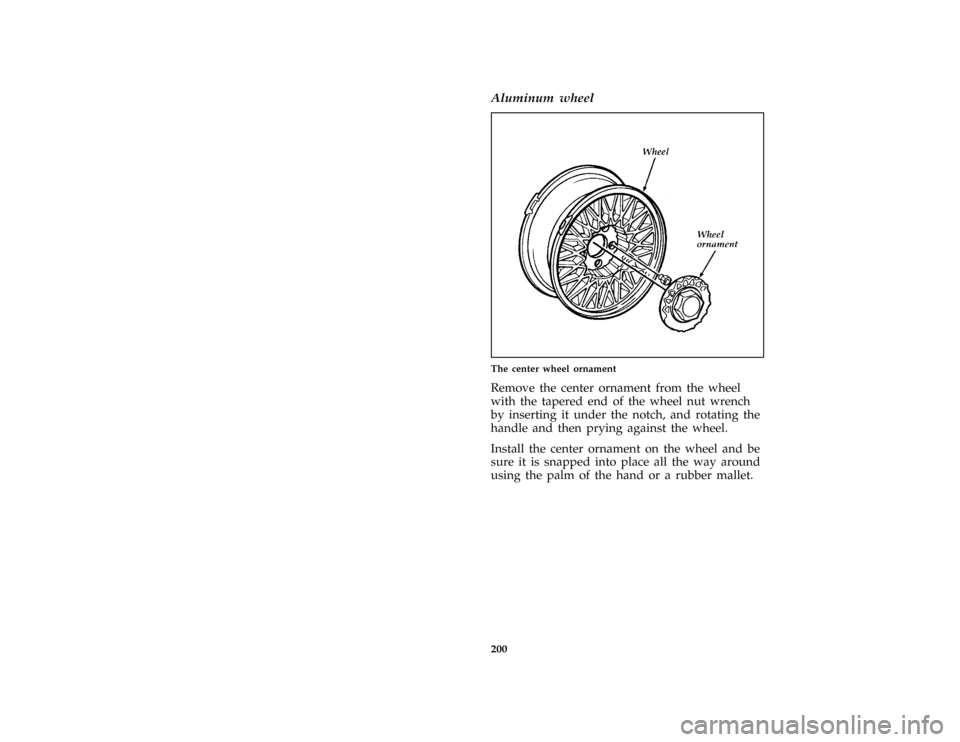

The center wheel ornament
[ER17900( GV)12/95]
Remove the center ornament from the wheel
with the tapered end of the wheel nut wrench
by inserting it under the notch, and rotating the
handle and then prying against the wheel.
*
[ER18000( GV)12/95]
Install the center ornament on the wheel and be
sure it is snapped into place all the way around
using the palm of the hand or a rubber mallet.
File:10rcerv.ex
Update:Wed Jun 19 10:32:02 1996
