FORD F150 2013 12.G Owners Manual

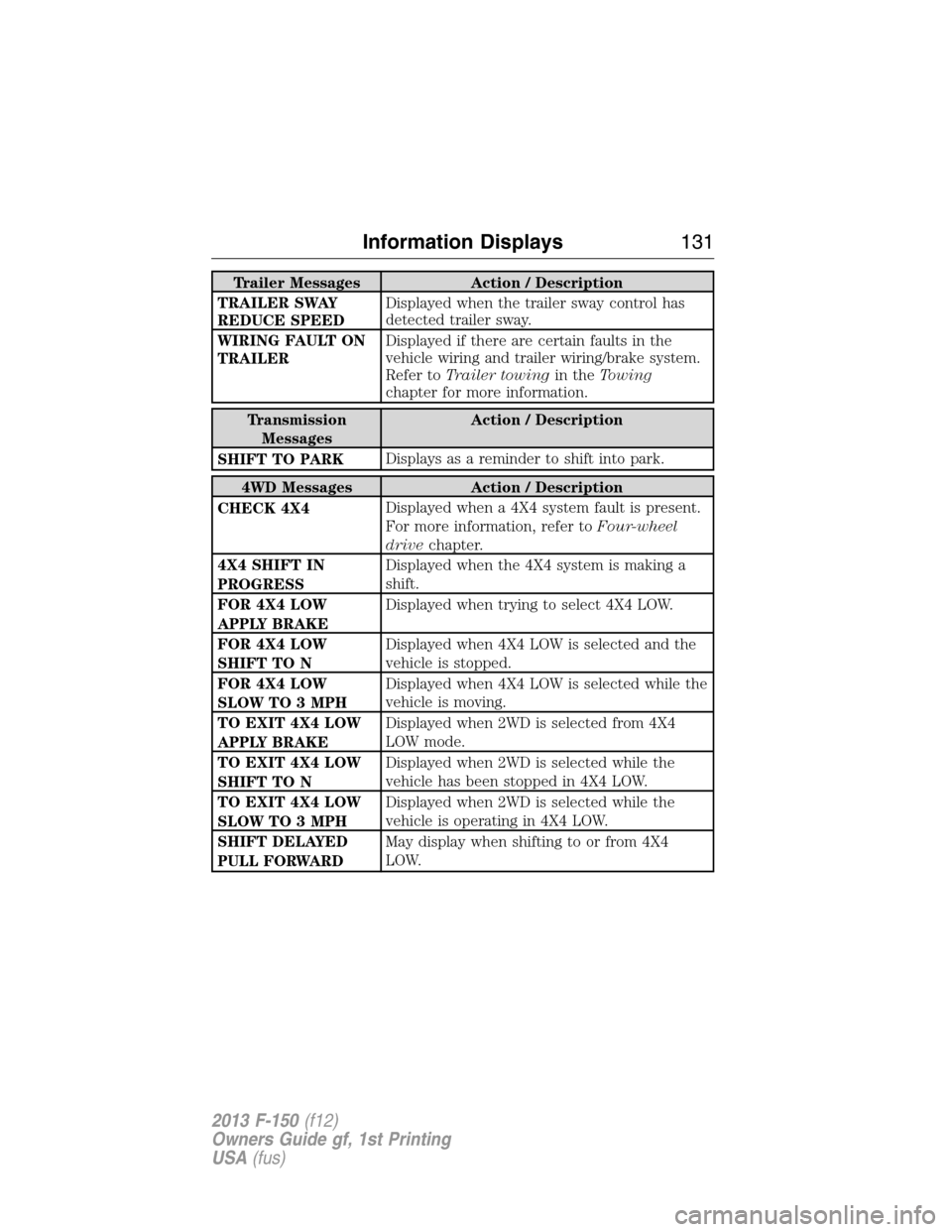

Trailer Messages Action / Description
TRAILER SWAY
REDUCE SPEEDDisplayed when the trailer sway control has
detected trailer sway.
WIRING FAULT ON
TRAILERDisplayed if there are certain faults in the
vehicle wiring and trailer wiring/brake system.
Refer toTrailer towingin theTowing
chapter for more information.
Transmission
MessagesAction / Description
SHIFT TO PARKDisplays as a reminder to shift into park.
4WD Messages Action / Description
CHECK 4X4Displayed when a 4X4 system fault is present.
For more information, refer toFour-wheel
drivechapter.
4X4 SHIFT IN
PROGRESSDisplayed when the 4X4 system is making a
shift.
FOR 4X4 LOW
APPLY BRAKEDisplayed when trying to select 4X4 LOW.
FOR 4X4 LOW
SHIFT TO NDisplayed when 4X4 LOW is selected and the
vehicle is stopped.
FOR 4X4 LOW
SLOW TO 3 MPHDisplayed when 4X4 LOW is selected while the
vehicle is moving.
TO EXIT 4X4 LOW
APPLY BRAKEDisplayed when 2WD is selected from 4X4
LOW mode.
TO EXIT 4X4 LOW
SHIFT TO NDisplayed when 2WD is selected while the
vehicle has been stopped in 4X4 LOW.
TO EXIT 4X4 LOW
SLOW TO 3 MPHDisplayed when 2WD is selected while the
vehicle is operating in 4X4 LOW.
SHIFT DELAYED
PULL FORWARDMay display when shifting to or from 4X4
LOW.
Information Displays131
2013 F-150(f12)
Owners Guide gf, 1st Printing
USA(fus)

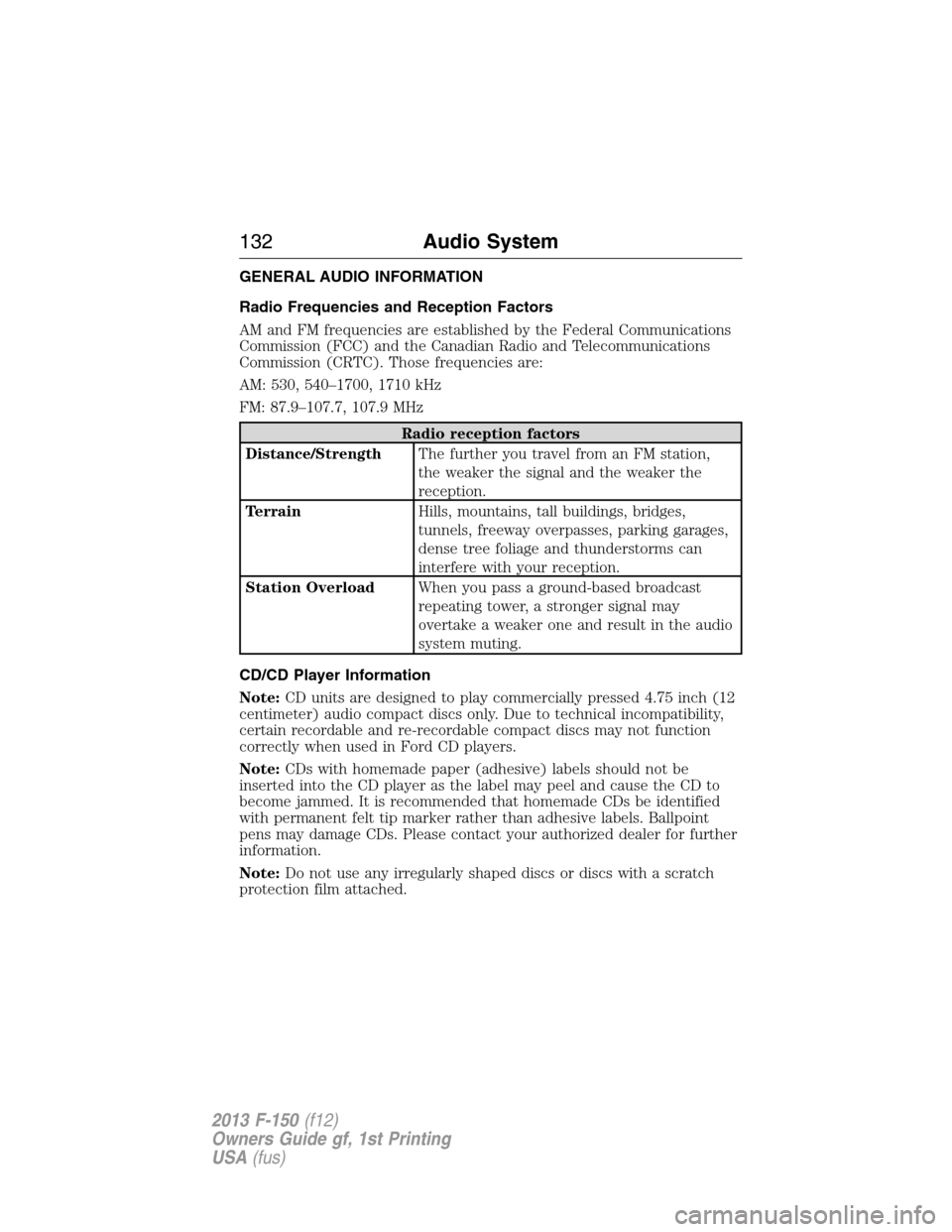

GENERAL AUDIO INFORMATION
Radio Frequencies and Reception Factors
AM and FM frequencies are established by the Federal Communications
Commission (FCC) and the Canadian Radio and Telecommunications
Commission (CRTC). Those frequencies are:
AM: 530, 540–1700, 1710 kHz
FM: 87.9–107.7, 107.9 MHz
Radio reception factors
Distance/StrengthThe further you travel from an FM station,
the weaker the signal and the weaker the
reception.
TerrainHills, mountains, tall buildings, bridges,
tunnels, freeway overpasses, parking garages,
dense tree foliage and thunderstorms can
interfere with your reception.
Station OverloadWhen you pass a ground-based broadcast
repeating tower, a stronger signal may
overtake a weaker one and result in the audio
system muting.
CD/CD Player Information
Note:CD units are designed to play commercially pressed 4.75 inch (12
centimeter) audio compact discs only. Due to technical incompatibility,
certain recordable and re-recordable compact discs may not function
correctly when used in Ford CD players.
Note:CDs with homemade paper (adhesive) labels should not be
inserted into the CD player as the label may peel and cause the CD to
become jammed. It is recommended that homemade CDs be identified
with permanent felt tip marker rather than adhesive labels. Ballpoint
pens may damage CDs. Please contact your authorized dealer for further
information.
Note:Do not use any irregularly shaped discs or discs with a scratch
protection film attached.
132Audio System
2013 F-150(f12)
Owners Guide gf, 1st Printing
USA(fus)

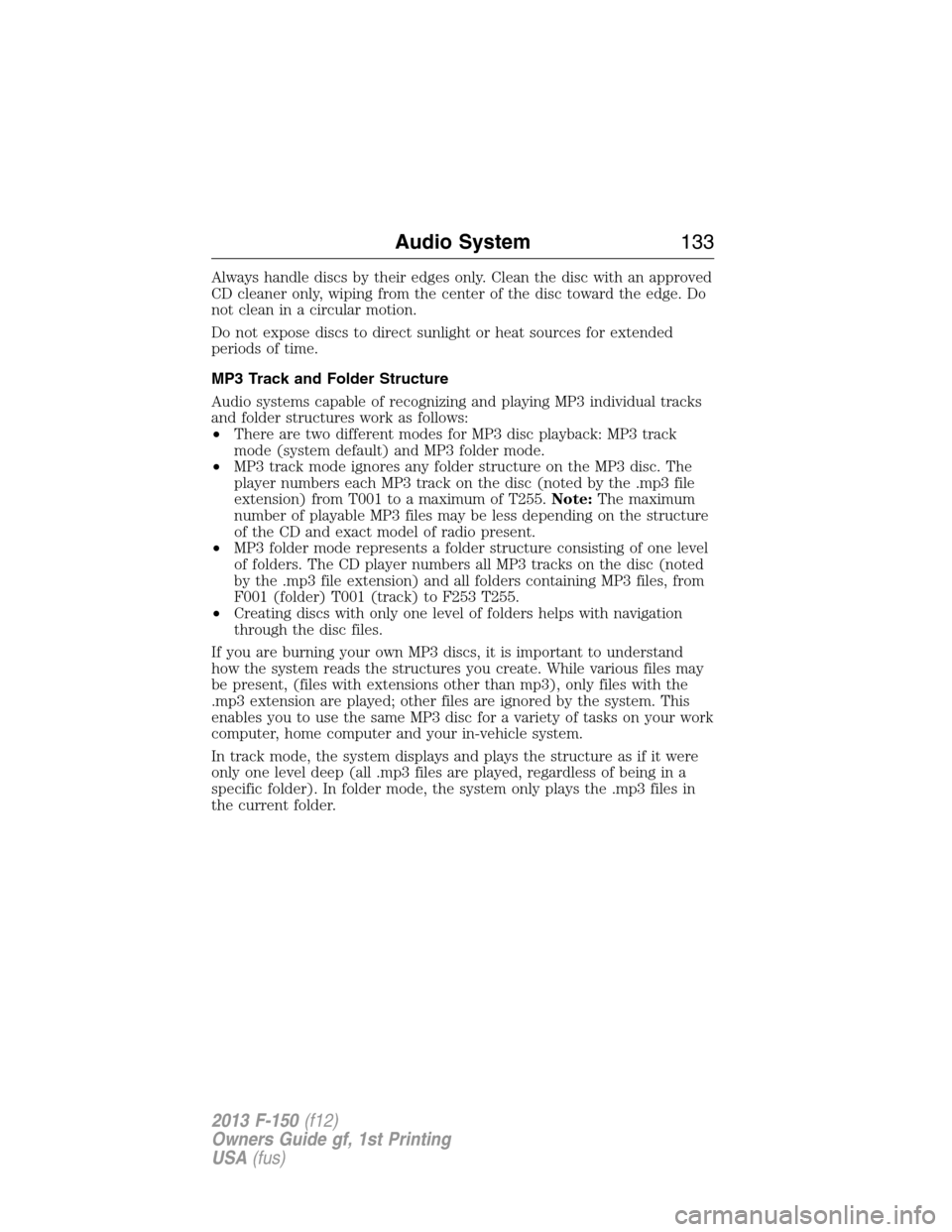

Always handle discs by their edges only. Clean the disc with an approved
CD cleaner only, wiping from the center of the disc toward the edge. Do
not clean in a circular motion.
Do not expose discs to direct sunlight or heat sources for extended
periods of time.
MP3 Track and Folder Structure
Audio systems capable of recognizing and playing MP3 individual tracks
and folder structures work as follows:
•There are two different modes for MP3 disc playback: MP3 track
mode (system default) and MP3 folder mode.
•MP3 track mode ignores any folder structure on the MP3 disc. The
player numbers each MP3 track on the disc (noted by the .mp3 file
extension) from T001 to a maximum of T255.Note:The maximum
number of playable MP3 files may be less depending on the structure
of the CD and exact model of radio present.
•MP3 folder mode represents a folder structure consisting of one level
of folders. The CD player numbers all MP3 tracks on the disc (noted
by the .mp3 file extension) and all folders containing MP3 files, from
F001 (folder) T001 (track) to F253 T255.
•Creating discs with only one level of folders helps with navigation
through the disc files.
If you are burning your own MP3 discs, it is important to understand
how the system reads the structures you create. While various files may
be present, (files with extensions other than mp3), only files with the
.mp3 extension are played; other files are ignored by the system. This
enables you to use the same MP3 disc for a variety of tasks on your work
computer, home computer and your in-vehicle system.
In track mode, the system displays and plays the structure as if it were
only one level deep (all .mp3 files are played, regardless of being in a
specific folder). In folder mode, the system only plays the .mp3 files in
the current folder.
Audio System133
2013 F-150(f12)
Owners Guide gf, 1st Printing
USA(fus)

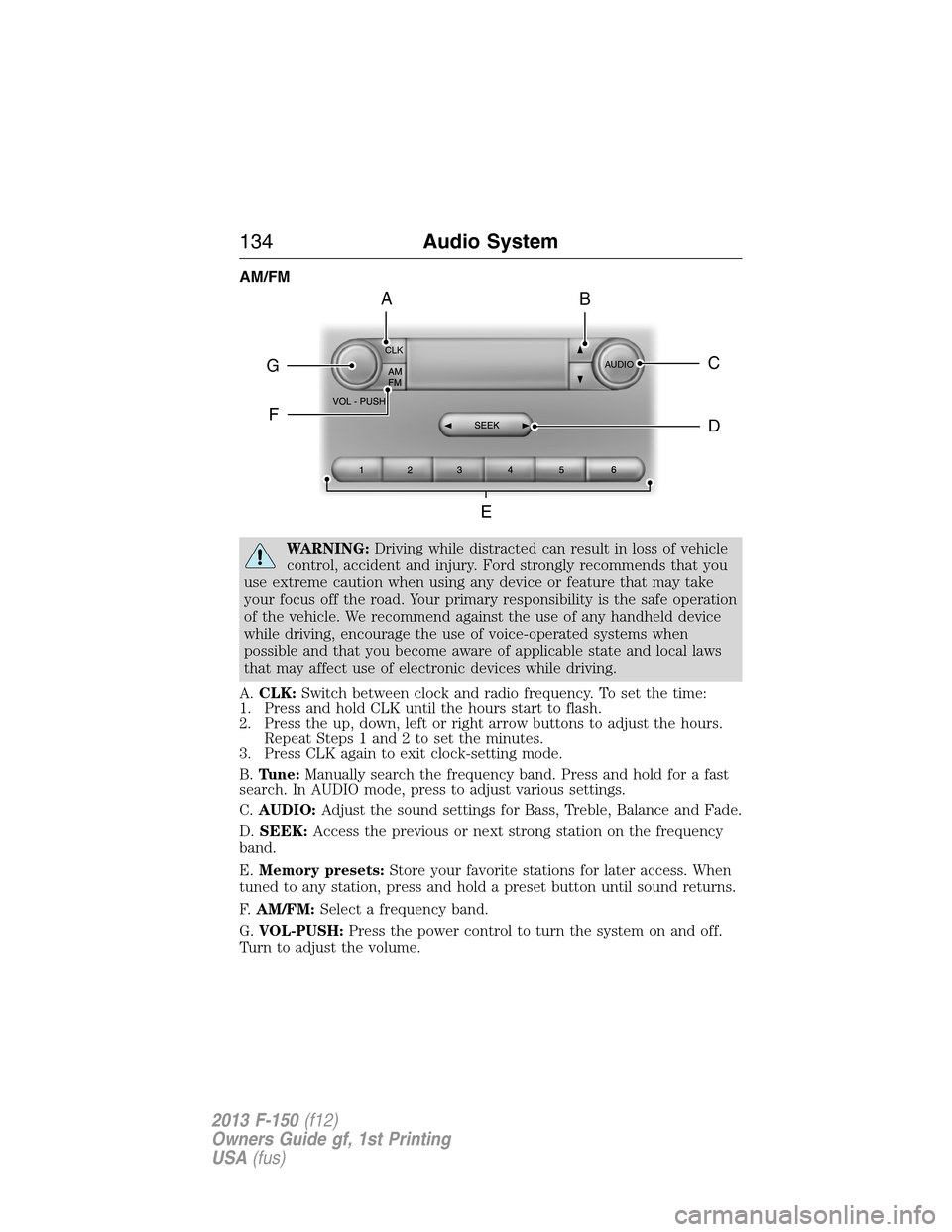

AM/FM
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that you
use extreme caution when using any device or feature that may take
your focus off the road. Your primary responsibility is the safe operation
of the vehicle. We recommend against the use of any handheld device
while driving, encourage the use of voice-operated systems when
possible and that you become aware of applicable state and local laws
that may affect use of electronic devices while driving.
A.CLK:Switch between clock and radio frequency. To set the time:
1. Press and hold CLK until the hours start to flash.
2. Press the up, down, left or right arrow buttons to adjust the hours.
Repeat Steps 1 and 2 to set the minutes.
3. Press CLK again to exit clock-setting mode.
B.Tune:Manually search the frequency band. Press and hold for a fast
search. In AUDIO mode, press to adjust various settings.
C.AUDIO:Adjust the sound settings for Bass, Treble, Balance and Fade.
D.SEEK:Access the previous or next strong station on the frequency
band.
E.Memory presets:Store your favorite stations for later access. When
tuned to any station, press and hold a preset button until sound returns.
F.AM/FM:Select a frequency band.
G.VOL-PUSH:Press the power control to turn the system on and off.
Turn to adjust the volume.
CLK
AUDIOC
EG
F
BA
D
134Audio System
2013 F-150(f12)
Owners Guide gf, 1st Printing
USA(fus)

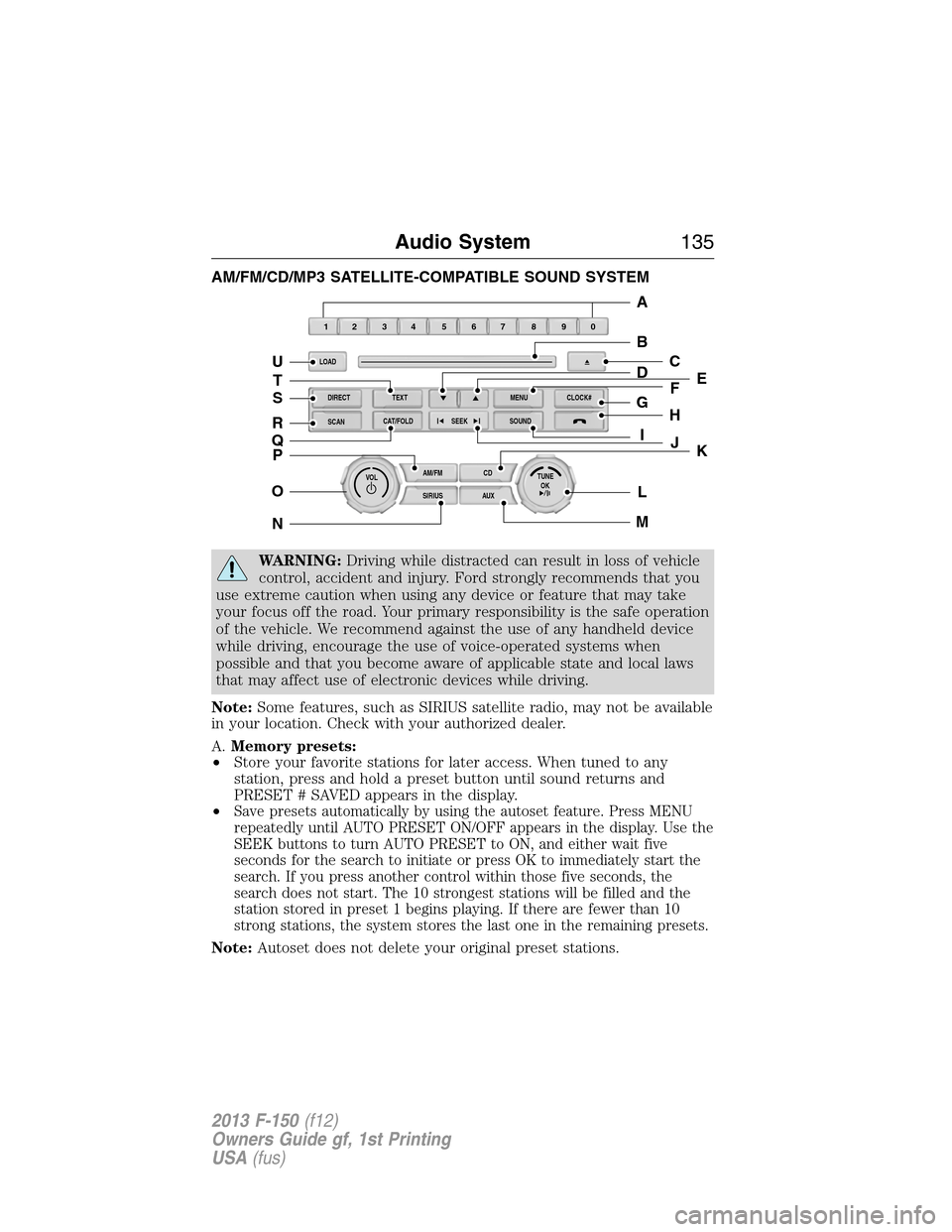

AM/FM/CD/MP3 SATELLITE-COMPATIBLE SOUND SYSTEM
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that you
use extreme caution when using any device or feature that may take
your focus off the road. Your primary responsibility is the safe operation
of the vehicle. We recommend against the use of any handheld device
while driving, encourage the use of voice-operated systems when
possible and that you become aware of applicable state and local laws
that may affect use of electronic devices while driving.
Note:Some features, such as SIRIUS satellite radio, may not be available
in your location. Check with your authorized dealer.
A.Memory presets:
•Store your favorite stations for later access. When tuned to any
station, press and hold a preset button until sound returns and
PRESET # SAVED appears in the display.
•
Save presets automatically by using the autoset feature. Press MENU
repeatedly until AUTO PRESET ON/OFF appears in the display. Use the
SEEK buttons to turn AUTO PRESET to ON, and either wait five
seconds for the search to initiate or press OK to immediately start the
search. If you press another control within those five seconds, the
search does not start. The 10 strongest stations will be filled and the
station stored in preset 1 begins playing. If there are fewer than 10
strong stations, the system stores the last one in the remaining presets.
Note:Autoset does not delete your original preset stations.
1
LOAD
DIRECT TEXT MENU CLOCK#
CAT/FOLD
VOLAM/FM
SIRIUS AUXCD
TUNE
OK SEEK SOUND
SCAN
234 567 890
P
O
N
A
C
E
K
F
H
J
B
D
G
I
L
M
T
U
S
R
Q
Audio System135
2013 F-150(f12)
Owners Guide gf, 1st Printing
USA(fus)

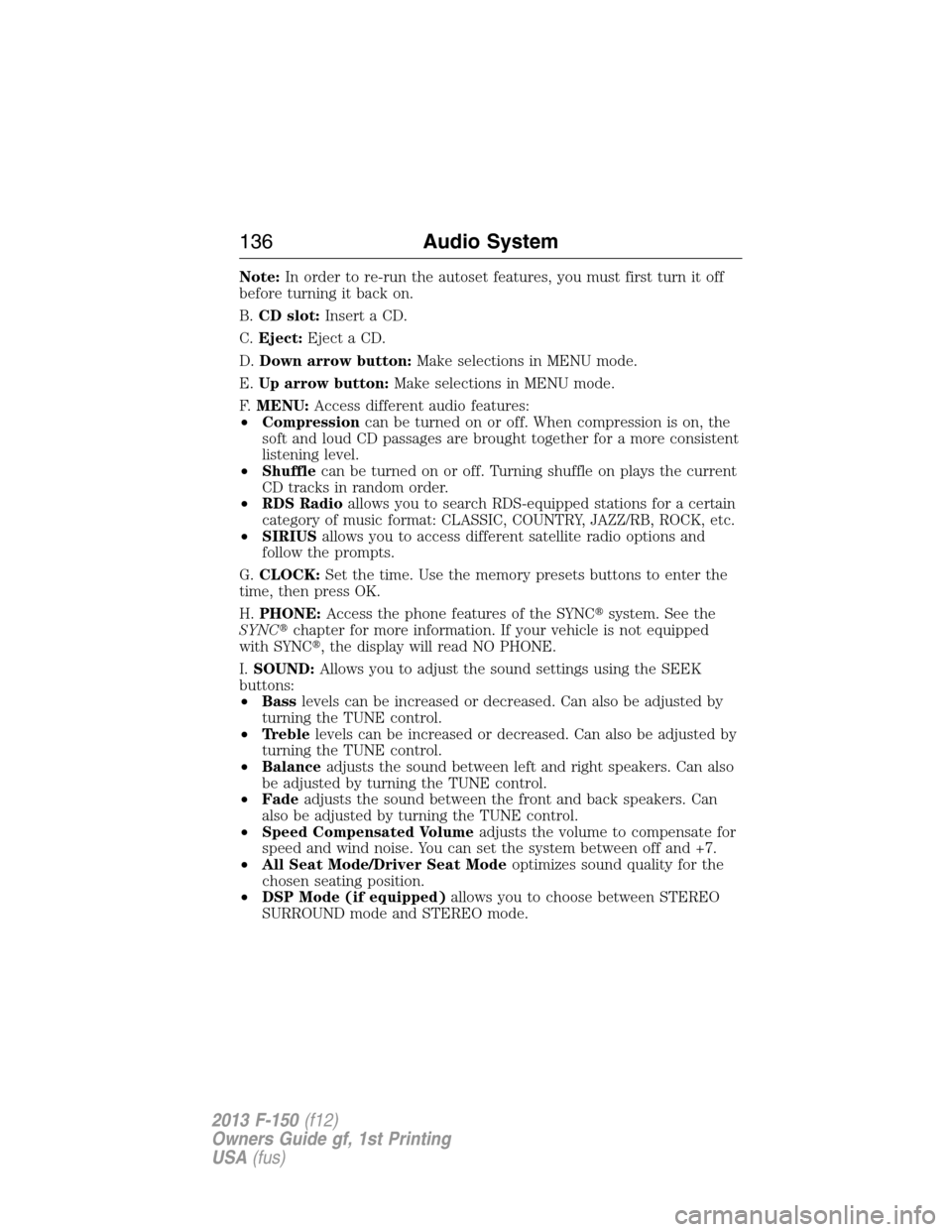

Note:In order to re-run the autoset features, you must first turn it off
before turning it back on.
B.CD slot:Insert a CD.
C.Eject:Eject a CD.
D.Down arrow button:Make selections in MENU mode.
E.Up arrow button:Make selections in MENU mode.
F.MENU:Access different audio features:
•Compressioncan be turned on or off. When compression is on, the
soft and loud CD passages are brought together for a more consistent
listening level.
•Shufflecan be turned on or off. Turning shuffle on plays the current
CD tracks in random order.
•RDS Radioallows you to search RDS-equipped stations for a certain
category of music format: CLASSIC, COUNTRY, JAZZ/RB, ROCK, etc.
•SIRIUSallows you to access different satellite radio options and
follow the prompts.
G.CLOCK:Set the time. Use the memory presets buttons to enter the
time, then press OK.
H.PHONE:Access the phone features of the SYNCsystem. See the
SYNCchapter for more information. If your vehicle is not equipped
with SYNC, the display will read NO PHONE.
I.SOUND:Allows you to adjust the sound settings using the SEEK
buttons:
•Basslevels can be increased or decreased. Can also be adjusted by
turning the TUNE control.
•Treblelevels can be increased or decreased. Can also be adjusted by
turning the TUNE control.
•Balanceadjusts the sound between left and right speakers. Can also
be adjusted by turning the TUNE control.
•Fadeadjusts the sound between the front and back speakers. Can
also be adjusted by turning the TUNE control.
•Speed Compensated Volumeadjusts the volume to compensate for
speed and wind noise. You can set the system between off and +7.
•All Seat Mode/Driver Seat Modeoptimizes sound quality for the
chosen seating position.
•DSP Mode (if equipped)allows you to choose between STEREO
SURROUND mode and STEREO mode.
136Audio System
2013 F-150(f12)
Owners Guide gf, 1st Printing
USA(fus)

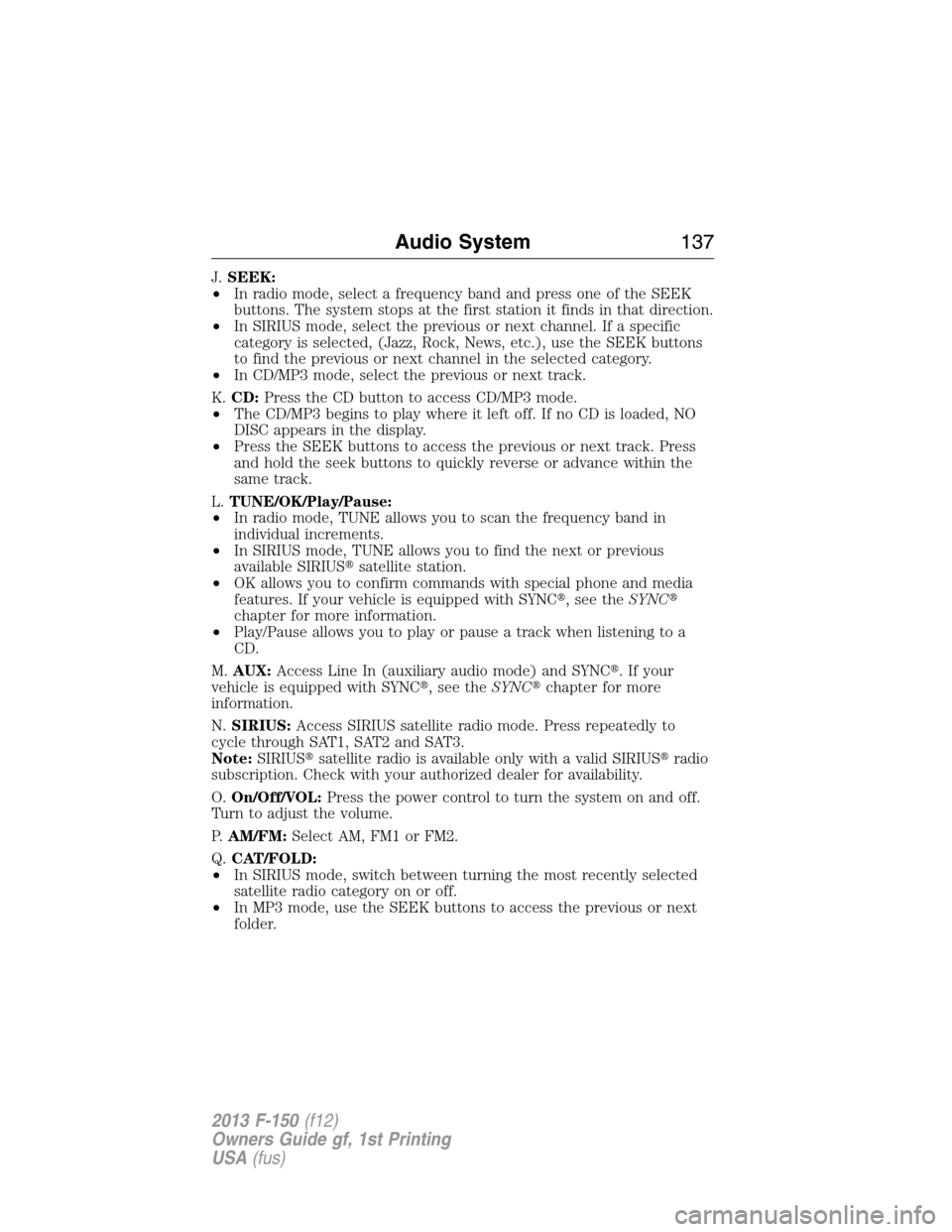

J.SEEK:
•In radio mode, select a frequency band and press one of the SEEK
buttons. The system stops at the first station it finds in that direction.
•In SIRIUS mode, select the previous or next channel. If a specific
category is selected, (Jazz, Rock, News, etc.), use the SEEK buttons
to find the previous or next channel in the selected category.
•In CD/MP3 mode, select the previous or next track.
K.CD:Press the CD button to access CD/MP3 mode.
•The CD/MP3 begins to play where it left off. If no CD is loaded, NO
DISC appears in the display.
•Press the SEEK buttons to access the previous or next track. Press
and hold the seek buttons to quickly reverse or advance within the
same track.
L.TUNE/OK/Play/Pause:
•In radio mode, TUNE allows you to scan the frequency band in
individual increments.
•In SIRIUS mode, TUNE allows you to find the next or previous
available SIRIUSsatellite station.
•OK allows you to confirm commands with special phone and media
features. If your vehicle is equipped with SYNC, see theSYNC
chapter for more information.
•Play/Pause allows you to play or pause a track when listening to a
CD.
M.AUX:Access Line In (auxiliary audio mode) and SYNC. If your
vehicle is equipped with SYNC, see theSYNCchapter for more
information.
N.SIRIUS:Access SIRIUS satellite radio mode. Press repeatedly to
cycle through SAT1, SAT2 and SAT3.
Note:SIRIUSsatellite radio is available only with a valid SIRIUSradio
subscription. Check with your authorized dealer for availability.
O.On/Off/VOL:Press the power control to turn the system on and off.
Turn to adjust the volume.
P.AM/FM:Select AM, FM1 or FM2.
Q.CAT/FOLD:
•In SIRIUS mode, switch between turning the most recently selected
satellite radio category on or off.
•In MP3 mode, use the SEEK buttons to access the previous or next
folder.
Audio System137
2013 F-150(f12)
Owners Guide gf, 1st Printing
USA(fus)

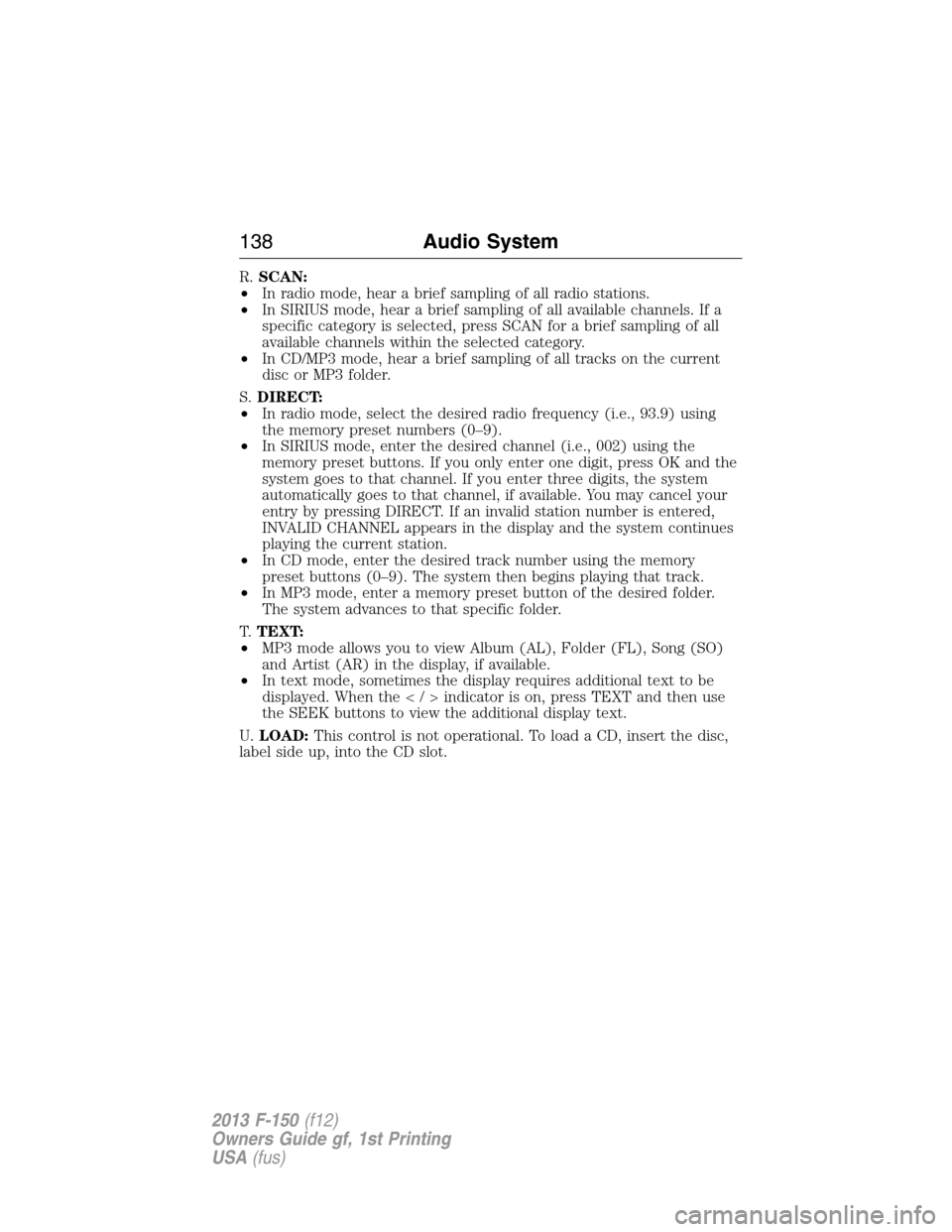

R.SCAN:
•In radio mode, hear a brief sampling of all radio stations.
•In SIRIUS mode, hear a brief sampling of all available channels. If a
specific category is selected, press SCAN for a brief sampling of all
available channels within the selected category.
•In CD/MP3 mode, hear a brief sampling of all tracks on the current
disc or MP3 folder.
S.DIRECT:
•In radio mode, select the desired radio frequency (i.e., 93.9) using
the memory preset numbers (0–9).
•In SIRIUS mode, enter the desired channel (i.e., 002) using the
memory preset buttons. If you only enter one digit, press OK and the
system goes to that channel. If you enter three digits, the system
automatically goes to that channel, if available. You may cancel your
entry by pressing DIRECT. If an invalid station number is entered,
INVALID CHANNEL appears in the display and the system continues
playing the current station.
•In CD mode, enter the desired track number using the memory
preset buttons (0–9). The system then begins playing that track.
•In MP3 mode, enter a memory preset button of the desired folder.
The system advances to that specific folder.
T.TEXT:
•MP3 mode allows you to view Album (AL), Folder (FL), Song (SO)
and Artist (AR) in the display, if available.
•In text mode, sometimes the display requires additional text to be
displayed. When theindicatorison,pressTEXT and then use
the SEEK buttons to view the additional display text.
U.LOAD:This control is not operational. To load a CD, insert the disc,
label side up, into the CD slot.
138Audio System
2013 F-150(f12)
Owners Guide gf, 1st Printing
USA(fus)

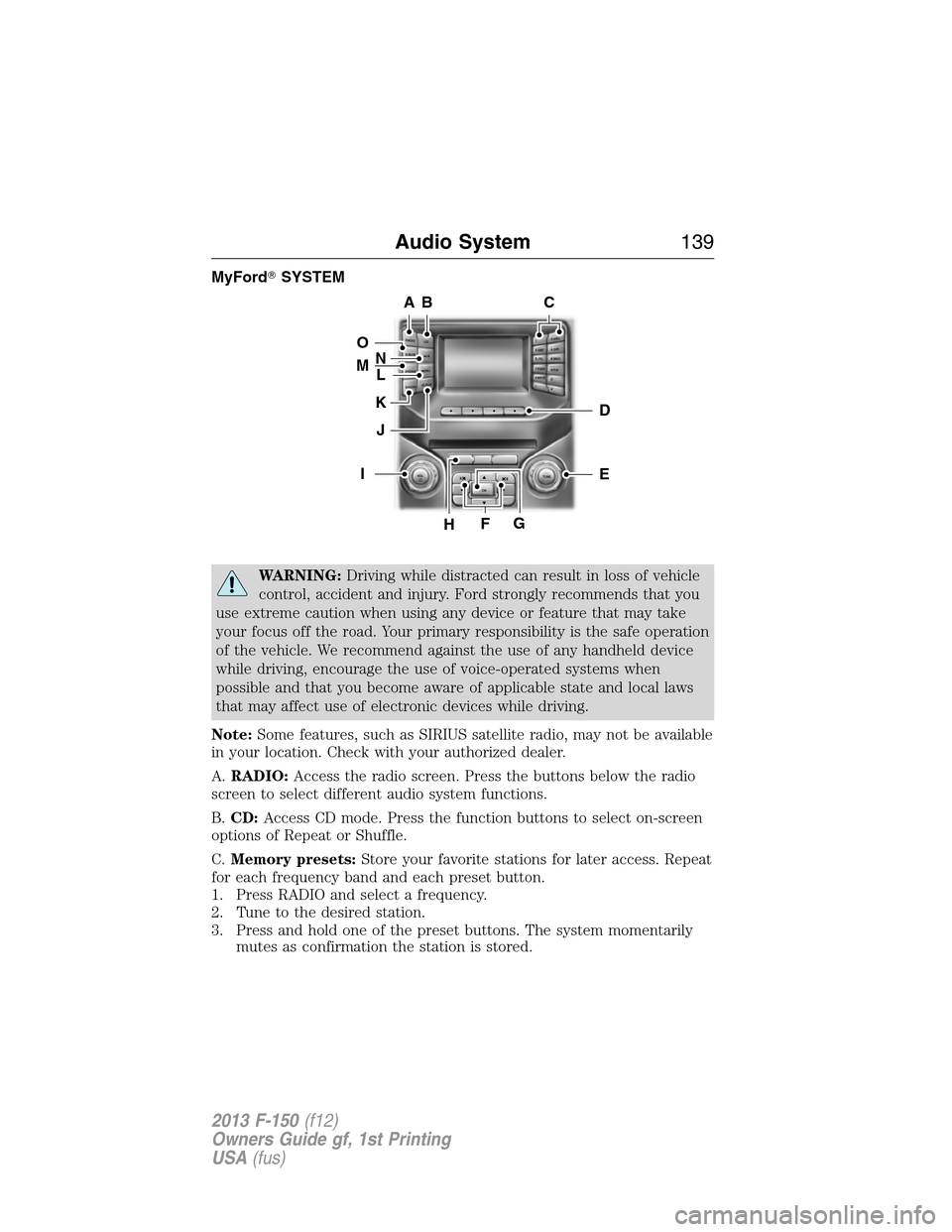

MyFordSYSTEM
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that you
use extreme caution when using any device or feature that may take
your focus off the road. Your primary responsibility is the safe operation
of the vehicle. We recommend against the use of any handheld device
while driving, encourage the use of voice-operated systems when
possible and that you become aware of applicable state and local laws
that may affect use of electronic devices while driving.
Note:Some features, such as SIRIUS satellite radio, may not be available
in your location. Check with your authorized dealer.
A.RADIO:Access the radio screen. Press the buttons below the radio
screen to select different audio system functions.
B.CD:Access CD mode. Press the function buttons to select on-screen
options of Repeat or Shuffle.
C.Memory presets:Store your favorite stations for later access. Repeat
for each frequency band and each preset button.
1. Press RADIO and select a frequency.
2. Tune to the desired station.
3. Press and hold one of the preset buttons. The system momentarily
mutes as confirmation the station is stored.
R
A
D
I
OSIRIUS
PHONE
SOUND
CD1
3 DEF
5 JKL
7

P
Q
R
S
9

W
X
Y
Z
*
2

A
B
C4

G
H
I6 MNO8

T
U
V
0
#
AUXMENUC
L
O
C
K
OKTUNE VOL
N
A
D
EI
O
H
BC
GF L
K
J
M
Audio System139
2013 F-150(f12)
Owners Guide gf, 1st Printing
USA(fus)

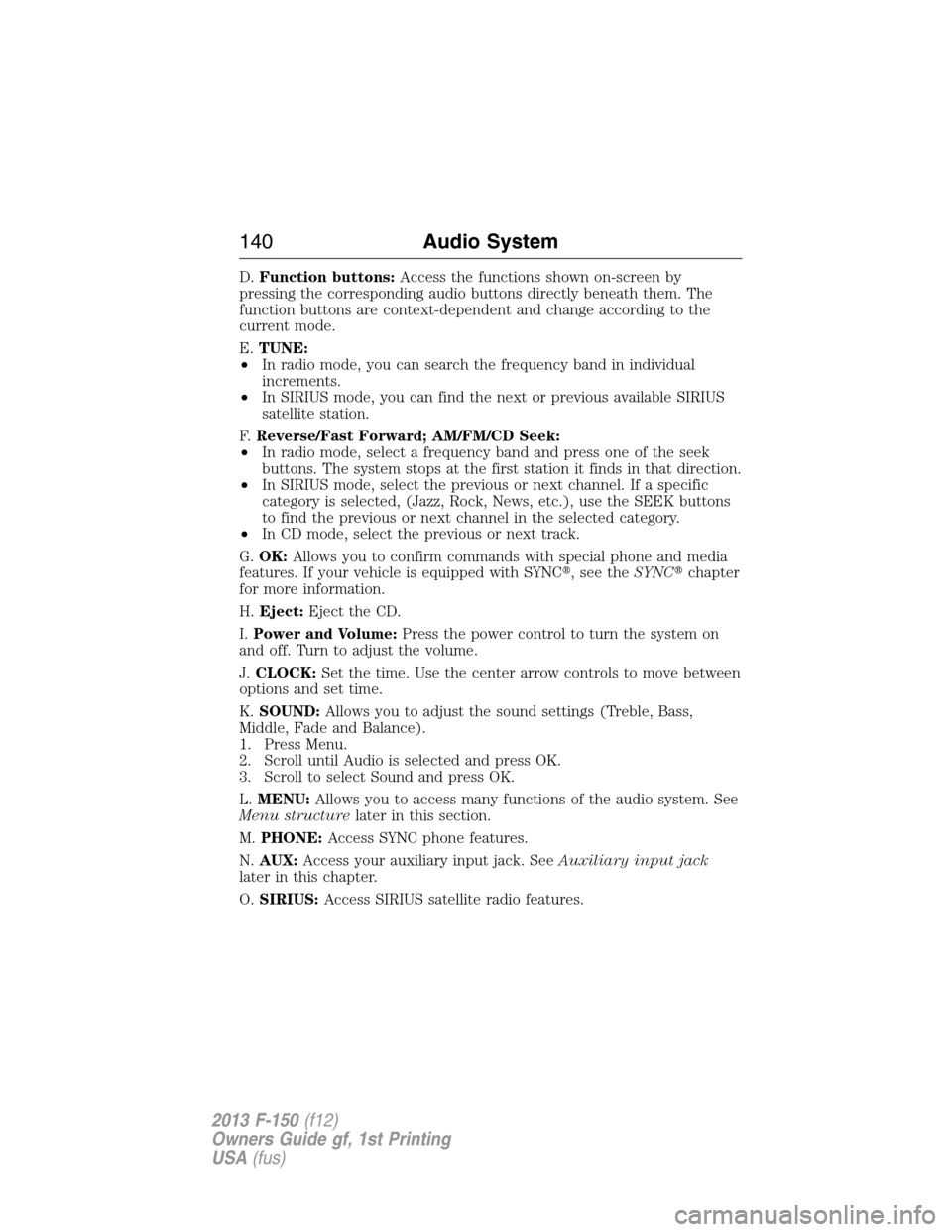

D.Function buttons:Access the functions shown on-screen by
pressing the corresponding audio buttons directly beneath them. The
function buttons are context-dependent and change according to the
current mode.
E.TUNE:
•In radio mode, you can search the frequency band in individual
increments.
•In SIRIUS mode, you can find the next or previous available SIRIUS
satellite station.
F.Reverse/Fast Forward; AM/FM/CD Seek:
•In radio mode, select a frequency band and press one of the seek
buttons. The system stops at the first station it finds in that direction.
•In SIRIUS mode, select the previous or next channel. If a specific
category is selected, (Jazz, Rock, News, etc.), use the SEEK buttons
to find the previous or next channel in the selected category.
•In CD mode, select the previous or next track.
G.OK:Allows you to confirm commands with special phone and media
features. If your vehicle is equipped with SYNC, see theSYNCchapter
for more information.
H.Eject:Eject the CD.
I.Power and Volume:Press the power control to turn the system on
and off. Turn to adjust the volume.
J.CLOCK:Set the time. Use the center arrow controls to move between
options and set time.
K.SOUND:Allows you to adjust the sound settings (Treble, Bass,
Middle, Fade and Balance).
1. Press Menu.
2. Scroll until Audio is selected and press OK.
3. Scroll to select Sound and press OK.
L.MENU:Allows you to access many functions of the audio system. See
Menu structurelater in this section.
M.PHONE:Access SYNC phone features.
N.AUX:Access your auxiliary input jack. SeeAuxiliary input jack
later in this chapter.
O.SIRIUS:Access SIRIUS satellite radio features.
140Audio System
2013 F-150(f12)
Owners Guide gf, 1st Printing
USA(fus)
