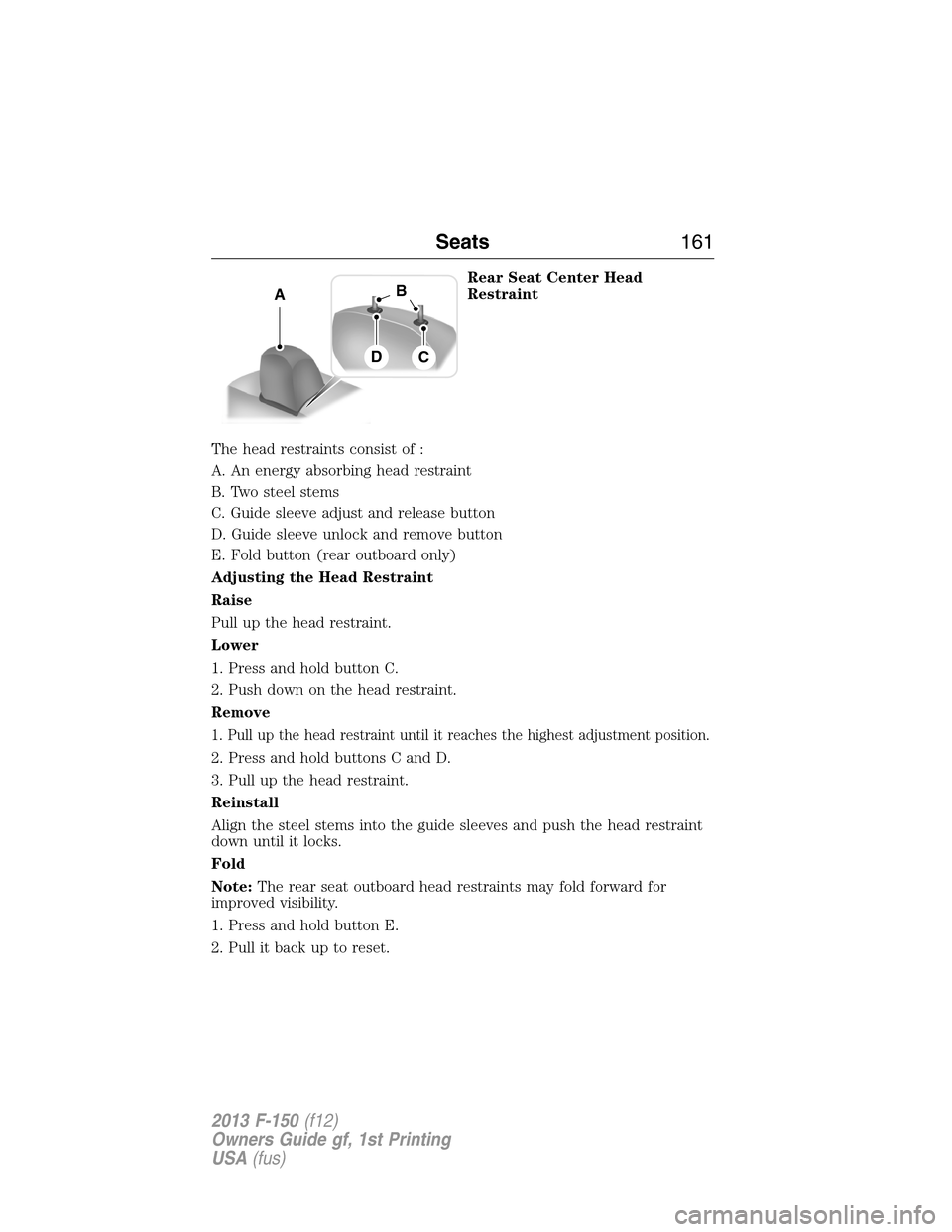

Rear Seat Center Head
Restraint
The head restraints consist of :
A. An energy absorbing head restraint
B. Two steel stems
C. Guide sleeve adjust and release button
D. Guide sleeve unlock and remove button
E. Fold button (rear outboard only)
Adjusting the Head Restraint
Raise
Pull up the head restraint.
Lower
1. Press and hold button C.
2. Push down on the head restraint.
Remove
1. Pull up the head restraint until it reaches the highest adjustment position.
2. Press and hold buttons C and D.
3. Pull up the head restraint.
Reinstall
Align the steel stems into the guide sleeves and push the head restraint
down until it locks.
Fold
Note:The rear seat outboard head restraints may fold forward for
improved visibility.
1. Press and hold button E.
2. Pull it back up to reset.
A
DC
B
Seats161
2013 F-150(f12)
Owners Guide gf, 1st Printing
USA(fus)

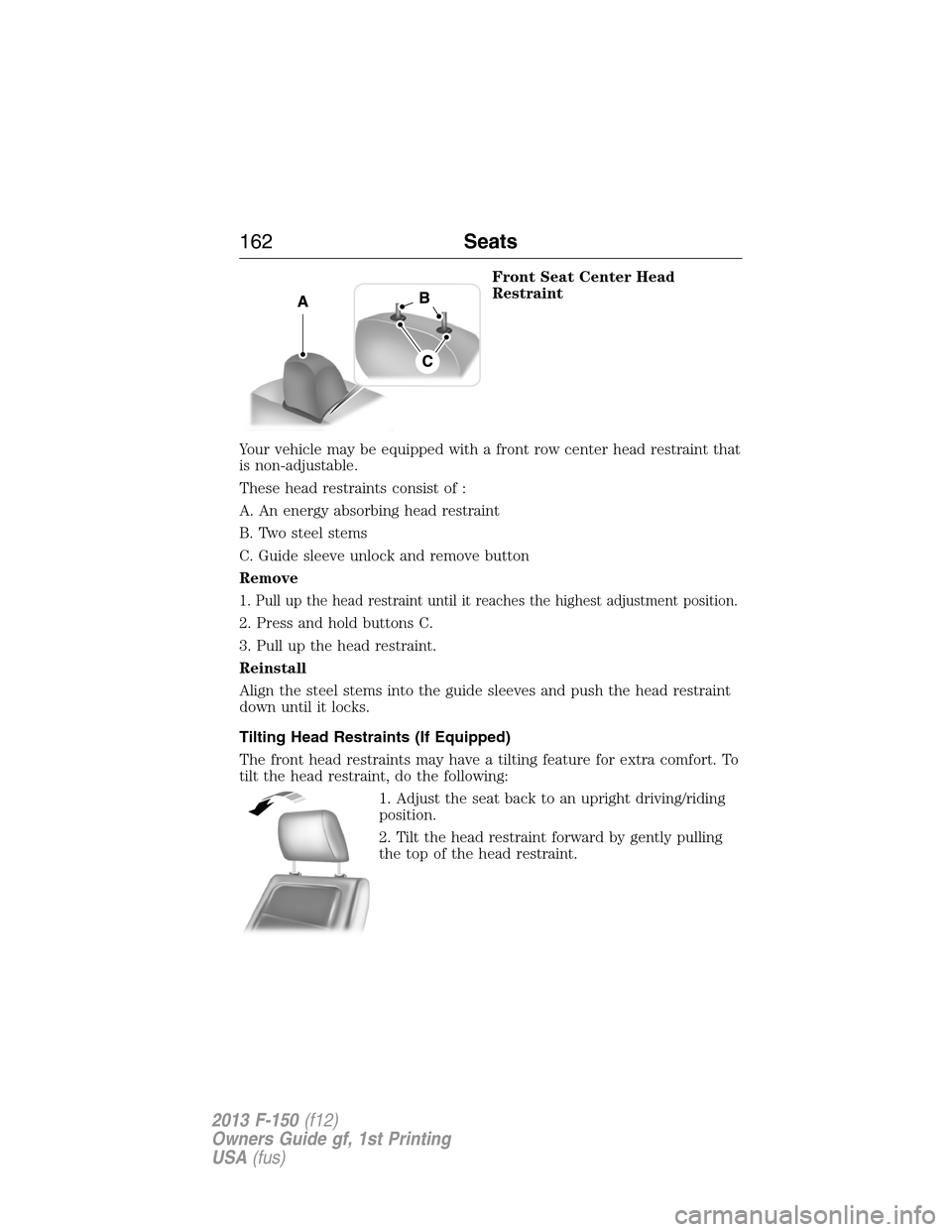

Front Seat Center Head
Restraint
Your vehicle may be equipped with a front row center head restraint that
is non-adjustable.
These head restraints consist of :
A. An energy absorbing head restraint
B. Two steel stems
C. Guide sleeve unlock and remove button
Remove
1. Pull up the head restraint until it reaches the highest adjustment position.
2. Press and hold buttons C.
3. Pull up the head restraint.
Reinstall
Align the steel stems into the guide sleeves and push the head restraint
down until it locks.
Tilting Head Restraints (If Equipped)
The front head restraints may have a tilting feature for extra comfort. To
tilt the head restraint, do the following:
1. Adjust the seat back to an upright driving/riding
position.
2. Tilt the head restraint forward by gently pulling
the top of the head restraint.
162Seats
2013 F-150(f12)
Owners Guide gf, 1st Printing
USA(fus)

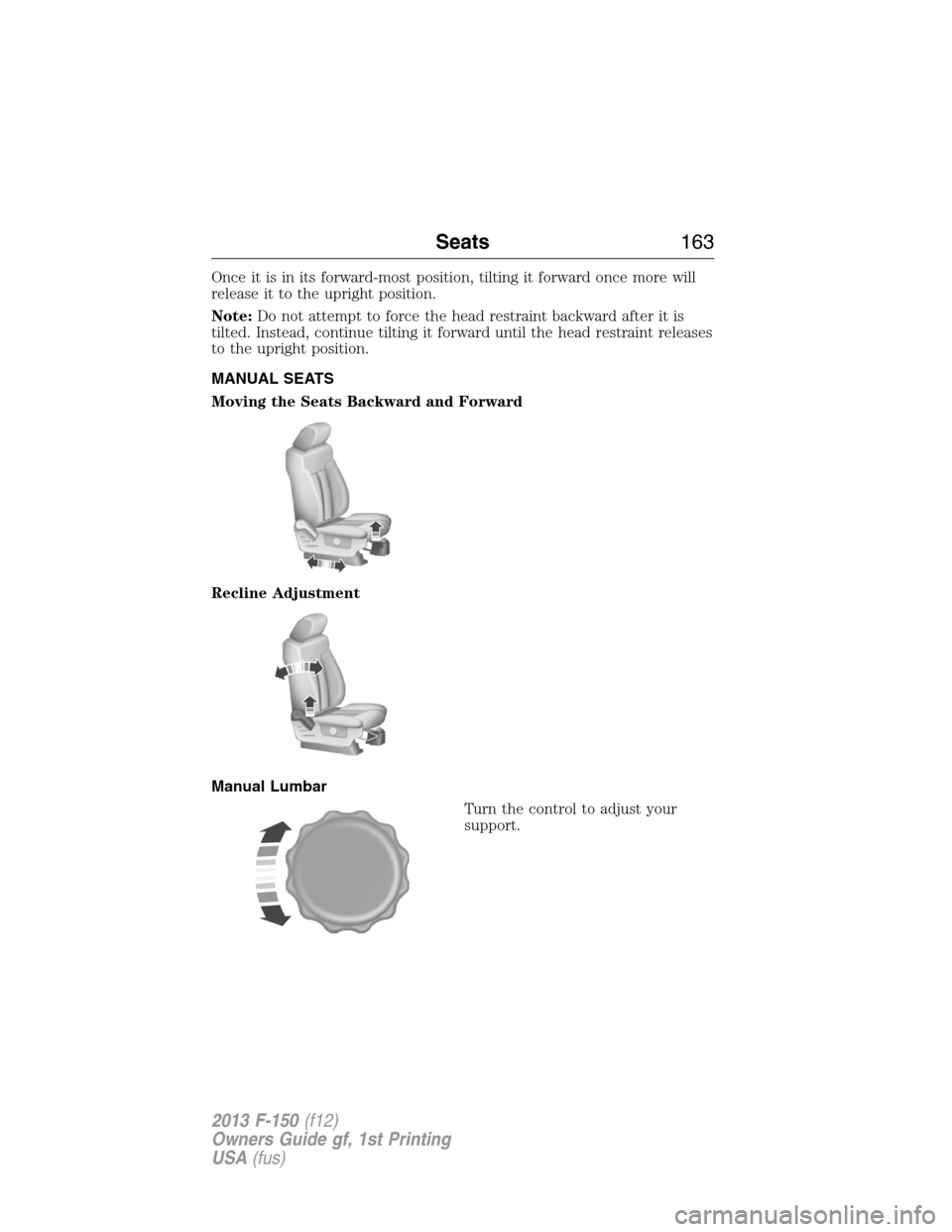

Once it is in its forward-most position, tilting it forward once more will
release it to the upright position.
Note:Do not attempt to force the head restraint backward after it is
tilted. Instead, continue tilting it forward until the head restraint releases
to the upright position.
MANUAL SEATS
Moving the Seats Backward and Forward
Recline Adjustment
Manual Lumbar
Turn the control to adjust your
support.
Seats163
2013 F-150(f12)
Owners Guide gf, 1st Printing
USA(fus)

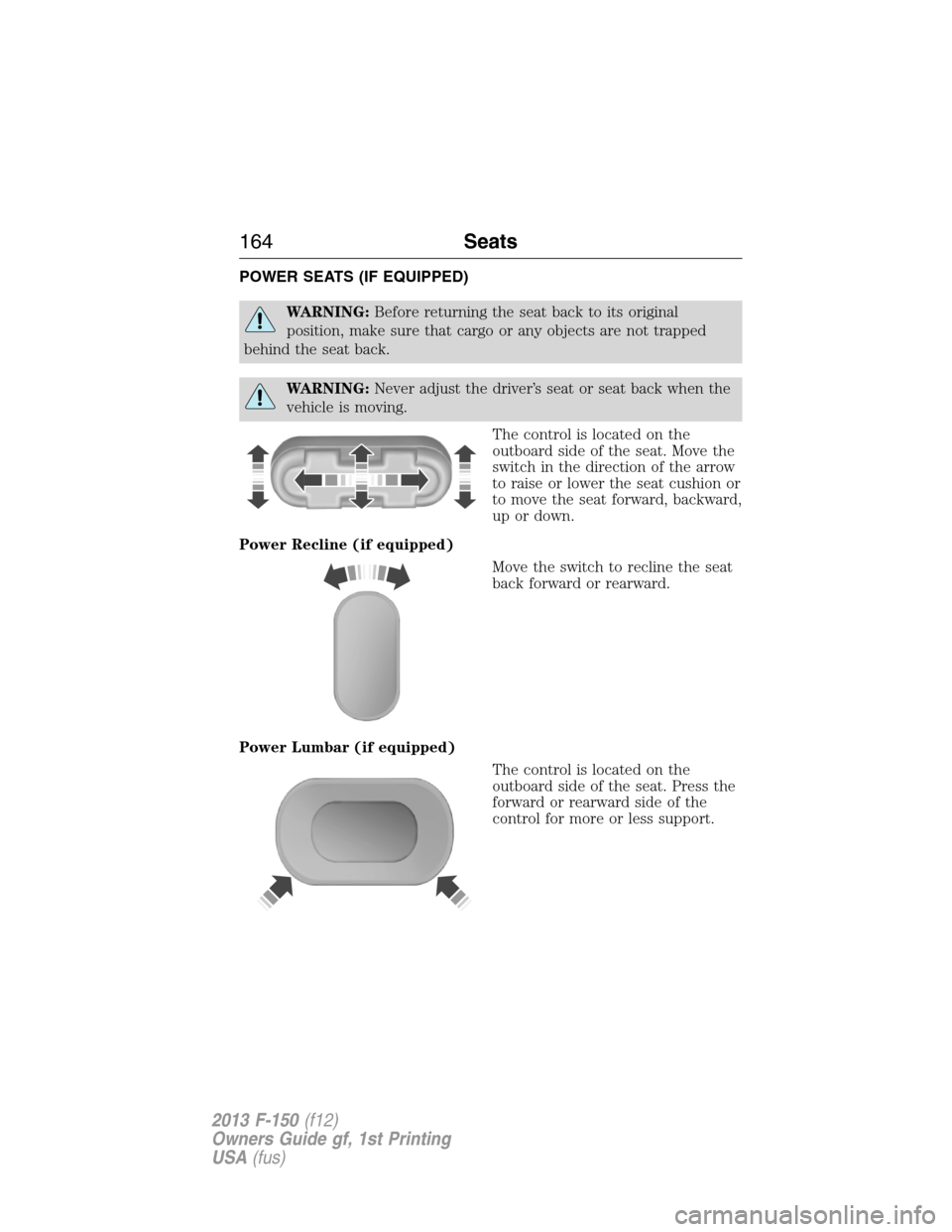

POWER SEATS (IF EQUIPPED)
WARNING:Before returning the seat back to its original
position, make sure that cargo or any objects are not trapped
behind the seat back.
WARNING:Never adjust the driver’s seat or seat back when the
vehicle is moving.
The control is located on the
outboard side of the seat. Move the
switch in the direction of the arrow
to raise or lower the seat cushion or
to move the seat forward, backward,
up or down.
Power Recline (if equipped)
Move the switch to recline the seat
back forward or rearward.
Power Lumbar (if equipped)
The control is located on the
outboard side of the seat. Press the
forward or rearward side of the
control for more or less support.
164Seats
2013 F-150(f12)
Owners Guide gf, 1st Printing
USA(fus)

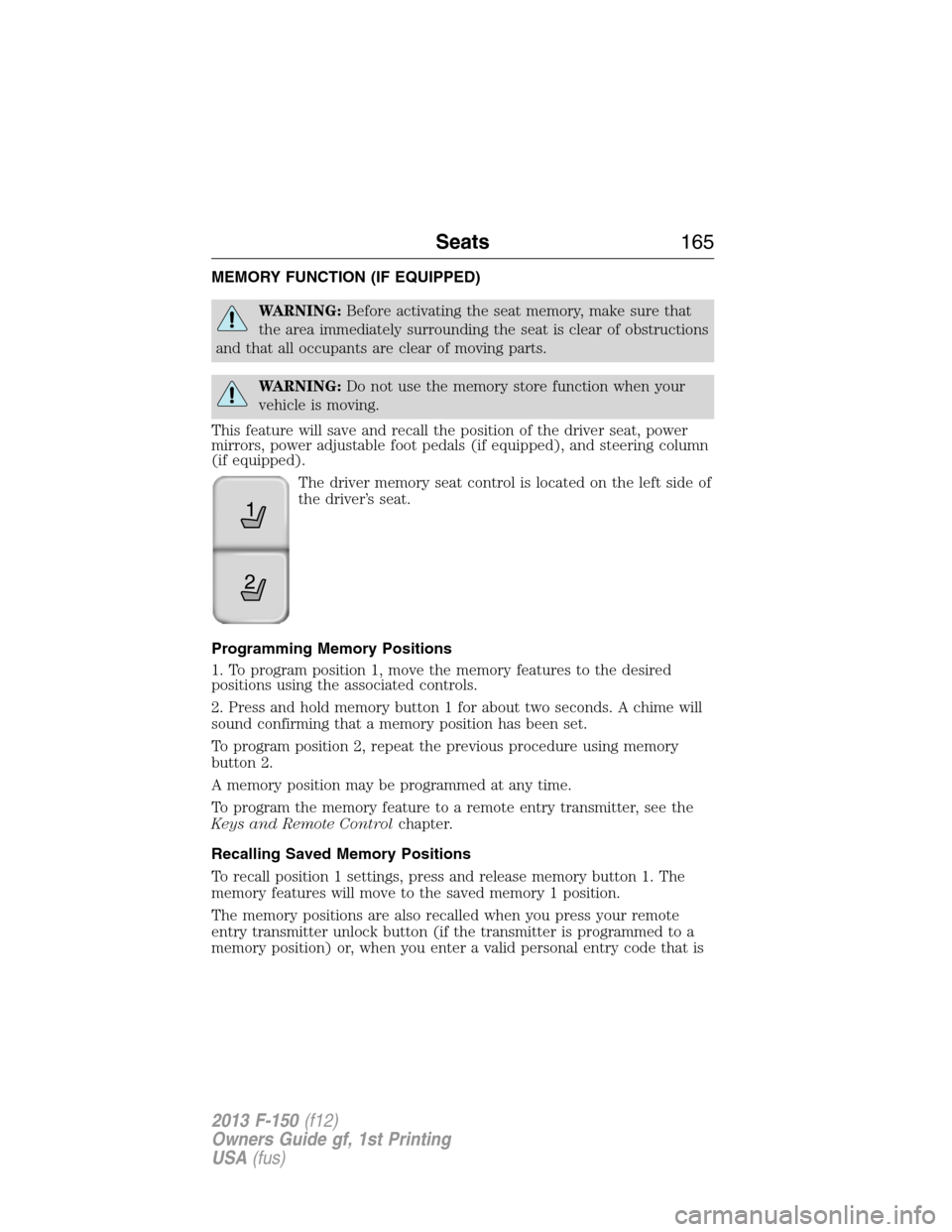

MEMORY FUNCTION (IF EQUIPPED)
WARNING:Before activating the seat memory, make sure that
the area immediately surrounding the seat is clear of obstructions
and that all occupants are clear of moving parts.
WARNING:Do not use the memory store function when your
vehicle is moving.
This feature will save and recall the position of the driver seat, power
mirrors, power adjustable foot pedals (if equipped), and steering column
(if equipped).
The driver memory seat control is located on the left side of
the driver’s seat.
Programming Memory Positions
1. To program position 1, move the memory features to the desired
positions using the associated controls.
2. Press and hold memory button 1 for about two seconds. A chime will
sound confirming that a memory position has been set.
To program position 2, repeat the previous procedure using memory
button 2.
A memory position may be programmed at any time.
To program the memory feature to a remote entry transmitter, see the
Keys and Remote Controlchapter.
Recalling Saved Memory Positions
To recall position 1 settings, press and release memory button 1. The
memory features will move to the saved memory 1 position.
The memory positions are also recalled when you press your remote
entry transmitter unlock button (if the transmitter is programmed to a
memory position) or, when you enter a valid personal entry code that is
21
Seats165
2013 F-150(f12)
Owners Guide gf, 1st Printing
USA(fus)

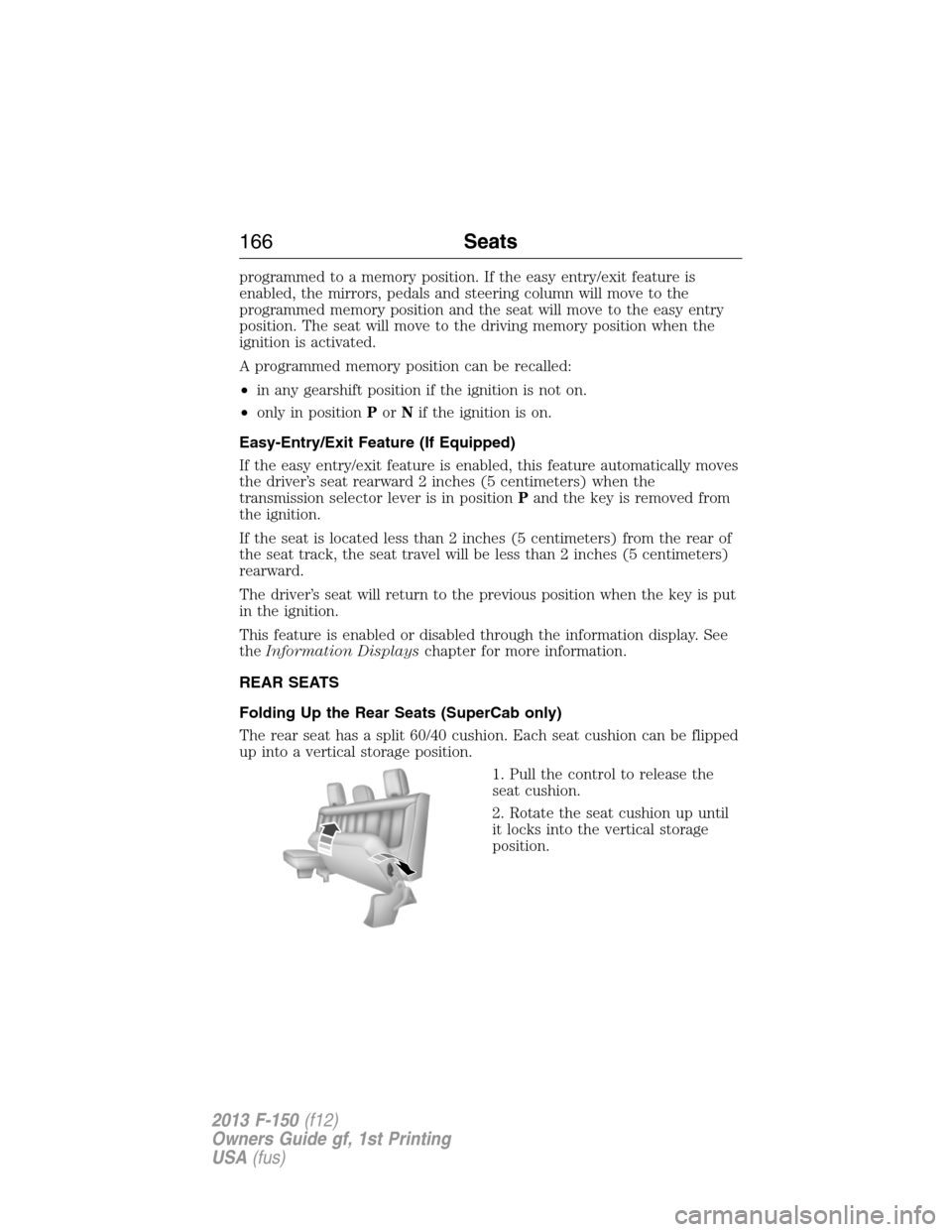

programmed to a memory position. If the easy entry/exit feature is
enabled, the mirrors, pedals and steering column will move to the
programmed memory position and the seat will move to the easy entry
position. The seat will move to the driving memory position when the
ignition is activated.
A programmed memory position can be recalled:
•in any gearshift position if the ignition is not on.
•only in positionPorNif the ignition is on.
Easy-Entry/Exit Feature (If Equipped)
If the easy entry/exit feature is enabled, this feature automatically moves
the driver’s seat rearward 2 inches (5 centimeters) when the
transmission selector lever is in positionPand the key is removed from
the ignition.
If the seat is located less than 2 inches (5 centimeters) from the rear of
the seat track, the seat travel will be less than 2 inches (5 centimeters)
rearward.
The driver’s seat will return to the previous position when the key is put
in the ignition.
This feature is enabled or disabled through the information display. See
theInformation Displayschapter for more information.
REAR SEATS
Folding Up the Rear Seats (SuperCab only)
The rear seat has a split 60/40 cushion. Each seat cushion can be flipped
up into a vertical storage position.
1. Pull the control to release the
seat cushion.
2. Rotate the seat cushion up until
it locks into the vertical storage
position.
166Seats
2013 F-150(f12)
Owners Guide gf, 1st Printing
USA(fus)

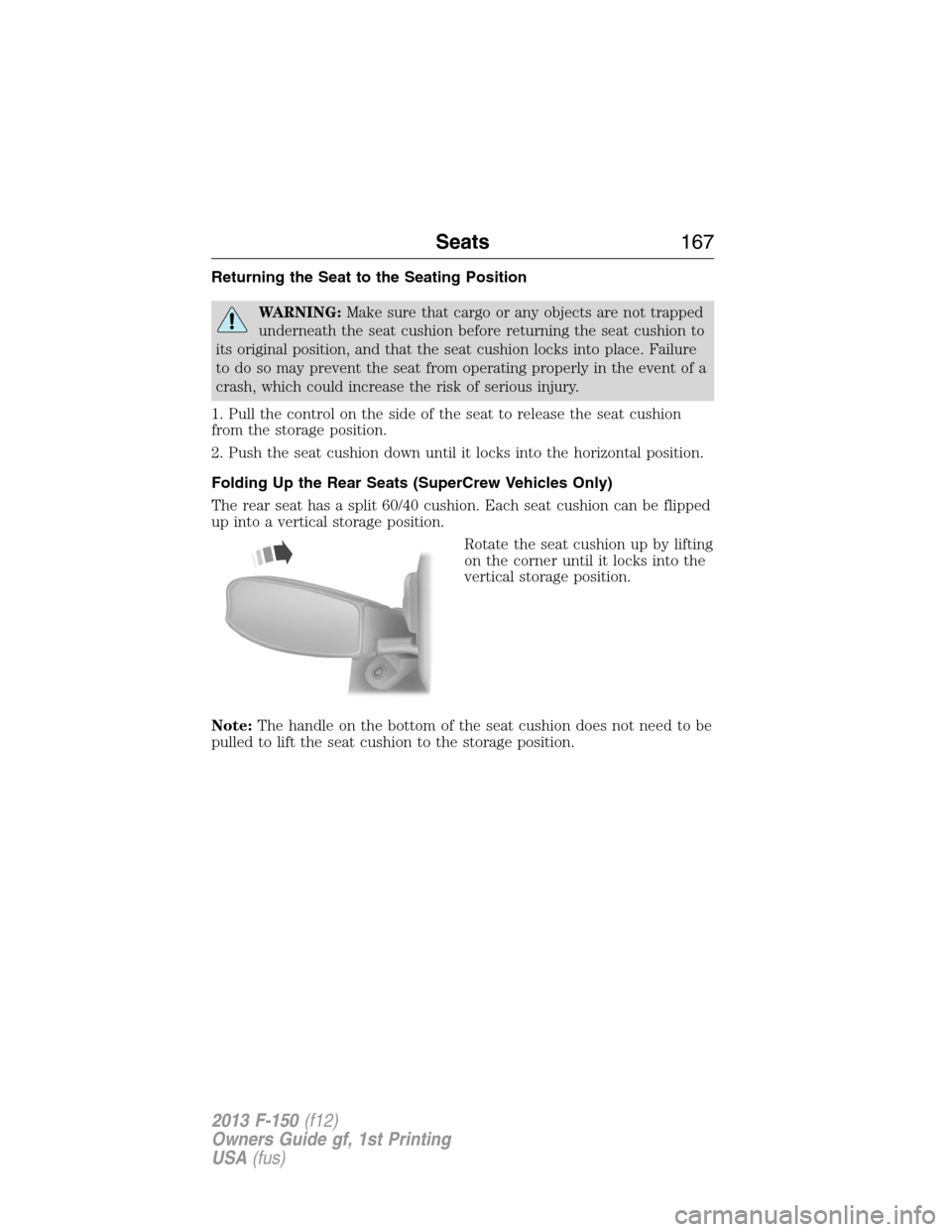

Returning the Seat to the Seating Position
WARNING:Make sure that cargo or any objects are not trapped
underneath the seat cushion before returning the seat cushion to
its original position, and that the seat cushion locks into place. Failure
to do so may prevent the seat from operating properly in the event of a
crash, which could increase the risk of serious injury.
1. Pull the control on the side of the seat to release the seat cushion
from the storage position.
2. Push the seat cushion down until it locks into the horizontal position.
Folding Up the Rear Seats (SuperCrew Vehicles Only)
The rear seat has a split 60/40 cushion. Each seat cushion can be flipped
up into a vertical storage position.
Rotate the seat cushion up by lifting
on the corner until it locks into the
vertical storage position.
Note:The handle on the bottom of the seat cushion does not need to be
pulled to lift the seat cushion to the storage position.
Seats167
2013 F-150(f12)
Owners Guide gf, 1st Printing
USA(fus)

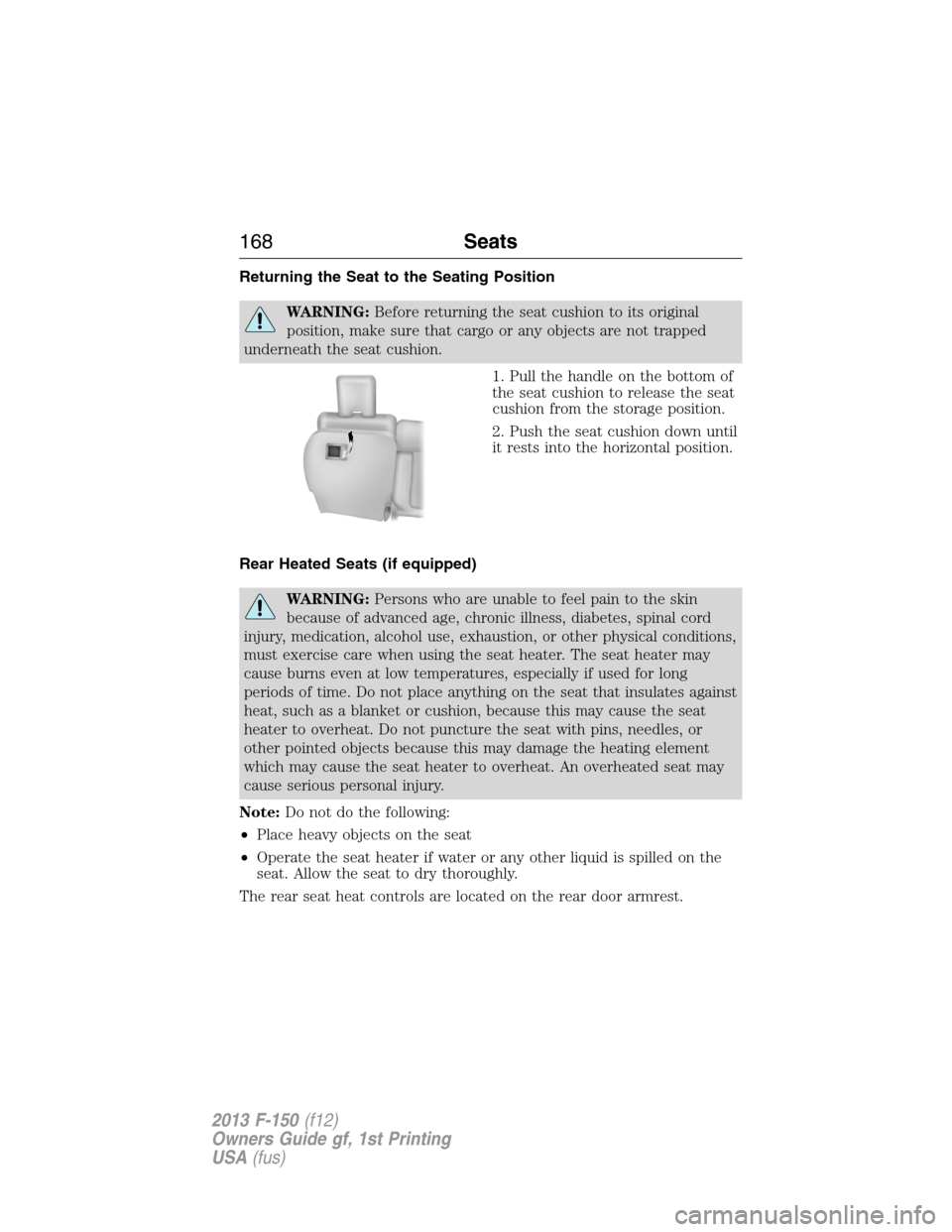

Returning the Seat to the Seating Position
WARNING:Before returning the seat cushion to its original
position, make sure that cargo or any objects are not trapped
underneath the seat cushion.
1. Pull the handle on the bottom of
the seat cushion to release the seat
cushion from the storage position.
2. Push the seat cushion down until
it rests into the horizontal position.
Rear Heated Seats (if equipped)
WARNING:Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes, spinal cord
injury, medication, alcohol use, exhaustion, or other physical conditions,
must exercise care when using the seat heater. The seat heater may
cause burns even at low temperatures, especially if used for long
periods of time. Do not place anything on the seat that insulates against
heat, such as a blanket or cushion, because this may cause the seat
heater to overheat. Do not puncture the seat with pins, needles, or
other pointed objects because this may damage the heating element
which may cause the seat heater to overheat. An overheated seat may
cause serious personal injury.
Note:Do not do the following:
•Place heavy objects on the seat
•Operate the seat heater if water or any other liquid is spilled on the
seat. Allow the seat to dry thoroughly.
The rear seat heat controls are located on the rear door armrest.
168Seats
2013 F-150(f12)
Owners Guide gf, 1st Printing
USA(fus)

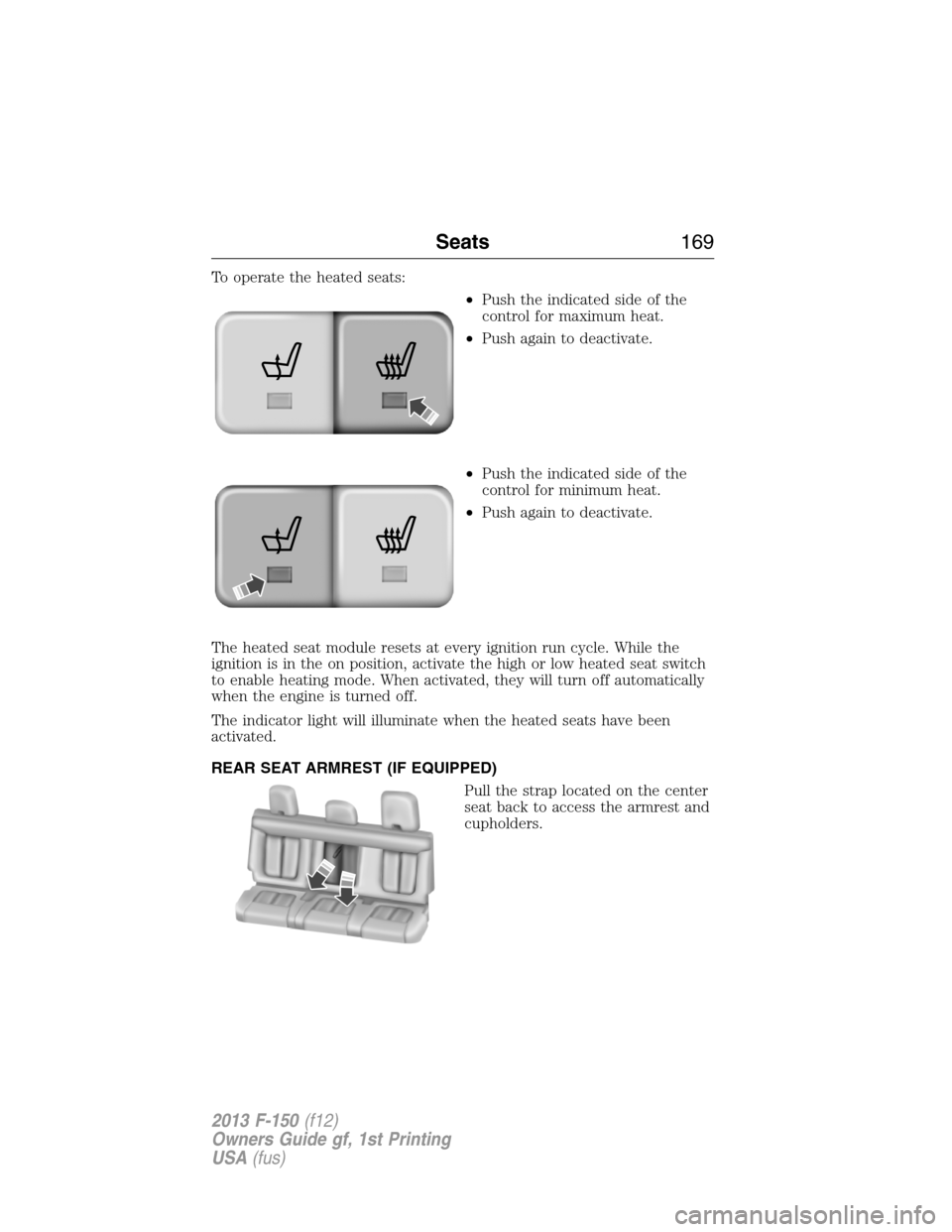

To operate the heated seats:
•Push the indicated side of the
control for maximum heat.
•Push again to deactivate.
•Push the indicated side of the
control for minimum heat.
•Push again to deactivate.
The heated seat module resets at every ignition run cycle. While the
ignition is in the on position, activate the high or low heated seat switch
to enable heating mode. When activated, they will turn off automatically
when the engine is turned off.
The indicator light will illuminate when the heated seats have been
activated.
REAR SEAT ARMREST (IF EQUIPPED)
Pull the strap located on the center
seat back to access the armrest and
cupholders.
Seats169
2013 F-150(f12)
Owners Guide gf, 1st Printing
USA(fus)

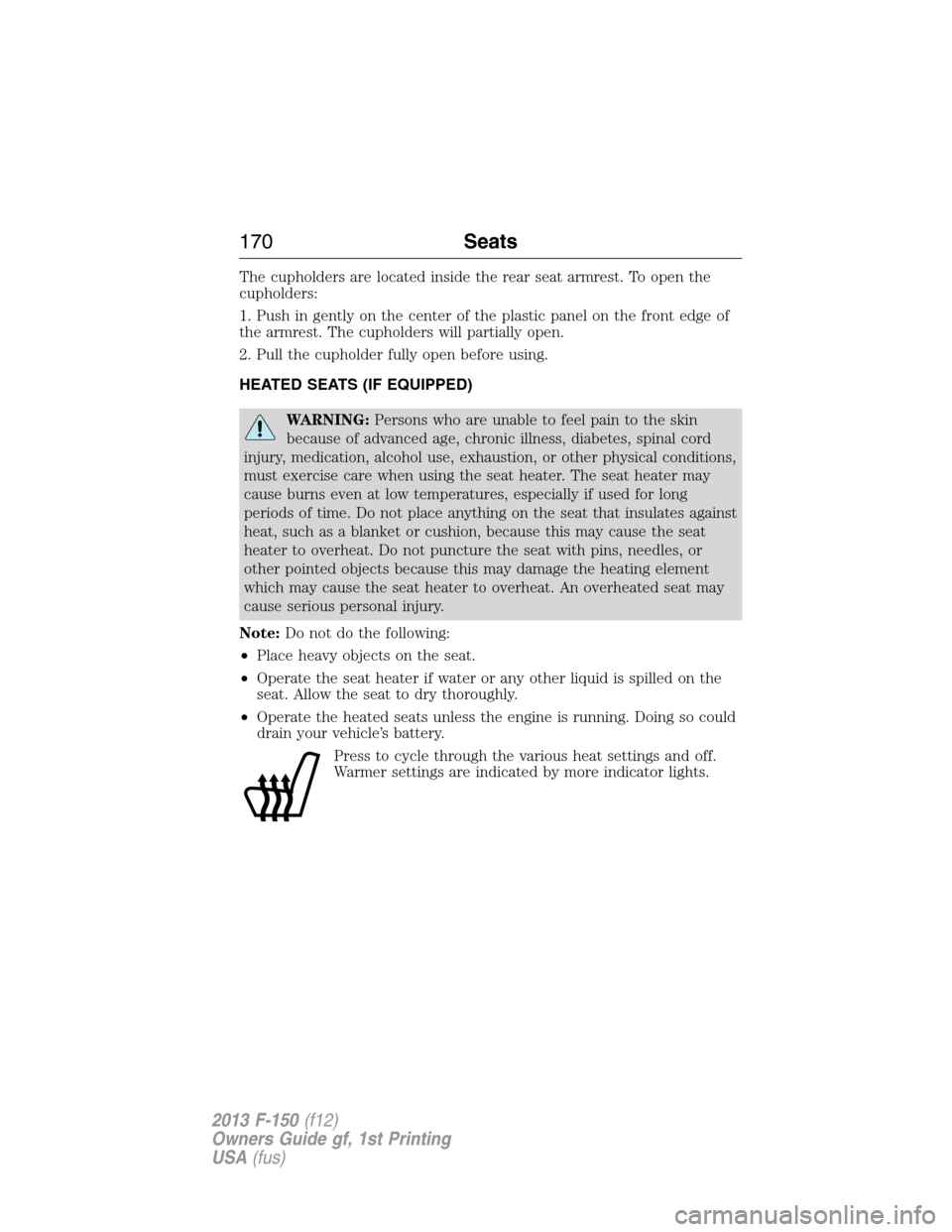

The cupholders are located inside the rear seat armrest. To open the
cupholders:
1. Push in gently on the center of the plastic panel on the front edge of
the armrest. The cupholders will partially open.
2. Pull the cupholder fully open before using.
HEATED SEATS (IF EQUIPPED)
WARNING:Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes, spinal cord
injury, medication, alcohol use, exhaustion, or other physical conditions,
must exercise care when using the seat heater. The seat heater may
cause burns even at low temperatures, especially if used for long
periods of time. Do not place anything on the seat that insulates against
heat, such as a blanket or cushion, because this may cause the seat
heater to overheat. Do not puncture the seat with pins, needles, or
other pointed objects because this may damage the heating element
which may cause the seat heater to overheat. An overheated seat may
cause serious personal injury.
Note:Do not do the following:
•Place heavy objects on the seat.
•Operate the seat heater if water or any other liquid is spilled on the
seat. Allow the seat to dry thoroughly.
•Operate the heated seats unless the engine is running. Doing so could
drain your vehicle’s battery.
Press to cycle through the various heat settings and off.
Warmer settings are indicated by more indicator lights.
