Page 171 of 272

FORD F650 2006 11.G Owners Manual non-asbestos, fiberglass, mineral wool, aramid or carbon) may be a
potentially serious health hazard.
Avoid breathing brake lining fiber dust as it may be extremely
hazardous to your health. Always us

Page 172 of 272

FORD F650 2006 11.G Owners Manual interval to determine if adjustment is necessary. Brake chamber push
rods on original equipment chambers now incorporate a stroke indicator
to aid in adjustment checks; an orange paint marker near the

Page 173 of 272

FORD F650 2006 11.G Owners Manual Air brakes - desiccant air dryer
Inspect for moisture in the air system by opening reservoirs, drain cocks
or valves and checking for presence of water. The presence of small
amounts of water due to c

Page 174 of 272

FORD F650 2006 11.G Owners Manual power steering fluid and hydraulic brake fluid. Failure to observe
precautions preventing the contamination of either system with fluid
from the other will result in swelling and deterioration of rubb

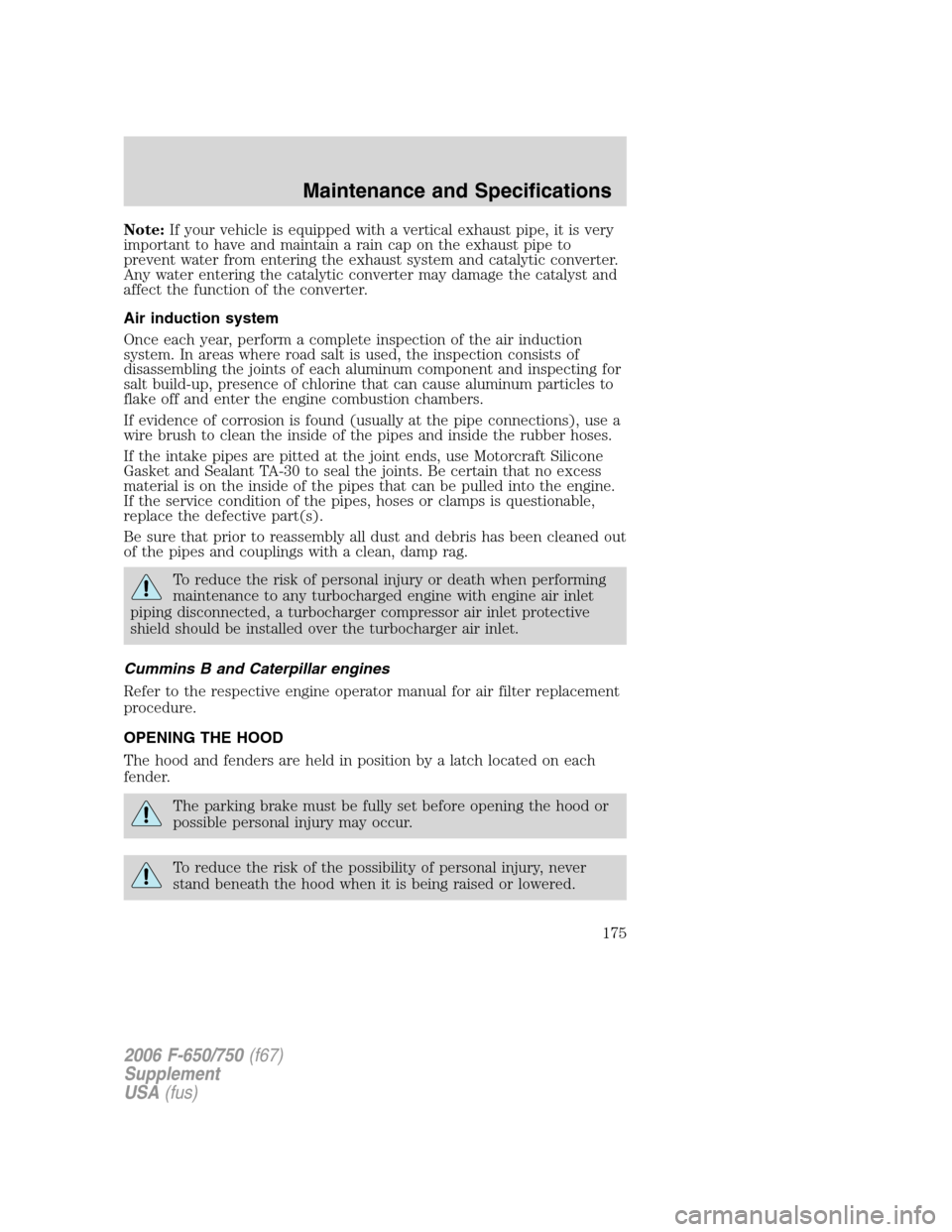

Page 175 of 272

FORD F650 2006 11.G Owners Manual Note:If your vehicle is equipped with a vertical exhaust pipe, it is very
important to have and maintain a rain cap on the exhaust pipe to
prevent water from entering the exhaust system and catalytic

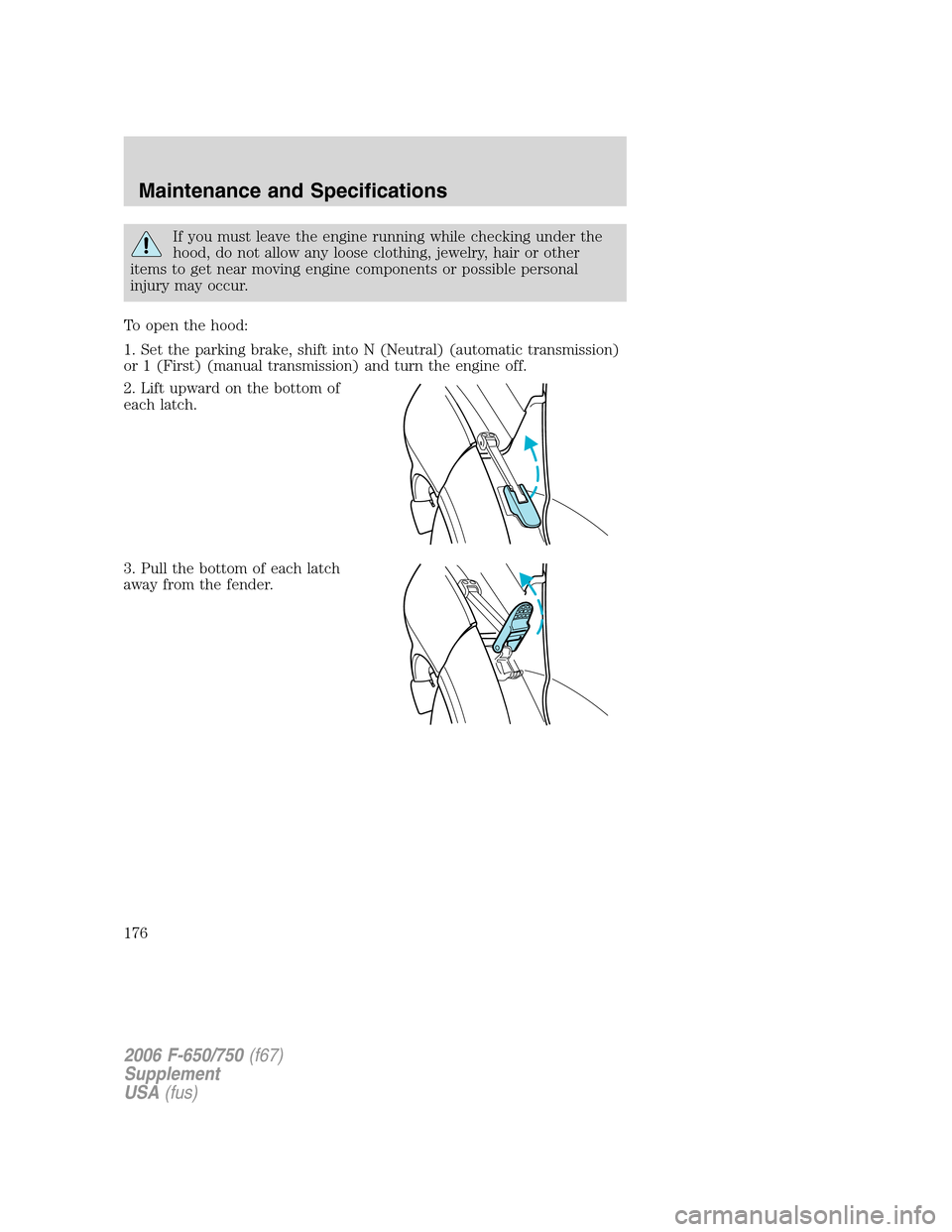

Page 176 of 272

FORD F650 2006 11.G Owners Manual If you must leave the engine running while checking under the
hood, do not allow any loose clothing, jewelry, hair or other
items to get near moving engine components or possible personal
injury may o

Page 177 of 272

FORD F650 2006 11.G Owners Manual 4. Tilt the hood forward until
stopped by the retaining cables.
To lower the hood:
1. Push the hood rearward at the top center of the hood above the grille
until closed.
2. Engage the latch on each fe

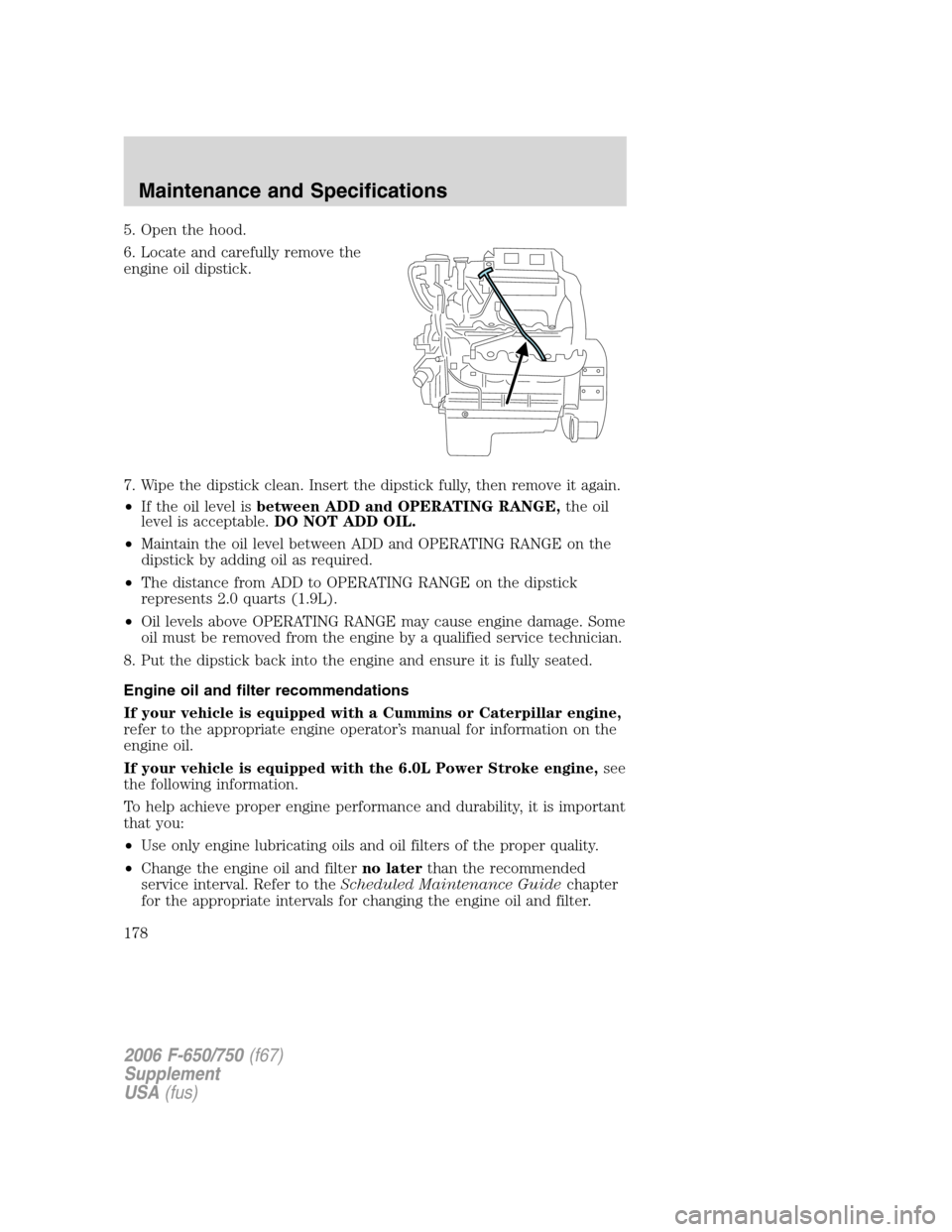

Page 178 of 272

FORD F650 2006 11.G Owners Manual 5. Open the hood.
6. Locate and carefully remove the
engine oil dipstick.
7. Wipe the dipstick clean. Insert the dipstick fully, then remove it again.
•If the oil level isbetween ADD and OPERATING R

Page 179 of 272

FORD F650 2006 11.G Owners Manual •Change your engine oil and filter more frequently if your vehicle
operation includes extended periods of idling or low-speed operation,
driving for a long time in cold temperatures or short driving

Page 180 of 272

FORD F650 2006 11.G Owners Manual * Heavy duty trailer towing with ambient temperatures above 50°F
(10°C) requires 15W-40 engine oil.
Using the chart, determine which SAE viscosity grade best suits the
temperature range in which you
