FORD FESTIVA 1991 Service Manual

ENGINE MECHANICAL
COOLING SYSTEM TROUBLE SHOOTING
COOLING SYSTEM TROUBLE SHOOTING

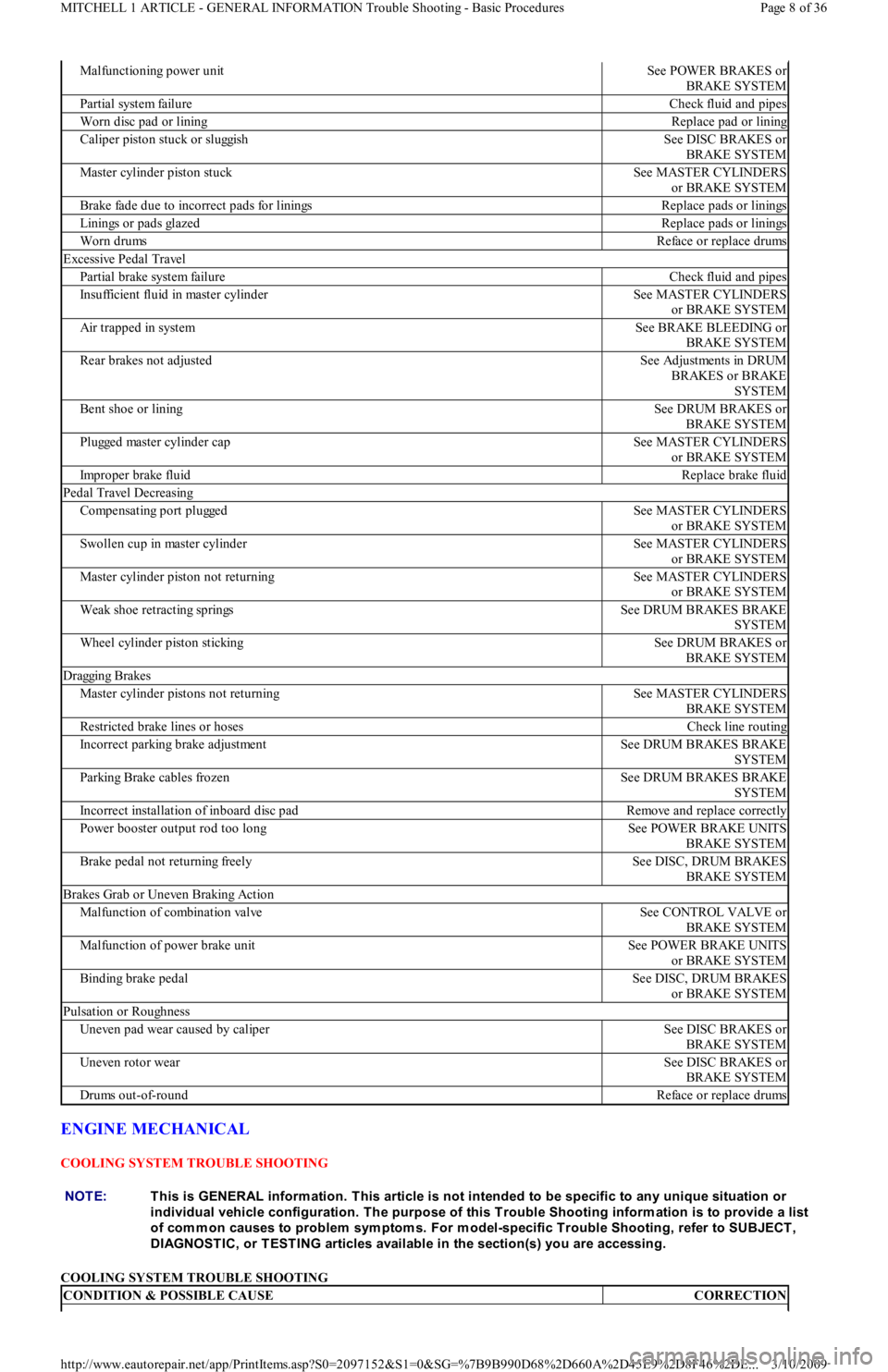

Malfunctioning power unitSee POWER BRAKES or
BRAKE SYSTEM
Partial system failureCheck fluid and pipes
Worn disc pad or liningReplace pad or lining
Caliper piston stuck or sluggishSee DISC BRAKES or
BRAKE SYSTEM
Master cylinder piston stuckSee MASTER CYLINDERS
or BRAKE SYSTEM
Brake fade due to incorrect pads for liningsReplace pads or linings
Linings or pads glazedReplace pads or linings
Worn drumsReface or replace drums
Excessive Pedal Travel
Partial brake system failureCheck fluid and pipes
Insufficient fluid in master cylinderSee MASTER CYLINDERS
or BRAKE SYSTEM
Air trapped in systemSee BRAKE BLEEDING or
BRAKE SYSTEM
Rear brakes not adjustedSee Adjustments in DRUM
BRAKES or BRAKE
SYSTEM
Bent shoe or liningSee DRUM BRAKES or
BRAKE SYSTEM
Plugged master cylinder capSee MASTER CYLINDERS
or BRAKE SYSTEM
Improper brake fluidReplace brake fluid
Pedal Travel Decreasing
Compensating port pluggedSee MASTER CYLINDERS
or BRAKE SYSTEM
Swollen cup in master cylinderSee MASTER CYLINDERS
or BRAKE SYSTEM
Master cylinder piston not returningSee MASTER CYLINDERS
or BRAKE SYSTEM
Weak shoe retracting springsSee DRUM BRAKES BRAKE
SYSTEM
Wheel cylinder piston stickingSee DRUM BRAKES or
BRAKE SYSTEM
Dragging Brakes
Master cylinder pistons not returningSee MASTER CYLINDERS
BRAKE SYSTEM
Restricted brake lines or hosesCheck line routing
Incorrect parking brake adjustmentSee DRUM BRAKES BRAKE
SYSTEM
Parking Brake cables frozenSee DRUM BRAKES BRAKE
SYSTEM
Incorrect installation of inboard disc padRemove and replace correctly
Power booster output rod too longSee POWER BRAKE UNITS
BRAKE SYSTEM
Brake pedal not returning freelySee DISC, DRUM BRAKES
BRAKE SYSTEM
Brakes Grab or Uneven Braking Action
Malfunction of combination valveSee CONTROL VALVE or
BRAKE SYSTEM
Malfunction of power brake unitSee POWER BRAKE UNITS
or BRAKE SYSTEM
Binding brake pedalSee DISC, DRUM BRAKES
or BRAKE SYSTEM
Pulsation or Roughness
Uneven pad wear caused by caliperSee DISC BRAKES or
BRAKE SYSTEM
Uneven rotor wearSee DISC BRAKES or
BRAKE SYSTEM
Drums out-of-roundReface or replace drums
NOTE:This is GENERAL inform ation. This article is not intended to be specific to any unique situation or
individual vehicle configuration. T he purpose of this T rouble Shooting inform ation is to provide a list
of com m on causes to problem sym ptom s. For m odel-specific T rouble Shooting, refer to SUBJECT ,
DIAGNOST IC, or T EST ING articles available in the section(s) you are accessing.
CONDITION & POSSIBLE CAUSECORRECTION
Page 8 of 36 MITCHELL 1 ARTICLE - GENERAL INFORMATION Trouble Shooting - Basic Procedures
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

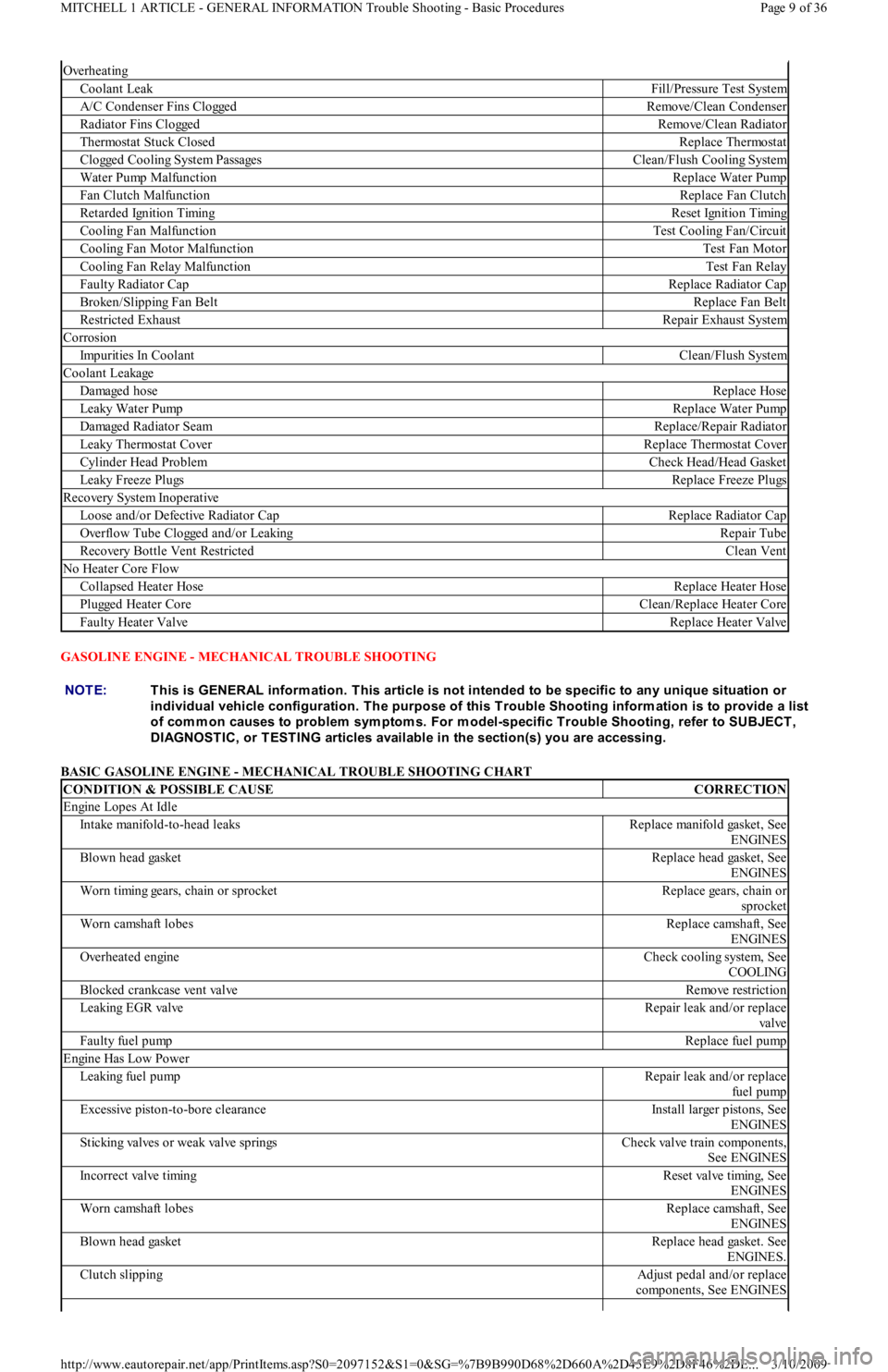

GASOLINE ENGINE - MECHANICAL TROUBLE SHOOTING
BASIC GASOLINE ENGINE - MECHANICAL TROUBLE SHOOTING CHART
Overheating
Coolant LeakFill/Pressure Test System
A/C Condenser Fins CloggedRemove/Clean Condenser
Radiator Fins CloggedRemove/Clean Radiator
Thermostat Stuck ClosedReplace Thermostat
C l o gge d C o o l in g S yst e m P a ssa ge sClean/Flush Cooling System
Water Pump MalfunctionReplace Water Pump
Fan Clutch MalfunctionReplace Fan Clutch
Retarded Ignition TimingReset Ignition Timing
Cooling Fan MalfunctionTest Cooling Fan/Circuit
Cooling Fan Motor MalfunctionTest Fan Motor
Cooling Fan Relay MalfunctionTest Fan Relay
Faulty Radiator CapReplace Radiator Cap
Broken/Slipping Fan BeltReplace Fan Belt
Restricted ExhaustRepair Exhaust System
Corrosion
Impurities In CoolantClean/Flush System
Coolant Leakage
Damaged hoseReplace Hose
Leaky Water PumpReplace Water Pump
Damaged Radiator SeamReplace/Repair Radiator
Leaky Thermostat CoverReplace Thermostat Cover
Cylinder Head ProblemCheck Head/Head Gasket
Leaky Freeze PlugsReplace Freeze Plugs
Recovery System Inoperative
Loose and/or Defective Radiator CapReplace Radiator Cap
Overflow Tube Clogged and/or LeakingRepair Tube
Recovery Bottle Vent RestrictedClean Vent
No Heater Core Flow
Collapsed Heater HoseReplace Heater Hose
Pl u gge d He a t e r C o r eClean/Replace Heater Core
Faulty Heater ValveReplace Heater Valve
NOTE:This is GENERAL inform ation. This article is not intended to be specific to any unique situation or
individual vehicle configuration. T he purpose of this T rouble Shooting inform ation is to provide a list
of com m on causes to problem sym ptom s. For m odel-specific T rouble Shooting, refer to SUBJECT ,
DIAGNOST IC, or T EST ING articles available in the section(s) you are accessing.
CONDITION & POSSIBLE CAUSECORRECTION
Engine Lopes At Idle
In t ake man ifo l d -t o -h ead l eaksReplace manifold gasket, See
ENGINES
Blown head gasketReplace head gasket, See
ENGINES
Worn timing gears, chain or sprocketReplace gears, chain or
sprocket
Worn camshaft lobesReplace camshaft, See
ENGINES
Overheated engineCheck cooling system, See
COOLING
Blocked crankcase vent valveRemove restriction
Le a kin g E GR va l veRepair leak and/or replace
va l ve
Faulty fuel pumpReplace fuel pump
Engine Has Low Power
Leaking fuel pumpRepair leak and/or replace
fu el p u mp
Excessive piston-to-bore clearanceInstall larger pistons, See
ENGINES
Sticking valves or weak valve springsCheck valve train components,
See ENGINES
Incorrect valve timingReset valve timing, See
ENGINES
Worn camshaft lobesReplace camshaft, See
ENGINES
Blown head gasketReplace head gasket. See
ENGINES.
Clutch slippingAdjust pedal and/or replace
components, See ENGINES
Page 9 of 36 MITCHELL 1 ARTICLE - GENERAL INFORMATION Trouble Shooting - Basic Procedures
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

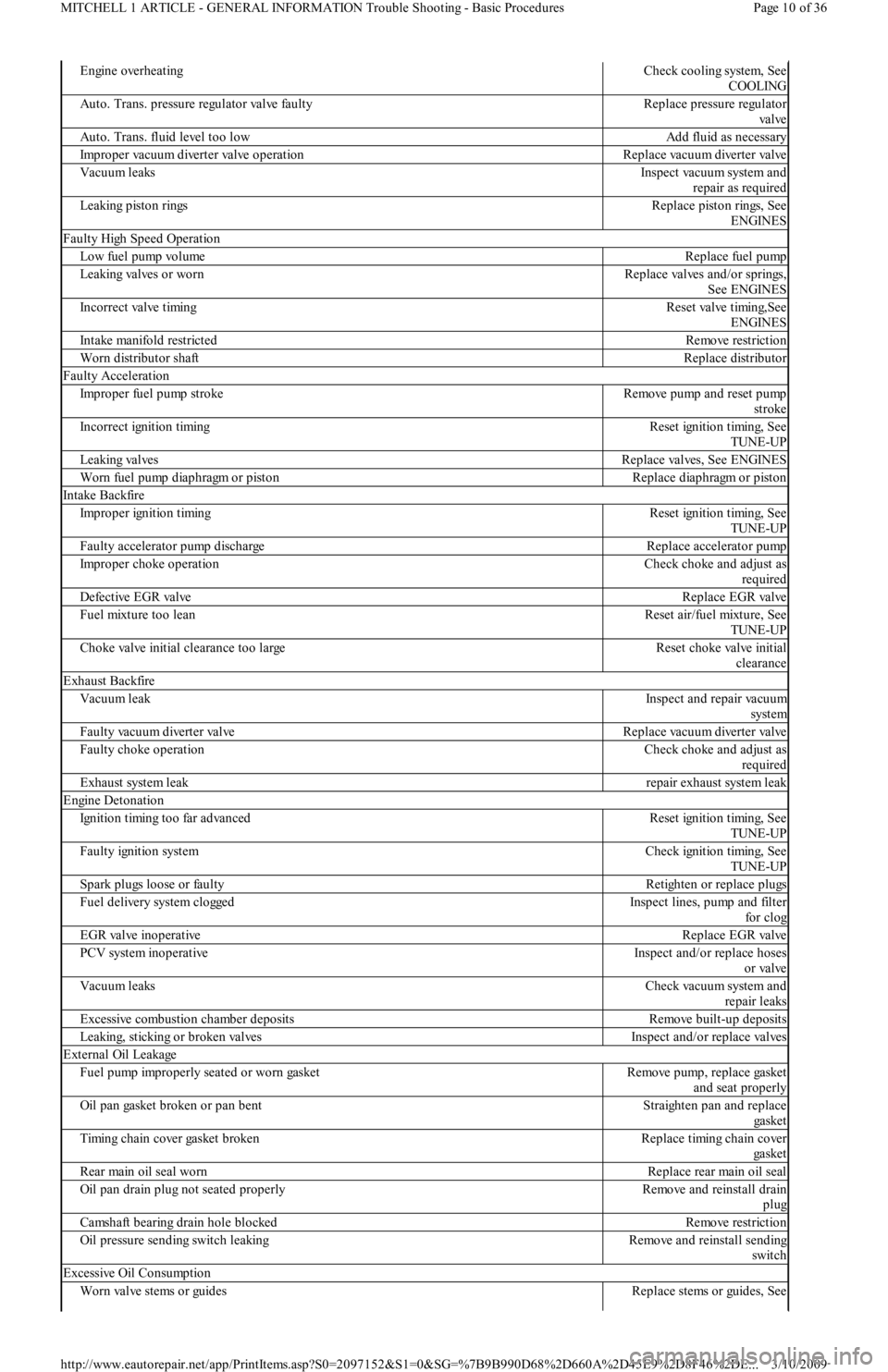

Engine overheatingCheck cooling system, See
COOLING
Auto. Trans. pressure regulator valve faultyReplace pressure regulator
va l ve
Auto. Trans. fluid level too lowAdd fluid as necessary
Improper vacuum diverter valve operationReplace vacuum diverter valve
Vacuum leaksInspect vacuum system and
repair as required
Leaking piston ringsReplace piston rings, See
ENGINES
Faulty High Speed Operation
Low fuel pump volumeReplace fuel pump
Le a kin g va l ve s o r wo r nReplace valves and/or springs,
See ENGINES
Incorrect valve timingReset valve timing,See
ENGINES
In t ake man ifo l d rest rict edRemove restriction
Worn distributor shaftReplace distributor
Faulty Acceleration
Improper fuel pump strokeRemove pump and reset pump
stroke
Incorrect ignition timingReset ignition timing, See
TUNE-UP
Le a kin g va l ve sReplace valves, See ENGINES
Worn fuel pump diaphragm or pistonReplace diaphragm or piston
In t ake Backfire
Improper ignition timingReset ignition timing, See
TUNE-UP
Faulty accelerator pump dischargeReplace accelerator pump
Improper choke operationCheck choke and adjust as
required
Defective EGR valveReplace EGR valve
Fuel mixture too leanReset air/fuel mixture, See
TUNE-UP
Choke valve initial clearance too largeReset choke valve initial
clearance
Exhaust Backfire
Vacuum leakInspect and repair vacuum
system
Faulty vacuum diverter valveReplace vacuum diverter valve
Faulty choke operationCheck choke and adjust as
required
Exhaust system leakrepair exhaust system leak
Engine Detonation
Ignition timing too far advancedReset ignition timing, See
TUNE-UP
Faulty ignition systemCheck ignition timing, See
TUNE-UP
Spark plugs loose or faultyRetighten or replace plugs
Fuel delivery system cloggedInspect lines, pump and filter
fo r cl o g
EGR valve inoperativeReplace EGR valve
PCV system inoperativeInspect and/or replace hoses
or valve
Vacuum leaksCheck vacuum system and
repair leaks
Excessive combustion chamber depositsRemove built-up deposits
Leaking, sticking or broken valvesInspect and/or replace valves
External Oil Leakage
Fuel pump improperly seated or worn gasketRemove pump, replace gasket
and seat properly
Oil pan gasket broken or pan bentStraighten pan and replace
ga ske t
Timing chain cover gasket brokenReplace timing chain cover
ga ske t
Rear main oil seal wornReplace rear main oil seal
Oil pan drain plug not seated properlyRemove and reinstall drain
plug
Camshaft bearing drain hole blockedRemove restriction
Oil pressure sending switch leakingRemove and reinstall sending
switch
Excessive Oil Consumption
Worn valve stems or guidesReplace stems or guides, See
Page 10 of 36 MITCHELL 1 ARTICLE - GENERAL INFORMATION Trouble Shooting - Basic Procedures
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

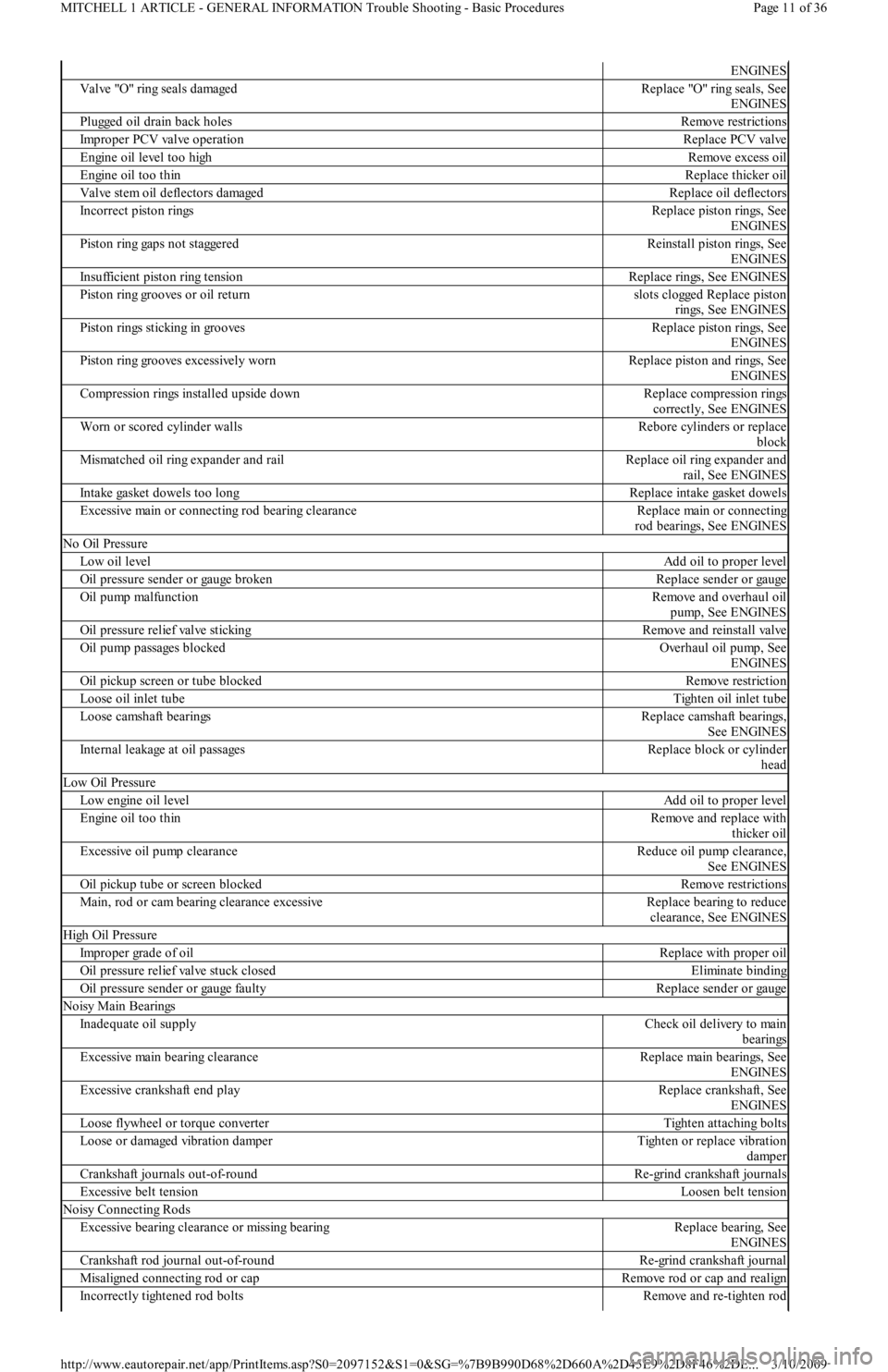

ENGINES
Valve "O" ring seals damagedReplace "O" ring seals, See
ENGINES
Plugged oil drain back holesRemove restrictions
Improper PCV valve operationReplace PCV valve
Engine oil level too highRemove excess oil
Engine oil too thinReplace thicker oil
Valve stem oil deflectors damagedReplace oil deflectors
Incorrect piston ringsReplace piston rings, See
ENGINES
Piston ring gaps not staggeredReinstall piston rings, See
ENGINES
Insufficient piston ring tensionReplace rings, See ENGINES
Piston ring grooves or oil returnslots clogged Replace piston
rings, See ENGINES
Piston rings sticking in groovesReplace piston rings, See
ENGINES
Piston ring grooves excessively wornReplace piston and rings, See
ENGINES
Compression rings installed upside downReplace compression rings
correctly, See ENGINES
Worn or scored cylinder wallsRebore cylinders or replace
block
Mismatched oil ring expander and railReplace oil ring expander and
rail, See ENGINES
Intake gasket dowels too longReplace intake gasket dowels
Excessive main or connecting rod bearing clearanceReplace main or connecting
rod bearings, See ENGINES
No Oil Pressure
Low oil levelAdd oil to proper level
Oil pressure sender or gauge brokenReplace sender or gauge
Oil pump malfunctionRemove and overhaul oil
pump, See ENGINES
Oil pressure relief valve stickingR e mo ve a n d r e in st a l l va l ve
Oil pump passages blockedOverhaul oil pump, See
ENGINES
Oil pickup screen or tube blockedRemove restriction
Loose oil inlet tubeTighten oil inlet tube
Loose camshaft bearingsReplace camshaft bearings,
See ENGINES
Internal leakage at oil passagesReplace block or cylinder
head
Low Oil Pressure
Low engine oil levelAdd oil to proper level
Engine oil too thinRemove and replace with
thicker oil
Excessive oil pump clearanceReduce oil pump clearance,
See ENGINES
Oil pickup tube or screen blockedRemove restrictions
Main, rod or cam bearing clearance excessiveReplace bearing to reduce
clearance, See ENGINES
High Oil Pressure
Improper grade of oilReplace with proper oil
Oil pressure relief valve stuck closedEliminate binding
Oil pressure sender or gauge faultyReplace sender or gauge
Noisy Main Bearings
Inadequate oil supplyCheck oil delivery to main
bearings
Excessive main bearing clearanceReplace main bearings, See
ENGINES
Excessive crankshaft end playReplace crankshaft, See
ENGINES
Loose flywheel or torque converterTighten attaching bolts
Loose or damaged vibration damperTighten or replace vibration
damper
Crankshaft journals out-of-roundRe-grind crankshaft journals
Excessive belt tensionLoosen belt tension
Noisy Connecting Rods
Excessive bearing clearance or missing bearingReplace bearing, See
ENGINES
Crankshaft rod journal out-of-roundRe-grind crankshaft journal
Misaligned connecting rod or capRemove rod or cap and realign
Incorrectly tightened rod boltsRemove and re-tighten rod

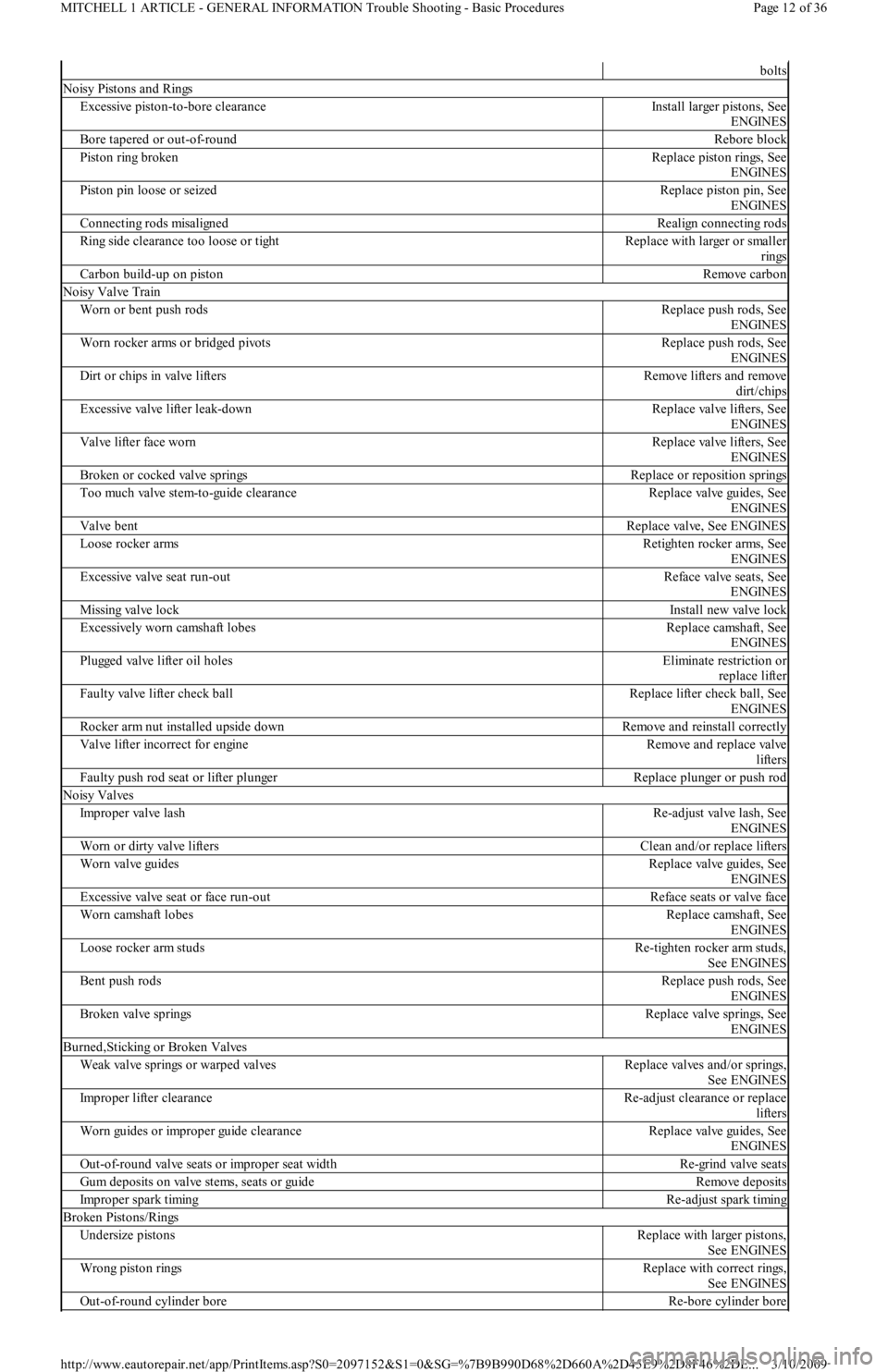

Page 11 of 36 MITCHELL 1 ARTICLE - GENERAL INFORMATION Trouble Shooting - Basic Procedures
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

bolts
Noisy Pistons and Rings
Excessive piston-to-bore clearanceInstall larger pistons, See
ENGINES
Bore tapered or out-of-roundRebore block
Piston ring brokenReplace piston rings, See
ENGINES
Piston pin loose or seizedReplace piston pin, See
ENGINES
Connecting rods misalignedRealign connecting rods
Ring side clearance too loose or tightReplace with larger or smaller
rings
Carbon build-up on pistonRemove carbon
Noisy Valve Train
Worn or bent push rodsReplace push rods, See
ENGINES
Worn rocker arms or bridged pivotsReplace push rods, See
ENGINES
Dirt or chips in valve liftersRemove lifters and remove
dirt/chips
Excessive valve lifter leak-downReplace valve lifters, See
ENGINES
Valve lifter face wornReplace valve lifters, See
ENGINES
Broken or cocked valve springsReplace or reposition springs
Too much valve stem-to-guide clearanceReplace valve guides, See
ENGINES
Valve bentReplace valve, See ENGINES
Loose rocker armsRetighten rocker arms, See
ENGINES
Excessive valve seat run-outReface valve seats, See
ENGINES
Missing valve lockInstall new valve lock
Excessively worn camshaft lobesReplace camshaft, See
ENGINES
Plugged valve lifter oil holesEliminate restriction or
replace lifter
Faulty valve lifter check ballReplace lifter check ball, See
ENGINES
Rocker arm nut installed upside downRemove and reinstall correctly
Valve lifter incorrect for engineRemove and replace valve
lifters
Faulty push rod seat or lifter plungerReplace plunger or push rod
Noisy Valves
Improper valve lashRe-adjust valve lash, See
ENGINES
Worn or dirty valve liftersClean and/or replace lifters
Wo r n va l ve gu id e sReplace valve guides, See
ENGINES
Excessive valve seat or face run-outReface seats or valve face
Worn camshaft lobesReplace camshaft, See
ENGINES
Loose rocker arm studsRe-tighten rocker arm studs,
See ENGINES
Bent push rodsReplace push rods, See
ENGINES
Broken valve springsReplace valve springs, See
ENGINES
Burned,Sticking or Broken Valves
Weak valve springs or warped valvesReplace valves and/or springs,
See ENGINES
Improper lifter clearanceRe-adjust clearance or replace
lifters
Worn guides or improper guide clearanceReplace valve guides, See
ENGINES
Out-of-round valve seats or improper seat widthRe-grind valve seats
Gum deposits on valve stems, seats or guideRemove deposits
Improper spark timingRe-adjust spark timing
Broken Pistons/Rings
Undersize pistonsReplace with larger pistons,
See ENGINES
Wrong piston ringsReplace with correct rings,
See ENGINES
Out-of-round cylinder boreRe-bore cylinder bore

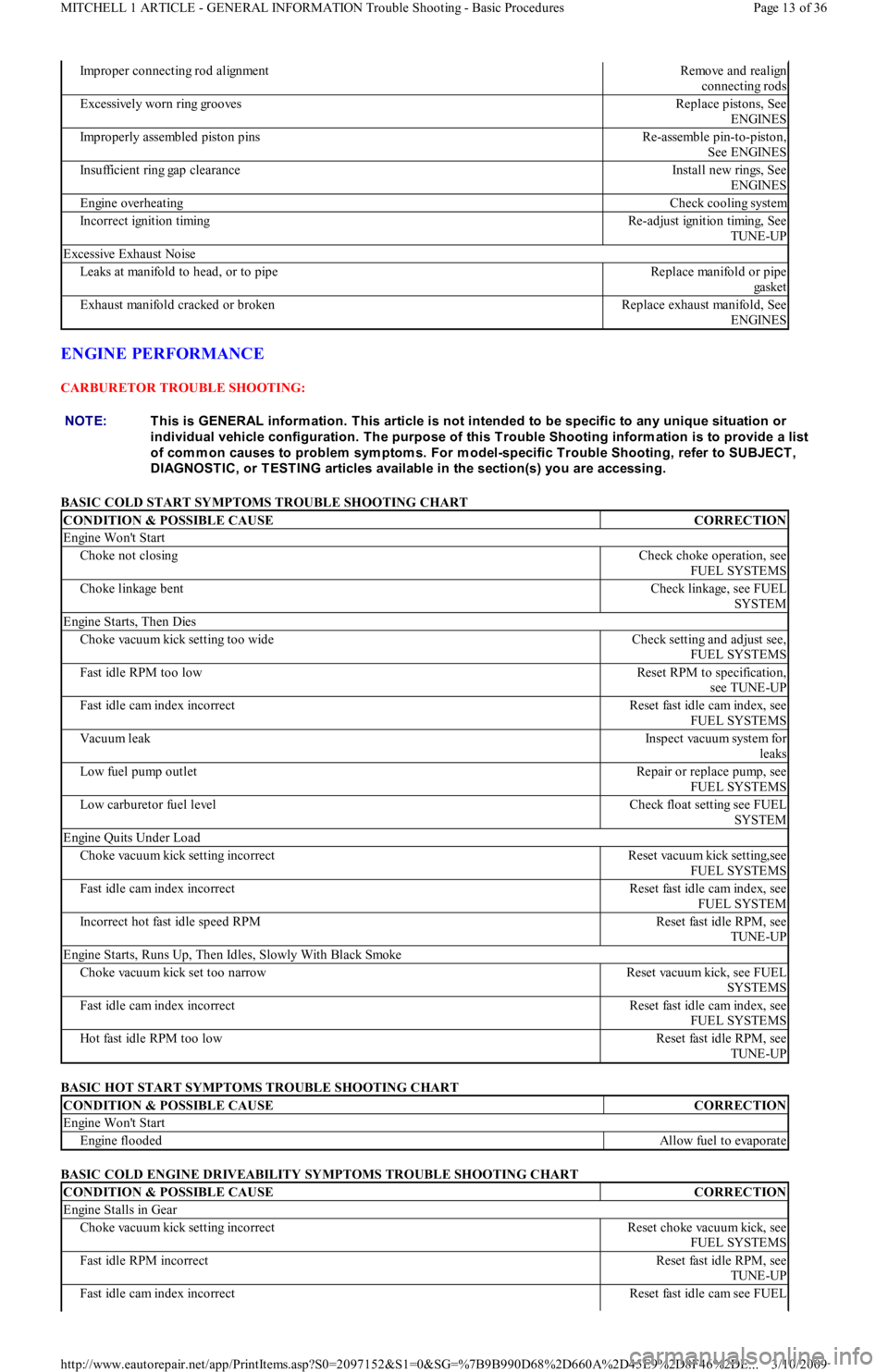

Page 12 of 36 MITCHELL 1 ARTICLE - GENERAL INFORMATION Trouble Shooting - Basic Procedures
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

ENGINE PERFORMANCE
CARBURETOR TROUBLE SHOOTING:
BASIC COLD START SYMPTOMS TROUBLE SHOOTING CHART
BASIC HOT START SYMPTOMS TROUBLE SHOOTING CHART
BASIC COLD ENGINE DRIVEABILITY SYMPTOMS TROUBLE SHOOTING CHART
Improper connecting rod alignmentRemove and realign
connecting rods
E xc e ssive l y wo r n r in g gr o o ve sReplace pistons, See
ENGINES
Improperly assembled piston pinsRe-assemble pin-to-piston,
See ENGINES
Insufficient ring gap clearanceInstall new rings, See
ENGINES
Engine overheatingCheck cooling system
Incorrect ignition timingRe-adjust ignition timing, See
TUNE-UP
Excessive Exhaust Noise
Leaks at manifold to head, or to pipeReplace manifold or pipe
ga ske t
Exhaust manifold cracked or brokenReplace exhaust manifold, See
ENGINES
NOTE:This is GENERAL inform ation. This article is not intended to be specific to any unique situation or
individual vehicle configuration. T he purpose of this T rouble Shooting inform ation is to provide a list
of com m on causes to problem sym ptom s. For m odel-specific T rouble Shooting, refer to SUBJECT ,
DIAGNOST IC, or T EST ING articles available in the section(s) you are accessing.
CONDITION & POSSIBLE CAUSECORRECTION
Engine Won't Start
Choke not closingCheck choke operation, see
FUEL SYSTEMS
Choke linkage bentCheck linkage, see FUEL
SYSTEM
Engine Starts, Then Dies
Choke vacuum kick setting too wideCheck setting and adjust see,
FUEL SYSTEMS
Fast idle RPM too lowReset RPM to specification,
see TUNE-UP
Fast idle cam index incorrectReset fast idle cam index, see
FUEL SYSTEMS
Vacuum leakInspect vacuum system for
leaks
Low fuel pump outletRepair or replace pump, see
FUEL SYSTEMS
Low carburetor fuel levelCheck float setting see FUEL
SYSTEM
Engine Quits Under Load
Choke vacuum kick setting incorrectReset vacuum kick setting,see
FUEL SYSTEMS
Fast idle cam index incorrectReset fast idle cam index, see
FUEL SYSTEM
Incorrect hot fast idle speed RPMReset fast idle RPM, see
TUNE-UP
Engine Starts, Runs Up, Then Idles, Slowly With Black Smoke
Choke vacuum kick set too narrowReset vacuum kick, see FUEL
SYSTEMS
Fast idle cam index incorrectReset fast idle cam index, see
FUEL SYSTEMS
Hot fast idle RPM too lowReset fast idle RPM, see
TUNE-UP
CONDITION & POSSIBLE CAUSECORRECTION
Engine Won't Start
Engine floodedAllow fuel to evaporate
CONDITION & POSSIBLE CAUSECORRECTION
Engine Stalls in Gear
Choke vacuum kick setting incorrectReset choke vacuum kick, see
FUEL SYSTEMS
Fast idle RPM incorrectReset fast idle RPM, see
TUNE-UP
Fast idle cam index incorrectReset fast idle cam see FUEL
Page 13 of 36 MITCHELL 1 ARTICLE - GENERAL INFORMATION Trouble Shooting - Basic Procedures
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

BASIC WARM ENGINE DRIVEABILITY SYMPTOMS TROUBLE SHOOTING CHART
DIESEL ENGINE TROUBLE SHOOTING
BASIC DIESEL ENGINE TROUBLE SHOOTING CHART
SYSTEMS
Acceleration Sag or Stall
Defective choke control switchReplace choke control switch
Choke vacuum kick setting incorrectReset choke vacuum kick see,
FUEL SYSTEMS
Float level incorrect (too low)Adjust float level, FUEL
SYSTEMS
Accelerator pump defectiveRepair or replace pump see
FUEL SYSTEMS
Secondary throttles not closedInspect lockout adjustment,
see FUEL SYSTEMS
Sag or Stall After Warmup
Defective choke control switchReplace choke control switch,
see FUEL SYSTEMS
Defective accelerator pumpReplace pump, see FUEL
SYSTEMS
Float level incorrect (too low)Adjust float level, see FUEL
SYSTEMS
Backfiring & Black Smoke
Plugged heat crossover systemRemove restriction
CONDITION & POSSIBLE CAUSECORRECTION
Hesitation With Small Amount of Gas Pedal Movement
Vacuum leakInspect vacuum lines
Accelerator pump weak or inoperableReplace pump, see FUEL
SYSTEMS
Float level setting too lowReset float level, see,FUEL
SYSTEMS
Metering rods sticking or bindingInspect and/or replace rods,
see FUEL SYSTEMS
Carburetor idle or transfer system pluggedInspect system and remove
restriction
Frozen or binding heated air inletInspect heated air door for
binding
Hesitation With Heavy Gas Pedal Movement
Defective accelerator pumpReplace pump, see FUEL
SYSTEMS
Metering rod carrier sticking or bindingRemove restriction
Large vacuum leakInspect vacuum system and
repair leak
Float level setting too lowReset float level, see FUEL
SYSTEMS
Defective fuel pump, lines or filterInspect pump, lines and filter
Air door setting incorrectAdjust air door setting, see
FUEL
NOTE:This is GENERAL inform ation. This article is not intended to be specific to any unique situation or
individual vehicle configuration. T he purpose of this T rouble Shooting inform ation is to provide a list
of com m on causes to problem sym ptom s. For m odel-specific T rouble Shooting, refer to SUBJECT ,
DIAGNOST IC, or T EST ING articles available in the section(s) you are accessing.
NOTE:Diesel engines m echanical diagnosis is the sam e as gasoline engines for item s such as noisy valves,
bearings, pistons, etc. T he following trouble shooting covers only item s pertaining to diesel engines.
CONDITION & POSSIBLE CAUSECORRECTION
Engine Won't Crank
Bad battery connections or dead batteriesCheck connections and/or
replace batteries
Bad starter connections or bad starterCheck connections and/or
replace starter
Engine Cranks Slowly, Won't Start
Bad battery connections or dead batteriesCheck connections and/or
replace batteries
Engine oil too heavyReplace engine oil
Engine Cranks Normally, But Will Not Start
Glow plugs not functioningCheck glow plug system, see
FUEL SYSTEMS
Glow plug control not functioningCheck controller, see FUEL
SYSTEMS

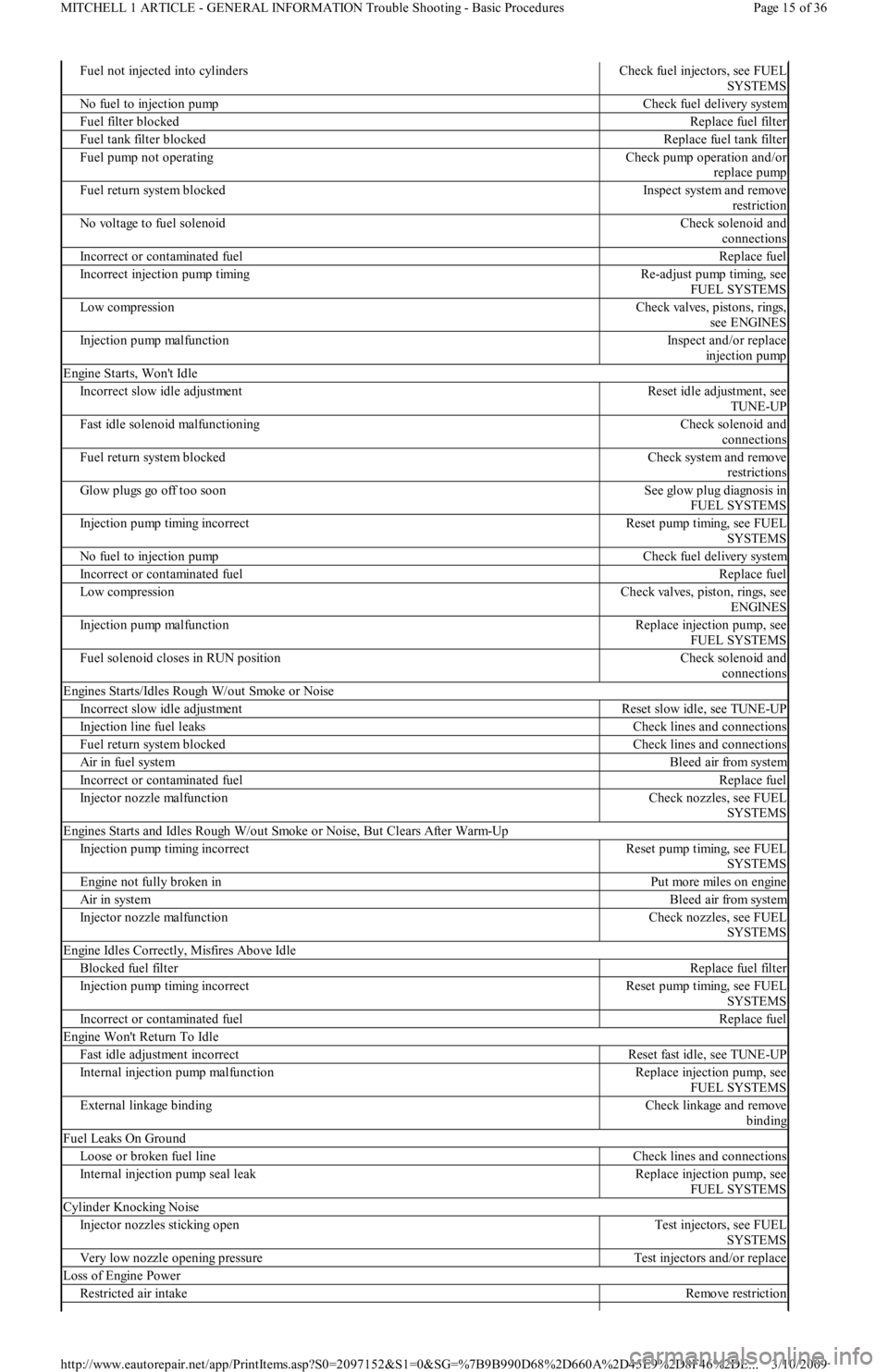

Page 14 of 36 MITCHELL 1 ARTICLE - GENERAL INFORMATION Trouble Shooting - Basic Procedures
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

Fuel not injected into cylindersCheck fuel injectors, see FUEL
SYSTEMS
No fuel to injection pumpCheck fuel delivery system
Fuel filter blockedReplace fuel filter
Fuel tank filter blockedReplace fuel tank filter
Fuel pump not operatingCheck pump operation and/or
replace pump
Fuel return system blockedInspect system and remove
restriction
No voltage to fuel solenoidCheck solenoid and
connections
Incorrect or contaminated fuelReplace fuel
Incorrect injection pump timingRe-adjust pump timing, see
FUEL SYSTEMS
Low compressionCheck valves, pistons, rings,
see ENGINES
Injection pump malfunctionInspect and/or replace
injection pump
Engine Starts, Won't Idle
Incorrect slow idle adjustmentReset idle adjustment, see
TUNE-UP
Fast idle solenoid malfunctioningCheck solenoid and
connections
Fuel return system blockedCheck system and remove
restrictions
Glow plugs go off too soonSee glow plug diagnosis in
FUEL SYSTEMS
Injection pump timing incorrectReset pump timing, see FUEL
SYSTEMS
No fuel to injection pumpCheck fuel delivery system
Incorrect or contaminated fuelReplace fuel
Low compressionCheck valves, piston, rings, see
ENGINES
Injection pump malfunctionReplace injection pump, see
FUEL SYSTEMS
Fuel solenoid closes in RUN positionCheck solenoid and
connections
Engines Starts/Idles Rough W/out Smoke or Noise
Incorrect slow idle adjustmentReset slow idle, see TUNE-UP
Injection line fuel leaksCheck lines and connections
Fuel return system blockedCheck lines and connections
Air in fuel systemBleed air from system
Incorrect or contaminated fuelReplace fuel
Injector nozzle malfunctionCheck nozzles, see FUEL
SYSTEMS
Engines Starts and Idles Rough W/out Smoke or Noise, But Clears After Warm-Up
Injection pump timing incorrectReset pump timing, see FUEL
SYSTEMS
Engine not fully broken inPu t mo re mil es o n en gin e
Air in systemBleed air from system
Injector nozzle malfunctionCheck nozzles, see FUEL
SYSTEMS
Engine Idles Correctly, Misfires Above Idle
Bl o cked fu el fil t erReplace fuel filter
Injection pump timing incorrectReset pump timing, see FUEL
SYSTEMS
Incorrect or contaminated fuelReplace fuel
Engine Won't Return To Idle
Fast idle adjustment incorrectReset fast idle, see TUNE-UP
Internal injection pump malfunctionReplace injection pump, see
FUEL SYSTEMS
External linkage bindingCheck linkage and remove
binding
Fuel Leaks On Ground
Loose or broken fuel lineCheck lines and connections
Internal injection pump seal leakReplace injection pump, see
FUEL SYSTEMS
Cylinder Knocking Noise
Injector nozzles sticking openTest injectors, see FUEL
SYSTEMS
Very low nozzle opening pressureTest injectors and/or replace
Loss of Engine Power
Restricted air intakeRemove restriction

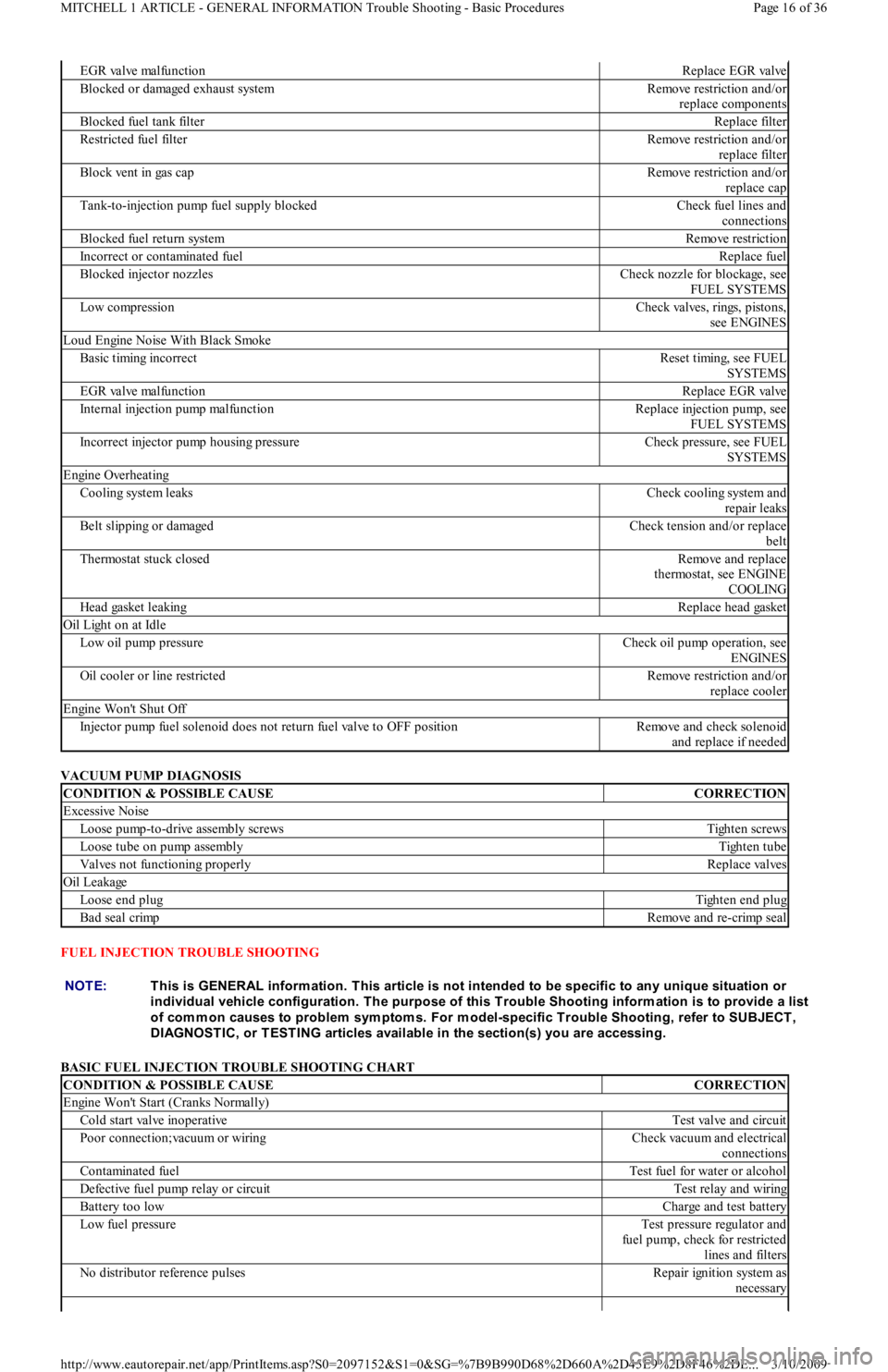

Page 15 of 36 MITCHELL 1 ARTICLE - GENERAL INFORMATION Trouble Shooting - Basic Procedures
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

VACUUM PUMP DIAGNOSIS
FUEL INJECTION TROUBLE SHOOTING
BASIC FUEL INJECTION TROUBLE SHOOTING CHART
EGR valve malfunctionReplace EGR valve
Blocked or damaged exhaust systemRemove restriction and/or
replace components
Blocked fuel tank filterReplace filter
Restricted fuel filterRemove restriction and/or
replace filter
Block vent in gas capRemove restriction and/or
replace cap
Tank-to-injection pump fuel supply blockedCheck fuel lines and
connections
Blocked fuel return systemRemove restriction
Incorrect or contaminated fuelReplace fuel
Blocked injector nozzlesCheck nozzle for blockage, see
FUEL SYSTEMS
Low compressionCheck valves, rings, pistons,
see ENGINES
Loud Engine Noise With Black Smoke
Basic timing incorrectReset timing, see FUEL
SYSTEMS
EGR valve malfunctionReplace EGR valve
Internal injection pump malfunctionReplace injection pump, see
FUEL SYSTEMS
Incorrect injector pump housing pressureCheck pressure, see FUEL
SYSTEMS
Engine Overheating
Cooling system leaksCheck cooling system and
repair leaks
Belt slipping or damagedCheck tension and/or replace
belt
Thermostat stuck closedRemove and replace
thermostat, see ENGINE
COOLING
Head gasket leakingReplace head gasket
Oil Light on at Idle
Low oil pump pressureCheck oil pump operation, see
ENGINES
Oil cooler or line restrictedRemove restriction and/or
replace cooler
Engine Won't Shut Off
Injector pump fuel solenoid does not return fuel valve to OFF positionRemove and check solenoid
and replace if needed
CONDITION & POSSIBLE CAUSECORRECTION
Excessive Noise
Loose pump-to-drive assembly screwsTighten screws
Loose tube on pump assemblyTighten tube
Valves not functioning properlyReplace valves
Oil Leakage
Loose end plugTighten end plug
Bad seal crimpRemove and re-crimp seal
NOTE:This is GENERAL inform ation. This article is not intended to be specific to any unique situation or
individual vehicle configuration. T he purpose of this T rouble Shooting inform ation is to provide a list
of com m on causes to problem sym ptom s. For m odel-specific T rouble Shooting, refer to SUBJECT ,
DIAGNOST IC, or T EST ING articles available in the section(s) you are accessing.
CONDITION & POSSIBLE CAUSECORRECTION
Engine Won't Start (Cranks Normally)
Cold start valve inoperativeTest valve and circuit
Poor connection;vacuum or wiringCheck vacuum and electrical
connections
Contaminated fuelTest fuel for water or alcohol
Defective fuel pump relay or circuitTest relay and wiring
Battery too lowCharge and test battery
Low fuel pressureTest pressure regulator and
fuel pump, check for restricted
lines and filters
No distributor reference pulsesRepair ignition system as
necessary

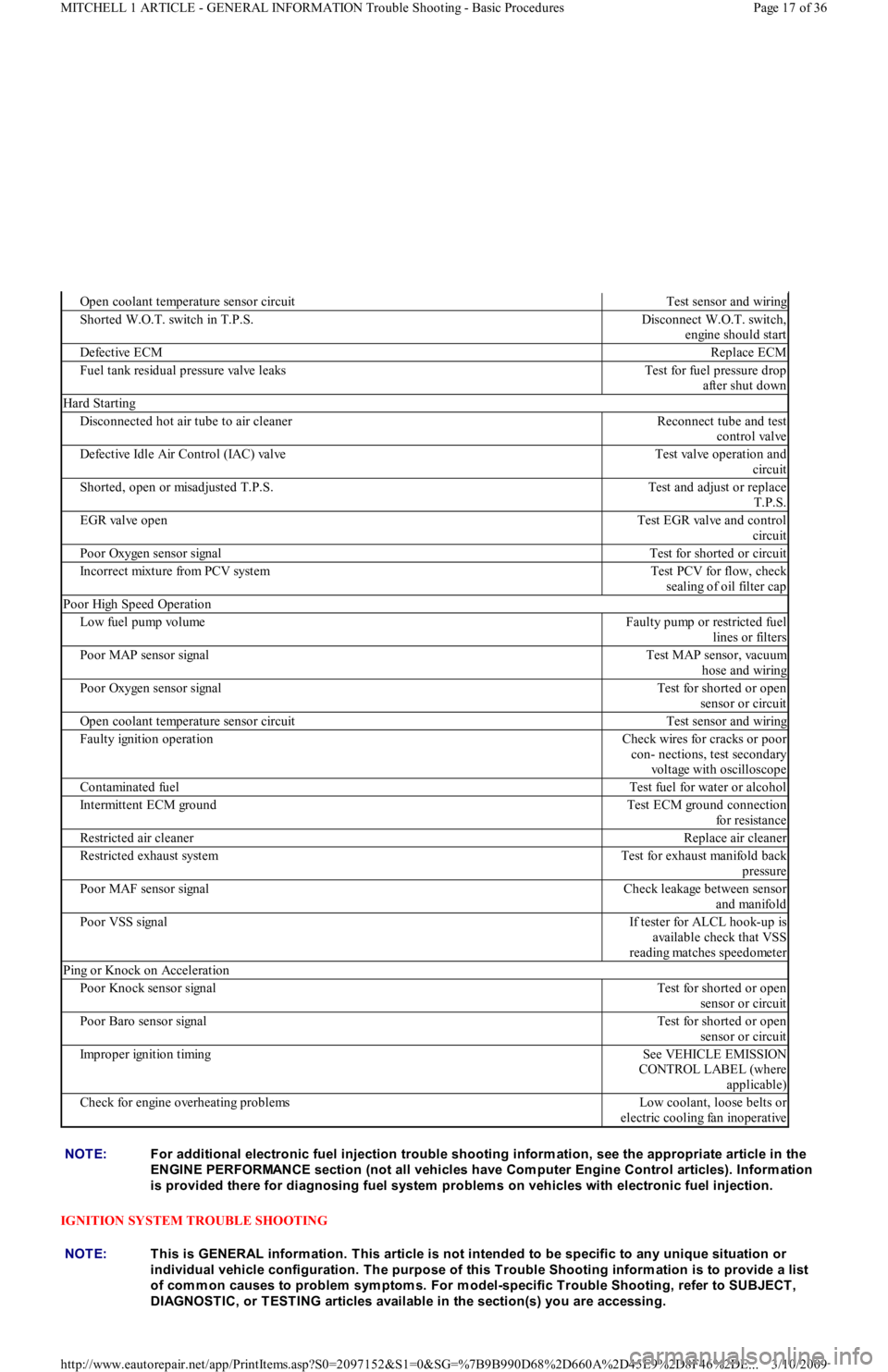

Page 16 of 36 MITCHELL 1 ARTICLE - GENERAL INFORMATION Trouble Shooting - Basic Procedures
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

IGNITION SYSTEM TROUBLE SHOOTING
Open coolant temperature sensor circuitTest sensor and wiring
Shorted W.O.T. switch in T.P.S.Disconnect W.O.T. switch,
engine should start
Defective ECMReplace ECM
Fuel tank residual pressure valve leaksTest for fuel pressure drop
after shut down
Hard Starting
Disconnected hot air tube to air cleanerReconnect tube and test
control valve
Defective Idle Air Control (IAC) valveTest valve operation and
circuit
Shorted, open or misadjusted T.P.S.Test and adjust or replace
T.P.S.
EGR valve openTest EGR valve and control
circuit
Poor Oxygen sensor signalTest for shorted or circuit
Incorrect mixture from PCV systemTest PCV for flow, check
sealing of oil filter cap
Poor High Speed Operation
Low fuel pump volumeFaulty pump or restricted fuel
lines or filters
Poor MAP sensor signalTest MAP sensor, vacuum
hose and wiring
Poor Oxygen sensor signalTest for shorted or open
sensor or circuit
Open coolant temperature sensor circuitTest sensor and wiring
Faulty ignition operationCheck wires for cracks or poor
con- nections, test secondary
voltage with oscilloscope
Contaminated fuelTest fuel for water or alcohol
Intermittent ECM groundTest ECM ground connection
for resistance
Restricted air cleanerReplace air cleaner
Restricted exhaust systemTest for exhaust manifold back
pressure
Poor MAF sensor signalCheck leakage between sensor
and manifold
Poor VSS signalIf tester for ALCL hook-up is
available check that VSS
reading matches speedometer
Ping or Knock on Acceleration
Poor Knock sensor signalTest for shorted or open
sensor or circuit
Poor Baro sensor signalTest for shorted or open
sensor or circuit
Improper ignition timingSee VEHICLE EMISSION
CONTROL LABEL (where
applicable)
Check for engine overheating problemsLow coolant, loose belts or
electric cooling fan inoperative
NOTE:For additional electronic fuel injection trouble shooting inform ation, see the appropriate article in the
ENGINE PERFORMANCE section (not all vehicles have Com puter Engine Control articles). Inform ation
is provided there for diagnosing fuel system problem s on vehicles with electronic fuel injection.
NOTE:This is GENERAL inform ation. This article is not intended to be specific to any unique situation or
individual vehicle configuration. T he purpose of this T rouble Shooting inform ation is to provide a list
of com m on causes to problem sym ptom s. For m odel-specific T rouble Shooting, refer to SUBJECT ,
DIAGNOST IC, or T EST ING articles available in the section(s) you are accessing.
Page 17 of 36 MITCHELL 1 ARTICLE - GENERAL INFORMATION Trouble Shooting - Basic Procedures
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...
