FORD FESTIVA 1991 Service Manual

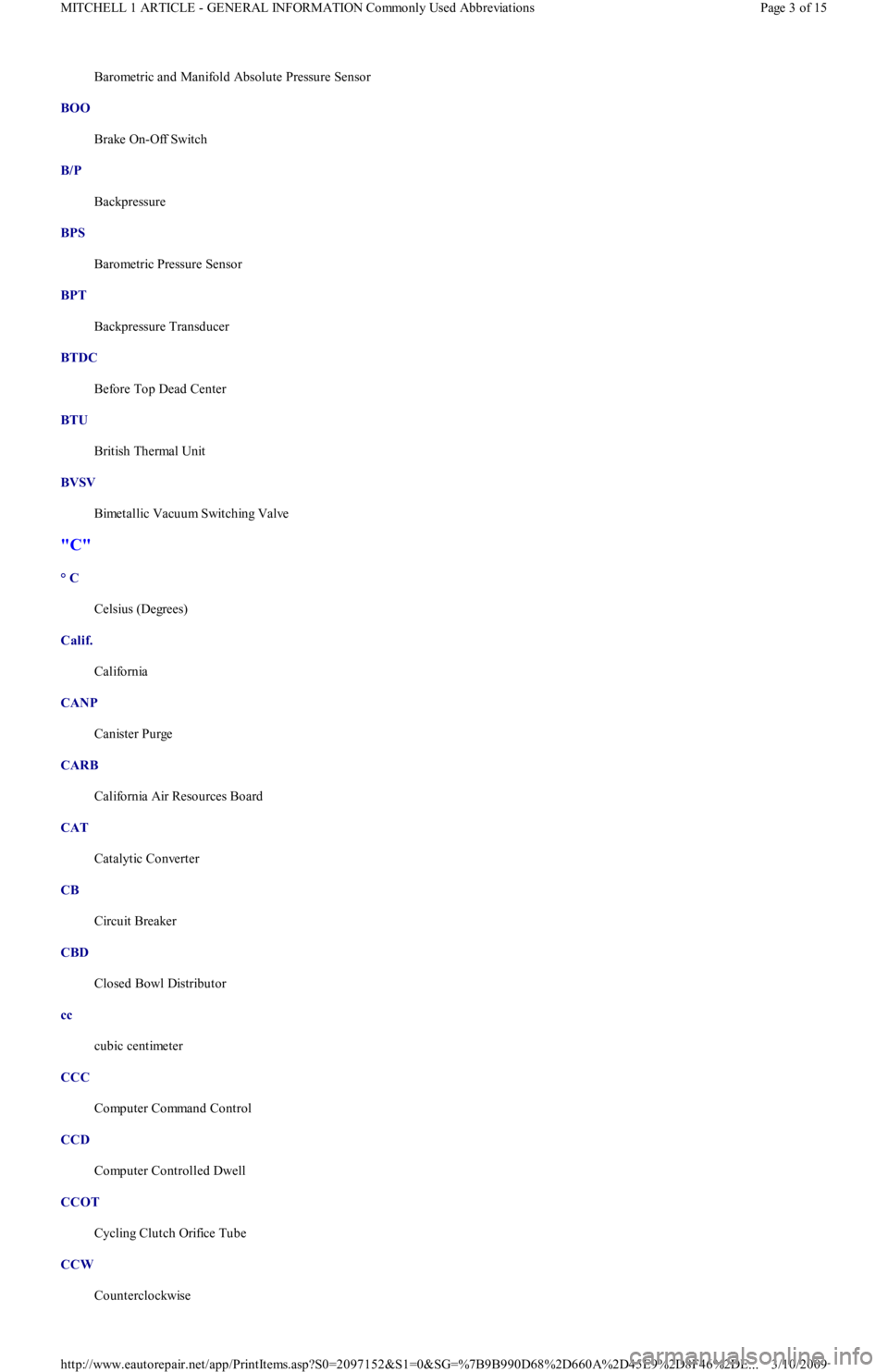

Barometric and Manifold Absolute Pressure Sensor
BOO
Brake On-Off Switch
B/P
Backpressure
BPS
Barometric Pressure Sensor
BPT
Backpressure Transducer
BTDC
Before Top Dead Center
BTU
British Thermal Unit
BVSV
Bimetallic Vacuum Switching Valve
"C"
° C
Celsius (Degrees)
Calif.
California
CANP
Canister Purge
CARB
California Air Resources Board
CAT
Catalytic Converter
CB
Circuit Breaker
CBD
Closed Bowl Distributor
cc
cubic centimeter
CCC
Computer Command Control
CCD
Computer Controlled Dwell
CCOT
Cycling Clutch Orifice Tube
CCW
Counterclockwise
Page 3 of 15 MITCHELL 1 ARTICLE - GENERAL INFORMATION Commonly Used Abbreviations
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

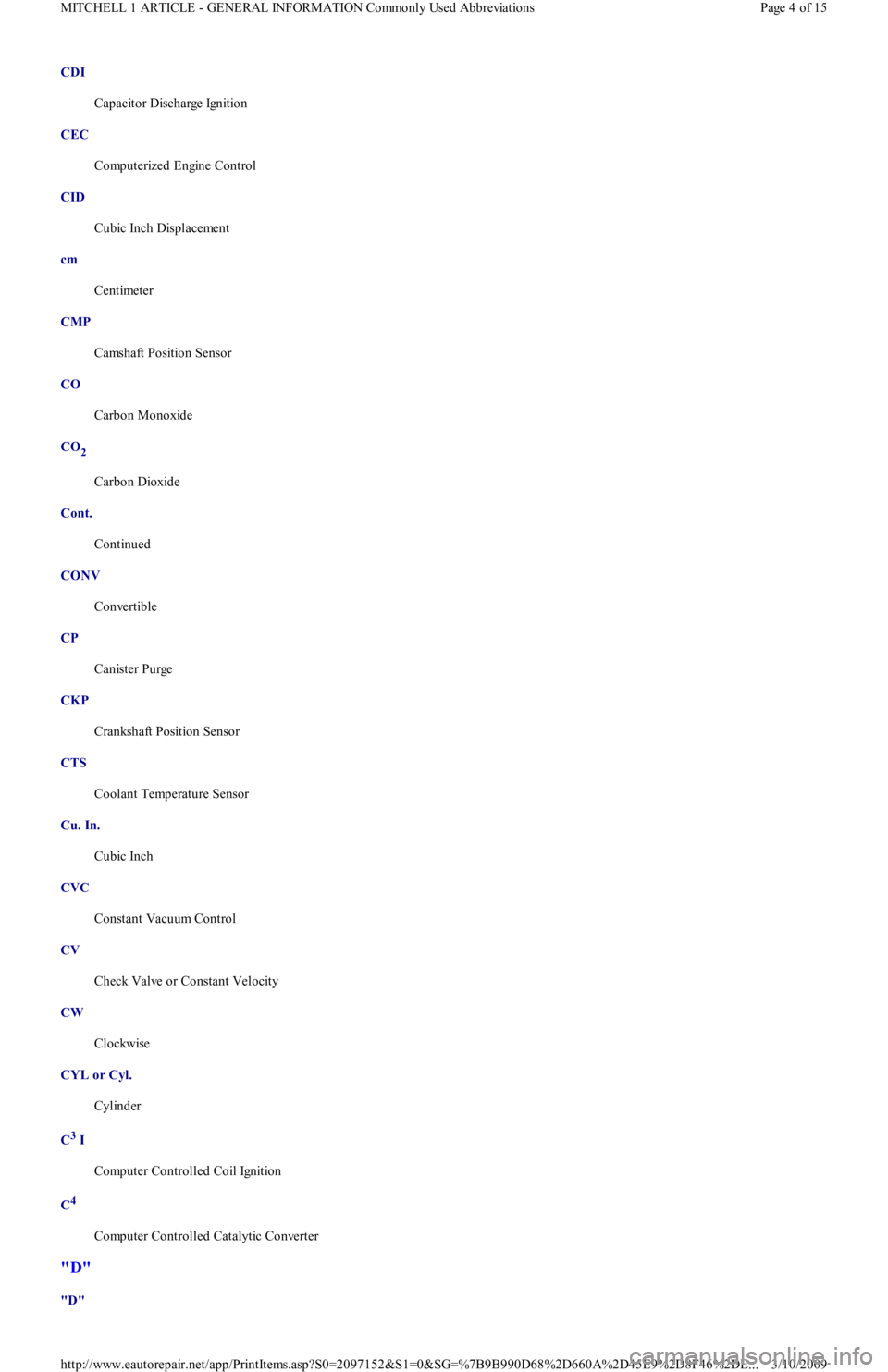

CDI
Capacitor Discharge Ignition
CEC
Computerized Engine Control
CID
Cubic Inch Displacement
cm
Centimeter
CMP
Camshaft Position Sensor
CO
Carbon Monoxide
CO
2
Carbon Dioxide
Cont.
Continued
CONV
Convertible
CP
Canister Purge
CKP
Crankshaft Position Sensor
CTS
Coolant Temperature Sensor
Cu. In.
Cubic Inch
CVC
Constant Vacuum Control
CV
Check Valve or Constant Velocity
CW
Clockwise
CYL or Cyl.
Cylinder
C
3 I
Computer Controlled Coil Ignition
C
4
Computer Controlled Catalytic Converter
"D"
"D"
Page 4 of 15 MITCHELL 1 ARTICLE - GENERAL INFORMATION Commonly Used Abbreviations
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

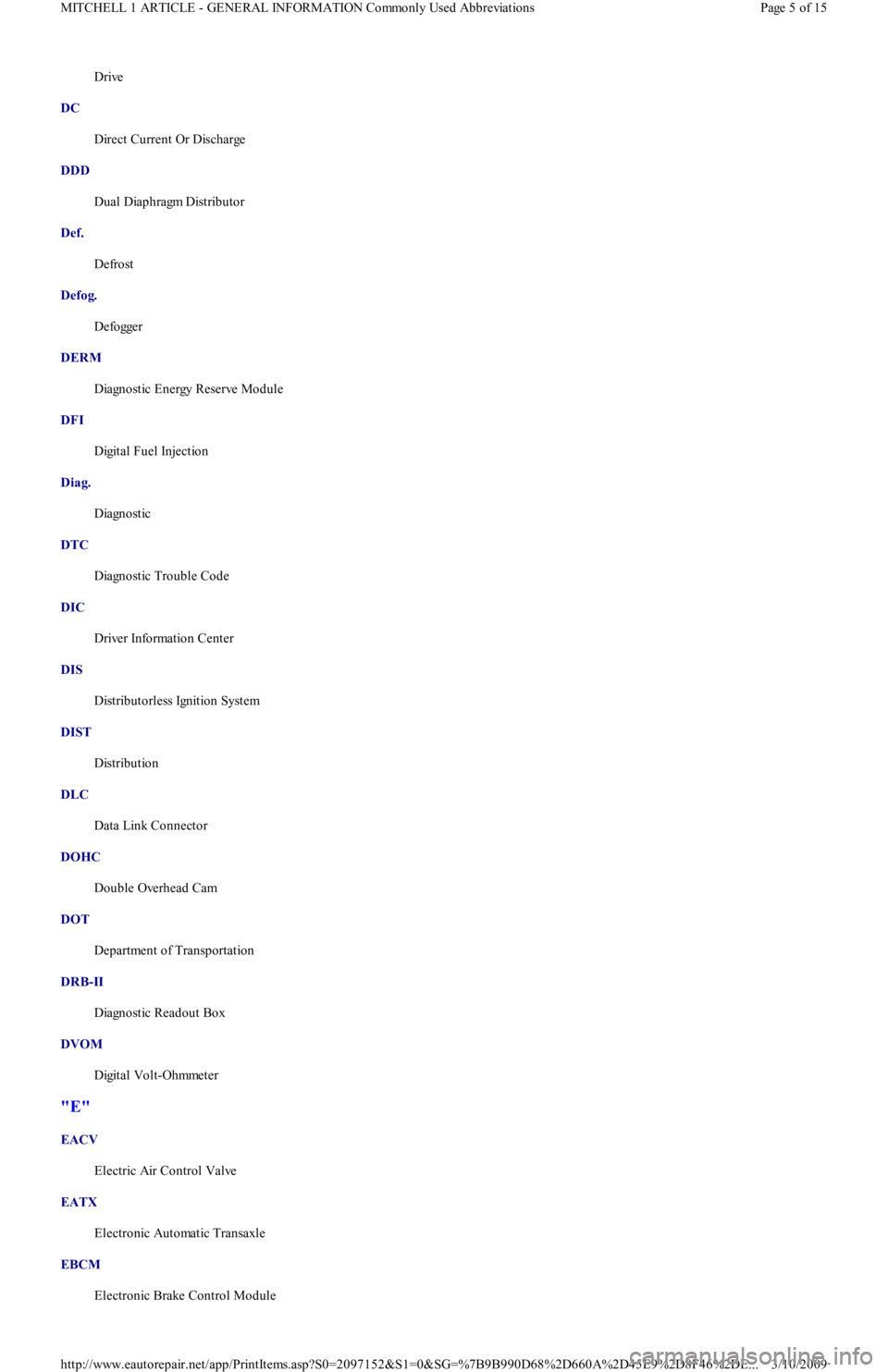

Drive
DC
Direct Current Or Discharge
DDD
Dual Diaphragm Distributor
Def.
Defrost
Defog.
De fo gge r
DERM
Diagnostic Energy Reserve Module
DFI
Digital Fuel Injection
Diag.
Diagnostic
DTC
Diagnostic Trouble Code
DIC
Driver Information Center
DIS
Distributorless Ignition System
DIST
Distribution
DLC
Data Link Connector
DOHC
Double Overhead Cam
DOT
Department of Transportation
DRB-II
Diagnostic Readout Box
DVOM
Digital Volt-Ohmmeter
"E"
EACV
Electric Air Control Valve
EATX
Electronic Automatic Transaxle
EBCM
Electronic Brake Control Module
Page 5 of 15 MITCHELL 1 ARTICLE - GENERAL INFORMATION Commonly Used Abbreviations
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

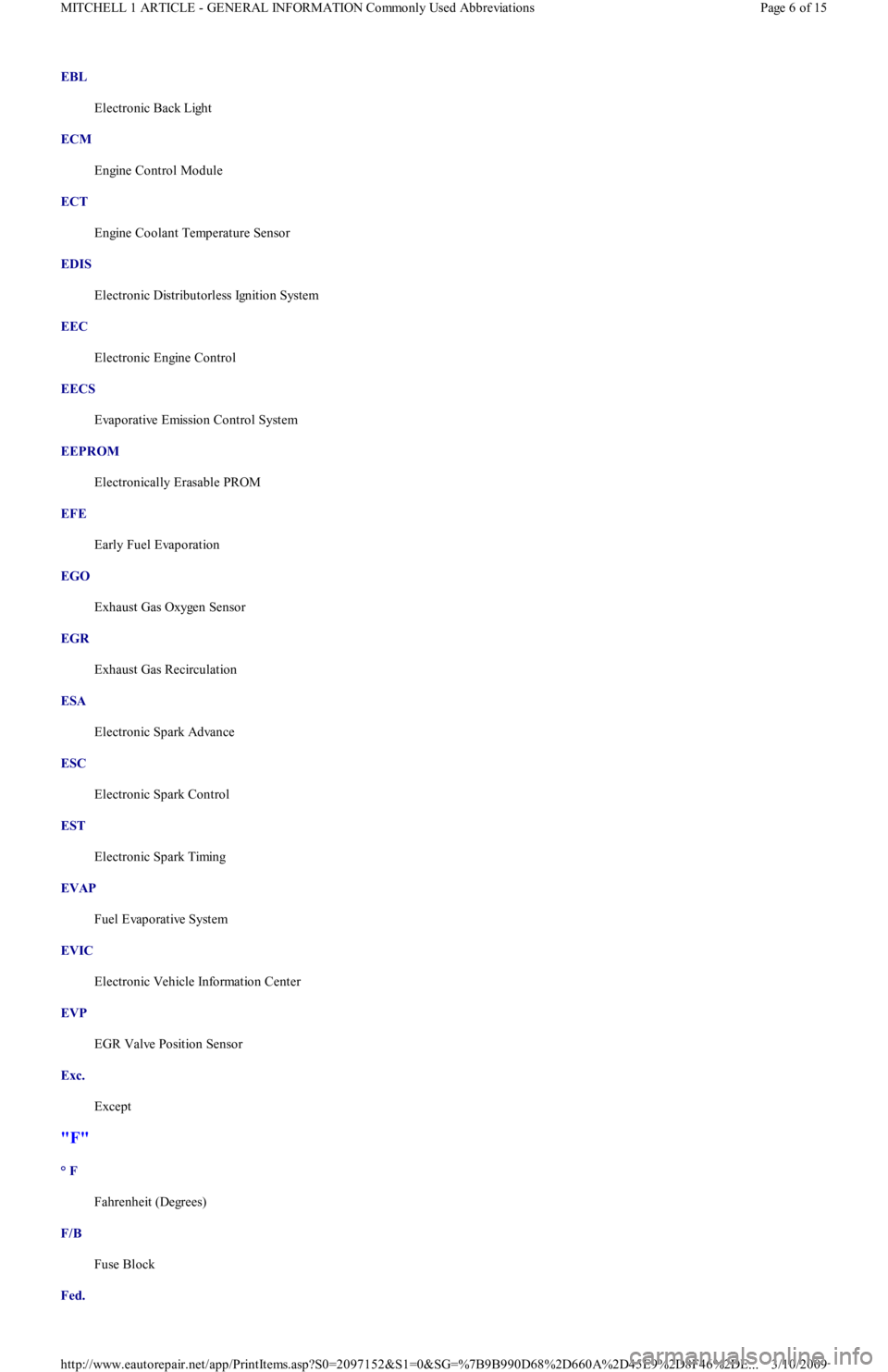

EBL
Electronic Back Light
ECM
Engine Control Module
ECT
Engine Coolant Temperature Sensor
EDIS
Electronic Distributorless Ignition System
EEC
Electronic Engine Control
EECS
Evaporative Emission Control System
EEPROM
Electronically Erasable PROM
EFE
Early Fuel Evaporation
EGO
Exhaust Gas Oxygen Sensor
EGR
Exhaust Gas Recirculation
ESA
Electronic Spark Advance
ESC
Electronic Spark Control
EST
Electronic Spark Timing
EVAP
Fuel Evaporative System
EVIC
Electronic Vehicle Information Center
EVP
EGR Valve Position Sensor
Exc.
Except
"F"
° F
Fahrenheit (Degrees)
F/B
Fuse Block
Fed.
Page 6 of 15 MITCHELL 1 ARTICLE - GENERAL INFORMATION Commonly Used Abbreviations
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

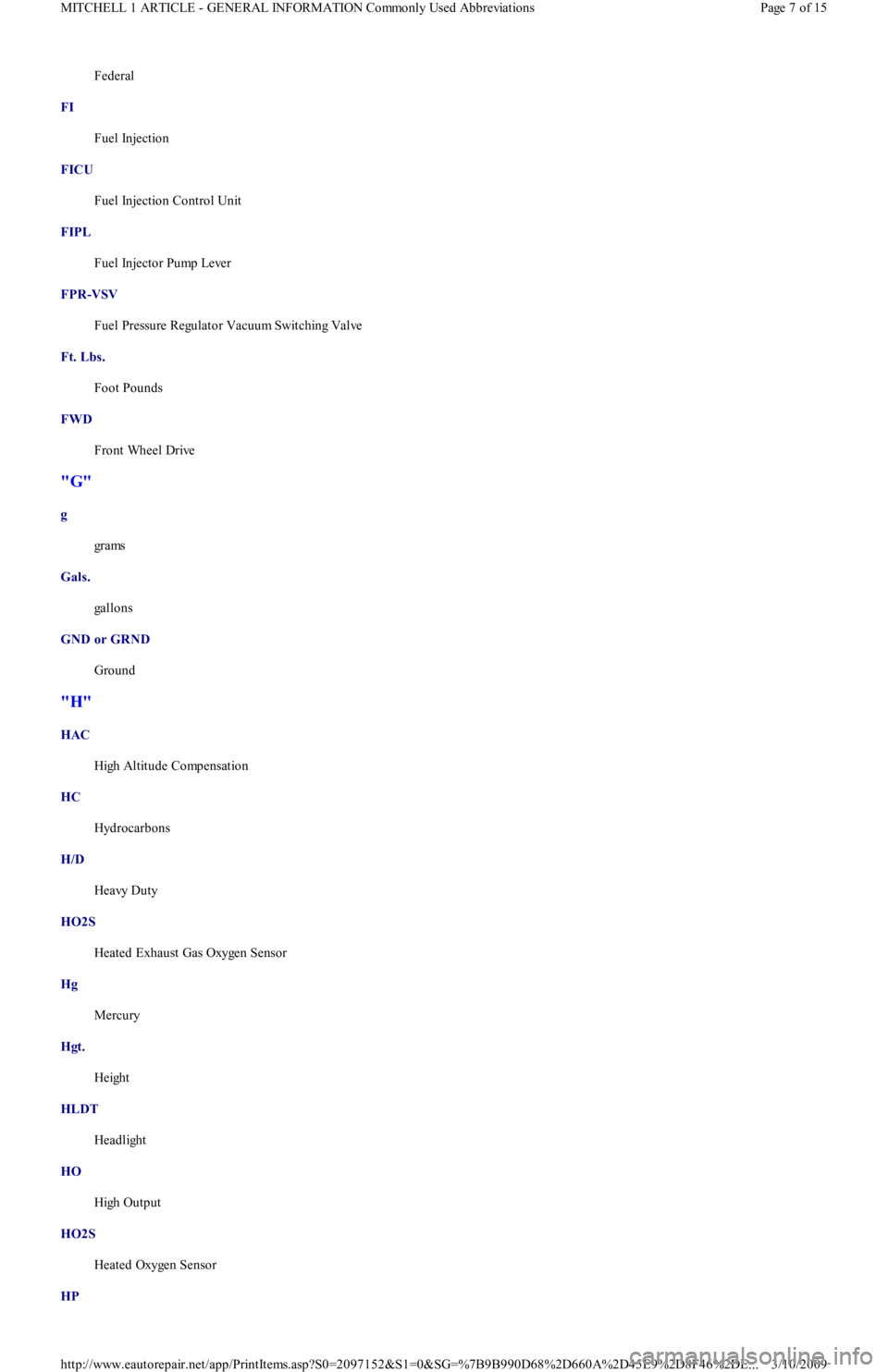

Federal
FI
Fuel Injection
FICU
Fuel Injection Control Unit
FIPL
Fuel Injector Pump Lever
FPR-VSV
Fuel Pressure Regulator Vacuum Switching Valve
Ft. Lbs.
Foot Pounds
FWD
Front Wheel Drive
"G"
g
gr a ms
Gals.
ga l l o n s
GND or GRND
Ground
"H"
HAC
High Altitude Compensation
HC
Hydrocarbons
H/D
Heavy Duty
HO2S
Heated Exhaust Gas Oxygen Sensor
Hg
Mercury
Hgt.
Height
HLDT
Headlight
HO
High Output
HO2S
Heated Oxygen Sensor
HP
Page 7 of 15 MITCHELL 1 ARTICLE - GENERAL INFORMATION Commonly Used Abbreviations
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

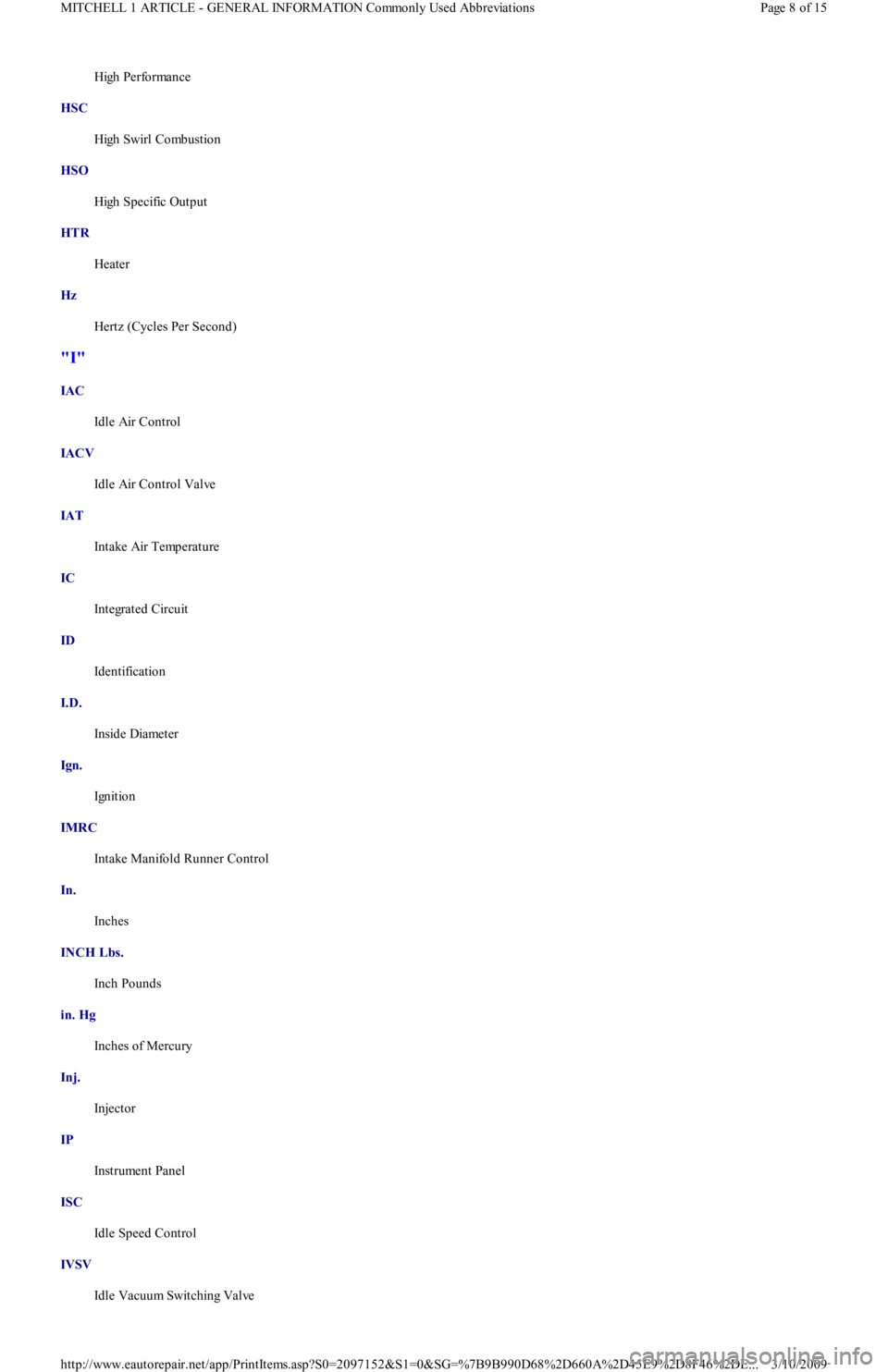

High Performance
HSC
High Swirl Combustion
HSO
High Specific Output
HTR
Heater
Hz
Hertz (Cycles Per Second)
"I"
IAC
Idle Air Control
IACV
Idle Air Control Valve
IAT
Intake Air Temperature
IC
Integrated Circuit
ID
Identification
I.D.
Inside Diameter
Ign.
Ignition
IMRC
Intake Manifold Runner Control
In.
In ch es
INCH Lbs.
Inch Pounds
in. Hg
Inches of Mercury
Inj.
Injector
IP
Instrument Panel
ISC
Idle Speed Control
IVSV
Idle Vacuum Switching Valve
Page 8 of 15 MITCHELL 1 ARTICLE - GENERAL INFORMATION Commonly Used Abbreviations
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

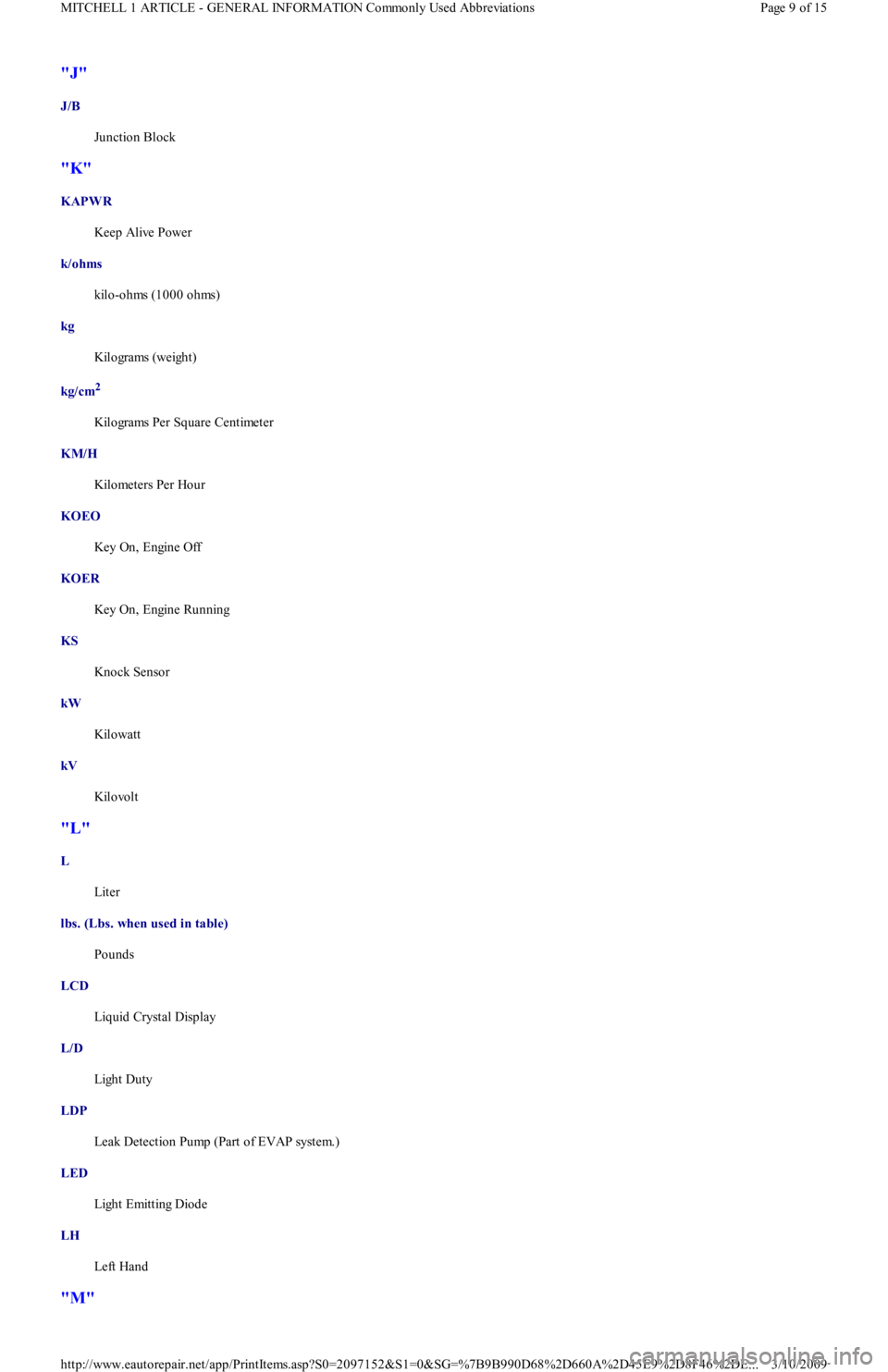

"J"
J/B
Junction Block
"K"
KAPWR
Keep Alive Power
k/ohms
kilo-ohms (1000 ohms)
kg
Kilograms (weight)
kg/cm
2
Kilograms Per Square Centimeter
KM/H
Kilometers Per Hour
KOEO
Key On, Engine Off
KOER
Ke y On , E n gin e R u n n in g
KS
Knock Sensor
kW
Kilowatt
kV
Kilovolt
"L"
L
Liter
lbs. (Lbs. when used in table)
Pounds
LCD
Liquid Crystal Display
L/D
Light Duty
LDP
Leak Detection Pump (Part of EVAP system.)
LED
Light Emitting Diode
LH
Left Hand
"M"
Page 9 of 15 MITCHELL 1 ARTICLE - GENERAL INFORMATION Commonly Used Abbreviations
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

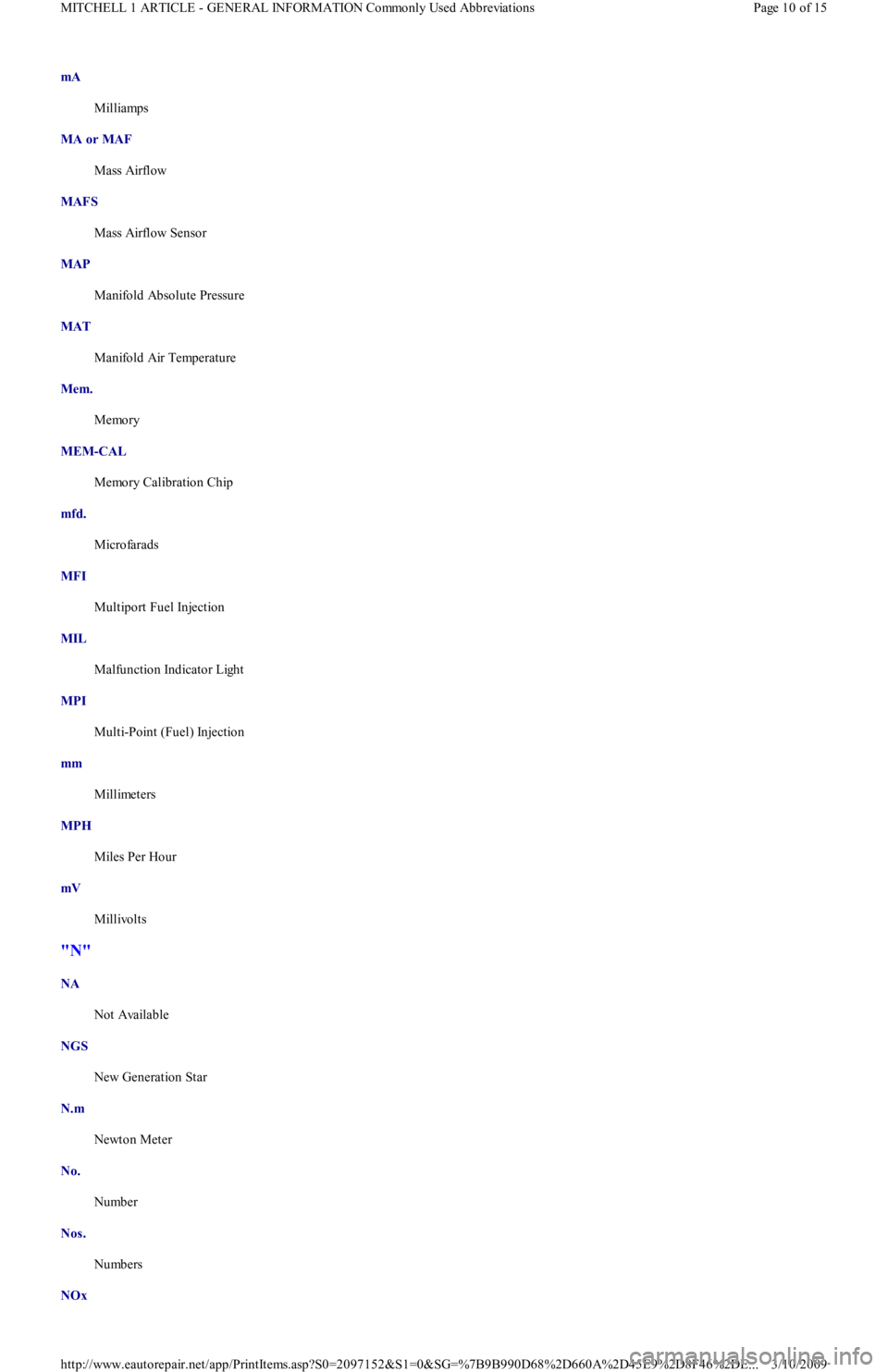

mA
Milliamps
MA or MAF
Mass Airflow
MAFS
Mass Airflow Sensor
MAP
Manifold Absolute Pressure
MAT
Manifold Air Temperature
Mem.
Memory
MEM-CAL
Memory Calibration Chip
mfd.
Microfarads
MFI
Multiport Fuel Injection
MIL
Malfunction Indicator Light
MPI
Multi-Point (Fuel) Injection
mm
Millimeters
MPH
Miles Per Hour
mV
Millivolts
"N"
NA
Not Available
NGS
New Generation Star
N.m
Newton Meter
No.
Number
Nos.
Numbers
NOx
Page 10 of 15 MITCHELL 1 ARTICLE - GENERAL INFORMATION Commonly Used Abbreviations
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

Oxides of Nitrogen
"O"
O2
Oxygen
OBD
On-Board Diagnostics
OC
Oxidation Catalyst
OD
Overdrive
O.D.
Outside Diameter
OHC
Overhead Camshaft
O/S
Oversize
oz.
Ounce
ozs.
Ounces
"P"
"P"
Park
P/C
Printed Circuit
PCM
Powertrain Control Module
PCS
Purge Control Solenoid
PC-SOL
Purge Control Solenoid
PCV
Positive Crankcase Ventilation
PFI
Port Fuel Injection
PGM-FI
Programmed Fuel Injection
PID
Parameter Identification
PIP
Page 11 of 15 MITCHELL 1 ARTICLE - GENERAL INFORMATION Commonly Used Abbreviations
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...

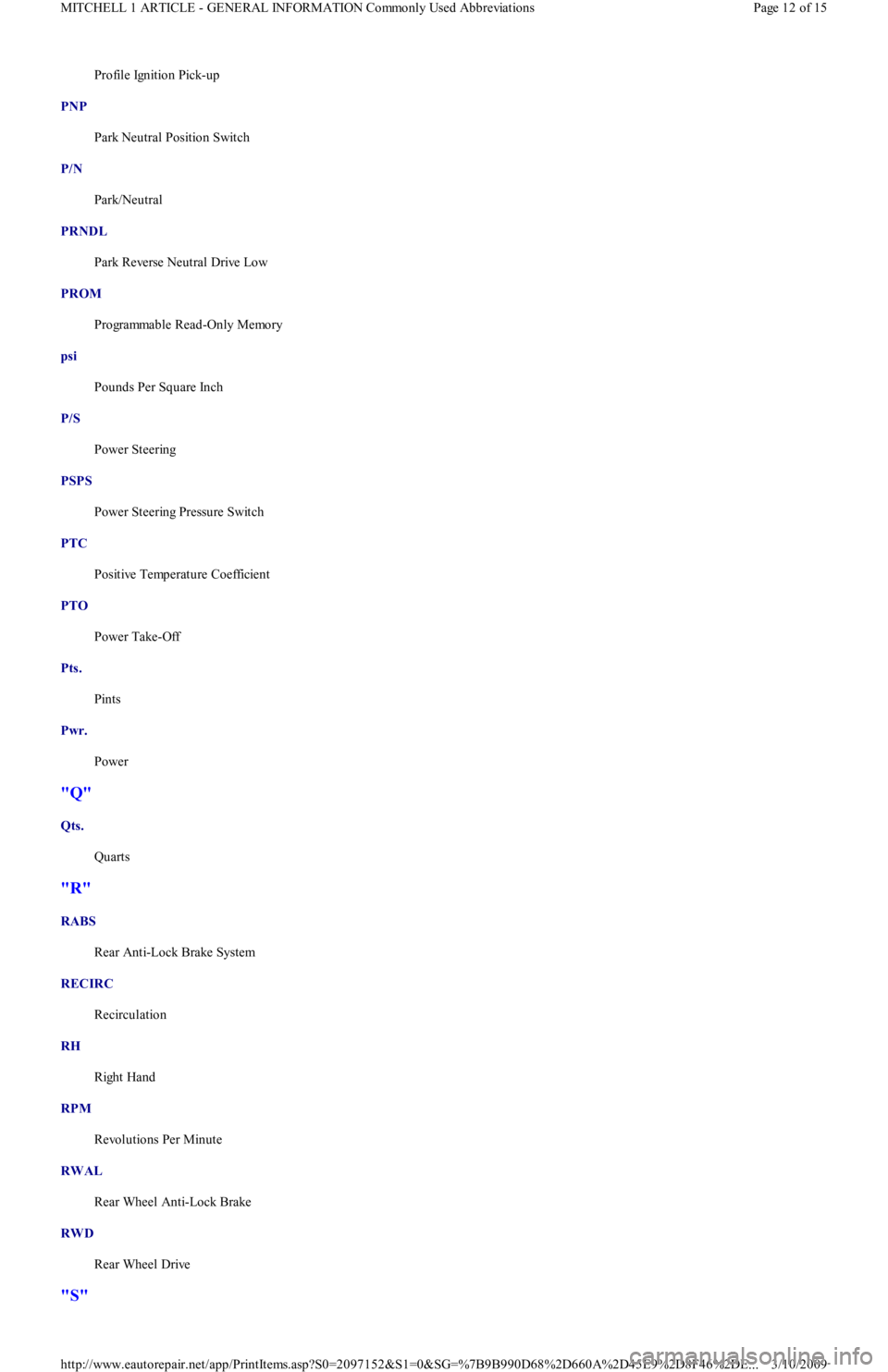

Profile Ignition Pick-up
PNP
Park Neutral Position Switch
P/N
Park/Neutral
PRNDL
Park Reverse Neutral Drive Low
PROM
Programmable Read-Only Memory
psi
Pounds Per Square Inch
P/S
Power Steering
PSPS
Power Steering Pressure Switch
PTC
Positive Temperature Coefficient
PTO
Power Take-Off
Pts.
Pints
Pwr.
Power
"Q"
Qts.
Quarts
"R"
RABS
Rear Anti-Lock Brake System
RECIRC
Recirculation
RH
Right Hand
RPM
Revolutions Per Minute
RWAL
Rear Wheel Anti-Lock Brake
RWD
Rear Wheel Drive
"S"
Page 12 of 15 MITCHELL 1 ARTICLE - GENERAL INFORMATION Commonly Used Abbreviations
3/10/2009 http://www.eautorepair.net/app/PrintItems.asp?S0=2097152&S1=0&SG=%7B9B990D68%2D660A%2D45E9%2D8F46%2DE
...
