FORD FIESTA 2007 Workshop Manual

Automatic Transmission/Transaxle -
Vehicles With: 4-Speed Automatic
307-01 -51 Transmission (AW81-40) 307-01 -51 -
GENERAL PROCEDURES
~ransmission Fluid Level Check
( I General Equipment 5. Using WDS, check that the transmission fluid
Worldwide diagnostic system (WDS) temperature is between 50°C and 60°C.
1 6. Remove the transmission fluid level
Materials
A WARN1NG:Refer to the Material Safety Data
Sheets for the Automatic Transmission
Fluid
E-AW. Failure to follow this
instruction may result in personal injury.
Certain Transmission and Power Steering
fluids supplied to Ford contain additives
which may cause skin irritation or other
skin reactions after contact.
For additional information, refer to: Health
and Safety Precautions (1 00-00 General
Information, Description and Operation).
See
- Transmission Fluids.
1. N0TE:Make sure that the transmission is not
in emergency operation mode.
Connect the worldwide diagnostic system
(WDS) to the data link connector (DLC). indicator.
Automatic transmission
lfluid
*' AWARNING:M~~~ sure that
the parking
brake control lever is in the fully applied
position. Failure to follow this instruction
may result in personal injury.
Name
Specification
WSS-M2C924-A
Start the engine.
3. Move the transmission selector lever through
all the gear ranges, allow sufficient time for
each position to engage.
4. Move the transmission selector lever to the
"P" (PARK) position. 7.
Check the transmission fluid level and top
up with clean automatic transmission fluid
if necessary.
For additional information, refer to: Health
and Safety Precautions (1 00-00 General
Information, Description and Operation).
See
- Transmission Fluids.
Make sure that, with the transmission in the
"P" (PARK) position, the oil level is between
the "MIN" and "MAX" mark.
v v
MIN 55°C MAX A A
ELE0008136
2006.0 Fiesta 1212006 G371500en
procarmanuals.com

Automatic Transmission/Transaxle -
Vehicles With: CSpeed Automatic
307-01 -52 Transmission (AW81-40) 307-01 -52
GENERAL PROCEDURES
8. Install the transmission fluid level indicator.
9. Switch the engine off.
10. Disconnect the WDS from the DLC.
2006.0 Fiesta 1212006 G371500en
procarmanuals.com

Automatic Transmission/Transaxle -
Vehicles With: 4-Speed Automatic
307-01 -53 Transmission (AW81-40)
307-01 -53
GENERAL PROCEDURES
Transmission Fluid Drain and Refill
I I Name Specification
Discard the drain plug seal.
1 Materials
--
A WARNING:Refer to the Material Safety Data
Sheets for the Automatic Transmission
Fluid
E-AW. Failure to follow this
instruction may result in personal injury.
Certain Transmission and Power Steering
fluids supplied to Ford contain additives
which may cause skin irritation or other
skin reactions after contact.
I I
Automatic transmission
lfluid-
For additional information, refer to: Health 3, NOTE:lnstall a new drain plug seal. and Safety Precautions (1 00-00 General
Information, Description and Operation).
N0TE:Clean the drain plug thread.
See - Transmission Fluids.
Install the drain plug.
1. Raise and support the vehicle.
WSS-M2C924-A
For additional information, refer to: Jacking
(1 00-02 Jacking and Lifting, Description
and Operation)
I Lifting (100-02 Jacking and Lifting,
Description and Operation).
2. N0TE:lf an internal transaxle concern is
suspected, drain the fluid through a paper
filter. A small amount of metal or friction
particles may be found from normal wear.
However,
if excessive metal or friction
particles are present, a detailed inspection
of the transaxle will be required.
Drain the transaxle.
4. Lower the vehicle.
For additional information, refer to: Health
5. Remove the transmission fluid level
and Safety Precautions
(1 00-00 General indicator.
Information, Description and Operation).
See
- Transmission Fluids.
Allow the fluid to drain into a suitable
container.
For additional information, refer to: Health
and Safety Precautions
(1 00-00 General
Information, Description and Operation).
See
- Transmission Fluids.
2006.0 Fiesta 1212006 ~371501 en
procarmanuals.com

Automatic TransmissionlTransaxle -
Vehicles With: 4-Speed Automatic

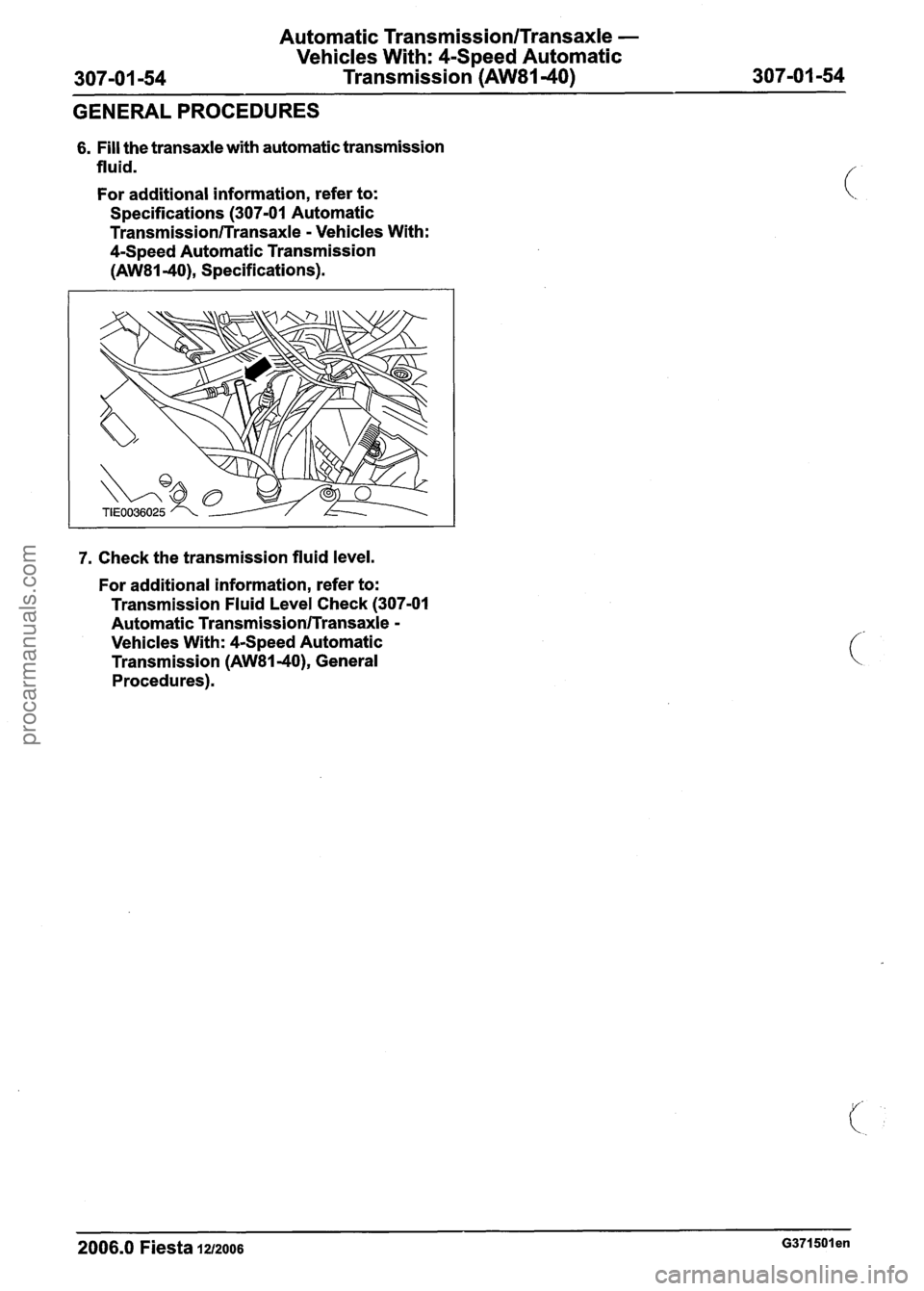

307-01 -54 Transmission
(AW81-40) 307-01 -54
GENERAL PROCEDURES
6. Fill the transaxle with automatic transmission
fluid.
For additional information, refer to:
Specifications (307-01 Automatic
Transmission/Transaxle - Vehicles With:
4Speed Automatic Transmission
(AW81-40), Specifications).
7. Check the transmission fluid level.
For additional information, refer to:
Transmission Fluid Level Check (307-01
Automatic
Transmission/Transaxle -
Vehicles With: 4-Speed Automatic
Transmission
(AW81-40), General
Procedures).
2006.0 Fiesta 1212006 G371501 en
procarmanuals.com

Automatic Transmission/Transaxle -
Vehicles With: 4-Speed Automatic
307101 -55 Transmission (AW81-40) 307-01 -55
IN-VEHICLE REPAIR
Transmission Range (TR) Sensor
Removal
1. Shift the transmission selector lever to the ACAUTION:H~I~ the manual shift lever
"N" (NEUTRAL) position. while loosening
or tightening the manual - -
2. Raise and support the vehicle. shift
lever locking nut to prevent rotational
torque being transmitted to the TR sensor
For additional information, refer to: Jacking
and shift mechanism.
(1
00-02 Jacking and Lifting, Description
and Operation) Remove
the manual shift lever (automatic
I Lifting (1 00-02 Jacking and Lifting, transaxle
shown removed for clarity).
Description and Operation).
3. Disconnect the transmission range (TR)
sensor electrical connector.
6. Remove the nut and locking washer
(automatic transaxle shown removed for
clarity).
4. Detach the selector lever cable from the Unbend the locking washer tangs.
manual shift lever.
1. Detach the selector lever cable from the
manual shift lever.
2. Detach the selector lever cable from the
selector lever cable bracket.
7. N0TE:The TR sensor retaining bolts can be
reused three times. Mark the retaining bolts
to indicate usage.
2006.0 Fiesta 1212006 G371502en
procarmanuals.com

Automatic Transmission/Transaxle -
Vehicles With: 4Speed Automatic
307-01 -56 Transmission (AW81-40) 307-01 -56
IN-VEHICLE REPAIR
Remove the TR sensor (automatic transaxle Bend the locking washer tangs.
shown removed for clarity).
Installation
3m &LCAUTION:C~~~~ that the manual shift
lever is in the "N" (NEUTRAL) position.
1. N0TE:The transmission range (TR) sensor Adjust
the TR sensor to align the locking
retaining bolts can be reused three times. washer
pointer to the "N" (NEUTRAL)
Check the retaining bolts and install new position scribed on the
TR sensor body.
bolts
if necessary.
N0TE:Do not tighten the TR sensor retaining bolts
at this stage.
Install the TR sensor (automatic transaxle
shown removed for clarity).
4. Tighten the TR sensor retaining bolts
(automatic transaxle shown removed for
clarity).
2. Install the locking washer and nut (automatic
transaxle shown removed for clarity).
I
5. CAUTIONS:
ADO not use air tools to tighten the manual
shift lever locking nut.
--
2006.0 Fiesta 1212006 G371502en
procarmanuals.com

Automatic Transmission/Transaxle -
Vehicles With: 4-Speed Automatic
307-01 -57 Transmission (AW81-40) 307-01 -57
IN-VEHICLE REPAIR
A~old the manual shift lever while 8. Lower the vehicle.
' tightening the manual shift lever locking nut 9. Check the selector lever cable adjustment to prevent rotational torque being by
moving the transmission selector lever
transmitted to the
TR sensor and shift through
all gear ranges.
mechanism.
Install the manual shift lever (automatic
transaxle shown removed for clarity).
6. Connect the TR sensor electrical connector.
7. Attach the selector lever cable to the manual
shift lever.
1. Attach the selector lever cable to the selector
lever cable bracket.
2. Attach the selector lever cable to the manual
shift lever.
2006.0 Fiesta 1212006 G371502en
procarmanuals.com

Automatic Transmission/Transaxle -
Vehicles With: 4-Speed Automatic
307-01 -58 Transmission
(AW81-40) 307-01 -58
IN-VEHICLE REPAIR
Halfshaft Seal LH
I. 1.NOTE:lnstall a new halfshaft seal.
Special
Tool(s) Discard
the seal.
Removal
Installer, Front Wheel Hub
Seal
204-066 (1 4-028)
Remover, Halfshaft Seal
308-208 (1 6-074)
A WARN1NG:Refer to the Material Safety Data
Sheets for the Automatic Transmission
Fluid
E-AW. Failure to follow this
instruction may result in personal injury.
Certain Transmission and Power Steering
fluids supplied to Ford contain additives
which may cause skin irritation or other
skin reactions after contact.
Installation
For additional information, refer to: Health
and Safety Precautions
(1 00-00 General
Information, Description and Operation).
See
- Transmission Fluids. Using the
special tool, install the halfshaft
seal.
1. Remove the left-hand halfshaft.
2. Install the left-hand halfshaft.
For additional information, refer to: Front
Halfshaft LH
(205-04 Front Drive Halfshafts, For additional
information, refer to: Front
Removal and lnstallation). Halfshaft
LH (205-04 Front Drive Halfshafts,
Removal and lnstallation).
2. Using the special tool, remove the halfshaft
seal.
Allow the fluid to drain into a suitable
container.
For additional information, refer to: Health
and Safety Precautions
(1 00-00 General
Information, Description and Operation).
See
- Transmission Fluids.
-
2006.0 Fiesta 1212006 G371503en
procarmanuals.com

Automatic Transmission/Transaxle -
Vehicles With: 4-Speed Automatic
307-01 -59 Transmission (AW81-40) 307101 -59
IN-VEHICLE REPAIR
Halfshaft Seal RH
Special Tool@) Discard the seal.
Installer, Front Wheel Hub
Seal
204-066
(1 4-028)
A WARNING:Refer to the Material Safety Data
Sheets for the Automatic Transmission
Fluid E-AW. Failure to follow this
( instruction may result in personal injury. ' , Certain Transmission and Power Steering
fluids supplied to Ford contain additives
which may cause skin irritation or other
skin reactions after contact.
For additional information, refer to: Health
and Safety Precautions (100-00 General
Information, Description and Operation).
See
- Transmission Fluids.
Remover, Halfshaft Seal
308-208
(1 6-074)
1. Remove the right-hand halfshaft. 2. Install the right-hand halfshaft.
For additional information, refer to: Front
Halfshaft
RH (205-04 Front Drive Halfshafts, For
additional information, refer to: Front
Removal and Installation). Halfshaft
RH (205-04 Front Drive Halfshafts,
Removal and lnstallation).
2. Using the special tool, remove the halfshaft
seal.
lnstallation
1. N0TE:lnstall a new halfshaft seal.
Allow the fluid to drain into a suitable
container.
Removal Using the special tool, install the halfshaft
seal.
For additional information, refer to: Health
and Safety Precautions
(1 00-00 General
Information, Description and Operation).
See
- Transmission Fluids.
2006.0 Fiesta 1212006 G371504en
procarmanuals.com

Automatic Transmission/Transaxle -
Vehicles With: 4-Speed Automatic
307-01 -60 Transmission
(AW81-40) 307-01 -60
IN-VEHICLE REPAIR
Turbine Shaft Speed (TSS) Sensor
Removal
1. Disconnect the turbine shaft speed (TSS)
sensor electrical connector.
2. Remove the TSS sensor.
Installation
1. N0TE:lnspect the O-ring seal for damage.
Install
a new O-ring seal if necessary.
N0TE:Apply a light coat of petroleum jelly to the
O-ring seal before installation.
To install, reverse the removal procedure.
2006.0 Fiesta 1212006 G371549en
procarmanuals.com
