Fuel Charging and Controls - 2.OL
303-04B-16 Duratec-HE (M14) 303-04B-16
DIAGNOSIS AND TESTING
Symptom Possible Sources Action
Incorrect or contaminated fuel. CHECK for signs of contamina-).-
tion such as strange odors from, .,,
,
the fuel tank.
If contaminated fuel is found,
DRAIN the complete fuel
system. FLUSH the fuel system
through with clean gasoline.
REFER to: Fuel Tank Draining
(31
0-OOA, General Proced-
ures).
INSTALL a new fuel filter.
INSPECT the fuel injectors.
CLEAN the fuel injectors or
INSTALL a new set of injectors
as required only after the
checks have been carried out.
INSTALL a new fuel rail.
REFER to: Fuel
Injection
Supply Manifold (303-04C,
Removal and Installation).
REFER to: Engine Emission
Control (303-08 Engine Emission Control
- 2.OL
Duratec-HE (M14), Diagnosis .
and Testing). I
CKP sensor. Carry out a full engine
diagnosis using the guided
diagnostic menu in WDS.
KS. Carry out a full engine
diagnosis using the guided
diagnostic menu in WDS.
INSPECT the fuel injectors.
CLEAN the fuel injectors or
l NSTALL a new set of injectors
as required only after the
checks have been carried out.
Catalytic converter blocked.
Fuel
rail fuel pressure sensor.
REMOVE and visually
INSPECT the catalytic
converter for damage.
INSTALL a new catalytic
converter as necessary.
Carry out a full engine
diagnosis using the guided
diagnostic menu in WDS.
REFER to: Catalytic Converter
I
- 1.8L Duratec-HE (M14)/2.OL
Duratec-H E (M14) (309-00,
Removal and Installation).
2006.0 Fiesta 1212006 GI 65371 en
procarmanuals.com

Fuel Charging and Controls - 2.OL
303-04B-17 Duratec-HE (M14) 303-04B-17 - --
DIAGNOSIS AND TESTING ~
EGR valve sticking open.
Symptom
Possible Sources Action
REFER to: Engine Emission
Control (303-08 Engine
Emission Control
- 2.OL
Duratec-H E (M14), Diagnosis
and Testing).
Black
smoke at cruising speeds
ECT sensor. Carry out a full engine
diagnosis using the guided
diagnostic menu in WDS.
. Air cleaner element blocked.
Fuel injectors. INSTALL a new air cleaner
element.
INSPECT the fuel injectors.
CLEAN the fuel injectors or
INSTALL a new set of injectors
as required only after the
checks have been carried out.
Fuel rail fuel pressure sensor.
Carry out a full engine
diagnosis using the guided
diagnostic menu in WDS.
Catalytic converter blocked.
REMOVE and visually
INSPECT the catalytic
converter for damage.
INSTALL a new catalytic
converter as necessary.
REFER to: Catalytic Converter
- 1.8L Duratec-HE (M14)/2.OL
Duratec-HE (M 14) (309-00,
Removal and Installation).
Blue smoke Engine burning oil. CARRY OUT a controlled oil
consumption test over
I000 km
(600 miles). CONFIRM that the
oil consumption is less than 0.1
litre per 1000 km (600 miles).
2006.0 Fiesta 1212006 GI 65371 en
procarmanuals.com

Fuel Charging and Con
Duratec-HE
(N
trols - 2.OL
14)
DIAGNOSIS AND TESTING
Symptom
Engine misfire
Possible Sources Action
Engine ignition. REFER to: Engine Ignition
(303-078, Diagnosis and
Testing).
Incorrect or contaminated fuel. CHECK for signs of contamina-
tion such as strange odors from
the fuel tank.
If contaminated fuel is found,
DRAIN the complete fuel
system. FLUSH the fuel system
through with clean gasoline.
REFER to: Fuel Tank Draining
(31
0-OOA, General Proced-
u res).
INSTALL a new fuel filter.
INSPECT the fuel injectors.
CLEAN the fuel injectors or
INSTALL a new set of injectors
as required only after the
checks have been carried out.
INSTALL a new fuel rail.
REFER to: Fuel Injection
Supply Manifold
(303-046,
Removal and Installation).
Low fuel system pressure. Check the fuel system pres- ( sure.
REFER to: Fuel System Pres-
sure Check (31
0-OOA,
General Procedures).
EGR valve sticking open. REFER to: Engine Emission
Control (303-08 Engine
Emission Control
- 2.OL
Duratec-HE (M14), Diagnosis
and Testing).
Engine operating temperature
too high. REFER to:
Engine Cooling
(303-03C, Diagnosis and
Testing).
ECT sensor. Carry out a full engine
diagnosis using the guided
diagnostic menu in WDS.
CKP sensor.
Carry out a full engine
diagnosis using the guided diagnostic menu in WDS.
CMP sensor. Carry out a full
engine
diagnosis using the guided
diagnostic menu in WDS.
KS.
2006.0 Fiesta 1212006 GI 65371 en
Carry out a full engine
diagnosis using the guided
diagnostic menu in WDS. )I
procarmanuals.com

Fuel Charging and Controls - 2.OL
303-04B-21 Duratec-HE (M14) 303-04B-21
DIAGNOSIS AND TESTING
Symptom
Engine knock at idle
Possible Sources Action
Fuel injectors.
INSPECT the fuel injectors.
CLEAN the fuel injectors or
INSTALL a new set of injectors
as required only after the
checks have been carried out.
Fuel rail fuel pressure sensor.
Carry out a full engine
diagnosis using the guided
diagnostic menu in WDS.
Low cylinder compression.
CHECK the engine compres-
sion.
Worn or damaged
valve(s),
tappet(s) or camshaft(s).
REMOVE the cylinder head.
INSPECT the cylinder head,
valves, tappets and camshafts
for signs of wear or damage.
REFER to: Cylinder Head (303-
01 C, In-vehicle Repair).
Damaged cylinder head gasket. REMOVE the cylinder head.
INSPECT the cylinder head
gasket and cylinder bores for
wear or damage.
REFER to: Cylinder Head (303-
01 C, In-vehicle Repair).
Low engine oil level.
CHECK the engine oil level.
REFILL as necessary.
Incorrect or contaminated fuel.
-
KS. CHECK
for signs of contamina-
tion such as strange odors from
the fuel tank.
If contaminated fuel is found,
DRAIN the complete fuel
system. FLUSH the fuel system
through with clean gasoline.
REFER to: Fuel Tank Draining
(31
0-OOA, General Proced-
u res).
INSTALL a new fuel filter.
INSPECT the fuel injectors.
CLEAN the fuel injectors or
INSTALL a new set of injectors
as required only after the
checks have been carried out. INSTALL a new fuel rail.
REFER to: Fuel Injection
Supply Manifold
(303-04C,
Removal and Installation).
Carry out a full engine
diagnosis using the guided
diagnostic menu in WDS.
2006.0 Fiesta 1212006 GI 65371 en
procarmanuals.com

Fuel Charging and Controls - 2.OL
303-04B-22 Duratec-HE (M14) 303-04B-22
DIAGNOSIS AND TESTING
Symptom
Engine knock during accelera-
tion Possible
Sources Action
CKP sensor. Carry out a full engine
diagnosis using the guided
diagnostic menu in WDS.
INSPECT the fuel injectors.
CLEAN the fuel injectors or
INSTALL a new set of injectors
as required only after the
checks have been carried out.
I . Incorrect valve timing. I CHECK the valve timing. I
Excessive carbon build up. REMOVE the cylinder head.
INSPECT the cylinder head
and pistons for signs carbon
build up.
REFER to: Cylinder Head (303-
01 C, In-vehicle Repair).
Worn or damaged oil pump.
Worn or damaged timing chain
or sprocket.
Major mechanical engine
failure. INSPECT
the engine compon- I
ents.
KS.
Fuel injectors. Carry out a full engine
diagnosis using the guided
diagnostic menu in WDS.
INSPECT the fuel injectors.
CLEAN the fuel injectors or
INSTALL a new set of injectors
as required only after the
checks have been carried out.
Major mechanical engine
failure. REFER
to: Engine (303-01
Engine
- 2.OL Duratec-HE
(M14), Diagnosis and
Testing).
N0TE:Before proceeding with any
of the actions in relation to the
possible sources for excessive
fuel consumption, a fuel consumption test located in the
toolbox menu of WDS must be
performed.
Excessive fuel consumption Brakes binding. CHECK
the braking system.
REFER to: Brake System (206-
00, Diagnosis and Testing).
Vehicle overloaded, or
excessive wind resistance (roof
racks, towing etc).
ADVISE the customer about
the effects of overloading the
vehicle and wind resistance on
the fuel consumption.
2006.0 Fiesta 1212006 GI 65371 en
Air cleaner element blocked. INSTALL a new air cleaner .-
element. I
procarmanuals.com

Fuel Charging and Controls - 2.OL
303-048-23 Duratec-HE (M14) 303-04B-23
DIAGNOSIS AND TESTING
Symptom
Possible Sources Action
Fuel system leak(s). CHECK the system for fuel
leak(s). REPAIR or INSTALL
new parts as necessary.
I Fuel filter blocked. I INSTALL a new fuel filter. I
Incorrect engine oil.
INSTALL a new oil filter and
engine oil.
I Generator. 1. REFER to WDS. I
EGR valve sticking open. REFER to: Engine Emission
Control (303-08 Engine
Emission Control
- 2.OL
Duratec-HE (M 14), Diagnosis
and Testing).
Slipping
clutch. REFER to: Manual Transaxle
and Clutch (308-00,
Diagnosis and Testing).
ECT sensor.
--
Carry out a full engine
diagnosis using the guided
diagnostic menu in WDS.
Fuel injectors. INSPECT the fuel injectors.
CLEAN the fuel injectors or
INSTALL a new set of injectors
as required only after the
checks have been carried out.
PCM calibration. Using WDS, CHECK for the
availability of a calibration
update.
--
I . Incorrect valve timing. I CHECK the valve timing. I
Engine cuts out during hard
acceleration
Low cylinder compression.
CMP sensor. CHECK
the engine compres-
sion.
Carry out a full engine
diagnosis using the guided
diagnostic menu in WDS.
CKP sensor. Carry out a full engine
diagnosis using the guided
diagnostic menu in WDS.
Fuel rail fuel pressure sensor.
REFER to: Fuel System Pres-
sure Check (31
0-OOA,
General Procedures).
Carry out a full engine
diagnosis using the guided
diagnostic menu in WDS.
Low fuel system pressure.
2006.0 Fiesta 1212006 GI 65371 en
Check the fuel system pres-
sure.
procarmanuals.com

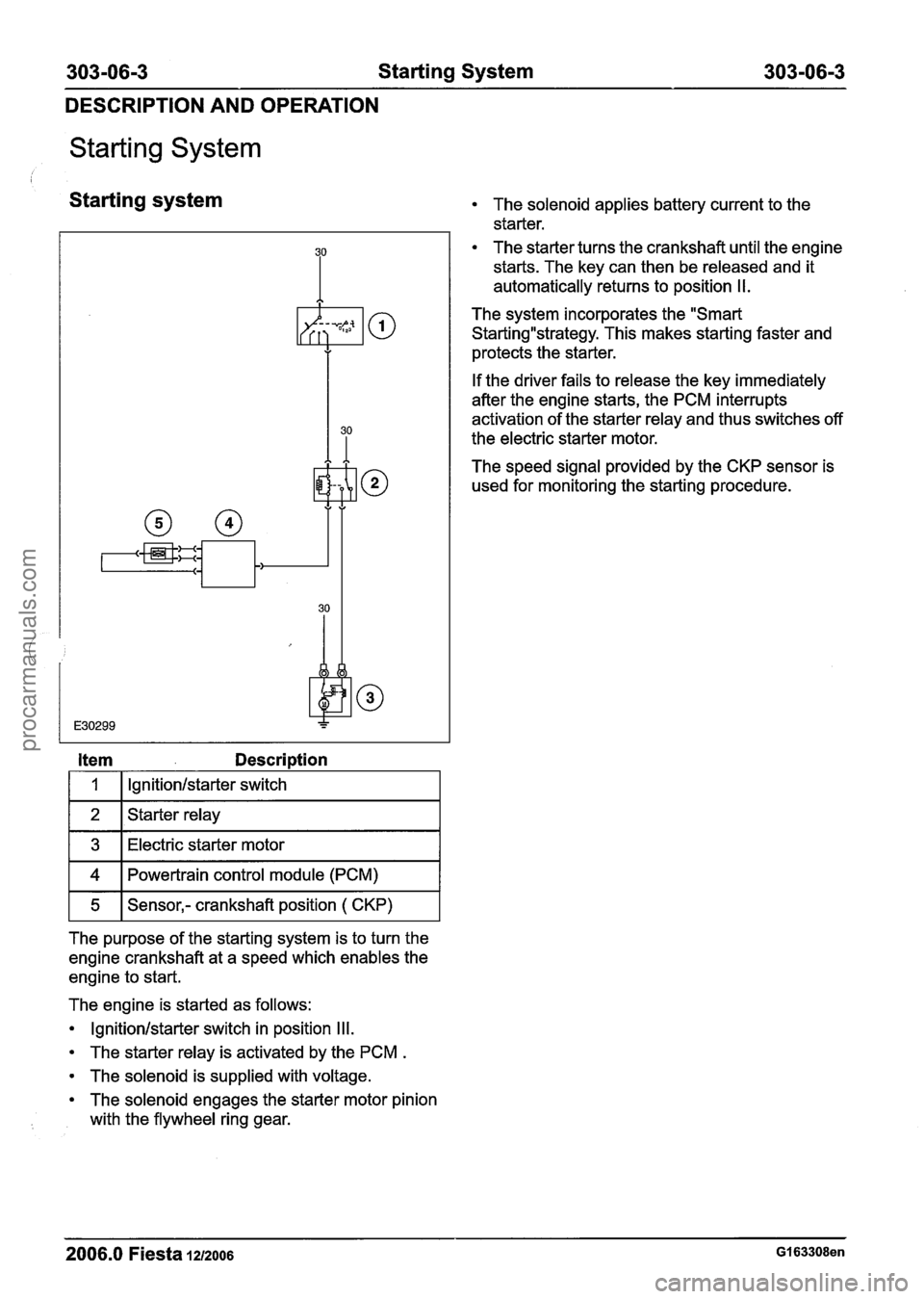

303-06-3 Starting System 303-06-3
DESCRIPTION AND OPERATION
Starting System
Starting system
1 tern Description
I 1 I lgnitionlstarter switch I
1 2 1 Starter relay I
1 3 1 Electric starter motor I
1 4 1 Powertrain control module (PCM) I
1 5 1 Sensor,- crankshaft position ( CKP) I
The purpose of the starting system is to turn the
engine crankshaft at a speed which enables the
engine to start.
The engine is started as follows:
Ignitionlstarter switch in position
Ill.
The starter relay is activated by the PCM .
The solenoid is supplied with voltage.
The solenoid engages the starter motor pinion
with the flywheel ring gear.
The solenoid applies battery current to the
starter.
The starter turns the crankshaft until the engine
starts. The key can then be released and it
automatically returns to position
I I.
The system incorporates the "Smart
StartingWstrategy. This makes starting faster and
protects the starter.
If the driver fails to release the key immediately
after the engine starts, the PCM interrupts
activation of the starter relay and thus switches off
the electric starter motor.
The speed signal provided by the CKP sensor is
used for monitoring the starting procedure.
2006.0 Fiesta 1212006 GI 63308en
procarmanuals.com

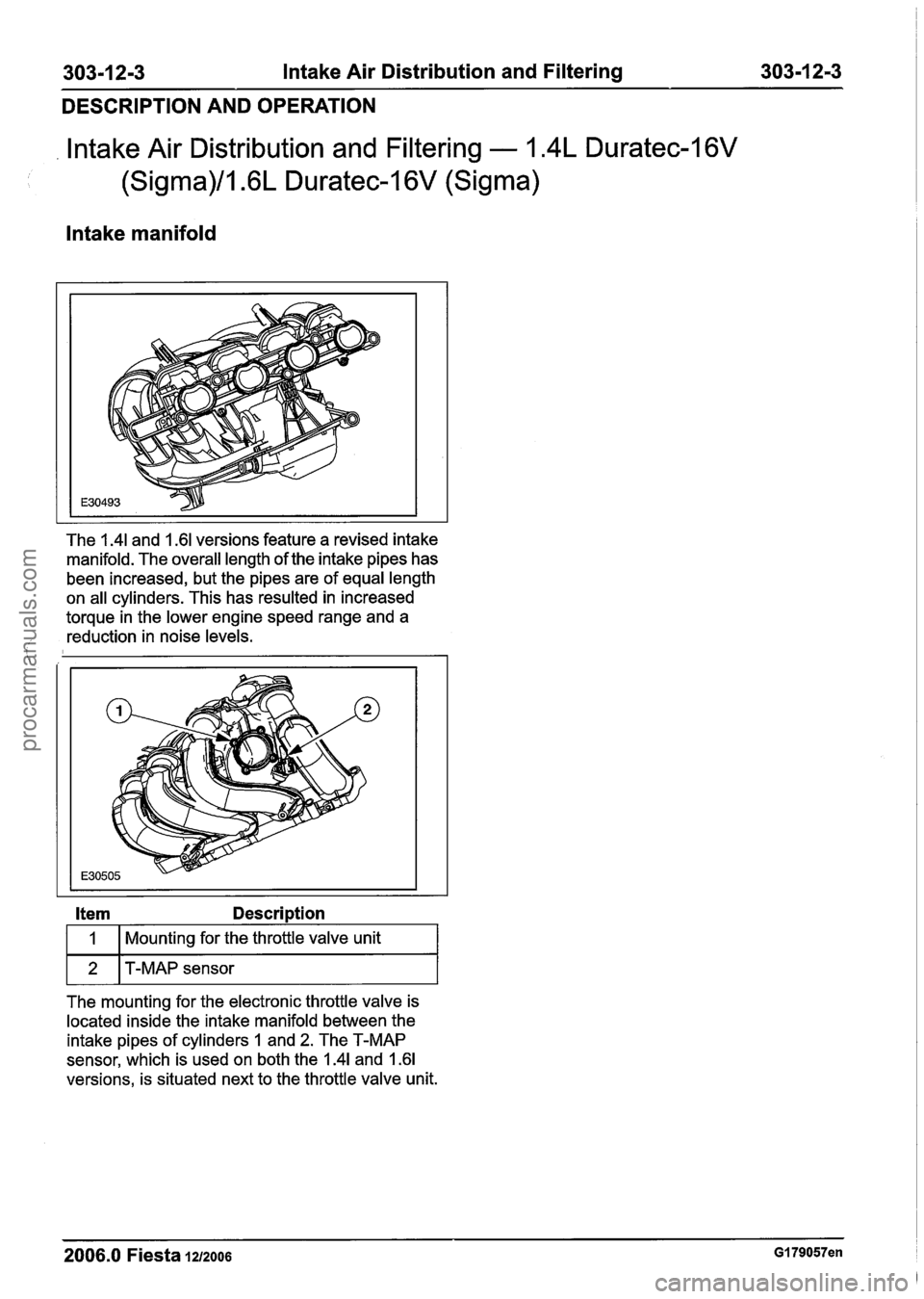

303-1 2-3 Intake Air Distribution and Filtering 303-1 2-3
DESCRIPTION AND OPERATION
lntake Air Distribution and Filtering - 1.4L Duratec-I 6V
I (Sigma)/l .6L Duratec-1 6V (Sigma)
lntake manifold
The 1.41 and 1.61 versions feature a revised intake
manifold. The overall length of the intake pipes has
been increased, but the pipes are of equal length
on all cylinders. This has resulted in increased
torque in the lower engine speed range and a
reduction in noise levels.
I 1 I Mounting for the throttle valve unit I
FIT-MAP sensor I
The mounting for the electronic throttle valve is
located inside the intake manifold between the
intake pipes of cylinders 1 and 2. The T-MAP
sensor, which is used on both the 1.41 and 1.61
versions, is situated next to the throttle valve unit.
2006.0 Fiesta 1212006 GI 79057en
procarmanuals.com

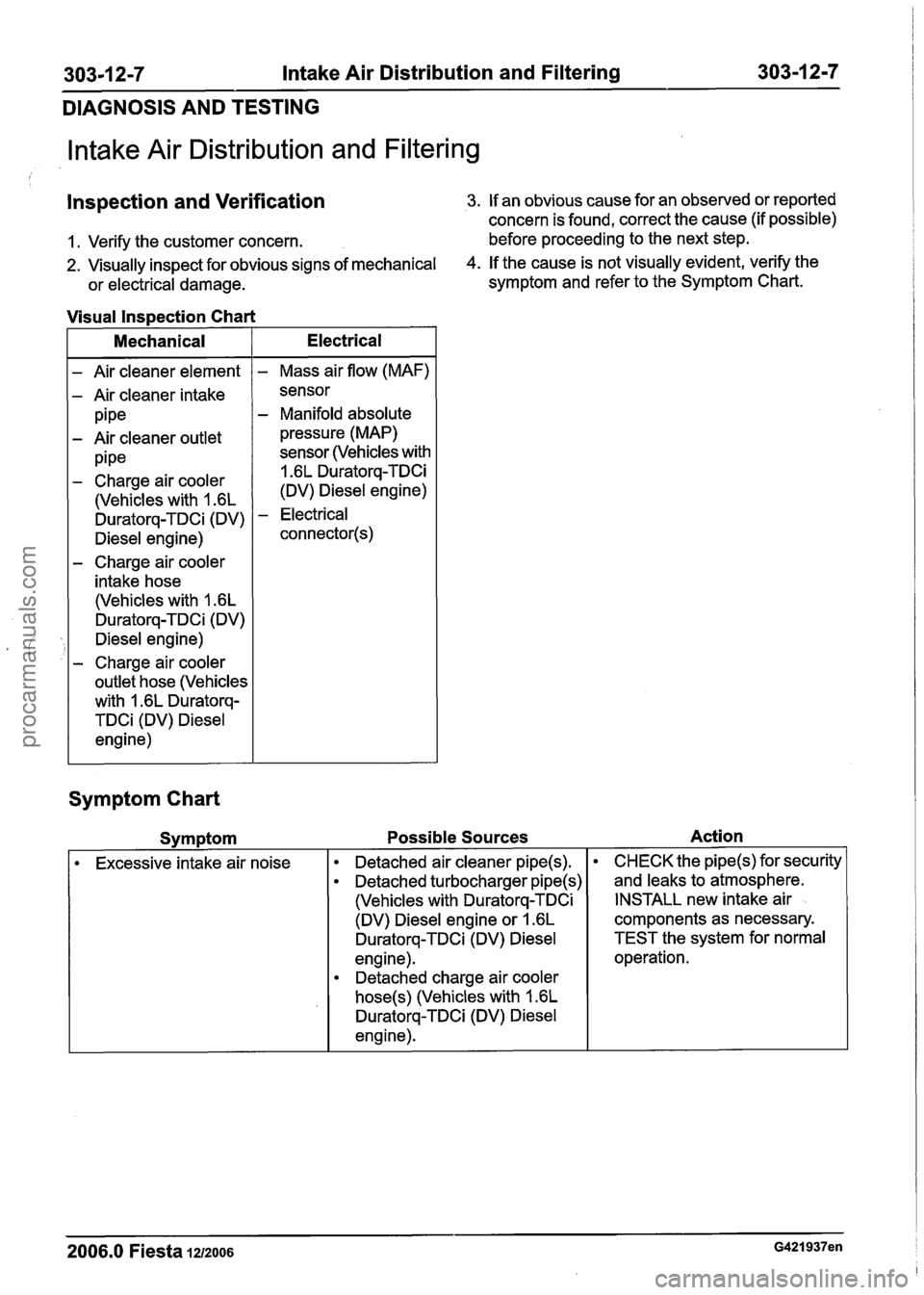

303-1 2-7 Intake Air Distribution and Filtering 303-1 2-7
DIAGNOSIS AND TESTING
Intake Air Distribution and Filtering
Inspection and Verification 3. If an obvious cause for an observed or reported
concern is found, correct the cause (if possible)
1. Verify the customer concern. before proceeding
to the next step.
2. Visually inspect for obvious signs of mechanical 4. If the cause is not visually evident, verify the
or electrical damage. symptom and
refer to the Symptom Chart.
Visual
Ins~ection Chart
I Mechanical I Electrical I
- Air cleaner element
- Air cleaner intake
pipe
- Air cleaner outlet
pipe
- Charge air cooler
(Vehicles with
1.6L
Duratorq-TDCi (DV)
Diesel engine)
- Charge air cooler
intake hose
(Vehicles with
1.6L
Duratorq-TDCi (DV)
Diesel engine)
- Charge air cooler
outlet hose (Vehicles
with
I .6L Duratorq-
TDCi (DV) Diesel
engine)
- Mass air flow (MAF)
sensor
- Manifold absolute
pressure (MAP)
sensor (Vehicles with
1.6L Duratorq-TDCi
(DV) Diesel engine)
- Electrical
connector(s)
Symptom Chart
Symptom
Excessive intake air noise Possible Sources
Detached air cleaner
pipe(s).
Detached turbocharger pipe(s)
(Vehicles with Duratorq-TDCi
(DV) Diesel engine or
1.6L
Duratorq-TDCi (DV) Diesel
engine). Detached charge air cooler
hose(s) (Vehicles with 1.6L
Duratorq-TDCi (DV) Diesel
engine). Action
CHECK the
pipe(s) for security
and leaks to atmosphere.
INSTALL new intake air
components as necessary.
TEST the system for normal
operation.
2006.0 Fiesta 1212006 G421937en
procarmanuals.com

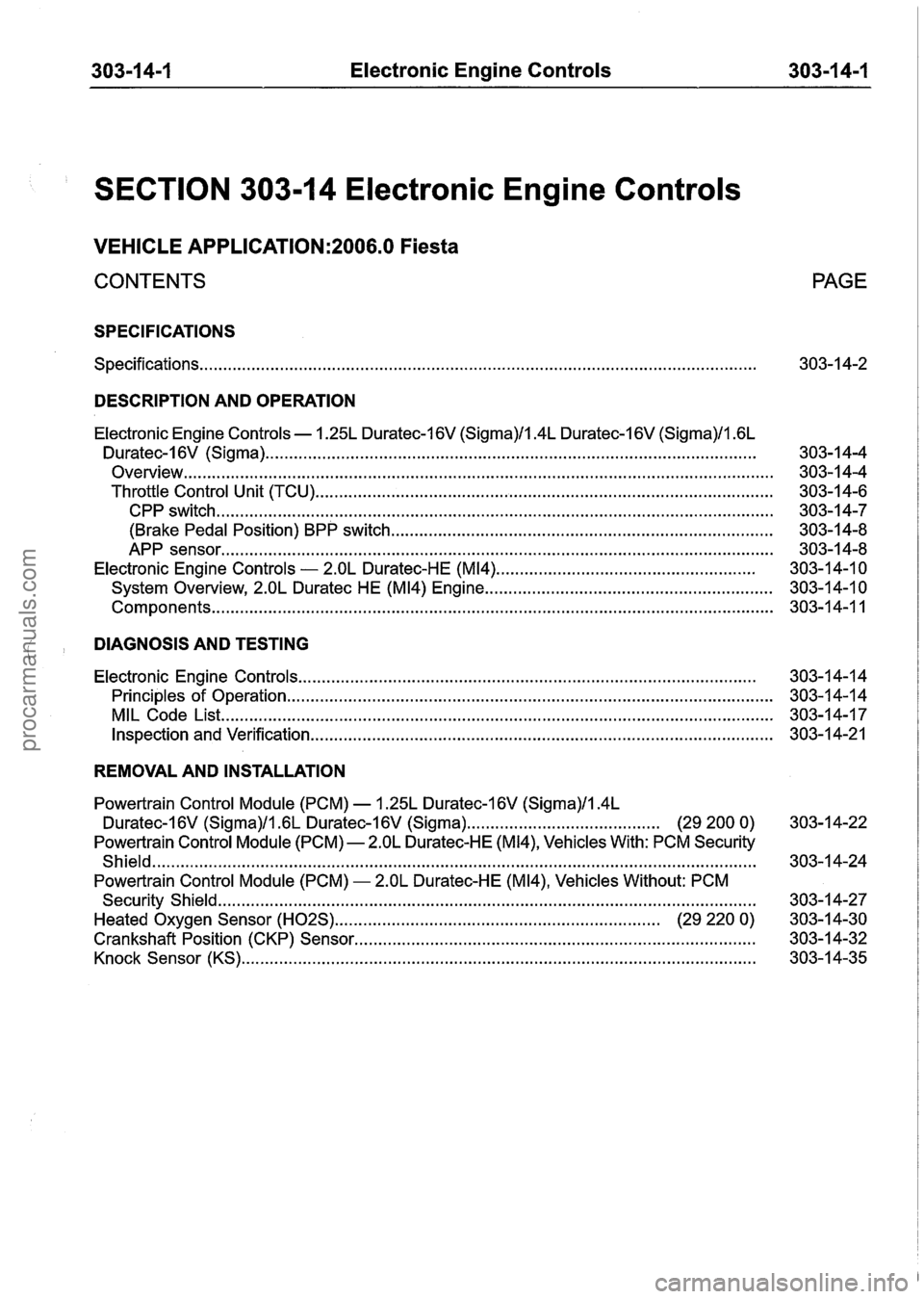

303-1 4-1 Electronic Engine Controls 303-1 4-1
SECTION 303-1 4 Electronic Engine Controls
VEHICLE APPLICATION:2006.0 Fiesta
CONTENTS PAGE
SPECIFICATIONS
Specifications ........................................................................\
.............................................. 303-1 4-2
DESCRIPTION AND OPERATION
Electronic Engine Controls . 1.25L Duratec-16V (Sigma)/l.4L Duratec-I 6V (Sigma)/l . 6L
Duratec-1 6V (Sigma) ........................................................................\
................................
Overview ........................................................................\
.....................................................
Throttle Control Unit (TCU) ........................................................................\
.........................
CPP switch ........................................................................\
..............................................
(Brake Pedal Position) BPP switch ........................................................................\
.........
APP sensor ........................................................................\
.............................................
Electronic Engine Controls - 2.OL Duratec-HE (M14) .......................................................
System Overview, 2.OL Duratec HE (M14) Engine .............................................................
........................................................................\
............................................... Components
DIAGNOSIS AND TESTING
Electronic Engine Controls ........................................................................\
..................... 303-1 4-1 4
Principles of Operation
........................................................................\
............................... 303-1 4-1 4
MIL Code List
........................................................................\
............................................. 303-14-1 7
Inspection and Verification ........................................................................\
.......................... 303-1 4-21
REMOVAL AND INSTALLATION
Powertrain Control Module (PCM) . 1.25L Duratec-1 6V (Sigma)/l.4L
Duratec-16V (Sigma)/l.GL Duratec-1 6V (Sigma) ......................................... (29 200 0) 303-14-22
Powertrain Control Module (PCM)
- 2.OL Duratec-HE (M14), Vehicles With: PCM Security
Shield
........................................................................\
................................................... 303-14-24
Powertrain Control Module (PCM)
- 2.OL Duratec-HE (M14), Vehicles Without: PCM
Security Shield
........................................................................\
.......................................... 303-1 4-27
Heated Oxygen Sensor
(H02S) .................................................................. (29 220 0) 303-14-30
Crankshaft Position (CKP) Sensor
........................................................................\
........... 303-1 4-32
Knock Sensor (KS)
........................................................................\
................................ 303-1 4-35
procarmanuals.com
