Fuel Charging and Controls - 1.25L
Duratec-1 6V (Sigma)llI4L Duratec-1 6V
(Sigma)llI6L Duratec-1 6V (Sigma)
REMOVAL AND INSTALLATION

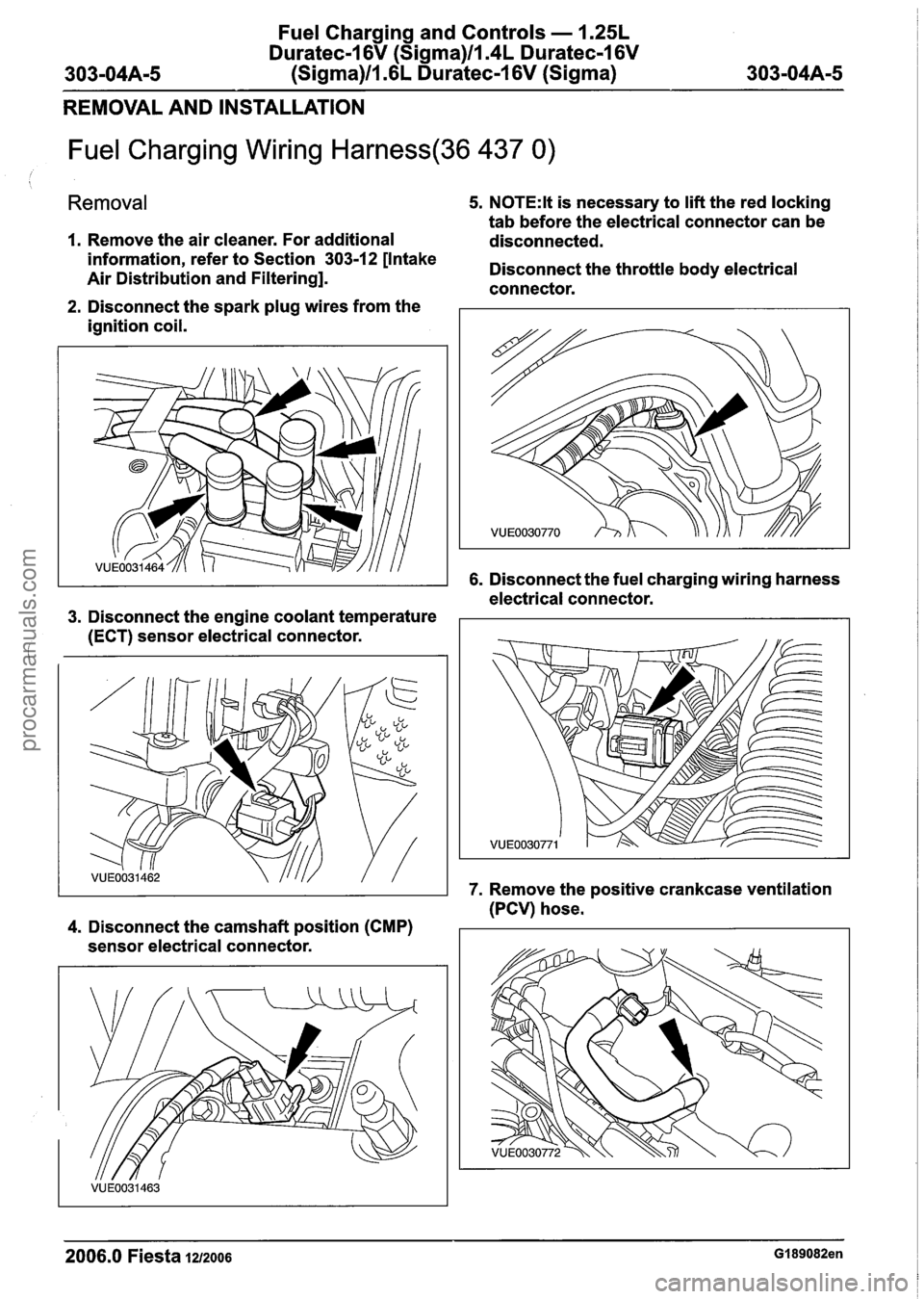

Fuel Charging Wiring Harness(36 437 0)
Removal
1. Remove the air cleaner. For additional
5. N0TE:lt is necessary to lift the red locking
tab before the electrical connector can be
disconnected.
information, refer to Section
303-12 [Intake the throttle body electrical Air Distribution and Filtering].
connector.
2. Disconnect the spark plug wires from the
ignition coil.
6. Disconnect the fuel charging wiring harness
electrical connector.
3. Disconnect the engine coolant temperature
(ECT) sensor electrical connector.
(
7. Remove the positive crankcase ventilation
(PCV) hose.
4. Disconnect the camshaft position (CMP)
sensor electrical connector.
2006.0 Fiesta 1212006 GI 89082en
procarmanuals.com

Fuel Charging and Controls - 2.OL
303-04B-4 Duratec-HE (M14) 303-04B-4
DESCRIPTION AND OPERATION
fuel injector to fuel injection supply manifold and
The fuel injectors are activated sequentially by the
the intake manifold is achieved by means of upper
powertrain control module (PCM) which modifies
and lower O-ring seals.
the fuel quantity by adjusting fuel injector opening
times according to the engine operating conditions.

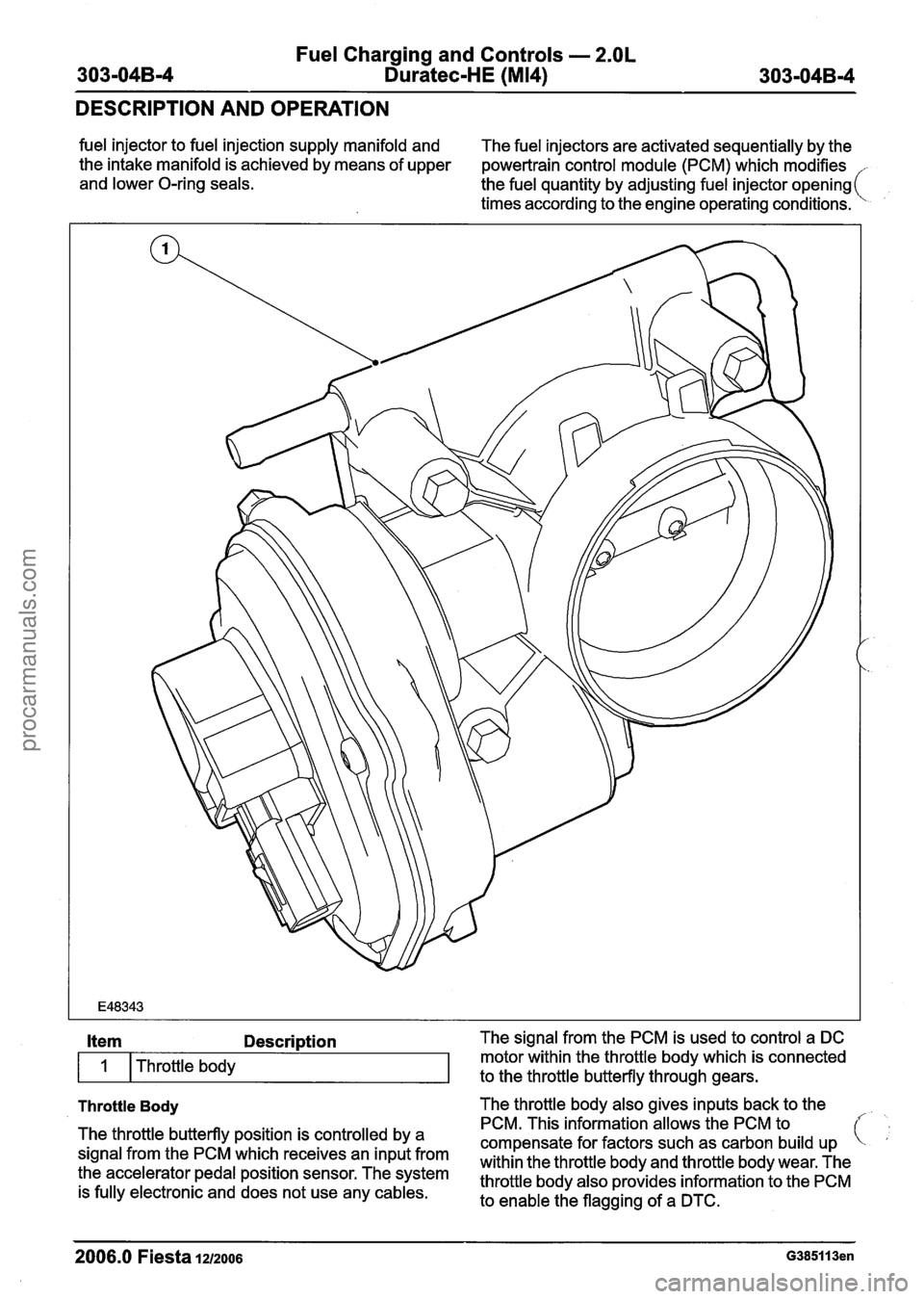

Throttle Body The throttle body also gives inputs back to the
