engine FORD FIESTA 2007 Workshop Manual

.303-01 B-8 Engine - 2.OL Duratec-HE (M14) 303-01 B-8
DESCRIPTION AND OPERATION
Engine
Engine
For the Fiesta ST the engine is available with the
following specification:
2006.0 Fiesta 1212006 G461395en
r k,
2.OL Duratec-HE (M14) engine
Engine code
Displacement
Maximum power output
Maximum torque N4JA (Stage Ill), N4JB (Stage IV)
1998 cm3
11 0
kW (1 50 PS) at 6000 rpm
190 Nm at 4000 rpm
procarmanuals.com

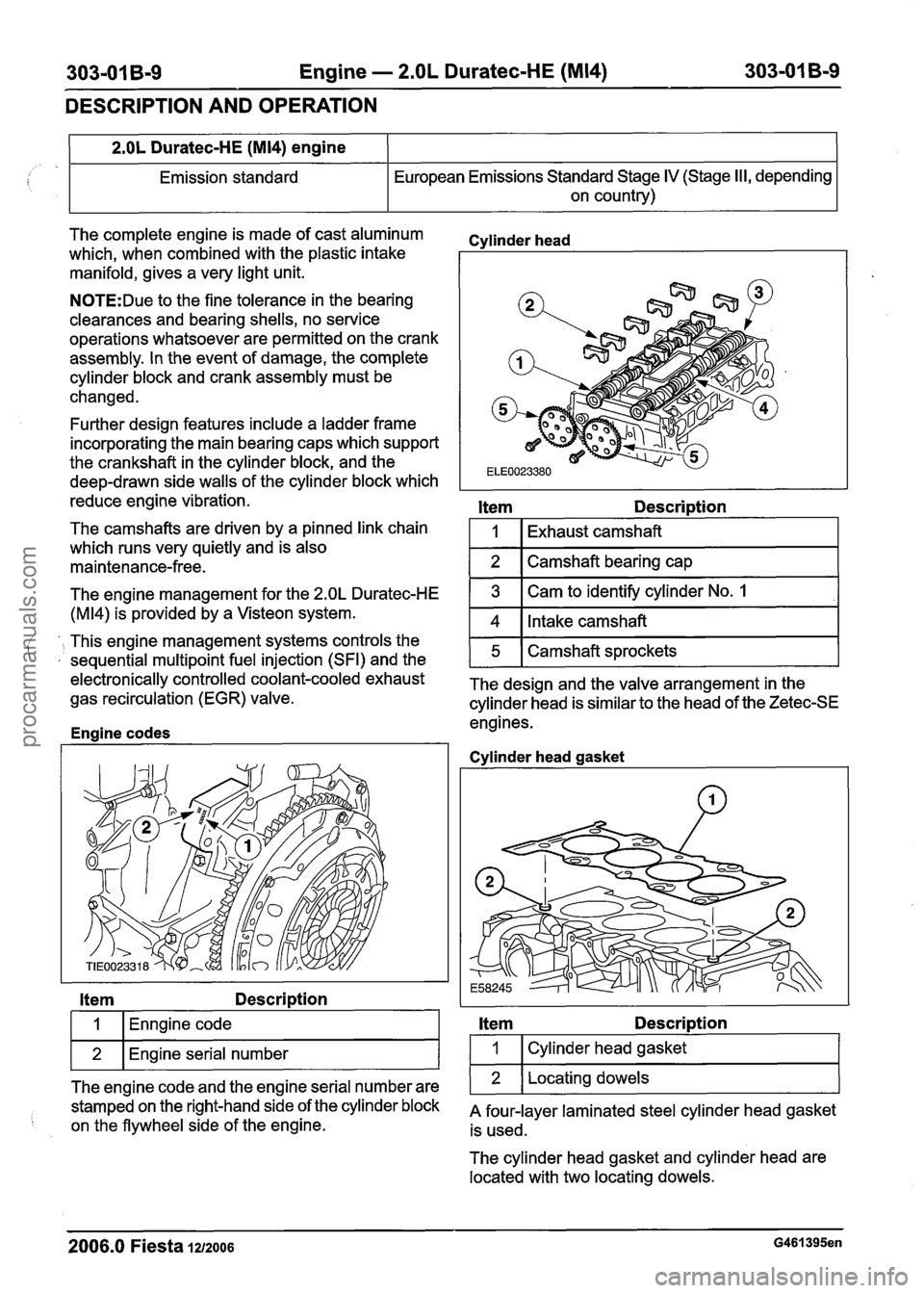

303101 B-9 Engine - 2.OL Duratec-HE (M14) 303-01 B-9
DESCRIPTION AND OPERATION
The complete engine is made of cast aluminum
which, when combined with the plastic intake
manifold, gives a very light unit.
2.OL Duratec-HE (M14) engine
Emission standard
N0TE:Due to the fine tolerance in the bearing
clearances and bearing shells, no service
operations whatsoever are permitted on the crank
assembly. In the event of damage, the complete
cylinder block and crank assembly must be
changed. European
Emissions Standard Stage
IV (Stage II I, depending
on country)
Further design features include a ladder frame
incorporating the main bearing caps which support
the crankshaft in the cylinder block, and the
deep-drawn side walls of the cylinder block which
reduce engine vibration.
The camshafts are driven by a pinned link chain
which runs very quietly and is also
maintenance-free.
Cvlinder head
Item Description
1
2
The engine management for the 2.OL Duratec-HE
(M14) is provided by a Visteon system.
Item Description
Exhaust camshaft
Camshaft bearing cap
', This engine management systems controls the ' , sequential multipoint fuel injection (SFI) and the
I 1 (Enngine code I
3
4
wl~n~ine serial number I
Cam to identify cylinder No. 1
Intake camshaft
ele~tronically controlled coolant-cooled exhaust The design and the valve arrangement in the gas recirculation (EGR) valve.
cylinder head is similar to the head of the Zetec-SE
engines.
Enaine codes
5
The engine code and the engine serial number are
stamped on the right-hand side of the cylinder block
on the flywheel side of the engine. Camshaft sprockets
Cvlinder
head gasket
Item Description
I 1 I Cylinder head gasket I
1 2 1 Locating dowels 1
A four-layer laminated steel cylinder head gasket
is used.
The cylinder head gasket and cylinder head are
located with two locating dowels.
2006.0 Fiesta 1212006 G461395en
procarmanuals.com

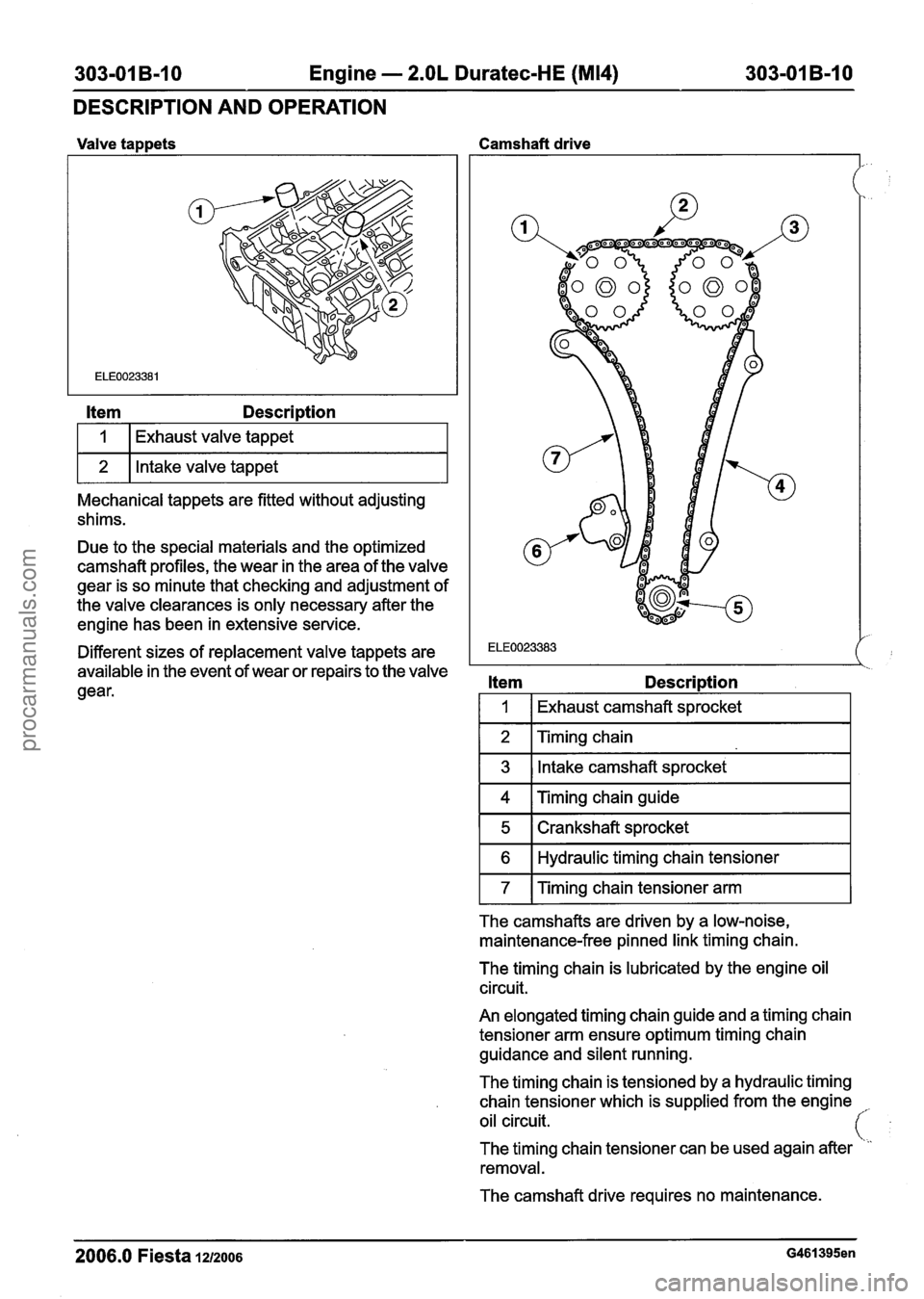

303-01 B-I 0 Engine - 2.OL Duratec-HE (M14) 303-01 B-I 0 - -- --
DESCRIPTION AND OPERATION
Valve tappets Camshaft drive
Item Description
I 1 I Exhaust valve tappet I
1 2 1 Intake valve tappet I
Mechanical tappets are fitted without adjusting
shims.
Due to the special materials and the optimized
camshaft profiles, the wear in the area of the valve
gear is so minute that checking and adjustment of
the valve clearances is only necessary after the
engine has been in extensive service.
Different sizes of replacement valve tappets are
I ELE0023383
available in the event of wear or repairs to the valve ' '2
gear. Item Description
I 1 I Exhaust camshaft sprocket
1 2 I Timing chain I
1 3 1 Intake camshaft sprocket I
1 4 I ~imin~ chain guide I
1 5 1 Crankshaft sprocket I
1 6 1 Hydraulic timing chain tensioner I
1 7 1 ~imin~ chain tensioner arm 1 - -
The camshafts are driven by a low-noise,
maintenance-free pinned link timing chain.
The timing chain is lubricated by the engine oil
circuit.
An elongated timing chain guide and a timing chain
tensioner arm ensure optimum timing chain
guidance and silent running.
The timing chain is tensioned by a hydraulic timing
chain tensioner which is supplied from the engine
,.
oil circuit.
The timing chain tensioner can be used again after
removal.
The camshaft drive requires no maintenance.
2006.0 Fiesta 1212006 G461395en
procarmanuals.com

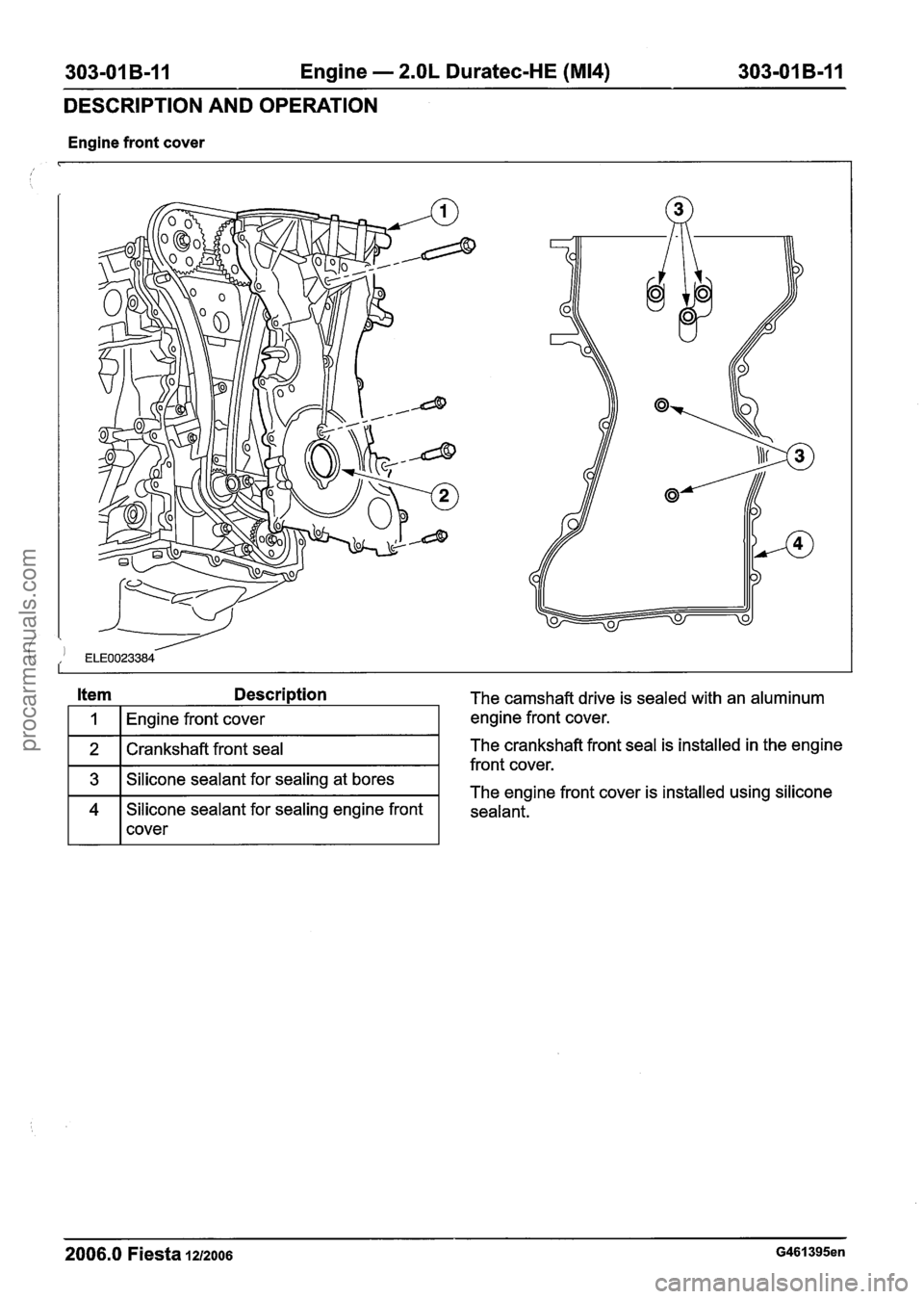

303-01 B-I 1 Engine - 2.OL Duratec-HE (M14) 303-01 B-I I
DESCRIPTION AND OPERATION
Engine front cover
Item Description
I 1 I Engine front cover I
1 2 1 Crankshaft front seal I
1 3 1 Silicone sealant for sealing at bores I
4 Silicone sealant for sealing engine front
I I cover The camshaft drive
is sealed with an aluminum
engine front cover.
The crankshaft front seal is installed in the engine
front cover.
The engine front cover is installed using silicone
sealant.
2006.0 Fiesta 1212006 G461395en
procarmanuals.com

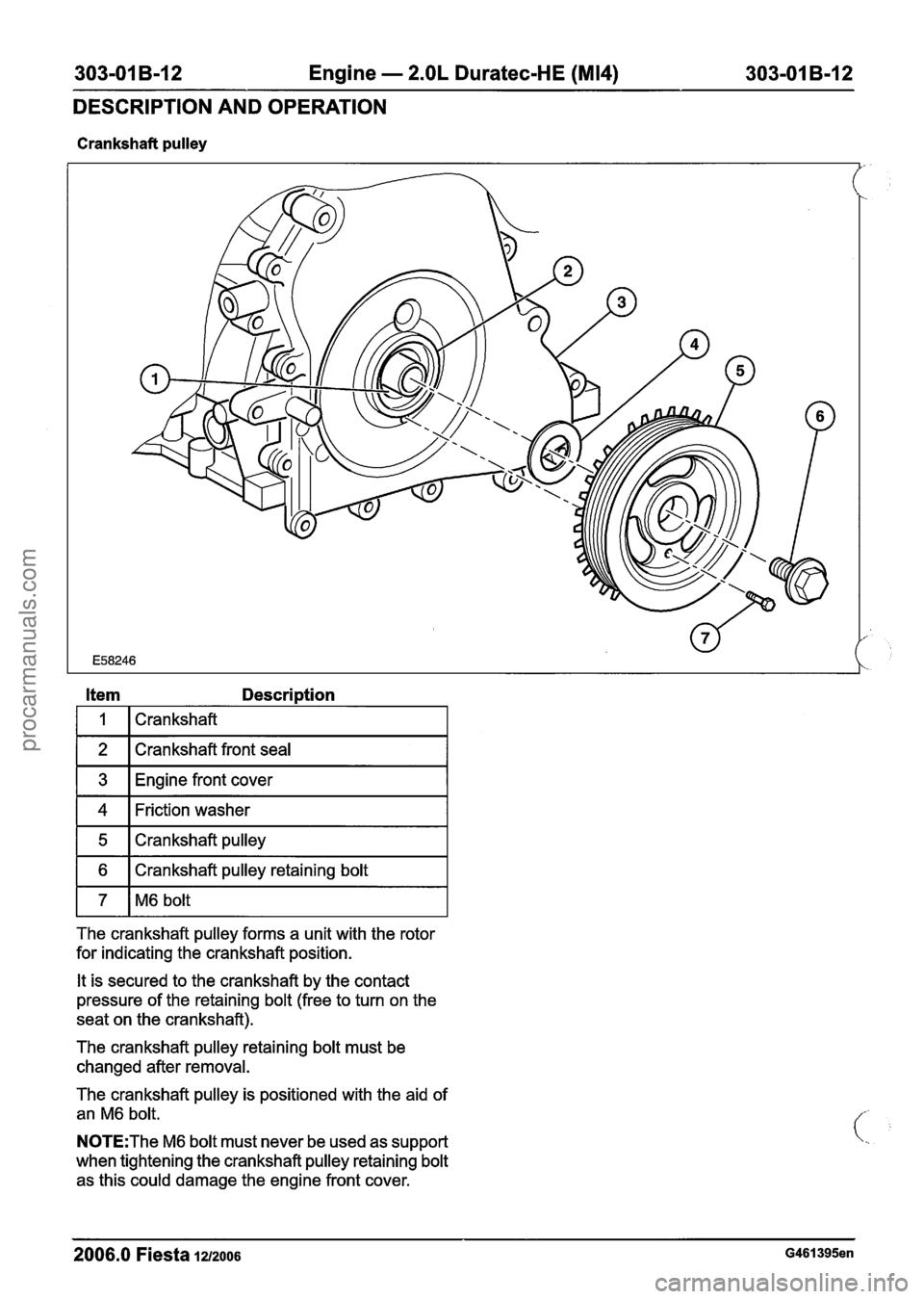

303-01 B-12 Engine - 2.OL Duratec-HE (M14) 303-01 B-12 --
DESCRIPTION AND OPERATION
Crankshaft pulley
Item Description
1 2 1 Crankshaft front seal I
1 3 1 Engine front cover I
1 4 1 Friction washer I
1 5 1 Crankshaft pulley I
1 6 1 Crankshaft pulley retaining bolt I
1 7 1 M6 bolt I
The crankshaft pulley forms a unit with the rotor
for indicating the crankshaft position.
It is secured to the crankshaft by the contact
pressure of the retaining bolt (free to turn on the
seat on the crankshaft).
The crankshaft pulley retaining bolt must be changed after removal.
The crankshaft pulley is positioned with the aid of
an
M6 bolt.
N0TE:The M6 bolt must never be used as support
when tightening the crankshaft pulley retaining bolt
as this could damage the engine front cover.
2006.0 Fiesta 1212006 G461395en
procarmanuals.com

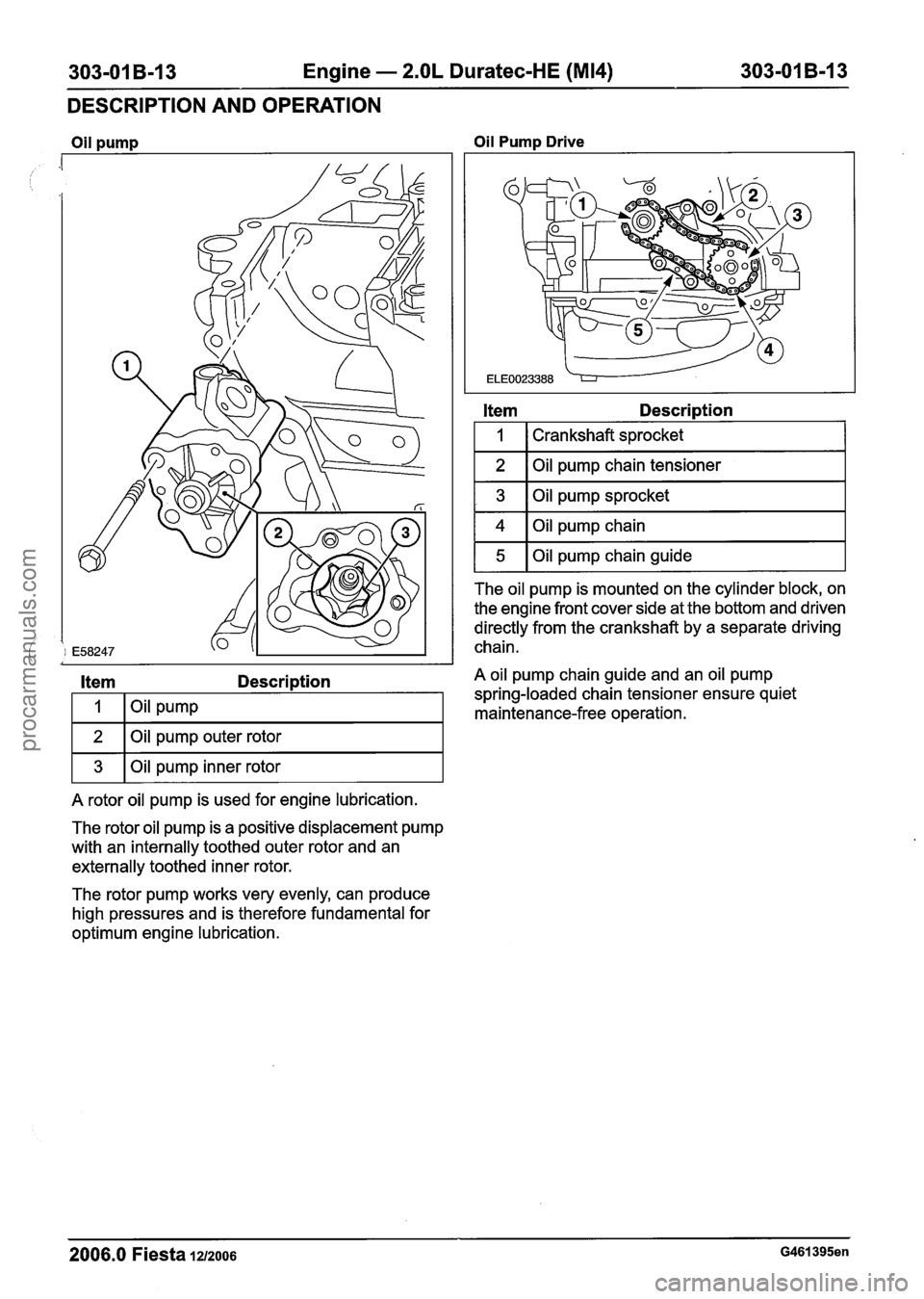

303-01 B-I 3 Engine - 2.OL Duratec-HE (M14) 303-01 B-I 3
DESCRIPTION AND OPERATION
Oil pump Oil Pump Drive I I I I
Item Description
I I I Oil pump I
1 2 1 Oil pump outer rotor I
1 3 1 Oil pump inner rotor I
A rotor oil pump is used for engine lubrication.
The rotor oil pump is a positive displacement pump
with an internally toothed outer rotor and an
externally toothed inner rotor.
The rotor pump works very evenly, can produce
high pressures and is therefore fundamental for
optimum engine lubrication.
Item Description -- -
I 1 I Crankshaft sprocket I
1 2 1 Oil pump chain tensioner I
1, 3 1 Oil pump sprocket I
1 4 1 Oil pump chain I
1 5 1 Oil pump chain guide I
The oil pump is mounted on the cylinder block, on
the engine front cover side at the bottom and driven
directly from the crankshaft by a separate driving
chain.
A oil pump chain guide and an oil pump
spring-loaded chain tensioner ensure quiet maintenance-free operation.
2006.0 Fiesta 12/2006 G461395en
procarmanuals.com

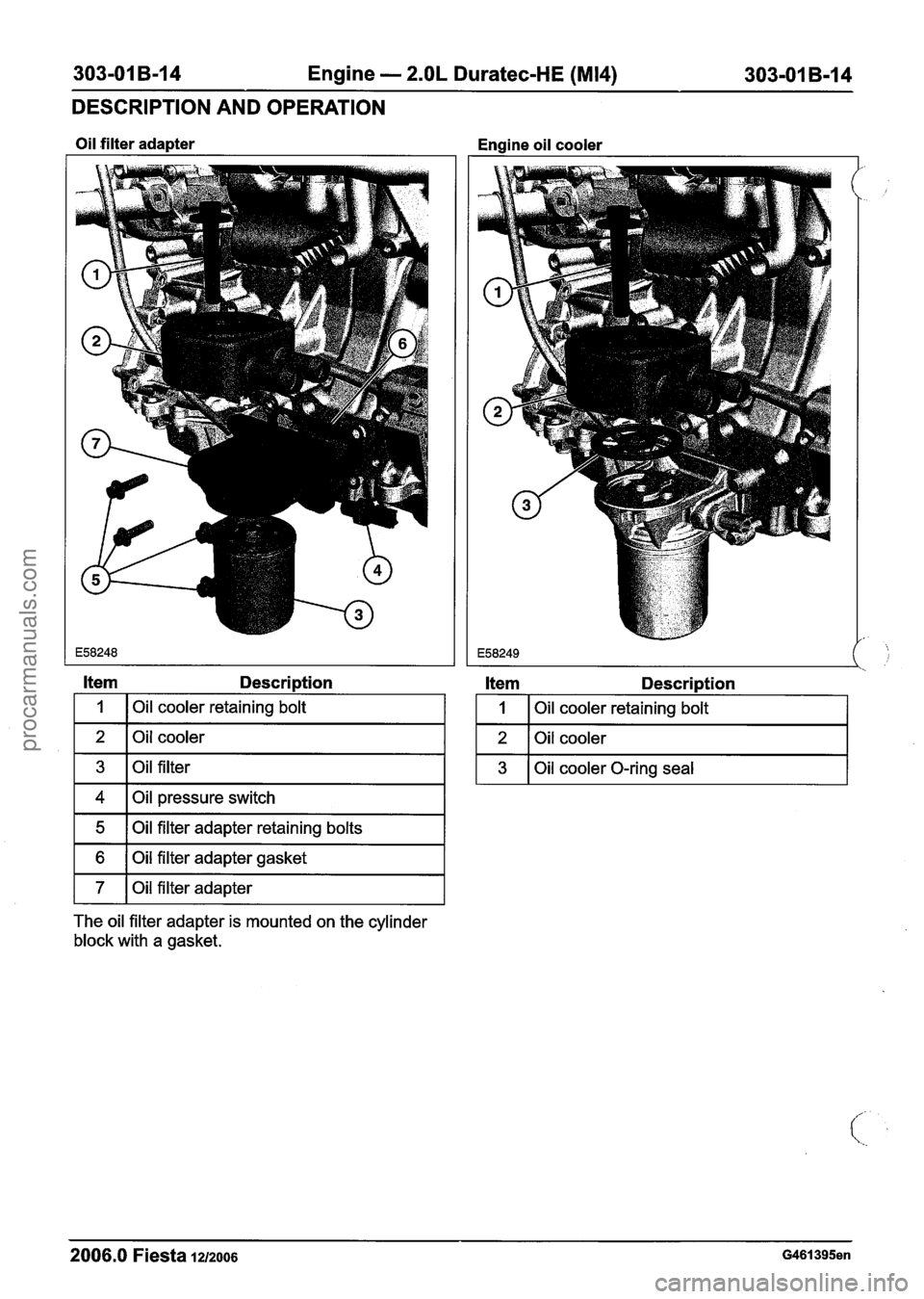

303-01 B-I 4 Engine - 2.OL Duratec-HE (M14) 303-01 8-1 4
DESCRIPTION AND OPERATION
Oil filter adapter Engine oil cooler I I I
Item Descri tio on
I 1 I Oil cooler retaining bolt I
1 2 1 Oil cooler I
1 3 1 Oil filter I
1 4 1 Oil pressure switch I
1 5 1 Oil filter adapter retaining bolts I
1 6 1 Oil filter adapter gasket I
1 7 1 Oil filter adapter I
Item Description
1 3 ( Oil cooler O-ring seal 7
1
2
The oil filter adapter is mounted on the cylinder
block with a gasket. Oil cooler retaining bolt
Oil cooler
2006.0 Fiesta 1212006 G461395en
procarmanuals.com

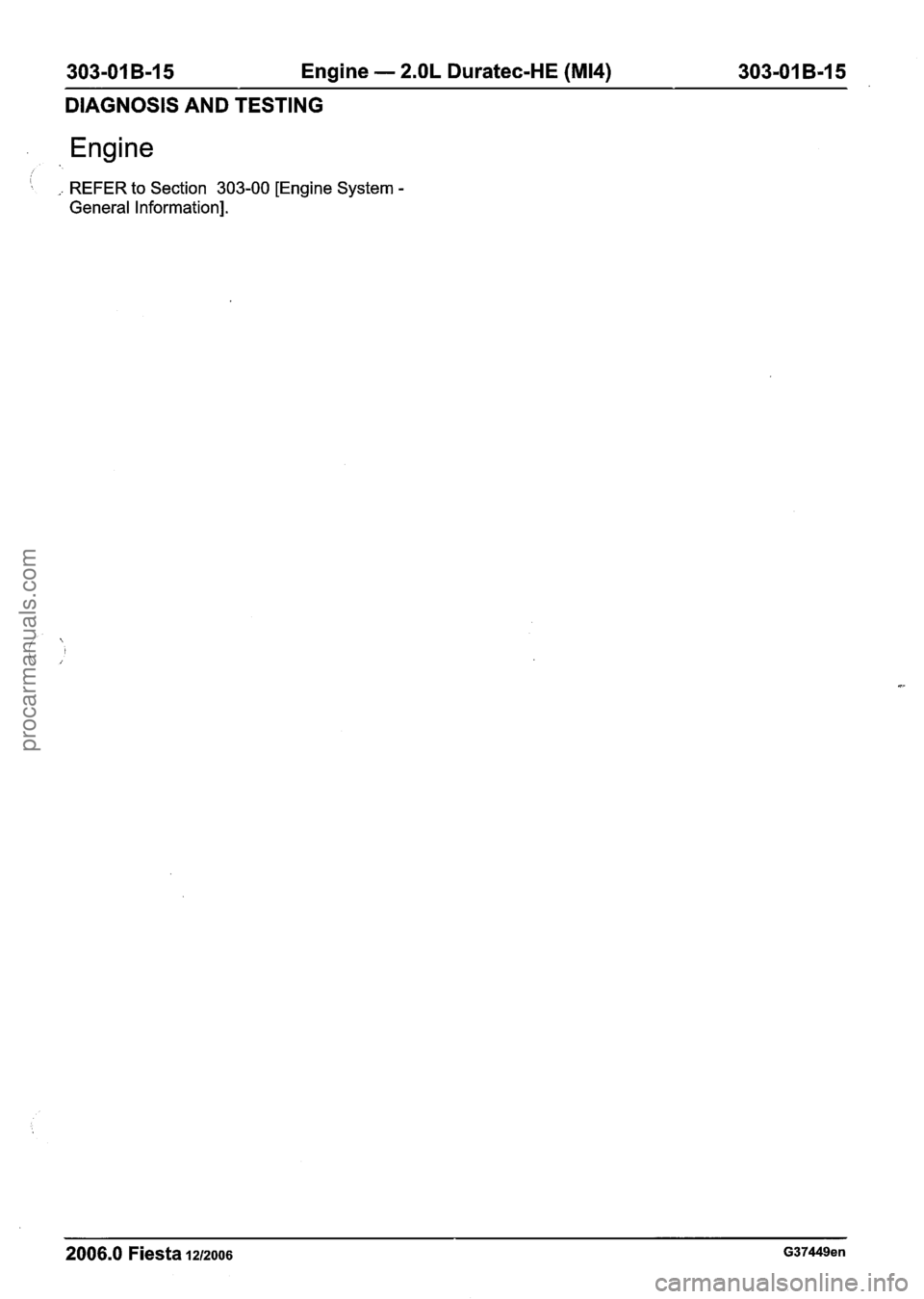

303-01 B-15 Engine - 2.OL Duratec-HE (M14) 303-01 B-I 5
DIAGNOSIS AND TESTING
I : ,. REFER to Section 303-00 [Engine System -
General Information].
2006.0 Fiesta 1212006 G37449en
procarmanuals.com

303-01 B-I 6 Engine - 2.OL Duratec-HE (M14) 303-01 B-I 6
GENERAL PROCEDURES
Valve Clearance Adjustment
Feeler gauges 1
Materials
Special
Tool(s) 4.
Unclip the engine wiring harness from the i..
I I
Name Specification
intake manifold.
4. Remove the positive crankshaft ventilation
(PCV) hose.
/ ES21202
&
21211
1. Disconnect the battery ground cable.
General
Equipment
i
Socket, Spark Plug
303-499 (2
1 -202)
Pliers, Valve Stem Seal
303-508
(2 1 -2 1 1 )
- --
For additional information, refer to: Battery
Disconnect (41 4-01 Battery, Mounting and
Cables, General Procedures).
Silicone Sealant
2. Remove the air cleaner.
WSE-M4G323-A4
For additional information, refer to: Air 5. Disconnect the camshaft position (CMP)
Cleaner - 2.OL Duratec-HE (M14) (303-1 2
sensor electrical connector.
Intake Air Distribution and Filtering,
Removal and Installation).
3. Detach the engine wiring harness from the
valve cover.
1. Unclip the power steering return line from the
engine wiring harness bracket.
2. Remove the air cleaner retaining bracket.
3. Unclip the engine wiring harness bracket
from the intake manifold.
2006.0 Fiesta 1212006 G451279en
procarmanuals.com

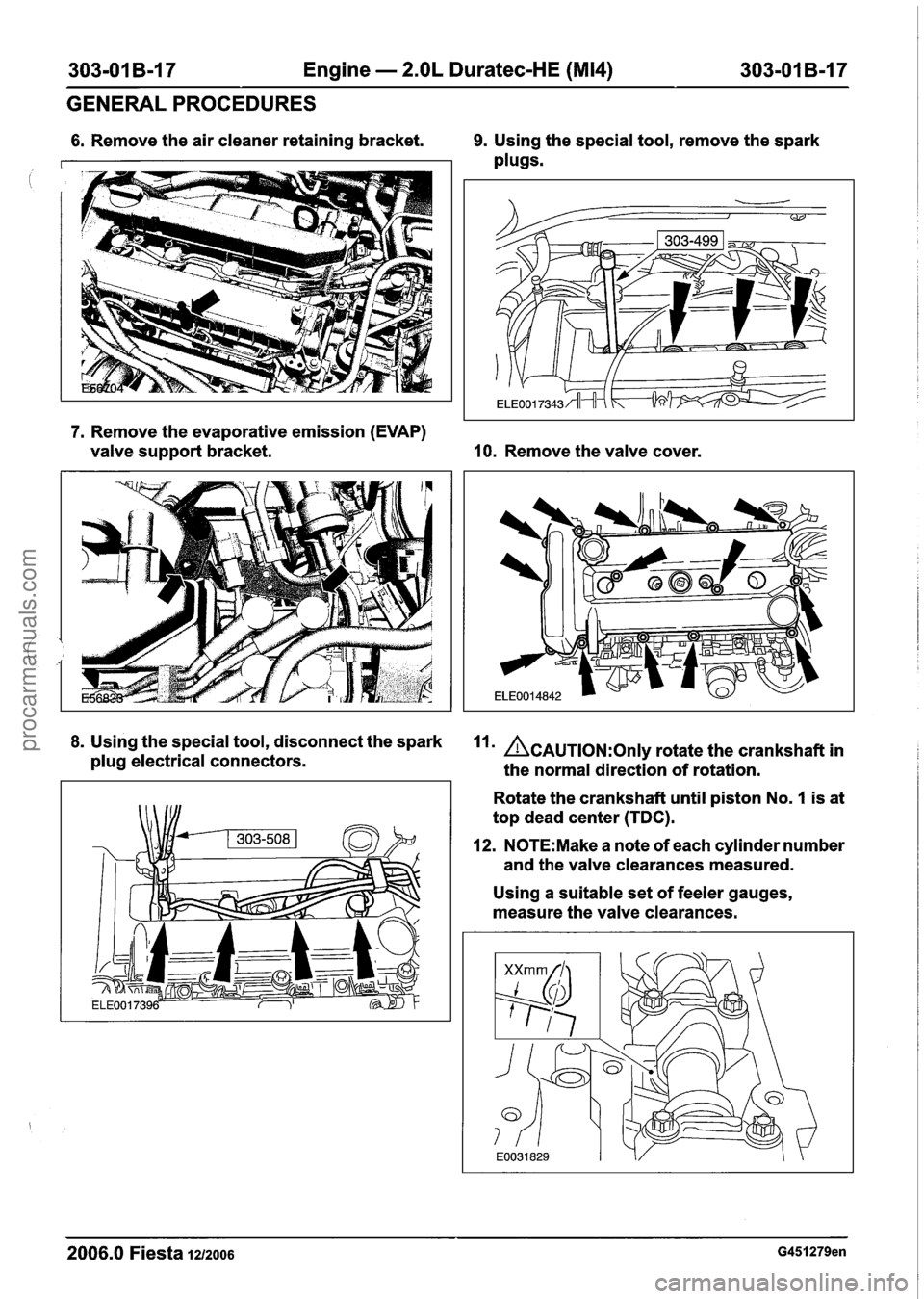

303-01 B-17 Engine - 2.OL Duratec-HE (M14) 303-01 B-17
GENERAL PROCEDURES
6. Remove the air cleaner retaining bracket. 9. Using the special tool, remove the spark
plugs.
i
7. Remove the evaporative emission (EVAP)
valve support bracket.
10. Remove the valve cover.
8. Using the special tool, disconnect the spark 11. ~CAUTION:Only rotate the crankshaff in plug electrical connectors.
the normal direction of rotation.
Rotate the crankshaft until piston No.
1 is at
top dead center (TDC).
12. N0TE:Make a note of each cylinder number
and the valve clearances measured.
Using a suitable set of feeler gauges,
measure the valve clearances.
2006.0 Fiesta 1212006 G451279en
