FORD KUGA 2010 1.G Owner's Manual

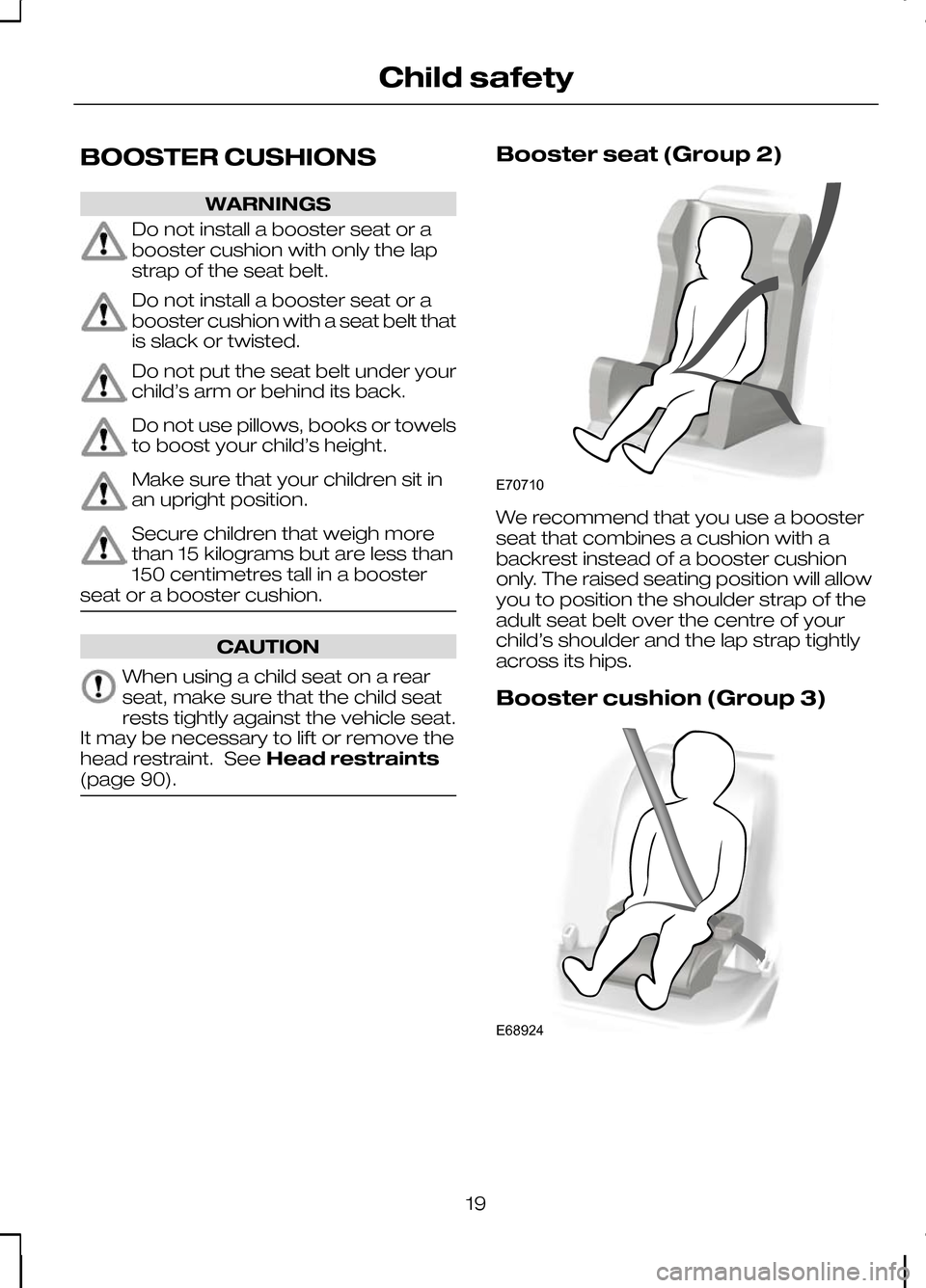

BOOSTER CUSHIONS
WARNINGS
Do not install a booster seat or a
booster cushion with only the lap
strap of the seat belt.
Do not install a booster seat or a
booster cushion with a seat belt that
is slack or twisted.
Do not put the seat belt under your
child’s arm or behind its back.
Do not use pillows, books or towels
to boost your child’s height.
Make sure that your children sit in
an upright position.
Secure children that weigh more
than 15 kilograms but are less than
150 centimetres tall in a booster
seat or a booster cushion. CAUTION
When using a child seat on a rear
seat, make sure that the child seat
rests tightly against the vehicle seat.
It may be necessary to lift or remove the
head restraint. See Head restraints
(page 90). Booster seat (Group 2)
We recommend that you use a booster
seat that combines a cushion with a
backrest instead of a booster cushion
only. The raised seating position will allow
you to position the shoulder strap of the
adult seat belt over the centre of your
child’s shoulder and the lap strap tightly
across its hips.
Booster cushion (Group 3)
19
Child safetyE70710 E68924

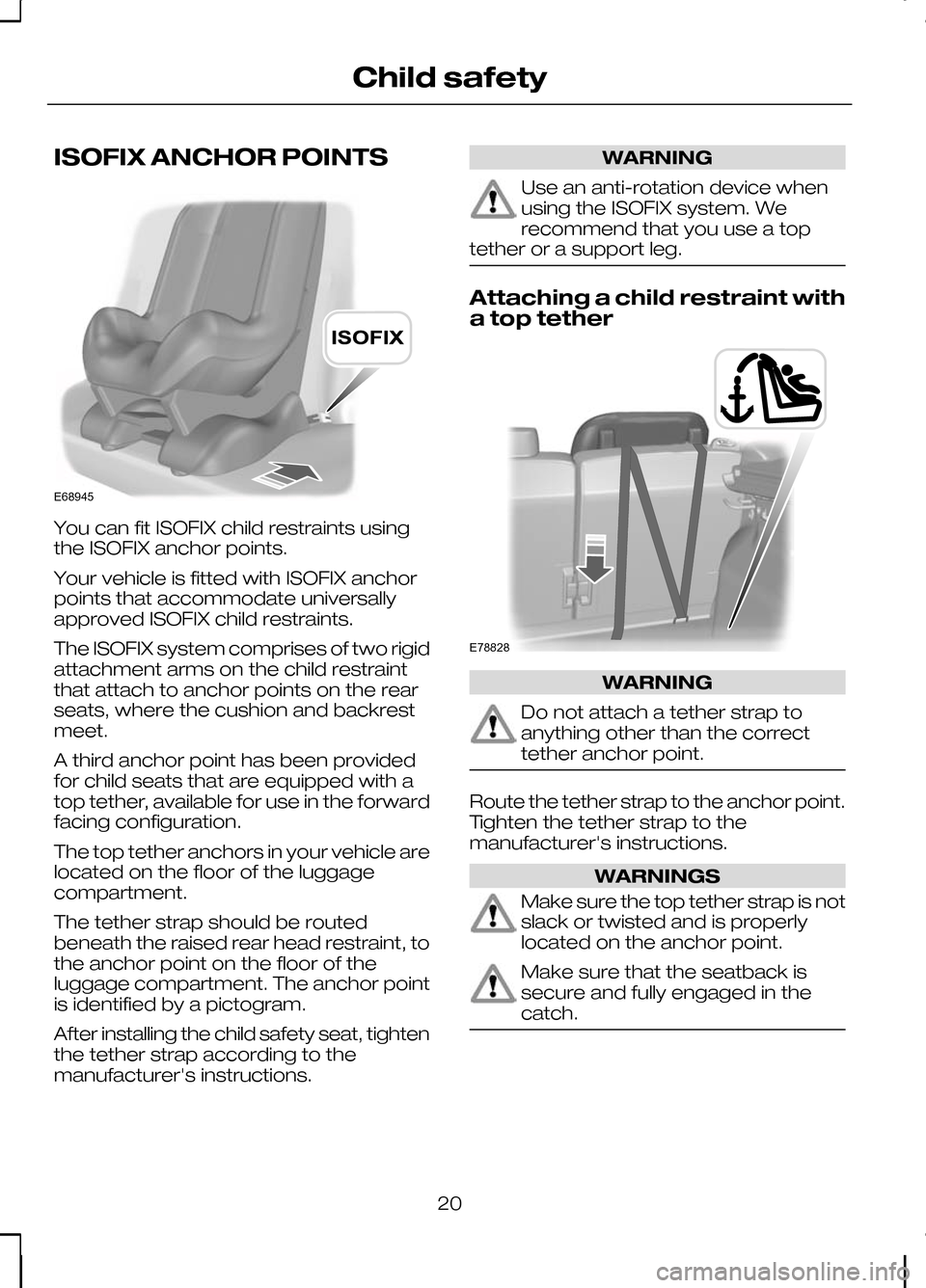

ISOFIX ANCHOR POINTS
You can fit ISOFIX child restraints using
the ISOFIX anchor points.
Your vehicle is fitted with ISOFIX anchor
points that accommodate universally
approved ISOFIX child restraints.
The ISOFIX system comprises of two rigid
attachment arms on the child restraint
that attach to anchor points on the rear
seats, where the cushion and backrest
meet.
A third anchor point has been provided
for child seats that are equipped with a
top tether, available for use in the forward
facing configuration.
The top tether anchors in your vehicle are
located on the floor of the luggage
compartment.
The tether strap should be routed
beneath the raised rear head restraint, to
the anchor point on the floor of the
luggage compartment. The anchor point
is identified by a pictogram.
After installing the child safety seat, tighten
the tether strap according to the
manufacturer's instructions. WARNING
Use an anti-rotation device when
using the ISOFIX system. We
recommend that you use a top
tether or a support leg. Attaching a child restraint with
a top tether
WARNING
Do not attach a tether strap to
anything other than the correct
tether anchor point.
Route the tether strap to the anchor point.
Tighten the tether strap to the
manufacturer's instructions.
WARNINGS
Make sure the top tether strap is not
slack or twisted and is properly
located on the anchor point.
Make sure that the seatback is
secure and fully engaged in the
catch.
20
Child safetyE68945 E78828

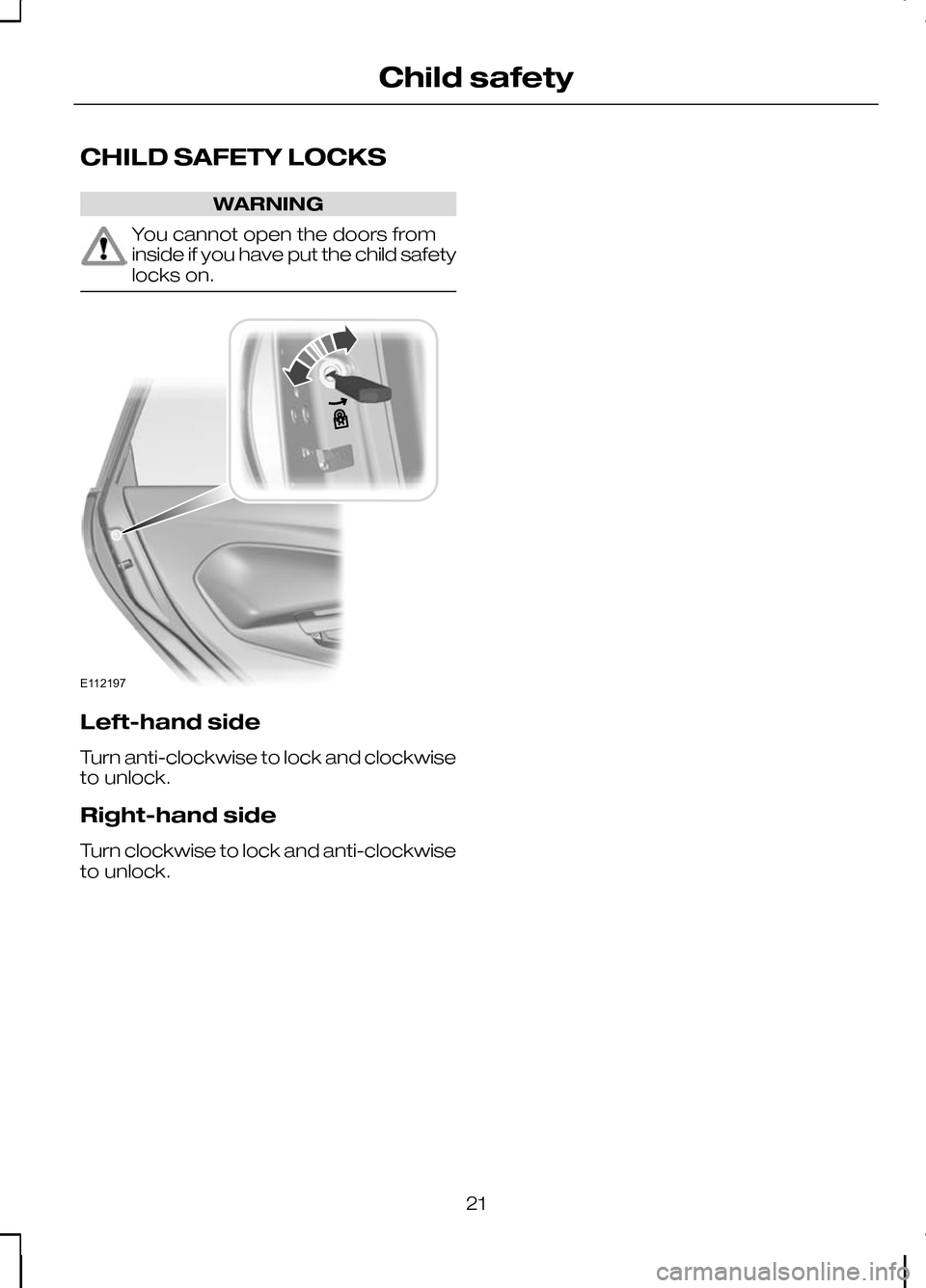

CHILD SAFETY LOCKS
WARNING
You cannot open the doors from
inside if you have put the child safety
locks on.
Left-hand side
Turn anti-clockwise to lock and clockwise
to unlock.
Right-hand side
Turn clockwise to lock and anti-clockwise
to unlock.
21
Child safetyE112197

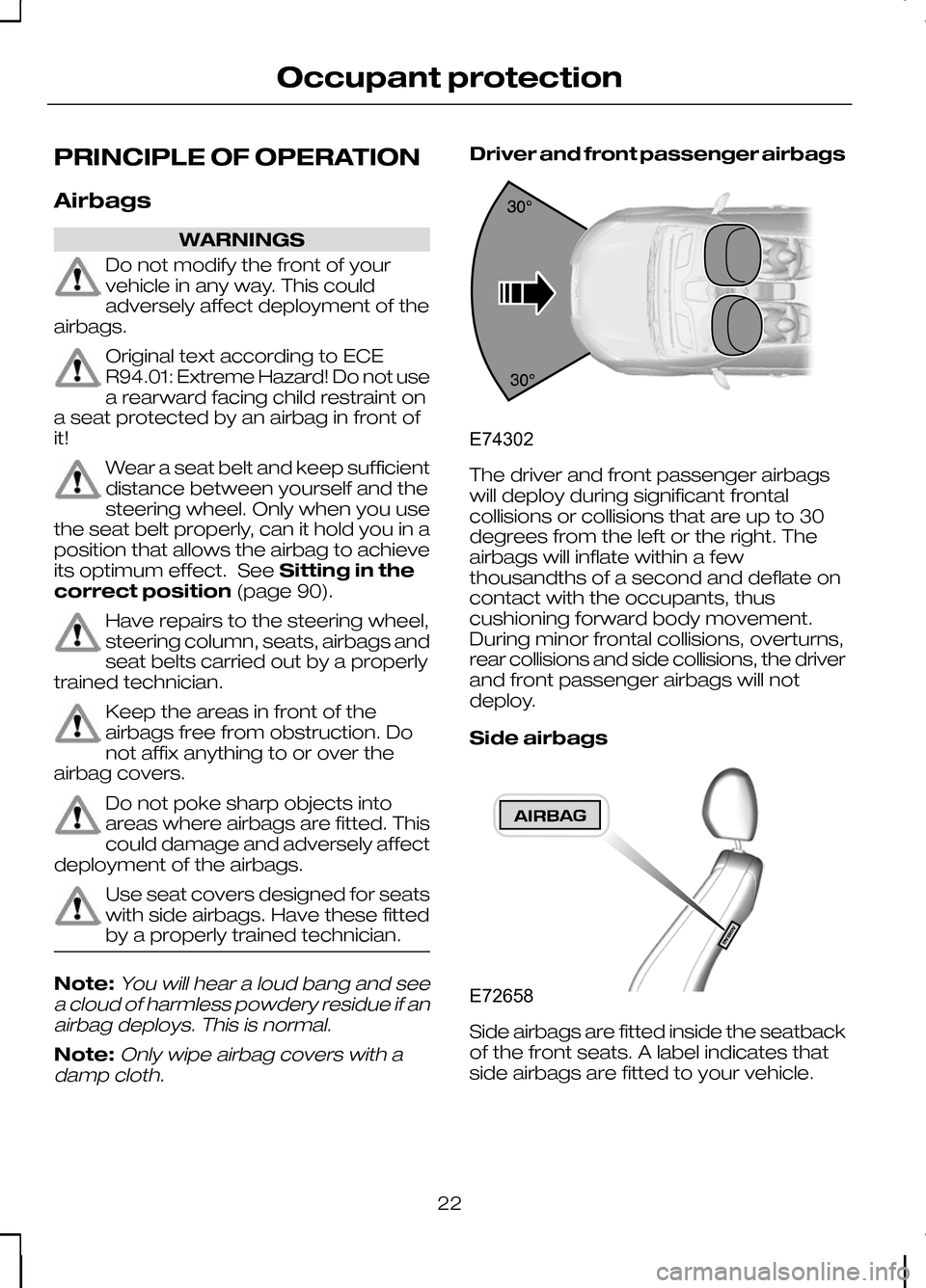

PRINCIPLE OF OPERATION
Airbags
WARNINGS
Do not modify the front of your
vehicle in any way. This could
adversely affect deployment of the
airbags. Original text according to ECE
R94.01: Extreme Hazard! Do not use
a rearward facing child restraint on
a seat protected by an airbag in front of
it! Wear a seat belt and keep sufficient
distance between yourself and the
steering wheel. Only when you use
the seat belt properly, can it hold you in a
position that allows the airbag to achieve
its optimum effect. See Sitting in the
correct position (page 90).Have repairs to the steering wheel,
steering column, seats, airbags and
seat belts carried out by a properly
trained technician. Keep the areas in front of the
airbags free from obstruction. Do
not affix anything to or over the
airbag covers. Do not poke sharp objects into
areas where airbags are fitted. This
could damage and adversely affect
deployment of the airbags. Use seat covers designed for seats
with side airbags. Have these fitted
by a properly trained technician.
Note:You will hear a loud bang and see
a cloud of harmless powdery residue if an airbag deploys. This is normal.
Note:Only wipe airbag covers with a
damp cloth.
Driver and front passenger airbags The driver and front passenger airbags
will deploy during significant frontal
collisions or collisions that are up to 30
degrees from the left or the right. The
airbags will inflate within a few
thousandths of a second and deflate on
contact with the occupants, thus
cushioning forward body movement.
During minor frontal collisions, overturns,
rear collisions and side collisions, the driver
and front passenger airbags will not
deploy.
Side airbags
Side airbags are fitted inside the seatback
of the front seats. A label indicates that
side airbags are fitted to your vehicle.
22
Occupant protectionE74302 E72658

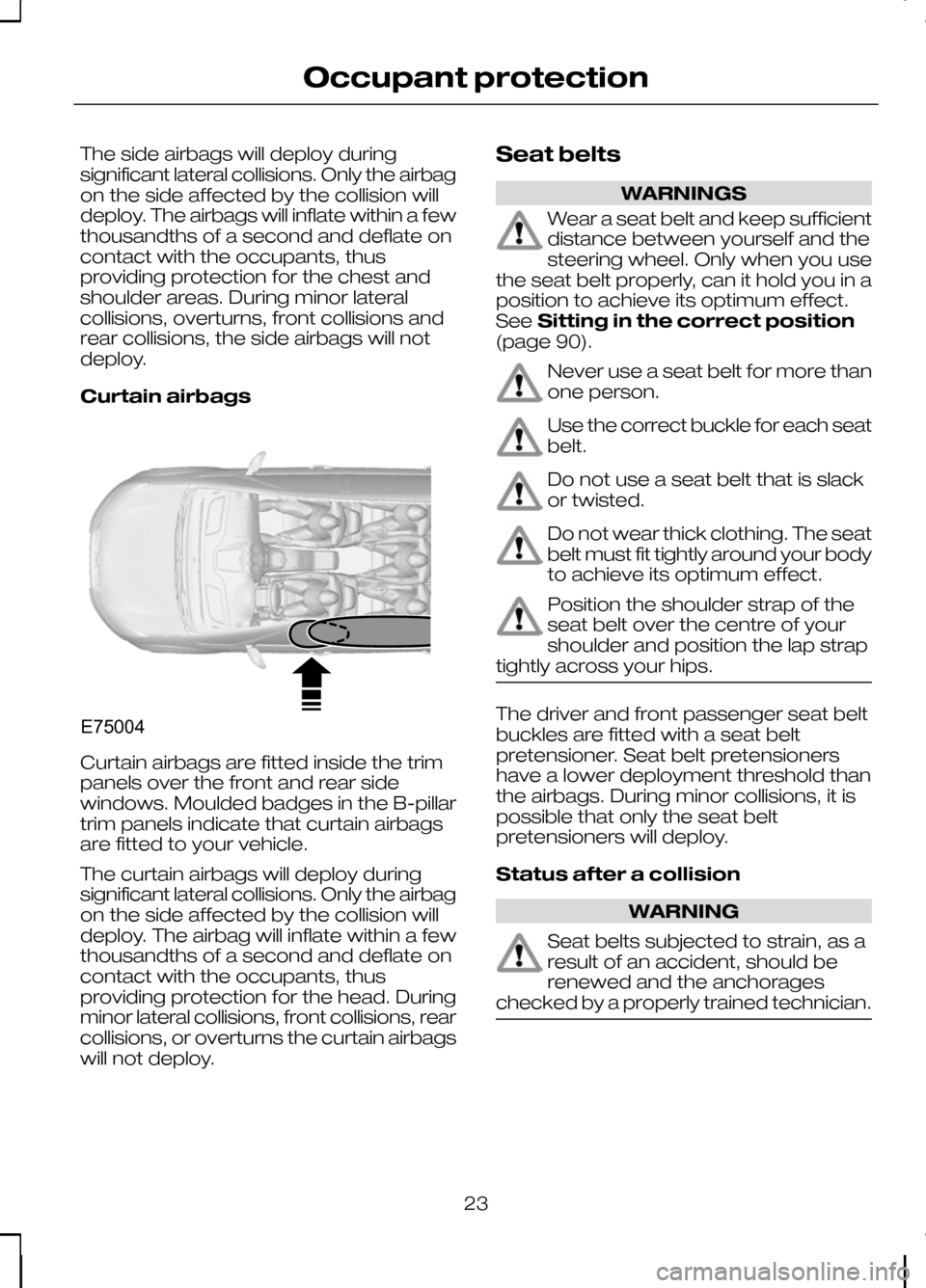

The side airbags will deploy during
significant lateral collisions. Only the airbag
on the side affected by the collision will
deploy. The airbags will inflate within a few
thousandths of a second and deflate on
contact with the occupants, thus
providing protection for the chest and
shoulder areas. During minor lateral
collisions, overturns, front collisions and
rear collisions, the side airbags will not
deploy.
Curtain airbags
Curtain airbags are fitted inside the trim
panels over the front and rear side
windows. Moulded badges in the B-pillar
trim panels indicate that curtain airbags
are fitted to your vehicle.
The curtain airbags will deploy during
significant lateral collisions. Only the airbag
on the side affected by the collision will
deploy. The airbag will inflate within a few
thousandths of a second and deflate on
contact with the occupants, thus
providing protection for the head. During
minor lateral collisions, front collisions, rear
collisions, or overturns the curtain airbags
will not deploy. Seat belts WARNINGS
Wear a seat belt and keep sufficient
distance between yourself and the
steering wheel. Only when you use
the seat belt properly, can it hold you in a
position to achieve its optimum effect.
See Sitting in the correct position
(page 90). Never use a seat belt for more than
one person.
Use the correct buckle for each seat
belt.
Do not use a seat belt that is slack
or twisted.
Do not wear thick clothing. The seat
belt must fit tightly around your body
to achieve its optimum effect.
Position the shoulder strap of the
seat belt over the centre of your
shoulder and position the lap strap
tightly across your hips. The driver and front passenger seat belt
buckles are fitted with a seat belt
pretensioner. Seat belt pretensioners
have a lower deployment threshold than
the airbags. During minor collisions, it is
possible that only the seat belt
pretensioners will deploy.
Status after a collision
WARNING
Seat belts subjected to strain, as a
result of an accident, should be
renewed and the anchorages
checked by a properly trained technician. 23
Occupant protectionE75004

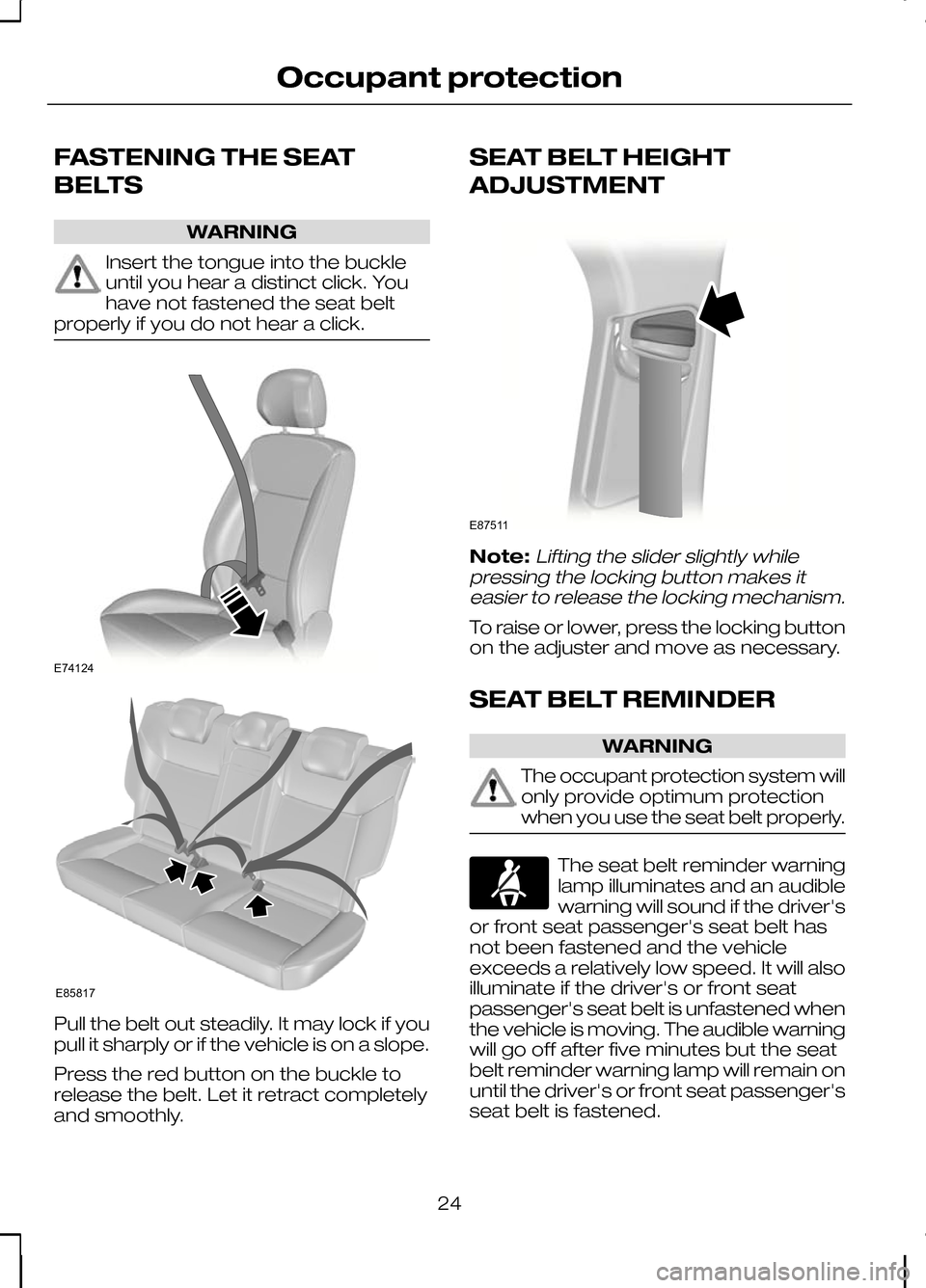

FASTENING THE SEAT
BELTS
WARNING
Insert the tongue into the buckle
until you hear a distinct click. You
have not fastened the seat belt
properly if you do not hear a click. Pull the belt out steadily. It may lock if you
pull it sharply or if the vehicle is on a slope.
Press the red button on the buckle to
release the belt. Let it retract completely
and smoothly. SEAT BELT HEIGHT
ADJUSTMENT
Note:Lifting the slider slightly while
pressing the locking button makes it easier to release the locking mechanism.
To raise or lower, press the locking button
on the adjuster and move as necessary.
SEAT BELT REMINDER WARNING
The occupant protection system will
only provide optimum protection
when you use the seat belt properly.
The seat belt reminder warning
lamp illuminates and an audible
warning will sound if the driver's
or front seat passenger's seat belt has
not been fastened and the vehicle
exceeds a relatively low speed. It will also
illuminate if the driver's or front seat
passenger's seat belt is unfastened when
the vehicle is moving. The audible warning
will go off after five minutes but the seat
belt reminder warning lamp will remain on
until the driver's or front seat passenger's
seat belt is fastened.
24
Occupant protectionE74124 E85817 E87511

Deactivating the seat belt
reminder
See your dealer.

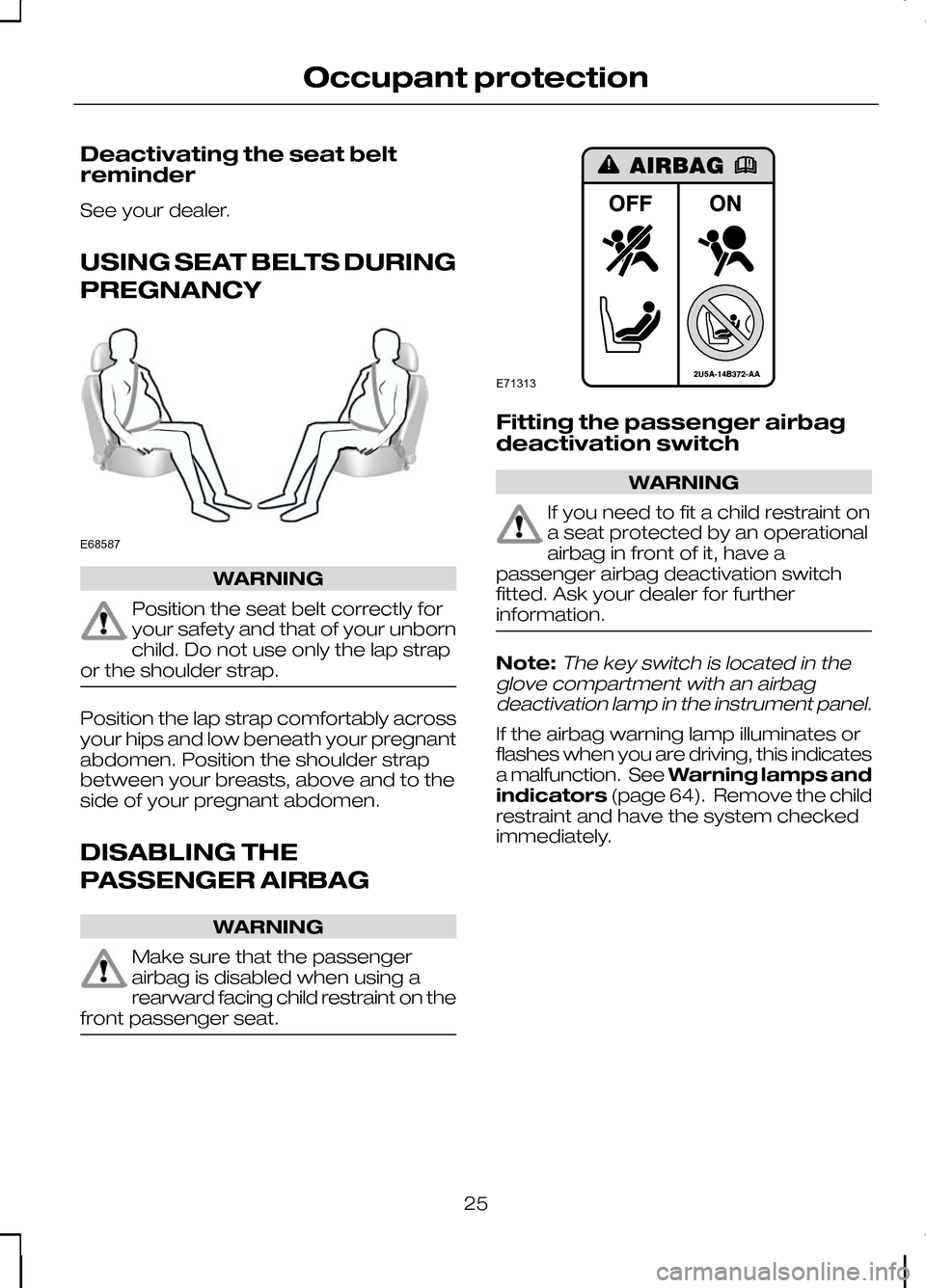

USING SEAT BELTS DURING
PREGNANCY
WARNING
Position the seat belt correctly for
your safety and that of your unborn
child. Do not use only the lap strap
or the shoulder strap. Position the lap strap comfortably across
your hips and low beneath your pregnant
abdomen. Position the shoulder strap
between your breasts, above and to the
side of your pregnant abdomen.
DISABLING THE
PASSENGER AIRBAG
WARNING
Make sure that the passenger
airbag is disabled when using a
rearward facing child restraint on the
front passenger seat. Fitting the passenger airbag
deactivation switch
WARNING
If you need to fit a child restraint on
a seat protected by an operational
airbag in front of it, have a
passenger airbag deactivation switch
fitted. Ask your dealer for further
information. Note:The key switch is located in the
glove compartment with an airbag deactivation lamp in the instrument panel.
If the airbag warning lamp illuminates or
flashes when you are driving, this indicates
a malfunction. See Warning lamps and
indicators (page 64). Remove the child
restraint and have the system checked
immediately.
25
Occupant protectionE68587 E71313

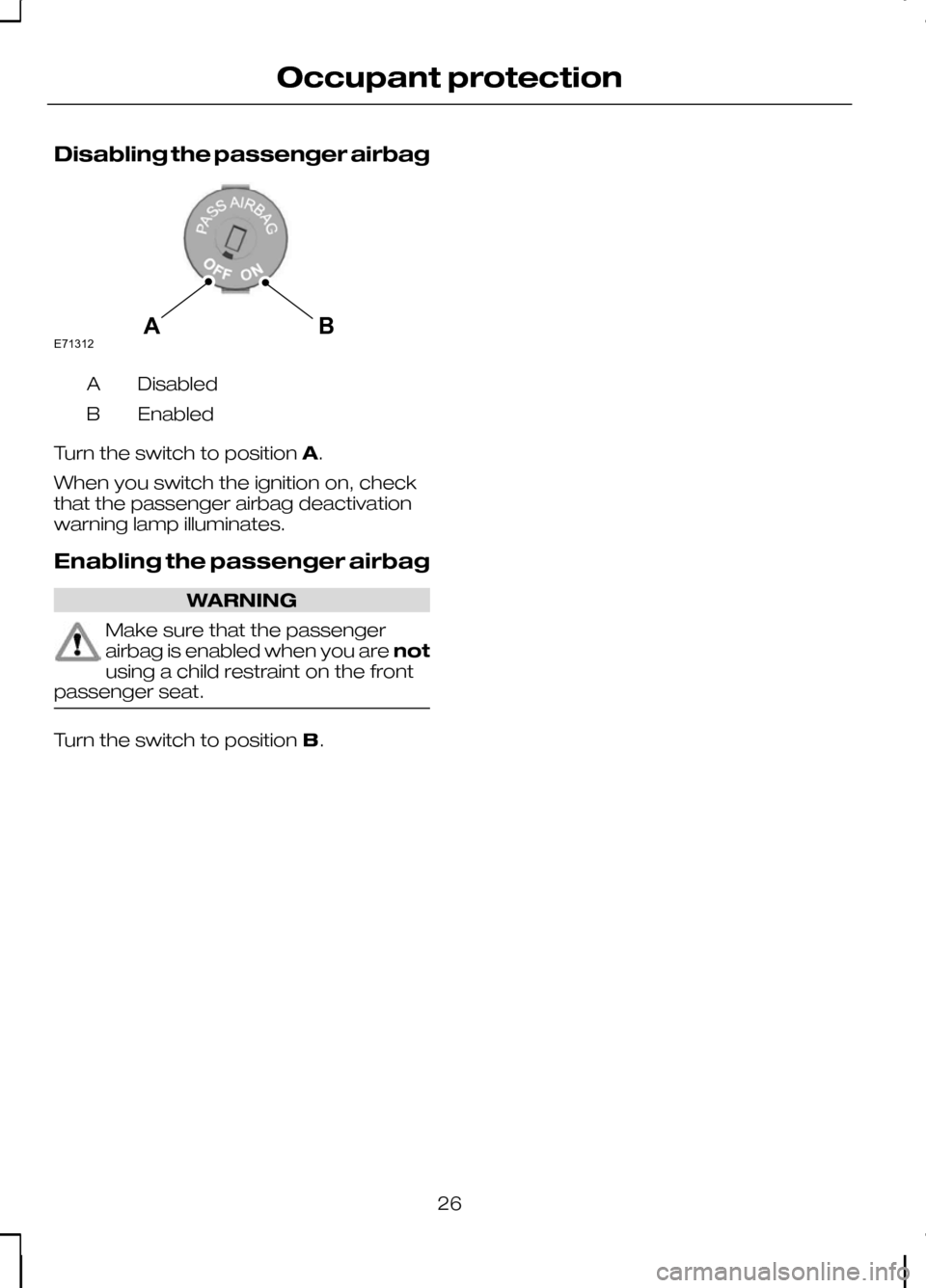

Disabling the passenger airbag
Disabled
A
Enabled
B
Turn the switch to position A.
When you switch the ignition on, check
that the passenger airbag deactivation
warning lamp illuminates.
Enabling the passenger airbag WARNING
Make sure that the passenger
airbag is enabled when you are
not
using a child restraint on the front
passenger seat. Turn the switch to position
B.
26
Occupant protectionABE71312

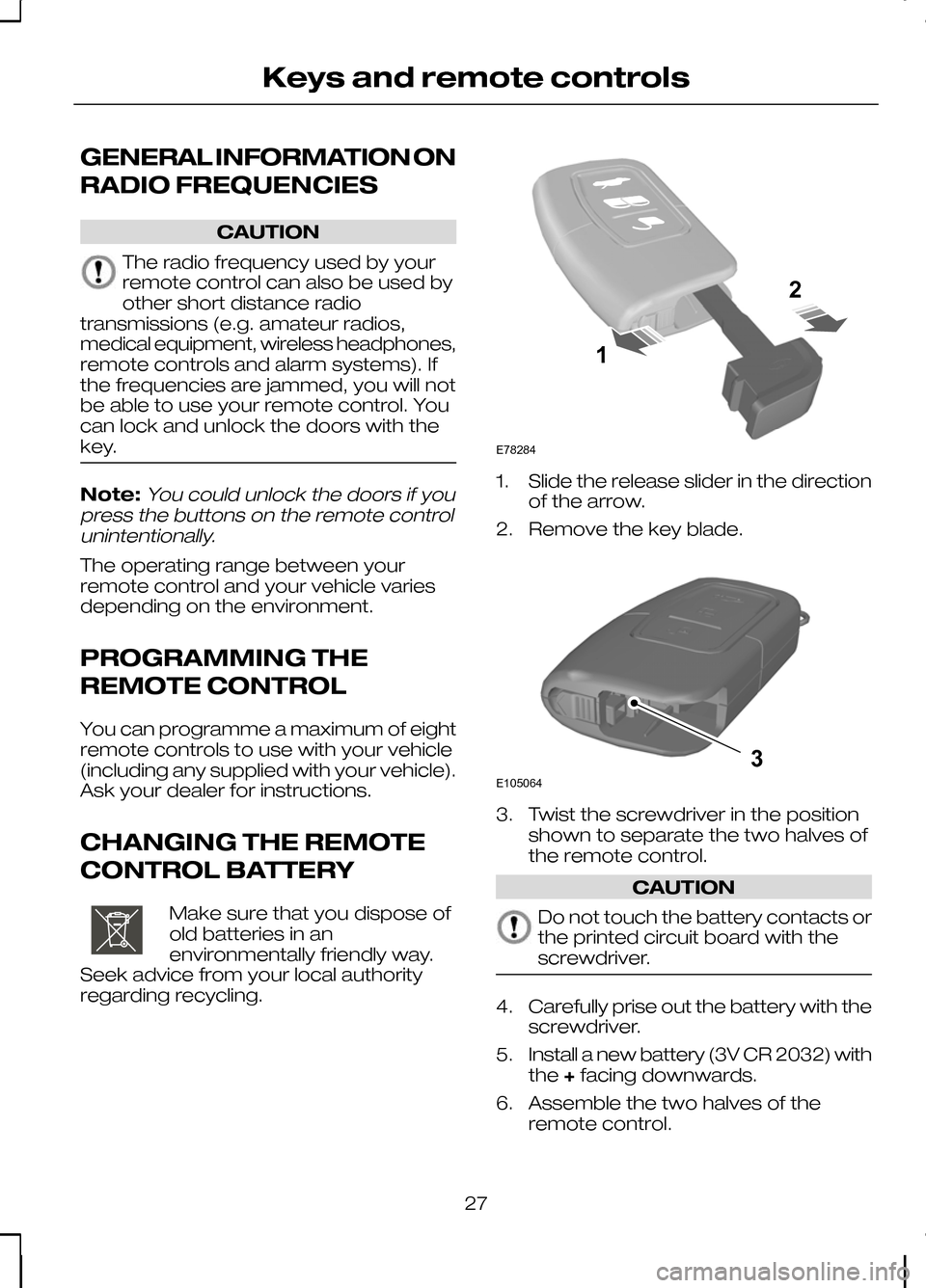

GENERAL INFORMATION ON
RADIO FREQUENCIES
CAUTION
The radio frequency used by your
remote control can also be used by
other short distance radio
transmissions (e.g. amateur radios,
medical equipment, wireless headphones,
remote controls and alarm systems). If
the frequencies are jammed, you will not
be able to use your remote control. You
can lock and unlock the doors with the
key. Note:You could unlock the doors if you
press the buttons on the remote control unintentionally.
The operating range between your
remote control and your vehicle varies
depending on the environment.
PROGRAMMING THE
REMOTE CONTROL
You can programme a maximum of eight
remote controls to use with your vehicle
(including any supplied with your vehicle).
Ask your dealer for instructions.
CHANGING THE REMOTE
CONTROL BATTERY Make sure that you dispose of
old batteries in an
environmentally friendly way.
Seek advice from your local authority
regarding recycling. 1. Slide the release slider in the direction
of the arrow.
2. Remove the key blade. 3. Twist the screwdriver in the position
shown to separate the two halves of
the remote control. CAUTION
Do not touch the battery contacts or
the printed circuit board with the
screwdriver.
4.
Carefully prise out the battery with the
screwdriver.
5. Install a new battery (3V CR 2032) with
the +facing downwards.
6. Assemble the two halves of the remote control.
27
Keys and remote controlsE107998 12E78284 E1050643

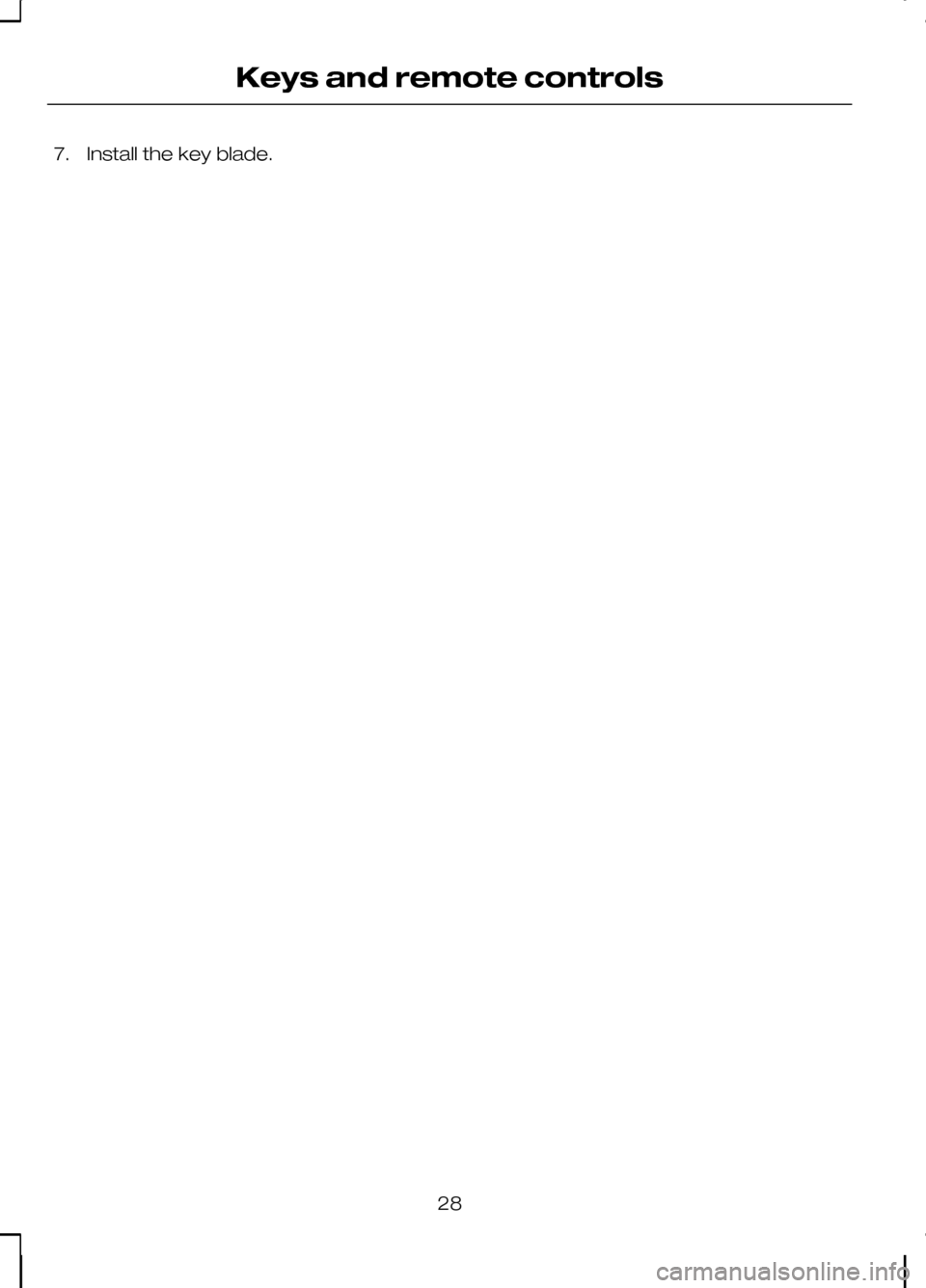

7. Install the key blade.
28
Keys and remote controls
