FORD KUGA 2010 1.G Service Manual
Manufacturer: FORD, Model Year: 2010, Model line: KUGA, Model: FORD KUGA 2010 1.GPages: 226, PDF Size: 8.07 MB

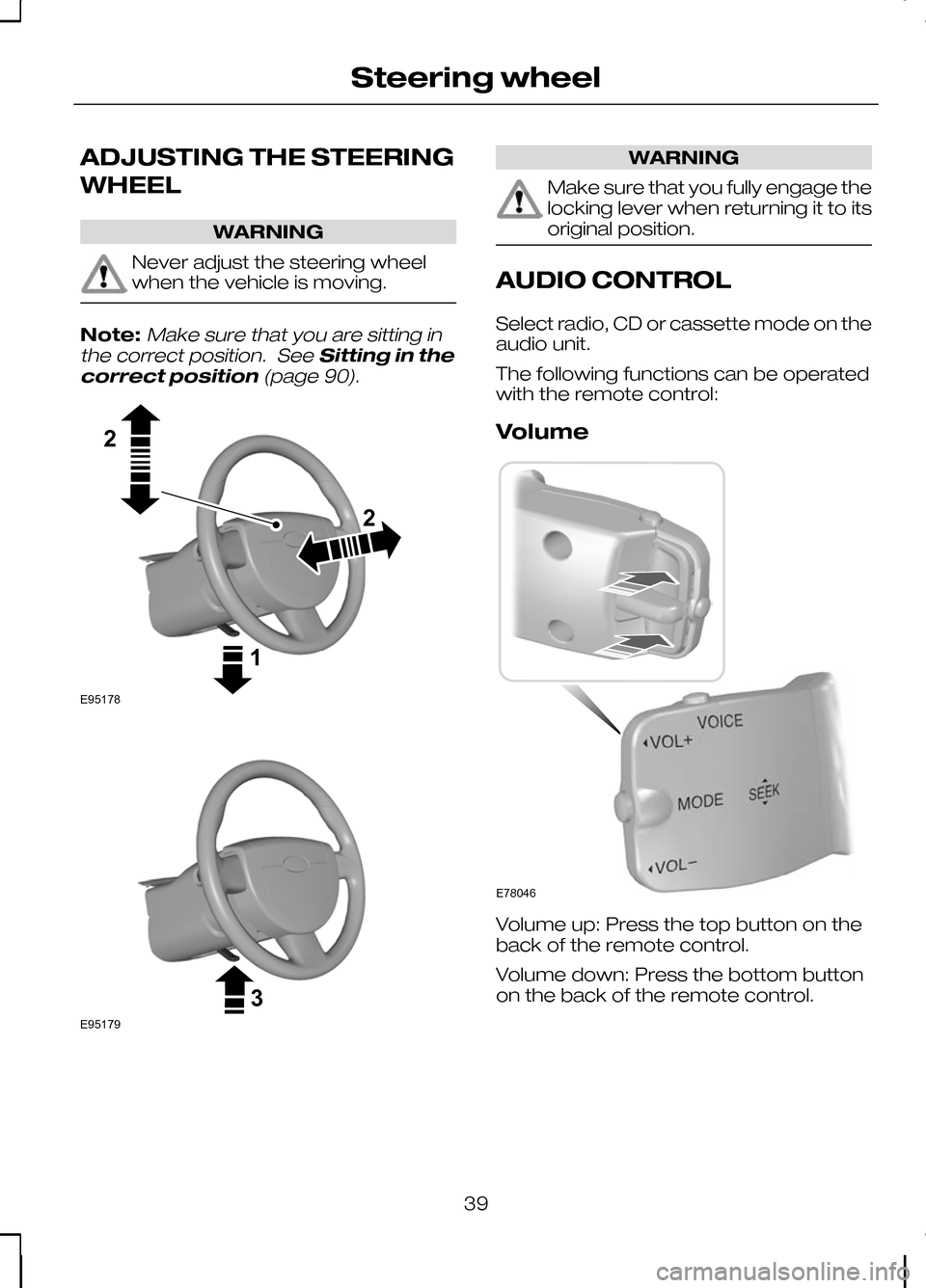

Page 41 of 226
ADJUSTING THE STEERING
WHEEL
WARNING
Never adjust the steering wheel
when the vehicle is moving.
Note:Make sure that you are sitting in
the correct position. See Sitting in the
correct position (page 90). WARNING
Make sure that you fully engage the
locking lever when returning it to its
original position.
AUDIO CONTROL
Select radio, CD or cassette mode on the
audio unit.
The following functions can be operated
with the remote control:
Volume
Volume up: Press the top button on the
back of the remote control.
Volume down: Press the bottom button
on the back of the remote control.
39
Steering wheel122E95178 3E95179 E78046

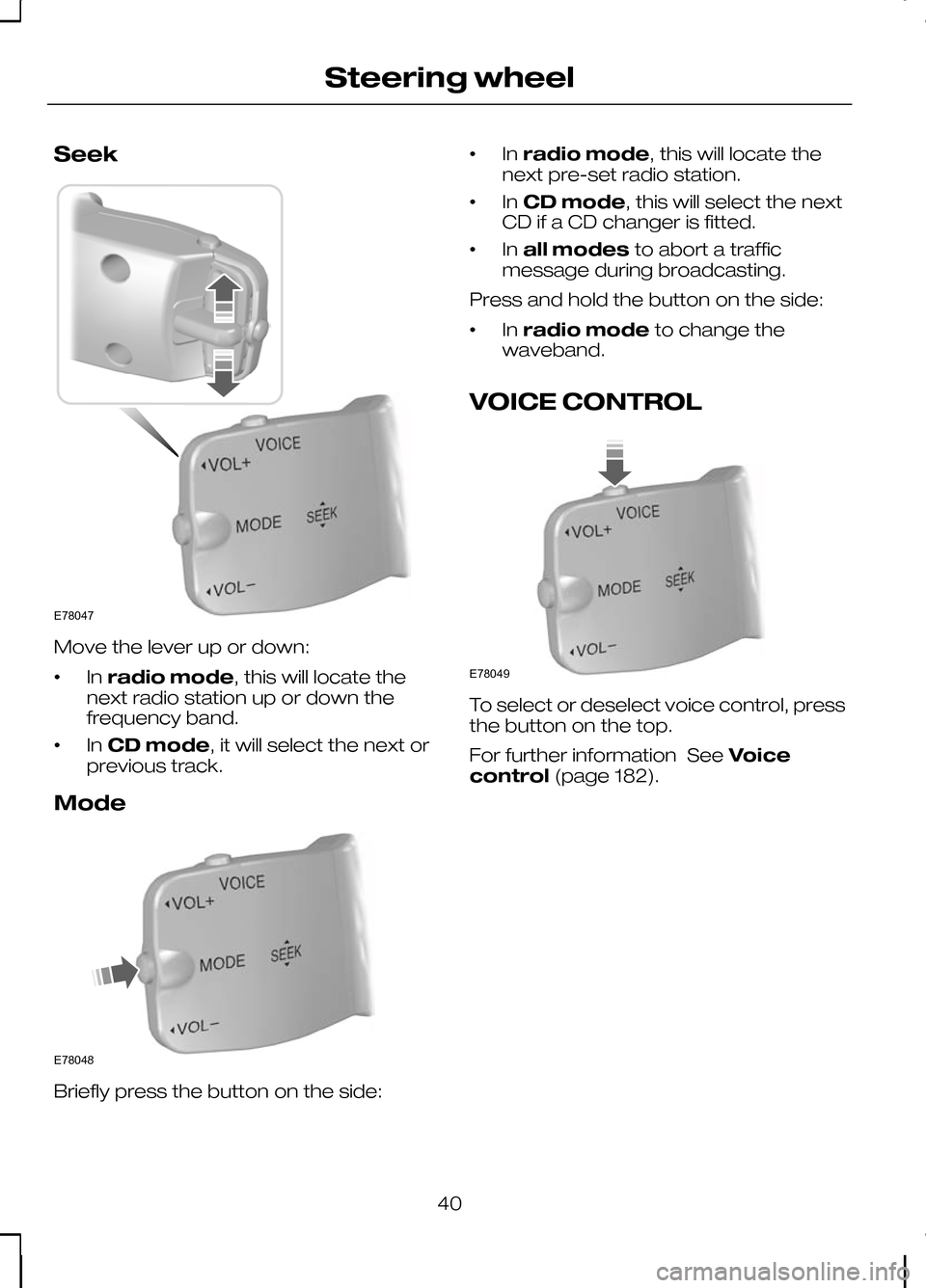

Page 42 of 226
Seek
Move the lever up or down:
•
In
radio mode, this will locate the
next radio station up or down the
frequency band.
• In
CD mode, it will select the next or
previous track.
Mode Briefly press the button on the side: •
In
radio mode, this will locate the
next pre-set radio station.
• In
CD mode, this will select the next
CD if a CD changer is fitted.
• In
all modes to abort a traffic
message during broadcasting.
Press and hold the button on the side:
• In
radio mode to change the
waveband.
VOICE CONTROL To select or deselect voice control, press
the button on the top.
For further information See
Voice
control (page 182).
40
Steering wheelE78047 E78048 E78049

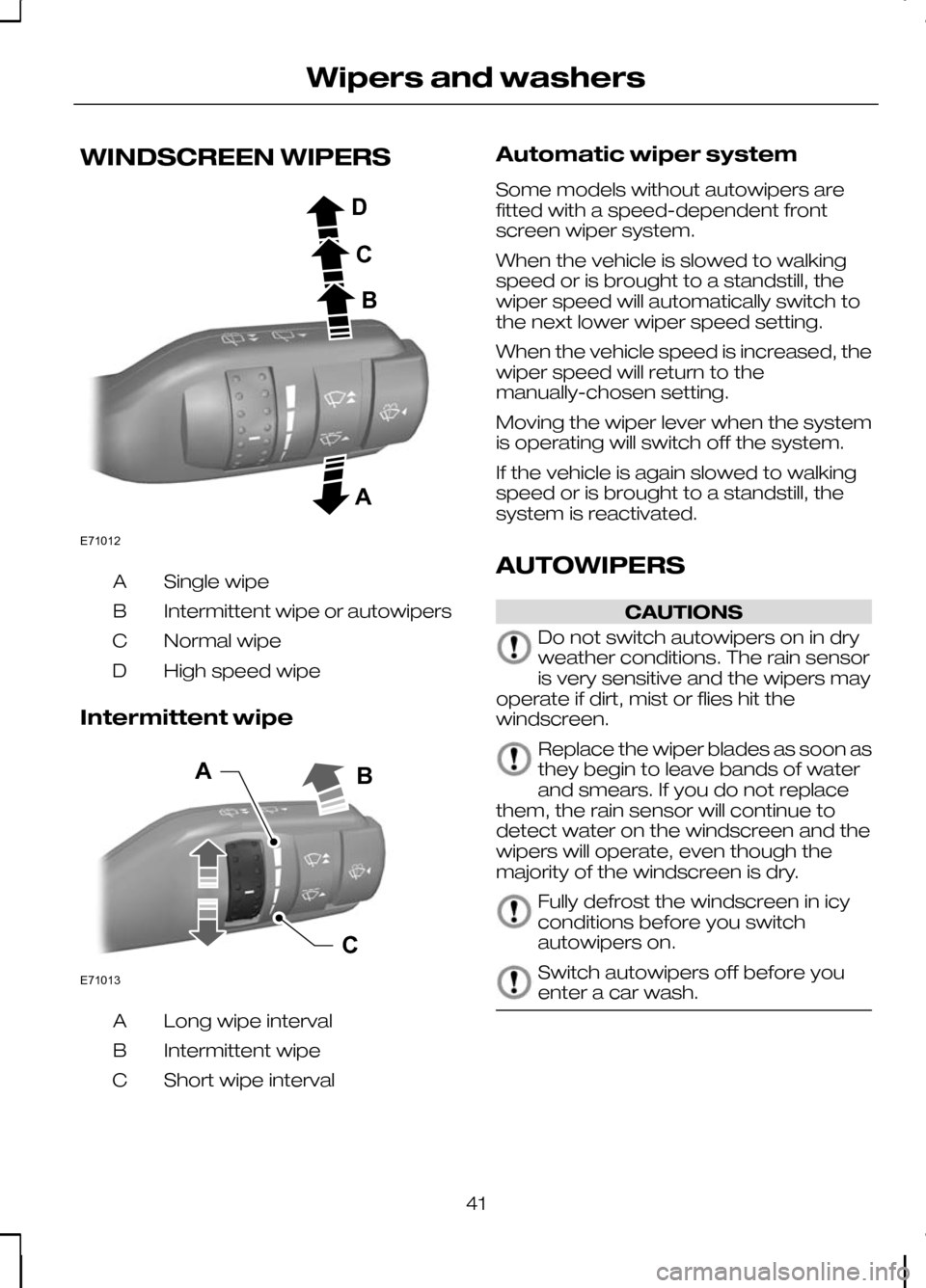

Page 43 of 226
WINDSCREEN WIPERS
Single wipe
A
Intermittent wipe or autowipers
B
Normal wipe
C
High speed wipe
D
Intermittent wipe Long wipe interval
A
Intermittent wipe
B
Short wipe interval
C Automatic wiper system
Some models without autowipers are
fitted with a speed-dependent front
screen wiper system.
When the vehicle is slowed to walking
speed or is brought to a standstill, the
wiper speed will automatically switch to
the next lower wiper speed setting.
When the vehicle speed is increased, the
wiper speed will return to the
manually-chosen setting.
Moving the wiper lever when the system
is operating will switch off the system.
If the vehicle is again slowed to walking
speed or is brought to a standstill, the
system is reactivated.
AUTOWIPERS
CAUTIONS
Do not switch autowipers on in dry
weather conditions. The rain sensor
is very sensitive and the wipers may
operate if dirt, mist or flies hit the
windscreen. Replace the wiper blades as soon as
they begin to leave bands of water
and smears. If you do not replace
them, the rain sensor will continue to
detect water on the windscreen and the
wipers will operate, even though the
majority of the windscreen is dry. Fully defrost the windscreen in icy
conditions before you switch
autowipers on.
Switch autowipers off before you
enter a car wash.
41
Wipers and washersE71012ABCD E71013CAB

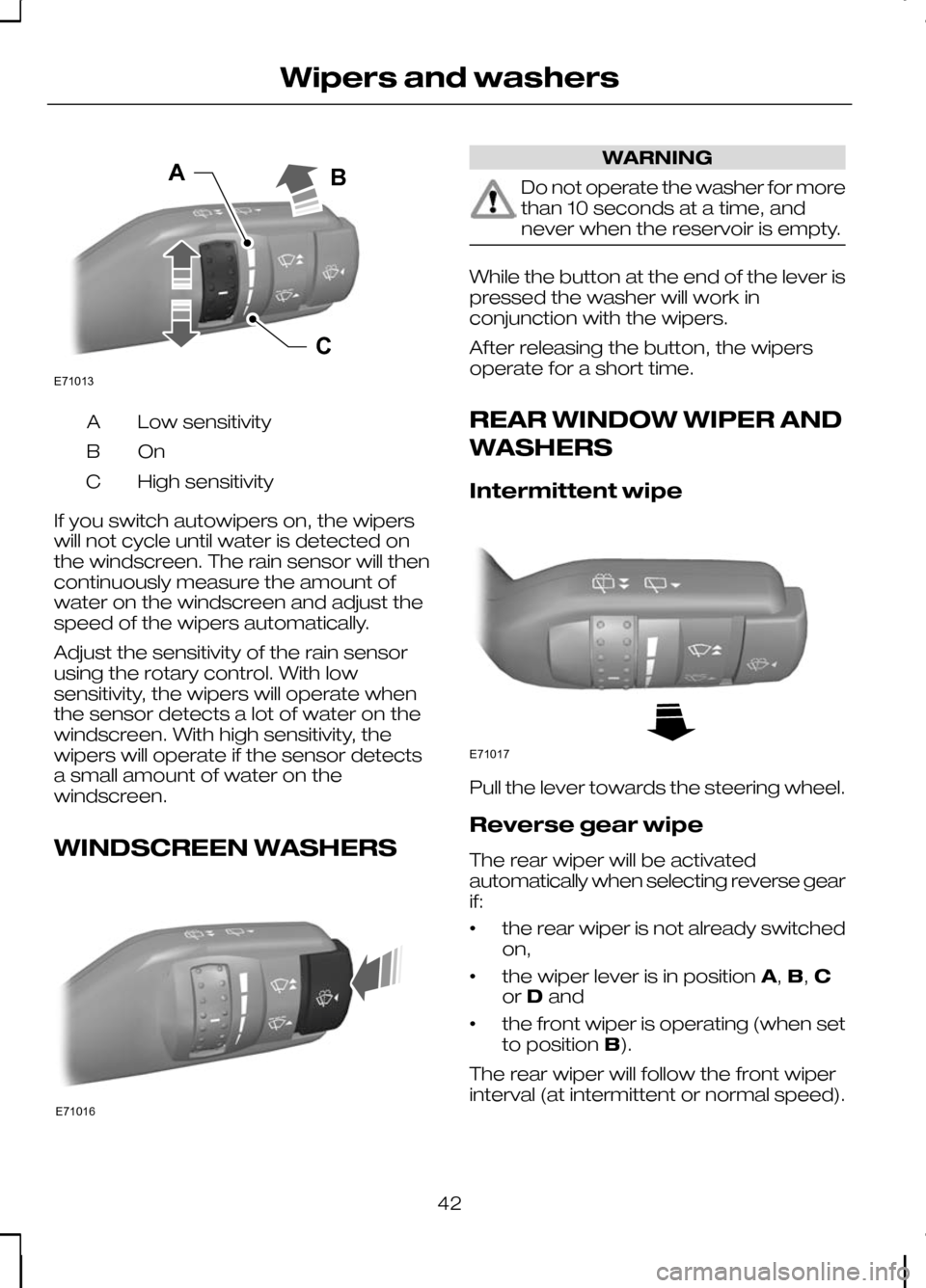

Page 44 of 226
Low sensitivity
A
OnB
High sensitivity
C
If you switch autowipers on, the wipers
will not cycle until water is detected on
the windscreen. The rain sensor will then
continuously measure the amount of
water on the windscreen and adjust the
speed of the wipers automatically.
Adjust the sensitivity of the rain sensor
using the rotary control. With low
sensitivity, the wipers will operate when
the sensor detects a lot of water on the
windscreen. With high sensitivity, the
wipers will operate if the sensor detects
a small amount of water on the
windscreen.
WINDSCREEN WASHERS WARNING
Do not operate the washer for more
than 10 seconds at a time, and
never when the reservoir is empty.
While the button at the end of the lever is
pressed the washer will work in
conjunction with the wipers.
After releasing the button, the wipers
operate for a short time.
REAR WINDOW WIPER AND
WASHERS
Intermittent wipe
Pull the lever towards the steering wheel.
Reverse gear wipe
The rear wiper will be activated
automatically when selecting reverse gear
if:
•
the rear wiper is not already switched
on,
• the wiper lever is in position
A,B, C
or Dand
• the front wiper is operating (when set
to position
B).
The rear wiper will follow the front wiper
interval (at intermittent or normal speed).
42
Wipers and washersE71013CAB E71016 E71017
Page 45 of 226
Rear window washer
WARNING
Do not operate the washer for more
than 10 seconds at a time, and
never when the reservoir is empty.
While the lever is pulled towards the
steering wheel the washer will work in
conjunction with the wipers.
Once the wash and wipe cycle is
completed, the wipers will pause and then
perform one more wipe to clear the
windscreen.
After releasing the lever, the wipers
operate for a short time.
ADJUSTING THE
WINDSCREEN WASHER
JETS
1.
Open the bonnet. See Opening and
closing the bonnet (page 142). 2. Using a suitable implement adjust the
jets.
3. Close the bonnet and check the operation of the jets. See Opening
and closing the bonnet (page 142).
HEADLAMP WASHERS
The headlamp washers will operate with
the windscreen washers when the
headlamps are on.
Note:To stop the washer fluid reservoir
emptying quickly, the headlamp washers will not operate every time that you usethe windscreen washers.
CHECKING THE WIPER
BLADES Run the tip of your fingers over the edge
of the blade to check for roughness.
Clean the wiper blade lips with water
applied with a soft sponge.
43
Wipers and washersE71018 E99777 E66644
Page 46 of 226
CHANGING THE WIPER
BLADES
Windscreen wiper blades
CAUTIONS
Set the windscreen wipers in the
service position to change the wiper
blades.
You can use the service position in
winter to provide easier access to
the wiper blades for freeing them
from snow and ice. The windscreen
wipers will return to their normal position
as soon as you switch on the ignition so
make sure that the outside of the
windscreen is free from snow and ice
before you switch on the ignition. Service position 1. Turn on the ignition.
2.
Move the wiper lever to position Aand
turn the ignition off as soon as the
wiper blades have reached the service
position.
Changing the windscreen wiper
blades
Set the windscreen wipers in the service
position and lift the wiper arms. 1. Press the locking button.
2. Remove the wiper blade.
Note:Make sure that the wiper blade
locks into place.
3. Install in the reverse order.
44
Wipers and washersE85833 E99280A E7289912

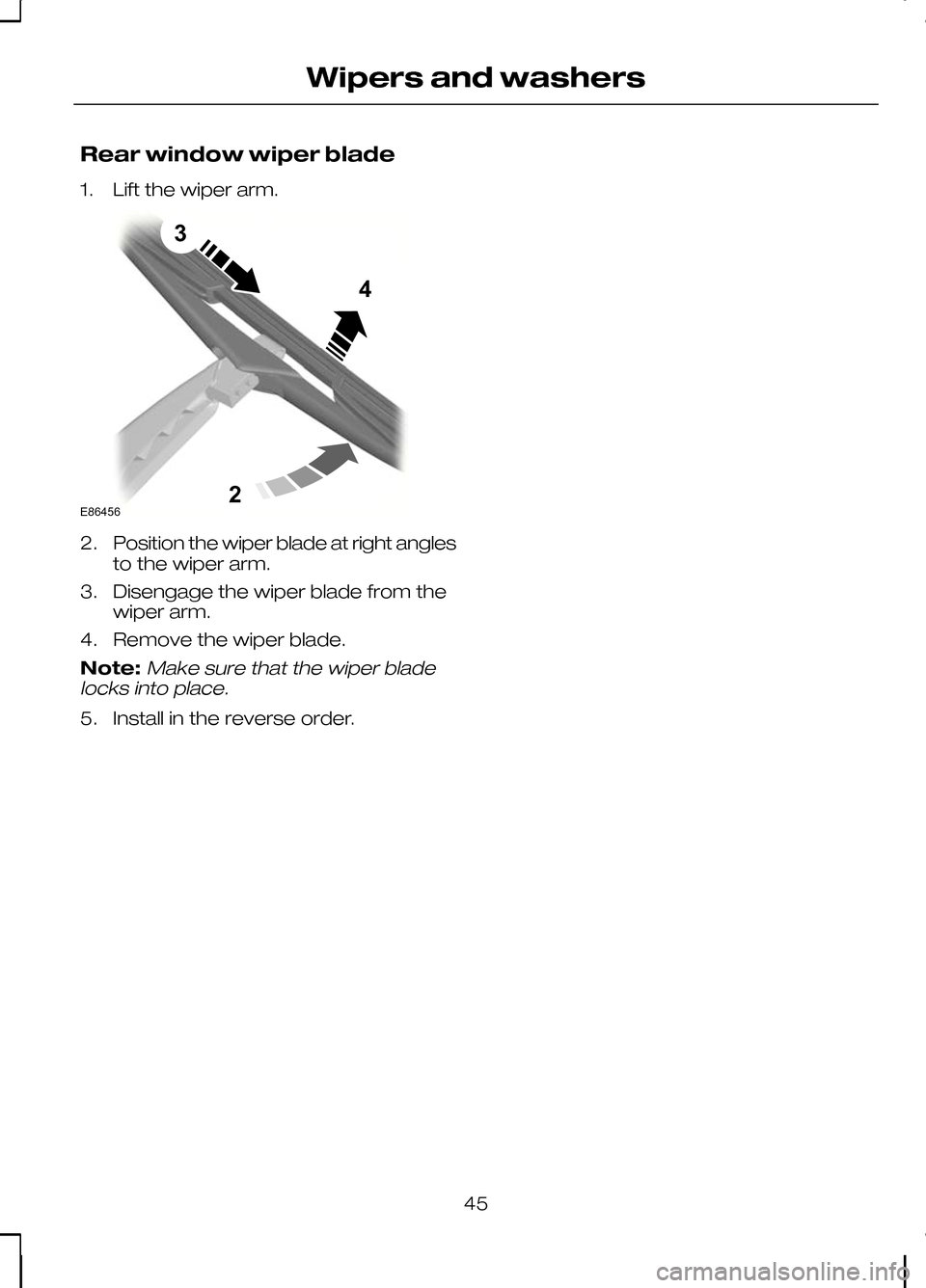

Page 47 of 226
Rear window wiper blade
1. Lift the wiper arm.
2.
Position the wiper blade at right angles
to the wiper arm.
3. Disengage the wiper blade from the wiper arm.
4. Remove the wiper blade.
Note:Make sure that the wiper blade
locks into place.
5. Install in the reverse order.
45
Wipers and washers234E86456
Page 48 of 226
LIGHTING CONTROL
Lighting control positions
OffA
Side and tail lamps
B
Headlamps
C
Front fog lamps
D
Rear fog lamps
E
Parking lamps
F
Parking lamps CAUTION
Prolonged use of the parking lamps
will discharge the battery.
Switch off the ignition.
Push the lighting control inwards and turn
it to position
F. Main and dipped beam
Pull the lever fully towards the steering
wheel to switch between main and
dipped beam.
Headlamp flasher
Pull the lever slightly towards the steering
wheel.
Home safe lighting
Switch the ignition off and pull the
direction indicator lever towards the
steering wheel to switch the headlamps
on. You will hear a short tone. The
headlamps will go off automatically after
3 minutes with any door open, or 30
seconds after the last door has been
closed.
With all doors closed, but within the 30
second delay, opening any door will result
in the 3 minute timer starting again.
The home safe lights can be cancelled by
either pulling the direction indicator lever
towards the steering wheel again or by
turning the ignition switch ON.
46
LightingE71094DBCAFE E71095
Page 49 of 226
AUTOLAMPS
Note:If you have switched autolamps
on, you can only switch the main beam on when autolamps has switched theheadlamps on.
The headlamps will come on and go off
automatically depending on the ambient
light.
FRONT FOG LAMPS WARNING
Only use the front fog lamps when
visibility is considerably restricted by
fog, snow or rain. Note:
You cannot switch the front fog
lamps on if you have switched autolamps on.
REAR FOG LAMPS WARNING
Do not use the rear fog lamps when
it is raining or snowing and visibility
is more than 50 metres.
Note:
You cannot switch the rear fog
lamps on if you have switched autolamps on.
HEADLAMP LEVELLING
Note:
Vehicles with Xenon headlamps
are equipped with automatic headlamp levelling. 47
LightingE73840 E71096 E71097 E65990
Page 50 of 226
You can adjust the level of the headlamp
beams according to the vehicle load.
Recommended headlamp levelling control positions
Control position
Load in luggage
compartment 1
Load
Rear seats
Front seats
0
-
-
1-2
1
-
3
1-2
1.5
Max
3
1-2
3
Max
-
1
1 See Vehicle identification plate (page 170).
HAZARD WARNING
FLASHERS
Note:Depending on applicable laws and
regulations in the country for which your vehicle was originally built, the hazardwarning flashers may flash if you brakeheavily. For item location: See
Quick start(page
8).
48
