FORD KUGA 2010 1.G Owner's Guide

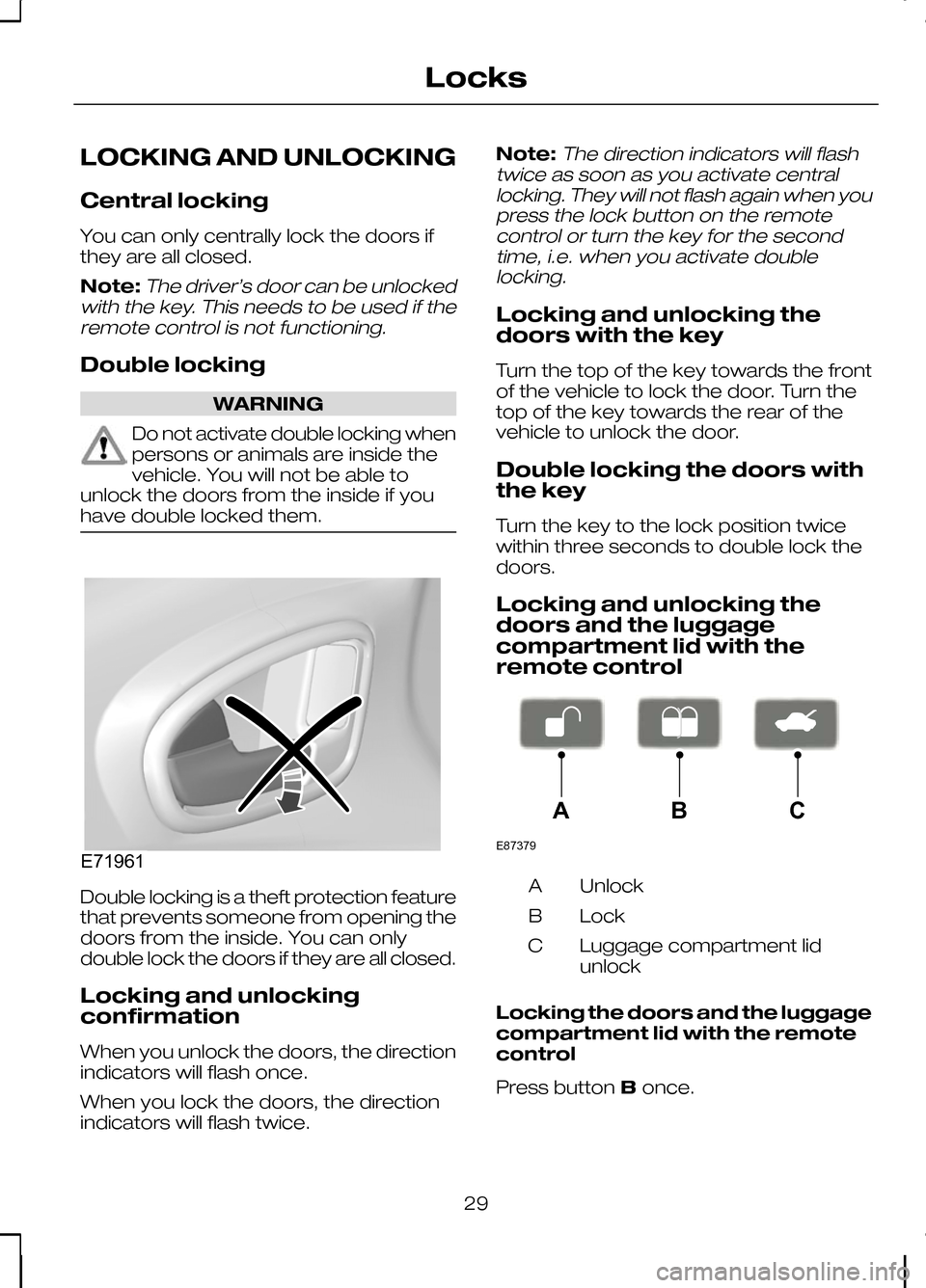

LOCKING AND UNLOCKING
Central locking
You can only centrally lock the doors if
they are all closed.
Note:The driver’s door can be unlocked
with the key. This needs to be used if the remote control is not functioning.
Double locking WARNING
Do not activate double locking when
persons or animals are inside the
vehicle. You will not be able to
unlock the doors from the inside if you
have double locked them. Double locking is a theft protection feature
that prevents someone from opening the
doors from the inside. You can only
double lock the doors if they are all closed.
Locking and unlocking
confirmation
When you unlock the doors, the direction
indicators will flash once.
When you lock the doors, the direction
indicators will flash twice. Note:
The direction indicators will flash
twice as soon as you activate central locking. They will not flash again when youpress the lock button on the remotecontrol or turn the key for the secondtime, i.e. when you activate doublelocking.
Locking and unlocking the
doors with the key
Turn the top of the key towards the front
of the vehicle to lock the door. Turn the
top of the key towards the rear of the
vehicle to unlock the door.
Double locking the doors with
the key
Turn the key to the lock position twice
within three seconds to double lock the
doors.
Locking and unlocking the
doors and the luggage
compartment lid with the
remote control Unlock
A
Lock
B
Luggage compartment lid
unlock
C
Locking the doors and the luggage
compartment lid with the remote
control
Press button Bonce.
29
LocksE71961 E87379ABC

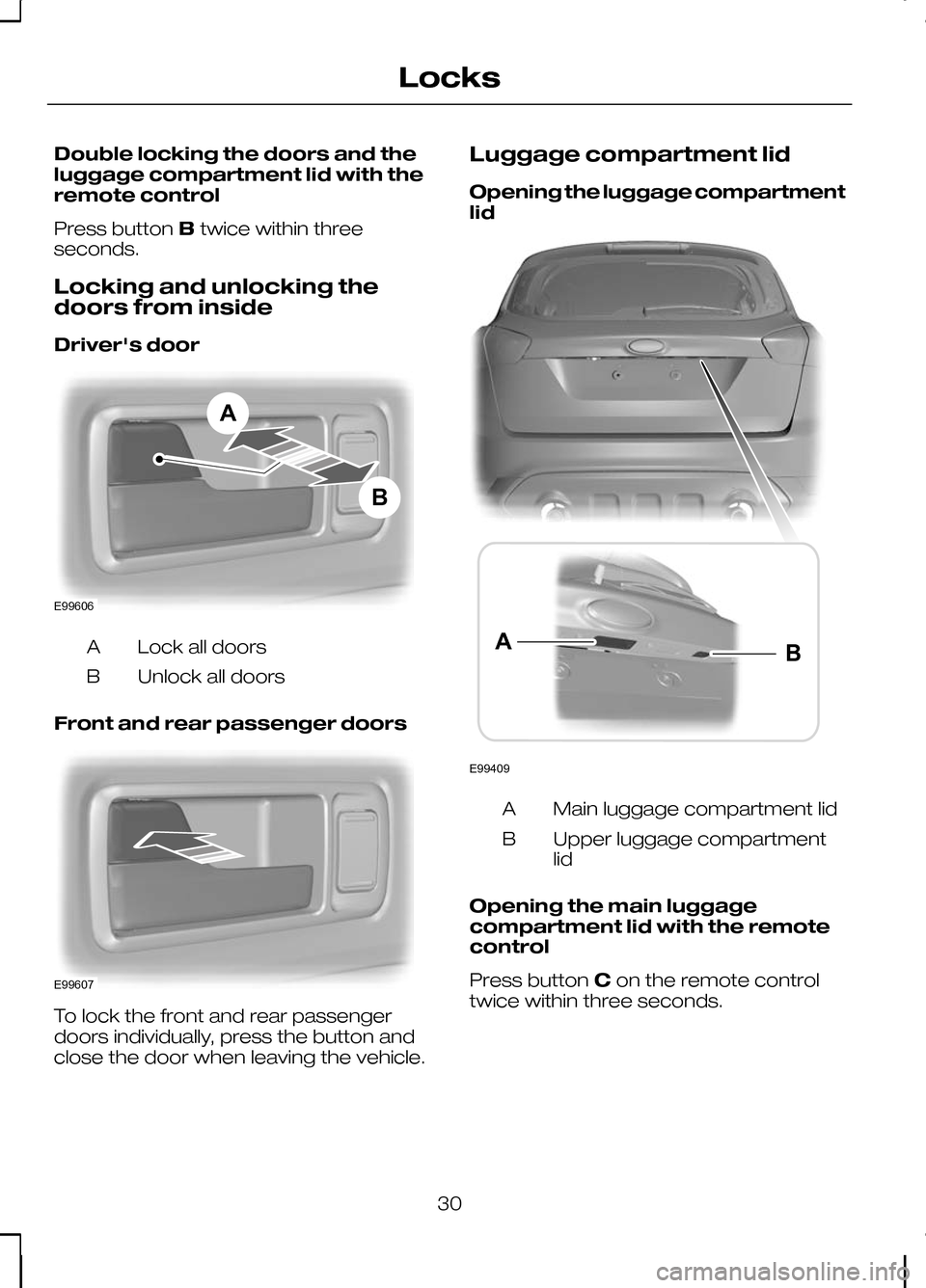

Double locking the doors and the
luggage compartment lid with the
remote control
Press button
Btwice within three
seconds.
Locking and unlocking the
doors from inside
Driver's door Lock all doors
A
Unlock all doors
B
Front and rear passenger doors To lock the front and rear passenger
doors individually, press the button and
close the door when leaving the vehicle. Luggage compartment lid
Opening the luggage compartment
lid
Main luggage compartment lid
A
Upper luggage compartment
lid
B
Opening the main luggage
compartment lid with the remote
control
Press button Con the remote control
twice within three seconds.
30
LocksABE99606 E99607 E99409BA

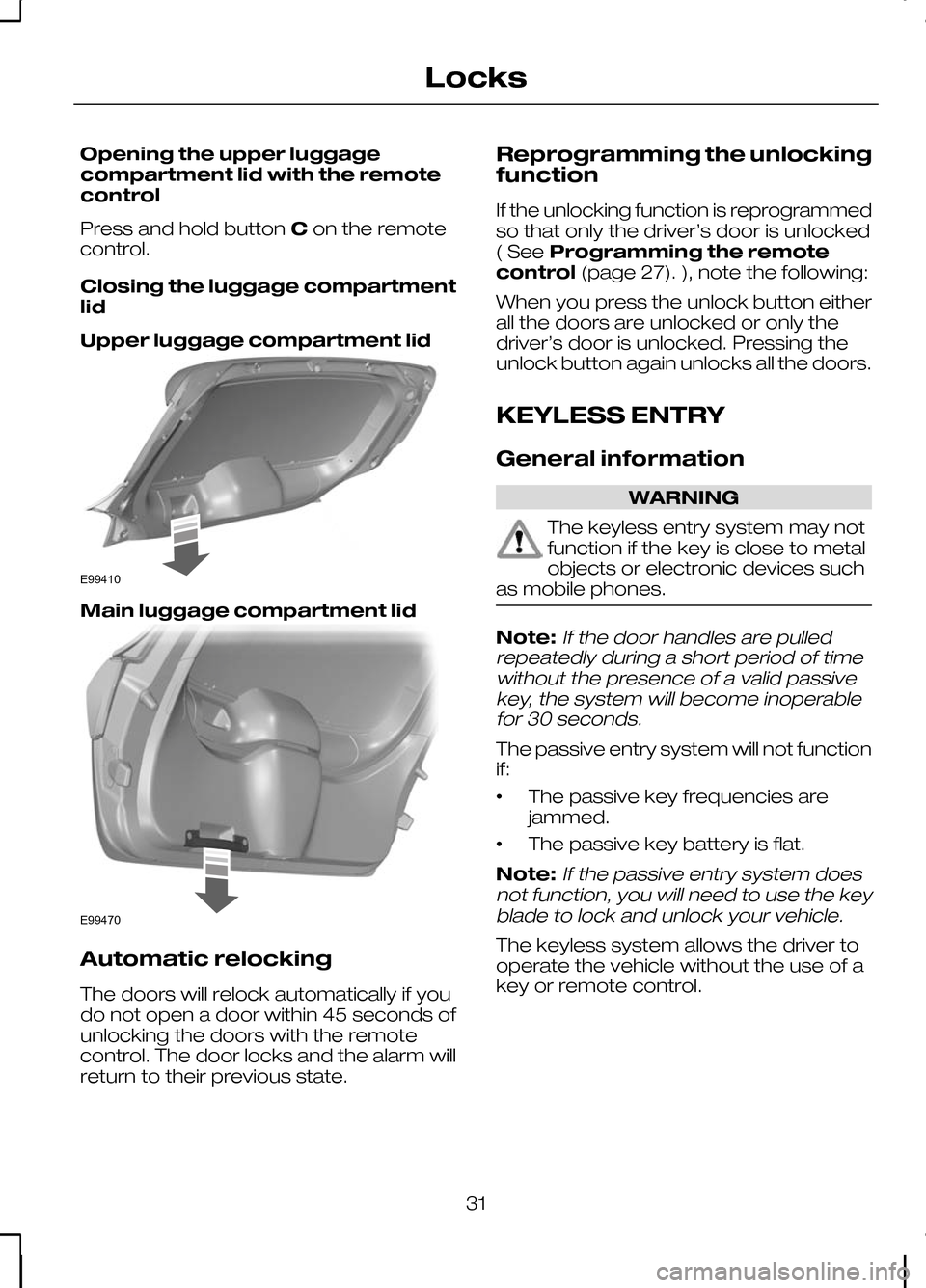

Opening the upper luggage
compartment lid with the remote
control
Press and hold button
Con the remote
control.
Closing the luggage compartment
lid
Upper luggage compartment lid Main luggage compartment lid
Automatic relocking
The doors will relock automatically if you
do not open a door within 45 seconds of
unlocking the doors with the remote
control. The door locks and the alarm will
return to their previous state. Reprogramming the unlocking
function
If the unlocking function is reprogrammed
so that only the driver’s door is unlocked
( See
Programming the remote
control (page 27). ), note the following:
When you press the unlock button either
all the doors are unlocked or only the
driver’s door is unlocked. Pressing the
unlock button again unlocks all the doors.
KEYLESS ENTRY
General information WARNING
The keyless entry system may not
function if the key is close to metal
objects or electronic devices such
as mobile phones. Note:If the door handles are pulled
repeatedly during a short period of time without the presence of a valid passivekey, the system will become inoperablefor 30 seconds.
The passive entry system will not function
if:
• The passive key frequencies are
jammed.
• The passive key battery is flat.
Note:
If the passive entry system does
not function, you will need to use the key blade to lock and unlock your vehicle.
The keyless system allows the driver to
operate the vehicle without the use of a
key or remote control.
31
LocksE99410 E99470

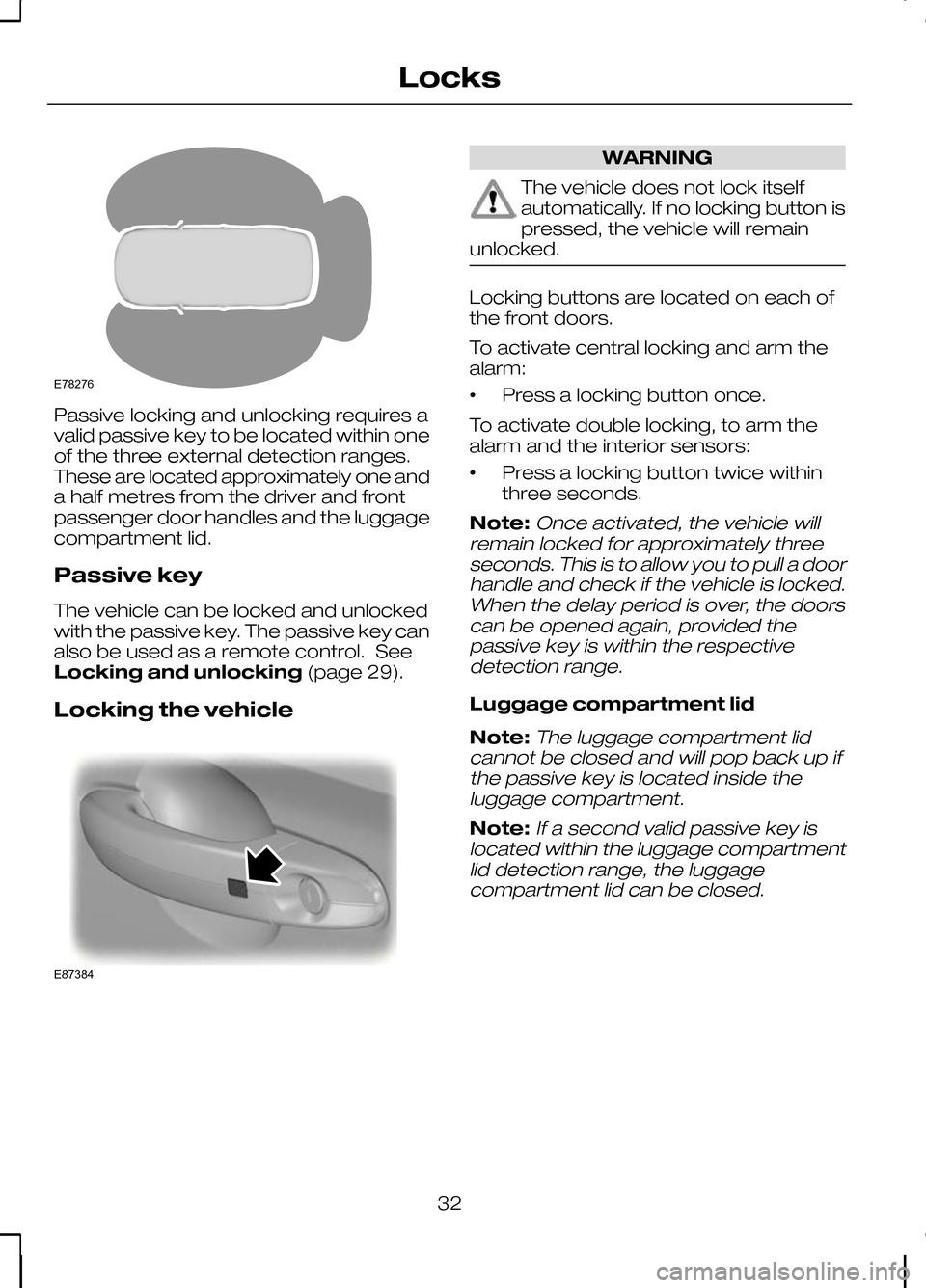

Passive locking and unlocking requires a
valid passive key to be located within one
of the three external detection ranges.
These are located approximately one and
a half metres from the driver and front
passenger door handles and the luggage
compartment lid.
Passive key
The vehicle can be locked and unlocked
with the passive key. The passive key can
also be used as a remote control. See
Locking and unlocking
(page 29).
Locking the vehicle WARNING
The vehicle does not lock itself
automatically. If no locking button is
pressed, the vehicle will remain
unlocked. Locking buttons are located on each of
the front doors.
To activate central locking and arm the
alarm:
•
Press a locking button once.
To activate double locking, to arm the
alarm and the interior sensors:
• Press a locking button twice within
three seconds.
Note:Once activated, the vehicle will
remain locked for approximately three seconds. This is to allow you to pull a doorhandle and check if the vehicle is locked.When the delay period is over, the doorscan be opened again, provided thepassive key is within the respectivedetection range.
Luggage compartment lid
Note:
The luggage compartment lid
cannot be closed and will pop back up if the passive key is located inside theluggage compartment.
Note:If a second valid passive key is
located within the luggage compartment lid detection range, the luggagecompartment lid can be closed.
32
LocksE78276 E87384

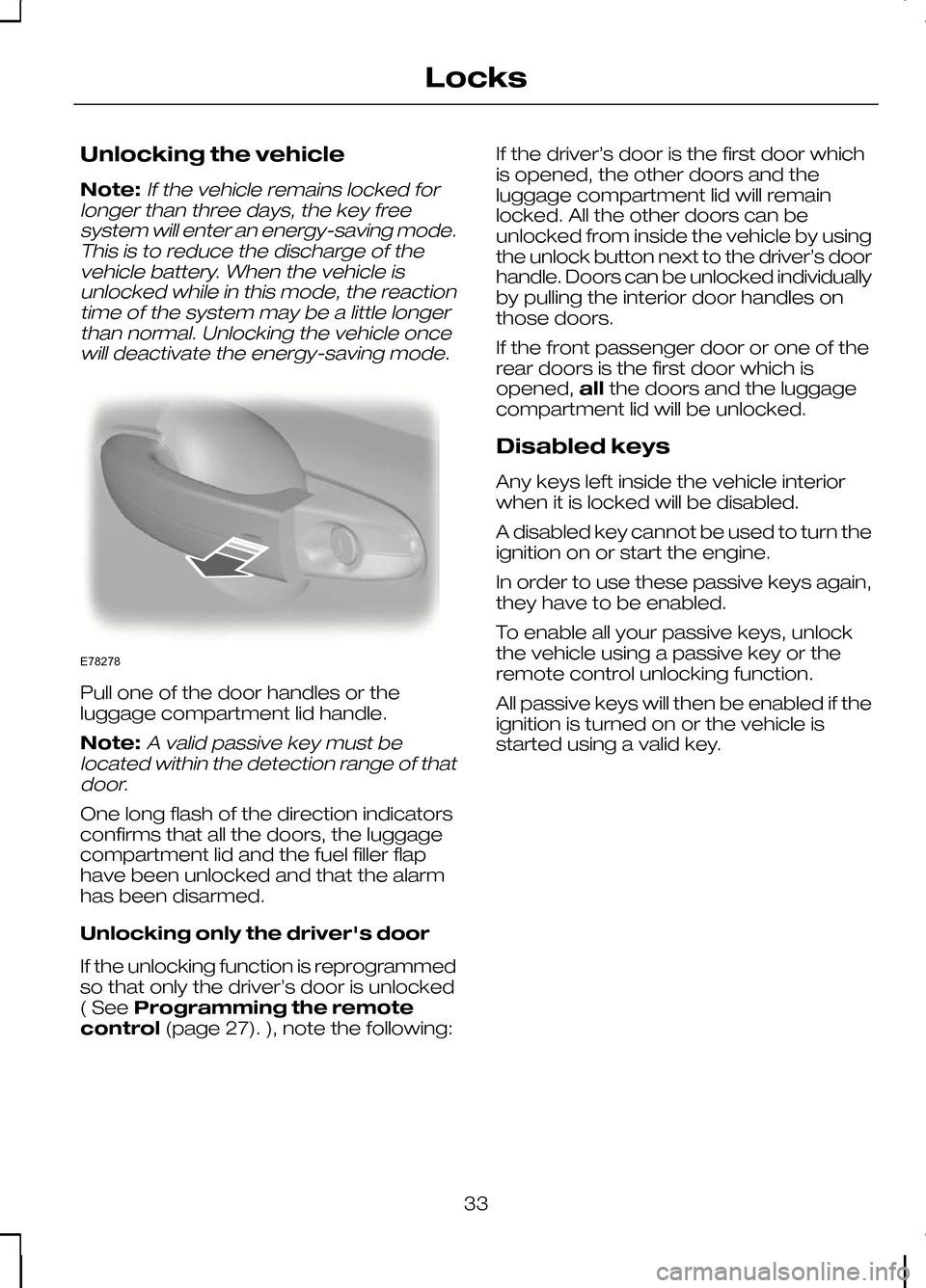

Unlocking the vehicle
Note:If the vehicle remains locked for
longer than three days, the key free system will enter an energy-saving mode.This is to reduce the discharge of thevehicle battery. When the vehicle isunlocked while in this mode, the reactiontime of the system may be a little longerthan normal. Unlocking the vehicle oncewill deactivate the energy-saving mode. Pull one of the door handles or the
luggage compartment lid handle.
Note:
A valid passive key must be
located within the detection range of that door.
One long flash of the direction indicators
confirms that all the doors, the luggage
compartment lid and the fuel filler flap
have been unlocked and that the alarm
has been disarmed.
Unlocking only the driver's door
If the unlocking function is reprogrammed
so that only the driver’s door is unlocked
( See Programming the remote
control (page 27). ), note the following: If the driver’s door is the first door which
is opened, the other doors and the
luggage compartment lid will remain
locked. All the other doors can be
unlocked from inside the vehicle by using
the unlock button next to the driver’s door
handle. Doors can be unlocked individually
by pulling the interior door handles on
those doors.
If the front passenger door or one of the
rear doors is the first door which is
opened,
allthe doors and the luggage
compartment lid will be unlocked.
Disabled keys
Any keys left inside the vehicle interior
when it is locked will be disabled.
A disabled key cannot be used to turn the
ignition on or start the engine.
In order to use these passive keys again,
they have to be enabled.
To enable all your passive keys, unlock
the vehicle using a passive key or the
remote control unlocking function.
All passive keys will then be enabled if the
ignition is turned on or the vehicle is
started using a valid key.
33
LocksE78278

Locking and unlocking the
doors with the key blade
1. Slide the release slider in the direction
of the arrow and pull out the key blade
with your thumb.
2. Remove the key blade and insert it into the lock.
GLOBAL OPENING AND
CLOSING
You can also operate the electric
windows with the ignition off via the global
opening and global closing function.
Note:Global closing will only operate if
you have set the memory correctly for
each window. See Electric windows
(page 60).
Global opening To open all the windows, press and hold
the
unlock button for at least three
seconds. Press either the lockor the
unlock button again to stop the opening
function.
Global closing WARNING
Take care when using global
closing. In an emergency, press the
button on the driver’s door handle
to stop. Note:
Global closing can be activated
using the button on the driver’s door handle. Global opening and closing canalso be activated using the buttons on thepassive key.
34
Locks12E78284 E71955

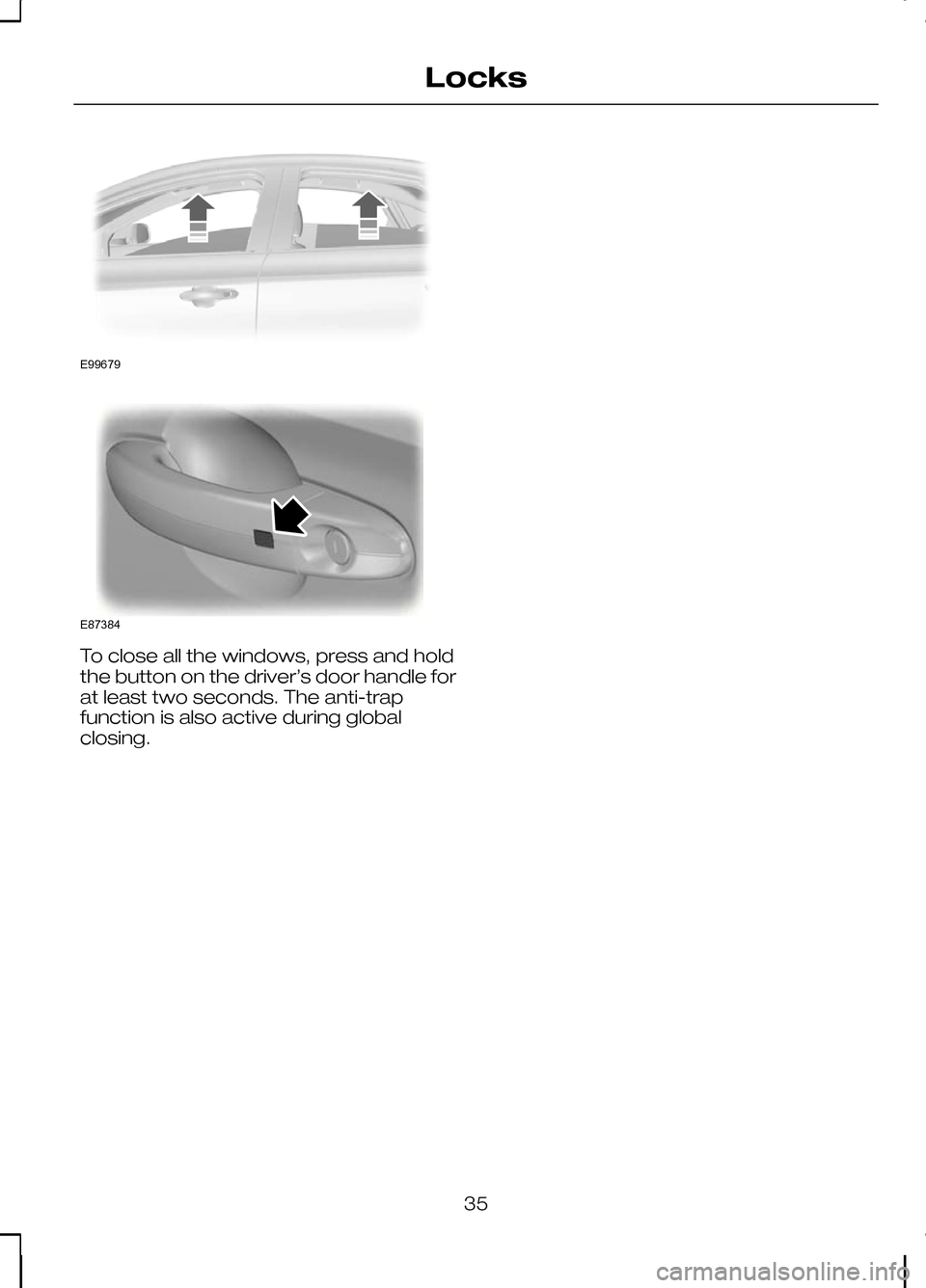

To close all the windows, press and hold
the button on the driver’s door handle for
at least two seconds. The anti-trap
function is also active during global
closing.
35
LocksE99679 E87384

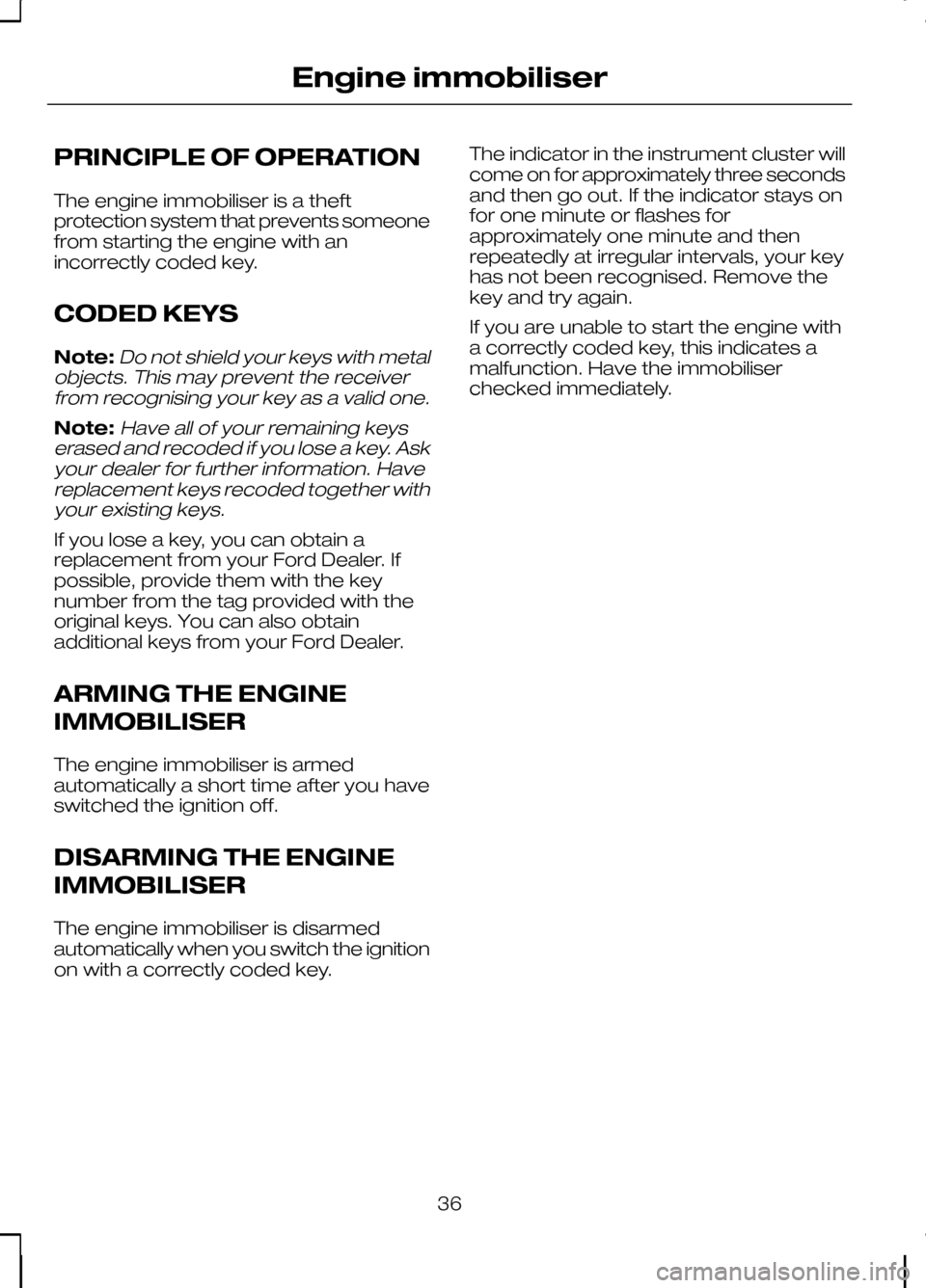

PRINCIPLE OF OPERATION
The engine immobiliser is a theft
protection system that prevents someone
from starting the engine with an
incorrectly coded key.
CODED KEYS
Note:Do not shield your keys with metal
objects. This may prevent the receiver from recognising your key as a valid one.
Note:Have all of your remaining keys
erased and recoded if you lose a key. Ask your dealer for further information. Havereplacement keys recoded together withyour existing keys.
If you lose a key, you can obtain a
replacement from your Ford Dealer. If
possible, provide them with the key
number from the tag provided with the
original keys. You can also obtain
additional keys from your Ford Dealer.
ARMING THE ENGINE
IMMOBILISER
The engine immobiliser is armed
automatically a short time after you have
switched the ignition off.
DISARMING THE ENGINE
IMMOBILISER
The engine immobiliser is disarmed
automatically when you switch the ignition
on with a correctly coded key. The indicator in the instrument cluster will
come on for approximately three seconds
and then go out. If the indicator stays on
for one minute or flashes for
approximately one minute and then
repeatedly at irregular intervals, your key
has not been recognised. Remove the
key and try again.
If you are unable to start the engine with
a correctly coded key, this indicates a
malfunction. Have the immobiliser
checked immediately.
36
Engine immobiliser

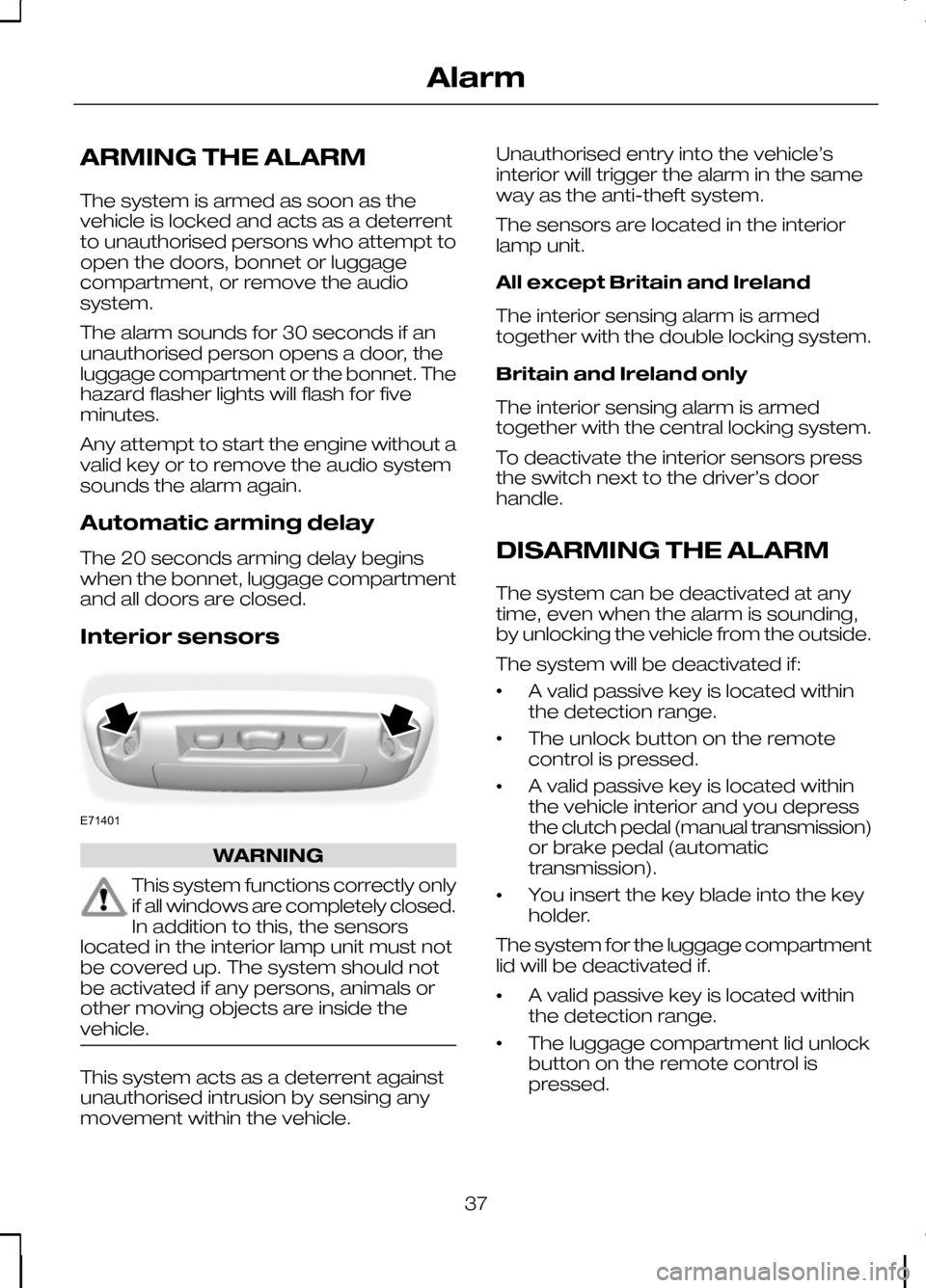

ARMING THE ALARM
The system is armed as soon as the
vehicle is locked and acts as a deterrent
to unauthorised persons who attempt to
open the doors, bonnet or luggage
compartment, or remove the audio
system.
The alarm sounds for 30 seconds if an
unauthorised person opens a door, the
luggage compartment or the bonnet. The
hazard flasher lights will flash for five
minutes.
Any attempt to start the engine without a
valid key or to remove the audio system
sounds the alarm again.
Automatic arming delay
The 20 seconds arming delay begins
when the bonnet, luggage compartment
and all doors are closed.
Interior sensors
WARNING
This system functions correctly only
if all windows are completely closed.
In addition to this, the sensors
located in the interior lamp unit must not
be covered up. The system should not
be activated if any persons, animals or
other moving objects are inside the
vehicle. This system acts as a deterrent against
unauthorised intrusion by sensing any
movement within the vehicle. Unauthorised entry into the vehicle’s
interior will trigger the alarm in the same
way as the anti-theft system.
The sensors are located in the interior
lamp unit.
All except Britain and Ireland
The interior sensing alarm is armed
together with the double locking system.
Britain and Ireland only
The interior sensing alarm is armed
together with the central locking system.
To deactivate the interior sensors press
the switch next to the driver’s door
handle.
DISARMING THE ALARM
The system can be deactivated at any
time, even when the alarm is sounding,
by unlocking the vehicle from the outside.
The system will be deactivated if:
•
A valid passive key is located within
the detection range.
• The unlock button on the remote
control is pressed.
• A valid passive key is located within
the vehicle interior and you depress
the clutch pedal (manual transmission)
or brake pedal (automatic
transmission).
• You insert the key blade into the key
holder.
The system for the luggage compartment
lid will be deactivated if.
• A valid passive key is located within
the detection range.
• The luggage compartment lid unlock
button on the remote control is
pressed.
37
AlarmE71401

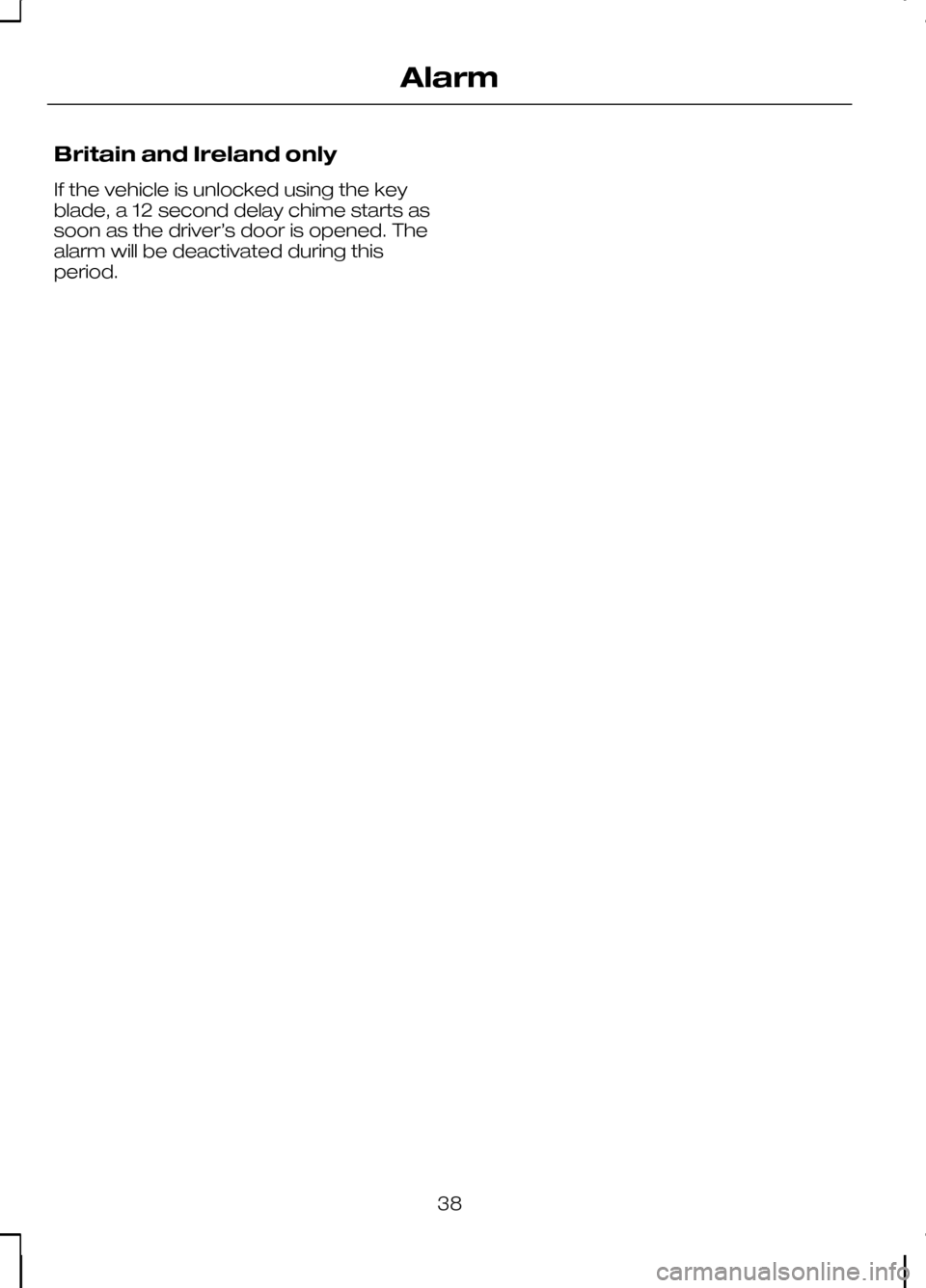

Britain and Ireland only
If the vehicle is unlocked using the key
blade, a 12 second delay chime starts as
soon as the driver’s door is opened. The
alarm will be deactivated during this
period.
38
Alarm
