ADAPTIVE FRONT LIGHTING SYSTEM (AFS)
without AFS
A
with AFS
B
The AFS adjusts the headlamp dipped
beam depending on vehicle direction and
speed. It improves visibility when you are
driving at night and helps to reduce
headlamp glare for oncoming drivers.
The headlamps will also move when the
vehicle is stationary and the steering
wheel is turned. To prevent headlamp
glare for the oncoming traffic, they will only
move towards the passenger side of the
vehicle.
The system will not operate when you
have switched on the daytime running
lamps or when you have selected reverse
gear. To activate the AFS when the daytime
running lamps are activated, turn the
lighting control to position
C. See
Lighting control (page 46).
A message will appear in the information
display and the headlamp indicator flashes
if the system malfunctions. See
Information messages (page 73).
The headlamps will move to a fixed central
or dipped position. Have the system
checked as soon as possible.
49
LightingE72897ABAB

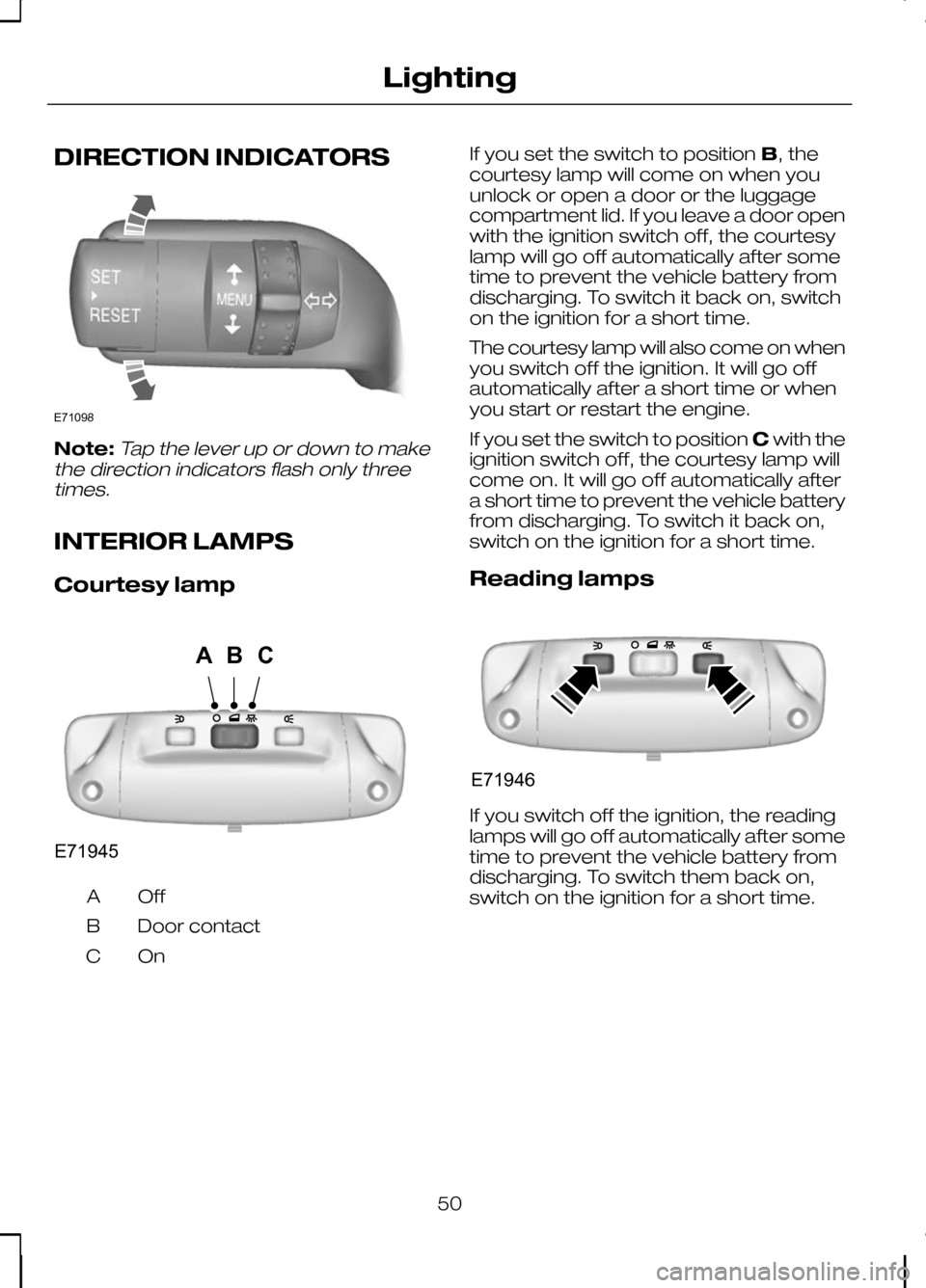

DIRECTION INDICATORS
Note:Tap the lever up or down to make
the direction indicators flash only three times.
INTERIOR LAMPS
Courtesy lamp OffA
Door contact
B
OnC If you set the switch to position
B, the
courtesy lamp will come on when you
unlock or open a door or the luggage
compartment lid. If you leave a door open
with the ignition switch off, the courtesy
lamp will go off automatically after some
time to prevent the vehicle battery from
discharging. To switch it back on, switch
on the ignition for a short time.
The courtesy lamp will also come on when
you switch off the ignition. It will go off
automatically after a short time or when
you start or restart the engine.
If you set the switch to position Cwith the
ignition switch off, the courtesy lamp will
come on. It will go off automatically after
a short time to prevent the vehicle battery
from discharging. To switch it back on,
switch on the ignition for a short time.
Reading lamps If you switch off the ignition, the reading
lamps will go off automatically after some
time to prevent the vehicle battery from
discharging. To switch them back on,
switch on the ignition for a short time.
50
LightingE71098 CBAE71945 E71946

Vanity mirror lamps
OffA
OnB
If you switch off the ignition, the vanity
mirror lamps will go off automatically after
a short time to prevent the vehicle battery
from discharging. To switch them back
on, switch on the ignition for a short time.
REMOVING A HEADLAMP WARNING
Have Xenon bulbs changed by a
trained technician. There is a risk of
electric shock.
1.
Open the bonnet. See Opening and
closing the bonnet (page 142). 2. Remove the screw.
3. Using a suitable implement, remove
the trim panel. 4. Release the retaining clips.
51
LightingABE72900 23E99388 4E99389

5. Disconnect the electrical connector.
6. Disconnect the headlamp washer
hose.
7. Remove the headlamp.
Note:When fitting the headlamp, make
sure that you fully engage the headlamp in the retaining clips.

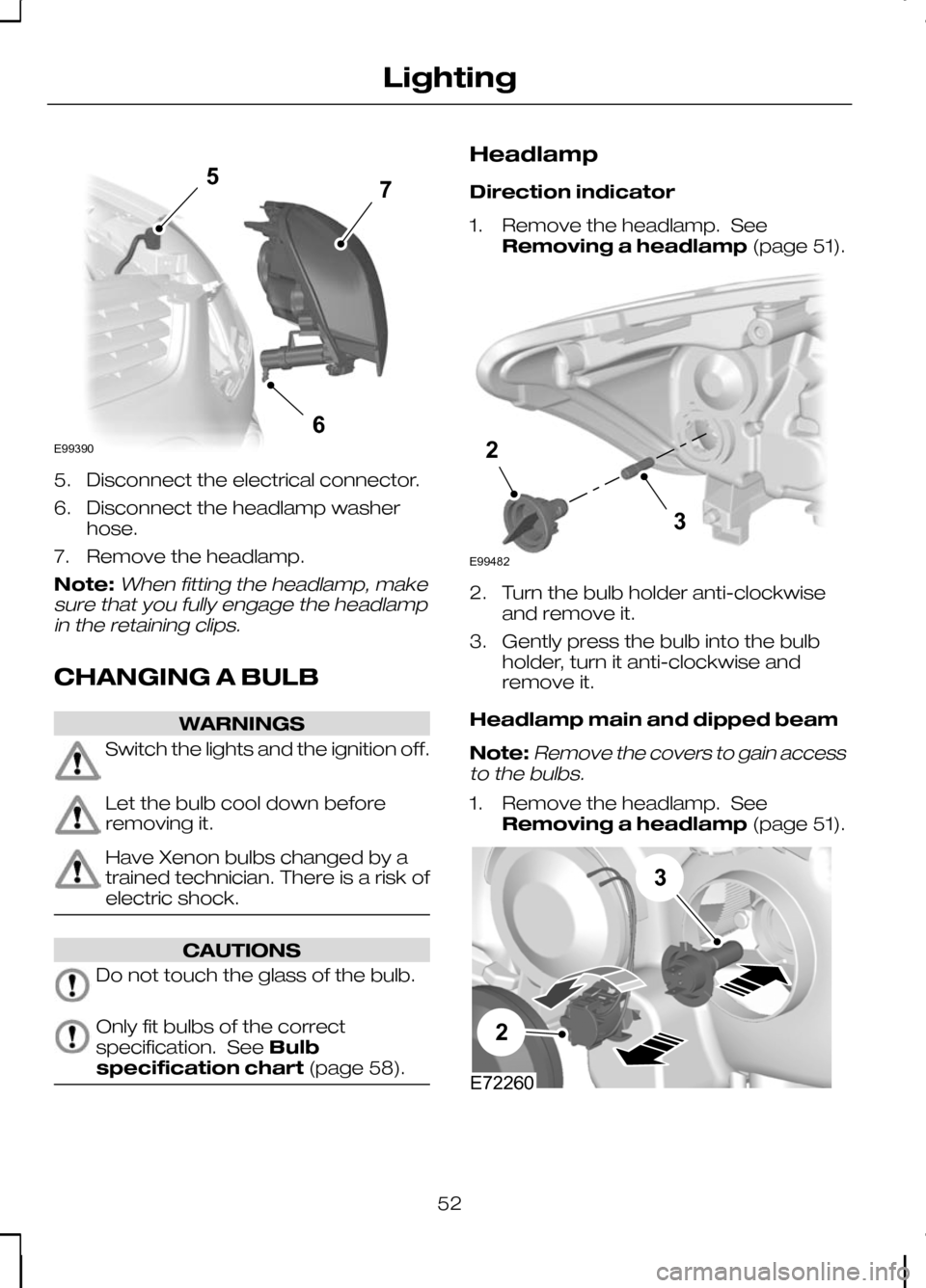

CHANGING A BULB WARNINGS
Switch the lights and the ignition off.
Let the bulb cool down before
removing it.
Have Xenon bulbs changed by a
trained technician. There is a risk of
electric shock.
CAUTIONS
Do not touch the glass of the bulb.
Only fit bulbs of the correct
specification. See
Bulb
specification chart (page 58). Headlamp
Direction indicator
1. Remove the headlamp. See
Removing a headlamp (page 51). 2. Turn the bulb holder anti-clockwise
and remove it.
3. Gently press the bulb into the bulb holder, turn it anti-clockwise and
remove it.
Headlamp main and dipped beam
Note:
Remove the covers to gain access
to the bulbs.
1. Remove the headlamp. See
Removing a headlamp (page 51). 52
Lighting567E99390 E9948232 E7226032

2. Turn the bulb holder anti-clockwise
and remove it.
3. Remove the bulb.

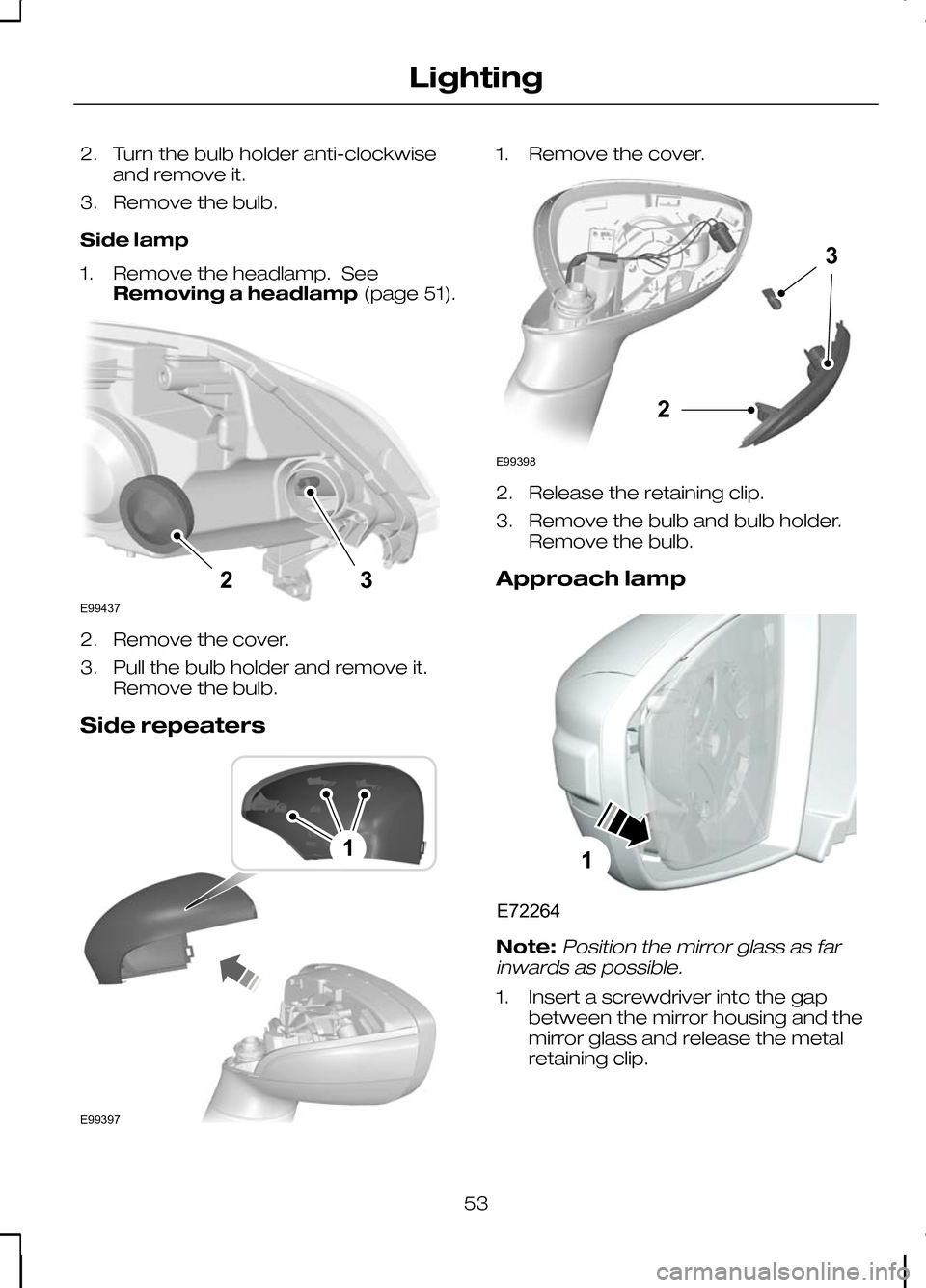

Side lamp
1. Remove the headlamp. See Removing a headlamp (page 51).2. Remove the cover.
3. Pull the bulb holder and remove it.
Remove the bulb.
Side repeaters 1. Remove the cover.
2. Release the retaining clip.
3. Remove the bulb and bulb holder.
Remove the bulb.
Approach lamp Note:Position the mirror glass as far
inwards as possible.
1. Insert a screwdriver into the gap between the mirror housing and the
mirror glass and release the metal
retaining clip.
53
LightingE9943723 1E99397 23E99398 E722641

2. Remove the lamp.
3. Remove the bulb.

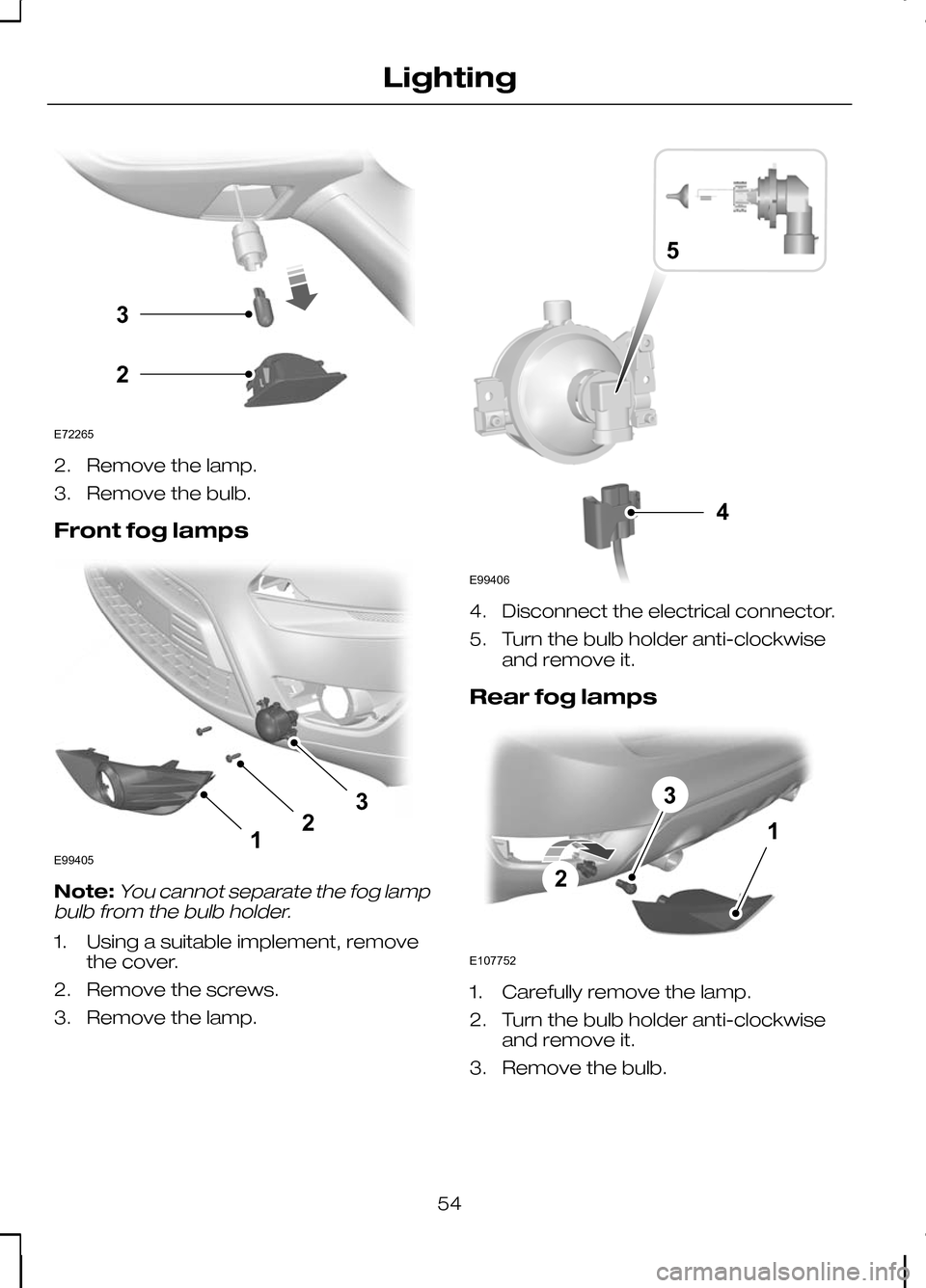

Front fog lamps
Note:You cannot separate the fog lamp
bulb from the bulb holder.
1. Using a suitable implement, remove the cover.
2. Remove the screws.
3. Remove the lamp. 4. Disconnect the electrical connector.
5. Turn the bulb holder anti-clockwise
and remove it.
Rear fog lamps 1. Carefully remove the lamp.
2. Turn the bulb holder anti-clockwise
and remove it.
3. Remove the bulb.
54
LightingE7226523 123E99405 4E994065 312E107752

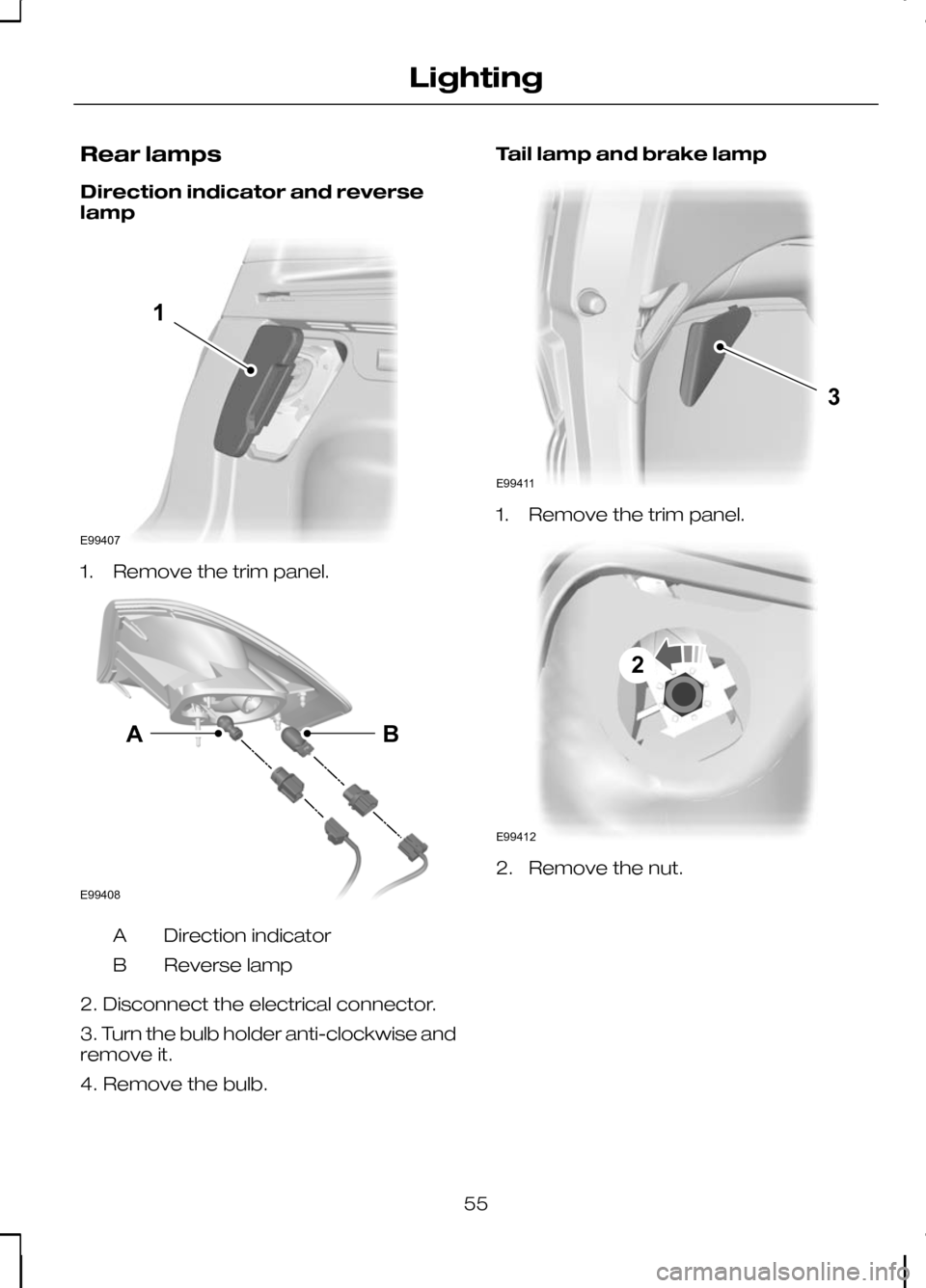

Rear lamps
Direction indicator and reverse
lamp
1. Remove the trim panel.
Direction indicator
A
Reverse lamp
B
2. Disconnect the electrical connector.
3. Turn the bulb holder anti-clockwise and
remove it.
4. Remove the bulb. Tail lamp and brake lamp
1. Remove the trim panel.
2. Remove the nut.
55
Lighting1E99407 ABE99408 3E99411 2E99412

3. Gently press the bulb into the bulb
holder, turn it anti-clockwise and
remove it.

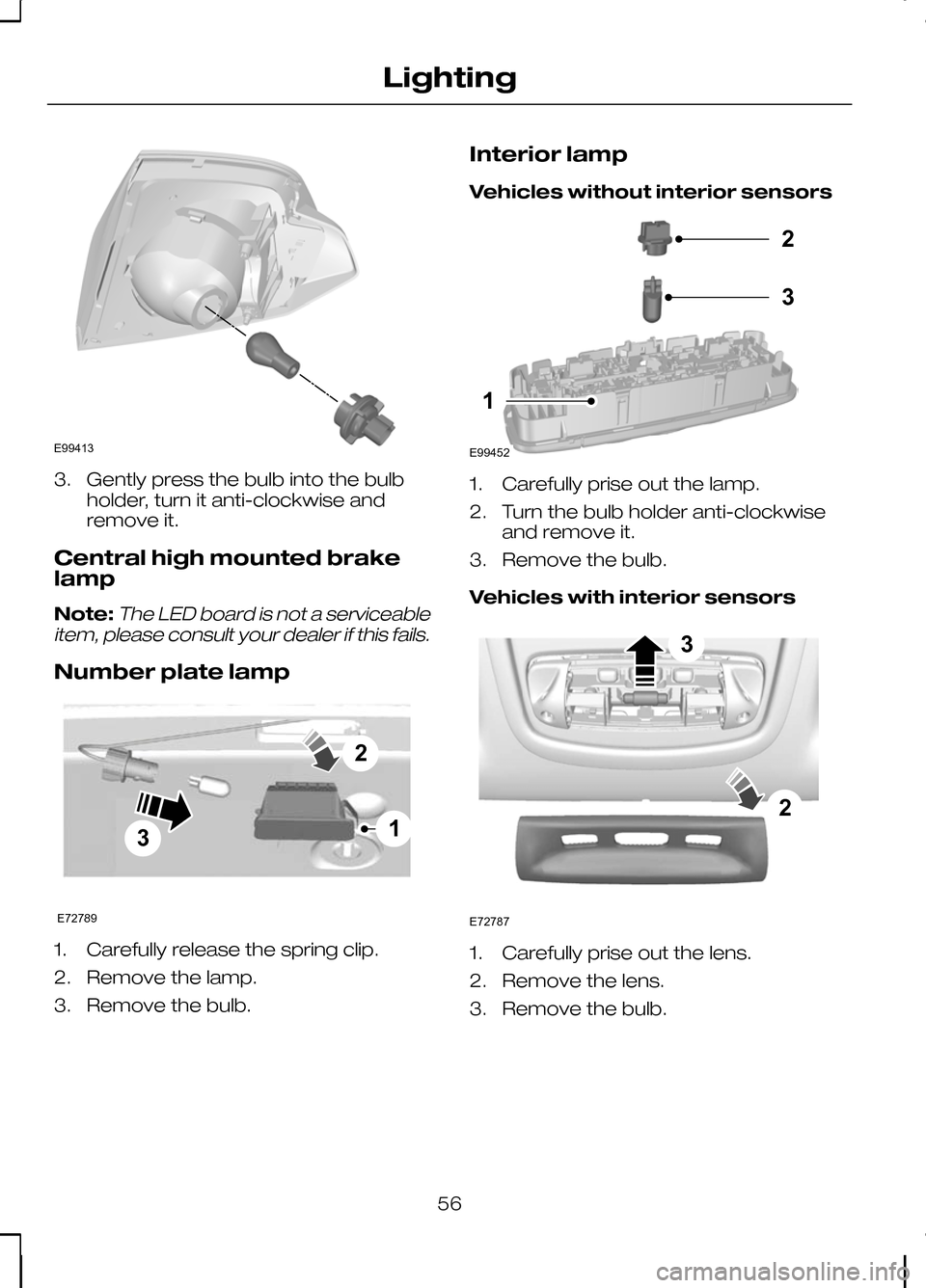

Central high mounted brake
lamp
Note:The LED board is not a serviceable
item, please consult your dealer if this fails.
Number plate lamp 1. Carefully release the spring clip.
2. Remove the lamp.
3. Remove the bulb. Interior lamp
Vehicles without interior sensors
1. Carefully prise out the lamp.
2. Turn the bulb holder anti-clockwise
and remove it.
3. Remove the bulb.
Vehicles with interior sensors 1. Carefully prise out the lens.
2. Remove the lens.
3. Remove the bulb.
56
LightingE99413 E72789321 E99452231 E7278723

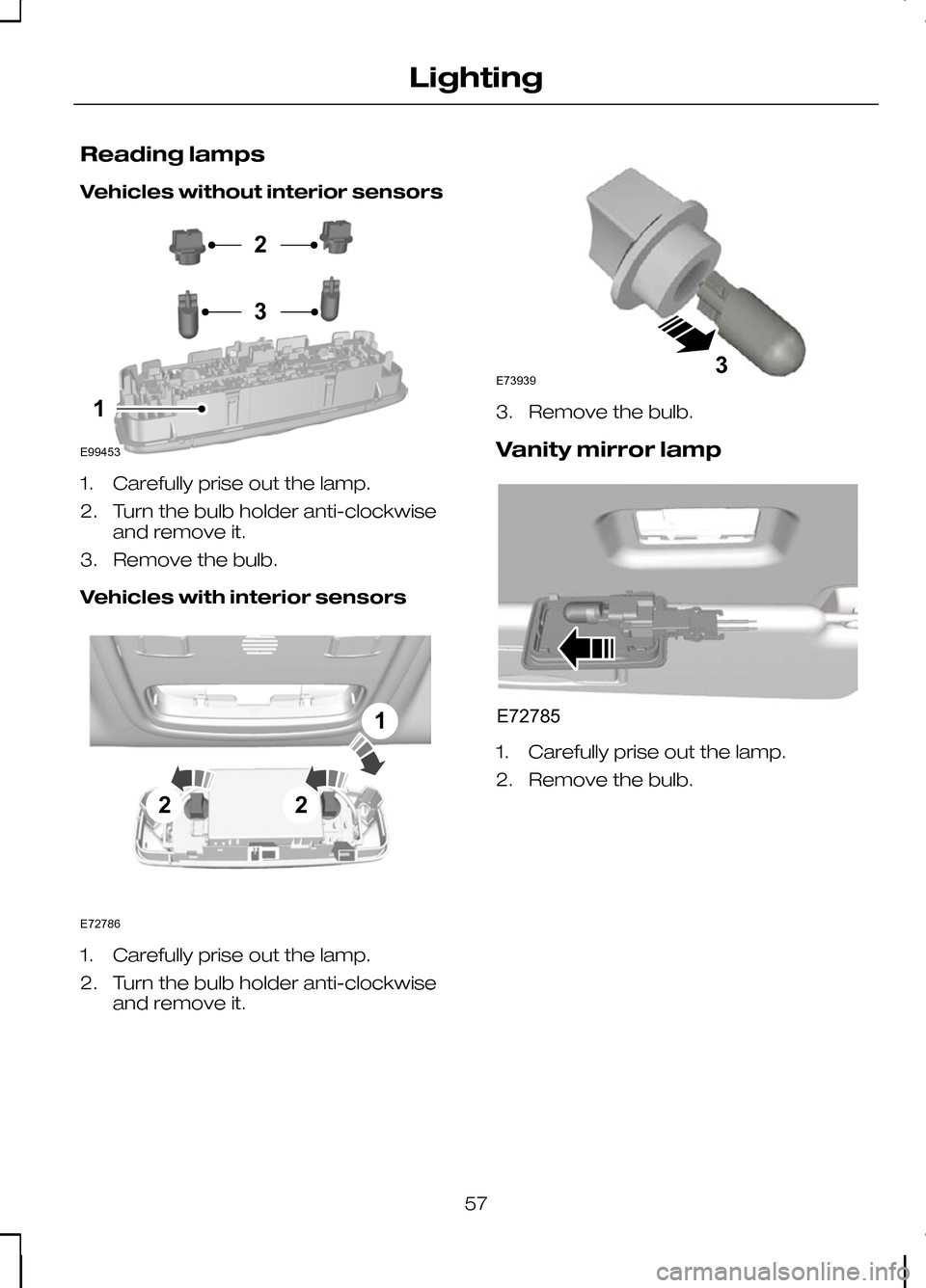

Reading lamps
Vehicles without interior sensors
1. Carefully prise out the lamp.
2. Turn the bulb holder anti-clockwise
and remove it.
3. Remove the bulb.
Vehicles with interior sensors 1. Carefully prise out the lamp.
2. Turn the bulb holder anti-clockwise
and remove it. 3. Remove the bulb.
Vanity mirror lamp
1. Carefully prise out the lamp.
2. Remove the bulb.
57
LightingE99453231 E72786221 E739393 E72785

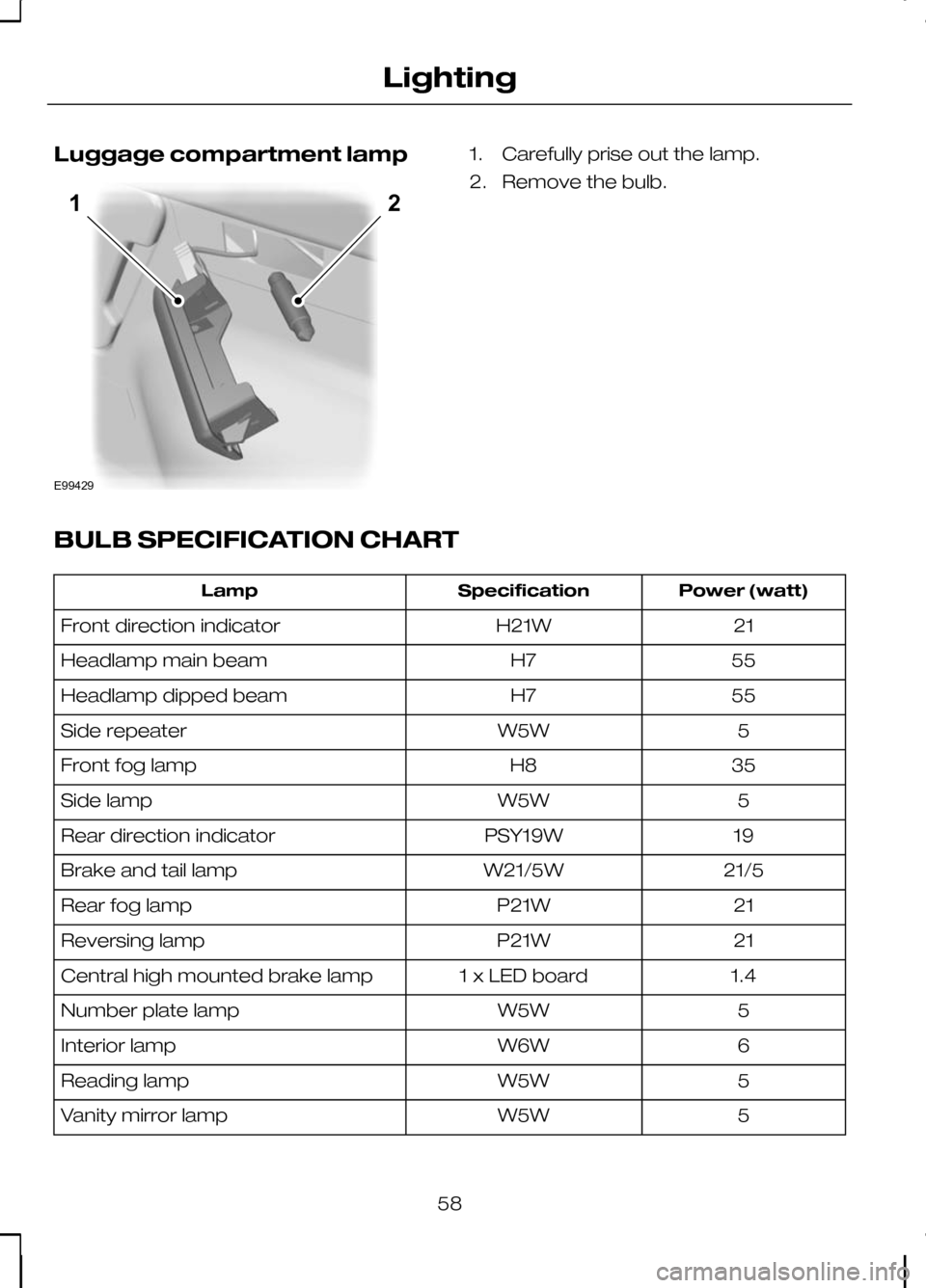

Luggage compartment lamp 1. Carefully prise out the lamp.
2. Remove the bulb.
BULB SPECIFICATION CHART Power (watt)
Specification
Lamp
21
H21W
Front direction indicator
55
H7
Headlamp main beam
55
H7
Headlamp dipped beam
5
W5W
Side repeater
35
H8
Front fog lamp
5
W5W
Side lamp
19
PSY19W
Rear direction indicator
21/5
W21/5W
Brake and tail lamp
21
P21W
Rear fog lamp
21
P21W
Reversing lamp
1.4
1 x LED board
Central high mounted brake lamp
5
W5W
Number plate lamp
6
W6W
Interior lamp
5
W5W
Reading lamp
5
W5W
Vanity mirror lamp
