FORD MONDEO 2006 2.G User Guide

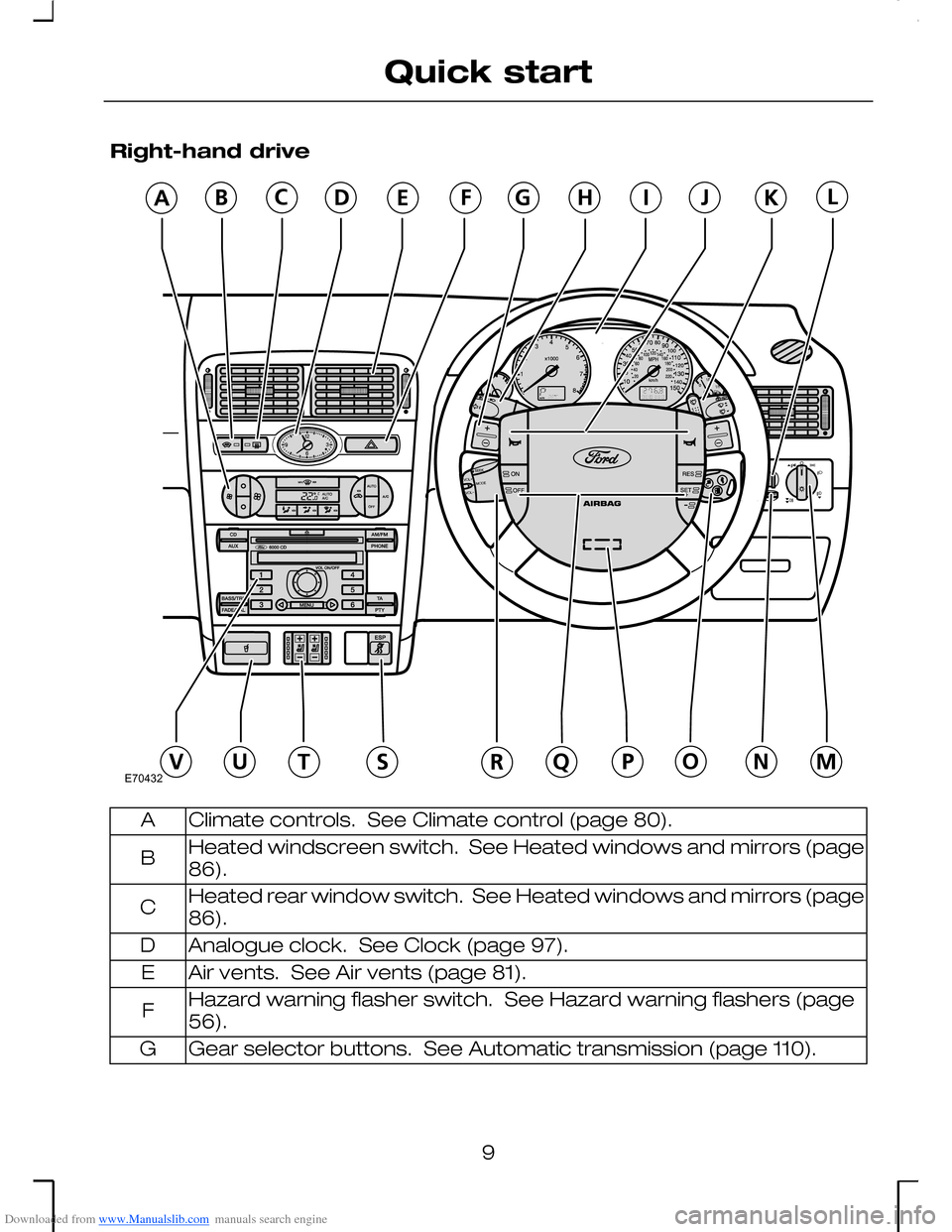

Downloaded from www.Manualslib.com manuals search engine Right-hand drive
Climate controls. See Climate control (page 80).A
Heated windscreen switch. See Heated windows and mirrors (page86).B
Heated rear window switch. See Heated windows and mirrors (page86).C
Analogue clock. See Clock (page 97).D
Air vents. See Air vents (page 81).E
Hazard warning flasher switch. See Hazard warning flashers (page56).F
Gear selector buttons. See Automatic transmission (page 110).G
9
Quick startE70432

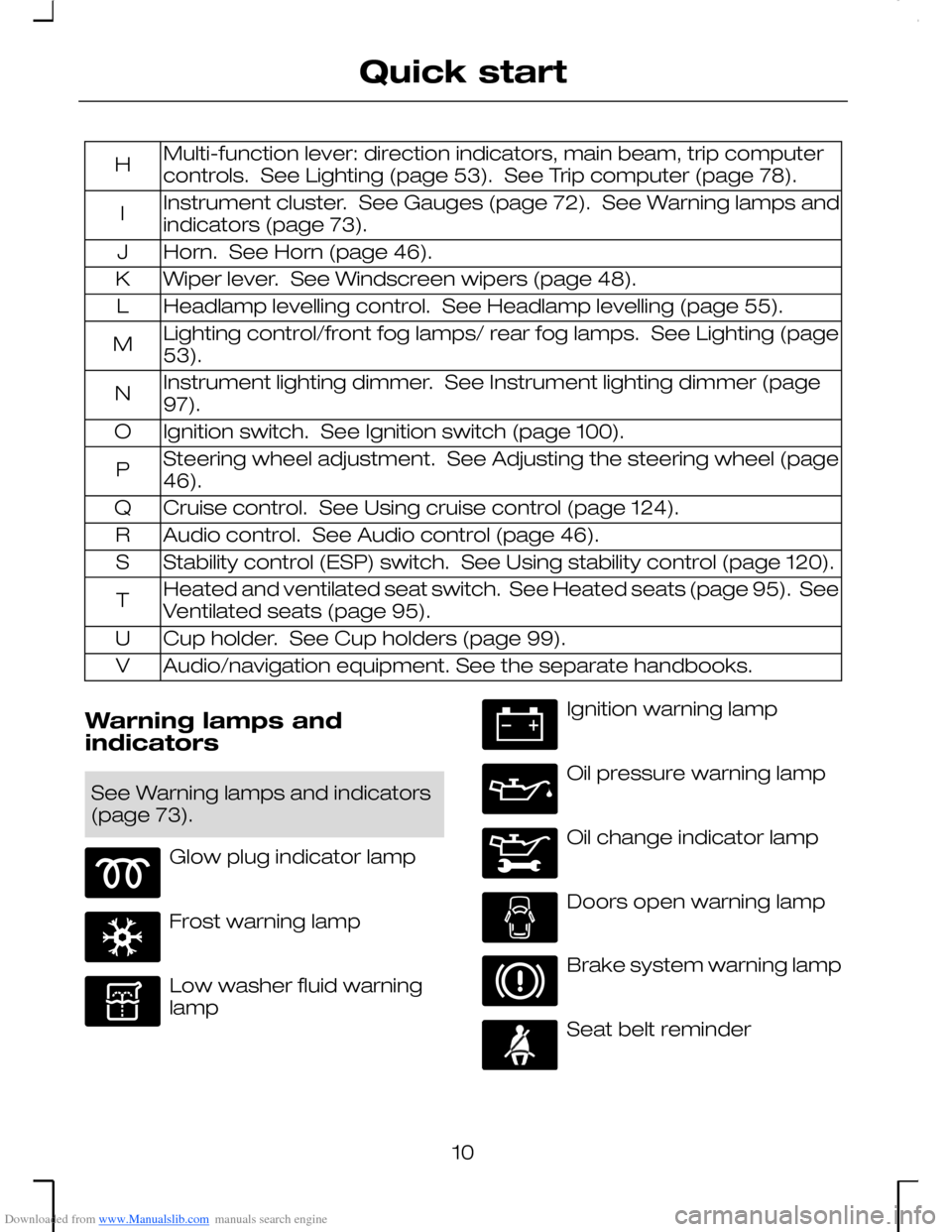

Downloaded from www.Manualslib.com manuals search engine Multi-function lever: direction indicators, main beam, trip computercontrols. See Lighting (page 53). See Trip computer (page 78).H
Instrument cluster. See Gauges (page 72). See Warning lamps andindicators (page 73).I
Horn. See Horn (page 46).J
Wiper lever. See Windscreen wipers (page 48).K
Headlamp levelling control. See Headlamp levelling (page 55).L
Lighting control/front fog lamps/ rear fog lamps. See Lighting (page53).M
Instrument lighting dimmer. See Instrument lighting dimmer (page97).N
Ignition switch. See Ignition switch (page 100).O
Steering wheel adjustment. See Adjusting the steering wheel (page46).P
Cruise control. See Using cruise control (page 124).Q
Audio control. See Audio control (page 46).R
Stability control (ESP) switch. See Using stability control (page 120).S
Heated and ventilated seat switch. See Heated seats (page 95). SeeVentilated seats (page 95).T
Cup holder. See Cup holders (page 99).U
Audio/navigation equipment. See the separate handbooks.V
Warning lamps andindicators
See Warning lamps and indicators(page 73).
Glow plug indicator lamp
Frost warning lamp
Low washer fluid warninglamp
Ignition warning lamp
Oil pressure warning lamp
Oil change indicator lamp
Doors open warning lamp
Brake system warning lamp
Seat belt reminder
10
Quick start

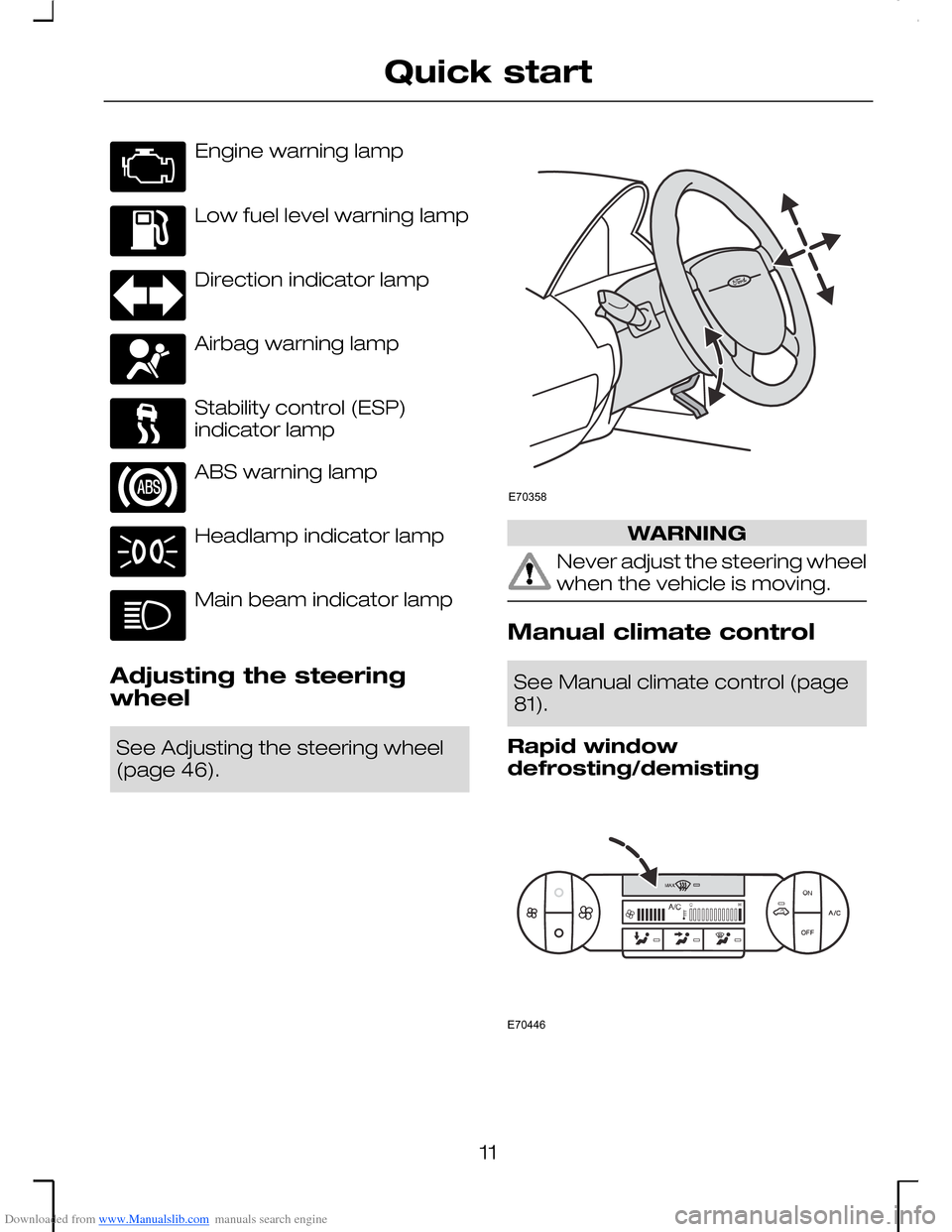

Downloaded from www.Manualslib.com manuals search engine Engine warning lamp
Low fuel level warning lamp
Direction indicator lamp
Airbag warning lamp
Stability control (ESP)indicator lamp
ABS warning lamp
Headlamp indicator lamp
Main beam indicator lamp
Adjusting the steeringwheel
See Adjusting the steering wheel(page 46).
WARNING
Never adjust the steering wheelwhen the vehicle is moving.
Manual climate control
See Manual climate control (page81).
Rapid windowdefrosting/demisting
11
Quick start E70358 E70446

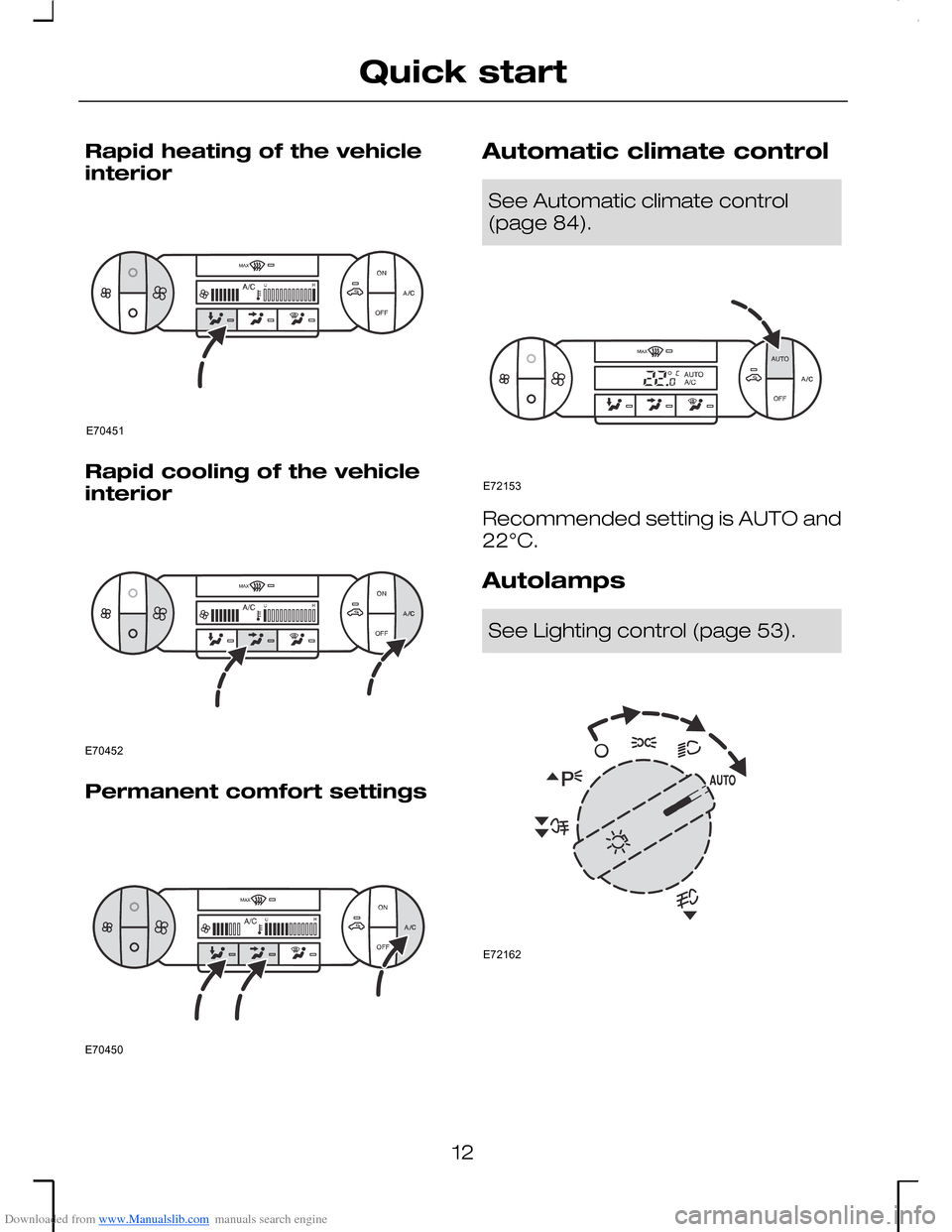

Downloaded from www.Manualslib.com manuals search engine Rapid heating of the vehicleinterior
Rapid cooling of the vehicleinterior
Permanent comfort settings
Automatic climate control
See Automatic climate control(page 84).
Recommended setting is AUTO and22°C.
Autolamps
See Lighting control (page 53).
12
Quick startE70451 E70452 E70450 E72153 E72162

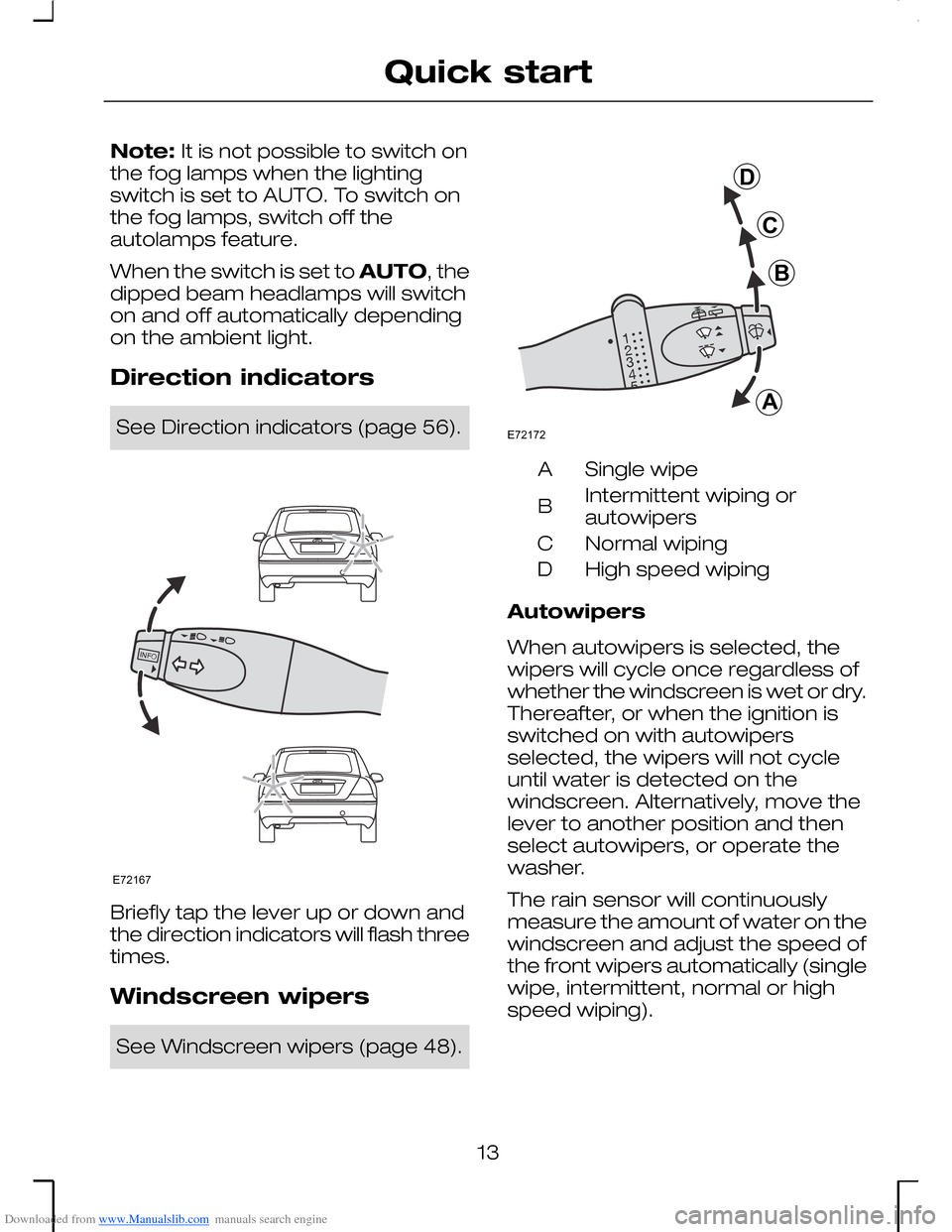

Downloaded from www.Manualslib.com manuals search engine Note: It is not possible to switch onthe fog lamps when the lightingswitch is set to AUTO. To switch onthe fog lamps, switch off theautolamps feature.
When the switch is set to AUTO, thedipped beam headlamps will switchon and off automatically dependingon the ambient light.
Direction indicators
See Direction indicators (page 56).
Briefly tap the lever up or down andthe direction indicators will flash threetimes.
Windscreen wipers
See Windscreen wipers (page 48).
Single wipeA
Intermittent wiping orautowipersB
Normal wipingC
High speed wipingD
Autowipers
When autowipers is selected, thewipers will cycle once regardless ofwhether the windscreen is wet or dry.Thereafter, or when the ignition isswitched on with autowipersselected, the wipers will not cycleuntil water is detected on thewindscreen. Alternatively, move thelever to another position and thenselect autowipers, or operate thewasher.
The rain sensor will continuouslymeasure the amount of water on thewindscreen and adjust the speed ofthe front wipers automatically (singlewipe, intermittent, normal or highspeed wiping).
13
Quick startE72167 ABCDE72172

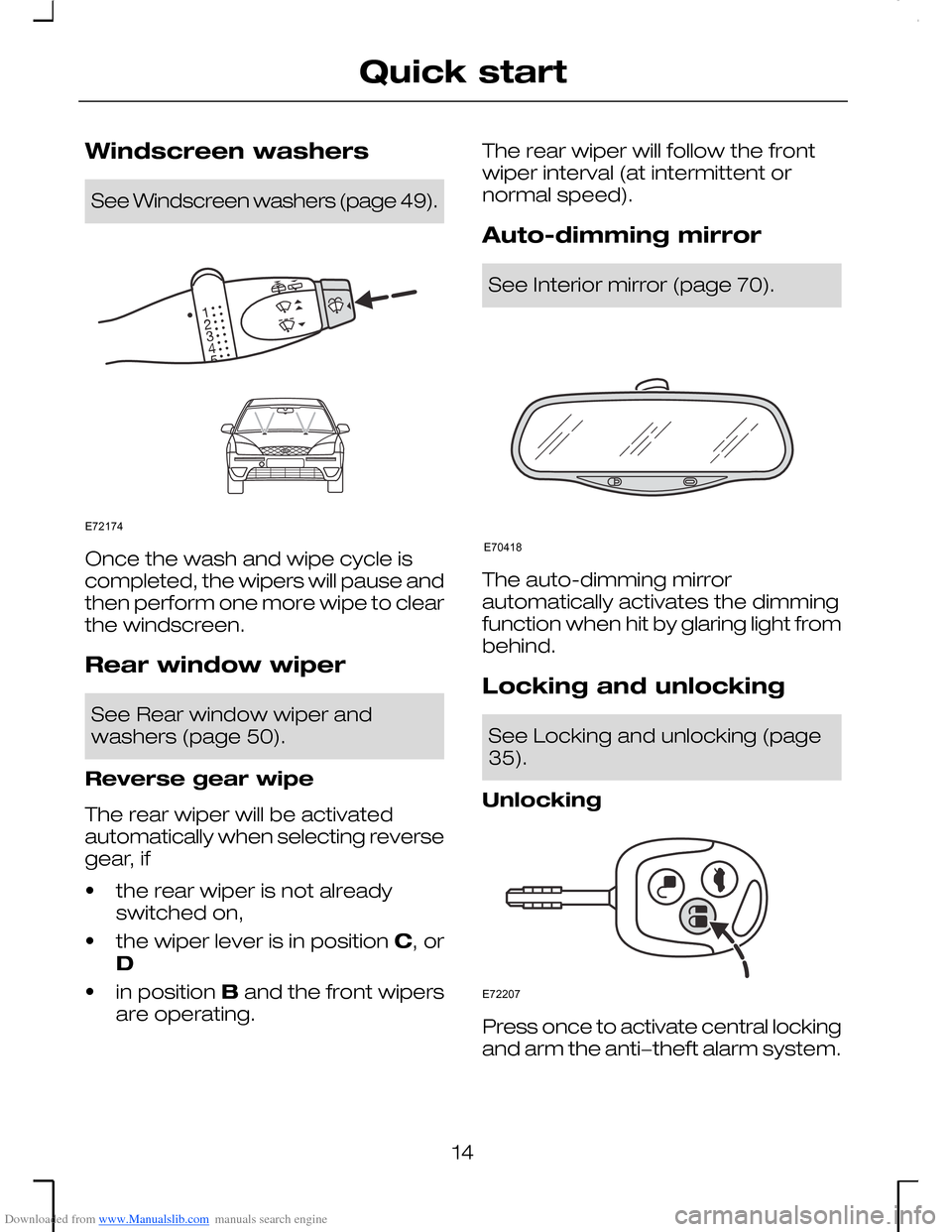

Downloaded from www.Manualslib.com manuals search engine Windscreen washers
See Windscreen washers (page 49).
Once the wash and wipe cycle iscompleted, the wipers will pause andthen perform one more wipe to clearthe windscreen.
Rear window wiper
See Rear window wiper andwashers (page 50).
Reverse gear wipe
The rear wiper will be activatedautomatically when selecting reversegear, if
•the rear wiper is not alreadyswitched on,
•the wiper lever is in position C, orD
•in position B and the front wipersare operating.
The rear wiper will follow the frontwiper interval (at intermittent ornormal speed).
Auto-dimming mirror
See Interior mirror (page 70).
The auto-dimming mirrorautomatically activates the dimmingfunction when hit by glaring light frombehind.
Locking and unlocking
See Locking and unlocking (page35).
Unlocking
Press once to activate central lockingand arm the anti−theft alarm system.
14
Quick startE72174 E70418 E72207

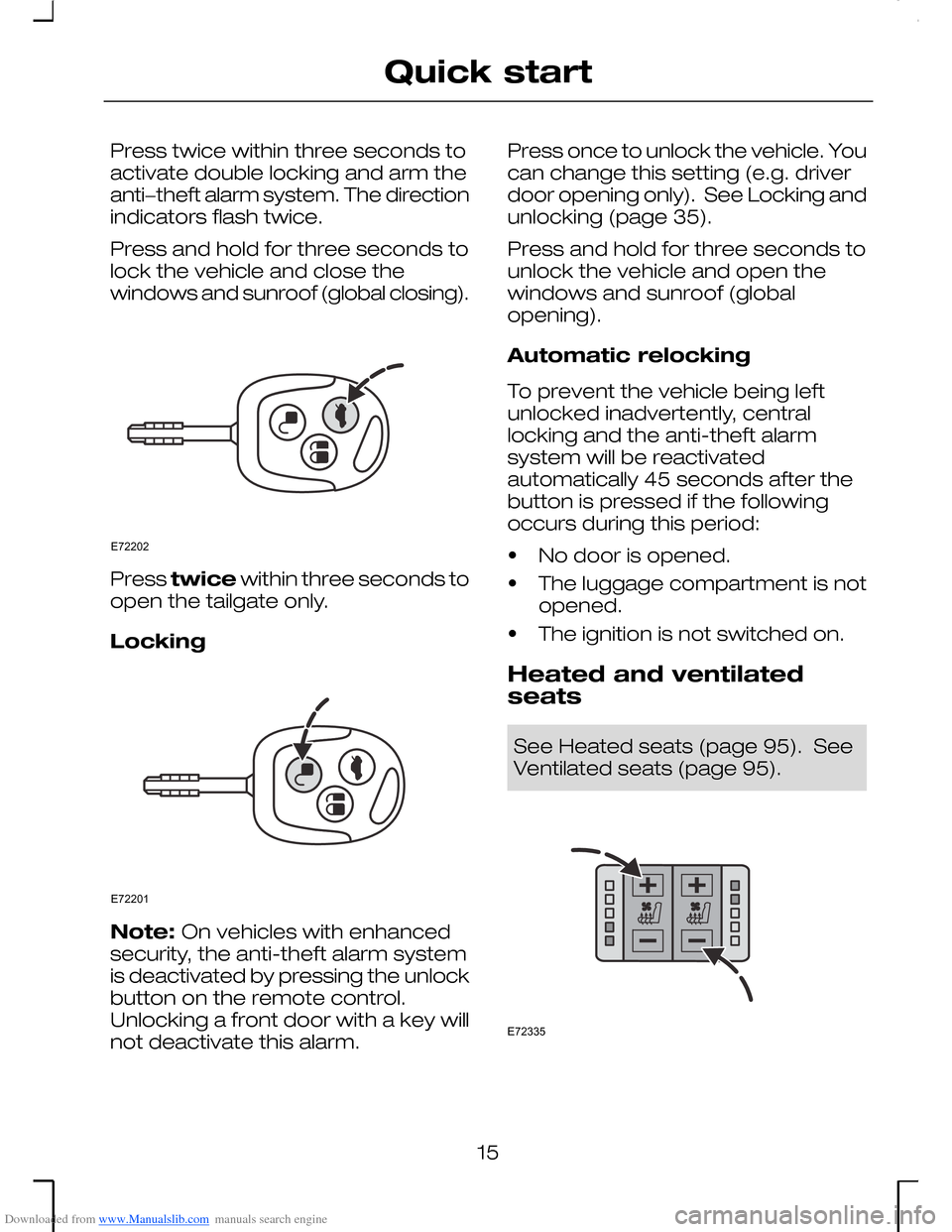

Downloaded from www.Manualslib.com manuals search engine Press twice within three seconds toactivate double locking and arm theanti−theft alarm system. The directionindicators flash twice.
Press and hold for three seconds tolock the vehicle and close thewindows and sunroof (global closing).
Press twice within three seconds toopen the tailgate only.
Locking
Note: On vehicles with enhancedsecurity, the anti-theft alarm systemis deactivated by pressing the unlockbutton on the remote control.Unlocking a front door with a key willnot deactivate this alarm.
Press once to unlock the vehicle. Youcan change this setting (e.g. driverdoor opening only). See Locking andunlocking (page 35).
Press and hold for three seconds tounlock the vehicle and open thewindows and sunroof (globalopening).
Automatic relocking
To prevent the vehicle being leftunlocked inadvertently, centrallocking and the anti-theft alarmsystem will be reactivatedautomatically 45 seconds after thebutton is pressed if the followingoccurs during this period:
•No door is opened.
•The luggage compartment is notopened.
•The ignition is not switched on.
Heated and ventilatedseats
See Heated seats (page 95). SeeVentilated seats (page 95).
15
Quick startE72202 E72201 E72335

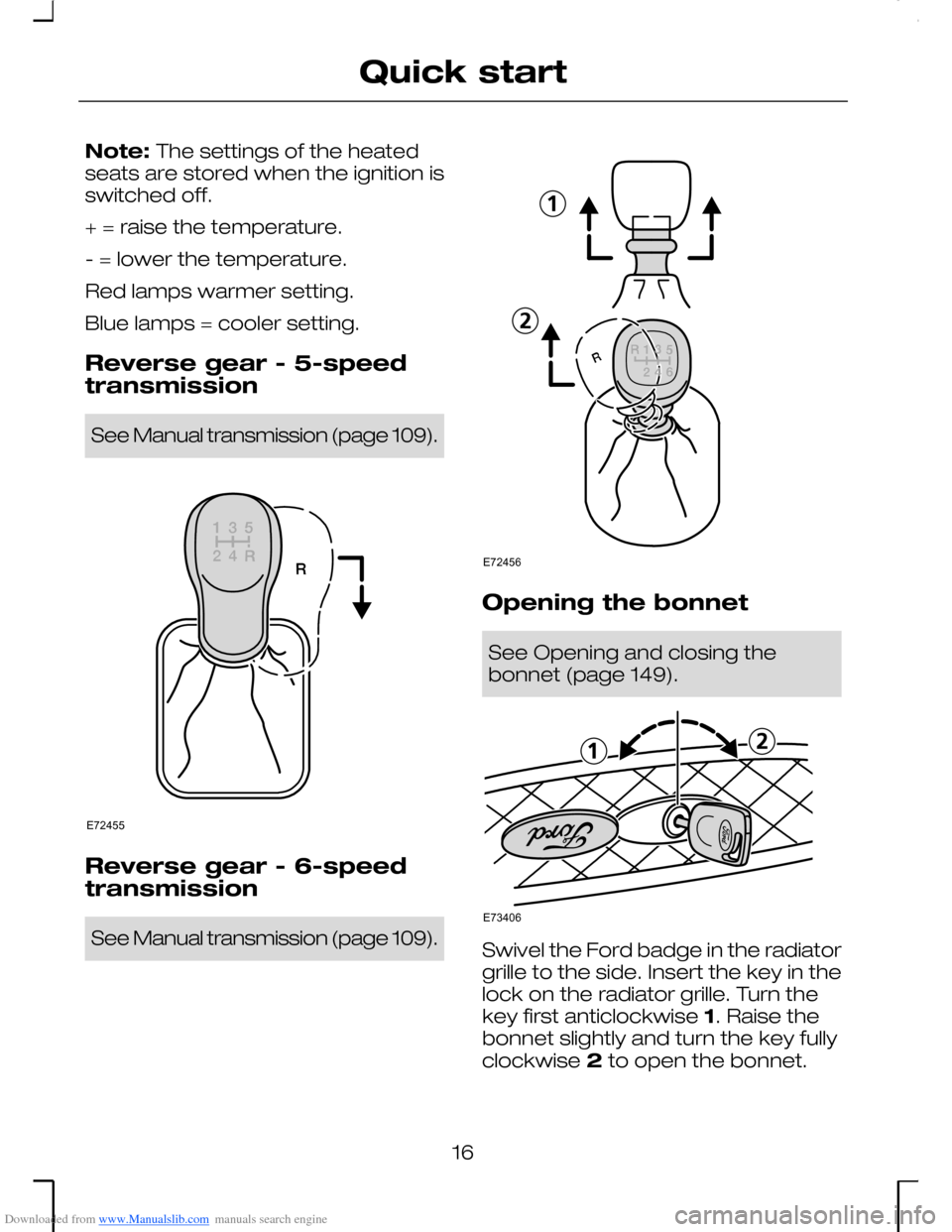

Downloaded from www.Manualslib.com manuals search engine Note: The settings of the heatedseats are stored when the ignition isswitched off.
+ = raise the temperature.
- = lower the temperature.
Red lamps warmer setting.
Blue lamps = cooler setting.
Reverse gear - 5-speedtransmission
See Manual transmission (page 109).
Reverse gear - 6-speedtransmission
See Manual transmission (page 109).
Opening the bonnet
See Opening and closing thebonnet (page 149).
Swivel the Ford badge in the radiatorgrille to the side. Insert the key in thelock on the radiator grille. Turn thekey first anticlockwise 1. Raise thebonnet slightly and turn the key fullyclockwise 2 to open the bonnet.
16
Quick startE72455 E72456 E73406

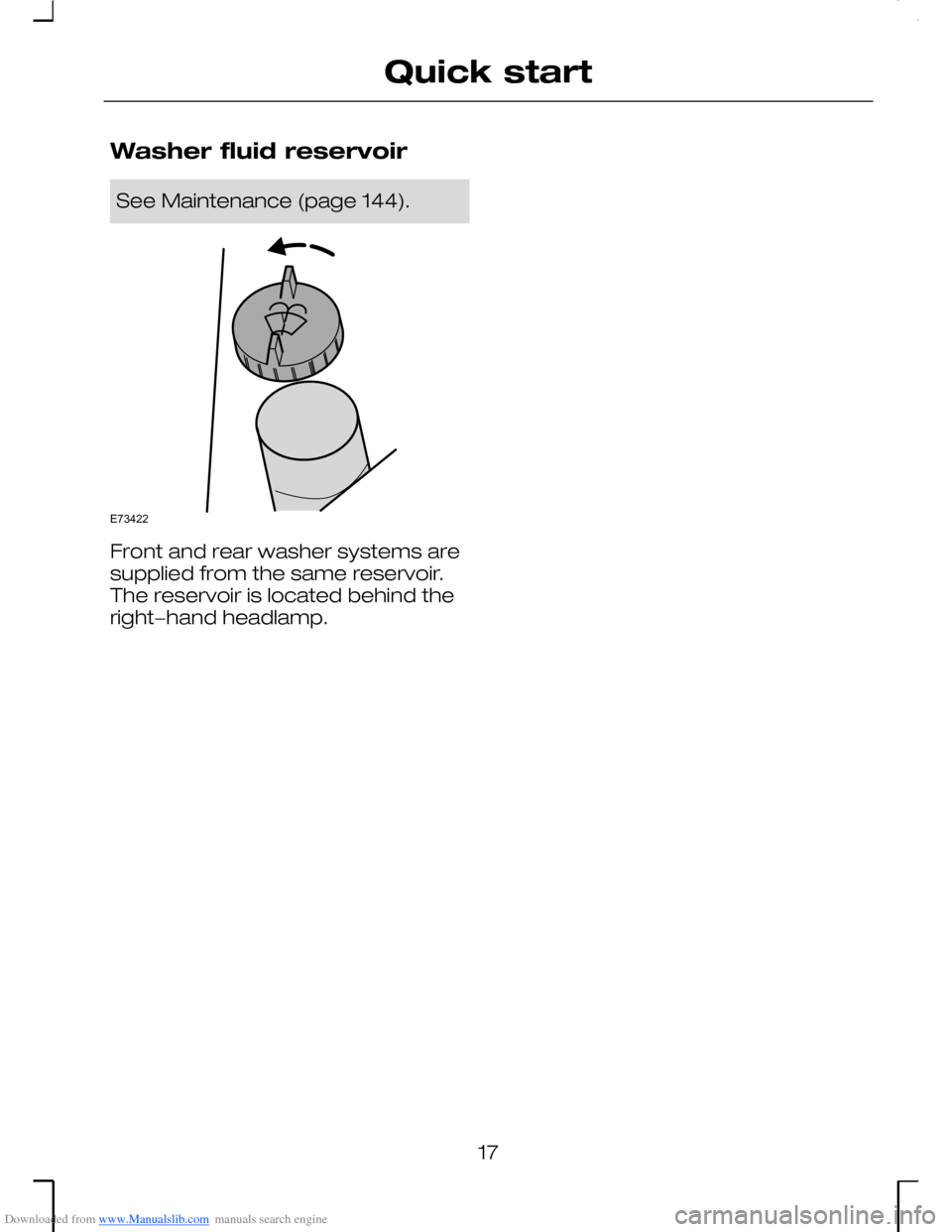

Downloaded from www.Manualslib.com manuals search engine Washer fluid reservoir
See Maintenance (page 144).
Front and rear washer systems aresupplied from the same reservoir.The reservoir is located behind theright−hand headlamp.
17
Quick startE73422

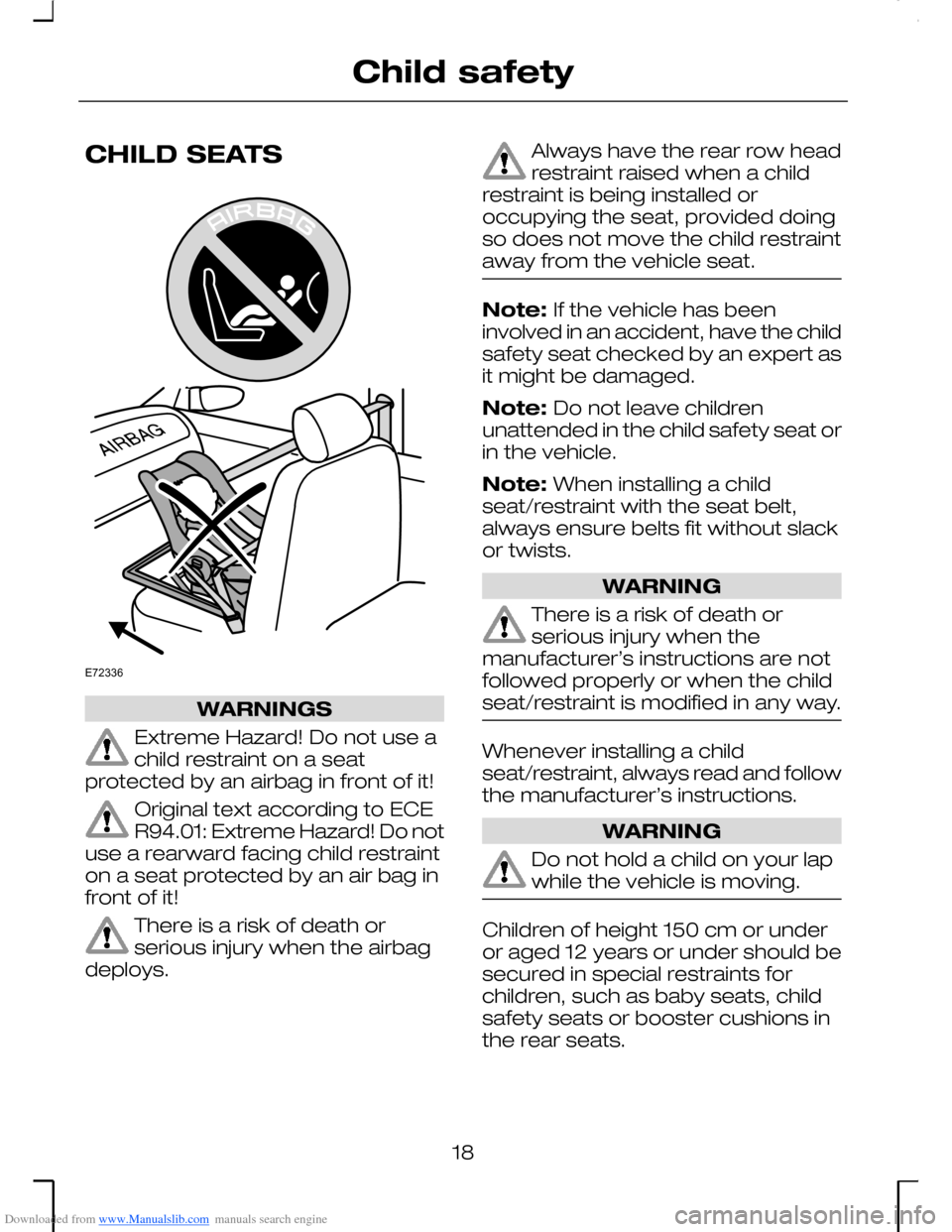

Downloaded from www.Manualslib.com manuals search engine CHILD SEATS
WARNINGS
Extreme Hazard! Do not use achild restraint on a seatprotected by an airbag in front of it!
Original text according to ECER94.01: Extreme Hazard! Do notuse a rearward facing child restrainton a seat protected by an air bag infront of it!
There is a risk of death orserious injury when the airbagdeploys.
Always have the rear row headrestraint raised when a childrestraint is being installed oroccupying the seat, provided doingso does not move the child restraintaway from the vehicle seat.
Note: If the vehicle has beeninvolved in an accident, have the childsafety seat checked by an expert asit might be damaged.
Note: Do not leave childrenunattended in the child safety seat orin the vehicle.
Note: When installing a childseat/restraint with the seat belt,always ensure belts fit without slackor twists.
WARNING
There is a risk of death orserious injury when themanufacturer’s instructions are notfollowed properly or when the childseat/restraint is modified in any way.
Whenever installing a childseat/restraint, always read and followthe manufacturer’s instructions.
WARNING
Do not hold a child on your lapwhile the vehicle is moving.
Children of height 150 cm or underor aged 12 years or under should besecured in special restraints forchildren, such as baby seats, childsafety seats or booster cushions inthe rear seats.
18
Child safetyE72336
