Trailer towing specifications
[DR18450(M )03/95]
six pica chart:0010320-C*
[DR20900( ALL)01/95]
Preparing to Tow
*
[DR21000( ALL)01/95]
For your safety and for the good of your
vehicle, use the right equipment for the type of
trailer you tow. Also, make sure that all towing
equipment is properly attached to your vehicle.
If you are not certain that you are using the
right equipment in the proper manner, see your
Ford or Lincoln-Mercury dealer.
*
[DR21100( ALL)01/95]
Do not use hitches that clamp onto your
vehicle's bumper. The bumper is not designed to
bear the load.
*
[DR21125( ALL)01/95]
Always check the pressure in all your vehicle's
tires when preparing to tow (see inflation
recommendation on the tire label).
%*
[DR21150( ALL)01/95]
Using the hitch
*
[DR21200(MBC )01/95]
Your vehicle uses aload carryinghitch. Because
this type of hitch places the tongue load of a
trailer on the rear wheels of your vehicle, you
must distribute the load in your trailer so that
only 10 to 15% of the total weight of the trailer
is on the tongue.
*
[DR21600( ALL)01/95]
Tie down the load so that it does not shift and
change the weight on the hitch. This will
prevent damage to your vehicle and make your
vehicle easier to handle.
File:10rcdrm.ex
Update:Wed Mar 27 09:33:56 1996

196 %
*
[DR21650( ALL)01/95]
Connecting the safety chains
*
[DR21700( ALL)01/95]
Always attach the trailer's safety chains to your
vehicle. They help protect your trailer if the
hitch breaks.
*
[DR21800( ALL)01/95]
To connect the trailer's safety chains:
*
[DR21900( ALL)01/95]
1. Cross the chains under the trailer tongue
and attach them to your vehicle's frame or
hook retainers. Never attach the safety
chains to your vehicle's bumper. The bumper
is not designed to bear the weight of a
trailer.
*
[DR22000( ALL)01/95]
2. Make sure that you leave enough slack in
the chains to allow you to turn corners.
*
[DR22100( ALL)01/95]
If you use a rental trailer, follow the instructions
that the rental agency gives you.
%*
[DR22150( ALL)01/95]
Connecting the trailer's brakes
*
[DR22200( ALL)01/95]
Electric brakes and manual, automatic, or
surge-type hydraulic brakes are safe if you
install them properly and adjust them according
to the manufacturer's instructions. Be sure that
your trailer's brakes meet local and federal
regulations.
[DR22250( ALL)03/95]
If your vehicle is equipped with the optional
trailer tow package, provisions have been made
under the instrument panel for installation of an
electronic brake controller.
*
[DR22300( ALL)05/95]
RWARNING
Do not connect a trailer's hydraulic brake
system directly to your vehicle's brake
system. Your vehicle may not have
enough braking power and your chances
of having a collision greatly increase.
File:10rcdrm.ex
Update:Wed Mar 27 09:33:56 1996

197 %
*
[DR22350( ALL)01/95]
Connecting the trailer's lights
*
[DR22400( ALL)01/95]
Do not connect a trailer's lighting system
wiring directly to your vehicle's lighting system
wiring.To get the proper equipment for
hooking up your trailer's lights, see your local
trailer dealer and your Ford dealer. Be sure to
follow their instructions carefully.
[DR22450( ALL)03/95]
If your vehicle is equipped with the optional
trailer tow package, the proper lamp wiring and
equipment has been installed at the factory. The
trailer feed wire (supplied in a box in the
luggage compartment) needs a connector
compatible with your trailer prior to installation.
*
[DR22500( ALL)01/95]
If you do not install trailer lights correctly, you
may cause damage to the vehicle's lighting
system.
%*
[DR22600( ALL)01/95]
Driving While You Tow
*
[DR22650( ALL)05/95]
Be especially careful when driving while you
tow a trailer. Never drive faster than 45 mph
(70 km/h) when you tow in hilly country on
hot days. Also, anticipate stops so that you can
brake gradually.
[DR22950(MBC )09/93]
If you tow in Overdrive while riding through
hilly country, your vehicle may frequently shift
between Overdrive and Third gears. To prevent
your vehicle from shifting too much, depress the
Transmission Control Switch (TCS). This will
also give the engine more power going up hills
and better engine braking going down hills.
File:10rcdrm.ex
Update:Wed Mar 27 09:33:56 1996

198 [DR22955(M )05/95]If your vehicle has a manual transmission and
you are towing a trailer, you should select gear
positions which will avoid jerking or excessive
engine speed. If you need to drive excessively in
1 (First) or 2 (Second), it may indicate that the
trailer is too big or heavily loaded for your
vehicle's drivetrain. Continuous driving in these
two gears while towing a trailer is not
recommended.
[DR22960(M )08/93]
When you tow up or down steep hills, move the
manual transmission gearshift to a lower gear.
This will increase engine power on upgrades
and engine braking on downgrades.
%*
[DR23000( ALL)01/95]
If you use the speed control while you are
towing on very long, steep grades, the speed
control may shut off.
*
[DR23100( ALL)08/95]
Servicing Your Vehicle If You Tow
*
[DR23200( ALL)08/93]
If you tow a trailer for a long distance, your
vehicle will need to be serviced more frequently
than usual. Refer to theMaintenance Schedule and
Recordbooklet for additional information.
File:10rcdrm.ex
Update:Wed Mar 27 09:33:56 1996

199
Roadside Emergencies
%*
[RE00400( ALL)03/95]
Jump-Starting Your Vehicle
*
[RE00450( ALL)08/95]
Your vehicle's battery may die if you leave the
lights on or any electrical equipment on after
you turn the engine off. If this happens, you
may be able to jump-start your vehicle with a
booster battery.
*
[RE00500( ALL)02/95]
RWARNING
The gases around the battery can explode
if exposed to flames, sparks, or lit
cigarettes. An explosion could result in
injury or vehicle damage.
*
[RE00600( ALL)02/95]
RWARNING
To protect yourself when charging a
battery, always shield your face and eyes.
Make sure that you can breathe fresh air.
%*
[RE00700( ALL)06/95]
RWARNING
Applying too much pressure on the ends
when lifting a battery could cause acid to
spill. Lift the battery with a carrier or
with your hands on the opposite corners.
%*
[RE00800( ALL)07/95]
RWARNING
Batteries contain sulfuric acid which burns
skin, eyes, and clothing.
*
[RE00900( ALL)07/95]
If the acid touches someone's skin, eyes, or
clothing, immediately flush the area with water
for at least 15 minutes. If someone swallows the
File:12rcrem.ex
Update:Wed Mar 27 09:34:49 1996

200acid, have him or her drink lots of milk or water
first, then Milk of Magnesia, a beaten egg, or
vegetable oil. Call a doctor immediately.
*
[RE01000( ALL)03/95]
To avoid damaging your vehicle or your battery,
and to avoid injury to yourself, follow these
directions for preparing your vehicle to
jump-start and connecting the jumper cables in
the order they are given. If in doubt, call for
road service.
*
[RE01100( ALL)03/95]
Preparing Your Vehicle
[RE01150( ALL)11/90]
NOTE: also see label on battery.
*
[RE01200( ALL)03/95]
1. Your vehicle has a 12-volt starting system, so
you need to use a 12-volt jumper system.
You will damage your starting motor,
ignition system, and other electrical parts if
you connect them to a 24-volt power supply
(either two 12-volt batteries in series or a
24-volt generator set).
*
[RE01300( ALL)03/95]
2. Do not disconnect the battery of the disabled
vehicle. You could damage the vehicle's
electrical system.
*
[RE01400( ALL)04/95]
3. Park the booster vehicle close to the hood of
the disabled vehicle.Make sure the vehicles
do not touch each other.Set the parking
brake on both vehicles and stay clear of the
engine cooling fan and other moving parts.
*
[RE01500( ALL)03/95]
4. Check all battery terminals and remove any
excessive corrosion before you attach the
jumper cables.
*
[RE01600( ALL)02/95]
5. Turn on the heater fan in both vehicles.
Turning on the fan helps protect the
electrical system from voltage surges. Turn
off all other switches and lights in both
vehicles to prevent possible damage to either
vehicle's electrical systems.
File:12rcrem.ex
Update:Wed Mar 27 09:34:49 1996

201 %
*
[RE01700( ALL)05/95]
Connecting the jumper cables
*
[RE01800( ALL)03/95]
1. Connect one end of the first jumper cable to
the positive (+) terminal of the discharged
battery. (You can connect either jumper cable
to the positive (+) terminal, as long as you
use the same cable for both positive
terminals.) Most jumper cables have a red
cable and a black cable. The red cable is
generally used for the positive terminals and
the black for the negative ones.
*
[RE01900( ALL)04/95]
2. Connect the other end of the first cable to
the positive (+) terminal of the booster
battery.
*
[RE02000( ALL)07/95]
3. Connect one end of the second cable to the
negative (S) terminal of the booster battery
Ð NOT to the discharged battery.
[RE02100( ALL)01/95]
4. Connect the other end of that cable to a
good metallic surface on the engine or frame
of the disabled vehicle making sure it is
clear of any rotating engine components. The
following illustrations show where you can
find a metallic surface.
*
[RE02200( ALL)07/95]
RWARNING
Do not connect the end of the second
cable to the negative (S) terminal of the
battery to be jumped. A spark may cause
an explosion of the gases that surround
the battery.
File:12rcrem.ex
Update:Wed Mar 27 09:34:49 1996

202 [RE02300(M )10/95]

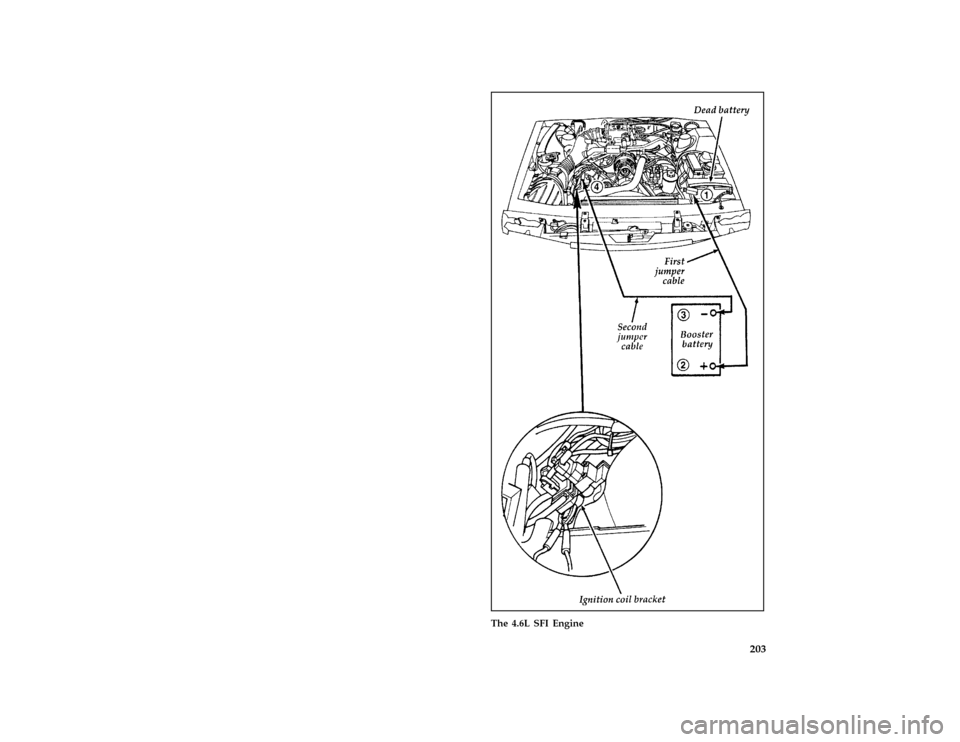

full page art:0010332-EThe 3.8L SFI engine
File:12rcrem.ex
Update:Wed Mar 27 09:34:49 1996

203 [RE02650(MBC )05/95]

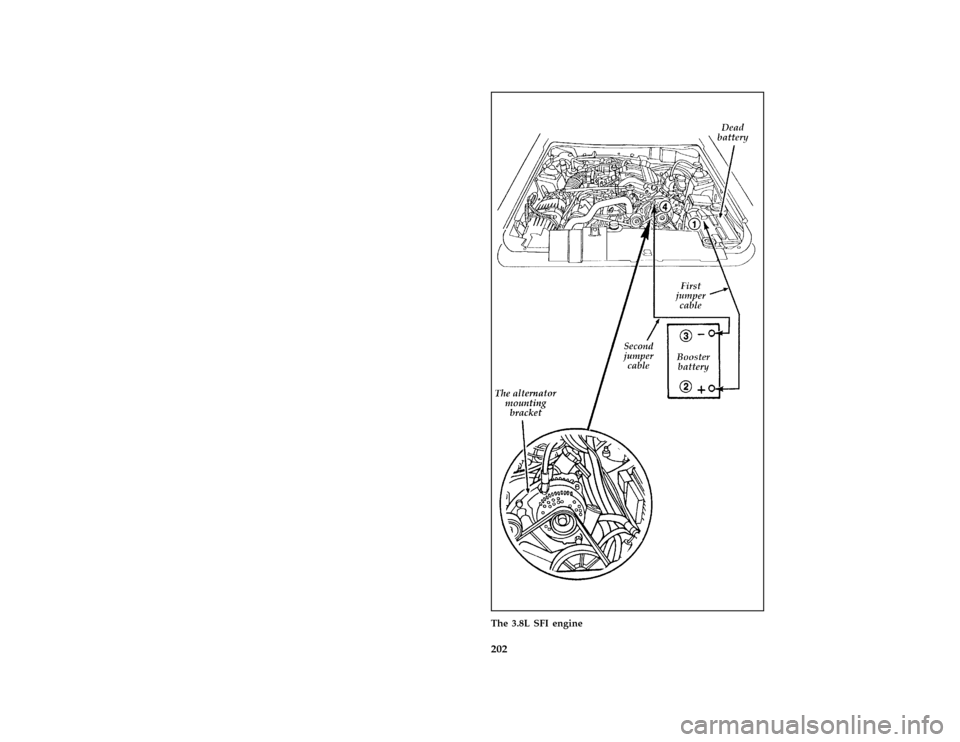

full page art:0010666-G
The 4.6L SFI Engine
File:12rcrem.ex
Update:Wed Mar 27 09:34:49 1996

204
*
[RE02900( ALL)03/95]
Jump-Starting
*
[RE03000( ALL)03/95]
1. Make sure that the jumper cables are not in
the way of moving engine parts, then start
the booster vehicle. Run the engine at a
moderate speed.
*
[RE03100( ALL)03/95]
2. Let the discharged battery charge for a few
minutes and then start the disabled vehicle.
It may take a couple of tries before the
vehicle starts. If the vehicle does not start
after several attempts, there may be a
different problem.
*
[RE03200( ALL)03/95]
3. When both vehicles are running, let them
idle for a few minutes to charge the
discharged battery.
%*
[RE03300( ALL)03/95]
Removing jumper cables
*
[RE03400( ALL)03/95]
1.Always remove the jumper cables in the
reverse order.Remove the negative (S) end
of the jumper cable from the metallic surface
on the engine or frame of the disabled
vehicle.
*
[RE03500( ALL)06/95]
2. Remove the negative (S) cable from the
booster battery.
*
[RE03600( ALL)06/95]
3. Remove the positive (+) cable from the
booster battery.
*
[RE03700( ALL)05/95]
4. Remove the other end of the positive (+)
cable from the discharged battery.
*
[RE03800( ALL)04/95]
After the vehicle is started, let it idle for a while
to let the engine ªrelearnº its idle conditions.
Drive it around for a while with all electrical
accessories turned off to let the battery recharge.
You may need to use a battery charger to fully
recharge the battery.
File:12rcrem.ex
Update:Wed Mar 27 09:34:49 1996
