SPECIFICATIONS
SECTION 303-
06: Starting System 2003 Mustang Workshop Manual General Specifications
Item Specification
Normal engine cranking speed rpm 100-
140 rpm Starter motor no load current draw amperes 60-
80 amps Starter motor normal load current draw 130 amps
Starter motor maximum load current draw amperes 400 amps
Maximum starting circuit voltage drop (engine at normal engine temperature) 0.5 volt
Torque Specifications Description Nm lb-
ft lb-
in Starter motor bolts 25 18 —
Starter motor ground cable nut 25 18 —
Starter motor solenoid S terminal nut 6 — 53
Starter motor solenoid B terminal nut 12 9 — Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

SPECIFICATIONS
SECTION 303-
07A: Engine Ignition — 3.8L 2003 Mustang Workshop Manual General Specifications
Item Specification
Base ignition timing TBD
Firing order 1-4-2-5-3-
6 Spark plug gap mm (in) 1.32-
1.42 (0.052- 0.056) Spark plug type production LH AWSF-
42E Spark plug type production RH AWSF-
42EG Spark plug type service AWSF-
42EE Silicone Brake Caliper Grease and Dielectric Compound D7AZ-19A331-
A ESE-
M1C171- A
Torque Specifications Description Nm lb-
ft lb-
in Spark plugs 15 11 —
Ignition coil bolts 7 — 52 Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

SPECIFICATIONS
SECTION 303-
07B: Engine Ignition — 4.6L (2V) 2003 Mustang Workshop Manual General Specifications
Item Specification
Base ignition timing 10 degrees ±
2 degrees non- adjustable Firing order 1-3-7-2-6-5-4-
8 Spark plug gap mm (in) 1.32-
1.42 (0.052- 0.056) Spark plug type AWSF-
32PP
Torque Specifications Description Nm lb-
ft lb-
in Spark plugs 15 11 —
Coil on plug bolts 10 — 89 Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

SPECIFICATIONS
SECTION 303-
07C: Engine Ignition — 4.6L (4V) 2003 Mustang Workshop Manual General Specifications
Item Specification
Ignition timing 10 degrees BTDC ±
2 degrees non-adjustable Firing order 1-3-7-2-6-5-4-
8 Spark plug gap mm (in) 1.32-
1.42 (0.052- 0.056) Spark plug type AWSF-
32EM
Torque Specifications Description Nm lb-
ft lb-
in Spark plugs 15 11 —
Ignition coil cover bolts 10 — 89 Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

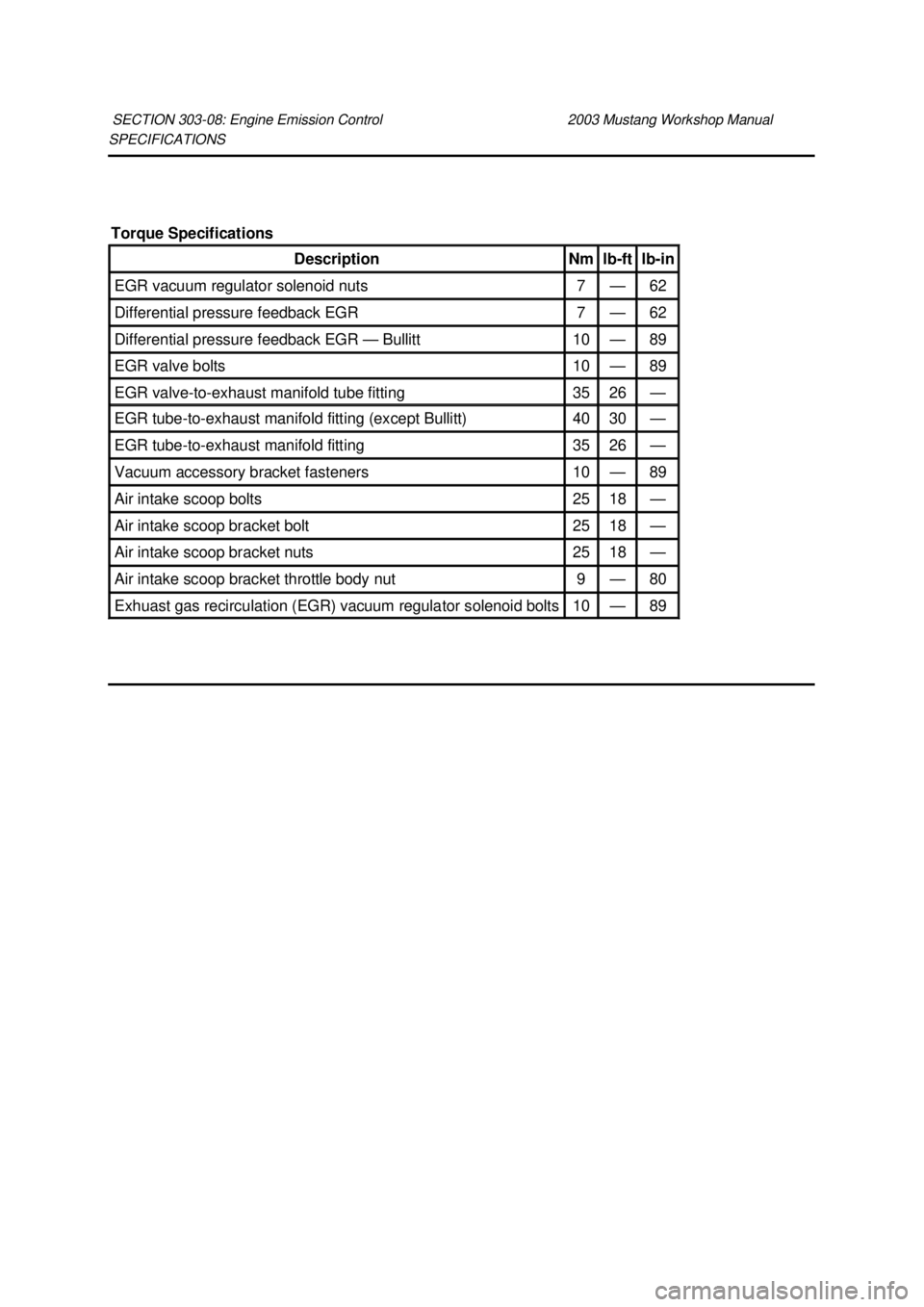

SPECIFICATIONS
SECTION 303-
08: Engine Emission Control 2003 Mustang Workshop Manual Torque Specifications
Description Nm lb-
ft lb-
in EGR vacuum regulator solenoid nuts 7 — 62
Differential pressure feedback EGR 7 — 62
Differential pressure feedback EGR —
Bullitt 10 — 89
EGR valve bolts 10 — 89
EGR valve-to-
exhaust manifold tube fitting 35 26 —
EGR tube-
to-exhaust manifold fitting (except Bullitt) 40 30 —
EGR tube-
to-exhaust manifold fitting 35 26 —
Vacuum accessory bracket fasteners 10 — 89
Air intake scoop bolts 25 18 —
Air intake scoop bracket bolt 25 18 —
Air intake scoop bracket nuts 25 18 —
Air intake scoop bracket throttle body nut 9 — 80
Exhuast gas recirculation (EGR) vacuum regulator solenoid bolts 10 — 89 Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

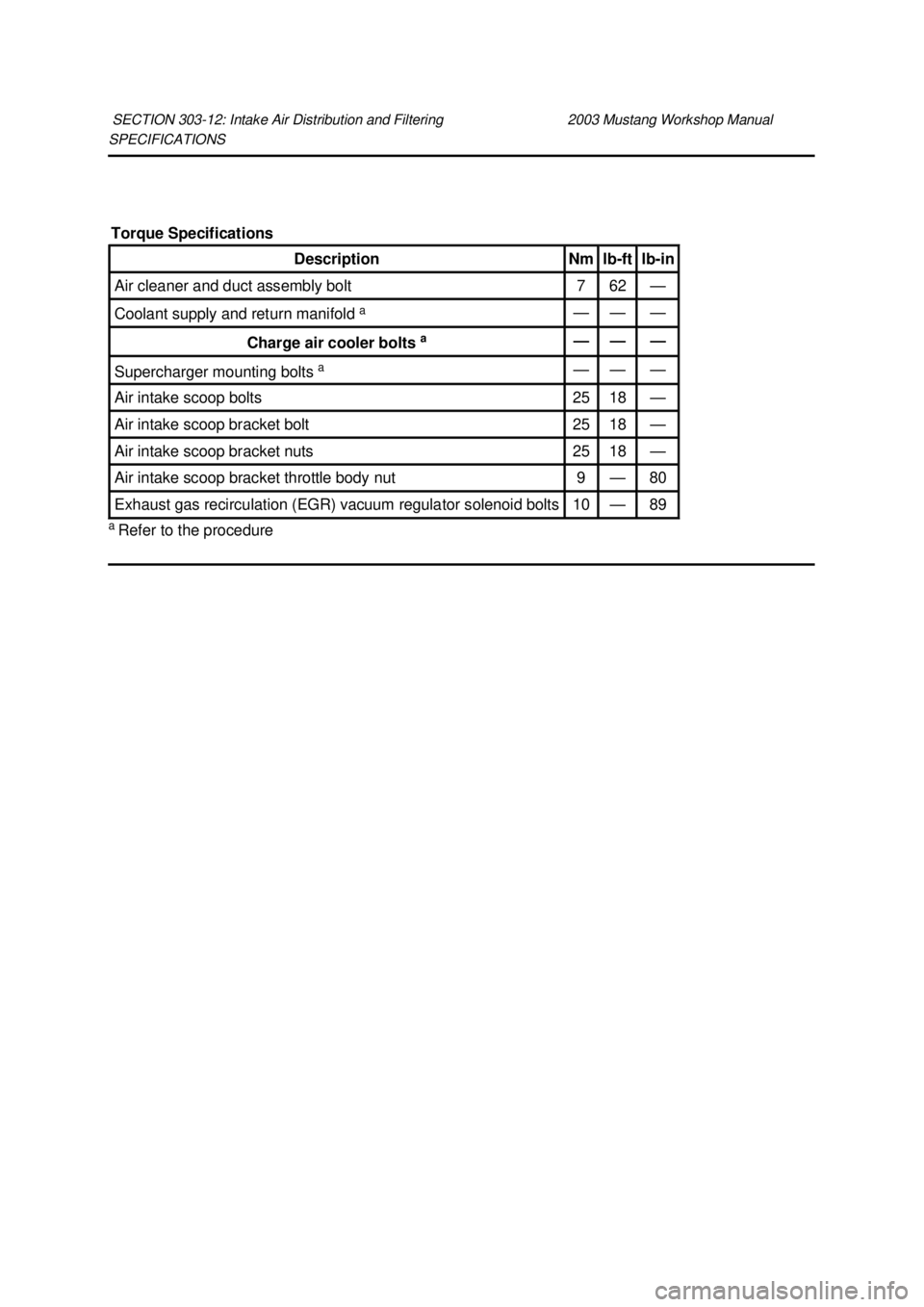

SPECIFICATIONS
a
Refer to the procedure
SECTION 303-
12: Intake Air Distribution and Filtering 2003 Mustang Workshop Manual Torque Specifications
Description Nm lb-
ft lb-
in Air cleaner and duct assembly bolt 7 62 —
Coolant supply and return manifold
a — — —
Charge air cooler bolts
a — — —
Supercharger mounting bolts
a — — —
Air intake scoop bolts 25 18 —
Air intake scoop bracket bolt 25 18 —
Air intake scoop bracket nuts 25 18 —
Air intake scoop bracket throttle body nut 9 — 80
Exhaust gas recirculation (EGR) vacuum regulator solenoid bolts 10 — 89 Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Intake Air Distribution and Filtering —
Supercharger,
Charge Air Cooler
The supercharger (SC) is a positive displacement pump. Its purpose is to supply an excess volume of
intake air to the engine by increasing air pressure and density in the intake manifold. The supercharger
is matched to the engine by its displacement and belt ratio, and can provide excess airflow at any
engine speed.
NOTE: The supercharger is repaired only as an assembly. Disassembly of the supercharger unit may
void the warranty.
NOTE: The supercharger is not a bolt- on option. It is part of an integrated engine system. Many
components of the supercharged engine are not interchangeable with similar parts from a non-
supercharged engine.
The supercharger contains two three- lobed rotors. The helical shape and specialized porting provide a
smooth discharge flow and low level of noise during operation. The rotors are supported by ball
bearings in front and needle bearings at the rear. The drive gears are pressed into place, therefore the
supercharger is installed new as a unit, and is not repairable.
The supercharger system is a blow- through type with the fuel injected directly into the intake ports. The
supercharger is belt driven off the crankshaft through an idler pulley. The throttle body controls the
amount of intake air to the supercharger through the intake plenum. Air from the supercharger is
routed through the charge air cooler (CAC), then to the intake manifold. The resulting denser air
charge in the combustion chamber provides for a higher power output of the engine over a non-
supercharged engine of the same displacement.
NOTE: It is not possible to increase manifold pressure or engine power output by altering the bypass
valve or the actuator.
At partial- throttle opening or when vacuum is present in the intake system, a vacuum- controlled
bypass valve reroutes some discharged air from the supercharger back through the intake plenum.
This prevents the supercharger from cavitating, causing reduced performance, increased
temperatures, and poor fuel economy.
The supercharger has a self- contained oiling system that does not require a fluid change for the life of
the vehicle. However, at every 30,000 mile interval, the supercharger fluid level should be checked.
The vehicle should be parked on a level surface, the engine cool, and not running. To check the oil,
remove the Allen head plug located at the front of the supercharger. The oil level should be at the
bottom of the fill plug threads when cold. If the fluid level is low, add Synthetic Supercharger Fluid
E9SZ- 19577- A or equivalent meeting Ford specification ESE-M99C115–A
Supercharged vehicles are equipped with a charge air cooler (CAC). The CAC cools the pressurized
air from the supercharger, increasing the air density, which improves combustion efficiency, engine
horsepower and torque. SECTION 303-
12: Intake Air Distribution and Filtering 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

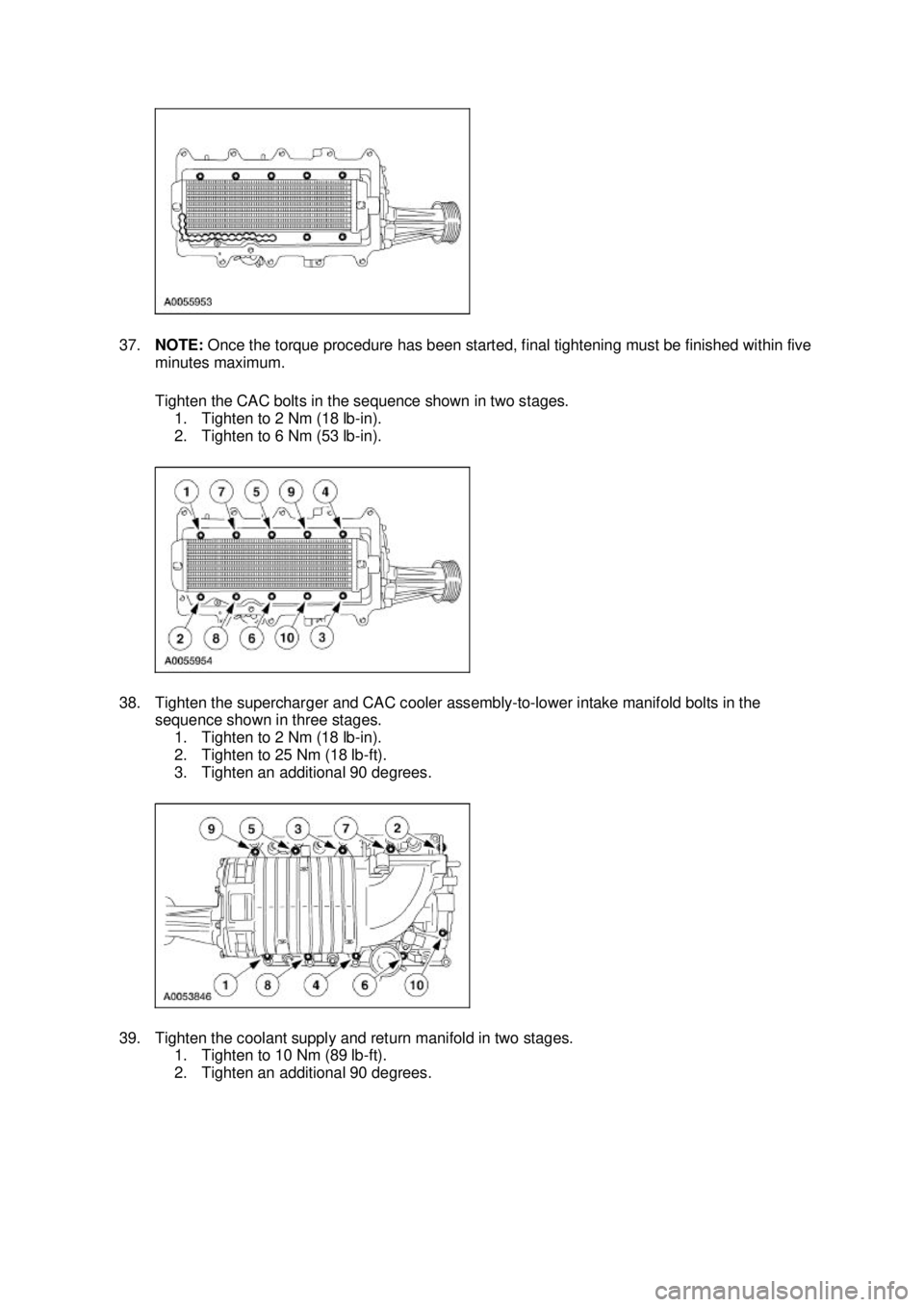

37.
NOTE: Once the torque procedure has been started, final tightening must be finished within five
minutes maximum.
Tighten the CAC bolts in the sequence shown in two stages. 1. Tighten to 2 Nm (18 lb- in).
2. Tighten to 6 Nm (53 lb- in).
38. Tighten the supercharger and CAC cooler assembly- to-lower intake manifold bolts in the
sequence shown in three stages.
1. Tighten to 2 Nm (18 lb- in).
2. Tighten to 25 Nm (18 lb- ft).
3. Tighten an additional 90 degrees.
39. Tighten the coolant supply and return manifold in two stages. 1. Tighten to 10 Nm (89 lb- ft).
2. Tighten an additional 90 degrees. Klj . 9 ba
102003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

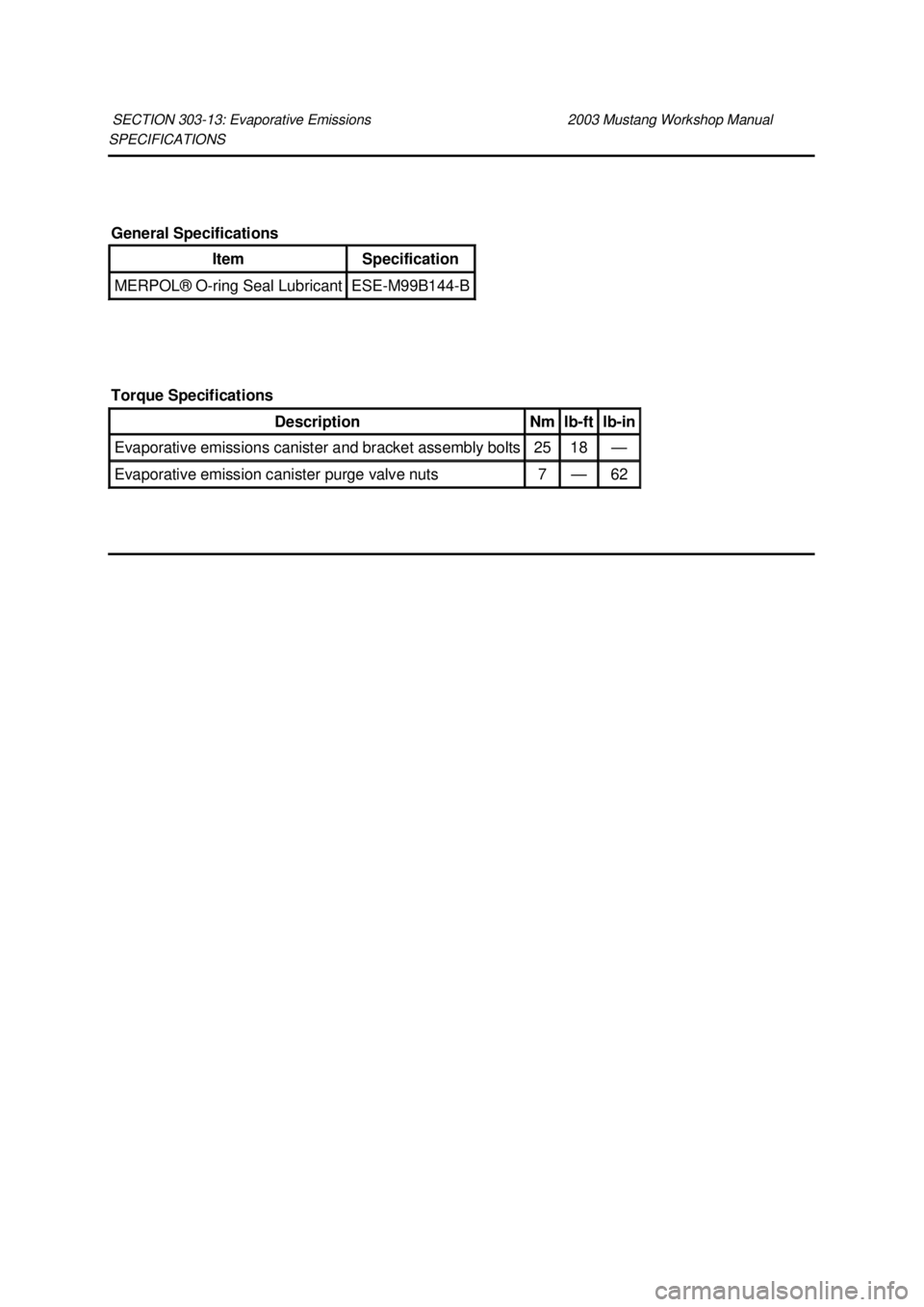

SPECIFICATIONS
SECTION 303-
13: Evaporative Emissions 2003 Mustang Workshop Manual General Specifications
Item Specification
MERPOL®
O-ring Seal Lubricant ESE-
M99B144- B
Torque Specifications Description Nm lb-
ft lb-
in Evaporative emissions canister and bracket assembly bolts 25 18 —
Evaporative emission canister purge valve nuts 7 — 62 Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

SPECIFICATIONS
SECTION 303-
14: Electronic Engine Controls 2003 Mustang Workshop Manual General Specifications
Item Specification
Lubricants
Super premium SAE 5W-
20 Engine Oil XO-5W20-DSP WSS-
M2C914- A Penetrating and Lock Lubricant E8AZ-19A501-
B N/A
Pipe Sealant with Teflon D8AZ-19554-
A WSK-
M26350- A2
Torque Specifications Description Nm lb-
ft lb-
in Cylinder head temperature (CHT) sensor —
3.8L 10 — 89
Engine coolant temperature (ECT) sensor —
4.6L (2V) 20 — 15
Engine coolant temperature (ECT) sensor —
4.6L (4V) 24 18 —
Heated oxygen sensors (HO2S) 41 30 —
Catalyst monitor sensors 41 30 —
Crankshaft position (CKP) sensor bolts —
3.8L 6 — 53
Crankshaft position (CKP) sensor bolts —
4.6L 10 — 89
Power steering reservoir bolts 10 — 89
Camshaft position (CMP) sensor bolt —
4.6L 10 — 89
PCM connector to module bolt 6 — 53
Idle air control (IAC) valve bolts 10 — 89
Camshaft synchronizer housing bolt 25 18 —
Throttle position (TP) sensor screws 3 — 27
Fuel pressure sensor bolts 4 — 35
Air intake scoop bolts 25 18 —
Air intake scoop bracket bolt 25 18 —
Air intake scoop bracket nuts 25 18 —
Air intake scoop bracket throttle body nut 9 — 80
Exhaust gas recirculation (EGR) vacuum regulator solenoid bolts 10 — 89 Klj . 1 ba
22003 Mustang Workshop Manual
