SPECIFICATIONS
SECTION 206-

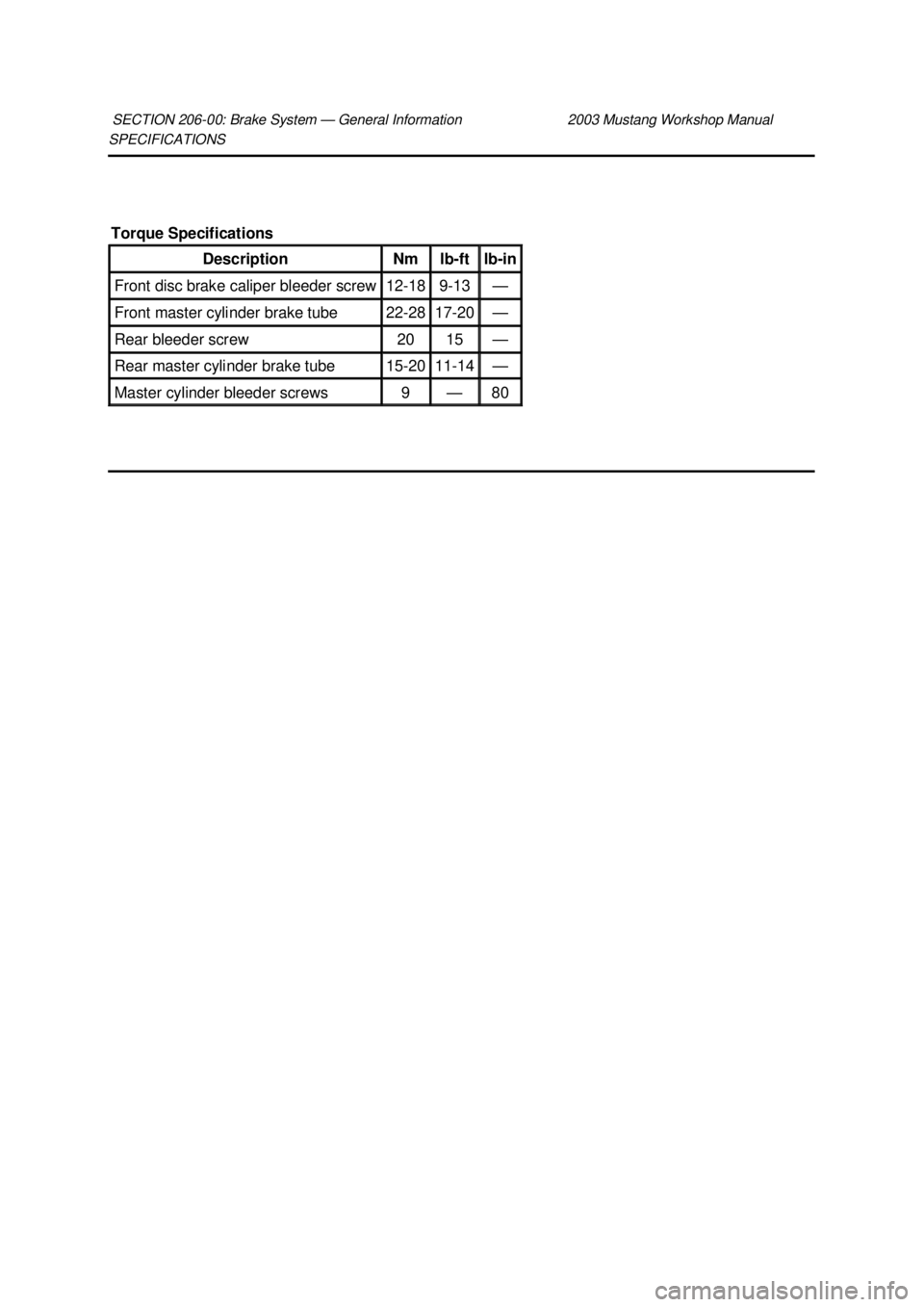

00: Brake System — General Information 2003 Mustang Workshop Manual Torque Specifications
Description Nm lb-
ft lb-
in Front disc brake caliper bleeder screw 12-
18 9-13 —
Front master cylinder brake tube 22-
28 17-
20 —
Rear bleeder screw 20 15 —
Rear master cylinder brake tube 15-
20 11-
14 —
Master cylinder bleeder screws 9 — 80 Klj . 1 ba
12003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

GENERAL PROCEDURES
Runout Check —
Brake Disc and Hub
CAUTION: The brake disc (1126) runout specification must be met to ensure correct brake
performance without roughness complaints.
CAUTION: Do not install brake discs that are less than the minimum thickness specified.
Do not machine a brake disc below the minimum thickness specification.
NOTE: When installing brake discs, always align the painted match marks on the brake discs with
those on the front hub or rear axle.
NOTE: When installing brake discs, always apply anti- seize lubricant to the brake disc-to-front hub or
to the brake disc- to-rear axle mating surfaces.
1. Do not remove the tire and wheel assembly. Tighten the wheel nuts to specification with a torque stick or torque wrench.
2. Raise and support the vehicle.
3. Assemble the Brake Measurement Kit, using the spherical tip extension.
4. Locate an opening on the inboard side of the dust shield that will allow the dial indicator tip to be positioned at least 5 mm (0.2 inch) from the outer edge of the brake disc.
5. NOTE: Do not clamp the gauge set to a vehicle component separated from the brake disc by a
flexible joint, such as a ball joint or body mount.
Clamp the Brake Measurement Kit on the vehicle, making sure the flexible indicator arm and
probe tip do not touch the dust shield or tire while rotating.
6. NOTE: For rear wheel measurement only, have an assistant push in on the wheel cover or axle
shaft center while rotating the wheel.
Rotate the wheel for six revolutions, and record the total indicated runout.
SECTION 206-
00: Brake System — General Information 2003 Mustang Workshop Manual Special Tool(s)
Brake Measurement Kit
134-R0199 or equivalent
Material Item Specification
High Temperature Nickel Anti-
Seize Lubricant
F6AZ-
9L494- AA ESE-
M12A4-
A Klj . 1 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

SPECIFICATIONS
SECTION 206-

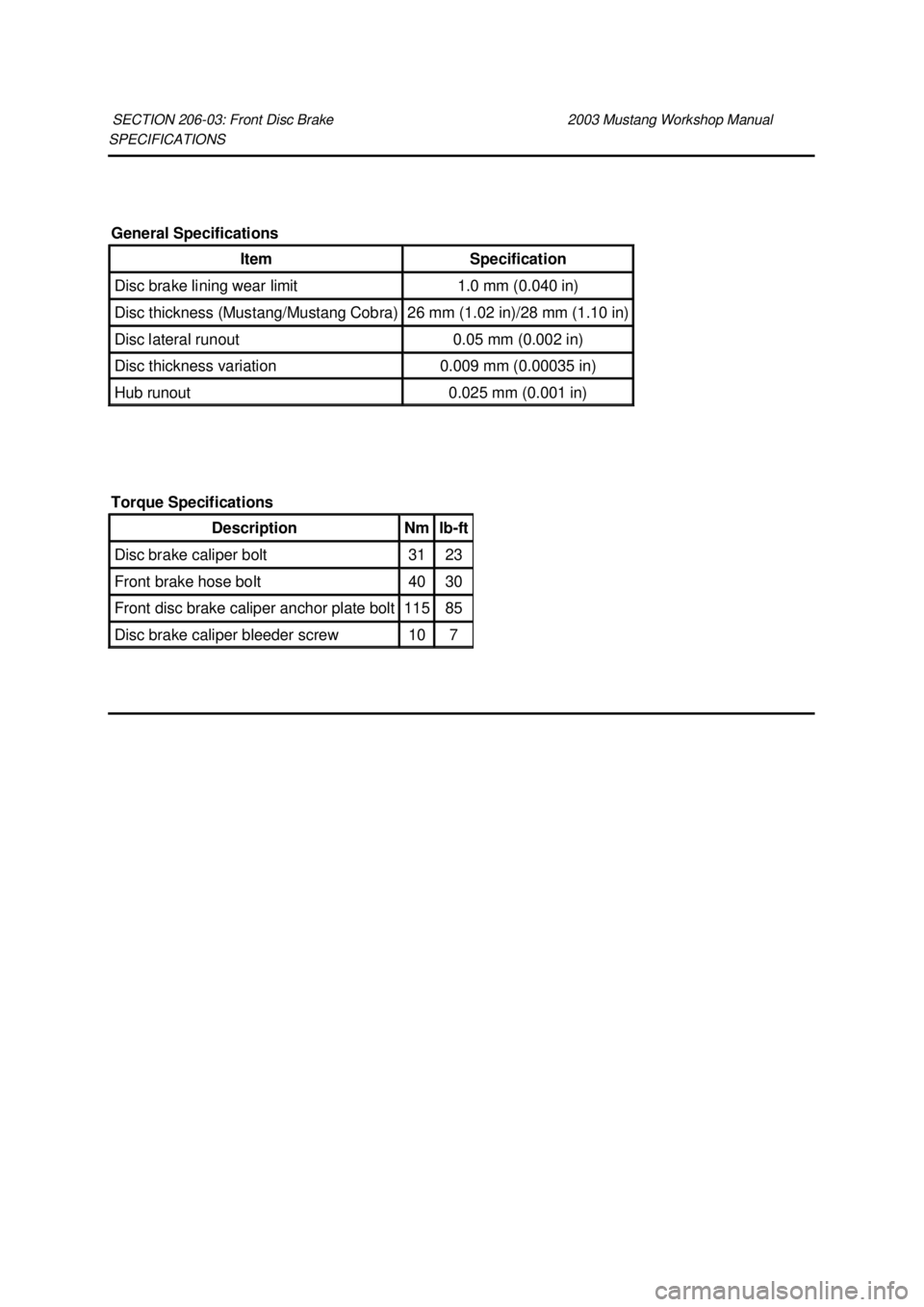

03: Front Disc Brake 2003 Mustang Workshop Manual General Specifications
Item Specification
Disc brake lining wear limit 1.0 mm (0.040 in)
Disc thickness (Mustang/Mustang Cobra) 26 mm (1.02 in)/28 mm (1.10 in)
Disc lateral runout 0.05 mm (0.002 in)
Disc thickness variation 0.009 mm (0.00035 in)
Hub runout 0.025 mm (0.001 in)
Torque Specifications Description Nm lb-
ft Disc brake caliper bolt 31 23
Front brake hose bolt 40 30
Front disc brake caliper anchor plate bolt 115 85
Disc brake caliper bleeder screw 10 7 Klj . 1 ba
12003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

SPECIFICATIONS
SECTION 206-

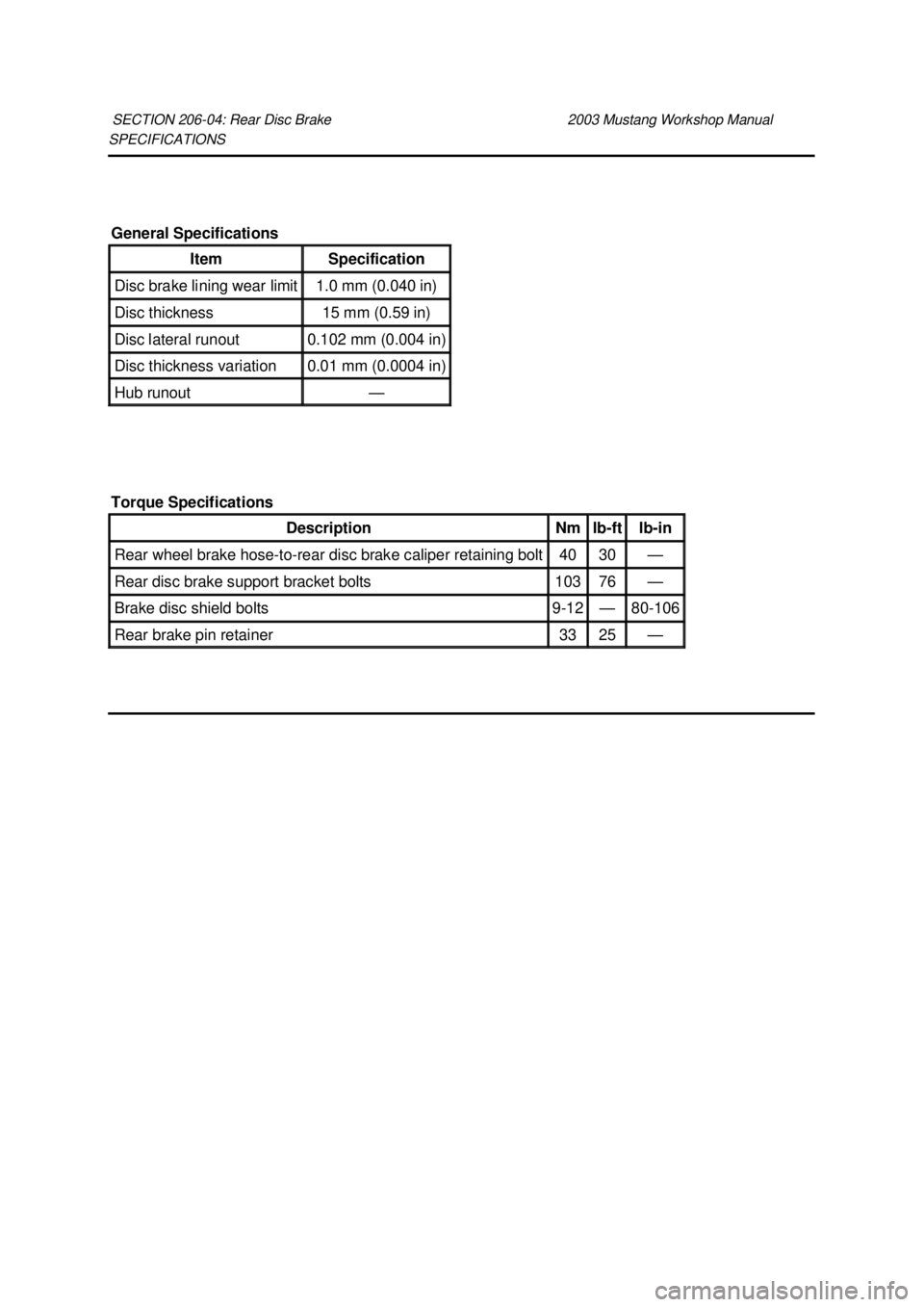

04: Rear Disc Brake 2003 Mustang Workshop Manual General Specifications
Item Specification
Disc brake lining wear limit 1.0 mm (0.040 in)
Disc thickness 15 mm (0.59 in)
Disc lateral runout 0.102 mm (0.004 in)
Disc thickness variation 0.01 mm (0.0004 in)
Hub runout —
Torque Specifications Description Nm lb-
ft lb-
in Rear wheel brake hose-
to-rear disc brake caliper retaining bolt 40 30 —
Rear disc brake support bracket bolts 103 76 —
Brake disc shield bolts 9-
12 — 80-
106 Rear brake pin retainer 33 25 — Klj . 1 ba
12003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

SPECIFICATIONS
SECTION 206-

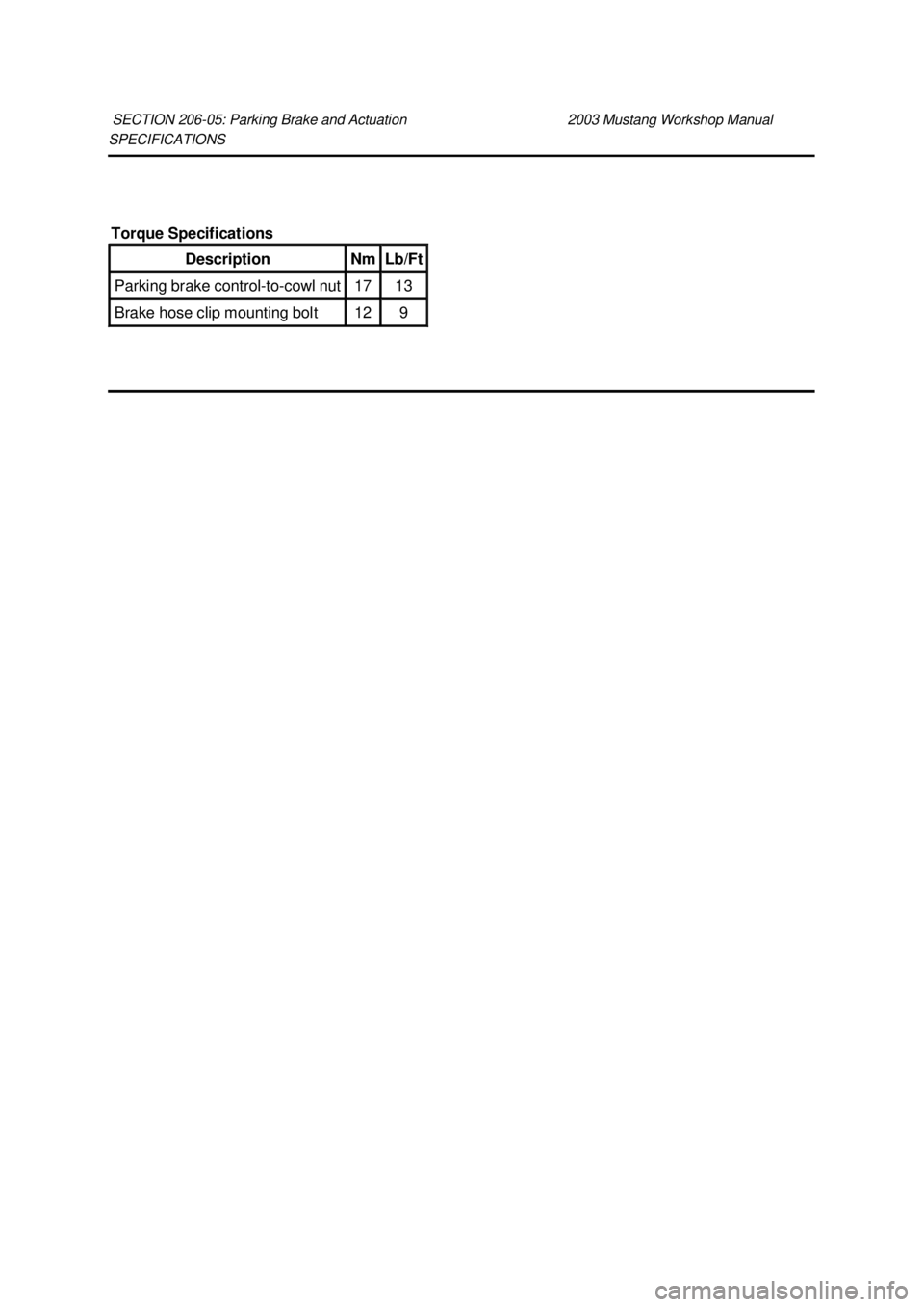

05: Parking Brake and Actuation 2003 Mustang Workshop Manual Torque Specifications
Description Nm Lb/Ft
Parking brake control-
to-cowl nut 17 13
Brake hose clip mounting bolt 12 9 Klj . 1 ba
12003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

SPECIFICATIONS
SECTION 206-

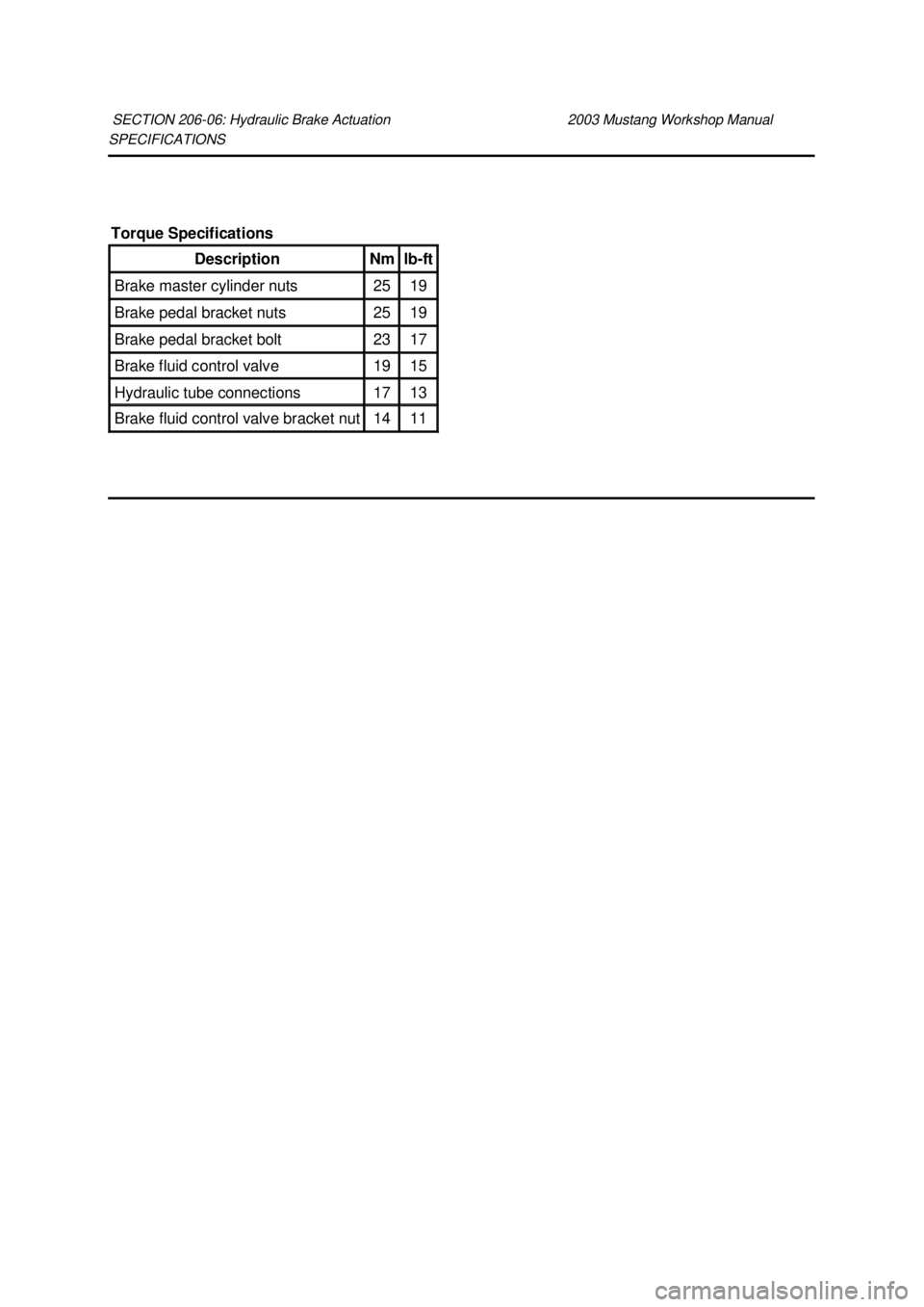

06: Hydraulic Brake Actuation 2003 Mustang Workshop Manual Torque Specifications
Description Nm lb-
ft Brake master cylinder nuts 25 19
Brake pedal bracket nuts 25 19
Brake pedal bracket bolt 23 17
Brake fluid control valve 19 15
Hydraulic tube connections 17 13
Brake fluid control valve bracket nut 14 11 Klj . 1 ba
12003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

SPECIFICATIONS
SECTION 206-

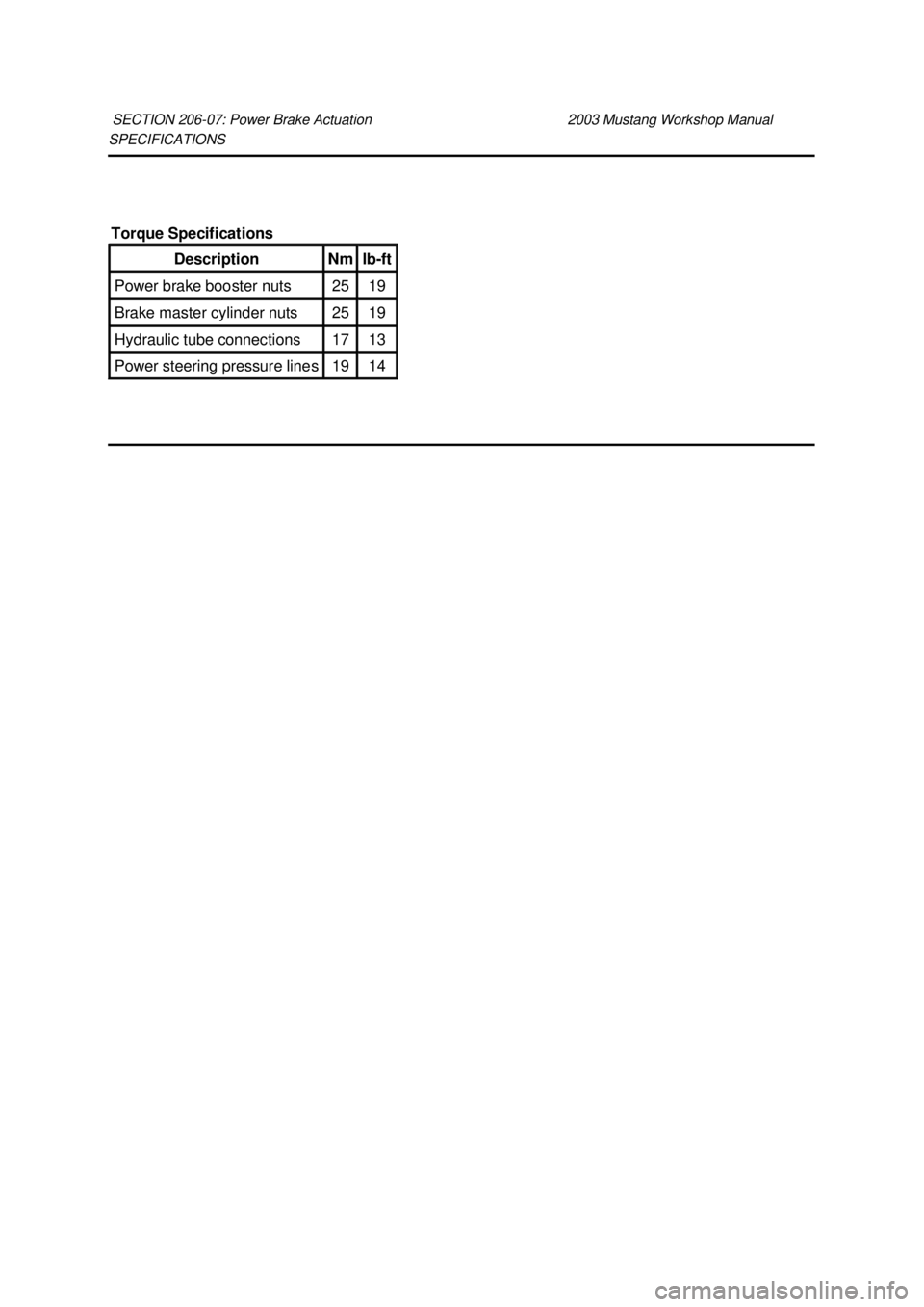

07: Power Brake Actuation 2003 Mustang Workshop Manual Torque Specifications
Description Nm lb-
ft Power brake booster nuts 25 19
Brake master cylinder nuts 25 19
Hydraulic tube connections 17 13
Power steering pressure lines 19 14 Klj . 1 ba
12003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

SPECIFICATIONS
SECTION 206-
09A: Anti-Lock Control — Rear 2003 Mustang Workshop Manual Torque Specifications
Description Nm lb-
ft lb-
in Anti-
lock brake control module screws 3 — 26
Brake line fittings to hydraulic control unit 19 14 —
Front anti-
lock brake sensor bolt 7 — 62
Hydraulic control unit to mounting bracket nuts 18 13 —
Rear anti-
lock brake sensor bolt 7 — 62 Klj . 1 ba
12003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

SPECIFICATIONS
SECTION 206-

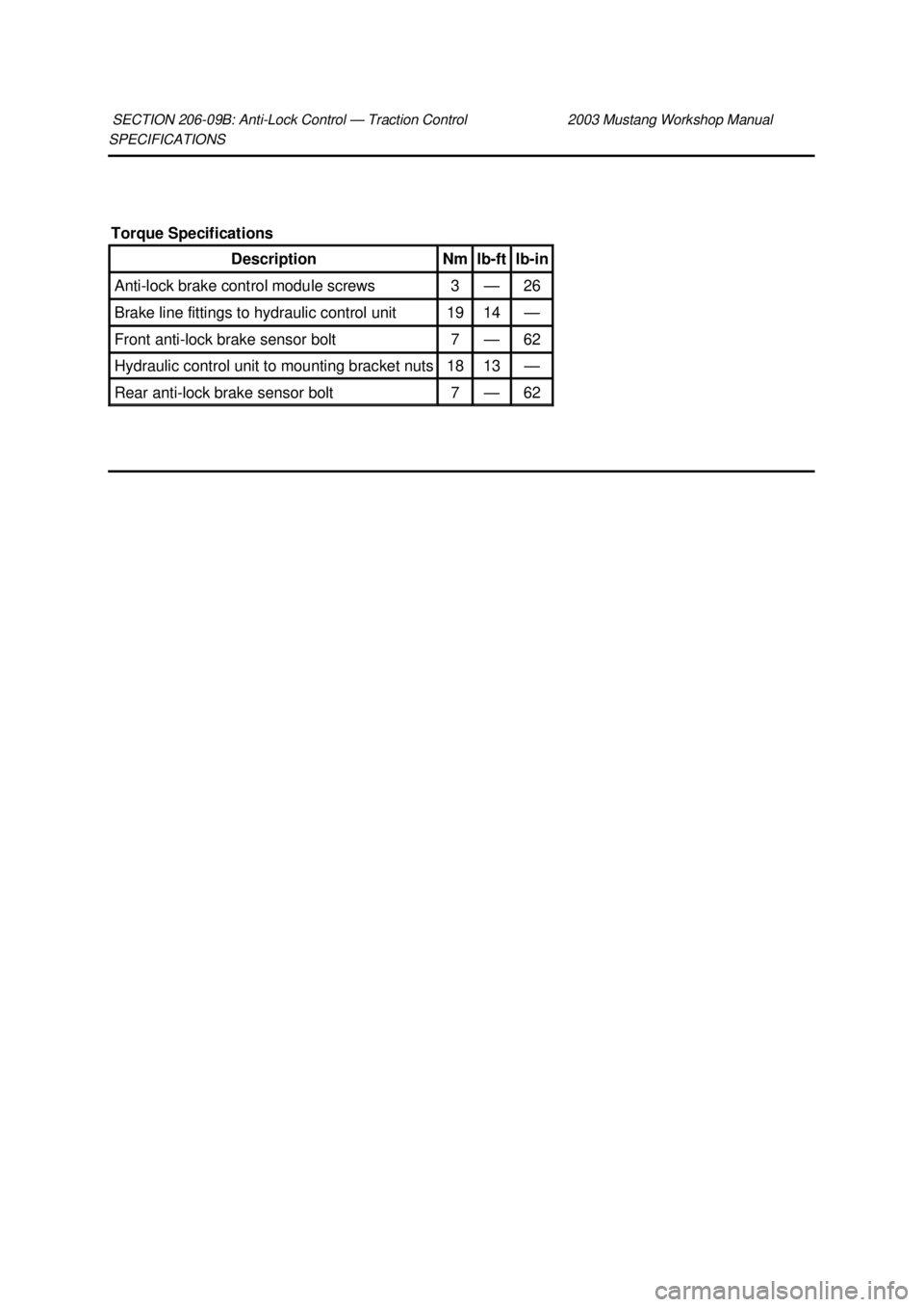

09B: Anti-Lock Control — Traction Control 2003 Mustang Workshop Manual Torque Specifications
Description Nm lb-
ft lb-
in Anti-
lock brake control module screws 3 — 26
Brake line fittings to hydraulic control unit 19 14 —
Front anti-
lock brake sensor bolt 7 — 62
Hydraulic control unit to mounting bracket nuts 18 13 —
Rear anti-
lock brake sensor bolt 7 — 62 Klj . 1 ba
12003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

DIAGNOSIS AND TESTING
Anti-
Lock Control — Traction Control
Refer to Wiring Diagrams Cell 42 , Anti-
Lock Brake System for schematic and connector information.
Principles of Operation
The anti- lock-brake control module receives wheel speed readings from each anti- lock brake sensor
and processes this information to determine if an ABS event is necessary. The anti- lock brake sensor
electrically senses each tooth of the anti- lock brake sensor indicators as it passes through the anti- lock
brake sensor's magnetic field.
The anti- lock brake control module continuously monitors and compares the rotational speed of each
wheel and, when it detects an impending wheel lock, modulates brake pressure to the appropriate
brake caliper. This is accomplished by triggering the hydraulic control unit (HCU) to open and close the
appropriate solenoid valves. Once the affected wheel returns to normal speed, the anti- lock brake
control module returns the solenoid valves to their normal position, and normal (base) braking
resumes.
The anti- lock brake control module is self- monitoring. When the ignition switch is turned to the RUN
position, the anti- lock brake control module will do a preliminary electrical check, and at approximately
12 km/h (8 mph) the pump motor is turned on for approximately one half- second. Also during all
phases of operation the anti- lock brake control module (after the vehicle is in motion) checks for
correct operation of the anti- lock brake sensors. Any malfunction of the ABS will cause the ABS to shut
off and ABS warning indicator to illuminate; normal power assisted braking, however, remains.
The ABS control module has the ability to store multiple DTCs in memory.
The traction control system controls wheelspin by modulating the engine torque by communicating to
the powertrain control module (PCM) and by applying, then releasing, the appropriate brake to restore
traction when one or both drive wheels lose traction and begin to spin during acceleration.
The traction control system can be disabled by depressing the traction control switch. The traction
control system will reset and return to normal traction assist when the ignition switch is cycled or when
the traction control switch is depressed again. SECTION 206-
09B: Anti-Lock Control — Traction Control 2003 Mustang Workshop Manual Special Tool(s)
Worldwide Diagnostic System
(WDS)
418-
F224,
New Generation STAR (NGS)
Tester
418- F052, or equivalent scan
tool 73 Digital Multimeter or
equivalent
105-
R0051 Klj . 1 ba
202003 Mustang Workshop Manual
