Anti-Lock Brake Control Module Diagnostic Trouble Code (DTC) Index
DTC Description Source Action
B1318 Battery Voltage Low ABS/TC Go To Pinpoint Test C .
B1342 ECU Is Defective ABS/TC INSTALL a new anti-
lock brake control
module; REFER to Module . REPEAT the
self- test. B1484 Brake Pedal Input Open Circuit ABS/TC Go To Pinpoint Test D .
B1596 Repair Continuous Codes ABS/TC REPAIR the DTCs retrieved.
C1095 ABS Hydraulic Pump Motor Circuit
Failure ABS/TC Go To Pinpoint Test E .
C1145 RF Anti-
Lock Brake Sensor Input
Circuit Failure ABS/TC Go To Pinpoint Test F .
C1155 LF Anti-
Lock Brake Sensor Input
Circuit Failure ABS/TC Go To Pinpoint Test F .
C1165 RR Anti-
Lock Brake Sensor Input
Circuit Failure ABS/TC Go To Pinpoint Test F .
C1175 LR Anti-
Lock Brake Sensor Input
Circuit Failure ABS/TC Go To Pinpoint Test F .
C1222 Anti-
Lock Brake Sensor Mismatch ABS/TC Go To Pinpoint Test G .
C1233 LF Anti-
Lock Brake Sensor Input
Signal Missing ABS/TC Go To Pinpoint Test H .
C1234 RF Anti-
Lock Brake Sensor Input
Signal Missing ABS/TC Go To Pinpoint Test H .
C1235 RR Anti-
Lock Brake Sensor Input
Signal Missing ABS/TC Go To Pinpoint Test H .
C1236 LR Anti-
Lock Brake Sensor Input
Signal Missing ABS/TC Go To Pinpoint Test H .
C1266 ABS Valve Power Relay Circuit
Failure ABS/TC INSTALL a new anti-
lock brake control
module; REFER to Module . REPEAT the
self- test. C1805 Mismatched PCM and/or Anti-Lock
Brake Control Module ABS/TC CLEAR the DTCs. RETRIEVE the DTCs. If
DTC C1805 is retrieved, check the PCM
and Anti- Lock Brake Control Module is for
the correct vehicle. INSTALL a new PCM or
anti-lock brake control module as
necessary. CLEAR the DTCs. REPEAT the self-test. U1009 SCP (J1850) Invalid or Missing Data
for Engine Torque ABS/TC CARRY OUT the PCM self-
test. U1027 SCP (J1850) Invalid or Missing Data
for Engine RPM ABS/TC CARRY OUT the PCM self-
test. U1059 SCP (J1850) Invalid or Missing Data
for Transmission/Transaxle/PRNDL ABS/TC CARRY OUT the PCM self-
test. U1083 SCP (J1850) Invalid or Missing Data
for Engine Systems ABS/TC CARRY OUT the PCM self-
test. U1262 SCP (J1850) Communication Bus
Fault ABS/TC REFER to
Section 418 - 00 . Klj . 3 ba
202003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

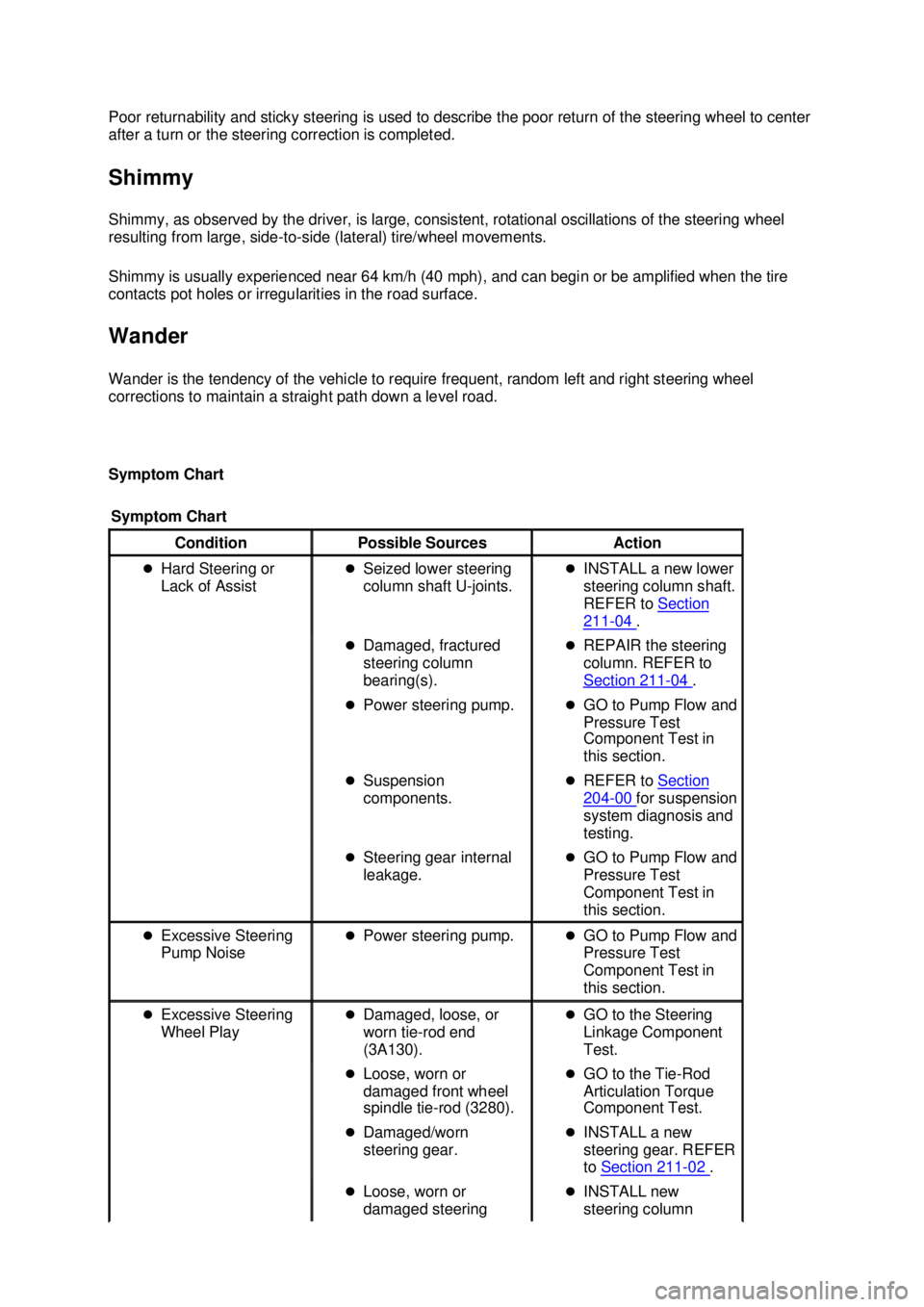

Poor returnability and sticky steering is used to describe the poor return of the steering wheel to center
after a turn or the steering correction is completed.
Shimmy
Shimmy, as observed by the driver, is large, consistent, rotational oscillations of the steering wheel
resulting from large, side-
to-side (lateral) tire/wheel movements.
Shimmy is usually experienced near 64 km/h (40 mph), and can begin or be amplified when the tire
contacts pot holes or irregularities in the road surface.
Wander
Wander is the tendency of the vehicle to require frequent, random left and right steering wheel
corrections to maintain a straight path down a level road.
Symptom Chart
Symptom Chart Condition
Possible Sources Action
z Hard Steering or
Lack of Assist z
Seized lower steering
column shaft U- joints. z
INSTALL a new lower
steering column shaft.
REFER to Section 211 - 04 .
z Damaged, fractured
steering column
bearing(s). z
REPAIR the steering
column. REFER to
Section 211 - 04 .
z Power steering pump. zGO to Pump Flow and
Pressure Test
Component Test in
this section.
z Suspension
components. z
REFER to Section 204 - 00 for suspension
system diagnosis and
testing.
z Steering gear internal
leakage. z
GO to Pump Flow and
Pressure Test
Component Test in
this section.
z Excessive Steering
Pump Noise z
Power steering pump. zGO to Pump Flow and
Pressure Test
Component Test in
this section.
z Excessive Steering
Wheel Play z
Damaged, loose, or
worn tie- rod end
(3A130). z
GO to the Steering
Linkage Component
Test.
z Loose, worn or
damaged front wheel
spindle tie- rod (3280). z
GO to the Tie- Rod
Articulation Torque
Component Test.
z Damaged/worn
steering gear. z
INSTALL a new
steering gear. REFER
to Section 211 - 02 .
z Loose, worn or
damaged steering z
INSTALL new
steering column Klj . 5 ba
112003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

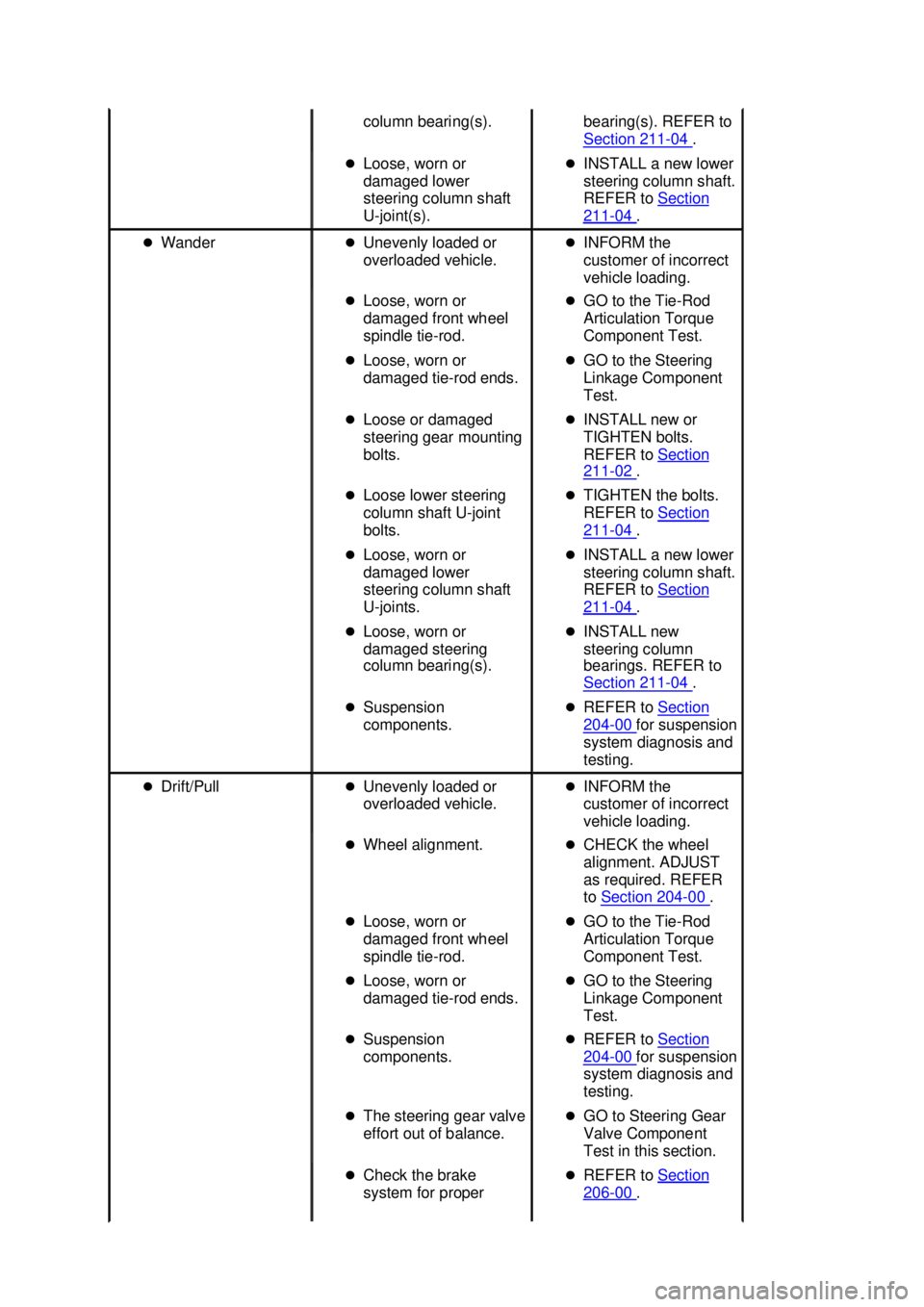

column bearing(s).
bearing(s). REFER to
Section 211 - 04 .
z Loose, worn or
damaged lower
steering column shaft
U-joint(s). z
INSTALL a new lower
steering column shaft.
REFER to Section 211 - 04 .
z Wander zUnevenly loaded or
overloaded vehicle. z
INFORM the
customer of incorrect
vehicle loading.
z Loose, worn or
damaged front wheel
spindle tie- rod. z
GO to the Tie- Rod
Articulation Torque
Component Test.
z Loose, worn or
damaged tie- rod ends. z
GO to the Steering
Linkage Component
Test.
z Loose or damaged
steering gear mounting
bolts. z
INSTALL new or
TIGHTEN bolts.
REFER to Section 211 - 02 .
z Loose lower steering
column shaft U- joint
bolts. z
TIGHTEN the bolts.
REFER to Section 211 - 04 .
z Loose, worn or
damaged lower
steering column shaft
U-joints. z
INSTALL a new lower
steering column shaft.
REFER to Section 211 - 04 .
z Loose, worn or
damaged steering
column bearing(s). z
INSTALL new
steering column
bearings. REFER to
Section 211 - 04 .
z Suspension
components. z
REFER to Section 204 - 00 for suspension
system diagnosis and
testing.
z Drift/Pull zUnevenly loaded or
overloaded vehicle. z
INFORM the
customer of incorrect
vehicle loading.
z Wheel alignment. zCHECK the wheel
alignment. ADJUST
as required. REFER
to Section 204 - 00 .
z Loose, worn or
damaged front wheel
spindle tie- rod. z
GO to the Tie- Rod
Articulation Torque
Component Test.
z Loose, worn or
damaged tie- rod ends. z
GO to the Steering
Linkage Component
Test.
z Suspension
components. z
REFER to Section 204 - 00 for suspension
system diagnosis and
testing.
z The steering gear valve
effort out of balance. z
GO to Steering Gear
Valve Component
Test in this section.
z Check the brake
system for proper z
REFER to Section 206 - 00 . Klj . 6 ba
112003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

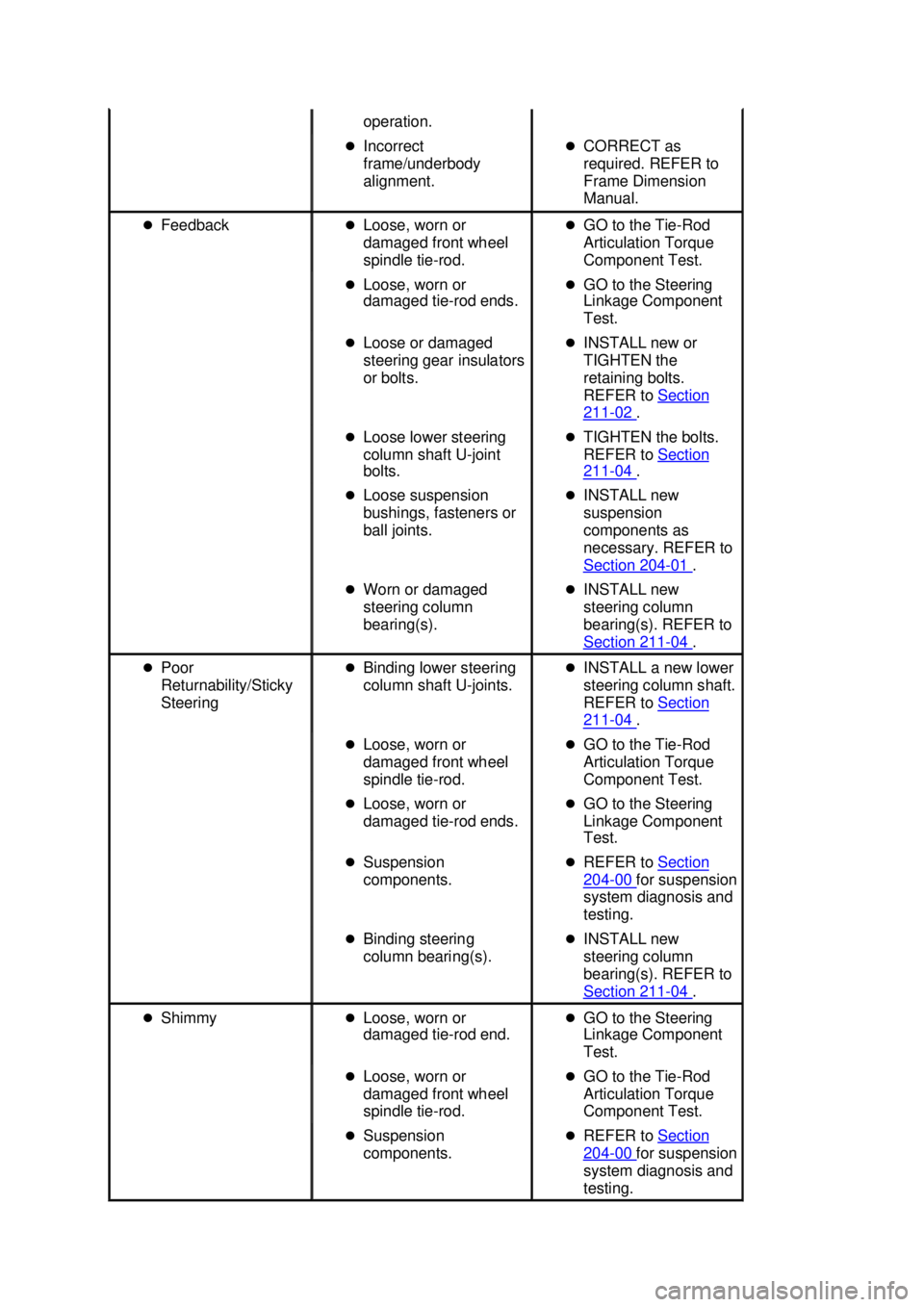

operation.
z Incorrect
frame/underbody
alignment. z
CORRECT as
required. REFER to
Frame Dimension
Manual.
z Feedback zLoose, worn or
damaged front wheel
spindle tie- rod. z
GO to the Tie- Rod
Articulation Torque
Component Test.
z Loose, worn or
damaged tie- rod ends. z
GO to the Steering
Linkage Component
Test.
z Loose or damaged
steering gear insulators
or bolts. z
INSTALL new or
TIGHTEN the
retaining bolts.
REFER to Section 211 - 02 .
z Loose lower steering
column shaft U- joint
bolts. z
TIGHTEN the bolts.
REFER to Section 211 - 04 .
z Loose suspension
bushings, fasteners or
ball joints. z
INSTALL new
suspension
components as
necessary. REFER to
Section 204 - 01 .
z Worn or damaged
steering column
bearing(s). z
INSTALL new
steering column
bearing(s). REFER to
Section 211 - 04 .
z Poor
Returnability/Sticky
Steering z
Binding lower steering
column shaft U- joints. z
INSTALL a new lower
steering column shaft.
REFER to Section 211 - 04 .
z Loose, worn or
damaged front wheel
spindle tie- rod. z
GO to the Tie- Rod
Articulation Torque
Component Test.
z Loose, worn or
damaged tie- rod ends. z
GO to the Steering
Linkage Component
Test.
z Suspension
components. z
REFER to Section 204 - 00 for suspension
system diagnosis and
testing.
z Binding steering
column bearing(s). z
INSTALL new
steering column
bearing(s). REFER to
Section 211 - 04 .
z Shimmy zLoose, worn or
damaged tie- rod end. z
GO to the Steering
Linkage Component
Test.
z Loose, worn or
damaged front wheel
spindle tie- rod. z
GO to the Tie- Rod
Articulation Torque
Component Test.
z Suspension
components. z
REFER to Section 204 - 00 for suspension
system diagnosis and
testing. Klj . 7 ba
112003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

11. Turn (or have an assistant turn) the steering wheel slightly in both directions and release quickly
while watching the pressure gauge.
zThe pressure reading should move from the normal back pressure reading and snap
back as the steering wheel is released.
z If the pressure returns slowly or sticks, the rotary valve in the steering gear is sticking or
the steering column is binding. Check the steering column and linkages before servicing
the steering gear.
Tie- Rod Articulation Torque
1. NOTE: This check may be done with the steering gear on or off the vehicle.
Disconnect the tie- rod end from the front wheel spindle. For additional information, refer to
Section 211 - 02 .
2. Move the front wheel spindle tie- rod back and forth three times.
3. Hook the special tool 211- 034 (T74P-3504-Y) over the tie-rod end or the threaded portion of the
front wheel spindle tie- rod and measure the force required to move the front wheel spindle tie-
rod. Refer to Tie- Rod Articulation Torque in General Specifications in this section.
4. If the force required to move the front wheel spindle tie- rod does not meet the specifications,
install a new front wheel spindle tie- rod. For additional information, refer to Section 211 - 02 .
Steering Gear Valve 1. With the vehicle in motion, place the transmission in NEUTRAL and turn the engine OFF. zIf the vehicle does not pull with the engine OFF, install a new steering gear. For
additional information, refer to Section 211 - 02 .
2. If the vehicle pulls with the engine OFF, cross- switch the front wheels.
3. If the vehicle pulls to the opposite side, cross- switch the front and rear wheels on the same side.
4. If the vehicle pull direction does not change, check the front suspension components, wheel alignment and frame alignment. For additional information, refer to Section 204 - 00 or frame
dimensions manual. Klj . 10 ba
112003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

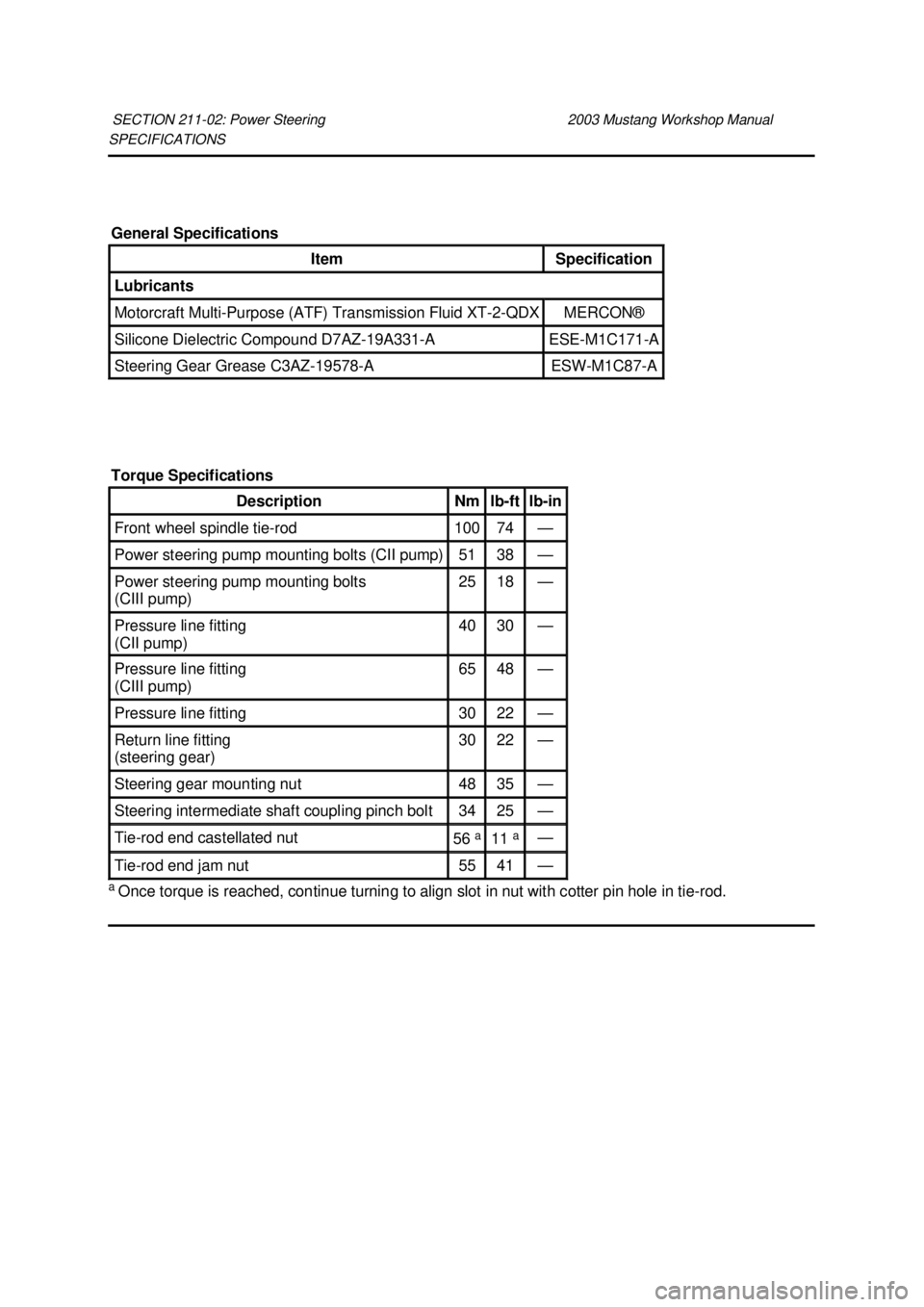

SPECIFICATIONS
a
Once torque is reached, continue turning to align slot in nut with cotter pin hole in tie- rod.
SECTION 211-
02: Power Steering 2003 Mustang Workshop Manual General Specifications
Item Specification
Lubricants
Motorcraft Multi-Purpose (ATF) Transmission Fluid XT
-2-QDX MERCON®
Silicone Dielectric Compound D7AZ-
19A331-A ESE-
M1C171- A Steering Gear Grease C3AZ-19578-
A ESW-
M1C87- A
Torque Specifications Description Nm lb-
ft lb-
in Front wheel spindle tie-
rod 100 74 —
Power steering pump mounting bolts (CII pump) 51 38 —
Power steering pump mounting bolts
(CIII pump) 25 18 —
Pressure line fitting
(CII pump) 40 30 —
Pressure line fitting
(CIII pump) 65 48 —
Pressure line fitting 30 22 —
Return line fitting
(steering gear) 30 22 —
Steering gear mounting nut 48 35 —
Steering intermediate shaft coupling pinch bolt 34 25 —
Tie-
rod end castellated nut 56
a 11
a —
Tie-
rod end jam nut 55 41 — Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

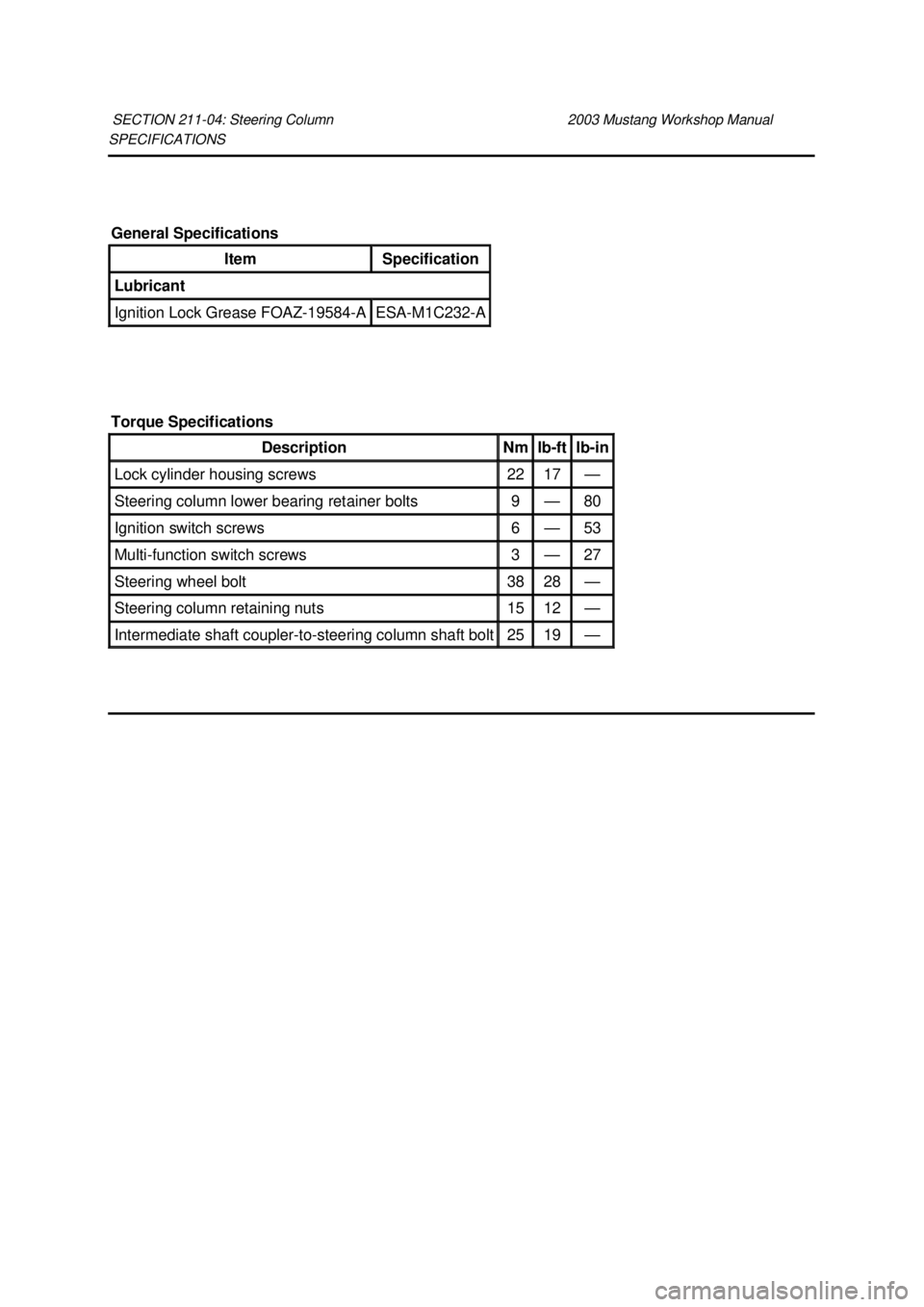

SPECIFICATIONS
SECTION 211-
04: Steering Column 2003 Mustang Workshop Manual General Specifications
Item Specification
Lubricant
Ignition Lock Grease FOAZ-19584-
A ESA-
M1C232- A
Torque Specifications Description Nm lb-
ft lb-
in Lock cylinder housing screws 22 17 —
Steering column lower bearing retainer bolts 9 — 80
Ignition switch screws 6 — 53
Multi-
function switch screws 3 — 27
Steering wheel bolt 38 28 —
Steering column retaining nuts 15 12 —
Intermediate shaft coupler-
to-steering column shaft bolt 25 19 — Klj . 1 ba
12003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

NOTE:
All fasteners are important because they can affect the performance of vital parts and systems.
Incorrect installation of the fasteners can result in major repair expenses. They must be installed new
with fasteners of the same part number if installation becomes necessary. Do not install a new part of
lesser quality or substitute a design. Torque values must be used as specified during assembly to
make sure these parts function correctly.
The body of the steering column (3C529) is made of magnesium die castings. The steering column is
attached to a support that is an integral part of the instrument panel. The lower attachments of the
steering column are through a bracket that bends during collapse. The upper attachments are through
plastic shear modules that separate from the main casting during collapse. A clip and washer are
attached to the shear modules to reduce steering column shake and to assist in installation of the
steering column. 45 N621906 Nut
46 N803942 Bolt
47 3A525 Intermediate shaft coupling
48 11A128 Ignition key warning switch terminal
49 N806583 Bearing housing retaining screw
50 N804865-
S58 Screw
51 14A06 Wire connector bracket
52 3E715 Lock lever lower actuator
53 3E691 Lock pawl
54 3F723 Actuator housing
55 3E745 Lock actuator cover
56 3F719 Ignition/shifter interlock cable
57 N808124-
58M Screw
58 3D655 Position spring
59 3D656 Tilt flange bumper
60 N806582 Tilt pivot screws
61 11582 Ignition switch lock cylinder
62 3E700 Lock housing bearing
63 3E717 Lock gear
64 3530 Upper shroud
65 3511 Lock cylinder housing
66 N805857 Lock actuator lever pin
67 3D681 Bearing retainer Klj . 3 ba
42003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

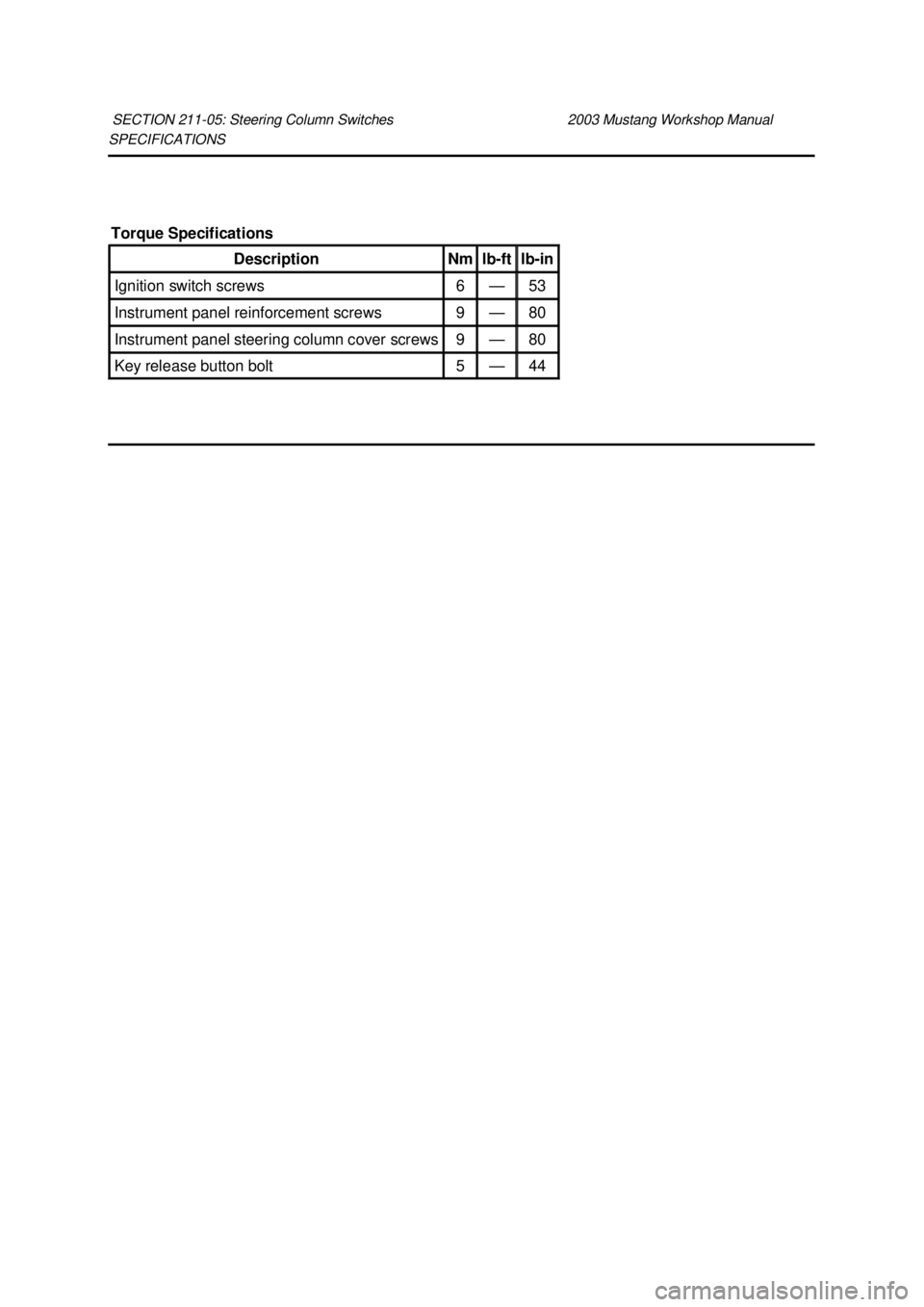

SPECIFICATIONS
SECTION 211-
05: Steering Column Switches 2003 Mustang Workshop Manual Torque Specifications
Description Nm lb-
ft lb-
in Ignition switch screws 6 — 53
Instrument panel reinforcement screws 9 — 80
Instrument panel steering column cover screws 9 — 80
Key release button bolt 5 — 44 Klj . 1 ba
12003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

a
20- 200 seconds to leakdown 3.18 mm (0.125 in) with 225 Newtons (50 pounds) load and tappet filled
with leak- down fluid. —
desired Connecting rod bearing-
to-crankshaft clearance
— allowable 0.022-
0.069 mm (0.00086- 0.0027 in) Connecting rod side clearance 0.11-
0.49 mm (0.0047- 0.0193 in) Balance Shaft
Journal diameter 52.108-
52.082 mm (2.0515- 2.0505 in) Bore inside diameter 55.689-
55.664 mm (2.192- 2.191 in) Maximum runout 0.025 mm (0.001 in)
End play 0.075-
0.200 mm (0.003- 0.008 in)
Torque Specifications Description Nm lb-
ft lb-
in EGR transducer bracket-
to-intake manifold bolts 10 — 89
Ignition coil-
to-intake manifold bolts 6 — 53
Water outlet tube-
to-intake manifold stud bolt 10 — 89
EGR tube-
to-EGR valve nut 40 30 —
Water outlet tube-
to-front water pump bolt 10 — 89
Fuel supply manifold bolts 10 — 89
LH valve cover-
to-cylinder head bolts 10 — 89
LH valve cover-
to-cylinder head stud bolts 10 — 89
EGR tube-
to-exhaust manifold nut 40 30 —
RH valve cover-
to-cylinder head bolts 10 — 89
RH valve cover-
to-cylinder head stud bolts 10 — 89
Coolant recovery reservoir-
to-cylinder head stud bolts 10 — 89
Coolant recovery reservoir-
to-bracket bolts 5 — 44
Crankshaft pulley bolt 160 118 —
Camshaft position sensor bolts 3 — 27
Camshaft synchronizer-
to-front cover bolt 25 18 —
Front cover-
to-cylinder block bolts 25 18 —
Radiator fan shroud-
to-radiator bolts 9 — 80
Camshaft thrust plate-
to-cylinder block bolts 12 9 —
Camshaft synchronizer drive gear-
to-camshaft bolt 45 33 —
Timing chain tensioner-
to-cylinder block bolts 12 9 —
Exhaust manifold-
to-cylinder head nuts 33 24 —
Power steering pump bracket-
to-water pump nuts 20 15 —
Power steering pump bracket-
to-generator bracket bolts 20 15 —
Generator bracket-
to-cylinder head bolts 40 30 —
Exhaust manifold studs 8 — 71
A/C compressor bracket-
to-cylinder head bolts 48 35 —
A/C compressor bracket-
to-cylinder head nut 48 35 — Klj . 4 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
