REMOVAL AND INSTALLATION
Link —
Stabilizer Bar
Removal
CAUTION: Suspension fasteners are critical parts because they affect performance of vital
components and systems and their failure can result in major service expense. A new part with
the same part number or an equivalent part must be installed, if installation is necessary. Do
not use a part of lesser quality or substitute design. Torque values must be used as specified
during reassembly to ensure correct retention of these parts.
1. Raise the vehicle on a hoist. For additional information, refer to Section 100 - 02 .

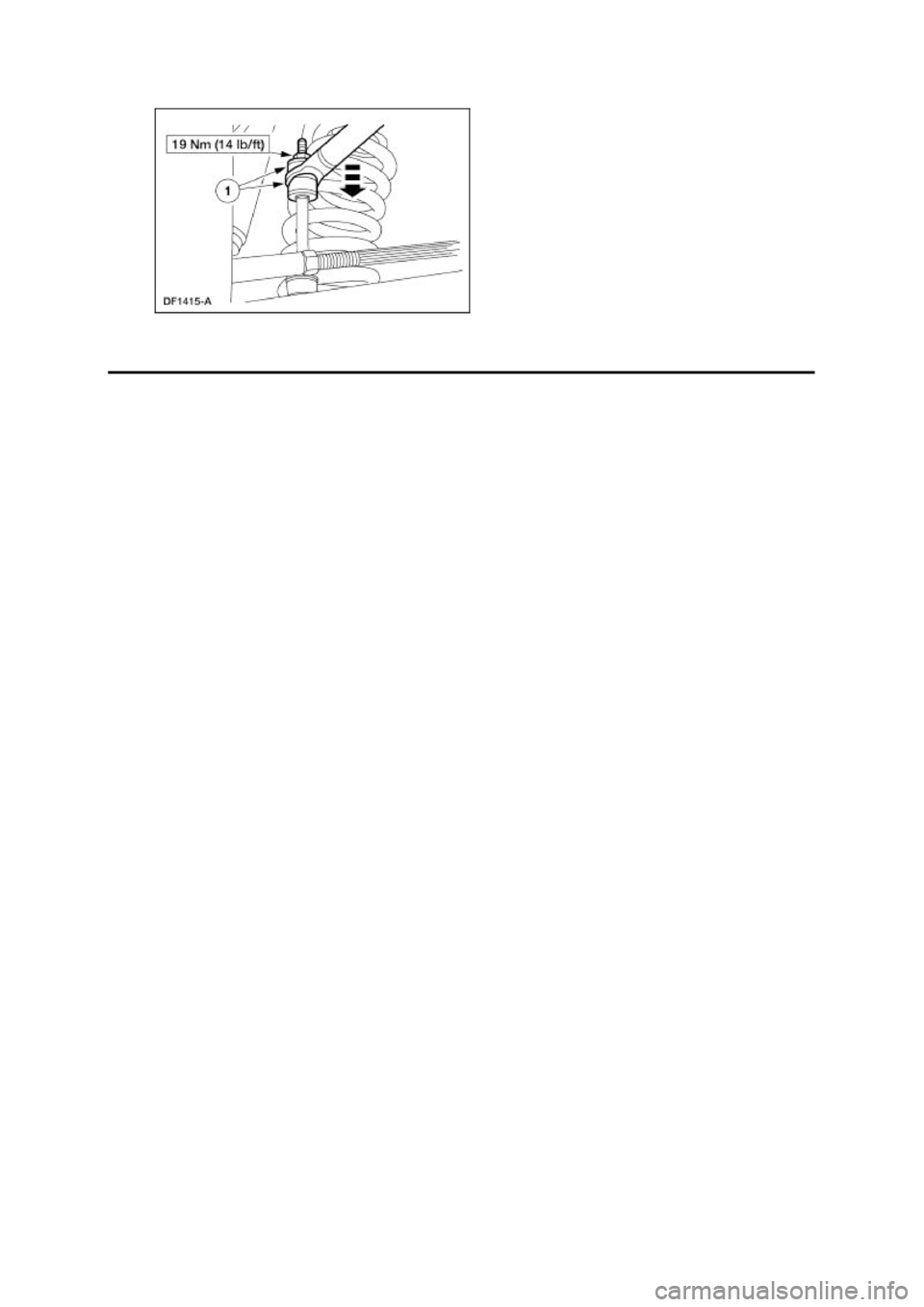

2. Disconnect the front stabilizer bar links (5K483) from the front stabilizer bar (5482). 1. Remove the nuts and bushings. Discard the nuts.
2. Rotate the stabilizer bar to disconnect the links.

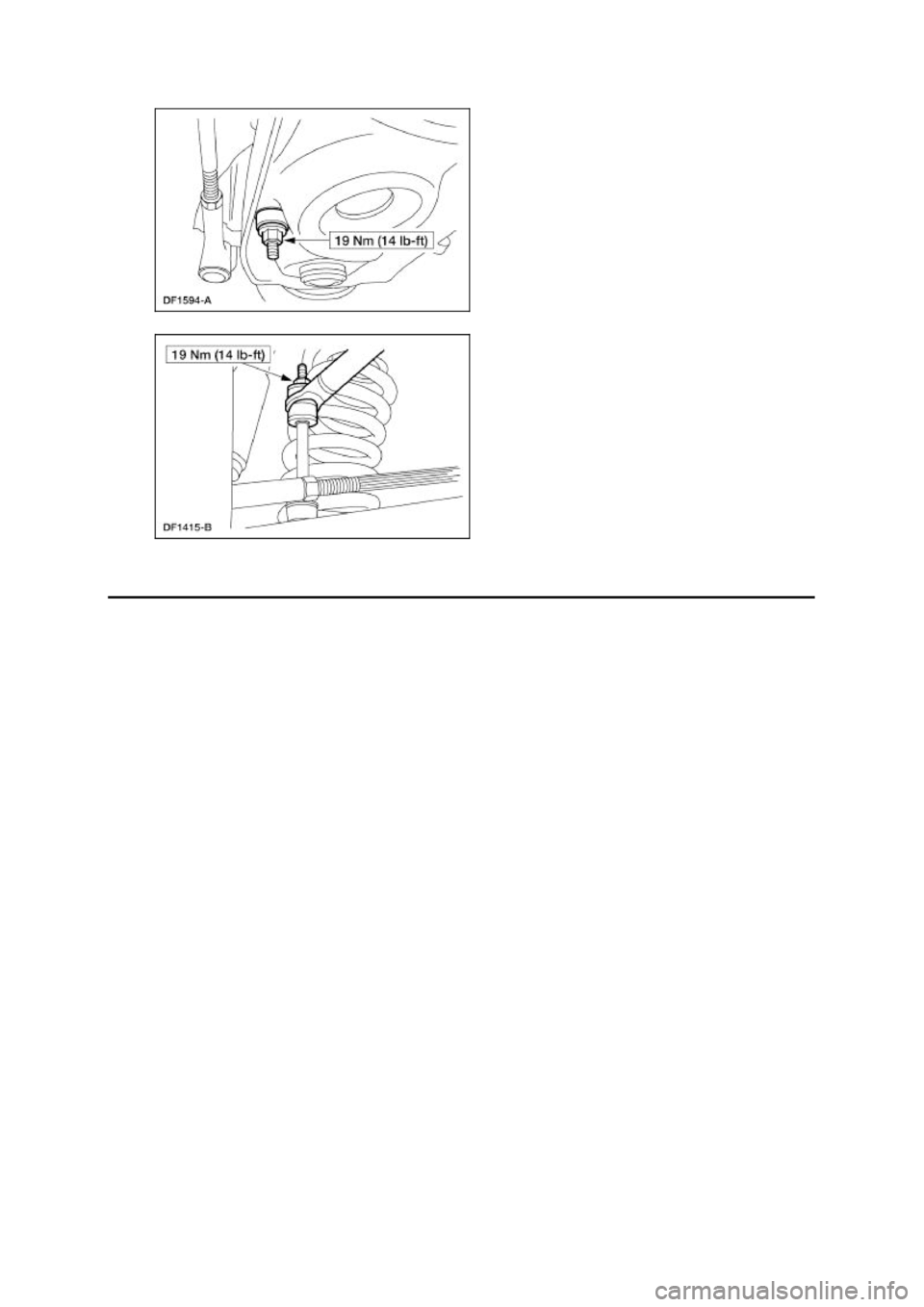

3. Remove the stabilizer bar links. 1. Remove the nuts and bushings.
2. Remove the stabilizer bar links.

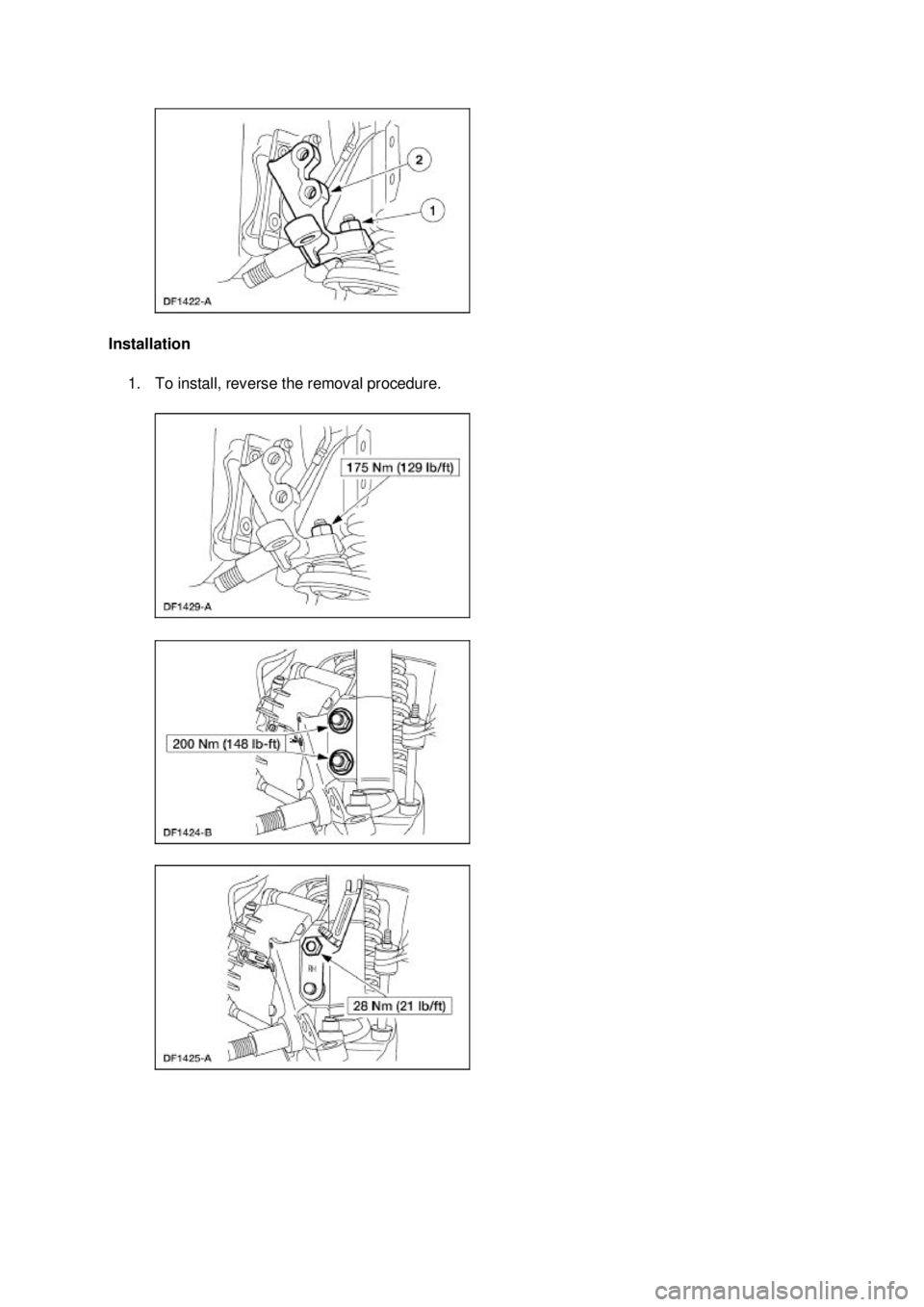

Installation 1. To install, reverse the removal procedure.
SECTION 204-
01: Front Suspension 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Klj . 2 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Bushing —
Stabilizer Bar
Removal
CAUTION: Suspension fasteners are critical parts because they affect performance of vital
components and systems and their failure can result in major service expense. A new part with
the same part number or an equivalent part must be installed, if installation is necessary. Do
not use a part of lesser quality or substitute design. Torque values must be used as specified
during reassembly to ensure correct retention of these parts.
1. Raise the vehicle on a hoist. For additional information, refer to Section 100 - 02 .
2. Remove the wheel and tire assemblies. For additional information, refer to Section 204 - 04 .
3. Disconnect the front stabilizer bar links (5K483) from the front stabilizer bar (5482). 1. Remove the nuts and bushings. Discard the nuts.
2. Rotate the stabilizer bar to disconnect the links.
4. Remove and discard the nuts.
5. Remove the stabilizer bar bracket (5486) and the stabilizer bar mounting bracket adapter (5B482).
SECTION 204-
01: Front Suspension 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

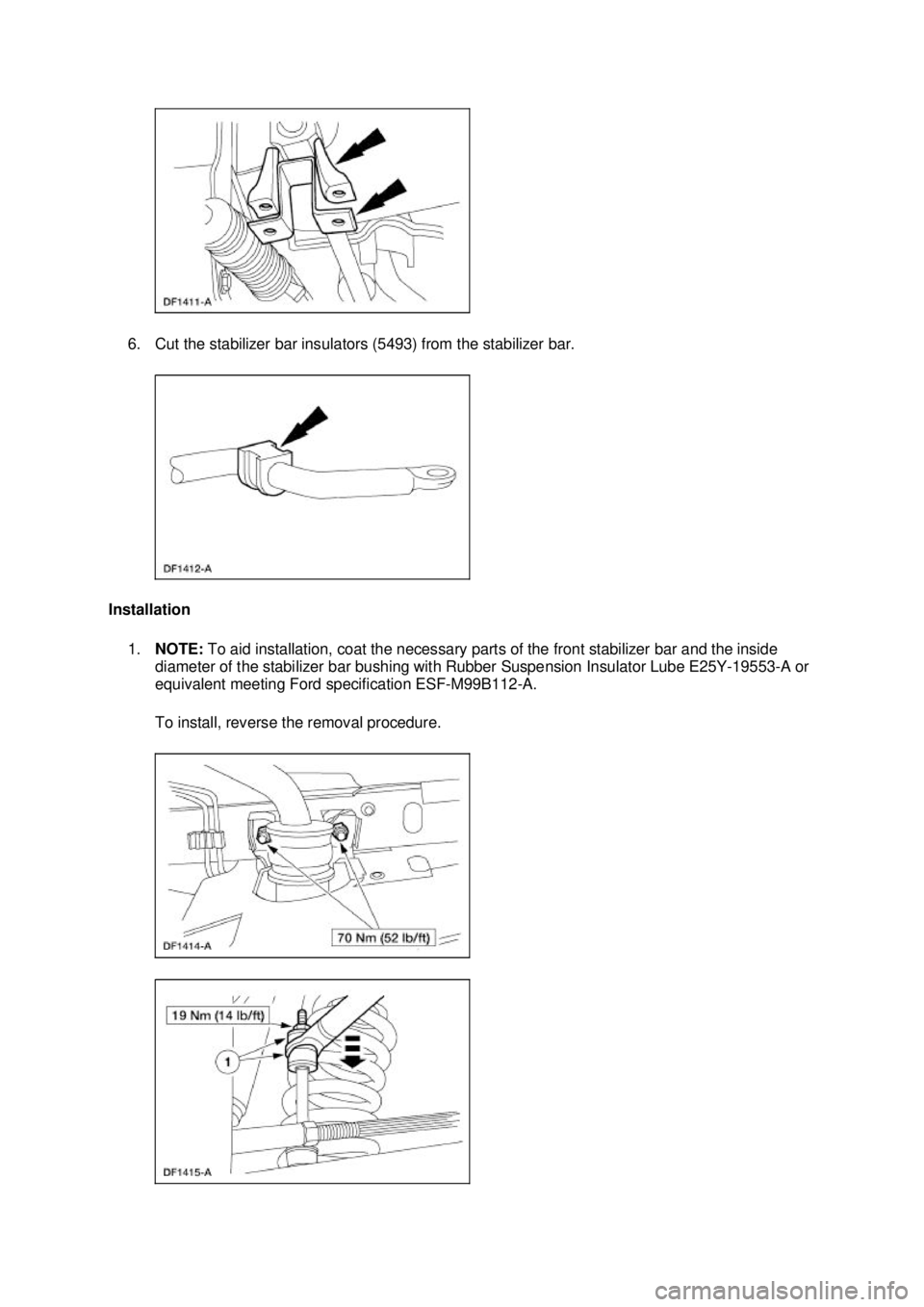

6. Cut the stabilizer bar insulators (5493) from the stabilizer bar.
Installation 1. NOTE: To aid installation, coat the necessary parts of the front stabilizer bar and the inside
diameter of the stabilizer bar bushing with Rubber Suspension Insulator Lube E25Y-19553- A or
equivalent meeting Ford specification ESF-M99B112- A.
To install, reverse the removal procedure. Klj . 2 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Klj . 3 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Spindle
Removal
CAUTION: Suspension fasteners are critical parts because they affect performance of vital
components and systems and their failure can result in major service expense. A new part with
the same part number or an equivalent part must be installed, if installation is necessary. Do
not use a part of lesser quality or substitute design. Torque values must be used as specified
during reassembly to ensure correct retention of these parts.
1. Raise the vehicle on a hoist. For additional information, refer to Section 100 - 02 .
2. Remove the wheel and tire assembly. For additional information, refer to Section 204 - 04 .
3. Remove the front wheel hub (1104). For additional information, refer to Wheel Hub and Bearing in this section.
4. Remove the bolt and the ABS sensor.
5. Unclip the ABS sensor wire from the bracket.
SECTION 204-
01: Front Suspension 2003 Mustang Workshop Manual Special Tool(s)
Tie-
Rod End Remover
211- 001 (TOOL- 3290-D) or
Equivalent Klj . 1 ba
52003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

6. Remove the front brake disc shield.
1. Remove the three shield rivets.
2. Remove the shield.
7. Remove the cotter pin and nut. Discard the cotter pin.
8. CAUTION: Use care not to damage the tie- rod end dust boot.
Using the special tool, disconnect the tie- rod end from the front wheel spindle.
9. CAUTION: To prevent damage to the front suspension lower arm (3078), do not
remove the nut from the ball joint (3050) at this time.
Disconnect the ball joint stud from the front wheel spindle (3105).
zLoosen the ball joint stud two or three turns.
z Sharply rap on the spindle at the ball joint connection to disconnect the ball joint stud. Klj . 2 ba
52003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

10. Support the front suspension lower arm with a jack stand.
11. Remove the nut and the ABS sensor wire bracket.
12.
WARNING: All vehicles are equipped with gas pressurized shock absorbers which
will extend unassisted. Do not apply heat or flame to the shock absorbers during
removal or component servicing. Failure to follow these instructions can result in
personal injury.
Disconnect the front shock absorber (18124) from the spindle. 1. Remove and discard the nuts and bolts.
2. Disconnect the shock absorber.
13. Remove the spindle. 1. Remove and discard the nut.
2. Remove the spindle. Klj . 3 ba
52003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Installation
1. To install, reverse the removal procedure. Klj . 4 ba
