GENERAL PROCEDURES

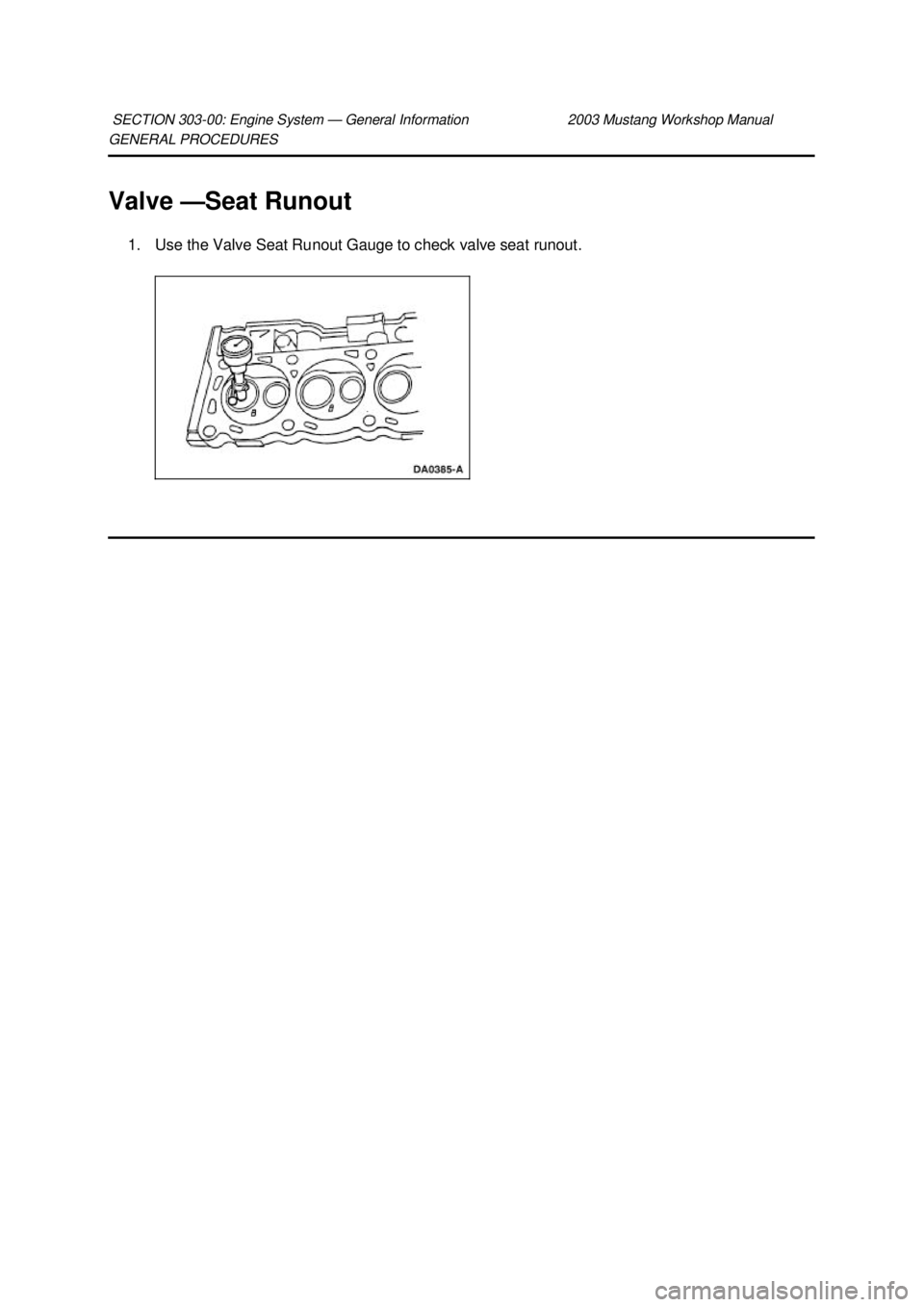

Valve —
Seat Runout
1. Use the Valve Seat Runout Gauge to check valve seat runout.
SECTION 303-
00: Engine System — General Information 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

GENERAL PROCEDURES

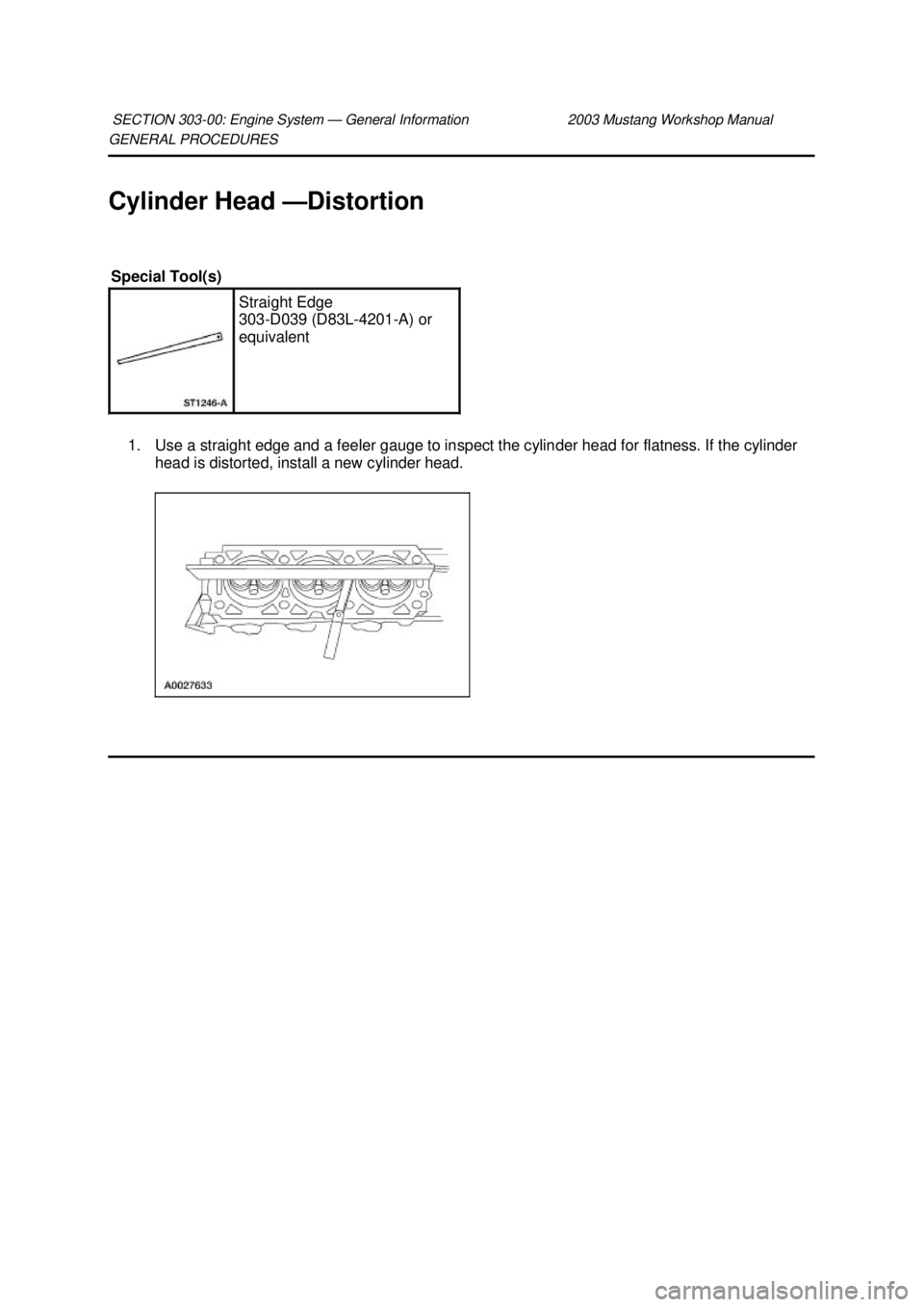

Cylinder Head —
Distortion
1. Use a straight edge and a feeler gauge to inspect the cylinder head for flatness. If the cylinder head is distorted, install a new cylinder head.
SECTION 303-
00: Engine System — General Information 2003 Mustang Workshop Manual Special Tool(s)
Straight Edge
303-
D039 (D83L-4201- A) or
equivalent Klj . 1 ba
12003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

GENERAL PROCEDURES
Cylinder Bore —
Cleaning
1. CAUTION: If these procedures are not followed, rusting of the cylinder bores may
occur.
Clean the cylinder bores with soap or detergent and water.
2. Thoroughly rinse with clean water and wipe dry with a clean, lint- free cloth.
3. Use a clean, lint- free cloth and lubricate the cylinder bores.
z Use clean engine oil meeting Ford specification.
SECTION 303-
00: Engine System — General Information 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

GENERAL PROCEDURES
Cylinder Block Core Plug Replacement
1. Use a slide hammer or tools suitable to remove the cylinder block core plug.
2. Inspect the cylinder block plug bore for any damage that would interfere with the correct sealing of the plug. If the cylinder block plug bore is damaged, bore for the next oversize plug.
3. NOTE: Oversize plugs are identified by the OS stamped in the flat located on the cup side of
the plug.
Coat the cylinder block core plug and bore lightly with Threadlock® 262 and install the cylinder
block core plug.
Cup- Type
4. CAUTION: Use care during this procedure so as not to disturb or distort the cup
sealing surface.
CAUTION: When installed, the flanged edge must be below the chamfered edge of
the bore to effectively seal the bore. Use a tool suitable to seat the cup - type cylinder block core plug. SECTION 303-
00: Engine System — General Information 2003 Mustang Workshop Manual Special Tool(s)
Slide Hammer
100-
001 (T50T-100- A)
Material Item Specification
Threadlock® 262
E2FZ-
19554- B or equivalent WSK-
M2G351- A6 Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

GENERAL PROCEDURES

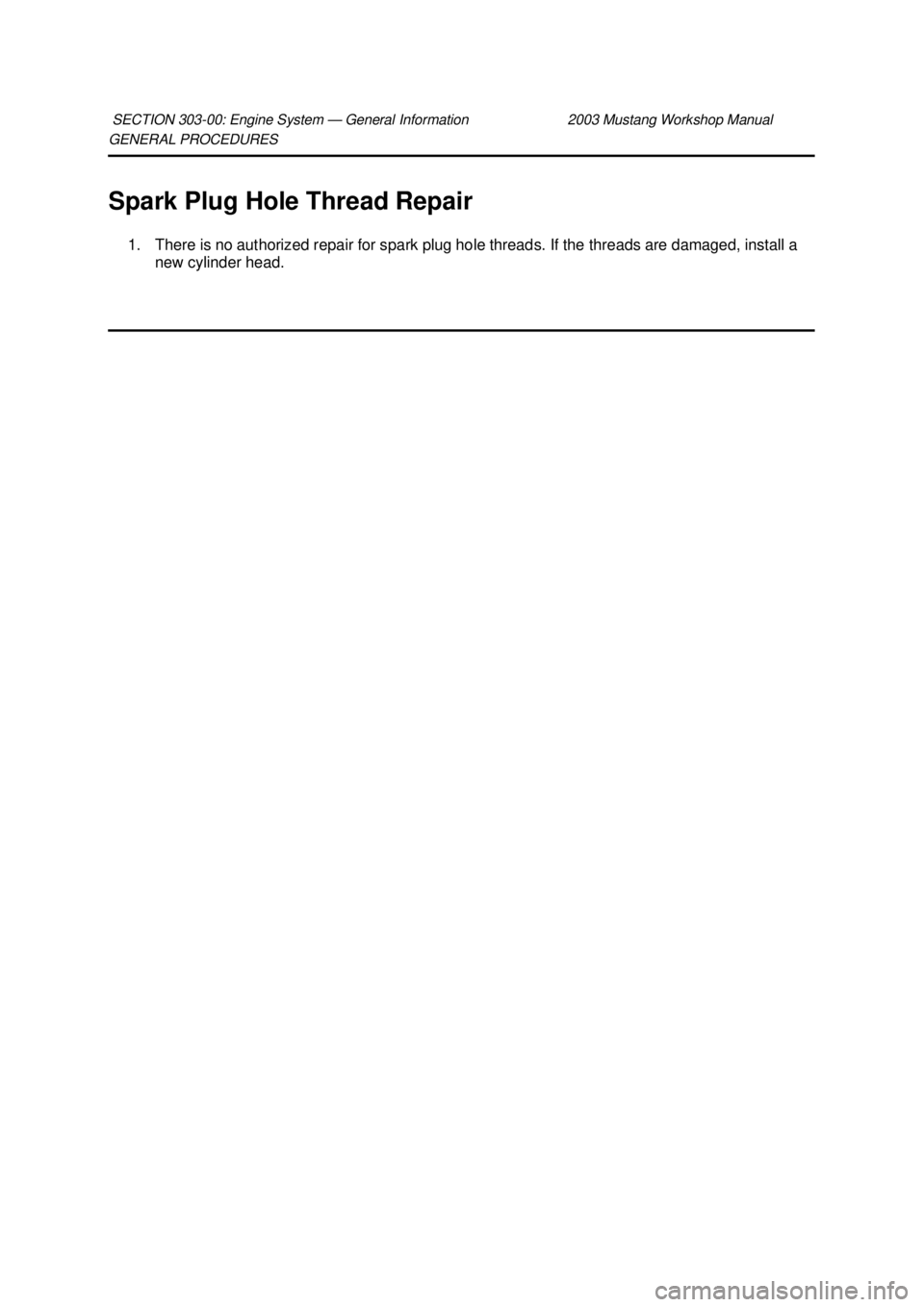

Spark Plug Hole Thread Repair
1. There is no authorized repair for spark plug hole threads. If the threads are damaged, install a new cylinder head.
SECTION 303-
00: Engine System — General Information 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

GENERAL PROCEDURES

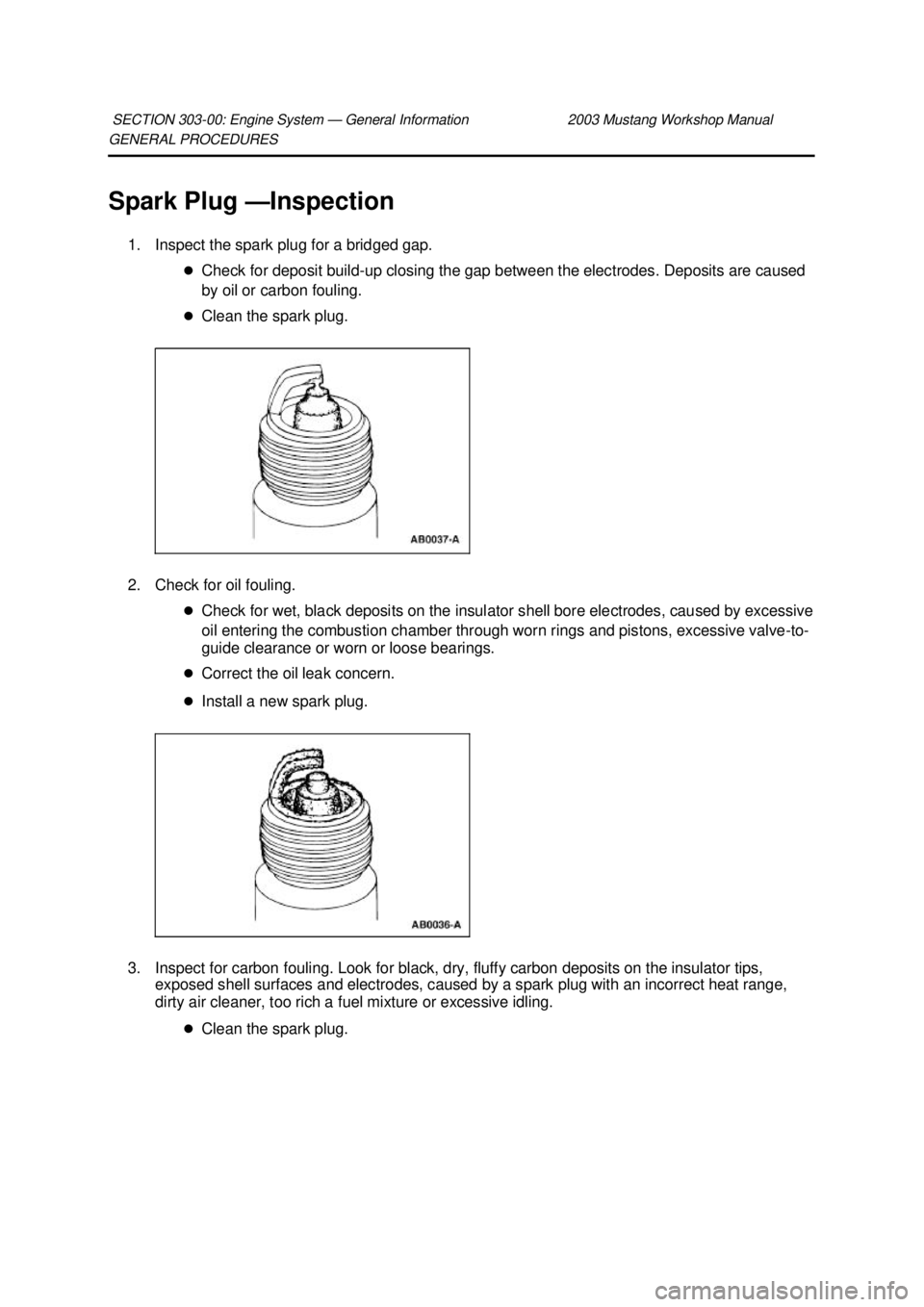

Spark Plug —
Inspection
1. Inspect the spark plug for a bridged gap. zCheck for deposit build- up closing the gap between the electrodes. Deposits are caused
by oil or carbon fouling.
z Clean the spark plug.
2. Check for oil fouling. zCheck for wet, black deposits on the insulator shell bore electrodes, caused by excessive
oil entering the combustion chamber through worn rings and pistons, excessive valve- to-
guide clearance or worn or loose bearings.
z Correct the oil leak concern.
z Install a new spark plug.
3. Inspect for carbon fouling. Look for black, dry, fluffy carbon deposits on the insulator tips, exposed shell surfaces and electrodes, caused by a spark plug with an incorrect heat range,
dirty air cleaner, too rich a fuel mixture or excessive idling.
zClean the spark plug.
SECTION 303-
00: Engine System — General Information 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

4. Inspect for normal burning.
zCheck for light tan or gray deposits on the firing tip.
5. Inspect for pre- ignition, identified by melted electrodes and a possibly damaged insulator.
Metallic deposits on the insulator indicate engine damage. This may be caused by incorrect
ignition timing, wrong type of fuel or the unauthorized installation of a heli- coil insert in place of
the spark plug threads.
zInstall a new spark plug.
6. Inspect for overheating, identified by a white or light gray spots and with bluish- burnt
appearance of electrodes. This is caused by engine overheating, wrong type of fuel, loose spark
plugs, spark plugs with an incorrect heat range, low fuel pump pressure or incorrect ignition
timing.
zInstall a new spark plug. Klj . 2 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

GENERAL PROCEDURES

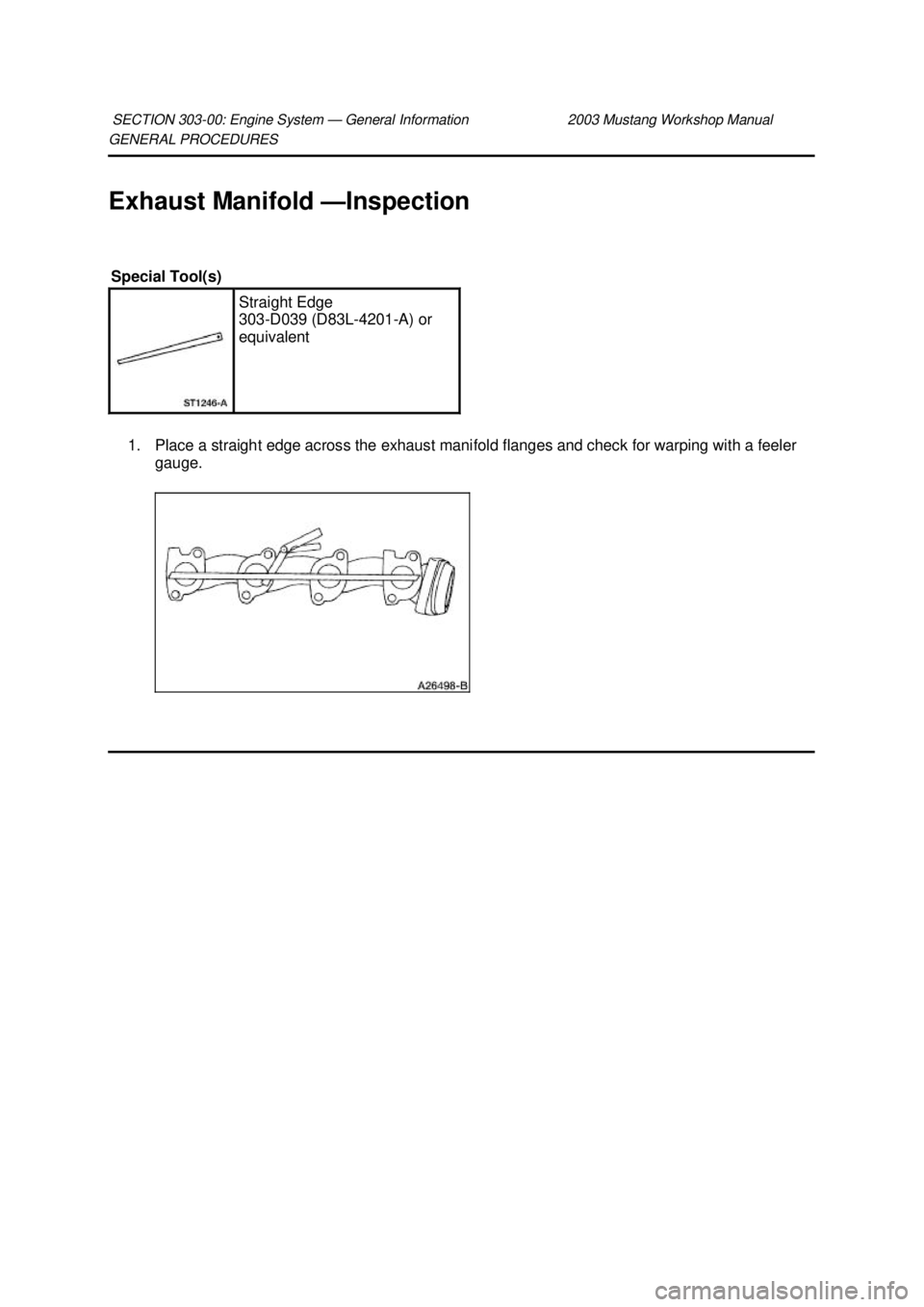

Exhaust Manifold —
Inspection
1. Place a straight edge across the exhaust manifold flanges and check for warping with a feeler gauge.
SECTION 303-
00: Engine System — General Information 2003 Mustang Workshop Manual Special Tool(s)
Straight Edge
303-
D039 (D83L-4201- A) or
equivalent Klj . 1 ba
12003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

GENERAL PROCEDURES

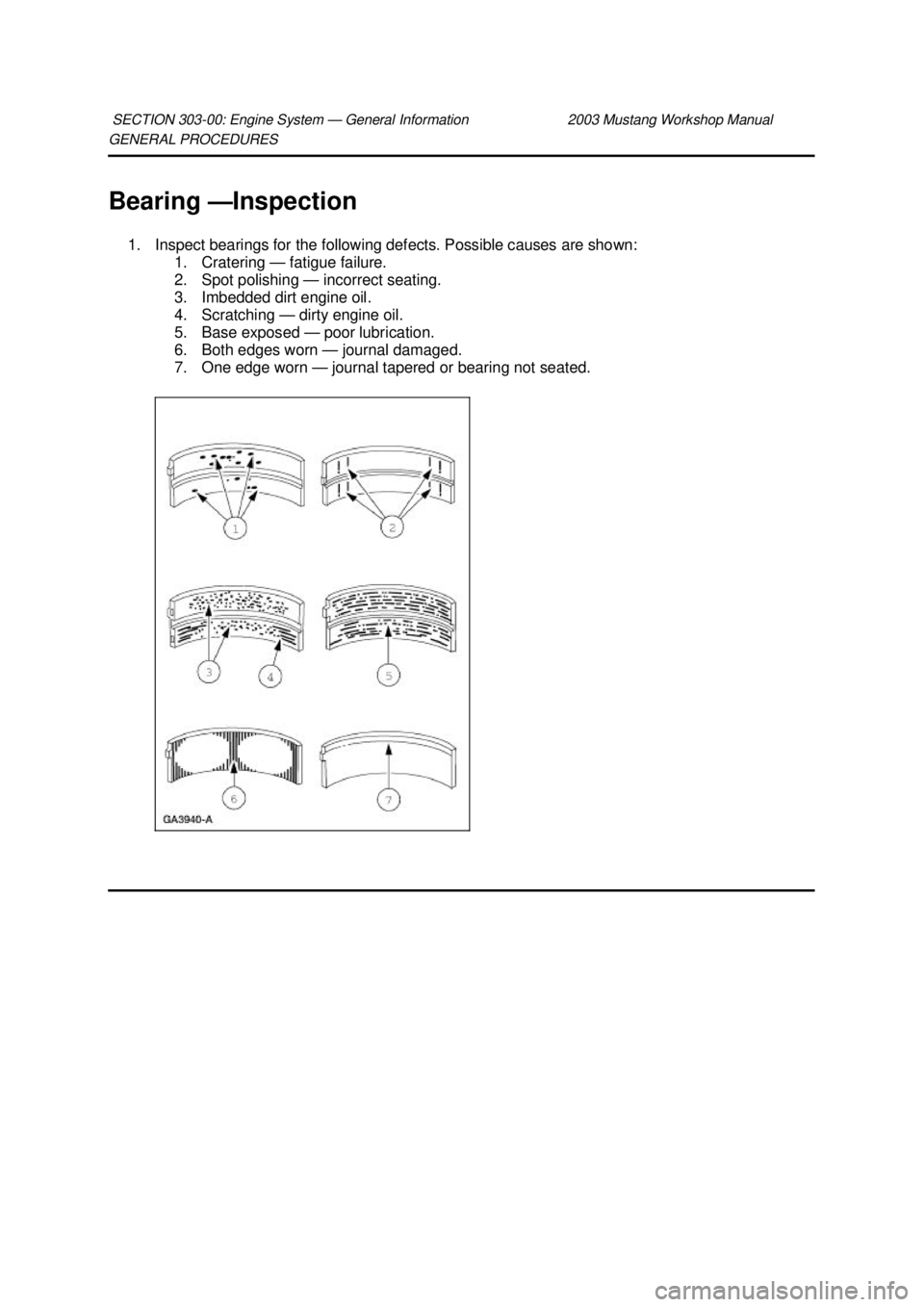

Bearing —
Inspection
1. Inspect bearings for the following defects. Possible causes are shown: 1. Cratering — fatigue failure.
2. Spot polishing — incorrect seating.
3. Imbedded dirt engine oil.
4. Scratching — dirty engine oil.
5. Base exposed — poor lubrication.
6. Both edges worn — journal damaged.
7. One edge worn — journal tapered or bearing not seated.
SECTION 303-
00: Engine System — General Information 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

SPECIFICATIONS
SECTION 303-
01A: Engine — 3.8L 2003 Mustang Workshop Manual General Specifications
Item Specification
Lubricants and Sealants
SAE 5W-
20 Premium Synthetic Blend Motor Oil
XO- 5W20- QSP WSS-
M2C153- H Gasket and Trim Adhesive F3AZ-19B508-
AA ESE-
M2G52- A Pipe Sealant with Teflon® D8AZ-19554-
A WSK-
M2G350- A2 Silicone Gasket and Sealant F7AZ-19554-
EA WSE-
M4G323- A4 Metal Surface Cleaner F4AZ-19A536-
RA WSE-
M5B392- A Engine
Displacement 3.8L
Number of cylinders 6
Bore 96.8325 mm (3.81 in)
Stroke 86.0 mm (3.39 in)
Firing order 1-4-2-5-3-
6 Oil pressure (hot 2,500 rpm) 40-
125 psi Oil capacity 5 quarts w/filter change
Compression ratio —
Cylinder Head and Valve Train
Cylinder head gasket surface flatness 0.18 mm (0.007 in)
Combustion chamber volume 61.5-
64.5 cc Valve arrangement (front to rear) —
Valve guide bore diameter 7.015-
7.044 mm (0.276- 0.277 in) Valve stem diameter —
intake 6.955-
6.988 mm (0.2738- 0.2751 in) Valve stem diameter —
exhaust 6.929-
6.962 mm (0.2728- 0.2741 in) Valve stem diameter —
oversize (intake) 9.075-
9.055 mm (0.3573- 0.3565 in) Valve stem diameter —
oversize (exhaust) 9.063-
9.043 mm (0.3568- 0.3560 in) Valve stem diameter —
oversize (intake) 9.456-
9.436 mm (0.3723- 0.3715 in) Valve stem diameter —
oversize (exhaust) 9.444-
9.424 mm (0.3718- 0.3710 in) Valve stem-
to-guide clearance — intake 0.020-
0.069 mm (0.045- 0.090 in) Valve stem-
to-guide clearance — exhaust 0.038-
0.083 mm (0.0015- 0.0033 in) Valve head diameter —
intake 47.27 mm (1.86 in)
Valve head diameter —
exhaust 37.1 mm (1.46 in)
Valve face runout 0.05 mm (0.002 in)
Valve face angle 45.675 degrees
Valve seat width 1.5-
2.0 mm (0.06- 0.08 in) Valve seat runout (T.I.R.) 0.076 mm (0.003 in) Klj . 1 ba
