engine FORD MUSTANG 2003 Workshop Manual

GENERAL PROCEDURES

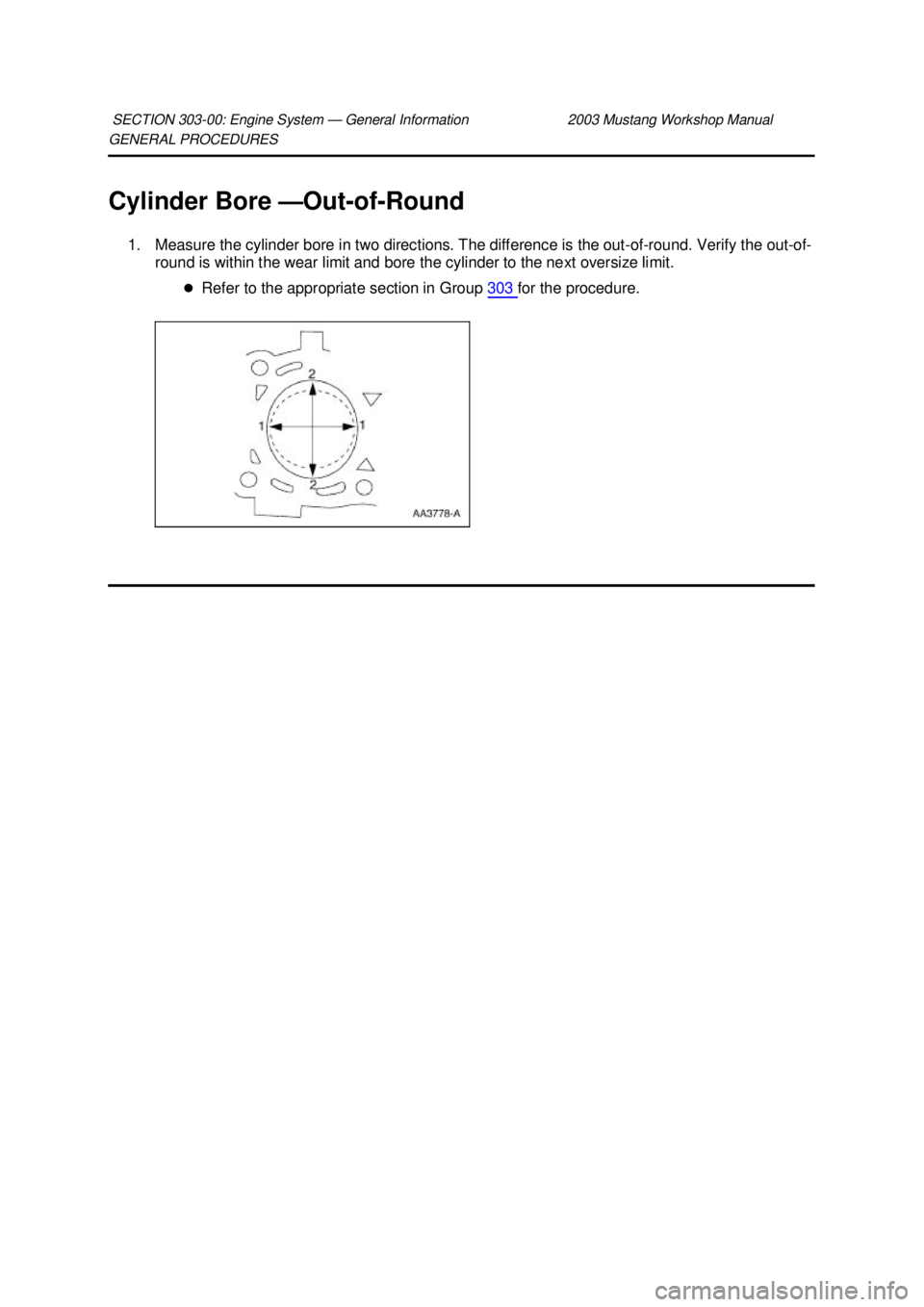

Cylinder Bore —
Out-of-Round
1. Measure the cylinder bore in two directions. The difference is the out-of- round. Verify the out-of-
round is within the wear limit and bore the cylinder to the next oversize limit.
zRefer to the appropriate section in Group 303 for the procedure.
SECTION 303-
00: Engine System — General Information 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

GENERAL PROCEDURES
Piston Inspection
CAUTION: Do not use a caustic cleaning solution or a wire brush to clean the pistons or
damage can occur.
1. Clean and inspect the (1) ring lands, (2) skirts, (3) pin bosses, and the (4) tops of the pistons. If wear marks, scores or glazing is found on the piston skirt, check for a bent or twisted
connecting rod.
2. Use the Piston Ring Groove Scraper to clean the piston ring grooves. zMake sure the oil ring holes are clean.
SECTION 303-
00: Engine System — General Information 2003 Mustang Workshop Manual Special Tool(s)
Scraper, Piston Ring Groove
303-
D033 (D81L-6002- D) or
equivalent Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

GENERAL PROCEDURES
Piston —
Pin to Bore Diameter
1. WARNING: Cover the end of the pin bore with a hand or shop rag when removing
the retainer ring, since it has a tendency to spring out. Wear eye protection.
NOTE: Piston and piston pins are a matched set and should not be interchanged.
Measure the piston pin bore diameter in two directions on each side. Verify the diameter is
within specification. zIf out of specification, install new components as necessary. Refer to the appropriate
section in Group 303 for the procedure.
SECTION 303-
00: Engine System — General Information 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

GENERAL PROCEDURES

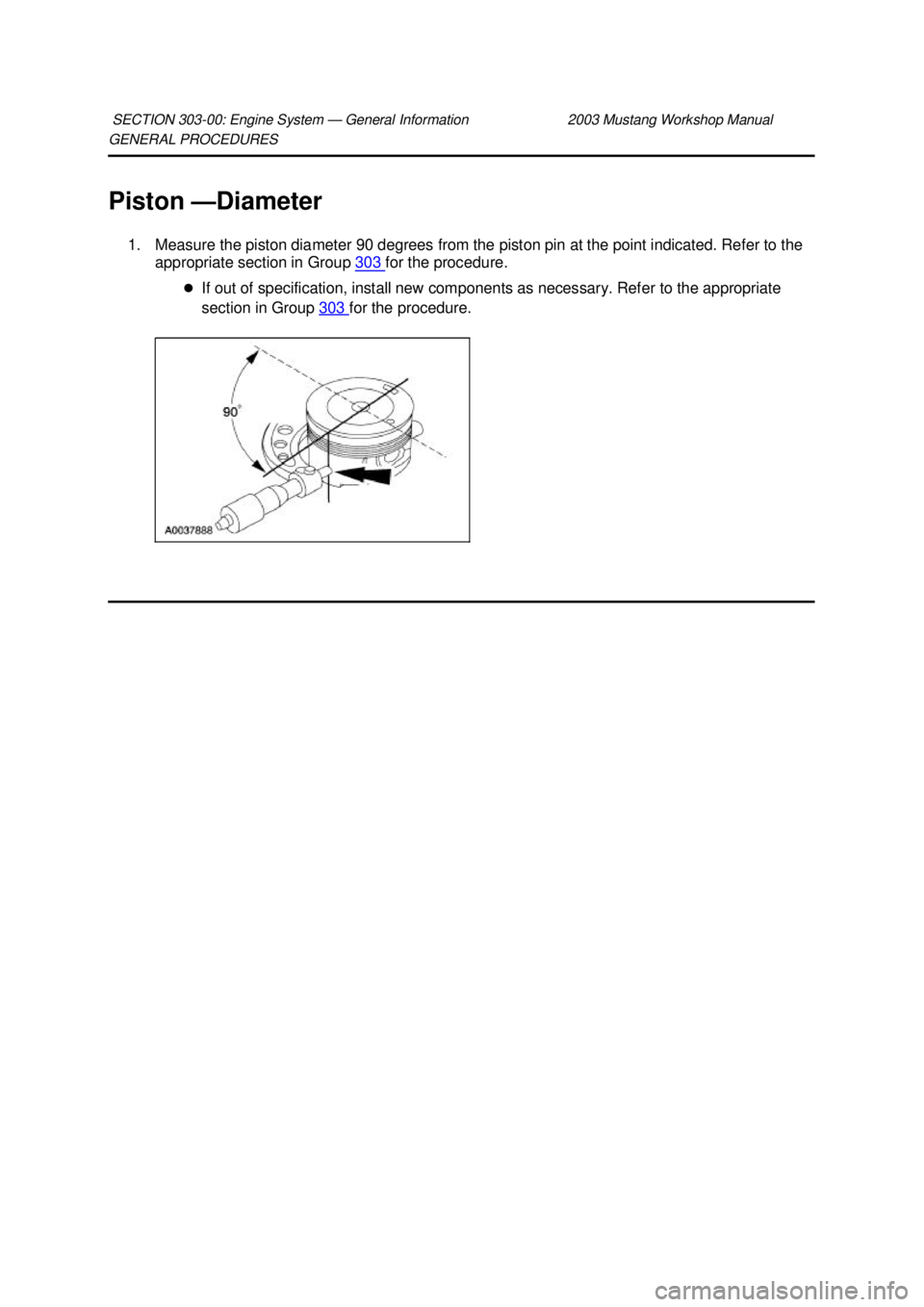

Piston —
Diameter
1. Measure the piston diameter 90 degrees from the piston pin at the point indicated. Refer to the appropriate section in Group 303 for the procedure.
z If out of specification, install new components as necessary. Refer to the appropriate
section in Group 303 for the procedure.
SECTION 303-
00: Engine System — General Information 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

GENERAL PROCEDURES

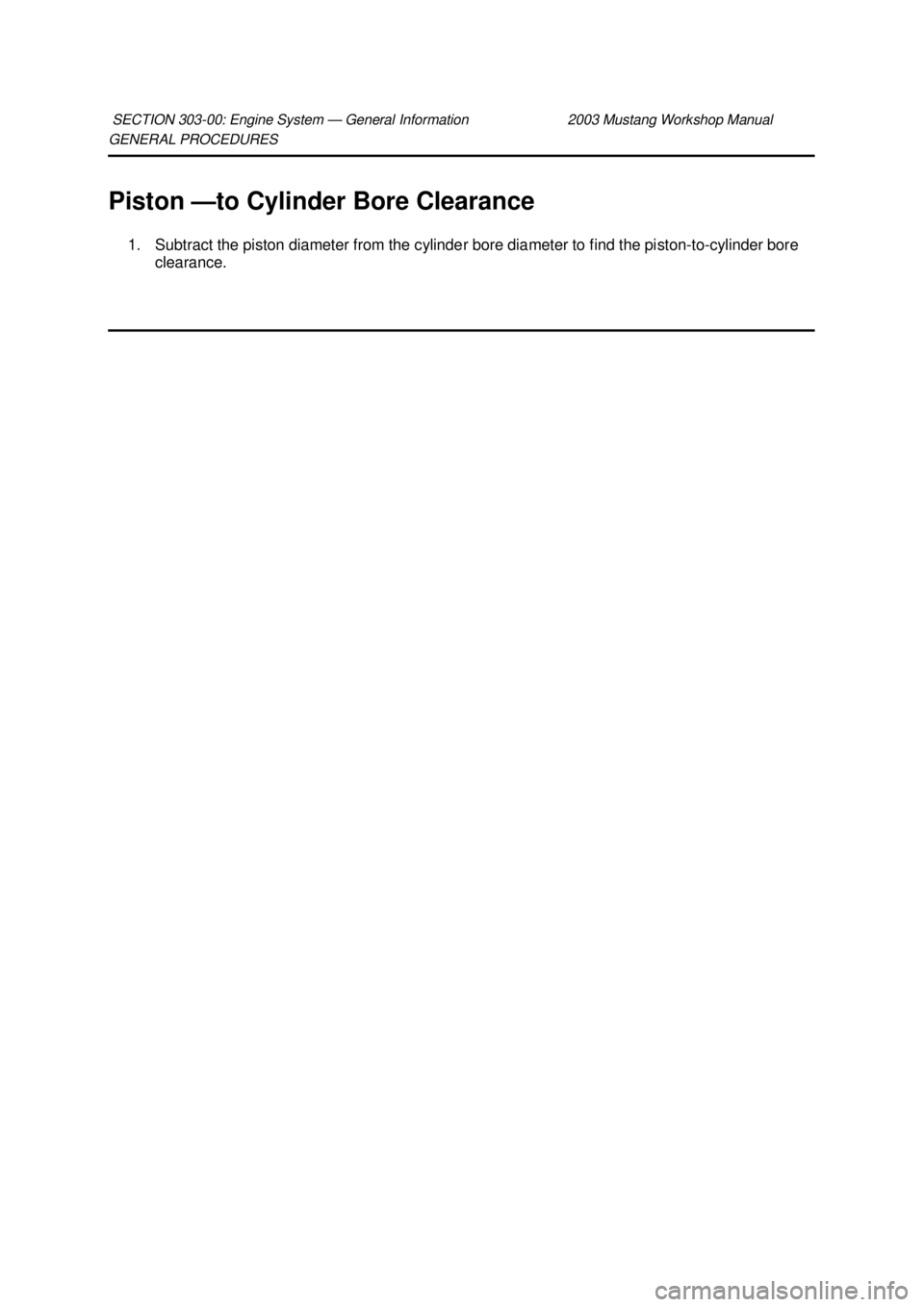

Piston —
to Cylinder Bore Clearance
1. Subtract the piston diameter from the cylinder bore diameter to find the piston- to-cylinder bore
clearance.
SECTION 303-
00: Engine System — General Information 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

GENERAL PROCEDURES

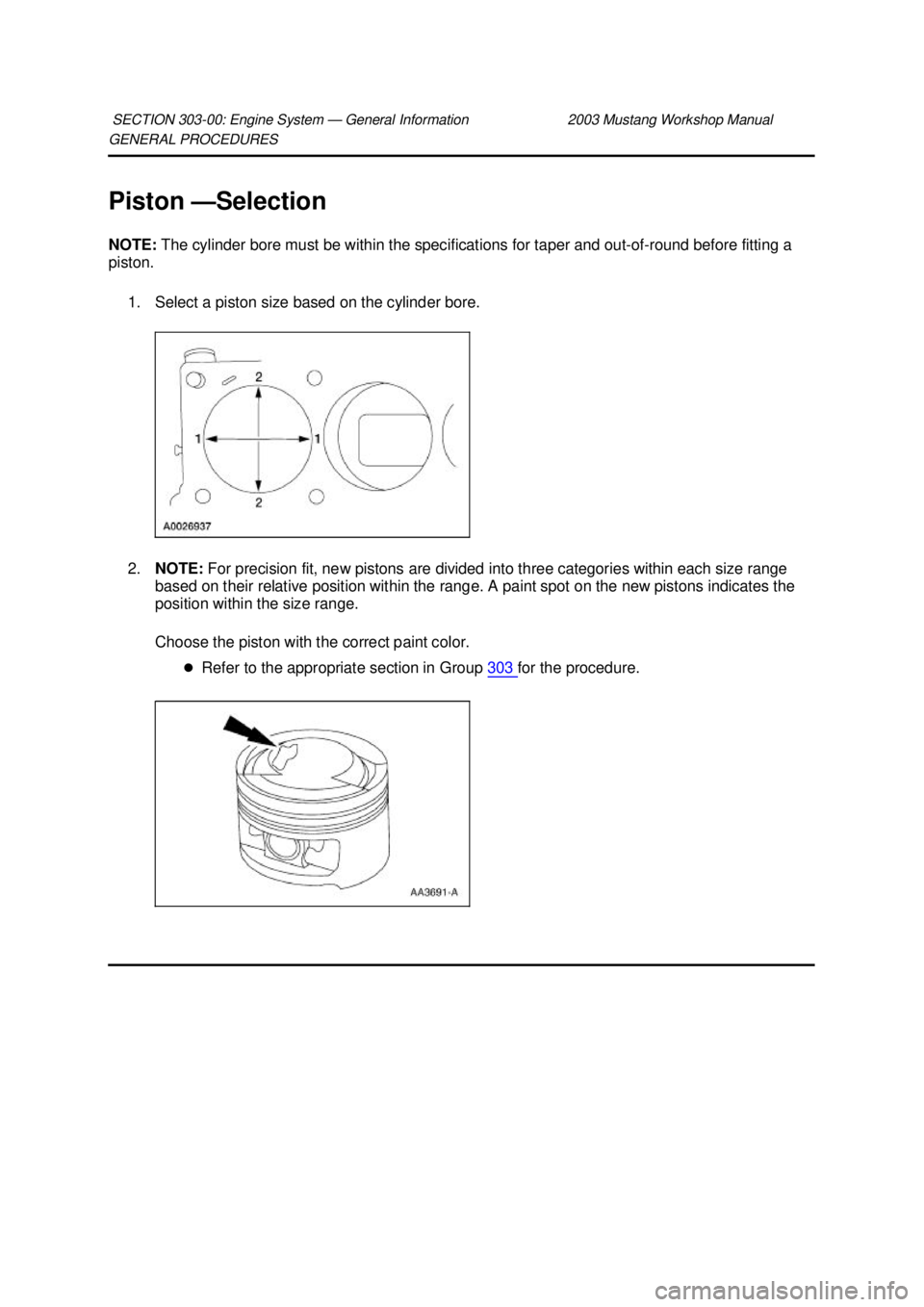

Piston —
Selection
NOTE: The cylinder bore must be within the specifications for taper and out-of- round before fitting a
piston.
1. Select a piston size based on the cylinder bore.
2. NOTE: For precision fit, new pistons are divided into three categories within each size range
based on their relative position within the range. A paint spot on the new pistons indicates the
position within the size range.
Choose the piston with the correct paint color.
zRefer to the appropriate section in Group 303 for the procedure.
SECTION 303-
00: Engine System — General Information 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

GENERAL PROCEDURES
Piston —
Ring End Gap
CAUTION: Use care when fitting piston rings to avoid possible damage to the piston ring
or the cylinder bore.
CAUTION: Piston rings should not be transferred from one piston to another.
NOTE: Cylinder bore must be within specification for taper and out-of- round.
1. Use a piston without rings to push a piston ring in a cylinder to the bottom of ring travel.
2. Use a feeler gauge to measure the top piston ring end gap and the second piston ring end gap. zRefer to the appropriate section in Group 303 for the procedure.
SECTION 303-
00: Engine System — General Information 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

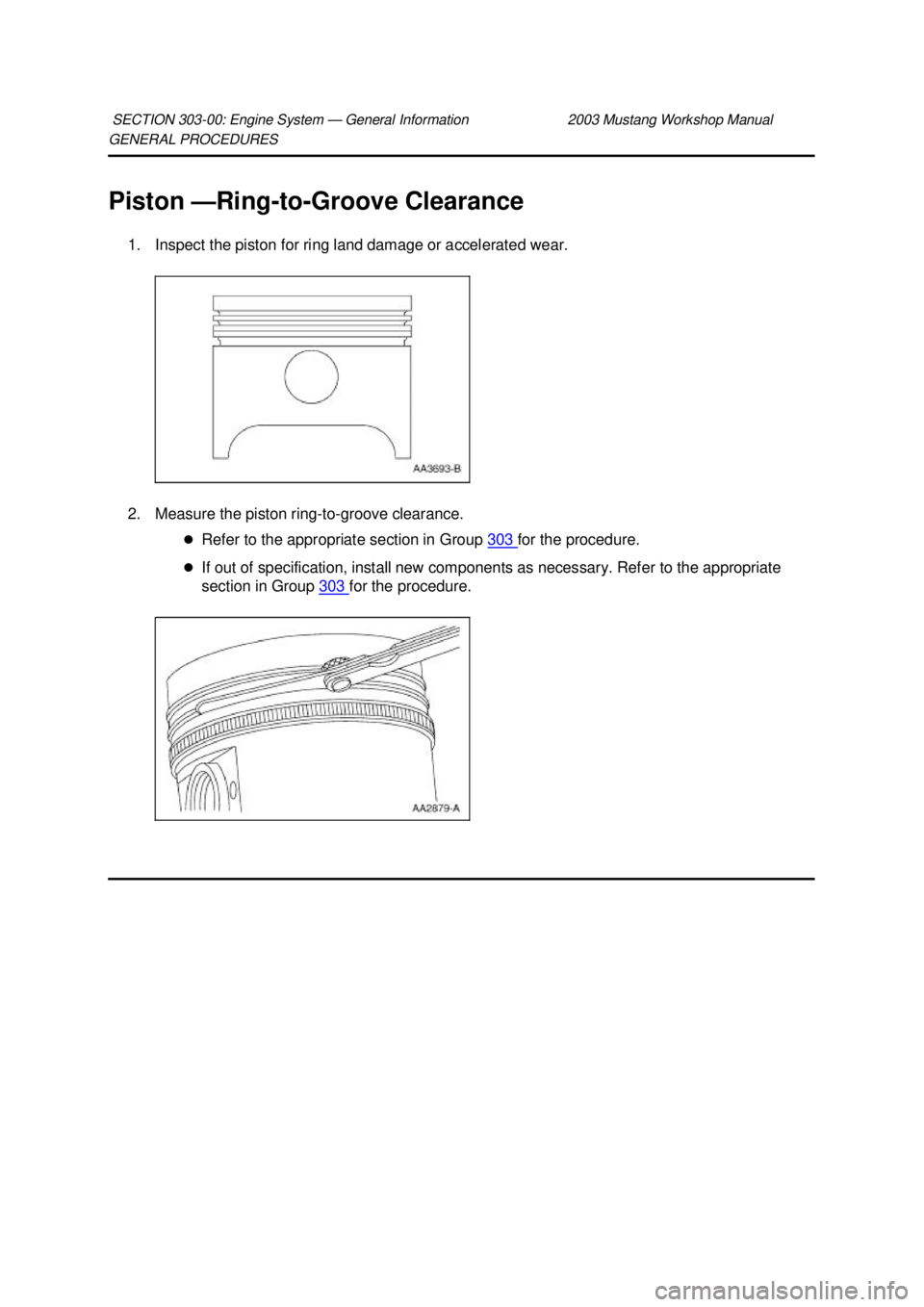

GENERAL PROCEDURES
Piston —
Ring-to-Groove Clearance
1. Inspect the piston for ring land damage or accelerated wear.
2. Measure the piston ring- to-groove clearance.
z Refer to the appropriate section in Group 303 for the procedure.
z If out of specification, install new components as necessary. Refer to the appropriate
section in Group 303 for the procedure.
SECTION 303-
00: Engine System — General Information 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

GENERAL PROCEDURES

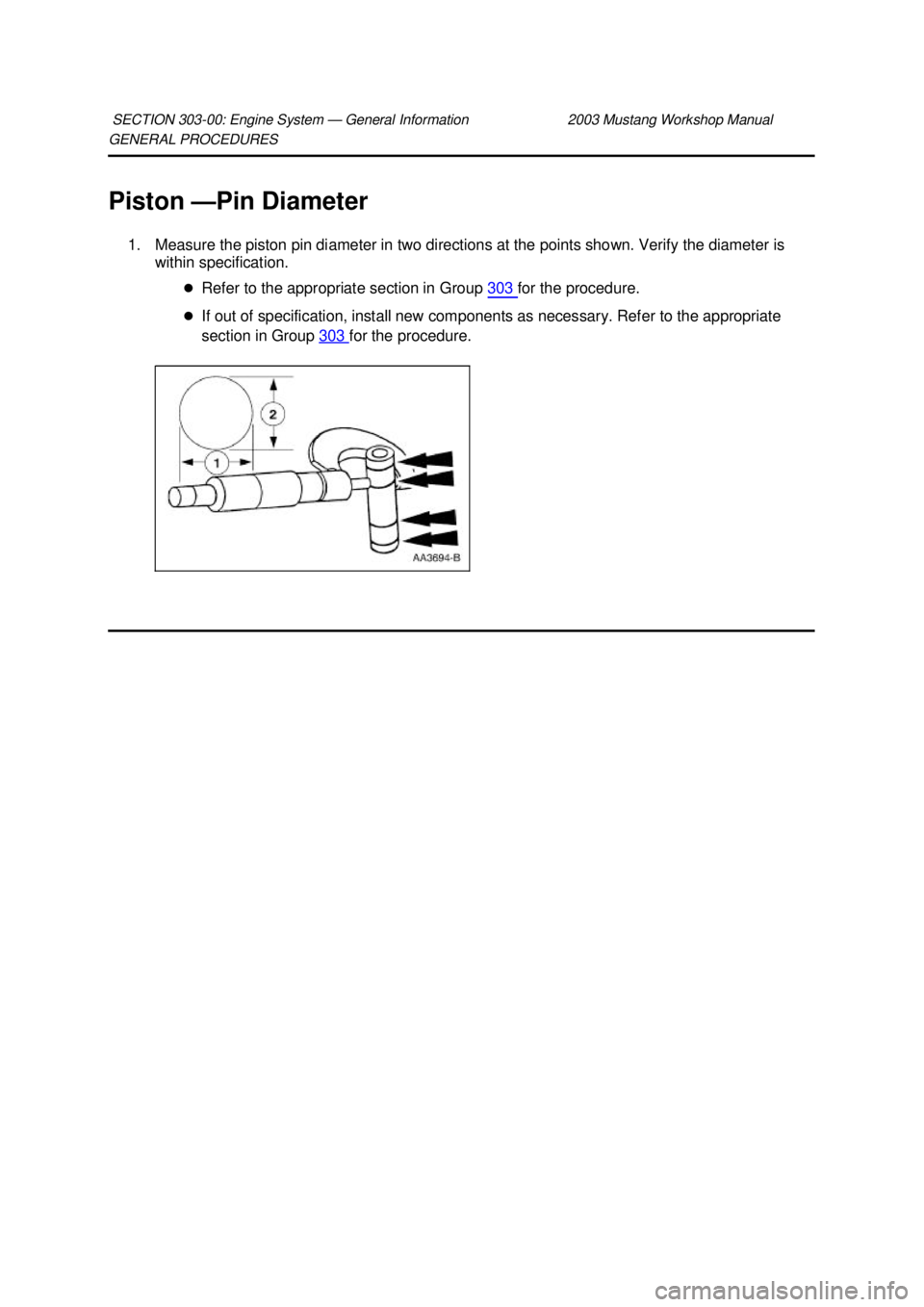

Piston —
Pin Diameter
1. Measure the piston pin diameter in two directions at the points shown. Verify the diameter is within specification.
zRefer to the appropriate section in Group 303 for the procedure.
z If out of specification, install new components as necessary. Refer to the appropriate
section in Group 303 for the procedure.
SECTION 303-
00: Engine System — General Information 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

GENERAL PROCEDURES
Connecting Rod —
Cleaning
CAUTION: Do not use a caustic cleaning solution or damage to connecting rods can
occur.
1. NOTE: The connecting rod large end is a matched set. The connecting rod cap must be
installed on the original connecting rod in the original position. Do not reverse the cap. Parts are
not interchangeable.
Mark and separate the parts and clean with solvent. Clean the oil passages.
