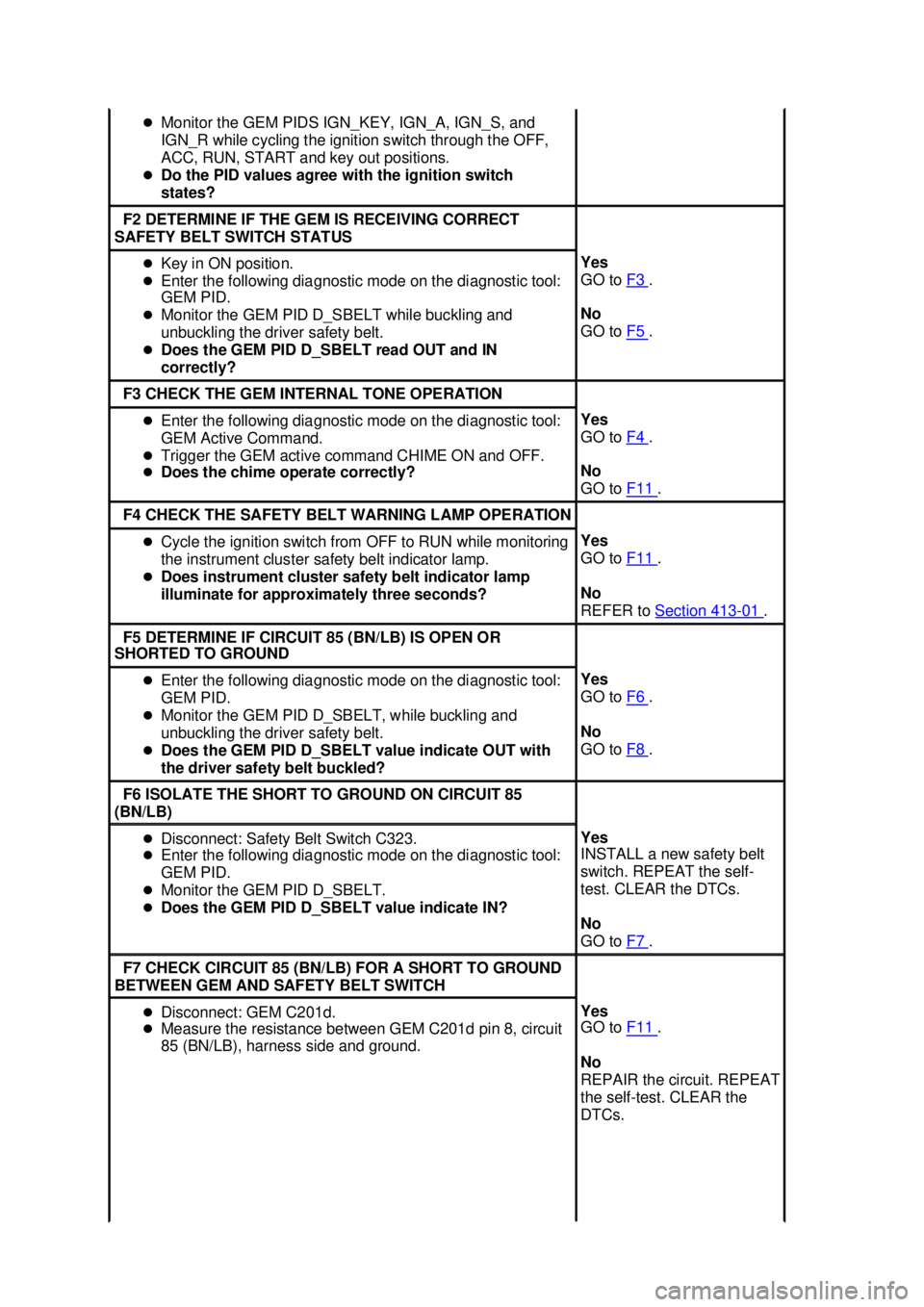

Monitor the GEM PIDS IGN_KEY, IGN_A, IGN_S, and
IGN_R while cycling the ignition switch through the OFF,
ACC, RUN, START and key out positions.
z Do the PID values agree with the ignition switch
states? F2 DETERMINE IF THE GEM IS RECEIVING CORRECT
SAFETY BELT SWITCH STATUS z
Key in ON position.
z Enter the following diagnostic mode on the diagnostic tool:
GEM PID.
z Monitor the GEM PID D_SBELT while buckling and
unbuckling the driver safety belt.
z Does the GEM PID D_SBELT read OUT and IN
correctly? Yes
GO to
F3 .
No
GO to F5 .
F3 CHECK THE GEM INTERNAL TONE OPERATION
z
Enter the following diagnostic mode on the diagnostic tool:
GEM Active Command.
z Trigger the GEM active command CHIME ON and OFF.
z Does the chime operate correctly? Yes
GO to
F4 .
No
GO to F11 .
F4 CHECK THE SAFETY BELT WARNING LAMP OPERATION
z
Cycle the ignition switch from OFF to RUN while monitoring
the instrument cluster safety belt indicator lamp.
z Does instrument cluster safety belt indicator lamp
illuminate for approximately three seconds? Yes
GO to
F11 .
No
REFER to Section 413 - 01 .
F5 DETERMINE IF CIRCUIT 85 (BN/LB) IS OPEN OR
SHORTED TO GROUND z
Enter the following diagnostic mode on the diagnostic tool:
GEM PID.
z Monitor the GEM PID D_SBELT, while buckling and
unbuckling the driver safety belt.
z Does the GEM PID D_SBELT value indicate OUT with
the driver safety belt buckled? Yes
GO to
F6 .
No
GO to F8 .
F6 ISOLATE THE SHORT TO GROUND ON CIRCUIT 85
(BN/LB) z
Disconnect: Safety Belt Switch C323.
z Enter the following diagnostic mode on the diagnostic tool:
GEM PID.
z Monitor the GEM PID D_SBELT.
z Does the GEM PID D_SBELT value indicate IN? Yes
INSTALL a new safety belt
switch. REPEAT the self-
test. CLEAR the DTCs.
No
GO to
F7 .
F7 CHECK CIRCUIT 85 (BN/LB) FOR A SHORT TO GROUND
BETWEEN GEM AND SAFETY BELT SWITCH z
Disconnect: GEM C201d.
z Measure the resistance between GEM C201d pin 8, circuit
85 (BN/LB), harness side and ground. Yes
GO to
F11 .
No
REPAIR the circuit. REPEAT
the self- test. CLEAR the
DTCs. Klj . 18 ba
202003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

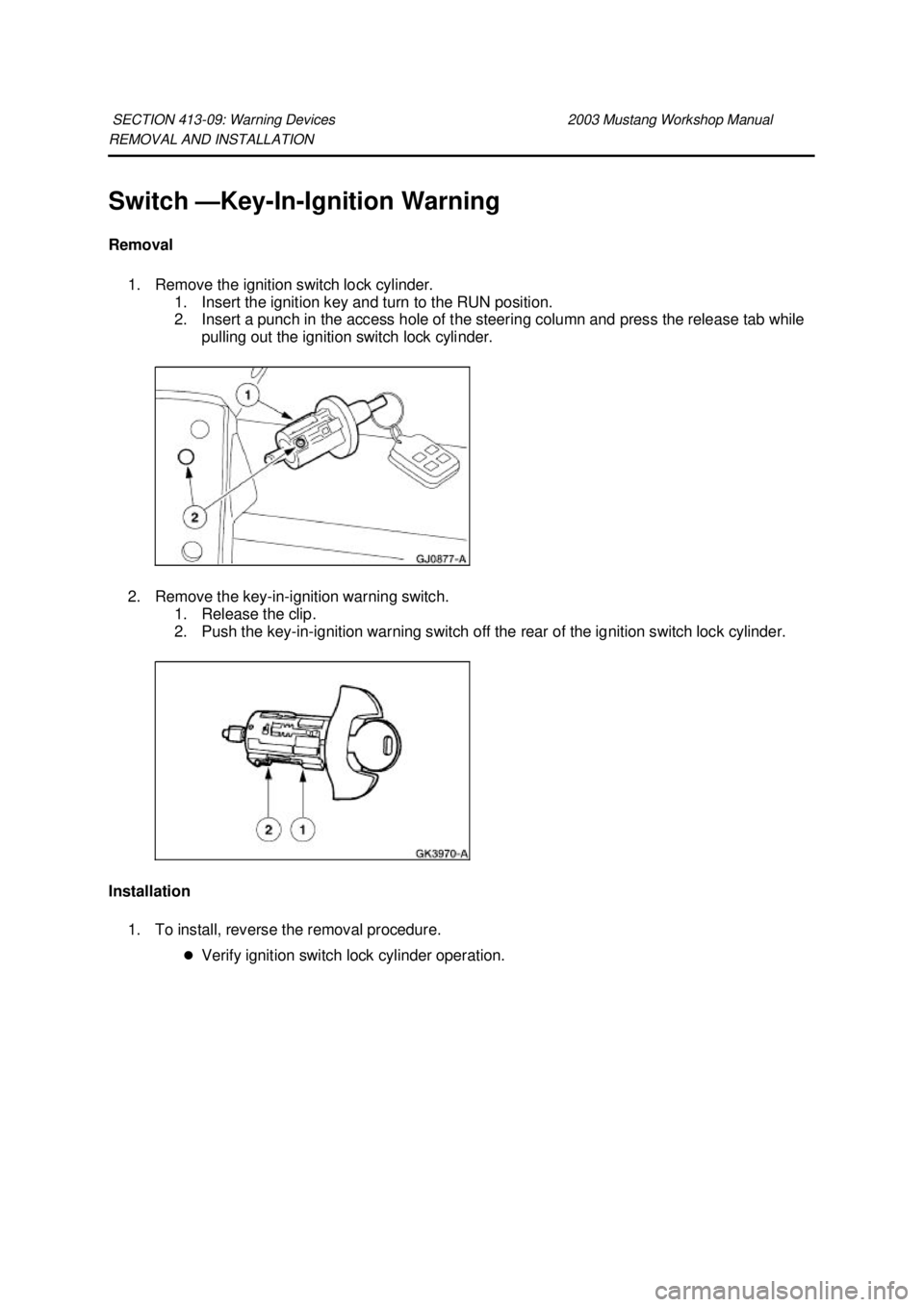

REMOVAL AND INSTALLATION
Switch —
Key-In-Ignition Warning
Removal 1. Remove the ignition switch lock cylinder. 1. Insert the ignition key and turn to the RUN position.
2. Insert a punch in the access hole of the steering column and press the release tab while pulling out the ignition switch lock cylinder.
2. Remove the key- in-ignition warning switch.
1. Release the clip.
2. Push the key- in-ignition warning switch off the rear of the ignition switch lock cylinder.
Installation 1. To install, reverse the removal procedure. zVerify ignition switch lock cylinder operation.
SECTION 413-
09: Warning Devices 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Charging System
The charging system is a negative ground system consisting of the following:
zgenerator
z internal voltage regulator
z charging system warning indicator
z storage battery
z necessary wiring and cables
The generator is belt- driven by the engine accessory drive system.
With the ignition key in the run position, voltage is applied through the warning indicator I circuit to the
voltage regulator. This turns the regulator on, allowing current to flow from battery sense A circuit to
the generator field coil. When the engine is started, the generator begins to generate alternating
current (AC) which is converted to direct current (DC) internally. This current is then supplied to the
vehicle's electrical system through the output terminal (B+) of the generator.
Once the generator begins generating current, a voltage signal is taken from the generator stator and
fed back to the internal regulator. This voltage feedback signal (typically half the battery voltage) is
used to turn off the warning indicator.
With the system functioning normally, the generator output current is determined by the voltage of the
A circuit. This A circuit voltage (battery sense circuit) is compared to a set voltage internal to the
regulator, and the regulator controls the generator field current to maintain the correct generator
output.
The set voltage will vary with temperature and is typically higher in cold temperatures than in warm
temperatures. This allows for better battery recharge in the winter and reduces the chance of
overcharging in the summer.
The battery is a 12 volt direct current source connected in a negative ground system. The battery case
is sealed and includes two vent holes to release gases. The battery has three major functions:
zengine cranking power source
z voltage stabilizer for the electrical system
z temporary power when electrical loads exceed the generator output current
Circuit Description
Battery Output Terminal (B+)
The generator output is supplied through the battery positive output (B+) terminal on the back of the
generator to the battery and electrical system.
I Circuit 904 (LG/RD)
The I (ignition) circuit is used to turn on the voltage regulator. This circuit is powered up with the
ignition key in the run position. This circuit is also used to turn the charging system warning indicator
on if there is a fault in the charging system operation. SECTION 414-
00: Charging System — General Information 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Functionality
With the ignition switch in the RUN position, voltage is applied through the warning indicator I circuit
904 (LG/RD) to the voltage regulator. This turns the regulator on, allowing current to flow from battery
sense A circuit 36 (YE/WH) to the generator field coil. When the engine is started, the generator
begins to generate alternating current (AC) which is internally converted to direct current (DC). This
current is then supplied to the vehicle's electrical system through the output (B+) terminal of the
generator.
Once the generator begins generating current, a voltage signal is taken from the generator stator and
fed back to the regulator internally. This voltage feedback signal (typically half the battery voltage) is
used to turn off the warning indicator.
With the system functioning normally, the generator output current is determined by the voltage of the
A circuit. The A circuit voltage is compared to a set voltage internal to the regulator, and the regulator
controls the generator field current to maintain the correct generator output.
The set voltage will vary with temperature and is typically higher in cold temperatures and lower in
warm temperatures. This allows for better battery recharge in the winter and reduces the chance of
overcharging in the summer.
Battery Positive Output Circuit 38 (B+) (BK/OG)
The generator output is supplied through the battery positive output (B+) terminal on the back of the
generator to the battery and electrical system.
I Circuit 904 (LG/RD)
The I (ignition) circuit is used to turn on the voltage regulator. This circuit is powered up with the
ignition key in the run position. This circuit is also used to turn the charging system warning indicator
on if there is a fault in the charging system operation.
A Circuit 36 (YE/WH)
The A circuit or battery sense circuit is used to sense battery voltage. This voltage is used by the
regulator to determine generator output. This circuit is used to supply current to the generator field
(rotor). The amount of current supplied to the rotor will determine generator output.
Inspection and Verification
WARNING: Batteries contain sulfuric acid. Avoid contact with skin, eyes, or clothing.
Also, shield your eyes when working near batteries to protect against possible splashing of the
acid solution. In case of acid contact with skin or eyes, flush immediately with water for a
minimum of 15 minutes and get prompt medical attention. If acid is swallowed, call a physician
immediately.
WARNING: Batteries normally produce explosive gases which can cause personal injury.
Therefore, do not allow flames, sparks or lighted substances to come near the battery. When
charging or working near a battery, always shield your face and protect your eyes. Always Connector C102a End View
A Circuit 36 (YE/WH)
I Circuit 904 (LG/RD) Klj . 2 ba
142003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Pinpoint Tests
CAUTION: Do not make jumper connections except as directed. Incorrect connections
may damage the voltage regulator test terminals, fuses, or fuse links.
CAUTION: Do not allow any metal object to come in contact with the generator housing
and internal diode cooling fins.
NOTE: All voltage measurements are referenced to the negative (- ) battery post unless otherwise
specified. PINPOINT TEST A: BATTERY IS DISCHARGED OR VOLTAGE IS Symptom Chart
Condition
Possible Sources Action
z Battery is discharged or voltage is
low z
Circuitry.
z High key- off current
drain(s).
z Battery.
z Generator. z
Go To Pinpoint
Test A .
z The charging system warning
indicator is on with the engine
running (the system voltage does
not increase) z
Circuitry.
z Voltage regulator.
z Generator. z
Go To Pinpoint
Test B .
z The system overcharges (the
battery voltage is greater than 15.5
volts) z
Circuitry.
z Voltage regulator.
z Generator. z
Go To Pinpoint
Test C .
z The charging system warning
indicator is on with the engine
running and the battery increases
voltage z
Circuitry.
z Instrument cluster.
z Voltage regulator.
z Generator. z
Go To Pinpoint
Test D .
z The charging system warning
indicator is off with the ignition
switch in the RUN position and the
engine off z
Bulb.
z Circuitry.
z Instrument cluster.
z Voltage regulator.
z Generator. z
Go To Pinpoint
Test E .
z The charging system warning
indicator flickers or is intermittent z
Central junction box
(CJB) fuse 5 (15A).
z Generator
connector
unplugged (C102a).
z Circuitry.
z Generator. z
Go To Pinpoint
Test F .
z The generator is noisy zBolts or brackets.
z Drive belt.
z Generator or pulley. z
Go To Pinpoint
Test G .
z Radio interference zGenerator.
z Circuitry.
z In-vehicle
entertainment
system. z
Go To Pinpoint
Test F . Klj . 4 ba
142003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

z
Is the voltage equal to battery positive voltage (B+)? B2 CHECK GENERATOR A CIRCUIT 36 (YE/WH)
z
Disconnect: Generator C102c (4.6L 4V) or C102a (3.8L or 4.6L
2V).
z Measure the voltage between the generator C102c (4.6L 4V) or
C102a (3.8L or 4.6L 2V) pin 3, circuit 36 (YE/WH), harness side
and ground.
z Is the voltage equal to battery positive voltage (B+)? Yes
GO to
B3 .
No
REPAIR the circuit.
TEST the system for
normal operation. B3 CHECK I CIRCUIT 904 (LG/RD) FOR AN OPEN
z
Key in ON position.
z With the ignition switch in the RUN position and the engine off,
measure the voltage between the generator C102c (4.6L 4V) or
C102a (3.8L or 4.6L 2V) pin 1, circuit 904 (LG/RD), harness side
and ground.
z Is the voltage equal to battery positive voltage (B+)? Yes
GO to
B4 .
No
REPAIR the circuit.
TEST the system for
normal operation. B4 CHECK FOR VOLTAGE DROP IN B+ CIRCUIT 38 (YE/WH)
z
Key in START position.
z With the engine at 2,000 rpm, measure the voltage drop between
the generator C102b, circuit 38 (BK/OG), component side and
positive battery terminal. Yes
INSTALL a new
generator. REFER to
Section 414
- 02 .
TEST the system for
normal operation.
No Klj . 6 ba
142003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

PINPOINT TEST C: THE SYSTEM OVERCHARGES (THE BATTERY
VOLTAGE IS GREATER THAN 15.5 VOLTS)
PINPOINT TEST D: THE CHARGING SYSTEM WARNING INDICATOR
IS ON WITH THE ENGINE RUNNING AND THE BATTERY z
Is the voltage drop less than 0.5 volt? REPAIR high
resistance in the B+
circuit 38 (BK/OG).
TEST the system for
normal operation.
Test Step Result / Action to Take
C1 CHECK FOR VOLTAGE DROP IN A CIRCUIT 36 (YE/WH)
z
Disconnect: Generator C102c (4.6L 4V) or C102a (3.8L or 4.6L
2V).
z Key in ON position.
z Measure the voltage drop between the generator C102c (4.6L
4V) or C102a (3.8L or 4.6L 2V) pin 3, circuit 36 (YE/WH),
harness side and positive battery terminal.
z Is the voltage drop less than 0.5 volt? Yes
GO to
C2 .
No
REPAIR the high
resistance in A circuit 36
(YE/WH). TEST the
system for normal
operation. C2 CHECK GENERATOR AND BATTERY GROUND
CONNECTIONS z
Key in OFF position.
z Check the ground connections between the voltage regulator
and the generator and the engine, and the battery and the
engine.
z Are all ground connections clean and tight? Yes
INSTALL a new
generator. REFER to
Section 414
- 02 . TEST
the system for normal
operation.
No
REPAIR ground
connections as
necessary. TEST the
system for normal
operation. Klj . 7 ba
142003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

INCREASES VOLTAGE
PINPOINT TEST E: THE CHARGING SYSTEM WARNING INDICATOR
IS OFF WITH THE IGNITION SWITCH IN THE RUN POSITION AND
THE ENGINE OFF
PINPOINT TEST F: THE CHARGING SYSTEM WARNING INDICATOR
LAMP FLICKERS OR IS INTERMITTENT
Test Step Result / Action to Take
D1 CHECK I CIRCUIT 904 (LG/RD) FOR A
SHORT TO GROUND z
Disconnect: Generator C102c (4.6L 4V) or
C102a (3.8L or 4.6L 2V).
z Key in ON position.
z With the ignition switch in the RUN position,
check the charging system warning
indicator.
z Is the charging system warning indicator
illuminated? Yes
REPAIR circuit 904 (LG/RD) for a short to
ground. TEST the system for normal
operation.
No
INSTALL a new generator. REFER to
Section 414
- 02 . TEST the system for
normal operation. Test Step Result / Action to
Take E1 CHECK THE CHARGING SYSTEM WARNING INDICATOR
LAMP z
Disconnect: Generator C102c (4.6L 4V) or C102a (3.8L or 4.6L
2V).
z With the engine off, connect a fused (15A) jumper wire between
the generator C102c (4.6L 4V) or C102a (3.8L or 4.6L 2V) pin 1,
circuit 904 (LG/RD), harness side and ground.
z Key in ON position.
z Is the charging system warning indicator lamp illuminated? Yes
INSTALL a new
generator. REFER to
Section 414
- 02 . TEST
the system for normal
operation.
No
REFER to Section 413 - 01 for diagnosis
and testing of the
instrument cluster. Test Step Result / Action to
Take F1 CHECK FOR LOOSE CONNECTIONS
z
Check all generator, battery, and power distribution connections
for looseness, corrosion, loose or bent terminals, or loose eyelets.
z Are all connections clean and tight? Yes
GO to
F2 .
No Klj . 8 ba
142003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

PINPOINT TEST G: THE GENERATOR IS NOISY REPAIR as
necessary. TEST the
system for normal
operation.
F2 CHECK FUSE
z
Key in START position.
z With the engine running, check battery junction box (BJB) fuse 20
(20A) in circuit 36 (YE/WH) for looseness by wiggling the fuse and
noting the charging system warning indicator lamp operation.
z Does the charging system warning indicator lamp flicker? Yes
REPAIR loose fuse
connections as
necessary. TEST the
system for normal
operation.
No
GO to
F3 .
F3 CHECK A CIRCUIT 36 (YE/WH) CONNECTIONS
z
Key in OFF position.
z Connect a fused jumper wire between the generator C102c, (4.6L
4V) or C102a (3.8L or 4.6L 2V) pin 3, circuit 36 (YE/WH), harness
side and the positive battery terminal.
z Key in START position.
z With the engine running, note the charging system warning
indicator operation.
z Does the charging system warning indicator lamp flicker? Yes
REFER to
Section 414 - 02 . TEST the
system for normal
operation.
No
REPAIR loose
connection(s) in
circuits. TEST the
system for normal
operation. Test Step Result / Action to Take
G1 CHECK FOR ACCESSORY DRIVE NOISE
z
Check the accessory drive belt for damage and
correct installation. Check the accessory
mounting brackets and generator pulley for
looseness or misalignment.
z Is the accessory drive OK? Yes
GO to
G2 .
No
REPAIR as necessary. REFER to
Section 303 - 05 for diagnosis and testing
of the accessory drive system. TEST the
system for normal operation. G2 CHECK GENERATOR MOUNTING
z
Check the generator mounting for loose bolts
or misalignment.
z Is the generator mounted correctly? Yes
GO to
G3 .
No
REPAIR as necessary. TEST the system
for normal operation. G3 CHECK GENERATOR FOR ELECTRICAL Klj . 9 ba
142003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

PINPOINT TEST H: RADIO INTERFERENCE
Component Tests
Battery—Load Test
1. With the engine running, turn the A/C on, the blower motor on high speed and the headlamps on high beam.
2. Increase the engine speed to approximately 2,000 rpm. The voltage should increase a minimum of 0.5 volt above the base voltage.
zIf the voltage does not increase as specified, carry out the Generator On- Vehicle Tests.
For additional information, refer to Generator On- Vehicle Tests in this section.
z If the voltage increases as specified, the charging system is operating normally. NOISE
z
Disconnect: Generator C102c (4.6L 4V) or
C102a (3.8L or 4.6L 2V).
z Key in START position.
z With the engine running, turn the headlights
on, rear defroster on, and the blower motor to
the HI position.
z Is the noise still present? Yes
GO to
G4 .
No
INSTALL a new generator. REFER to
Section 414 - 02 . TEST the system for
normal operation. G4 CHECK GENERATOR FOR MECHANICAL
NOISE z
Key in OFF position.
z Connect: Generator C102c (4.6L 4V) or C102a
(3.8L or 4.6L 2V).
z Key in START position.
z Turn all accessories off. With the engine
running, use a stethoscope or equivalent
listening device to probe the generator for
unusual mechanical noise.
z Is the generator the noise source? Yes
INSTALL a new generator. REFER to
Section 414
- 02 . TEST the system for
normal operation.
No
REFER to Section 303 - 00 to diagnose
the source of engine noise. Test Step Result / Action to Take
H1 VERIFY GENERATOR IS SOURCE OF
RADIO INTERFERENCE z
Key in START position.
z With the engine running, tune the radio to
a station where the interference is present.
z Key in OFF position.
z Disconnect: Generator C102c (4.6L 4V) or
C102a (3.8L or 4.6L 2V).
z Key in START position.
z With the engine running, note any radio
interference.
z Is the interference present with the
generator disconnected? Yes
REFER to
Section 415 - 00 for diagnosis and
testing of the in- vehicle entertainment
system.
No
INSTALL a new generator. REFER to
Section 414 - 02 . TEST the system for normal
operation. Klj . 10 ba
142003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
