torque FORD MUSTANG 2003 Workshop Manual

SPECIFICATIONS
SECTION 310-
03: Speed Control 2003 Mustang Workshop Manual Torque Specifications
Description Nm lb-
ft lb-
in Battery ground cable 7-
10 — 62-89
Horn contact screws 6.5-
7.5 — 58-66
Speed control actuator switch screws 6.5-
7.5 4.8-
5.5 —
Speed control servo bracket bolt 7 — 62 Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

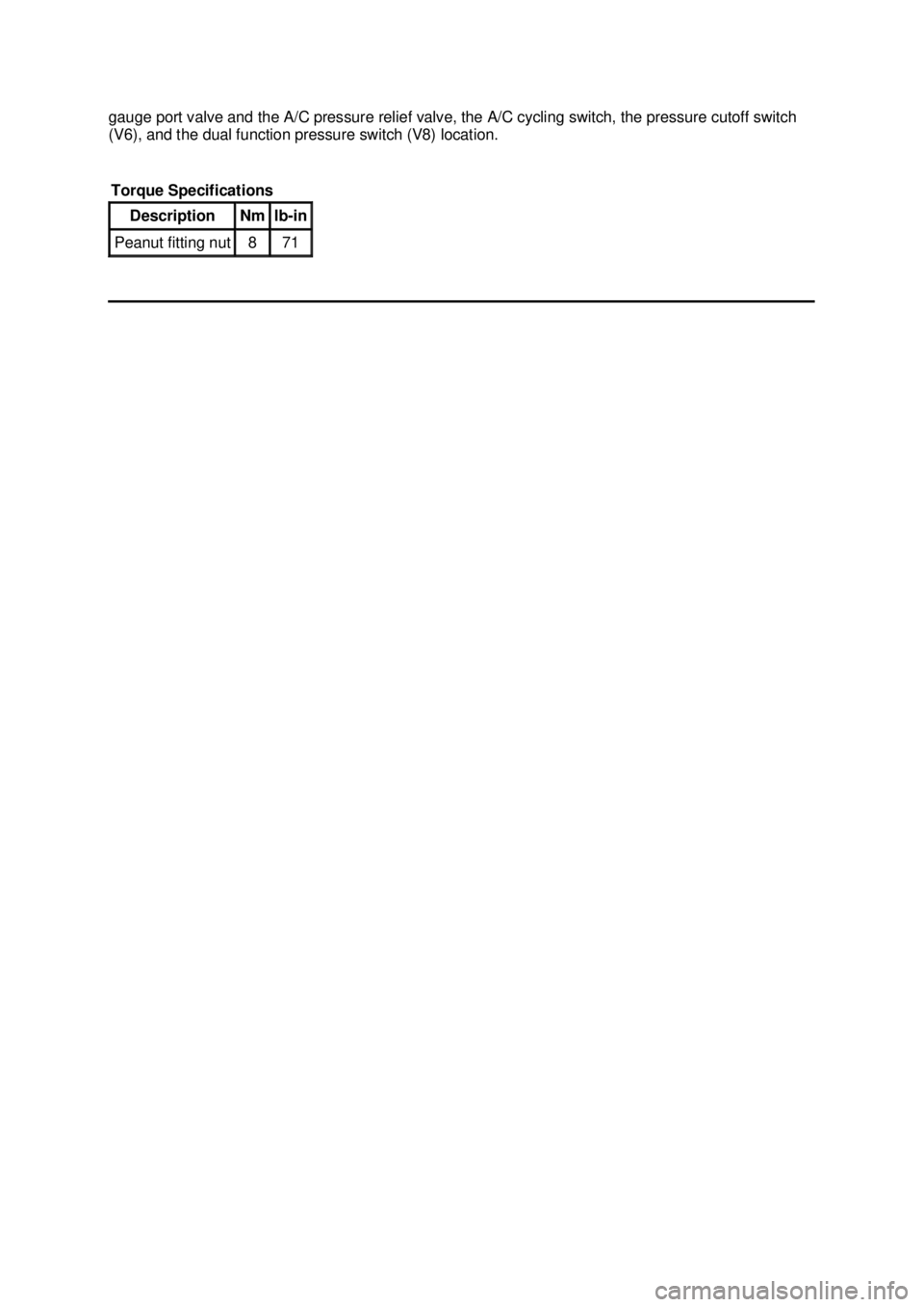

gauge port valve and the A/C pressure relief valve, the A/C cycling switch, the pressure cutoff switch
(V6), and the dual function pressure switch (V8) location.
Torque Specifications Description Nm lb-
in Peanut fitting nut 8 71 Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

SPECIFICATIONS
SECTION 412-

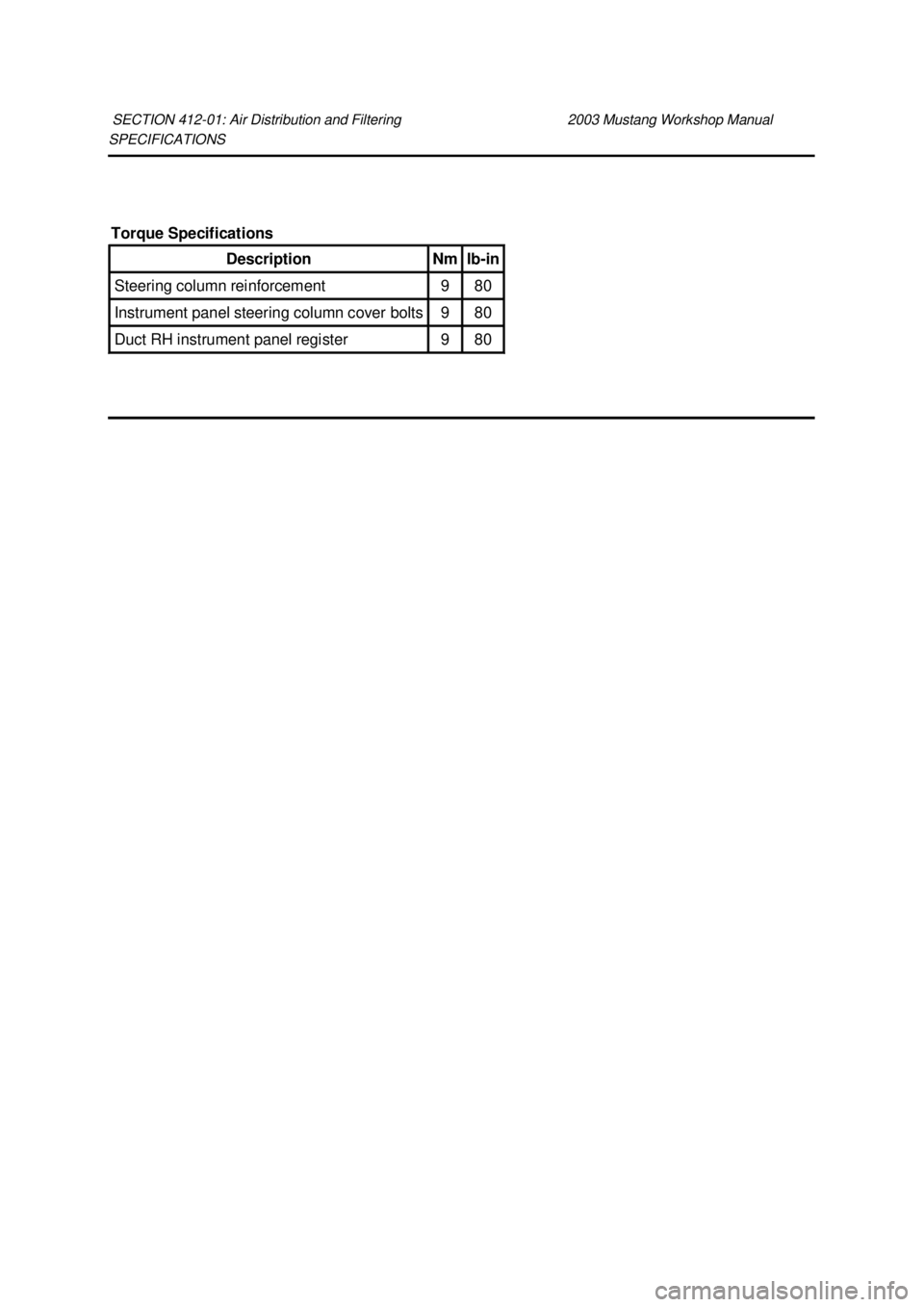

01: Air Distribution and Filtering 2003 Mustang Workshop Manual Torque Specifications
Description Nm lb-
in Steering column reinforcement 9 80
Instrument panel steering column cover bolts 9 80
Duct RH instrument panel register 9 80 Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

SPECIFICATIONS
SECTION 412-

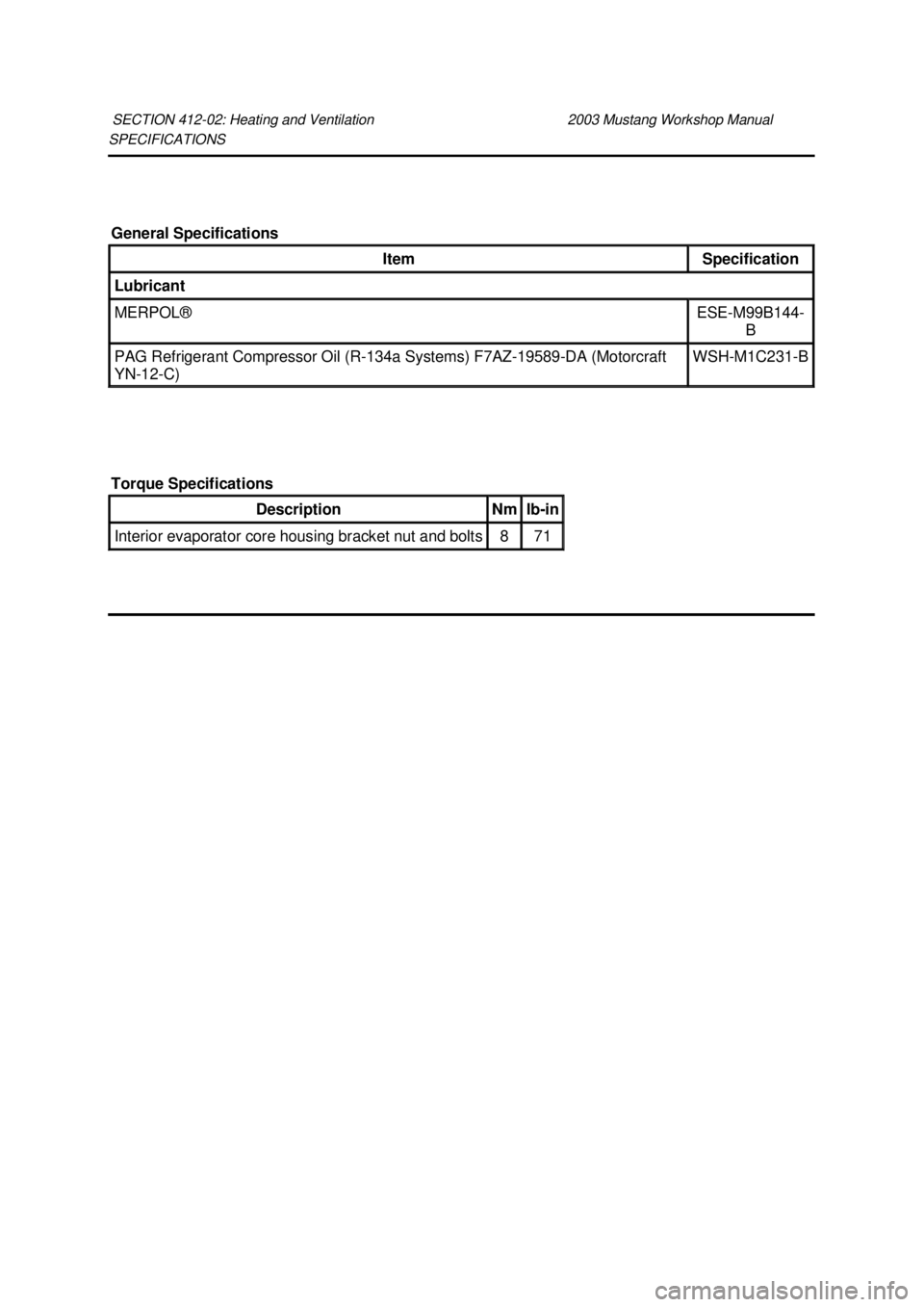

02: Heating and Ventilation 2003 Mustang Workshop Manual General Specifications
Item Specification
Lubricant
MERPOL® ESE-
M99B144-
B PAG Refrigerant Compressor Oil (R-134a Systems) F7AZ-19589-
DA (Motorcraft
YN- 12-C) WSH-
M1C231- B
Torque Specifications Description Nm lb-
in Interior evaporator core housing bracket nut and bolts 8 71 Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

SPECIFICATIONS
SECTION 412-
03: Air Conditioning 2003 Mustang Workshop Manual General Specifications
Item Specification
Lubricant
PAG Refrigerant Compressor Oil (R-134a Systems) F7AZ-19589-
DA (MC YN-12-
C) WSH-
M1C231-
B
Torque Specifications Description Nm lb-
ft lb-
in A/C compressor mounting bolts 25 18 —
A/C manifold retaining bolt 20 15 —
3.8L engine A/C compressor mounting bracket bolts 47 35 —
3.8L engine A/C compressor mounting bracket nut 25 18 —
A/C compressor clutch retaining bolt 13 10 —
Suction accumulator/drier clamp screw 8 — 71
Coolant bottle bolts 10 — 89
Peanut fittings 8 — 71
Radiator bracket bolts 9 — 81
Condenser core bracket bolts 5 — 44
A/C muffler bracket nut 25 18 — Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

SPECIFICATIONS
SECTION 413-
06: Horn 2003 Mustang Workshop Manual Torque Specifications
Description Nm lb-
ft lb-
in Horn retaining screw 10 — 89
Horn switch retaining bolts 5 — 40
Driver side air bag module retaining screws 12 9 — Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

SPECIFICATIONS
SECTION 414-
01: Battery, Mounting and Cables 2003 Mustang Workshop Manual General Specifications
Item Specification
Manufacturer Motorcraft
Voltage 12 volt
Amps at -
17.7°C (0°F) cold crank 540
Minutes—
reserve capacity 100
Amps/hrs.—20 hour rate 55
Location Left front of engine compartment
Torque Specifications Description Nm lb-
ft lb-
in Battery cable harness front support bracket nut 25 18 —
Battery cable terminal bolts 7 — 62
Battery hold-
down bolt 10 — 89
Battery junction box nut 20 15 —
Battery tray bolts 11 8 —
Front lower cable harness bracket nuts 11 8 —
Generator B+ cable nut 8 — 71
Battery cable bracket nut (left upper) 25 18 —
Battery ground cable nut (engine block) 25 18 —
Battery ground cable at the radiator support bolt 12 9 —
Positive battery cable nut (starter solenoid) 12 9 —
Positive battery wire nut (starter solenoid) 6 — 53
Right engine mount cable harness bracket nut 25 18 — Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

SPECIFICATIONS
SECTION 414-

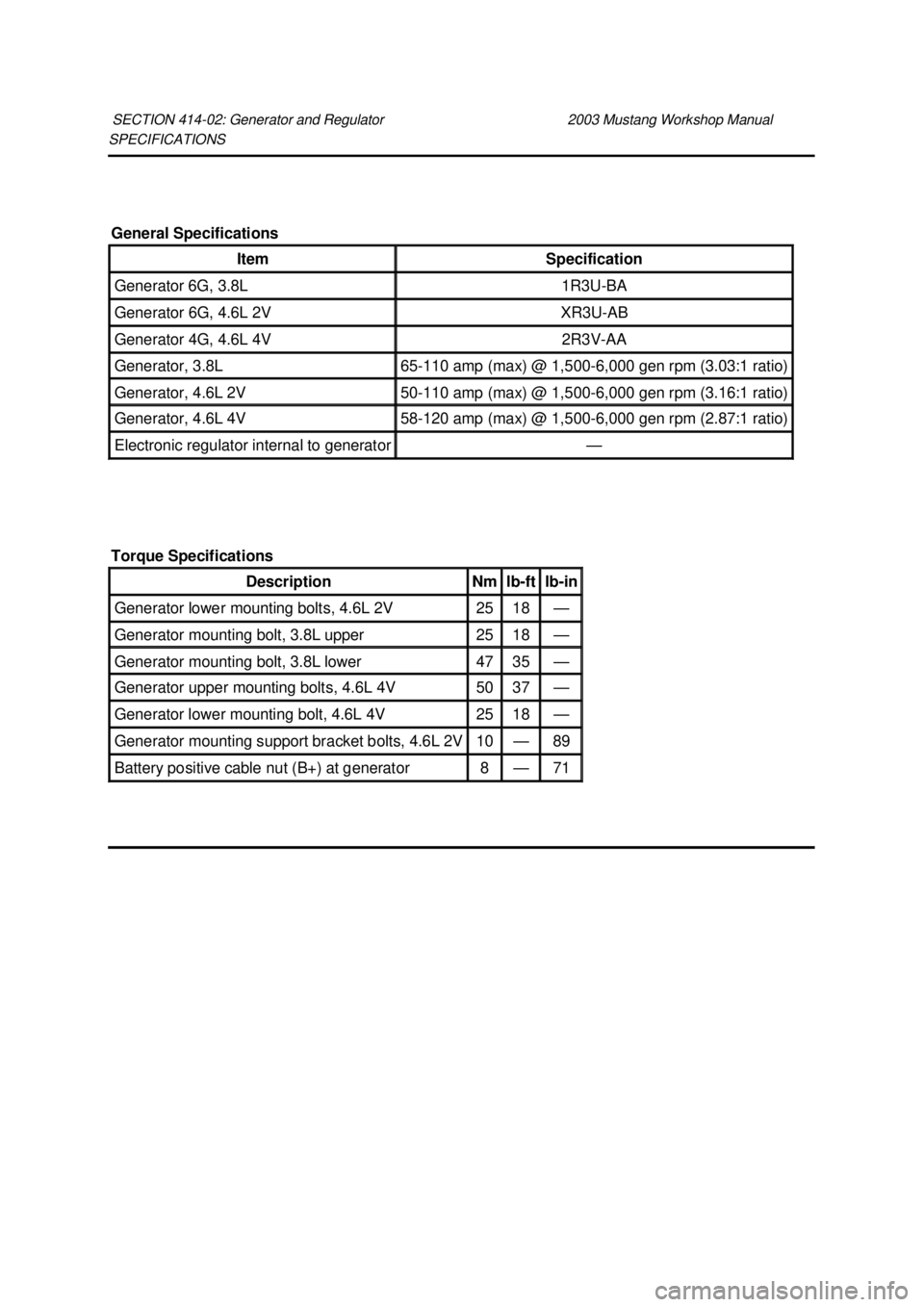

02: Generator and Regulator 2003 Mustang Workshop Manual General Specifications
Item Specification
Generator 6G, 3.8L 1R3U-
BA Generator 6G, 4.6L 2V XR3U-
AB Generator 4G, 4.6L 4V 2R3V-
AA Generator, 3.8L 65-
110 amp (max) @ 1,500- 6,000 gen rpm (3.03:1 ratio) Generator, 4.6L 2V 50-
110 amp (max) @ 1,500- 6,000 gen rpm (3.16:1 ratio) Generator, 4.6L 4V 58-
120 amp (max) @ 1,500- 6,000 gen rpm (2.87:1 ratio) Electronic regulator internal to generator —
Torque Specifications Description Nm lb-
ft lb-
in Generator lower mounting bolts, 4.6L 2V 25 18 —
Generator mounting bolt, 3.8L upper 25 18 —
Generator mounting bolt, 3.8L lower 47 35 —
Generator upper mounting bolts, 4.6L 4V 50 37 —
Generator lower mounting bolt, 4.6L 4V 25 18 —
Generator mounting support bracket bolts, 4.6L 2V 10 — 89
Battery positive cable nut (B+) at generator 8 — 71 Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

SPECIFICATIONS
SECTION 415-

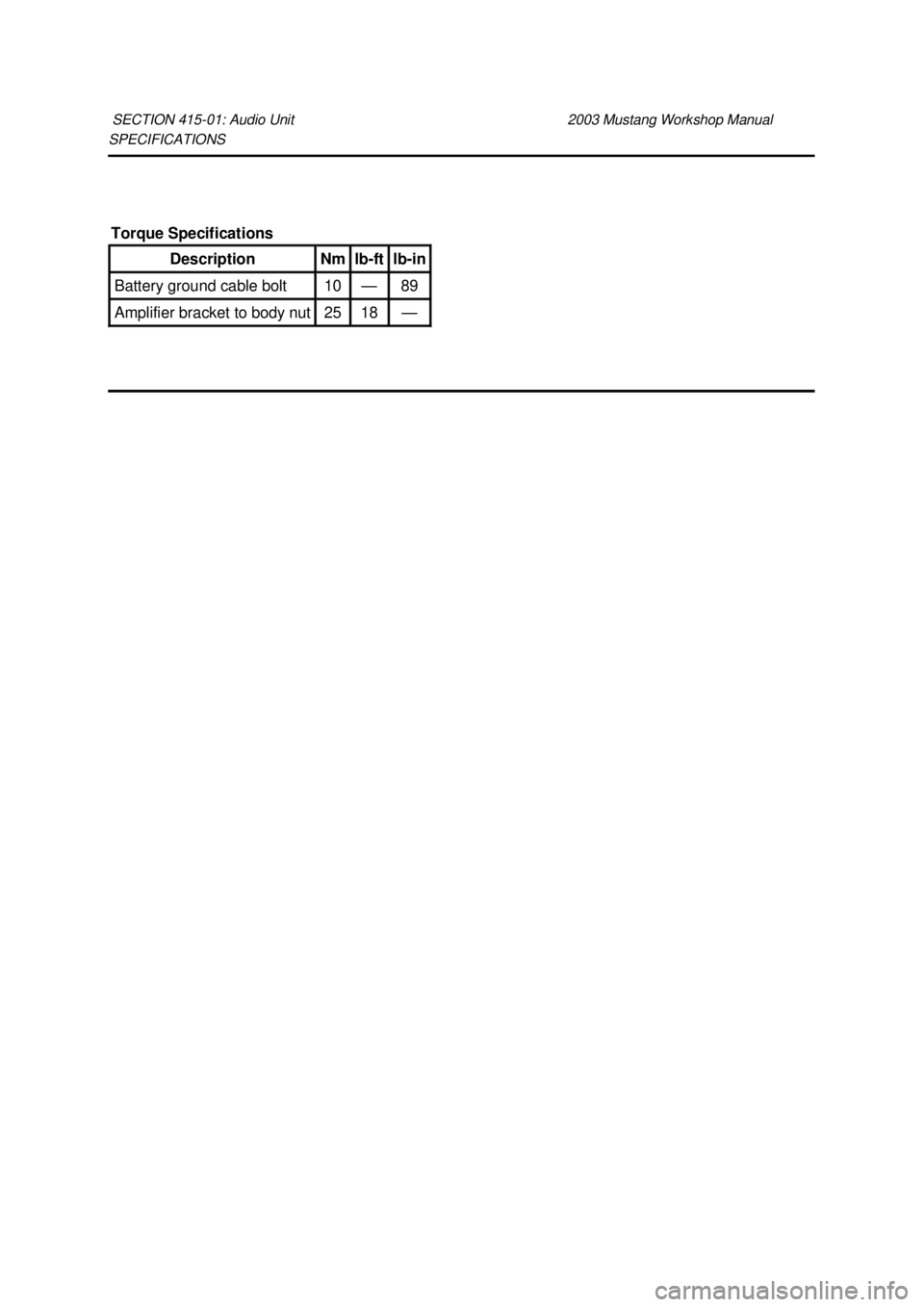

01: Audio Unit 2003 Mustang Workshop Manual Torque Specifications
Description Nm lb-
ft lb-
in Battery ground cable bolt 10 — 89
Amplifier bracket to body nut 25 18 — Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

SPECIFICATIONS
SECTION 415-

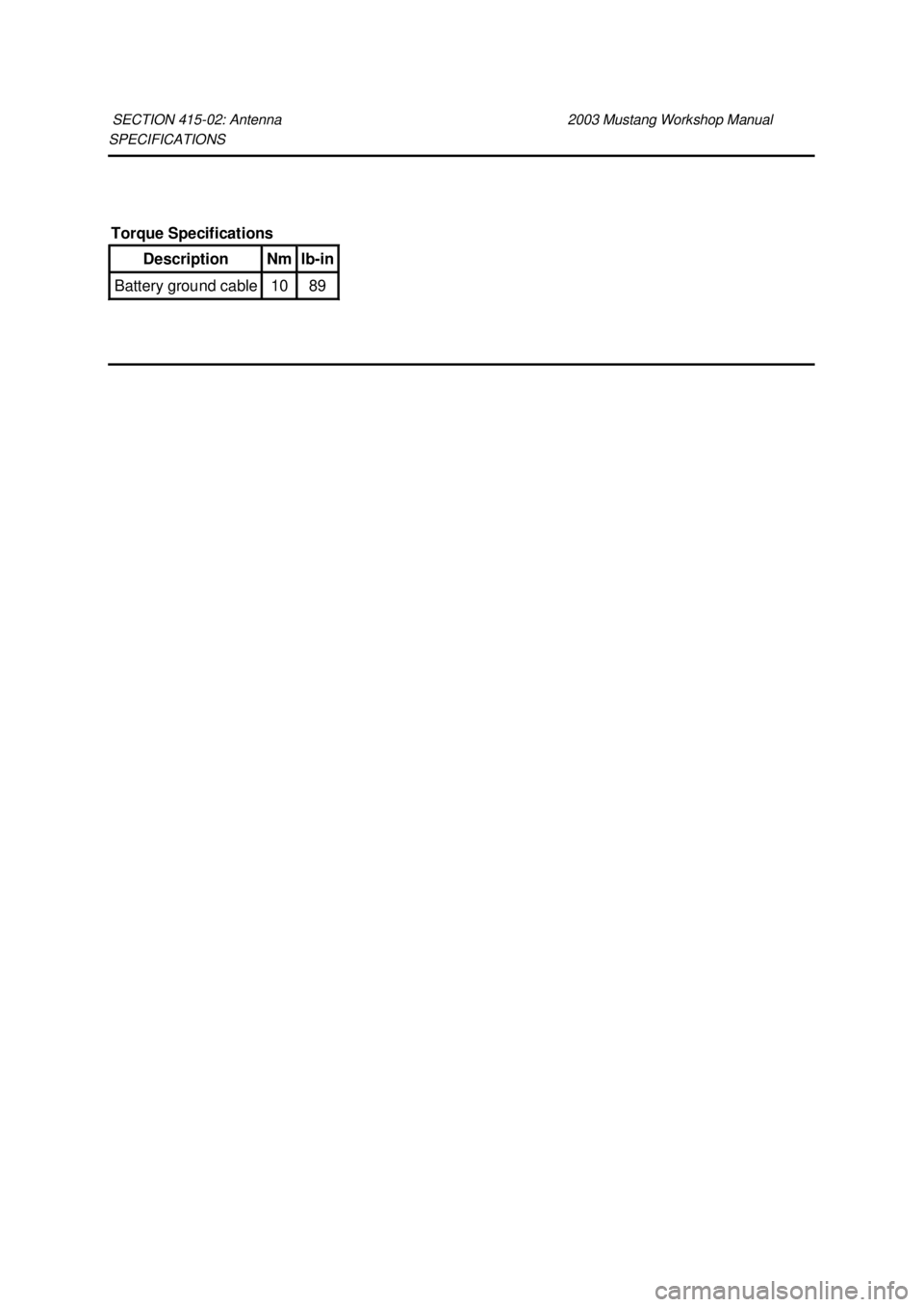

02: Antenna 2003 Mustang Workshop Manual Torque Specifications
Description Nm lb-
in Battery ground cable 10 89 Klj . 1 ba
