FORD MUSTANG 2003 Workshop Manual

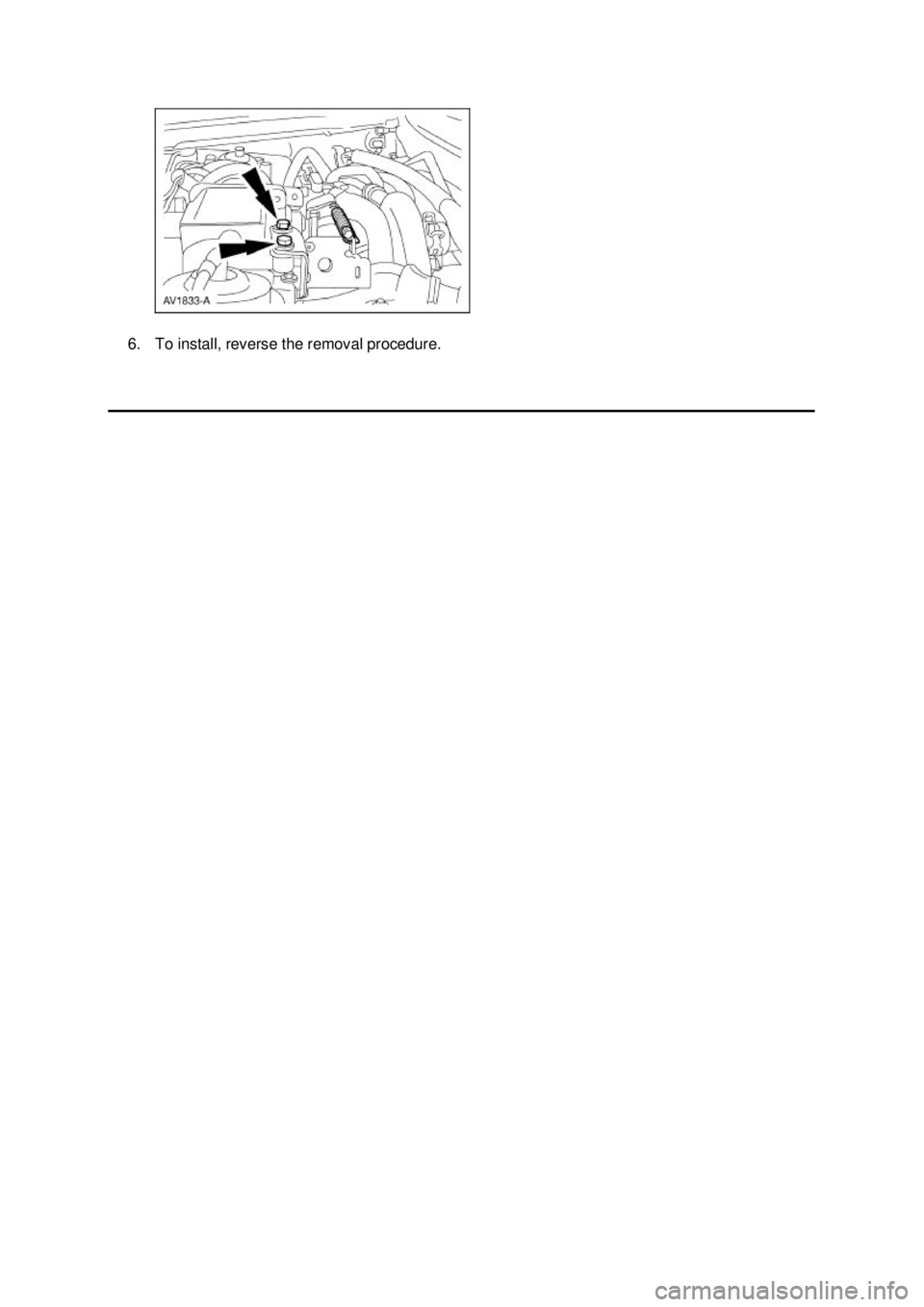

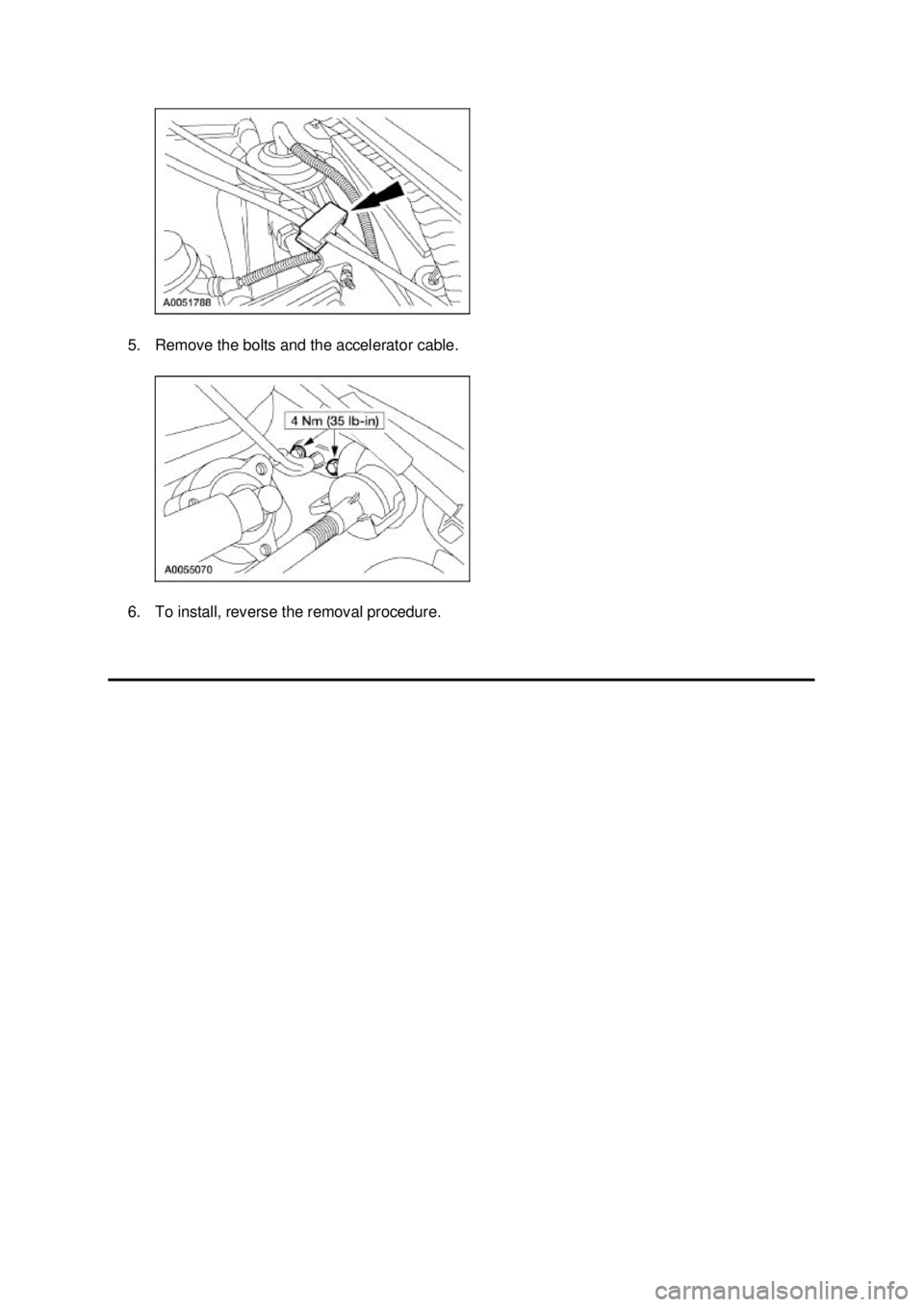

5. Remove the bolts and the accelerator cable.
6. To install, reverse the removal procedure. Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Accelerator Cable Bracket —
3.8L

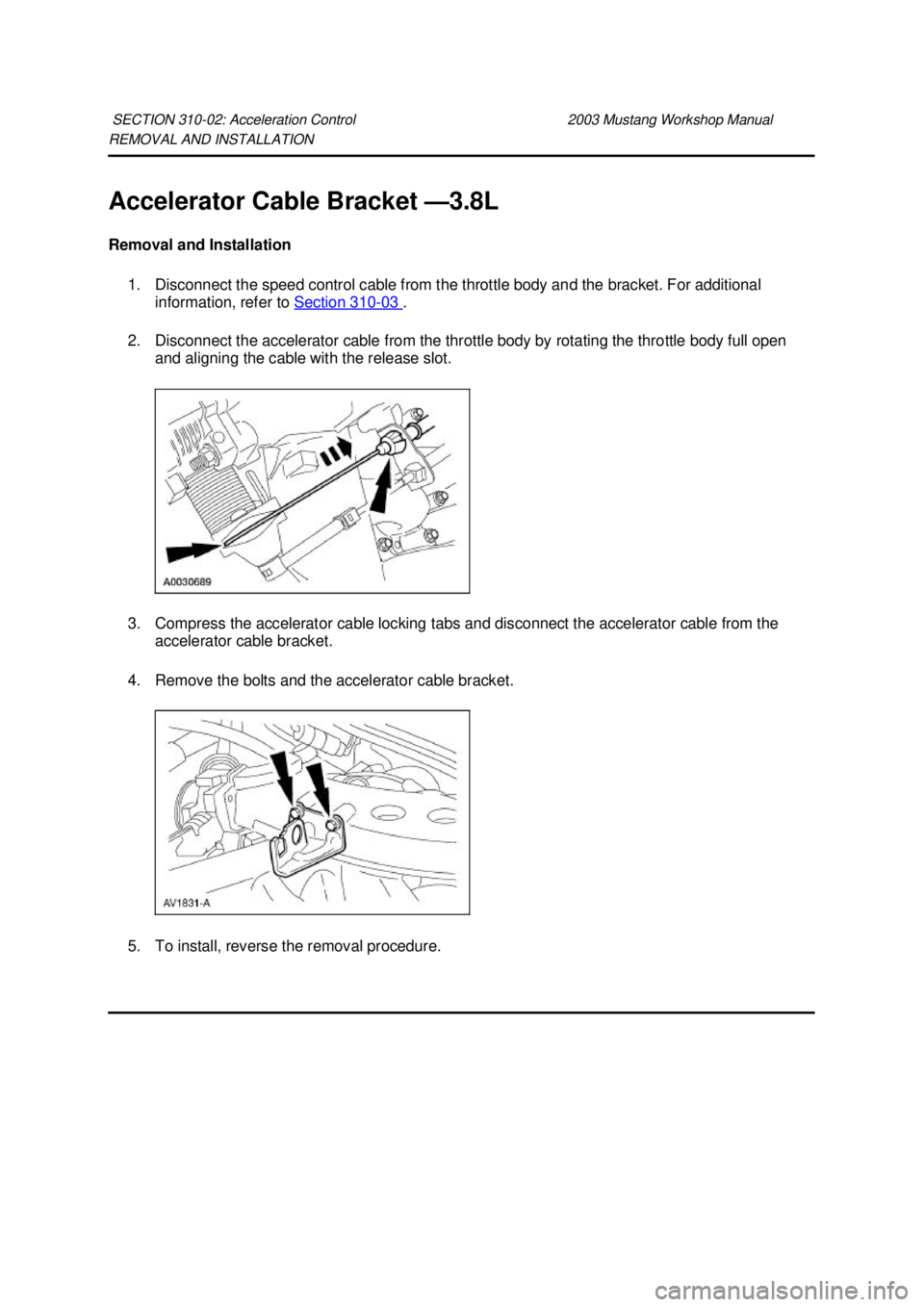

Removal and Installation 1. Disconnect the speed control cable from the throttle body and the bracket. For additional information, refer to Section 310 - 03 .
2. Disconnect the accelerator cable from the throttle body by rotating the throttle body full open and aligning the cable with the release slot.
3. Compress the accelerator cable locking tabs and disconnect the accelerator cable from the accelerator cable bracket.
4. Remove the bolts and the accelerator cable bracket.
5. To install, reverse the removal procedure.
SECTION 310-
02: Acceleration Control 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Accelerator Cable Bracket —
4.6L (2V)

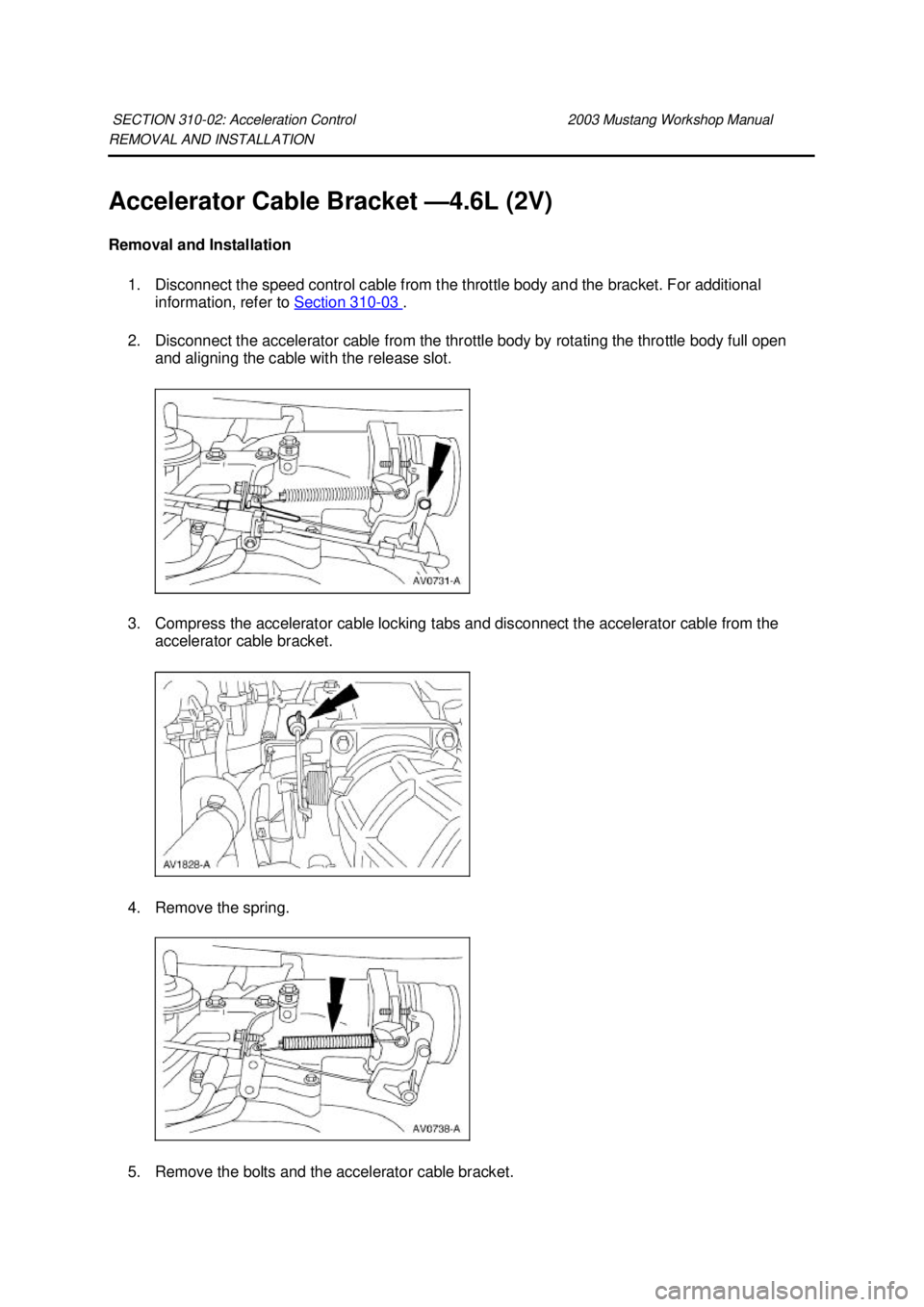

Removal and Installation 1. Disconnect the speed control cable from the throttle body and the bracket. For additional information, refer to Section 310 - 03 .
2. Disconnect the accelerator cable from the throttle body by rotating the throttle body full open and aligning the cable with the release slot.
3. Compress the accelerator cable locking tabs and disconnect the accelerator cable from the accelerator cable bracket.
4. Remove the spring.
5. Remove the bolts and the accelerator cable bracket.
SECTION 310-
02: Acceleration Control 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

6. To install, reverse the removal procedure. Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Accelerator Cable Bracket —
Supercharged Engine
Removal and Installation 1. Disconnect the accelerator cable and speed control cable.
2. Depress the tabs and disconnect the accelerator cable and speed control cable from the accelerator cable bracket
3. Remove the bolts and the accelerator cable bracket.
4. To install, reverse the removal procedure.
SECTION 310-
02: Acceleration Control 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

SPECIFICATIONS
SECTION 310-
02: Acceleration Control 2003 Mustang Workshop Manual Torque Specifications
Description Nm lb-
ft lb-
in Accelerator pedal and shaft nuts 18 13 —
Accelerator cable bracket (Supercharged engine) 10 — 89
Accelerator cable bolts (Supercharged engine) 4 — 35 Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

SPECIFICATIONS
SECTION 310-
03: Speed Control 2003 Mustang Workshop Manual Torque Specifications
Description Nm lb-
ft lb-
in Battery ground cable 7-
10 — 62-89
Horn contact screws 6.5-
7.5 — 58-66
Speed control actuator switch screws 6.5-
7.5 4.8-
5.5 —
Speed control servo bracket bolt 7 — 62 Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Speed Control
The speed control system consists of the following components:
zspeed control actuator cable (9A825)
z deactivator switch
z output shaft sensor (OSS)
z speed control actuator switches (9C888)
z brake pedal position (BPP) switch (13480)
z speed control servo (9C735)
z clutch pedal position switch (manual transmission only)
SECTION 310-
03: Speed Control 2003 Mustang Workshop Manual Klj . 1 ba
