FORD MUSTANG 2003 Workshop Manual

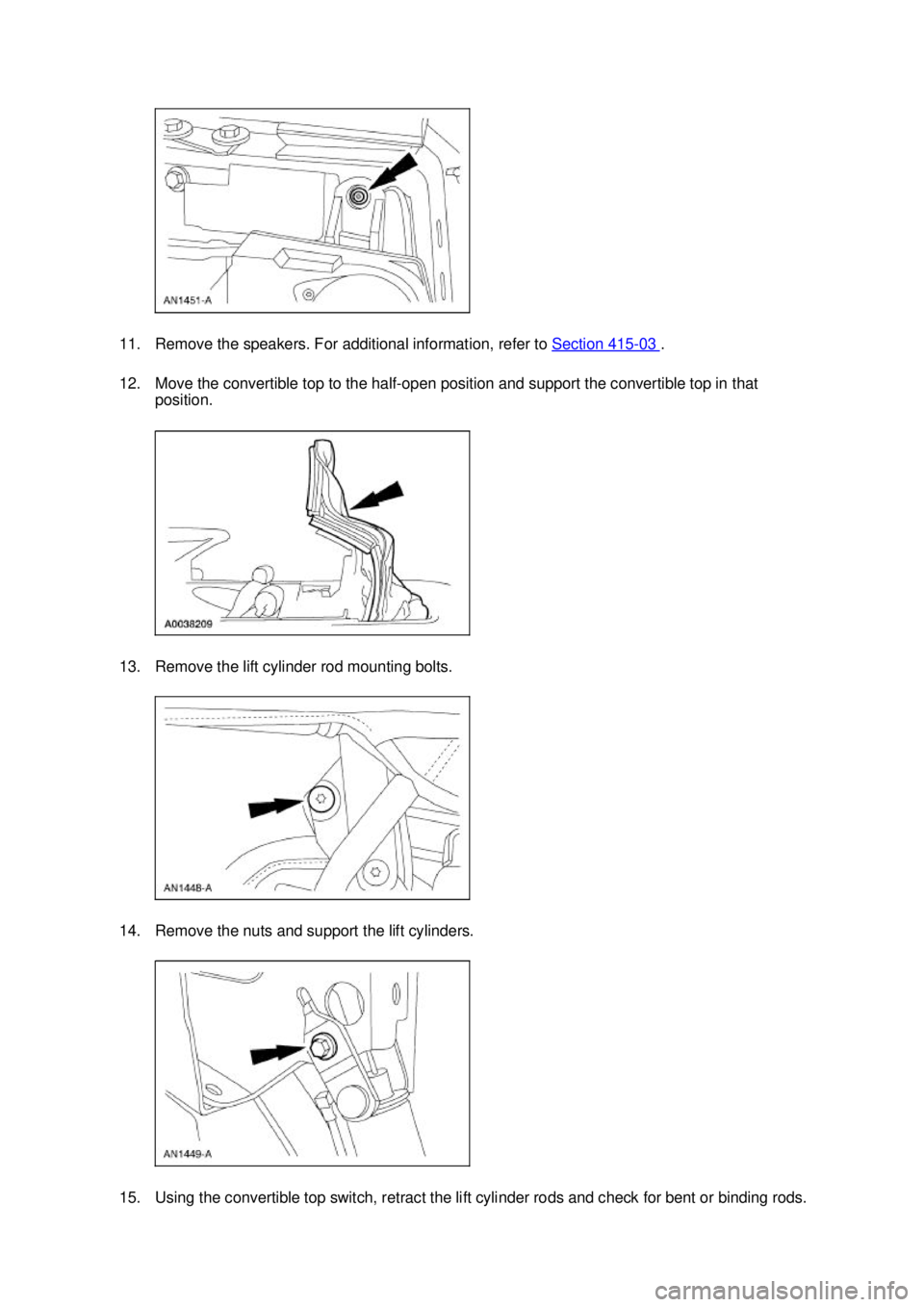

11. Remove the speakers. For additional information, refer to
Section 415 - 03 .
12. Move the convertible top to the half- open position and support the convertible top in that
position.
13. Remove the lift cylinder rod mounting bolts.
14. Remove the nuts and support the lift cylinders.
15. Using the convertible top switch, retract the lift cylinder rods and check for bent or binding rods. Klj . 3 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

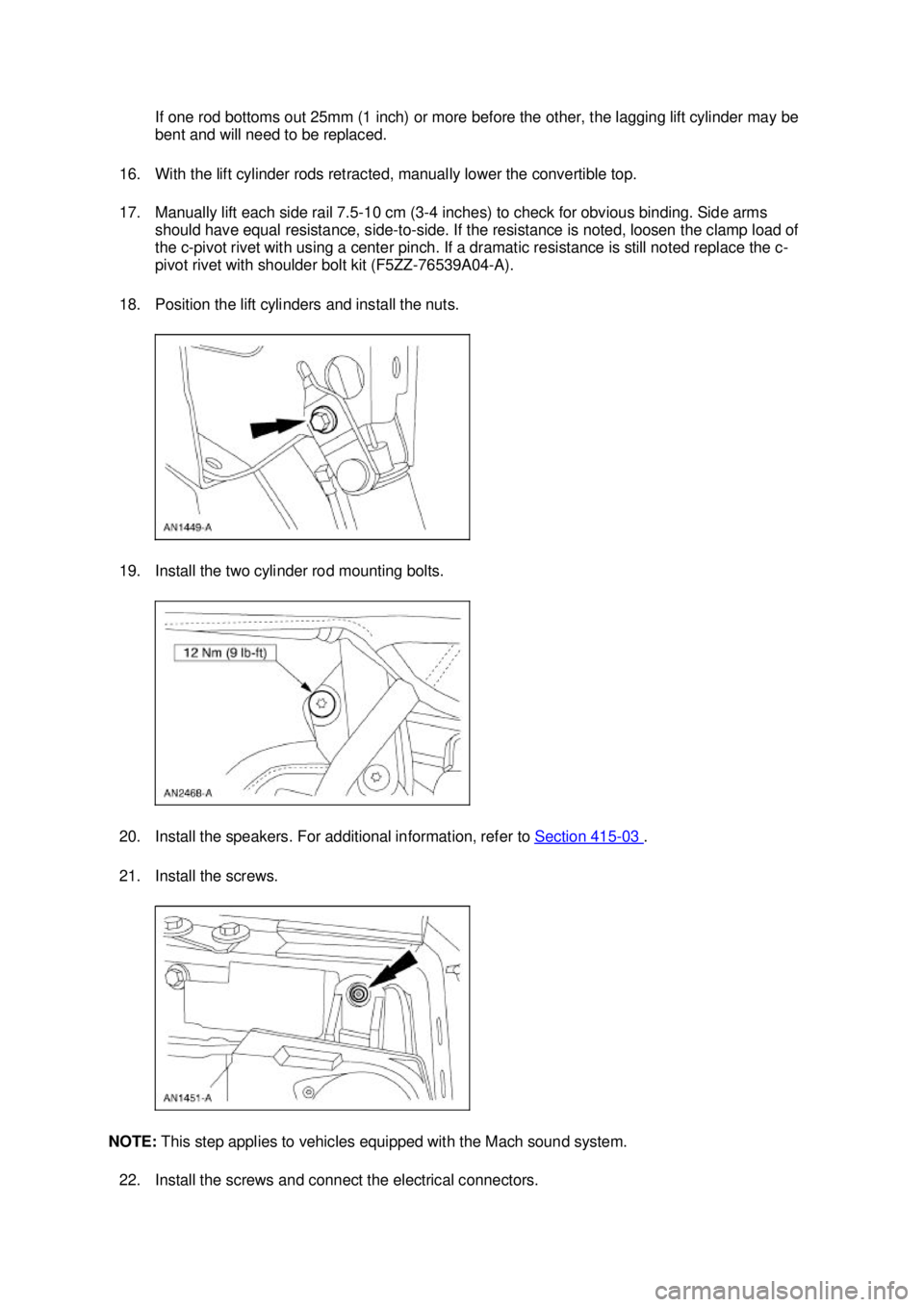

If one rod bottoms out 25mm (1 inch) or more before the other, the lagging lift cylinder may be
bent and will need to be replaced.
16. With the lift cylinder rods retracted, manually lower the convertible top.
17. Manually lift each side rail 7.5- 10 cm (3-4 inches) to check for obvious binding. Side arms
should have equal resistance, side- to-side. If the resistance is noted, loosen the clamp load of
the c- pivot rivet with using a center pinch. If a dramatic resistance is still noted replace the c-
pivot rivet with shoulder bolt kit (F5ZZ-76539A04- A).
18. Position the lift cylinders and install the nuts.
19. Install the two cylinder rod mounting bolts.
20. Install the speakers. For additional information, refer to Section 415 - 03 .
21. Install the screws.
NOTE: This step applies to vehicles equipped with the Mach sound system.
22. Install the screws and connect the electrical connectors. Klj . 4 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

23. Install the quarter trim panel. For additional information, refer to
Section 501 - 05 .
24. Make sure the convertible top operate correctly.
25. Close the convertible top.
Convertible Top No. 1 Bow is Not Flush to the Header — Balance Link Adjustment.
CAUTION: Over adjustment of the balance link can cause the convertible top to bind up in
the convertible top well.
CAUTION: If the balance link is raised the B- hinge must be adjusted to keep the door
window glass from striking the convertible top, preventing the door from closing.
26. Remove the quarter trim panel. For additional information, refer to Section 501 - 05 .
NOTE: Lowering the balance link will raise the No. 1 bow position to the vehicle header and increase
the pull down effort. Raising the balance link will lower the No. 1 bow to the header of the vehicle and
decrease the pull- down effort.
27. Adjust the balance link assembly. 1. Scribe a mark on the balance link.
2. Loosen the bolts.
28. Tighten the balance link assembly. 1. Move the balance link assembly.
2. Tighten the bolts. Klj . 5 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

29. Make sure the convertible top operates correctly.
30. Install the quarter trim panel. For additional information, refer to
Section 501 - 05 .
31. Close the convertible top.
Convertible Top Appears Low at the Center of the Door Window Glass — B-hinge Adjustment
32. Remove the quarter trim panel. For additional information, refer to Section 501 - 05 .
NOTE: If the B- hinge set screw is adjusted to raise or lower the B- hinge, inspect the header height, top
pull down and dowl and receiver clearance. Adjust the cam bolt and balance link as necessary.
33. Tighten the lock nut. zUse Threadlock and sealer on the lock nut.
34. Tighten the lock nut. zThreadlock and sealer on the lock nut.
35. Make sure the convertible top operate correctly.
36. Install the quarter trim panel. For additional information, refer to Section 501 - 05 .
37. Close the convertible top. Klj . 6 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Klj . 7 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

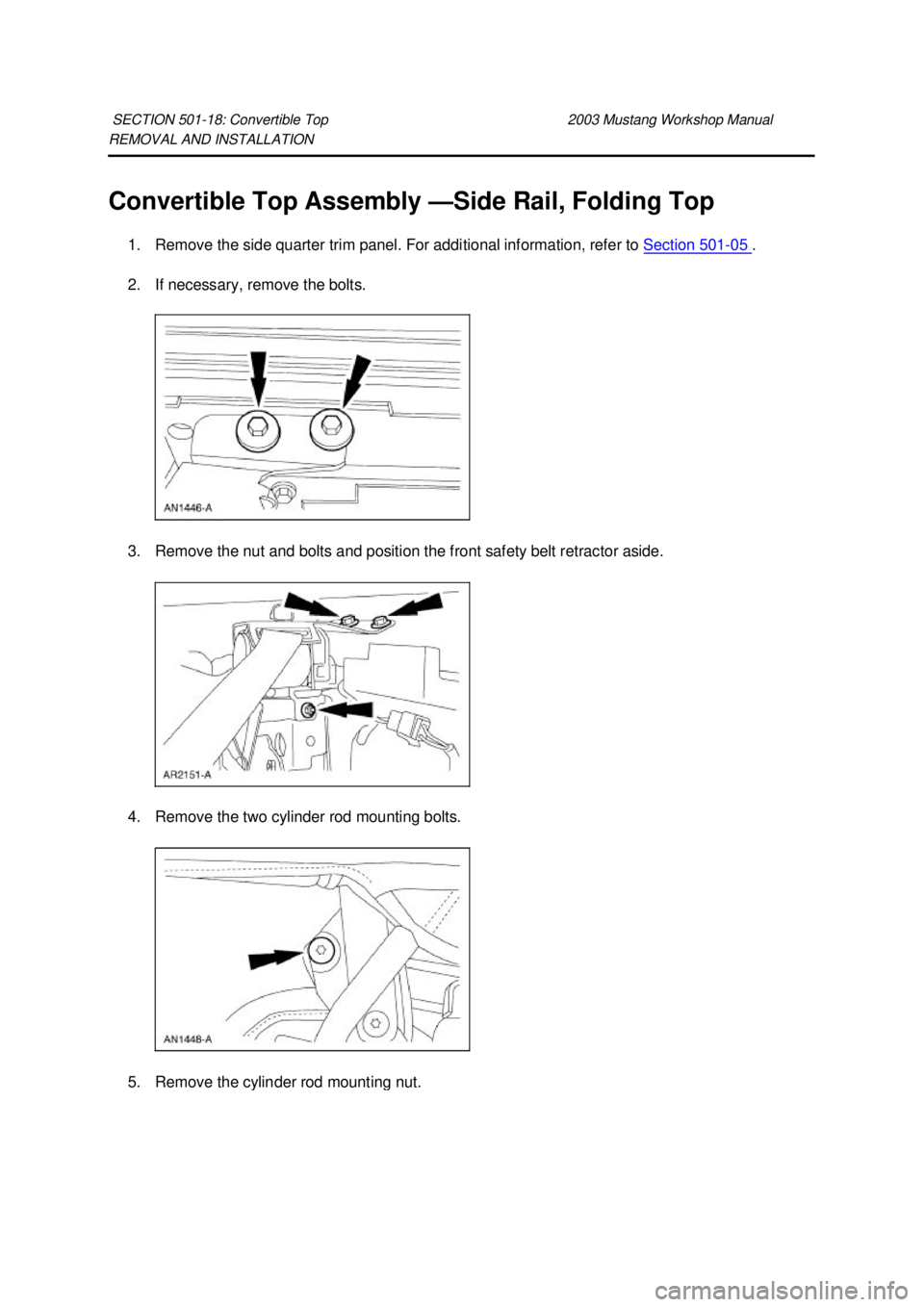

REMOVAL AND INSTALLATION
Convertible Top Assembly —
Side Rail, Folding Top
1. Remove the side quarter trim panel. For additional information, refer to Section 501 - 05 .
2. If necessary, remove the bolts.
3. Remove the nut and bolts and position the front safety belt retractor aside.
4. Remove the two cylinder rod mounting bolts. 5. Remove the cylinder rod mounting nut. SECTION 501-
18: Convertible Top 2003 Mustang Workshop Manual Klj . 1 ba
122003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

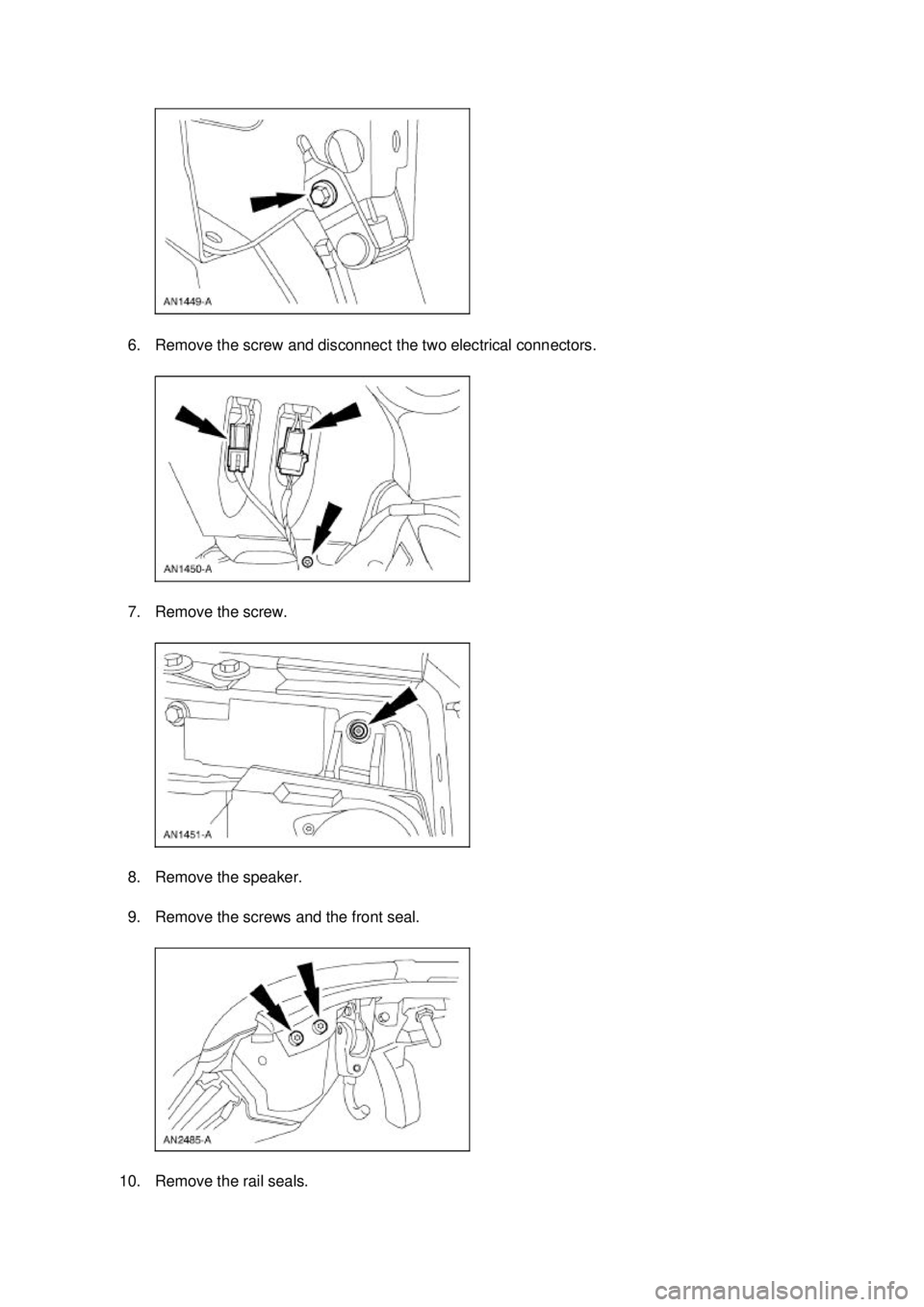

6. Remove the screw and disconnect the two electrical connectors.
7. Remove the screw.
8. Remove the speaker.
9. Remove the screws and the front seal.
10. Remove the rail seals. Klj . 2 ba
122003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

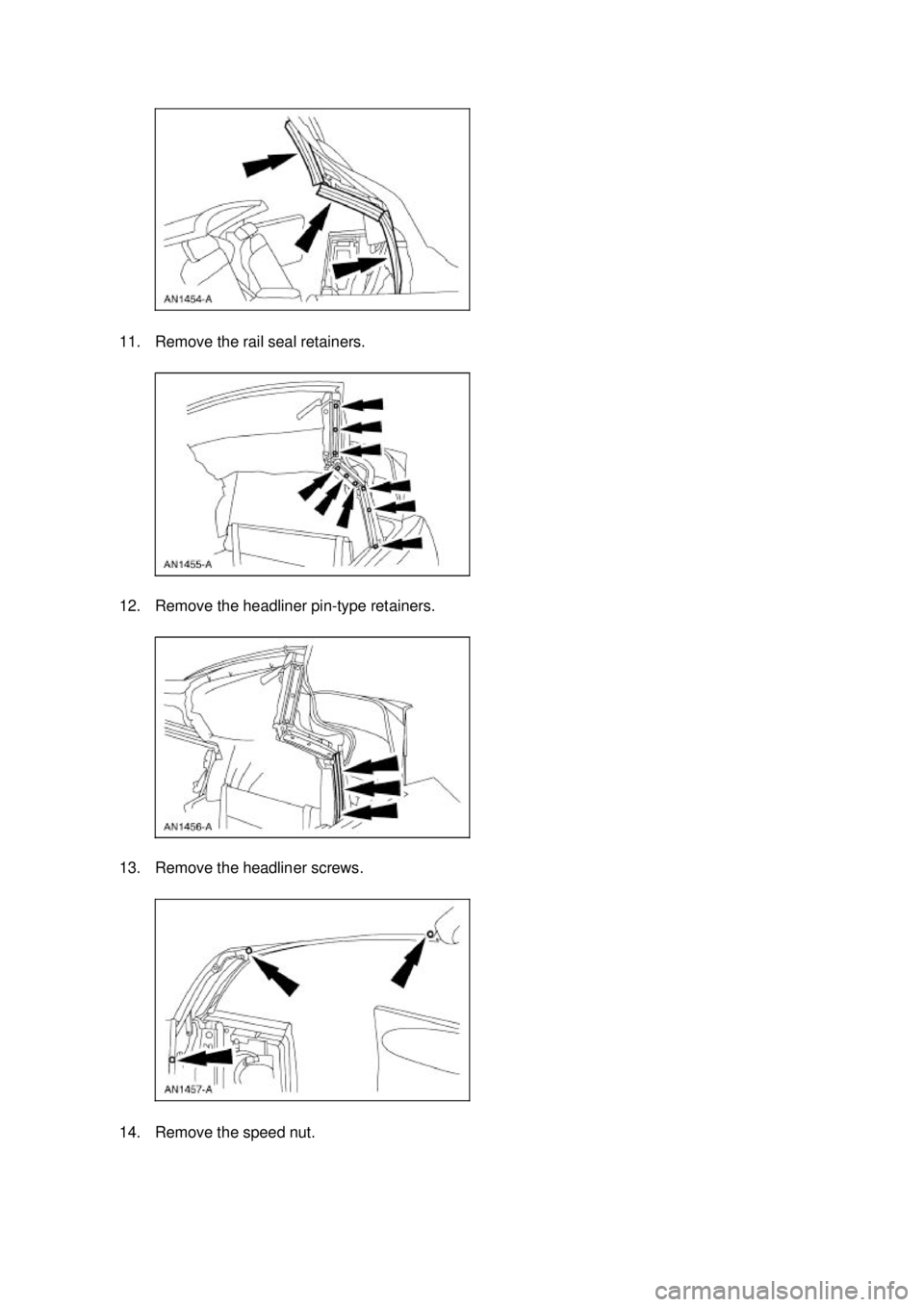

11. Remove the rail seal retainers.
12. Remove the headliner pin-
type retainers.
13. Remove the headliner screws.
14. Remove the speed nut. Klj . 3 ba
122003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

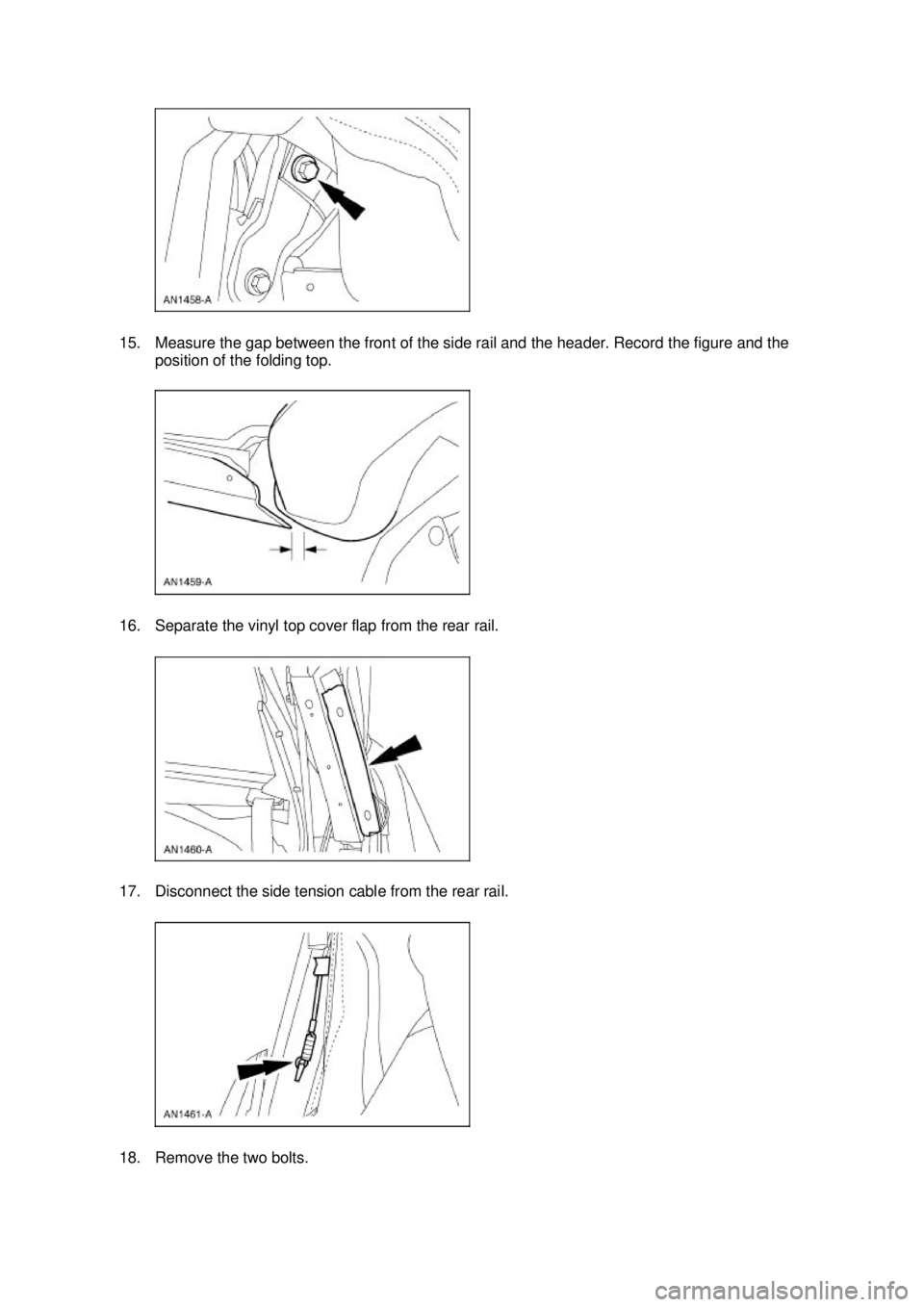

15. Measure the gap between the front of the side rail and the header. Record the figure and the
position of the folding top.
16. Separate the vinyl top cover flap from the rear rail.
17. Disconnect the side tension cable from the rear rail. 18. Remove the two bolts. Klj . 4 ba
122003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

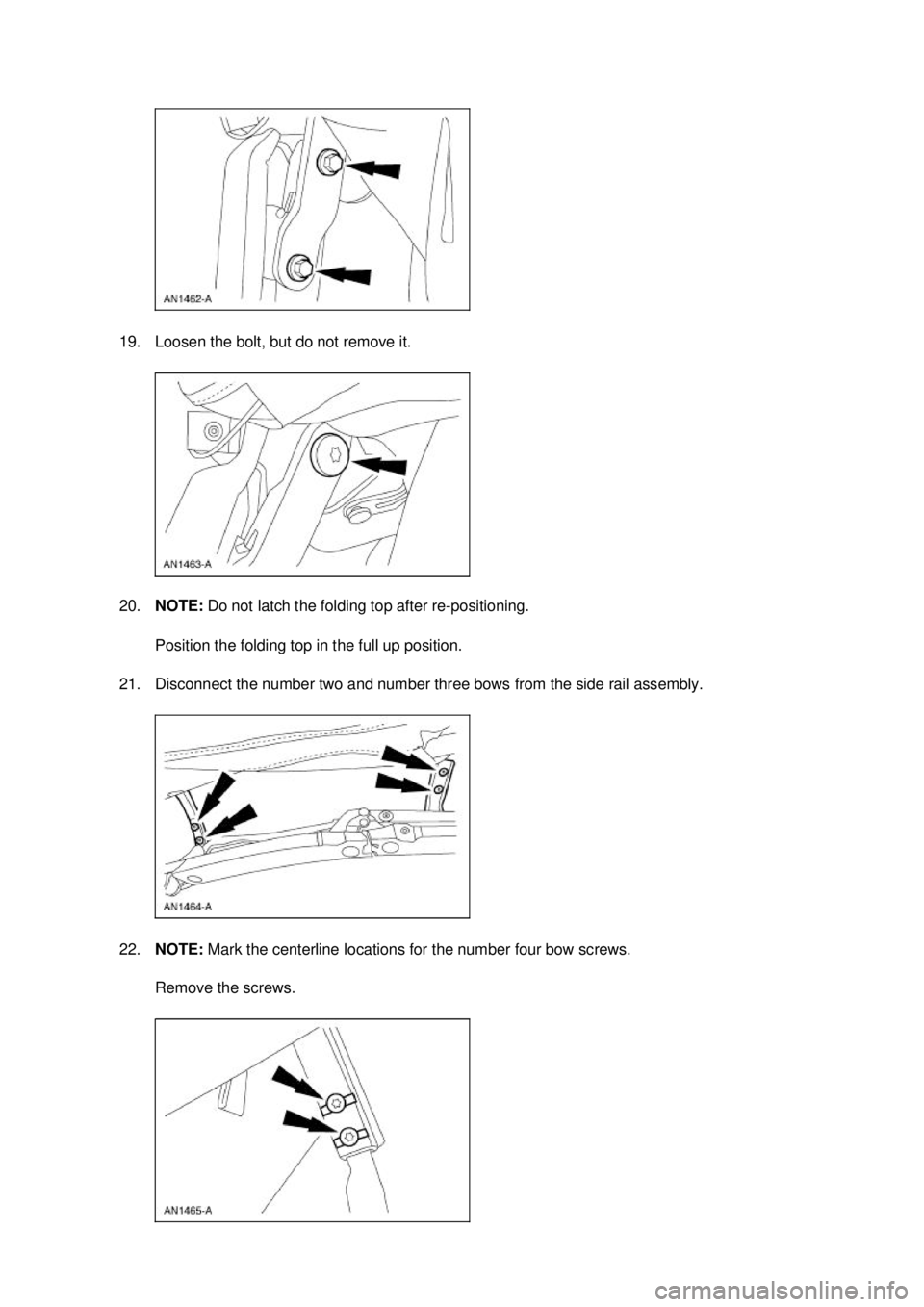

19. Loosen the bolt, but do not remove it.
20.
NOTE: Do not latch the folding top after re- positioning.
Position the folding top in the full up position.
21. Disconnect the number two and number three bows from the side rail assembly.
22. NOTE: Mark the centerline locations for the number four bow screws.
Remove the screws. Klj . 5 ba
