IN-
VEHICLE REPAIR

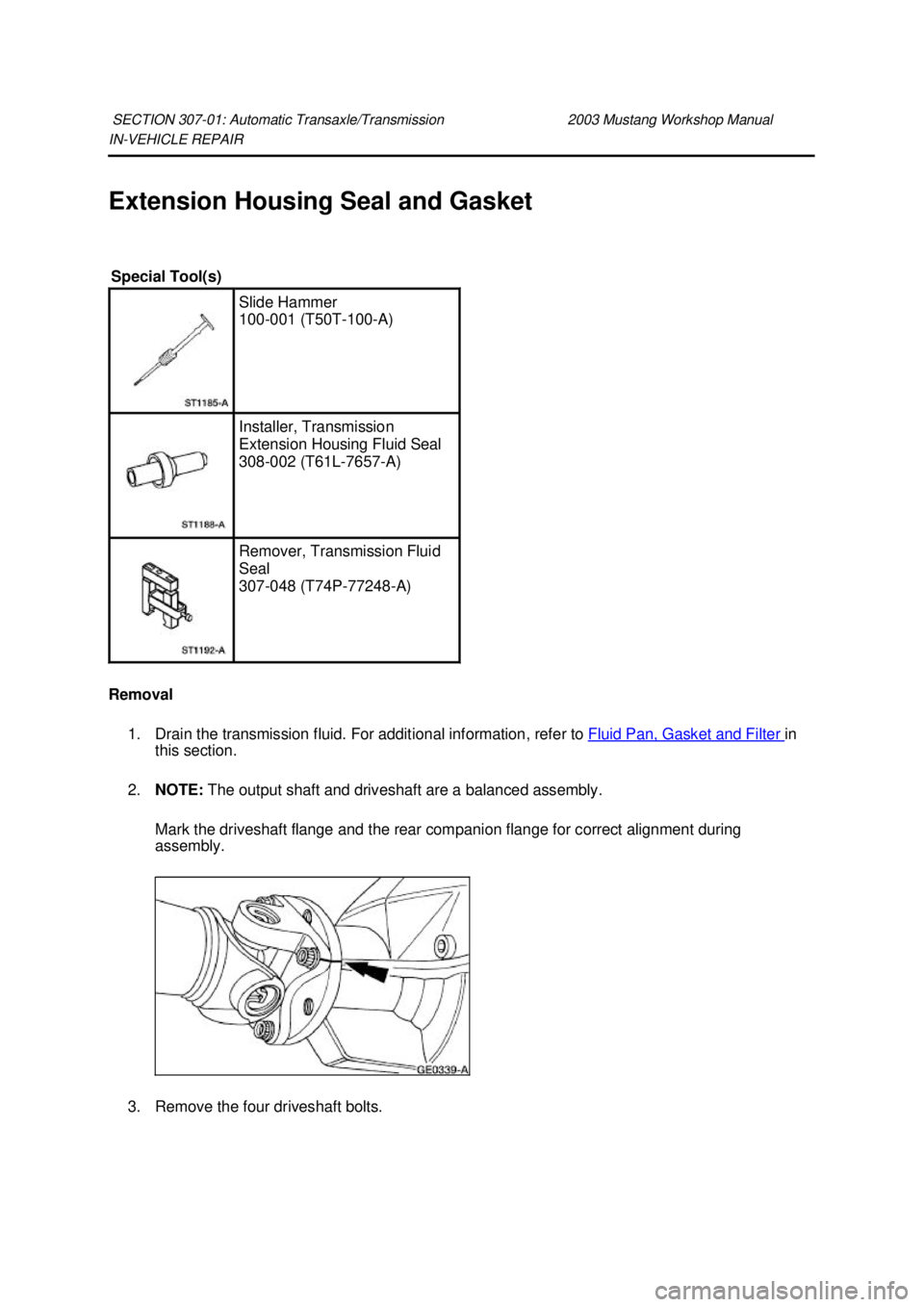

Extension Housing Seal and Gasket
Removal 1. Drain the transmission fluid. For additional information, refer to Fluid Pan, Gasket and Filter in
this section.
2. NOTE: The output shaft and driveshaft are a balanced assembly.
Mark the driveshaft flange and the rear companion flange for correct alignment during
assembly.
3. Remove the four driveshaft bolts.
SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Special Tool(s)
Slide Hammer
100-
001 (T50T-100- A) Installer, Transmission
Extension Housing Fluid Seal
308-
002 (T61L-7657- A) Remover, Transmission Fluid
Seal
307-
048 (T74P-77248- A) Klj . 1 ba
52003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

IN-
VEHICLE REPAIR
Manual Control Lever Shaft and Seal
Removal 1. Drain the transmission fluid and remove the fluid pan and filter. For additional information, refer to Fluid Pan, Gasket and Filter in this section.
2. Disconnect the digital transmission range (TR) sensor electrical connector.
3. Disconnect the transmission shift linkage.
4. Remove the digital TR sensor.
SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Special Tool(s)
Installer, Shift Shaft Fluid Seal
307-
050 (T74P-77498- A) Alignment Gauge, TR Sensor
307-
351 (T97L-70010- A) Klj . 1 ba
62003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

REMOVAL
Transmission
CAUTION: Whenever a transmission has been disassembled to install new parts the
transmission fluid cooler tubes must be cleaned and backflushed. Use a suitable torque
converter/fluid cooler cleaner. If equipped a new oil- to-air cooler must also be installed.
When internal wear or damage has occurred in the transmission, metal particles, clutch plate
material or band material may have been carried into the torque converter and fluid cooler.
These contaminants are a major cause of recurring transmission troubles and must be
removed from the system before the transmission is put back into use.
CAUTION: After transmission is removed for a major overhaul, it is important to
completely clean all transmission components, including torque converter, oil- to-air cooler if
equipped, cooler inlet tube, main control valve body, clutches and all coasting booster valve
shuttle balls after any transmission repair that generates contamination. These contaminants
are a major cause for recurring transmission concerns and must be removed from the system
before the transmission is returned to use.
The cleaning of foreign material from the direct clutch check ball is often omitted. This
omission can lead to repeat repair of the transmission.
If equipped a new oil- to-air cooler must be installed under the following conditions; for
installation refer to Section 307 - 02 .
z Evidence of transmission assembly or fluid contamination is found due to the following
transmission or converter failure modes:
„major metallic failure
„ multiple clutches or clutch plate failures
„ sufficient component wear which results in metallic contamination.
1. Place the transmission range selector lever in NEUTRAL.
2. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 .
3. Raise and support the vehicle. For additional information, refer to Section 100 - 02 .
4. Remove the dual converter Y pipe. For additional information, refer to Section 309 - 00 .
5. Disconnect the transmission harness electrical connector.
SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Special Tool(s)
Retainer, Torque Converter
307-
346 (T97T-7902- A) Klj . 1 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

DISASSEMBLY
Transmission
SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Special Tool(s)
Slide Hammer
100-
001 (T50T-100- A) Holding Fixture, Transmission
307-
003 (T57L- 500-B) Slide Hammer
307-
005 (T59L- 100-B) Remover, Transmission Fluid
Seal
307-
048 (T74P-77248- A) Handle, Torque Converter
307-
091 (T81P-7902- C) Remover, Transmission Fluid
Pump
307-
221 (T89T-70010- A) Remover/Installer, Servo
Piston
307-
251 (T92P-70023- A) Remover, Torque Converter
Fluid Seal Klj . 1 ba
162003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES
Pump and Intermediate Clutch Piston
Pump and Intermediate Clutch Piston —
Disassembled View
SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Special Tool(s)
Installer, Front Pump Fluid
Seal
307-
014 (T63L-77837- A) Protector, Piston Seal
307-
339 (T95L-77005- A) Item Part Number Description
1 7902 Torque converter
2 7A248 Front pump O-
ring 3 N605789-S101 Bolt
4 — Pump body assembly
5 N605787-S1000 Front pump support bolt
6 7D014 No. 1 pump support thrust washer
7 7D020 Reverse clutch cylinder seal
8 7D019 Forward clutch cylinder seal
9 7E005 Intermediate clutch piston
10 7F224 Intermediate clutch piston outer seal Klj . 1 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

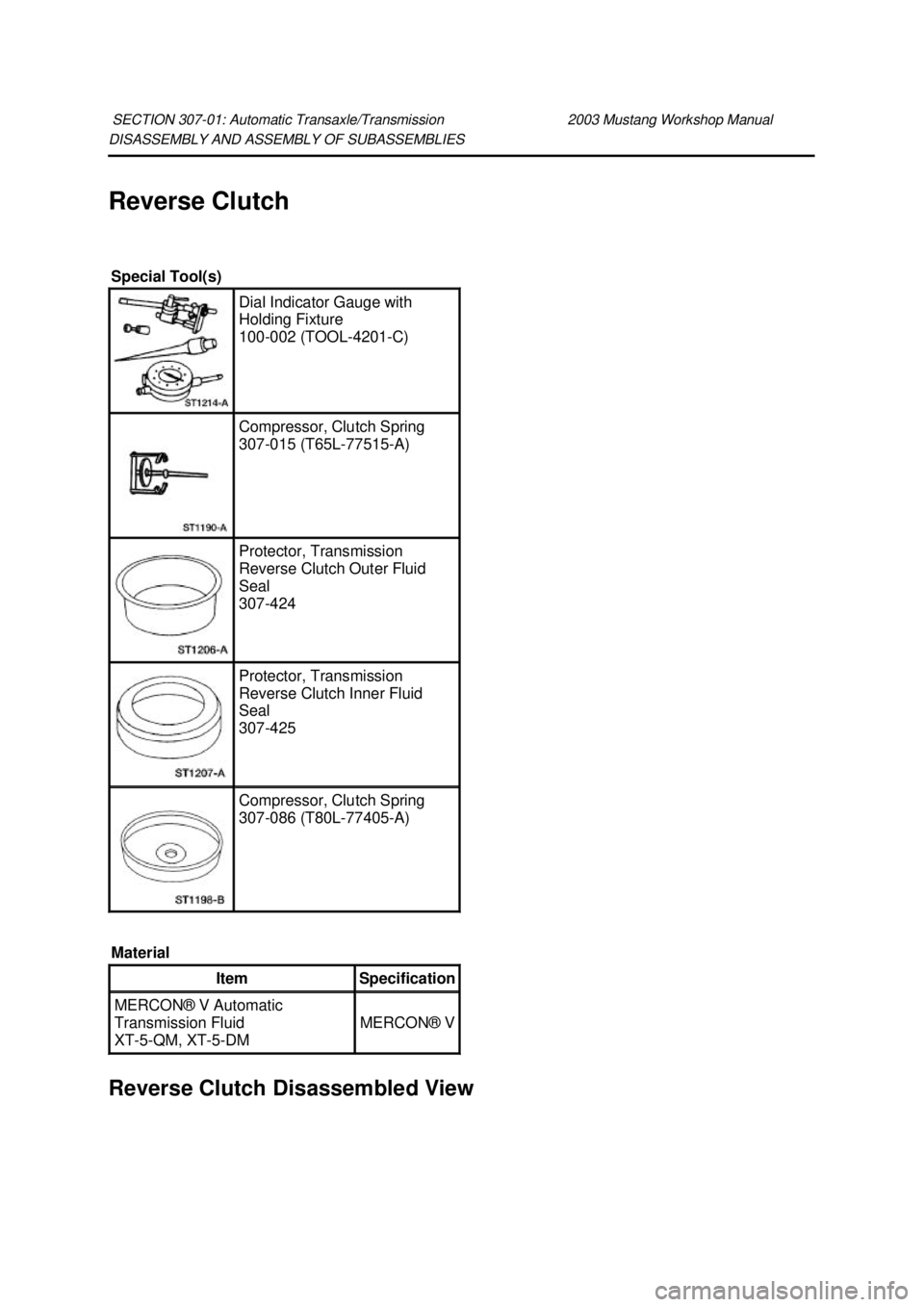

DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES
Reverse Clutch
Reverse Clutch Disassembled View SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Special Tool(s)
Dial Indicator Gauge with
Holding Fixture
100-
002 (TOOL- 4201-C) Compressor, Clutch Spring
307-
015 (T65L-77515- A) Protector, Transmission
Reverse Clutch Outer Fluid
Seal
307-
424 Protector, Transmission
Reverse Clutch Inner Fluid
Seal
307-
425 Compressor, Clutch Spring
307-
086 (T80L-77405- A)
Material Item Specification
MERCON® V Automatic
Transmission Fluid
XT
-5-QM, XT -5-DM MERCON® V Klj . 1 ba
92003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

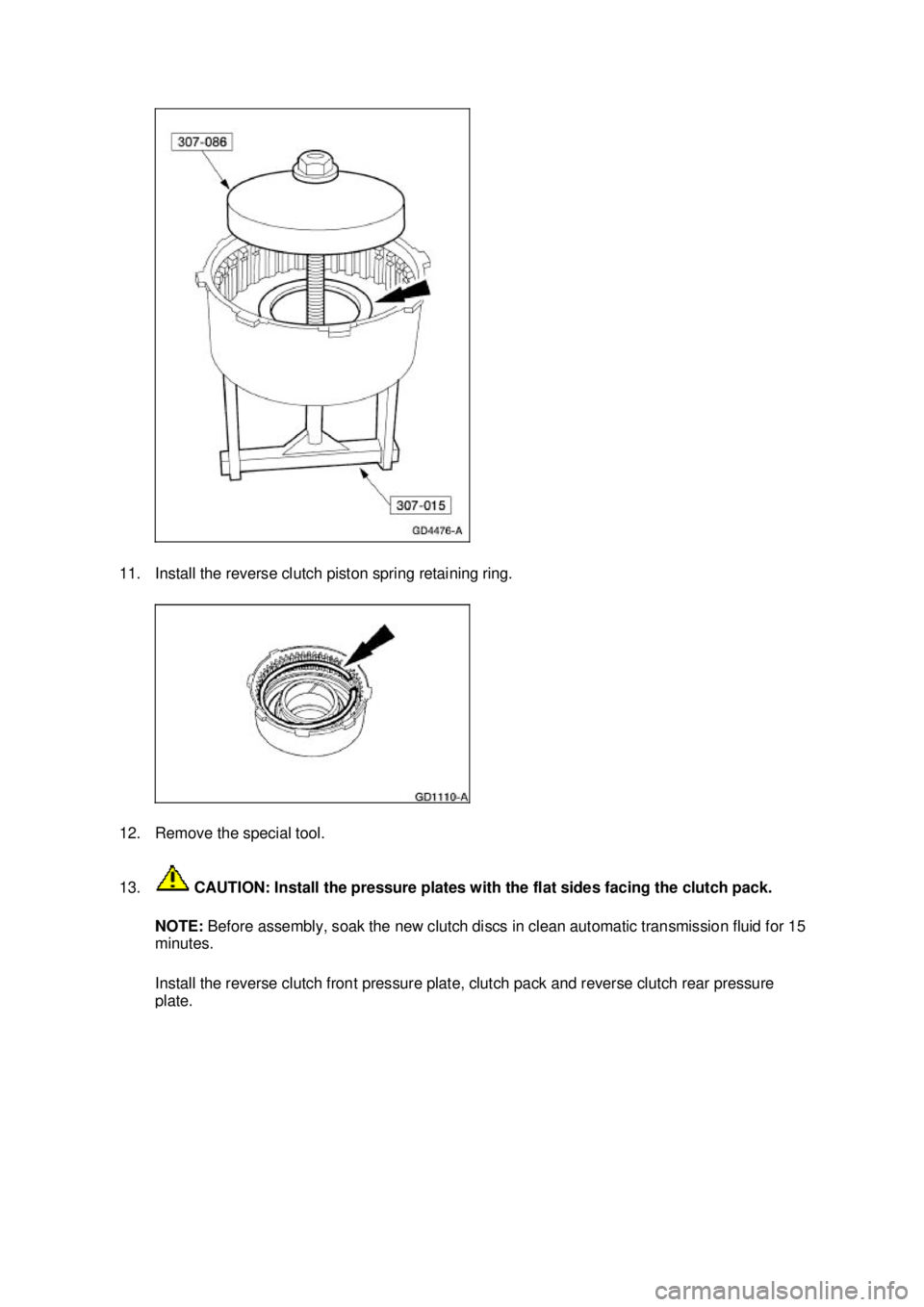

11. Install the reverse clutch piston spring retaining ring.
12. Remove the special tool.
13.
CAUTION: Install the pressure plates with the flat sides facing the clutch pack.
NOTE: Before assembly, soak the new clutch discs in clean automatic transmission fluid for 15
minutes.
Install the reverse clutch front pressure plate, clutch pack and reverse clutch rear pressure plate. Klj . 7 ba
92003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

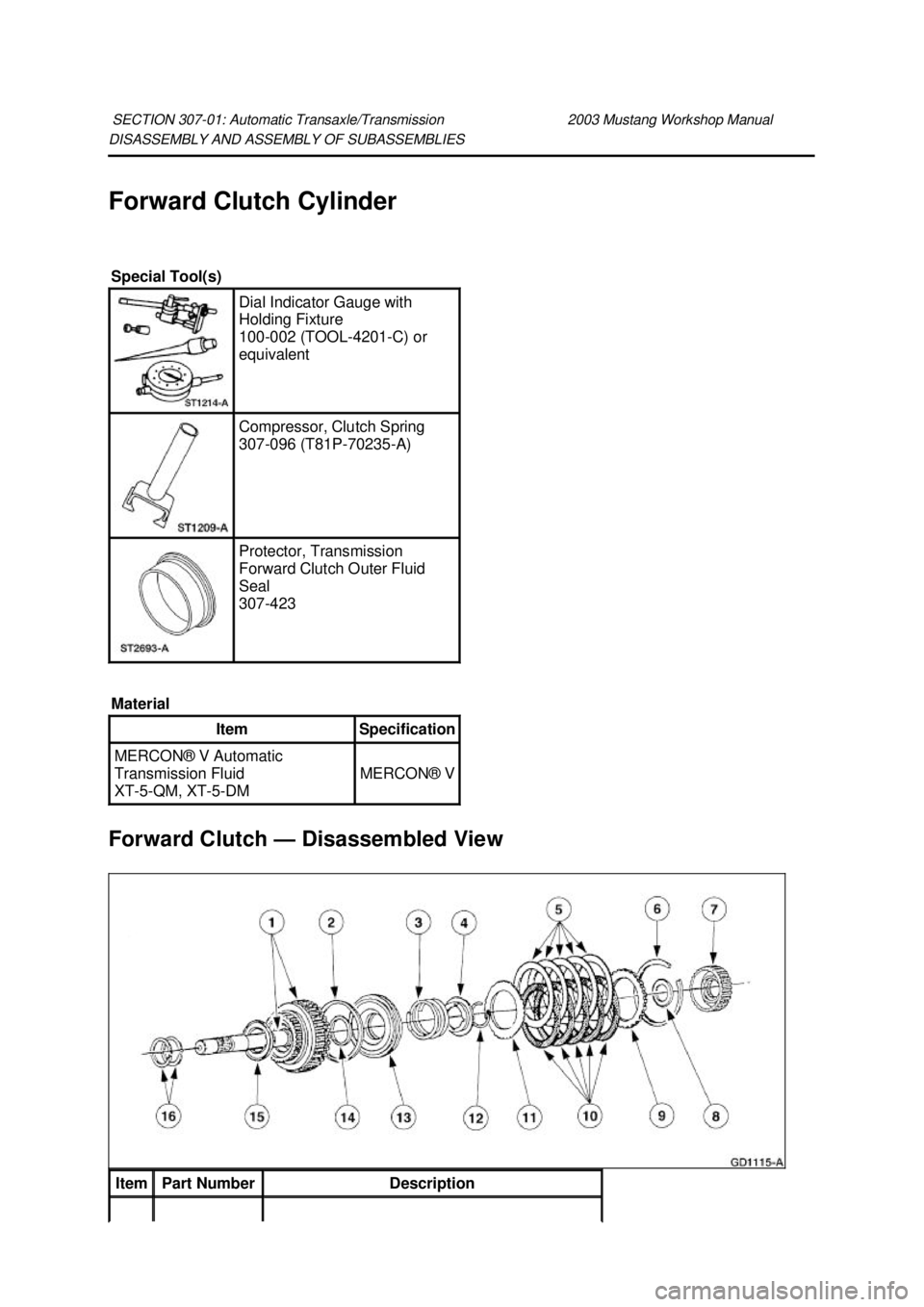

DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES
Forward Clutch Cylinder
Forward Clutch —
Disassembled View
SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Special Tool(s)
Dial Indicator Gauge with
Holding Fixture
100-
002 (TOOL- 4201-C) or
equivalent Compressor, Clutch Spring
307-
096 (T81P-70235- A) Protector, Transmission
Forward Clutch Outer Fluid
Seal
307-
423
Material Item Specification
MERCON® V Automatic
Transmission Fluid
XT
-5-QM, XT -5-DM MERCON® V
Item Part Number Description Klj . 1 ba
92003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

12.
NOTE: Before assembly, soak the new clutch discs in clean automatic transmission fluid for 15
minutes.
Install the clutch pack assembly. 1. Install the pressure ring.
2. Install the clutch pack.
3. Install the pressure plate.
13. Install the clutch pack retaining ring.
14. Install the special tool on the forward clutch pack. zPush downward on the clutch pack.
z Release pressure and zero the dial indicator.
15. Using the special tool, check the clutch pack clearance. 1. Lift up on the clutch pack until it fully seats against the clutch pressure plate retainer.
2. Read the dial indicator.
„If the clearance is not within specifications, install the correct size retaining ring. Selective Retaining Ring
Specification Klj . 7 ba
92003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

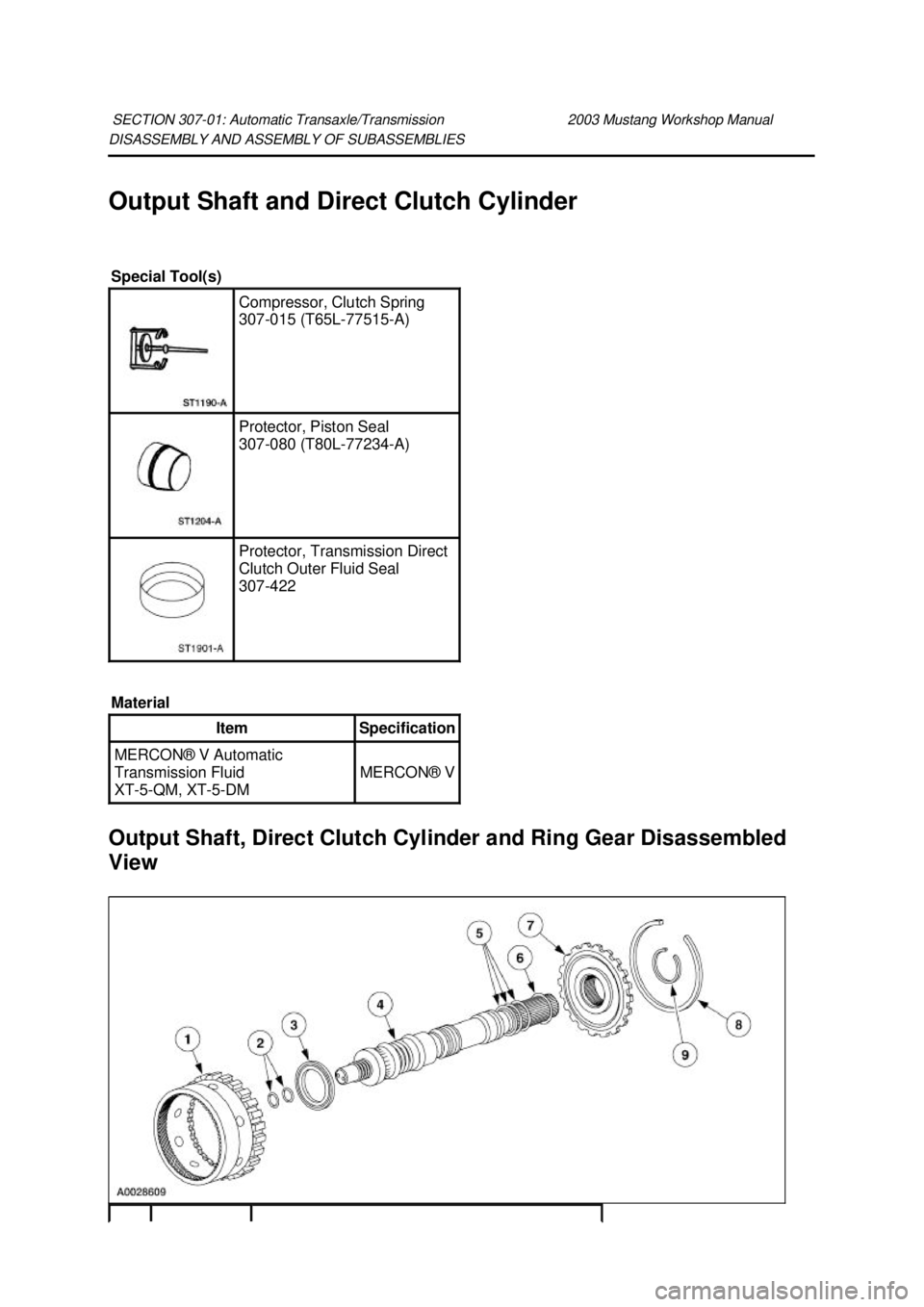

DISASSEMBLY AND ASSEMBLY OF SUBASSEMBLIES
Output Shaft and Direct Clutch Cylinder
Output Shaft, Direct Clutch Cylinder and Ring Gear Disassembled
View
SECTION 307-
01: Automatic Transaxle/Transmission 2003 Mustang Workshop Manual Special Tool(s)
Compressor, Clutch Spring
307-
015 (T65L-77515- A) Protector, Piston Seal
307-
080 (T80L-77234- A) Protector, Transmission Direct
Clutch Outer Fluid Seal
307-
422
Material Item Specification
MERCON® V Automatic
Transmission Fluid
XT
-5-QM, XT -5-DM MERCON® V Klj . 1 ba
